Compressor Wireless Vibration Monitoring System for Predictive Maintenance
Compressor Wireless Vibration Monitoring System for Predictive Maintenance
Compressor Wireless Vibration Monitoring System for Predictive Maintenance
Compressor Wireless Vibration Monitoring System for Predictive Maintenance
Compressor Wireless Vibration Monitoring System for Predictive Maintenance
1 / 5
Compressor Wireless Vibration Monitoring System for Predictive Maintenance
Compressor Wireless Vibration Monitoring System for Predictive Maintenance
Compressor Wireless Vibration Monitoring System for Predictive Maintenance
Compressor Wireless Vibration Monitoring System for Predictive Maintenance
Compressor Wireless Vibration Monitoring System for Predictive Maintenance

Compressor Wireless Vibration Monitoring System for Predictive Maintenance

Type: Piezoelectric
Output Signal Type: Digital Output
Measuring Shaft Quantities: Single
Send Inquiry

Product Description

Basic Info.

Model NO.:RH560
Accuracy Grade:0.1g
IP Rating:IP67
Certification:CE
Customized:Non-Customized
Specification:188g
Origin:China
HS Code:9031809090
Production Capacity:2000/Month

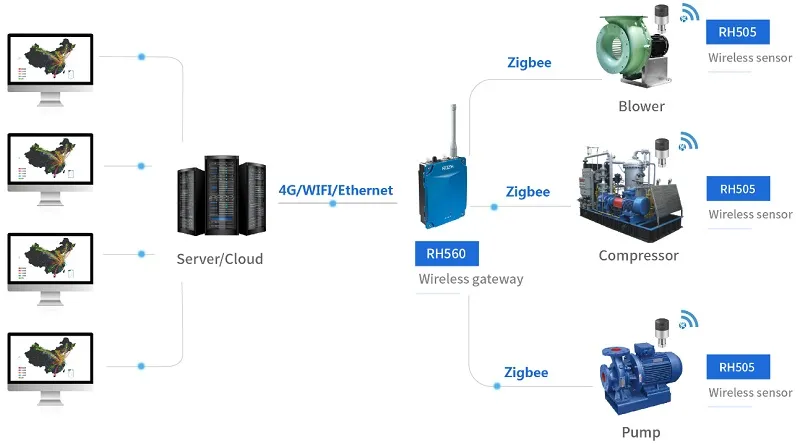

Working Diagram

Working Diagram

System Features

✔ All channels synchronous collection
✔ One sensor collects both vibration and temperature
✔ Alarm SMS/EMAIL for both vibration and temperature data
✔ Intelligent alarm: minimal sampling value(RMS) interval 5min
✔ Wireless work mode, no wiring cost, Easy to Install
✔ Multiple communication options and 2 years battery life
✔ Secure installation with magnet base and M6 bolt
✔ Integrated design: acceleration, velocity, displacement and temperature

Technical Parameters

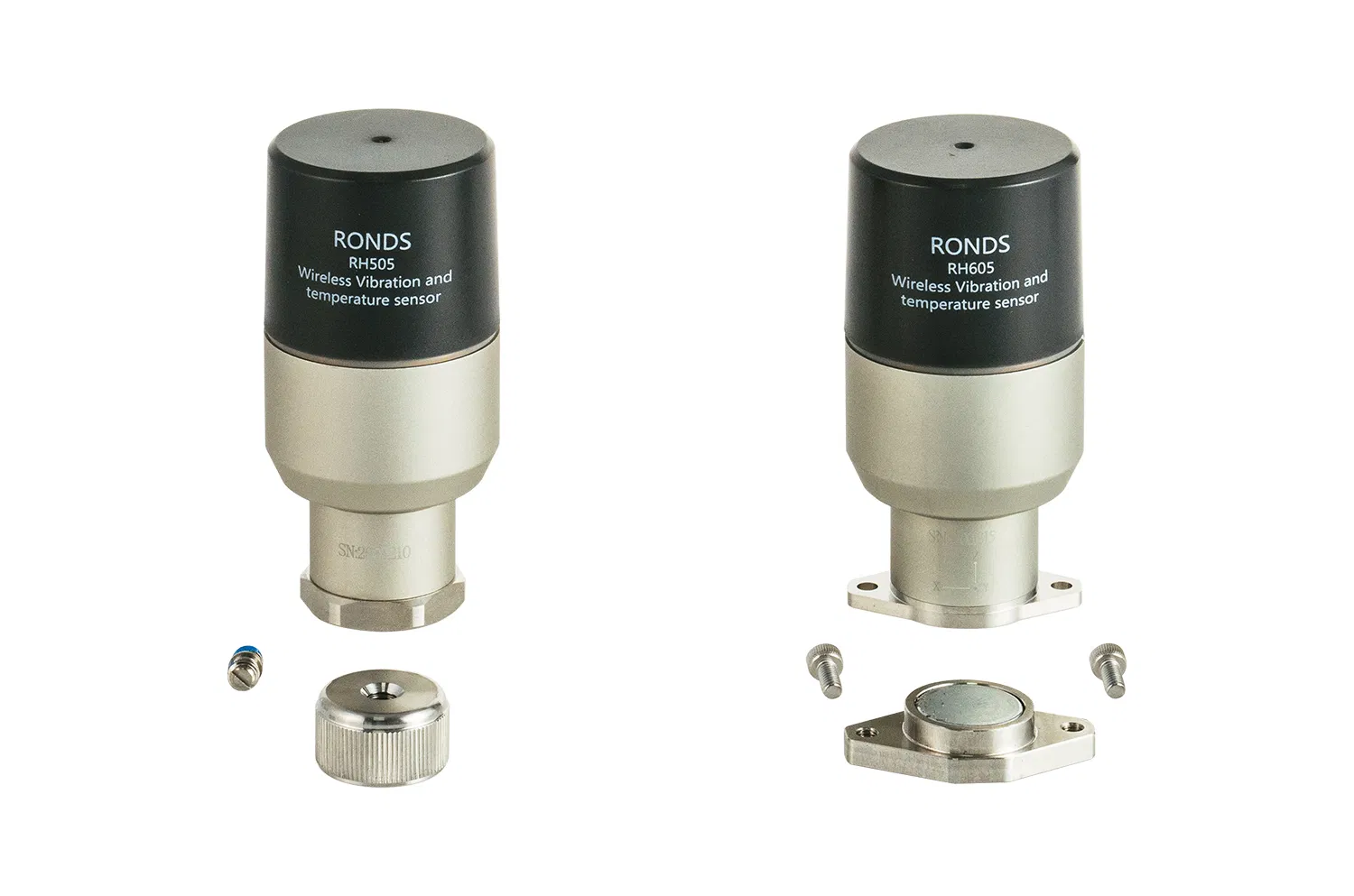

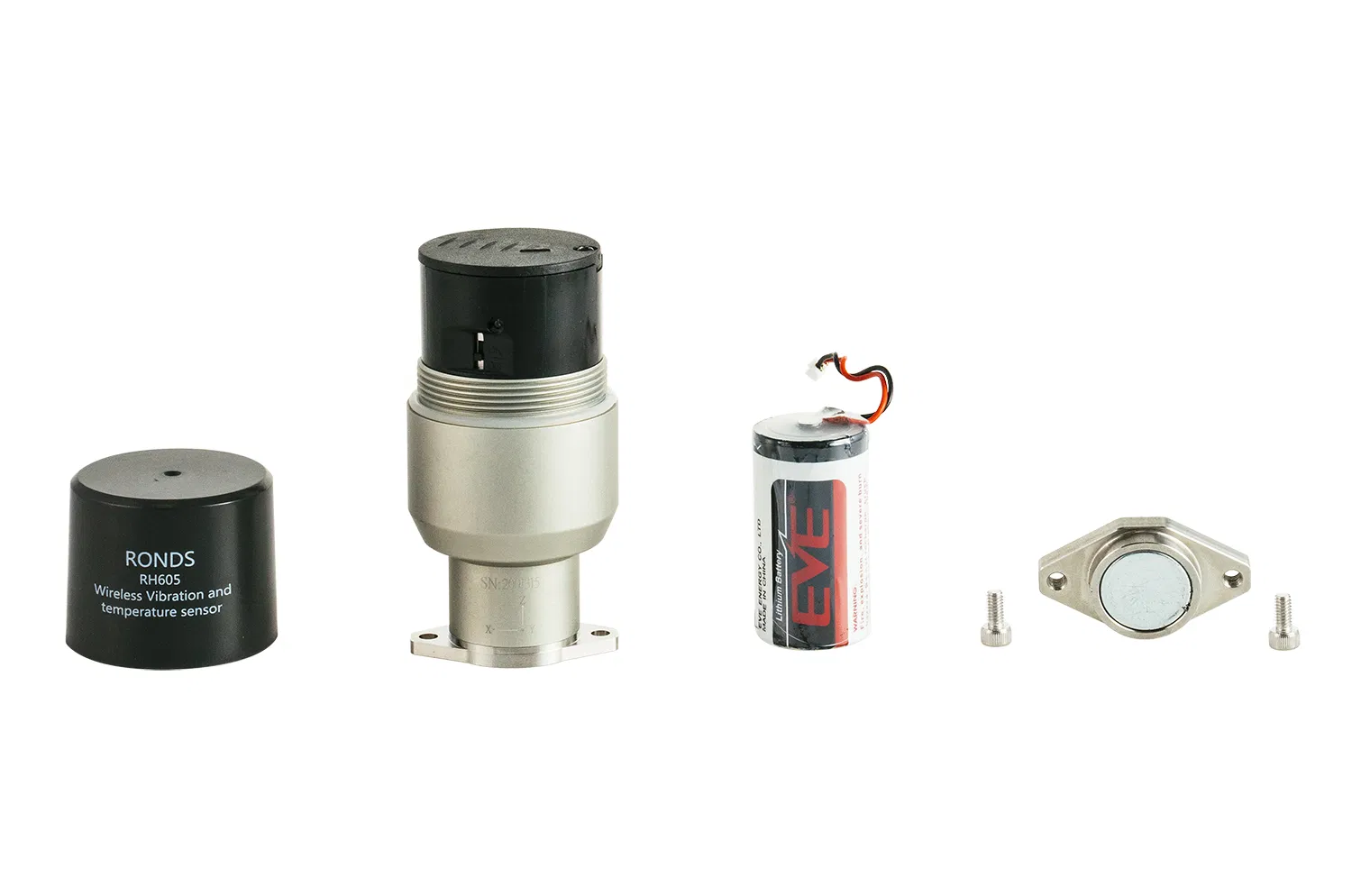

Triaxial RH605 Wireless Sensor
Vibration Measurement
Vibration RangePiezoelectric: ±50 g | MEMS: ±16 g
Linearity1%
Frequency Range (±3dB)Piezoelectric: 2Hz-20000Hz | MEMS: 2-1000Hz
Temperature Range-40 ~ 125 ºC (Accuracy ±1 ºC)
IP GradeIP68
One Axial RH505 Wireless Sensor
Vibration Range±50 g
Frequency Range2 ~ 20kHz
Sampling Rate1280Hz ~ 51.2kHz
BatteryLithium battery, 3.6V, 3.3Ah
Dimensions46 mm × 94 mm

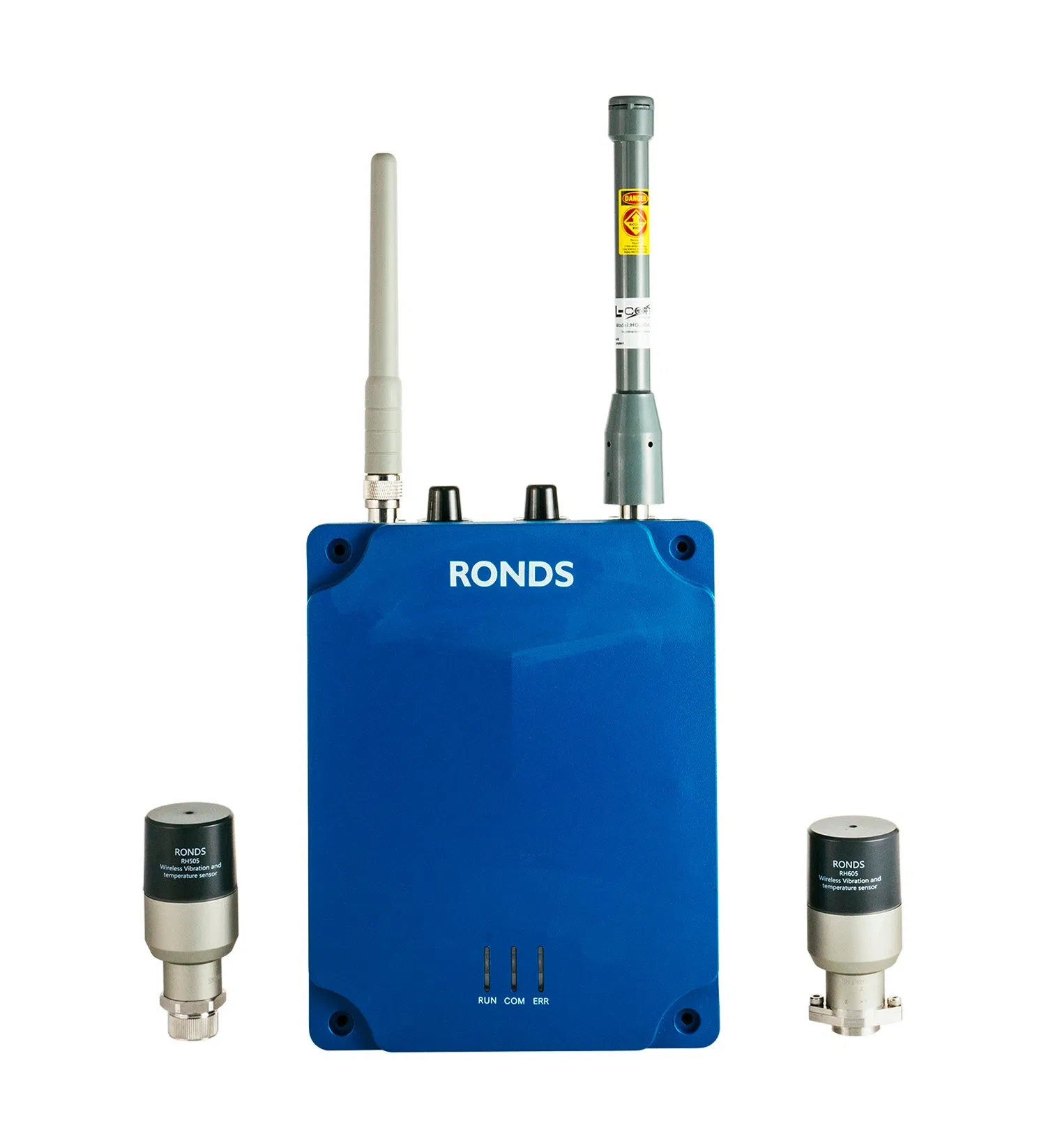

RH560 Wireless Data Collector
Communication2.4GHz IEEE 802.15.4
Sensor Capacity30~60 units per collector
Power Supply220V AC
Working Temp-40 ~ 70 °C
IP GradeIP66

Software & Site Installation

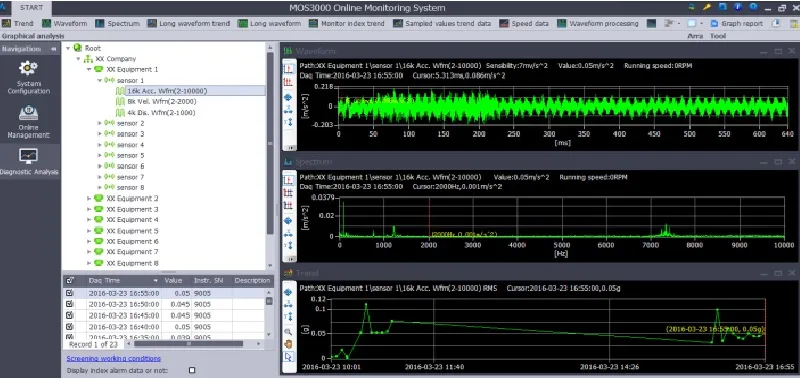

Software Interface

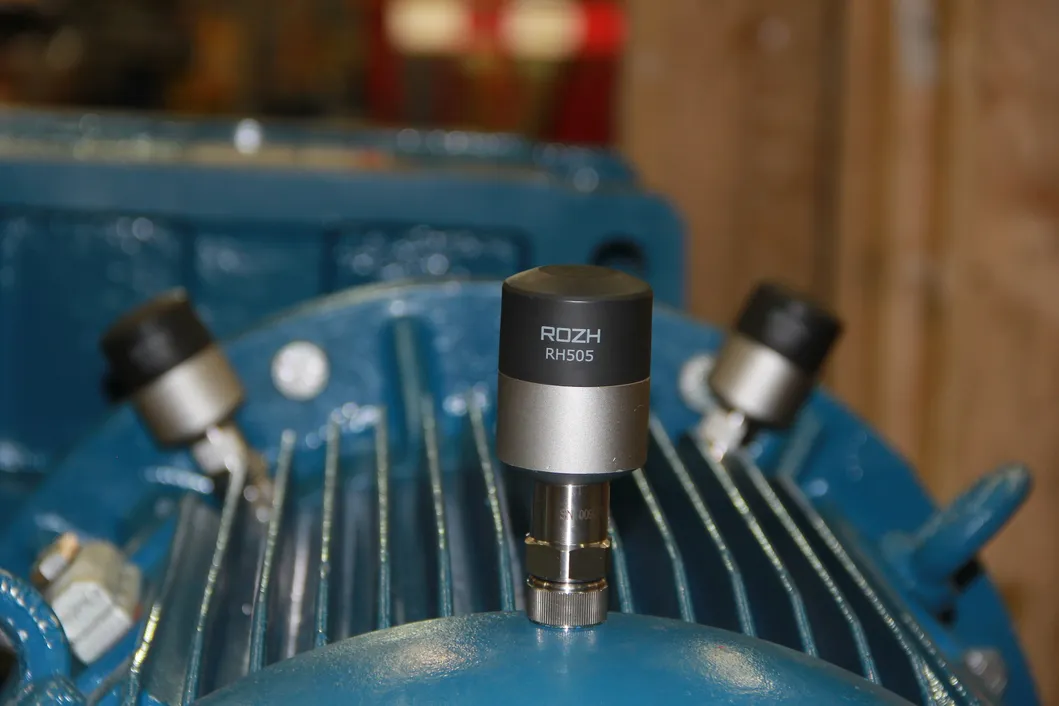

Site Installation 1

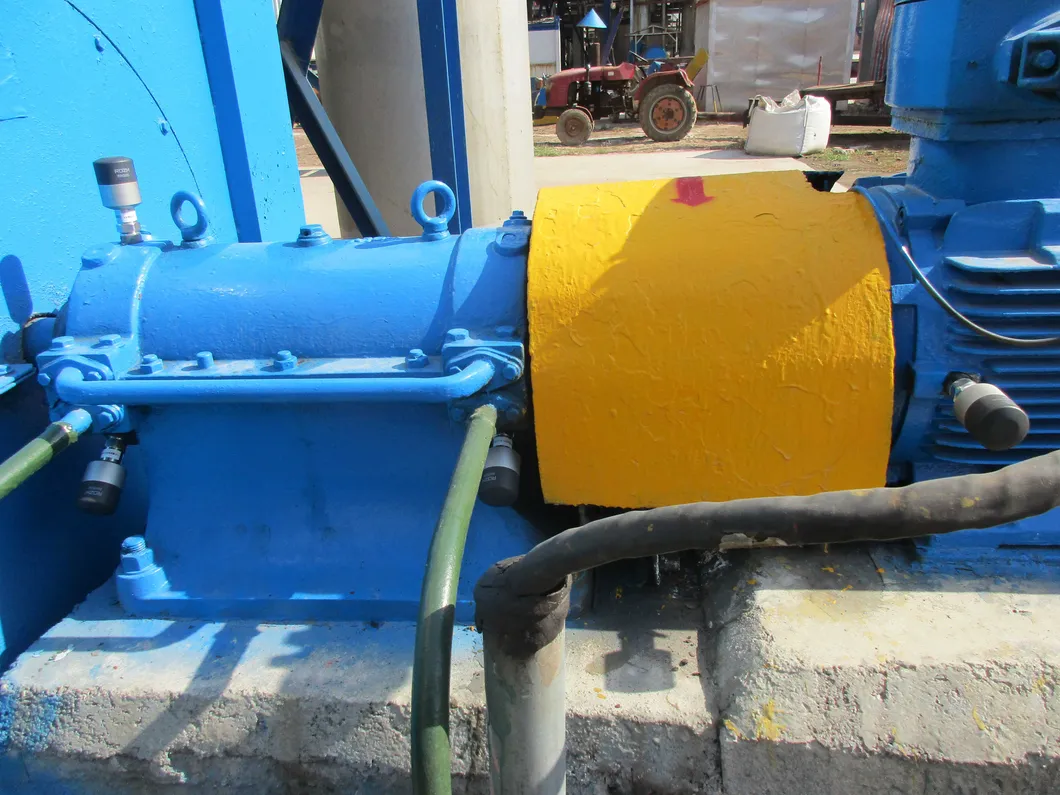

Site Installation 2

Application Industrial Fields

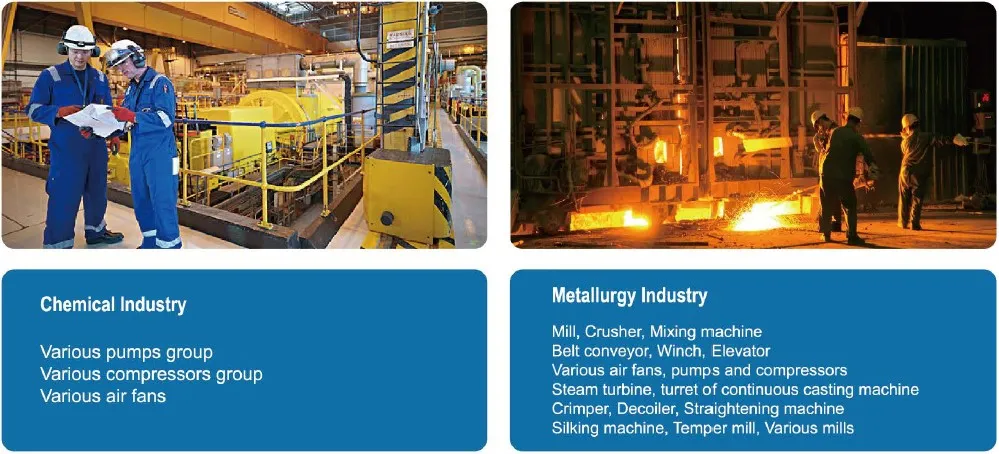

Application Field 1

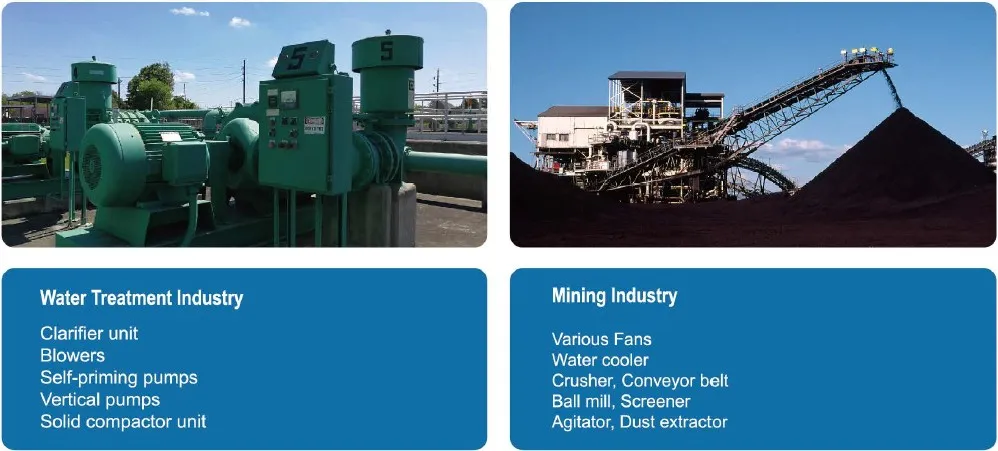

Application Field 2

Global Market Performance

Global Performance Map

Frequently Asked Questions

What are the main benefits of using a wireless vibration monitoring system?
The system eliminates the need for expensive signal cabling, provides synchronous data collection for both vibration and temperature, and allows for 24/7 predictive maintenance with intelligent remote alarms.
How long does the sensor battery last?
The wireless sensors are equipped with high-capacity lithium-thionyl chloride batteries, providing a battery life of approximately 2 years under standard operating conditions.
What communication protocol is used for data transmission?
The system utilizes the 2.4GHz IEEE 802.15.4 wireless communication protocol, ensuring stable and secure data transfer between the sensors and the data collector.
Is the equipment suitable for harsh industrial environments?
Yes, the sensors feature IP67/IP68 ratings and are designed to operate in temperatures ranging from -40ºC to 70ºC, making them ideal for challenging site conditions.
How many sensors can one RH560 collector handle?
One RH560 wireless data collector can connect and manage between 30 to 60 sensor units, depending on the specific application environment and signal requirements.
What types of alarms are supported by the software?
The system supports intelligent alarms for both vibration and temperature data, which can be sent directly to users via SMS or Email for immediate notification.
