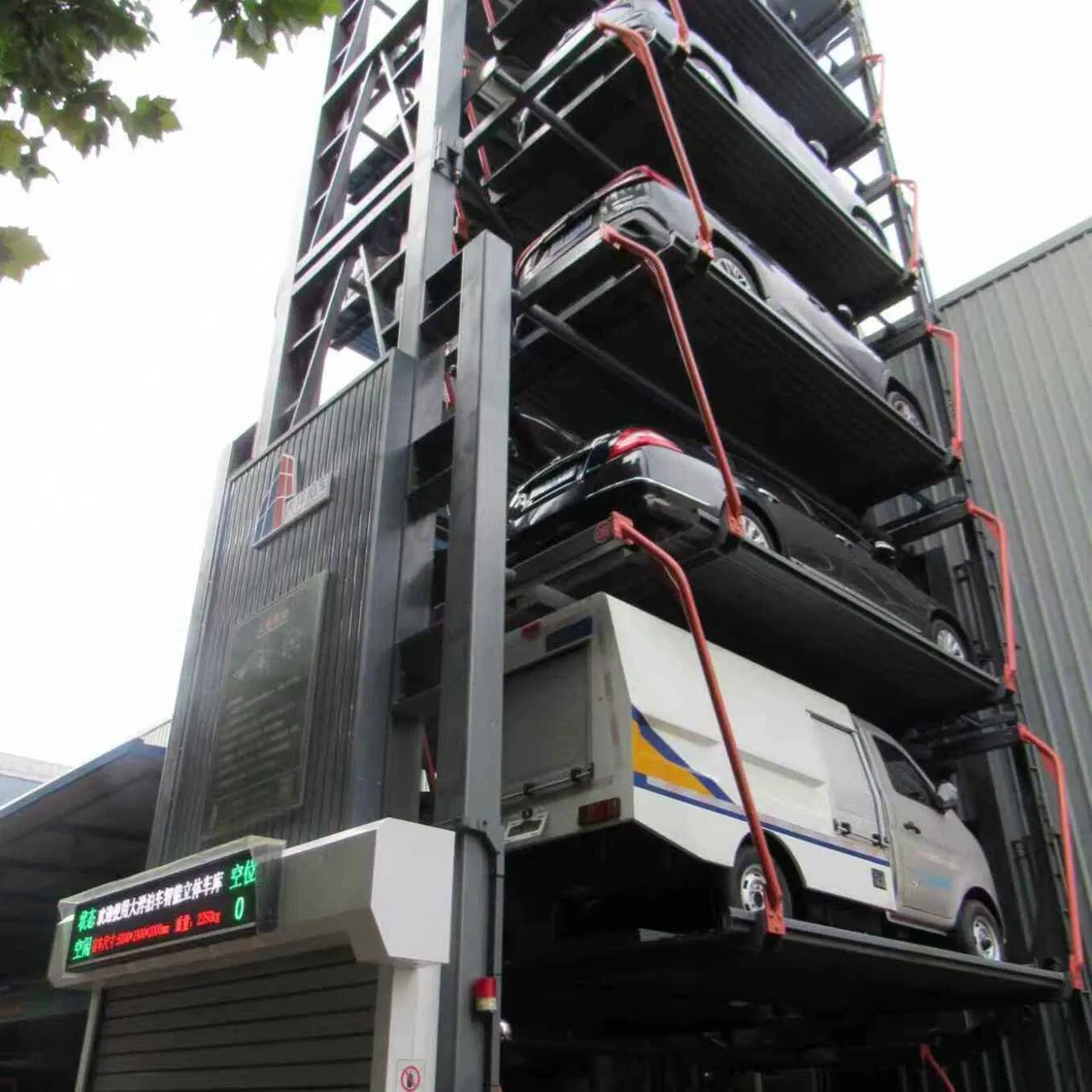

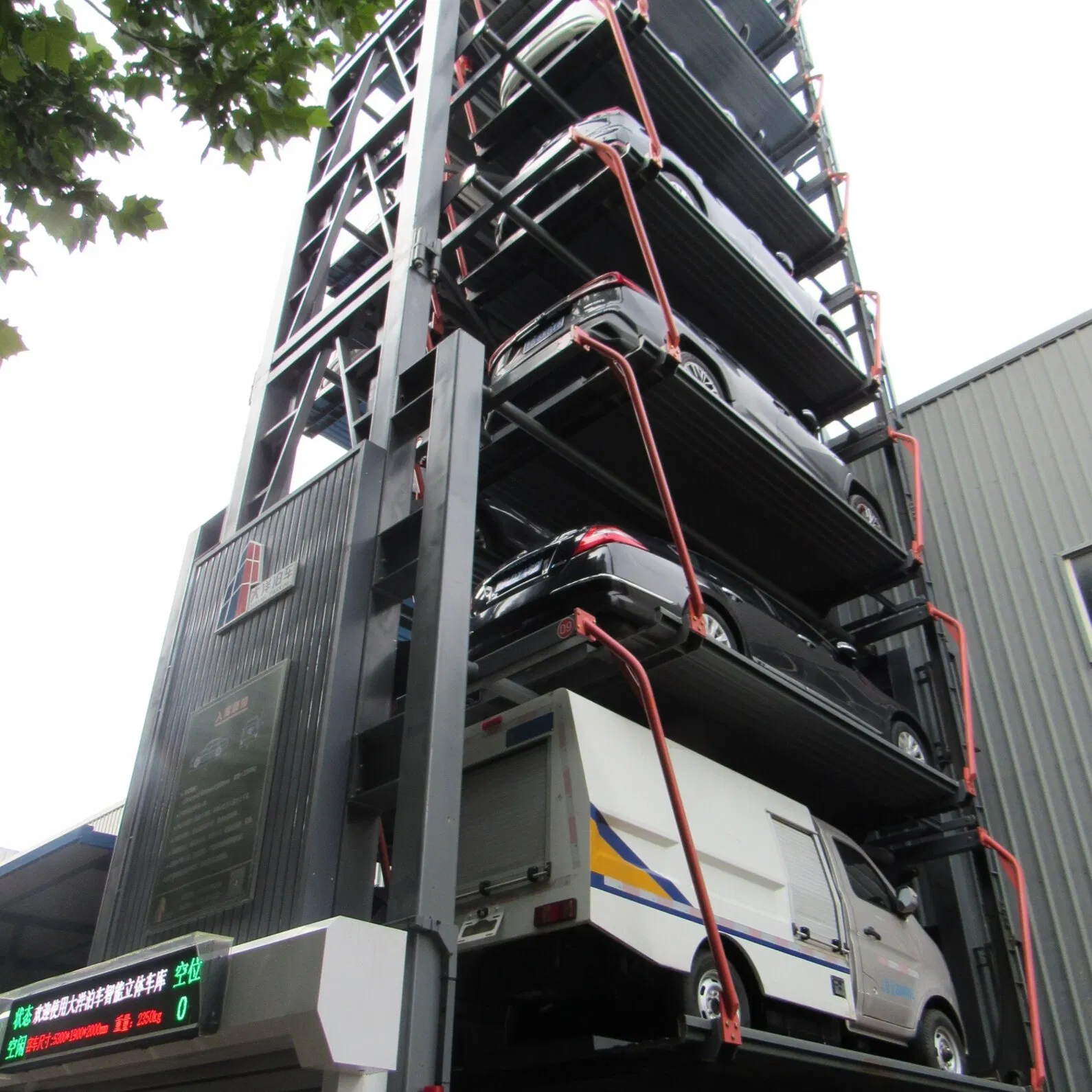

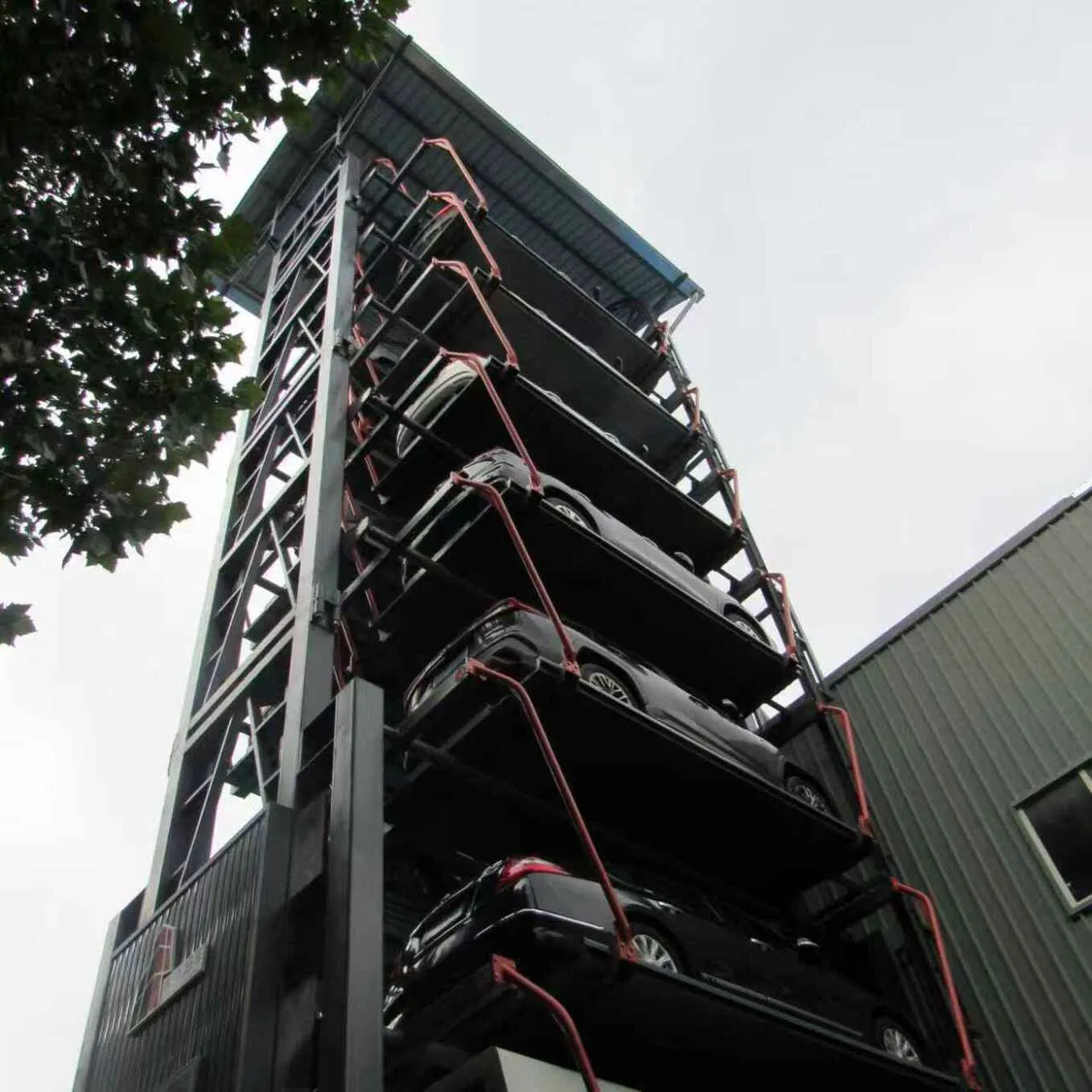

Advanced Nine Floor Vertical Rotary Parking System with Predictive Maintenance for SUV Usage

Customization: Available
Level: 10-17 Levels
Parking Post: 9-24 Posts

Product Description

Product Overview

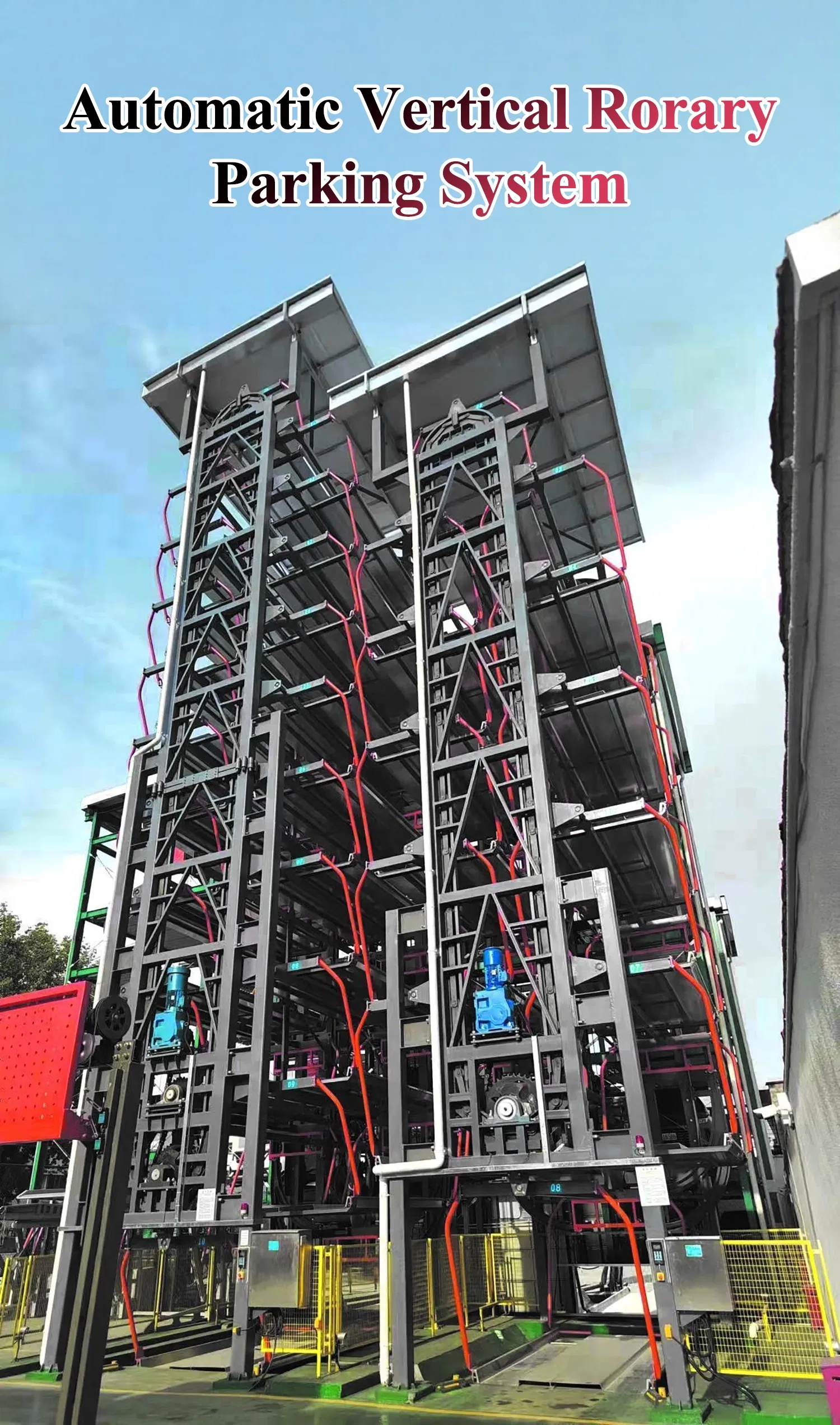

Vertical Rotary Parking System Banner
Model NO.PCX-9
CompatibilitySUVs
Control SystemTouch Screen Control
InstallationAboveground
Lifting MechanismMechanical
Load Capacity3000kg
Operation ModeFully Automatic
TypeSemi-Automated Parking System
Product Name9 Story Vertical Rotary Parking System for SUVs
Vehicle Dimensions5300*1900*2050 mm
Lifting Speed4.5-8 M/Min
Access Time90s
Technical Specifications
Drive Mode Motor and Chain
Car Capacity 9 storeys, SUV ≤ 5300×1900×2050 mm
Car Weight ≤ 2350kg
Power & Speed Lifting: 22kw | 6.9m/min
Access Method Forward inbound, reverse outbound
Safety Features Anti-Collision Sensors, Emergency Stop, Fire Suppression, Overload Protection

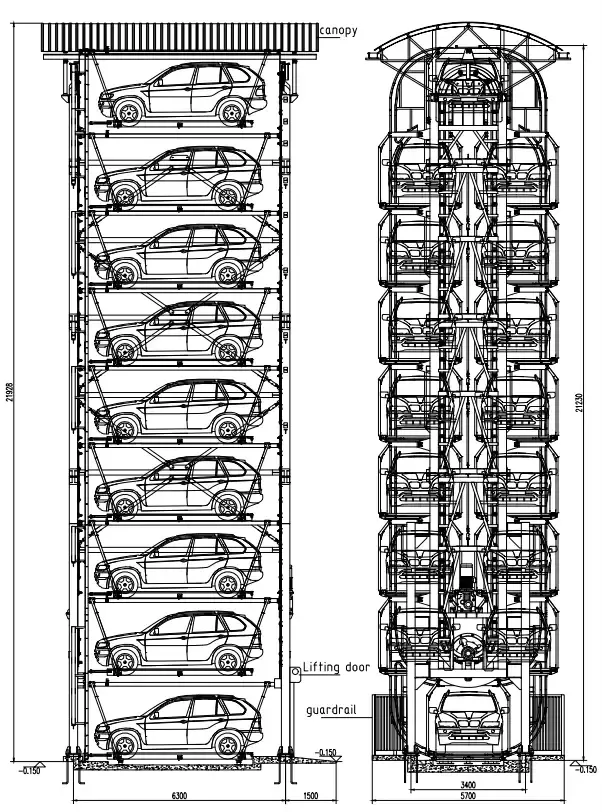

System Dimensions
Key Advantages
01

Ultimate Space Utilization

Minimal Land Footprint: Requires only the space of one standard parking spot, accommodating 8, 10, or more vehicles. Revolutionary for city centers.

Multiplied Capacity: Effectively alleviates parking difficulty by increasing capacity several times over traditional ground parking.

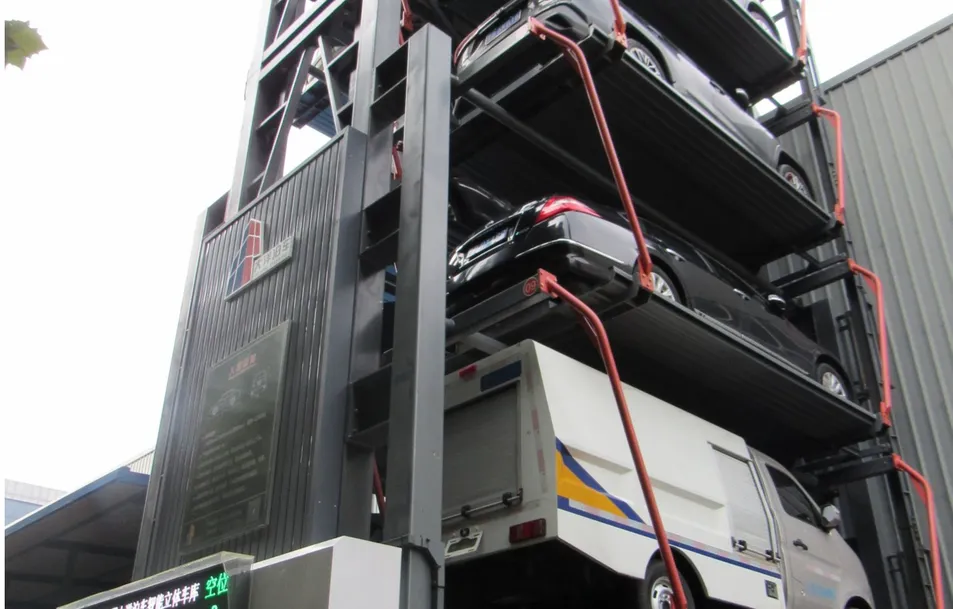

Space Optimization
02

High Automation & Convenience

Smart Operation: Automatic transport to available spaces via button, card, or mobile app. Retrieval takes 1-2 minutes.

No Space Searching: Eliminates the hassle of searching in large lots, saving significant time and effort.

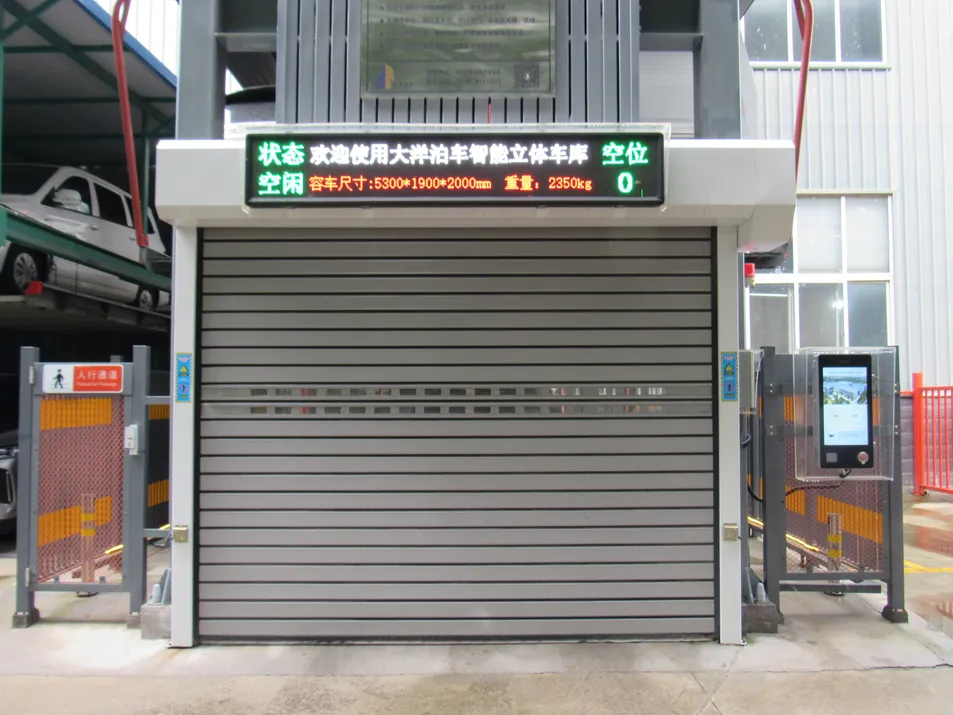

Automation Interface
03

Exceptional Safety

Separation of People & Vehicles: Personnel do not enter the parking area, preventing collisions and accidents.

Vehicle Protection: Enclosed design reduces risks of scratches, theft, or vandalism. Equipped with mechanical locking and emergency systems.

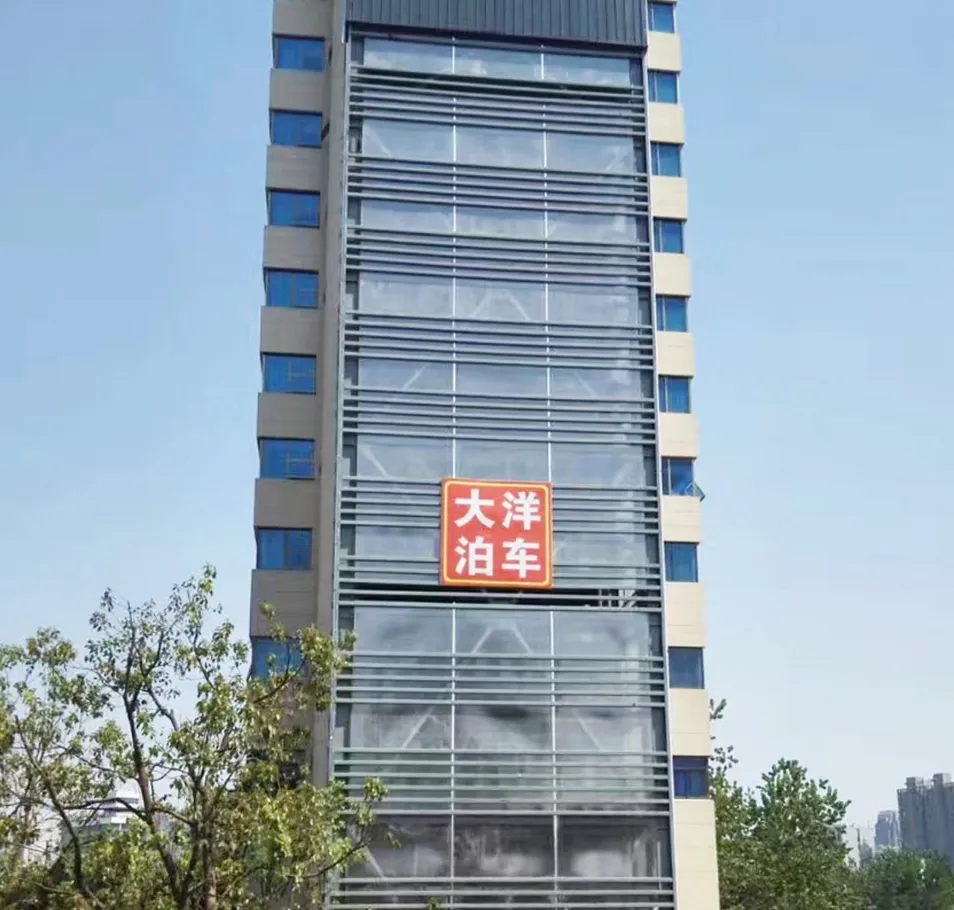

Safety Mechanism
04

Environmental Sustainability

Lower Emissions: Reduced entry/exit times cut exhaust emissions, improving local air quality.

Urban Aesthetics: Modern design serves as a visual highlight in urban landscapes compared to traditional lots.

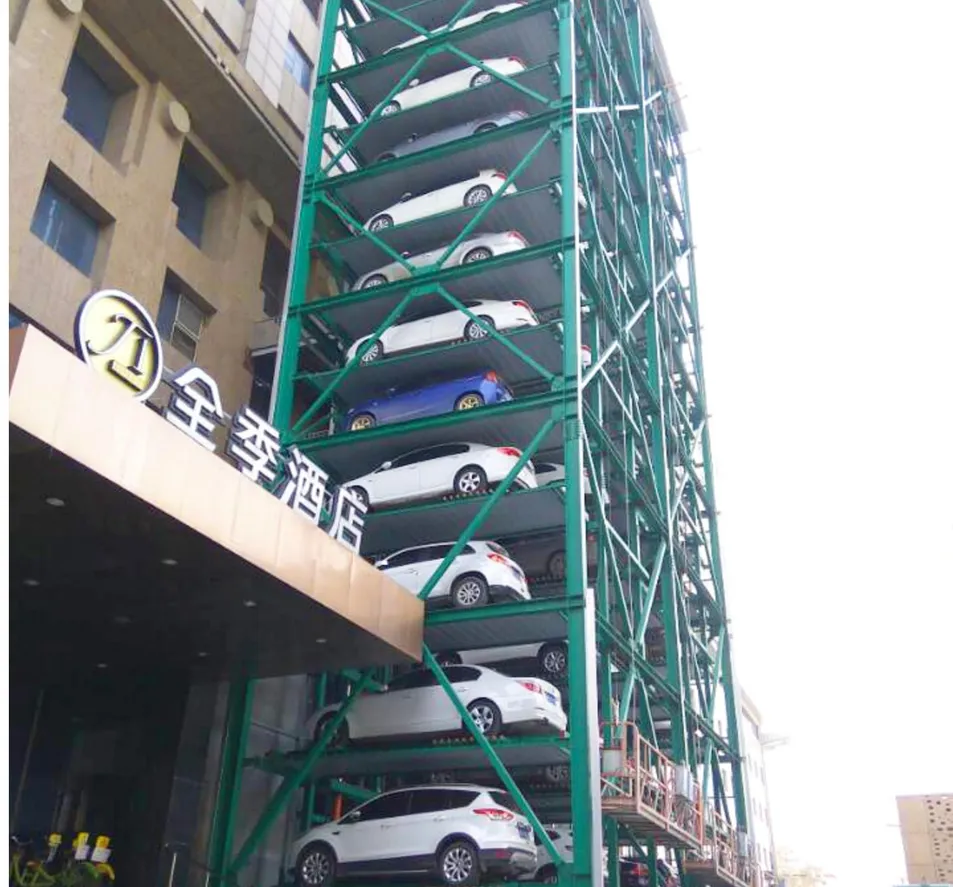

Sustainability
05

Excellent Adaptability

Wide Application: Suitable for hotels, office buildings, residential areas, shopping malls, and hospitals.

Customized Solutions: Personalized capacities, heights, and appearances tailored to site space conditions.

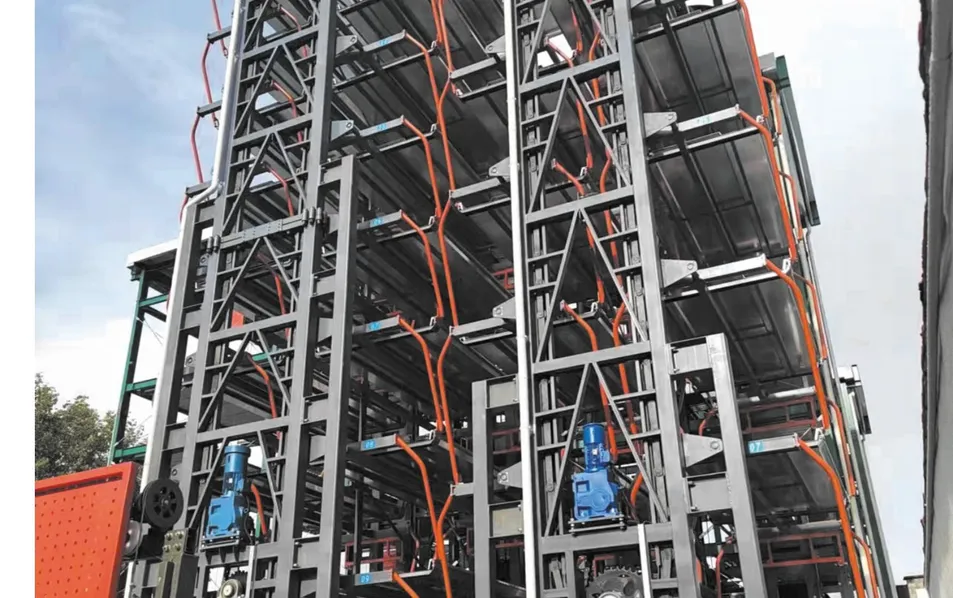

Flexibility
Global Projects

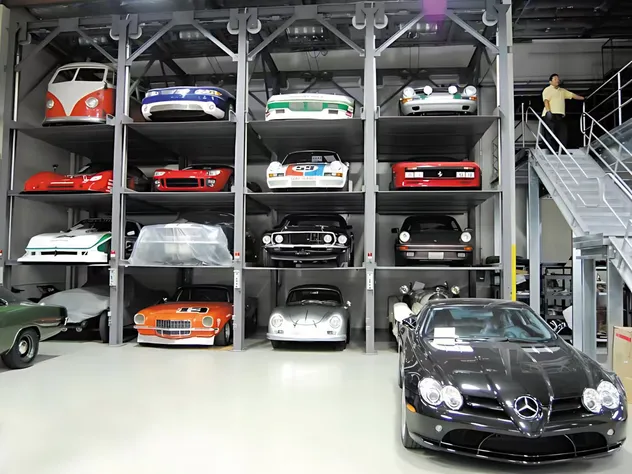

United States Project
United States Parking Project
Vertical Horizontal System | 38 Spaces

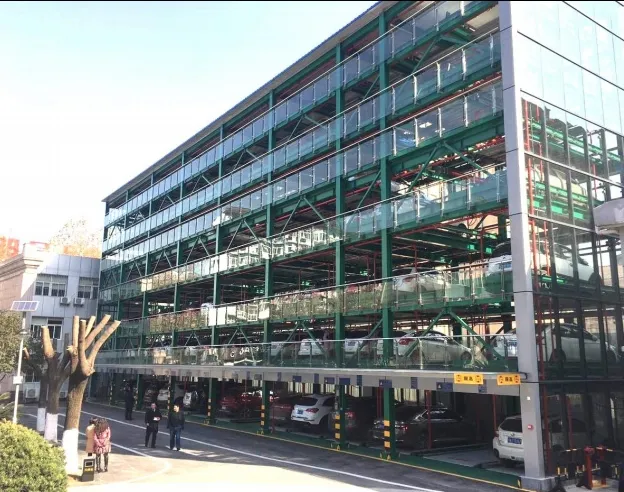

Saudi Arabia Project
Saudi Arabia Parking Project
2 Floor System | 926 Spaces

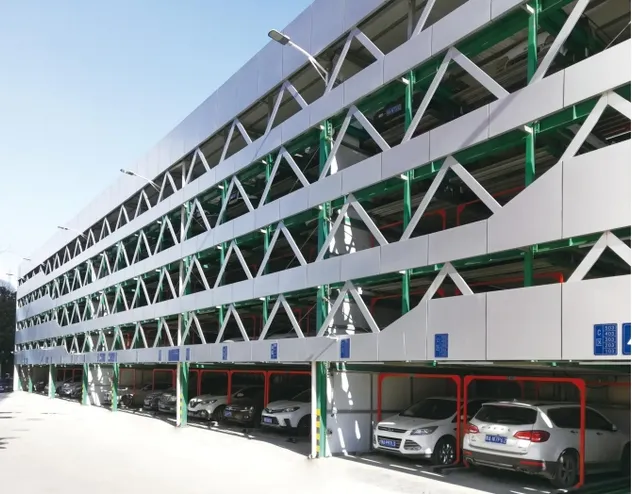

Construction Committee Project
Construction Committee Project
5 Floor Smart System | 1,338 Spaces
Production & Facility

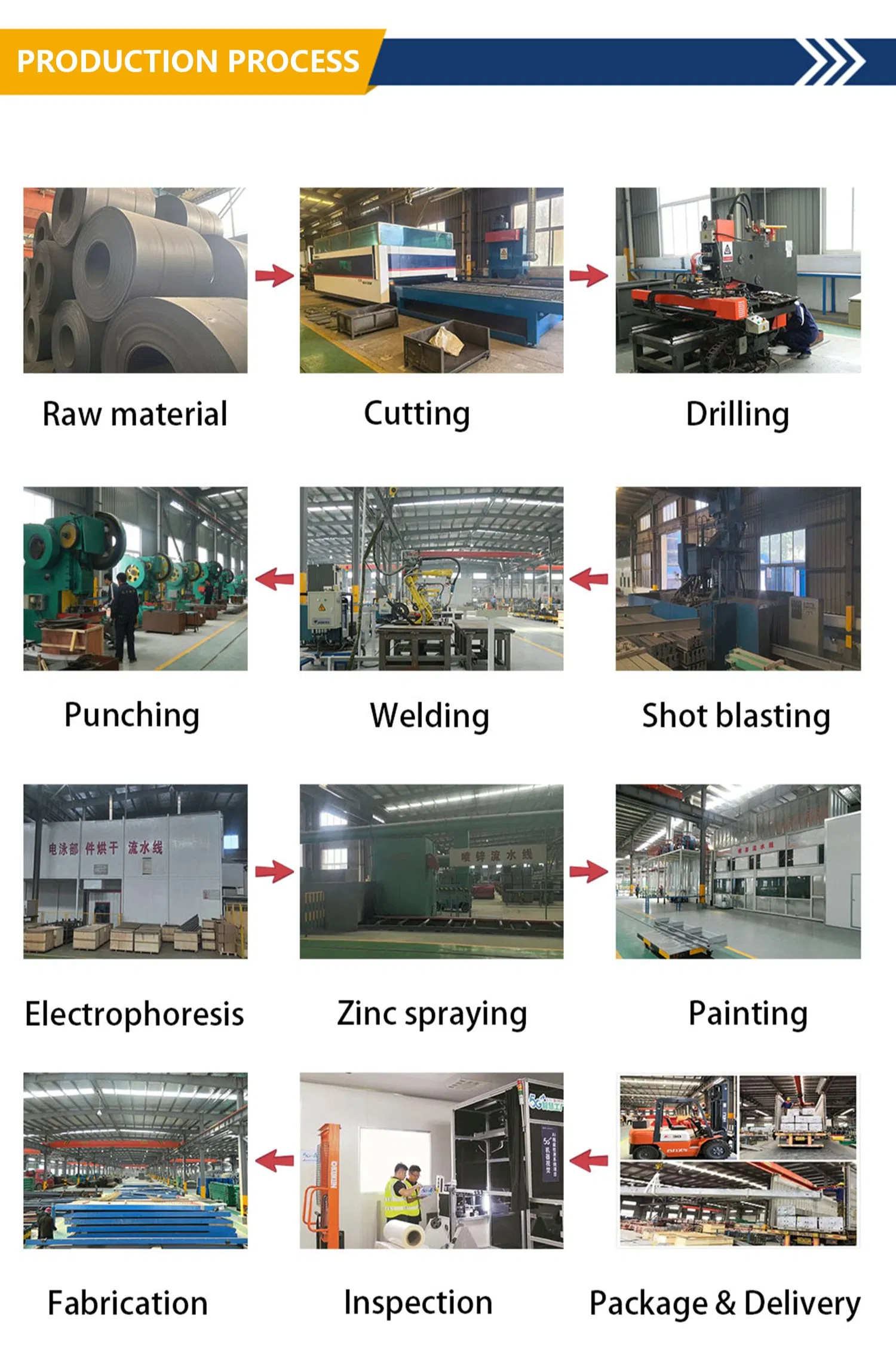

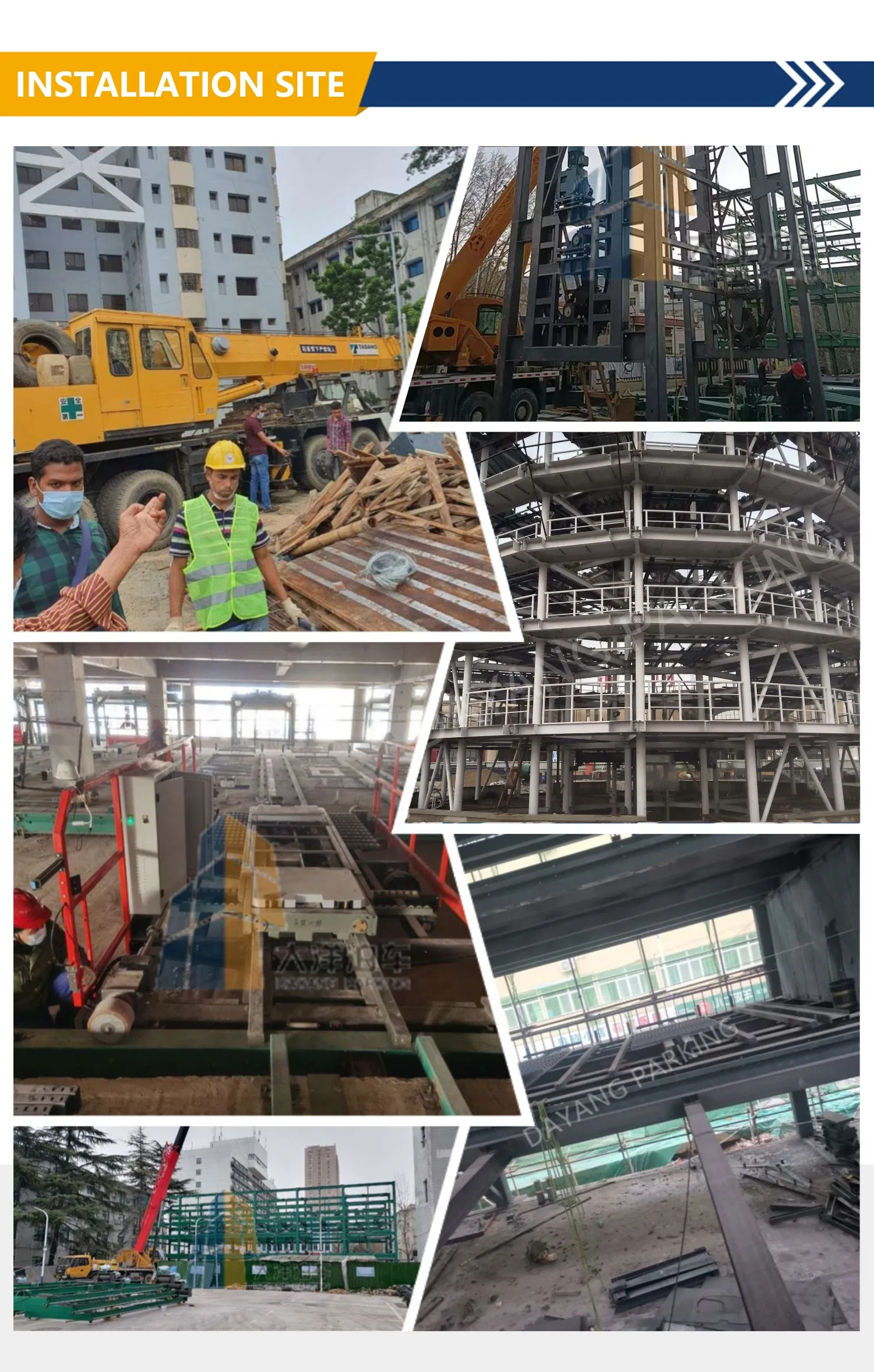

Production Line Manufacturing Process

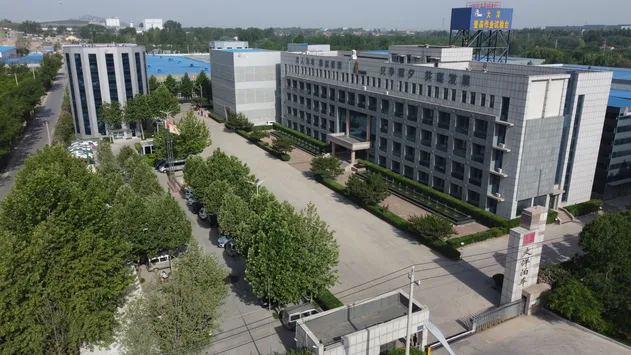

Facility 1

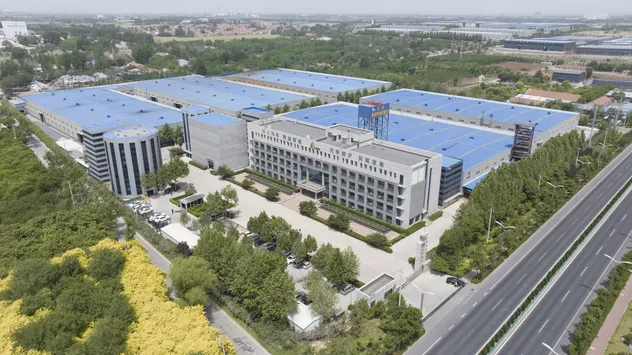

Facility 2

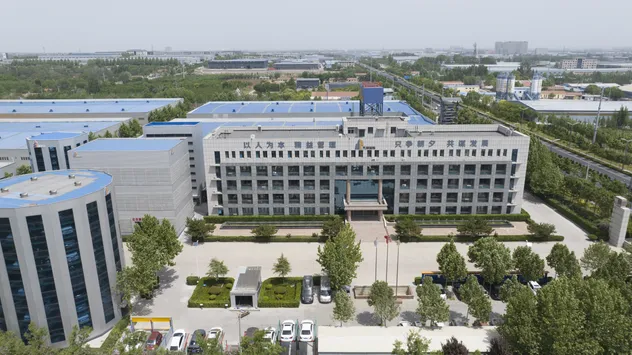

Facility 3
Packing & Delivery
Packaging Details
Our Certificate & Exhibition
Certificates Exhibition
Frequently Asked Questions
How to prevent equipment corrosion in high-humidity areas?
Hot-dip galvanized steel and fluorocarbon spraying technology are used, with a salt spray test reaching 1000 hours. A dehumidification system can be optionally equipped to control humidity below 60%.
How to deal with icing in cold regions?
Heated car carriers (adjustable from -30ºC to 50ºC) are equipped, and the guide rails use anti-slip coatings. Specialized low-temperature start-up technology ensures reliable operation in environments as low as -40 °C.
Can unmanned management be realized?
The system supports AGV robots to transport vehicles; owners only need to park at the entrance. The IoT system monitors equipment status in real-time and alerts to abnormalities automatically.
What is the construction cost of a multi-story parking garage?
Lifting and traversing types typically cost 15,000-30,000 yuan per space, while vertical lifting types cost 60,000-100,000 yuan per space. Full-cycle optimization solutions can reduce energy consumption by 20%.
Are there government subsidy policies available?
Many regions provide subsidies (e.g., up to 20,000 yuan per space in specific cities) for public multi-story parking garages. We can assist in interpreting local policies and preparing declaration services for special funds.
