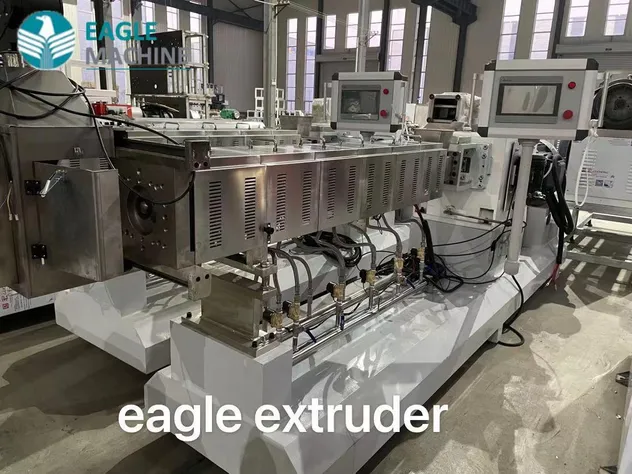

To produce animal feed, we utilize the advanced twin screw extrusion line. This technology produces higher quality feed suitable for 17%-22% fat content. With a cooking rate exceeding 90%, it ensures excellent digestibility for animals. The system features a self-cleaning mechanism, eliminating the need to pull screws out for maintenance.
| Parameter | Description |
|---|---|
| Output Capacity | 100 - 5,000 kg/h (model-dependent) |
| Main Extruder Motor | 75 - 400 kW (VFD-controlled) |
| Screw Diameter | Ø65 - Ø135 mm |
| Screw L/D Ratio | 12:1 - 20:1 (high-shear design) |
| Barrel Zones | 6-8 independent temp. zones (heating/cooling) |
| Control System | Industrial PLC + 15" HMI (OEE tracking) |
| Kibble Size Range | Φ2 - Φ30 mm (custom shapes available) |
| Expansion Control | Adjustable density: 300 - 600 g/L |

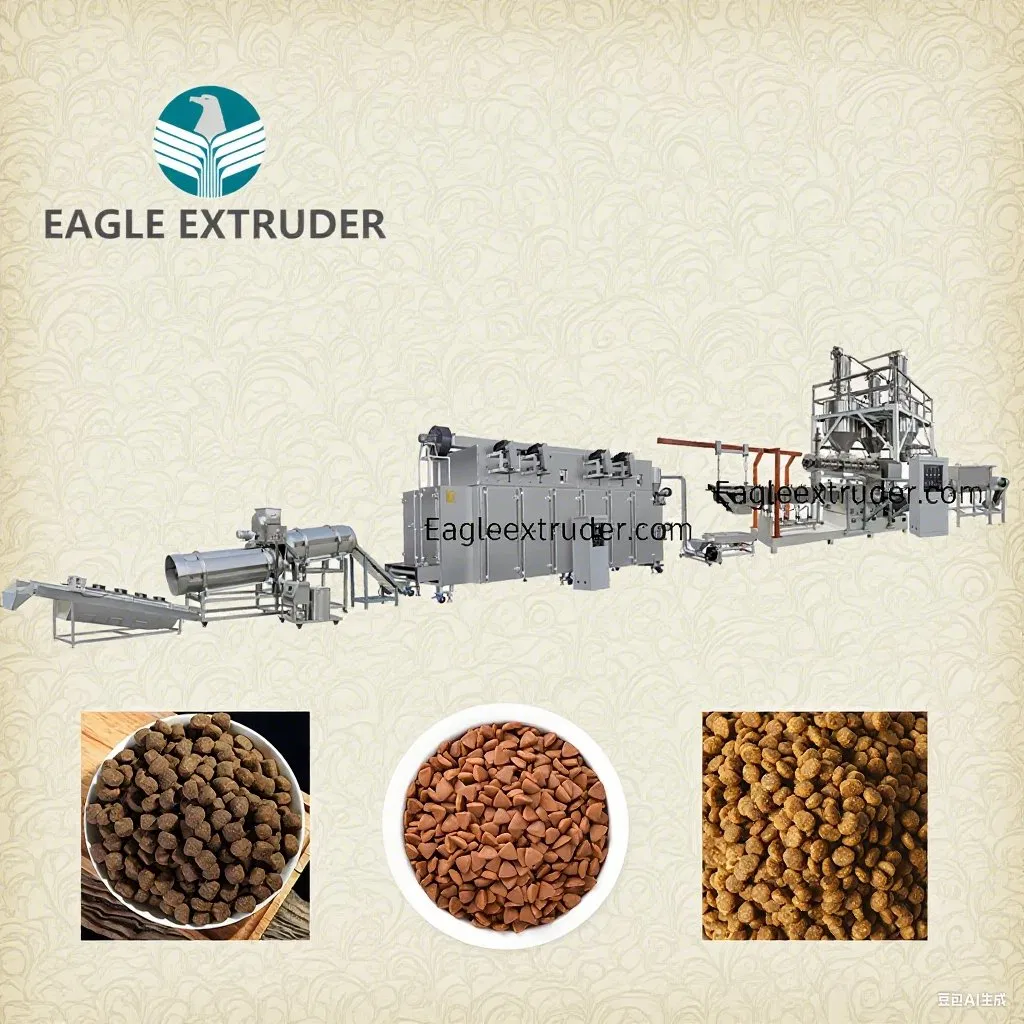

Our complete production line integrates high-efficiency preconditioning with twin-shaft mixers and steam injection. Post-extrusion processing includes multi-tier continuous drying to achieve 8-12% moisture content, fluid-bed cooling, and precision rotary drum coating for fat/flavor infusion.

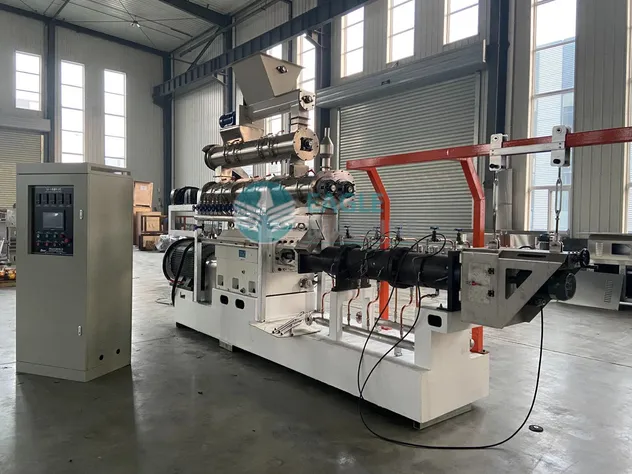

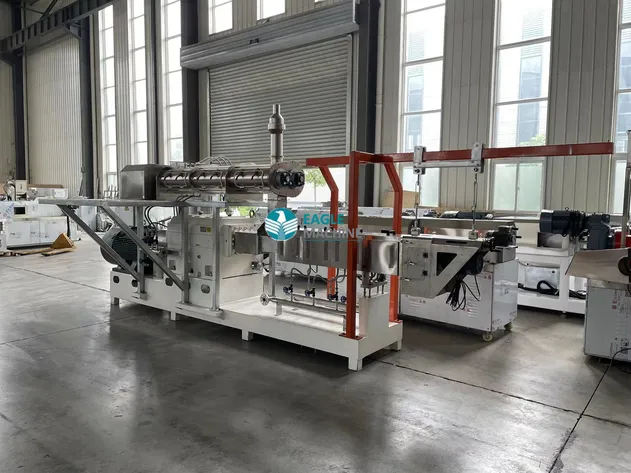

| Model | DP65 | DP85 | DP100 |
|---|---|---|---|
| Weight (kg) | 1500 | 4000 | 5000 |
| Engine Power (kW) | 40 | 100 | 190 |
| Capacity (kg/h) | 100-150 | 500-700 | 1000-2000 |
| Size (mm) | 2600*800*2000 | 4500*800*2000 | 6300*800*2000 |
| Temp. Zones | 3 | 3 | 5 |

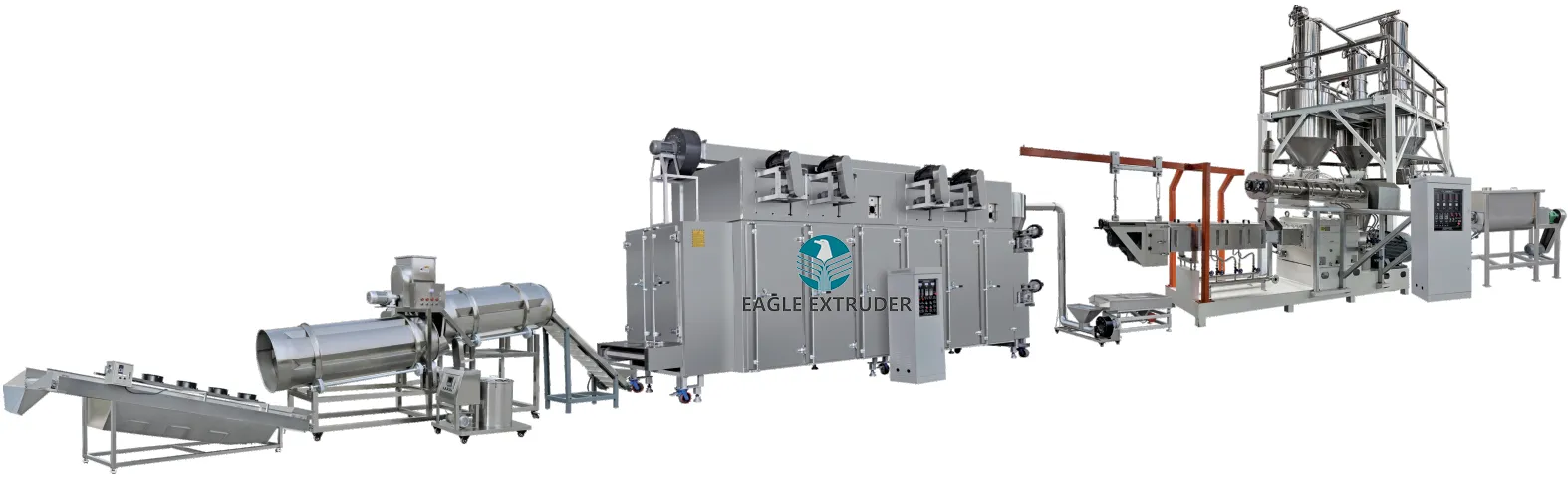

Raw material mixing → transportation → extrusion, ripening and puffing → product transportation → baking → seasoning → cooling → (packaging)
Access dedicated extrusion experts 24/7 via remote diagnostics for rapid troubleshooting.
Certified field engineers for installation supervision, commissioning, and preventive maintenance.
Guaranteed availability of genuine wear components with global logistics for efficient delivery.

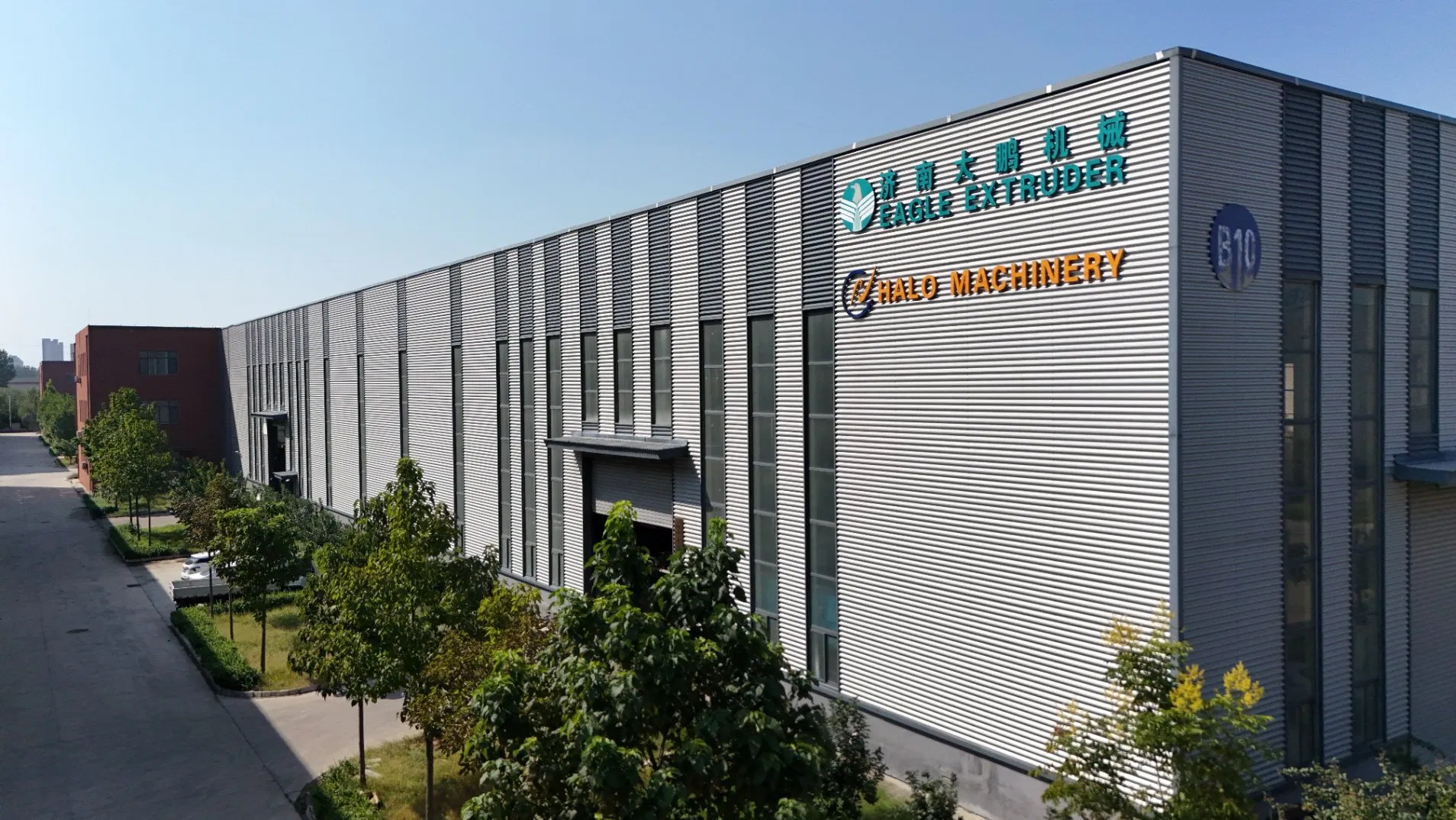

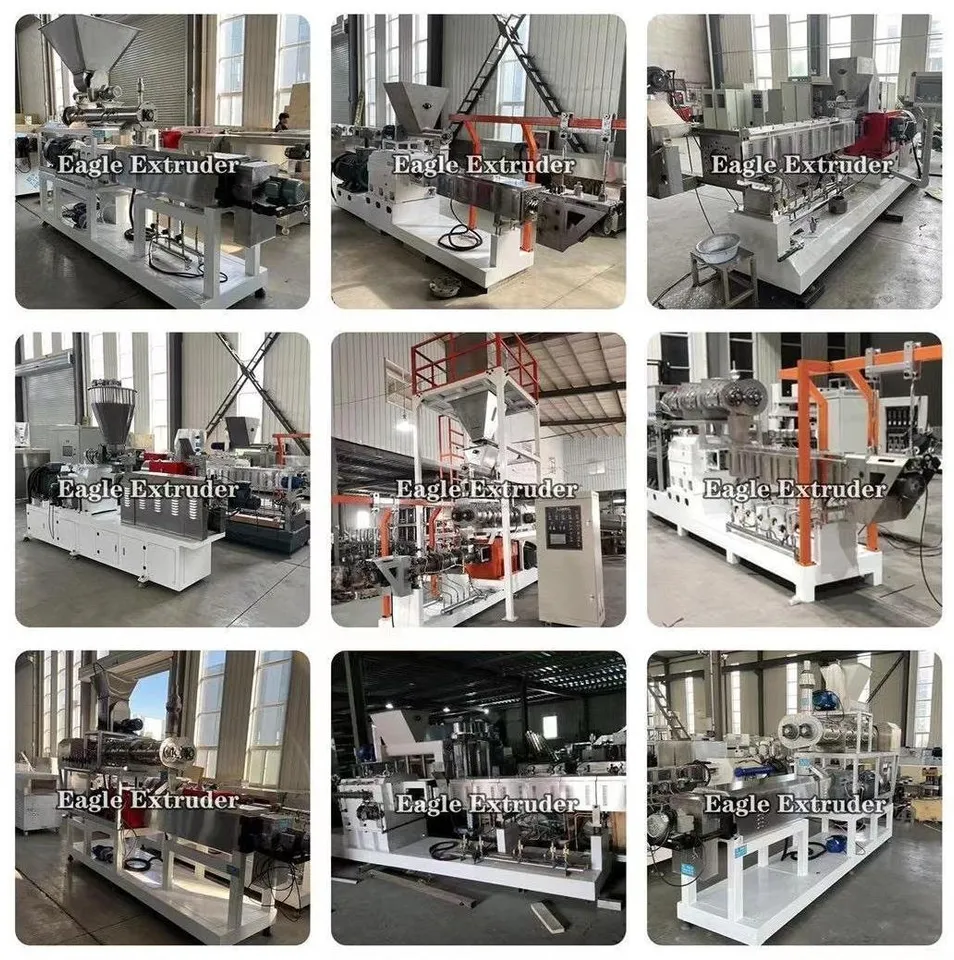

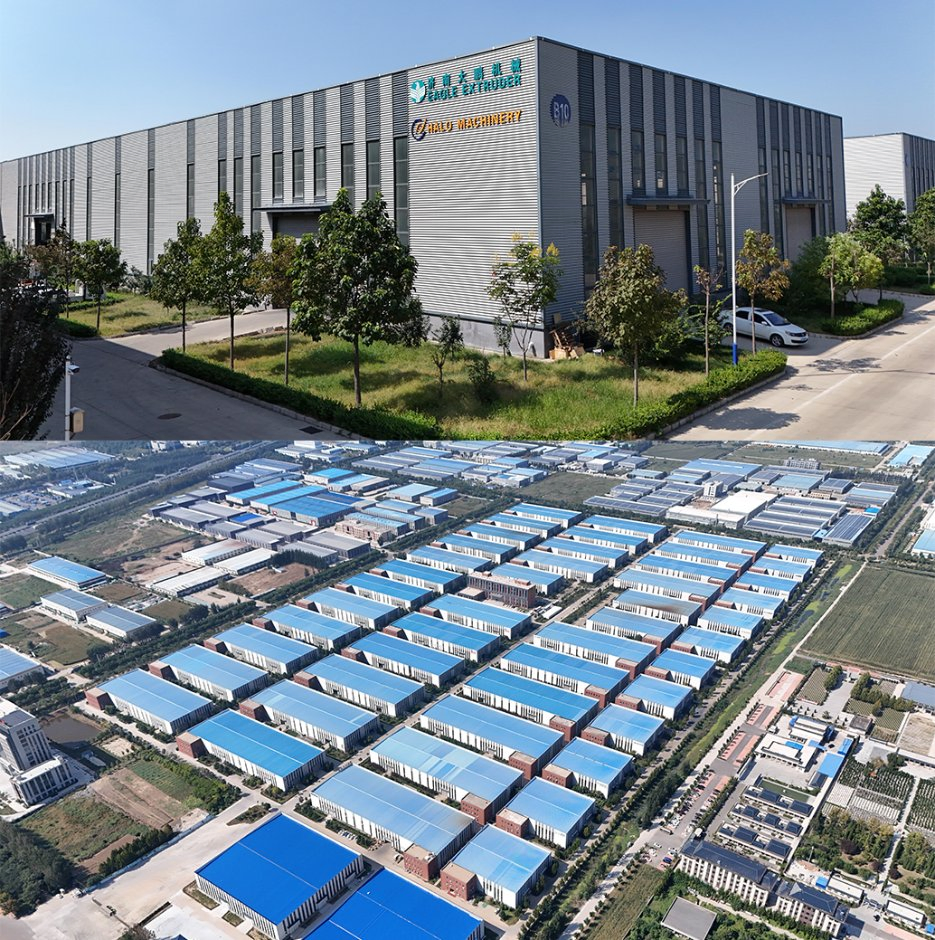

Established in 2010, we are a professional manufacturer specializing in food extruders and inflated food machinery. Our expertise spans from snack processing lines to nutrition powder and high-grade pet food systems. We provide complete programs to ensure high investment returns and high-quality production outputs.
