Universal OPC-Ua Digital Gateway Multipurpose Edge Computing Modbus Mqtt Digital Gateway Data Acquisition Gateway
Universal OPC-Ua Digital Gateway Multipurpose Edge Computing Modbus Mqtt Digital Gateway Data Acquisition Gateway
Universal OPC-Ua Digital Gateway Multipurpose Edge Computing Modbus Mqtt Digital Gateway Data Acquisition Gateway
Universal OPC-Ua Digital Gateway Multipurpose Edge Computing Modbus Mqtt Digital Gateway Data Acquisition Gateway
Universal OPC-Ua Digital Gateway Multipurpose Edge Computing Modbus Mqtt Digital Gateway Data Acquisition Gateway
1 / 5
Universal OPC-Ua Digital Gateway Multipurpose Edge Computing Modbus Mqtt Digital Gateway Data Acquisition Gateway
Universal OPC-Ua Digital Gateway Multipurpose Edge Computing Modbus Mqtt Digital Gateway Data Acquisition Gateway
Universal OPC-Ua Digital Gateway Multipurpose Edge Computing Modbus Mqtt Digital Gateway Data Acquisition Gateway
Universal OPC-Ua Digital Gateway Multipurpose Edge Computing Modbus Mqtt Digital Gateway Data Acquisition Gateway
Universal OPC-Ua Digital Gateway Multipurpose Edge Computing Modbus Mqtt Digital Gateway Data Acquisition Gateway

Universal OPC-Ua Digital Gateway Multipurpose Edge Computing Modbus Mqtt Digital Gateway Data Acquisition Gateway

Customization: Available
Warranty: 3 Years
Logo Printing: with Logo Printing
Send Inquiry

Product Description

Overview & Basic Info

Model NO.:G2-G00M02C240
Customized:Non-Customized
Certification:CE
Chip Architecture:Arma55 Dual-Core Architecture
Origin:China
Selling Units:Single Item
CPU Frequency:2.0GHz
Storage:64GB Emmc5.0
RAM:2GB Lpddr4

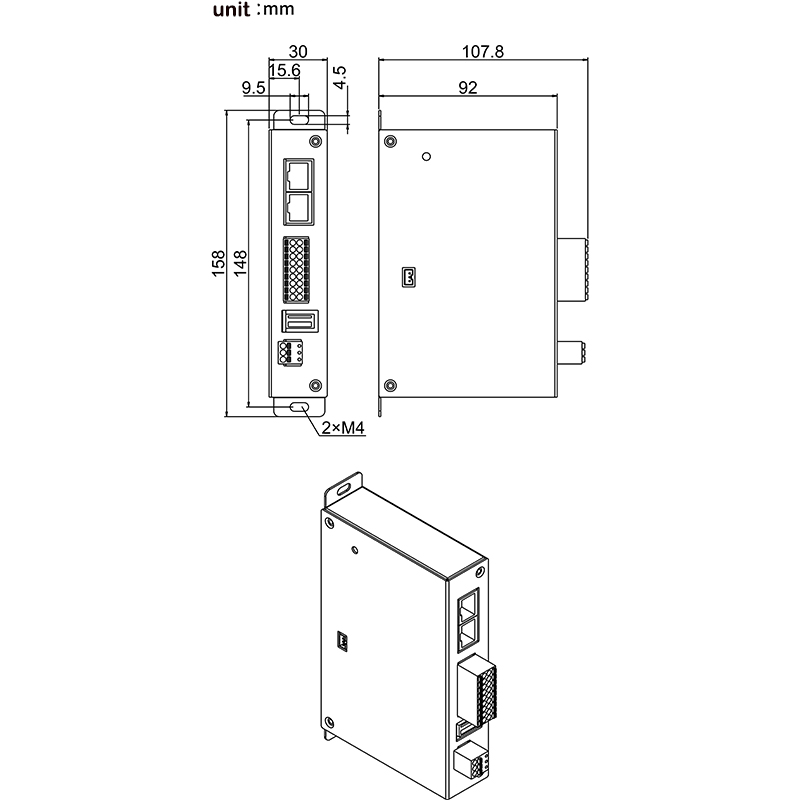

Package Size:20.00cm * 15.00cm * 3.00cm
Gross Weight:2.000kg
Digital Gateway Banner

Product Specifications

Specifications Header
Basic Specifications
ModelG2-G00M02C240
Chip ArchitectureARM A55 Dual Core Architecture
CPU FrequencySingle Core Performance: 2.0GHz
RAM2GB LPDDR4
Storage64GB EMMC5.0
Communication Interface

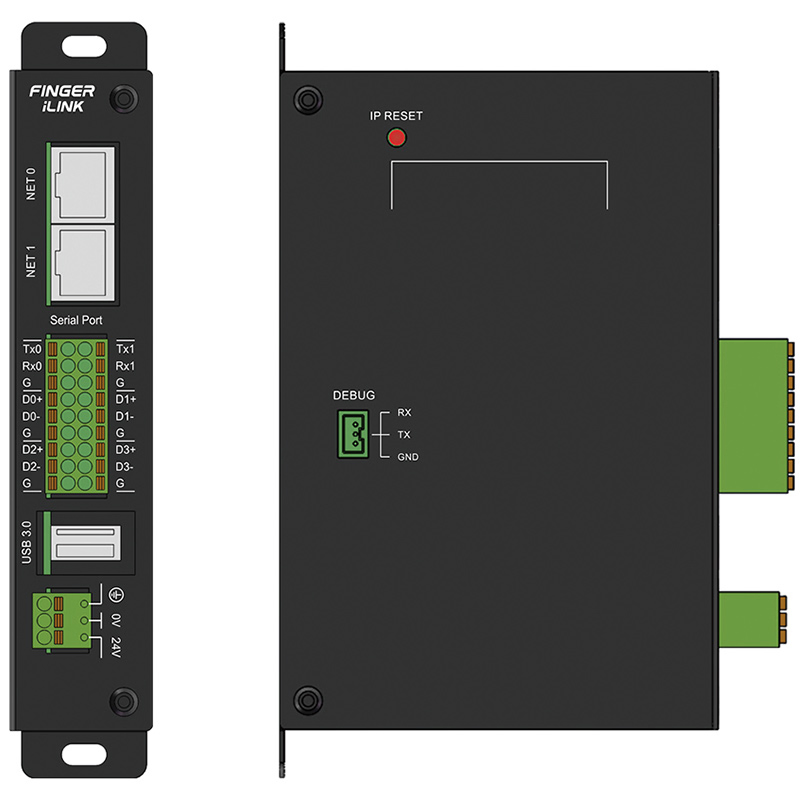

Serial Port6 Serial communication ports (2x RS232, 4x RS485)
Ethernet1-port 100Mbps adaptive network, 1-port configuration port
Industrial Protection
EMC4.5KV (Power, Coupling)
Vibration7mm@2~9Hz; 2g@10~500Hz
Operating Temp-20 ~ 85℃
Power Supply
Voltage24 VDC
Dissipation10W
CoolingPassive Cooling

Model Comparison

Model G1-G00M02C240 G2-G00M02C240 G3-G00M06C240 G4-G00M06C240
Storage 8GB EMMC5.0 64GB EMMC5.0 8GB EMMC5.0 64GB EMMC5.0
Ethernet 1-port 100Mbps + 1 Config 1-port 100Mbps + 1 Config 5-port 100Mbps + 1 Config 5-port 100Mbps + 1 Config

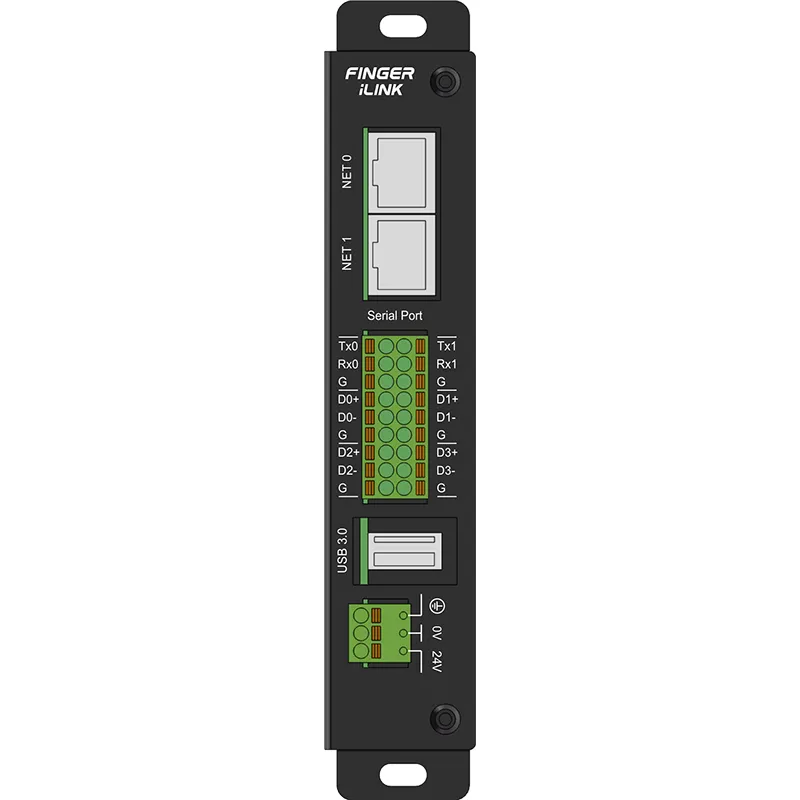

Model G1/G2

G1/G2-G00M02C240

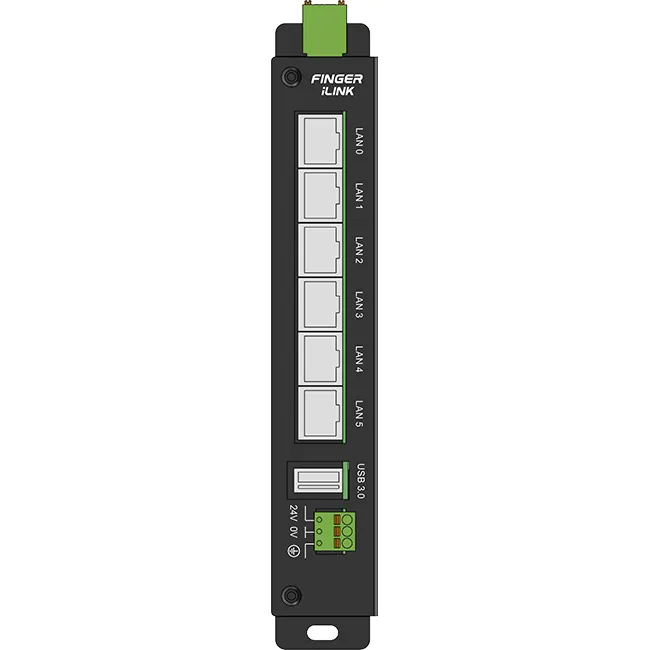

Model G3/G4

G3/G4-G00M06C240

Product Features & Details

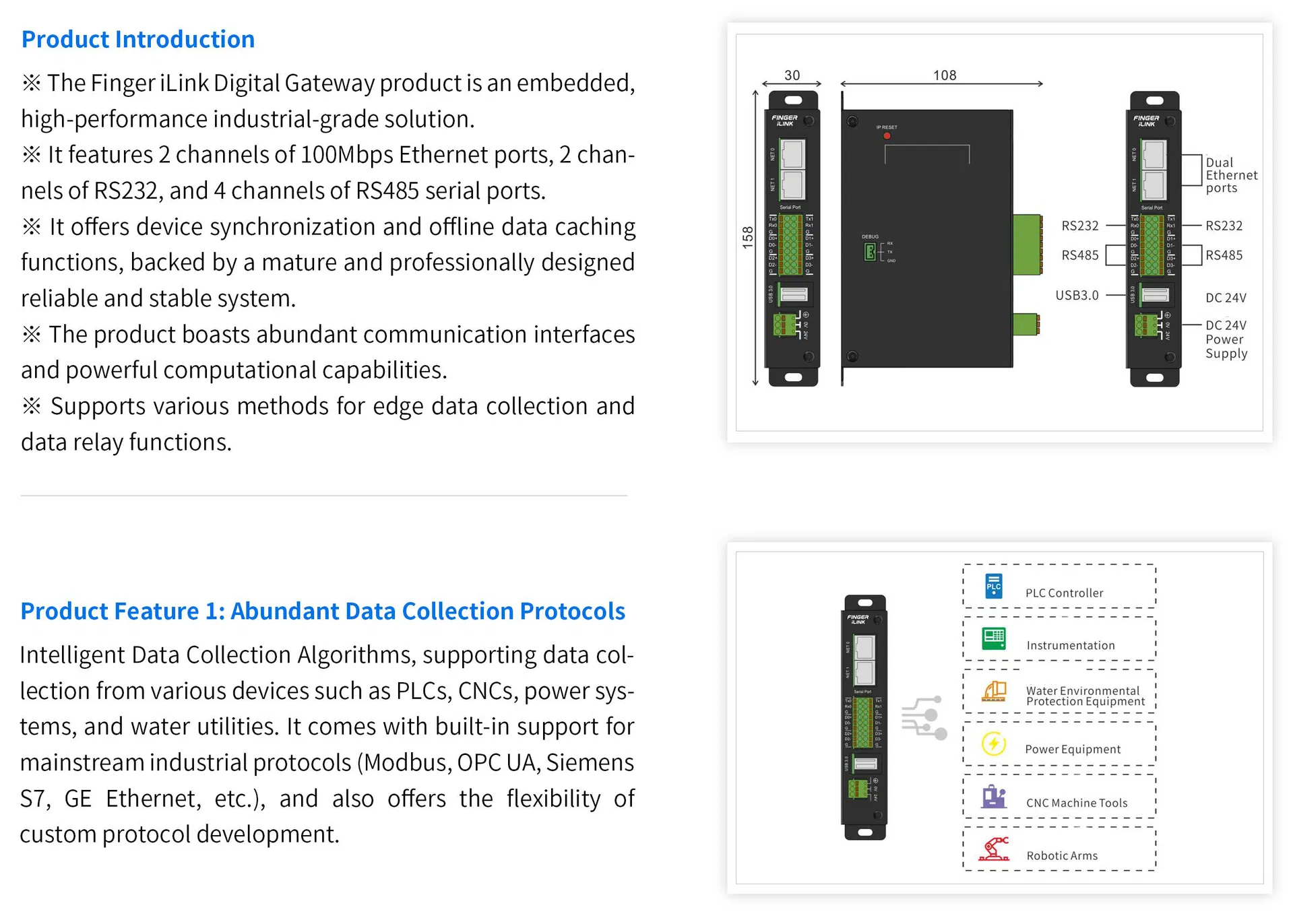

Feature 1

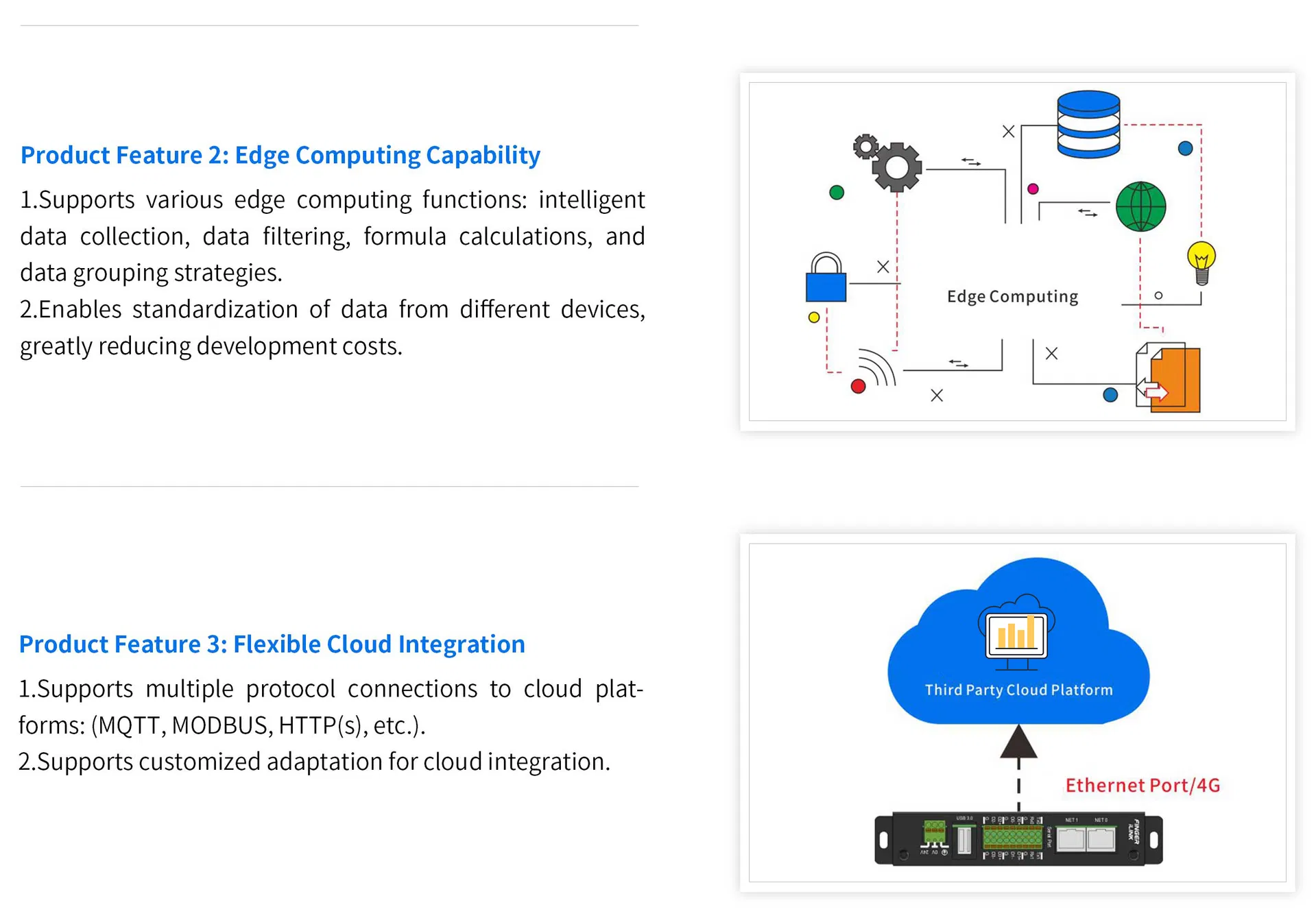

Feature 2
Feature 3
Feature 4
Feature 5
Feature 6

Packaging & Shipping

Packaging

Frequently Asked Questions

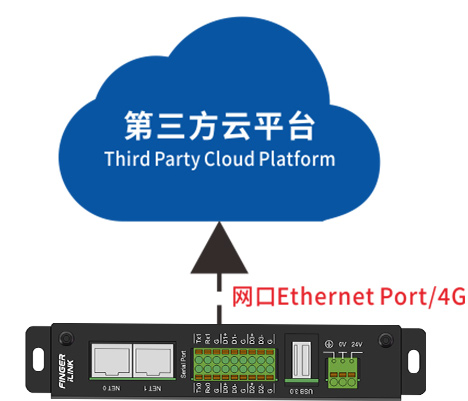

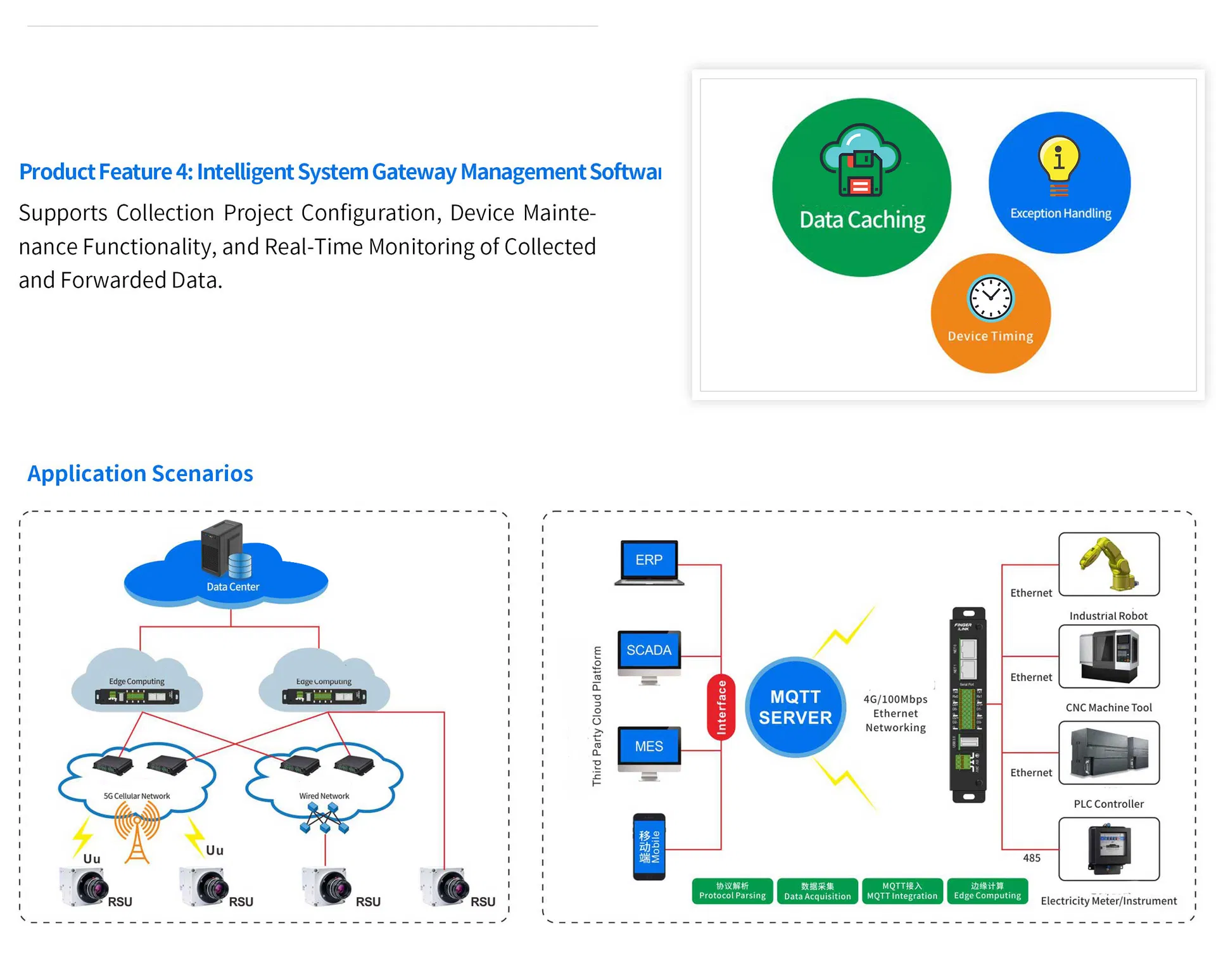

What communication protocols does this gateway support?
The gateway supports multiple protocols including Modbus, MQTT, and OPC-UA, making it suitable for versatile edge computing and data acquisition tasks.
What is the operating temperature range for industrial use?
It is designed for industrial environments with an operating temperature range of -20°C to 85°C.
How many serial ports are available on the G2 model?
The G2 model features 6 serial communication ports, specifically 2 RS232 interfaces and 4 RS485 interfaces.
What software platform is used for configuration?
The system utilizes the Finger GateWay Link IDE and runs on a stable Debian 11 operating system.
Does the gateway require active cooling?
No, the device utilizes a passive cooling method, which enhances reliability in dusty or enclosed industrial environments.
What is the data-handling capacity?
The gateway has a data-handling capacity of up to 20,000 points, ensuring robust performance for large-scale data acquisition.
