Computing Ai Box Multifunction Edge Ai 8GB 40tops Computing Device

Customization: Available
Usage: Computer, Laptop
Type: Wired

Product Description

i
Overview
FC2106 is developed and designed based on NVIDIA Jetson Orin Nano core board. It is pre-installed with Ubuntu20.04 operating system, supports 4G/5G functions, is made of ultra-strong and light aluminum alloy material, has no fan structure to conduct passive heat dissipation, and has a variety of IO interfaces. The bottom bracket that is convenient for site installation is reserved, which can be applied to autonomous machines such as robots, unmanned delivery vehicles, low-altitude defense, intelligent inspection, and smart buildings. It is an ideal carrier for deploying AI computing power at the edge for deep learning.
Edge AI Computing Device
4G/5G
Connectivity
POE
Power Port
LOW
Consumption
IO
Serial Port
!
Basic Info.
Model NO.
FC2106-8GB
Certification
CE, ISO
Condition
New
Specification

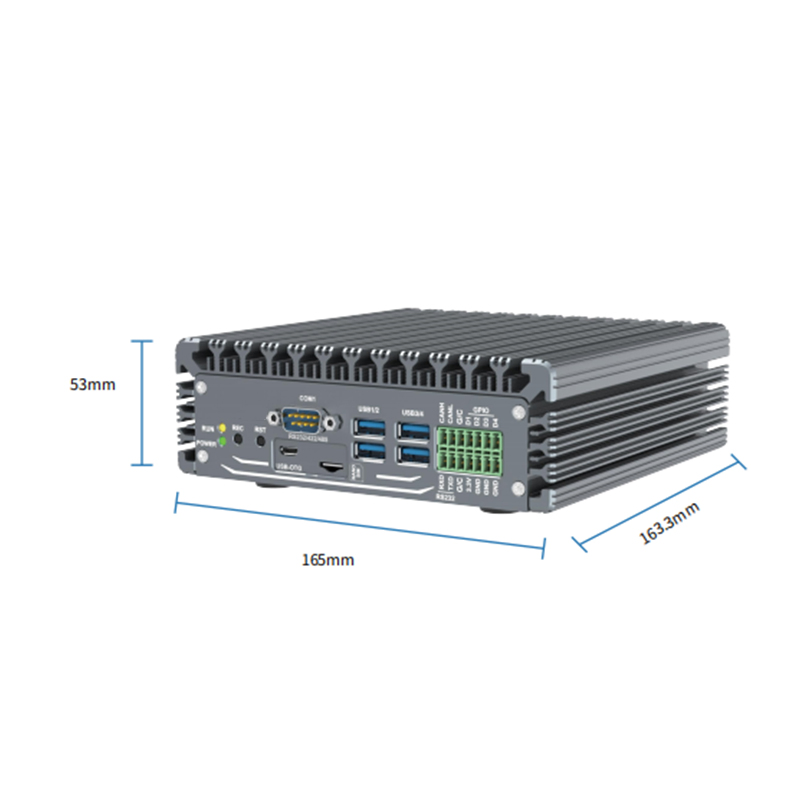

165mm x 163.3mm x 53mm
Production Capacity
In Stock
Technical Parameters
System Specification
AI PlatformJetson Orin Nano
AI Computing PowerSuper mode: 67TOPS
GPU1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
CPU6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
Memory8GB 128-bit LPDDR5 68 GB/s
Video Decoding1×4K60 (H.265), 11×1080p30 (H.265)
Storage ExpansionSupports external NVMe
Hardware Interface
Wired Network5× RJ45 Gigabit (Lan1 independent, Lan2-Lan4 POE shared)
WirelessWiFi 2.4/5GHz, 4G/5G Full Netcom (Optional)
GNSSBD, GPS, RTK/Inertial Navigation (Optional)
Display Output1× HDMI
USB Ports4× USB3.0 Type-A, 1× USB2.0 Micro OTG
Serial/CAN1× RS232, 1× RS232/RS485, 1× CAN, 1× SPI-CAN
Other I/O4× GPIO, 1× I2C, 1× M.2 Key M (2280 NVMe SSD)
Power Input12-24V, MX3.0 Terminal
📷
Detailed Photos

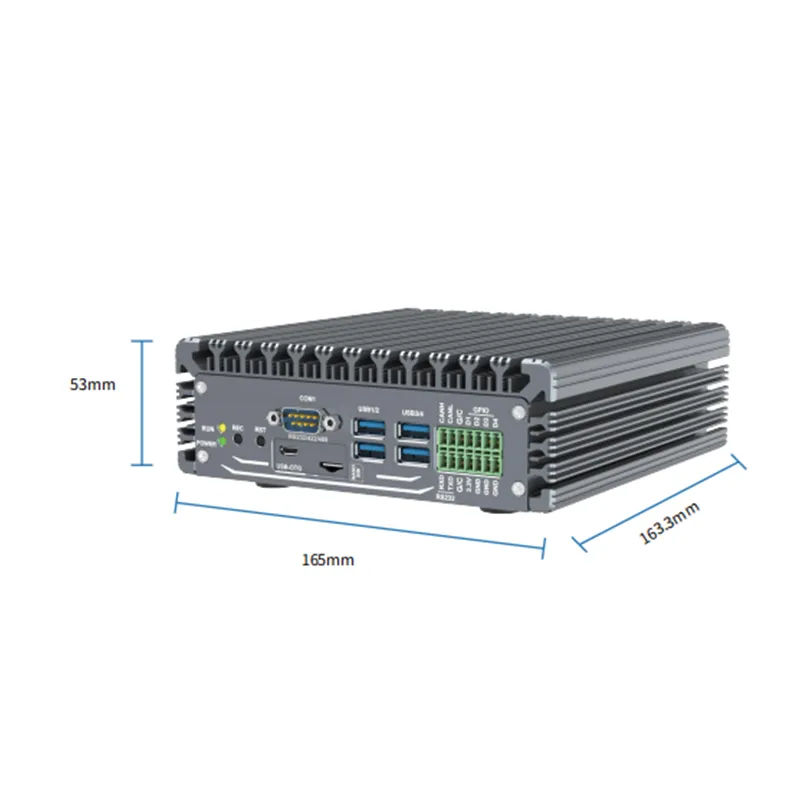

Product View 1

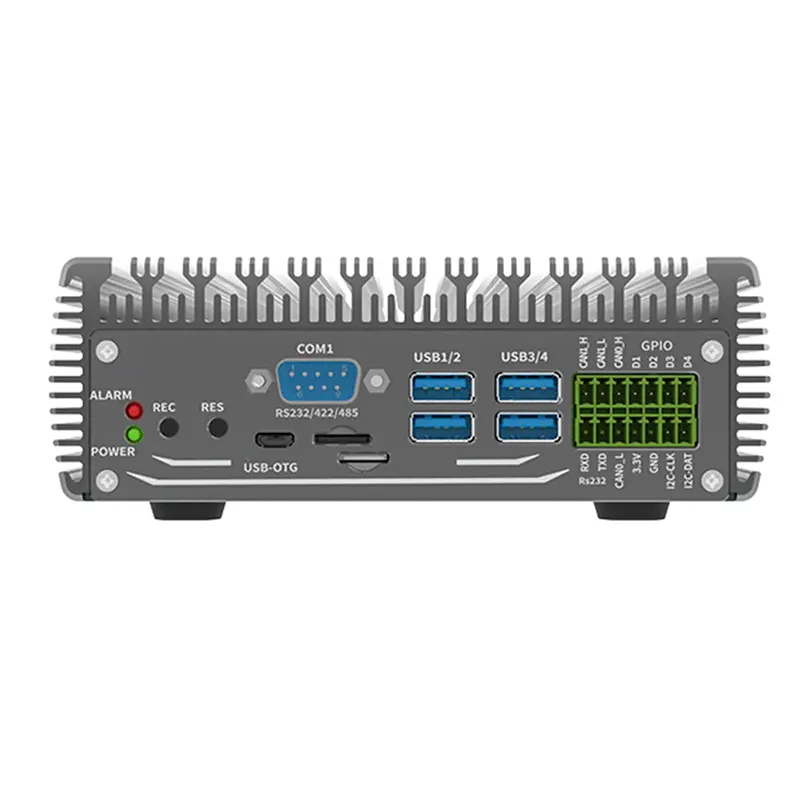

Product View 2

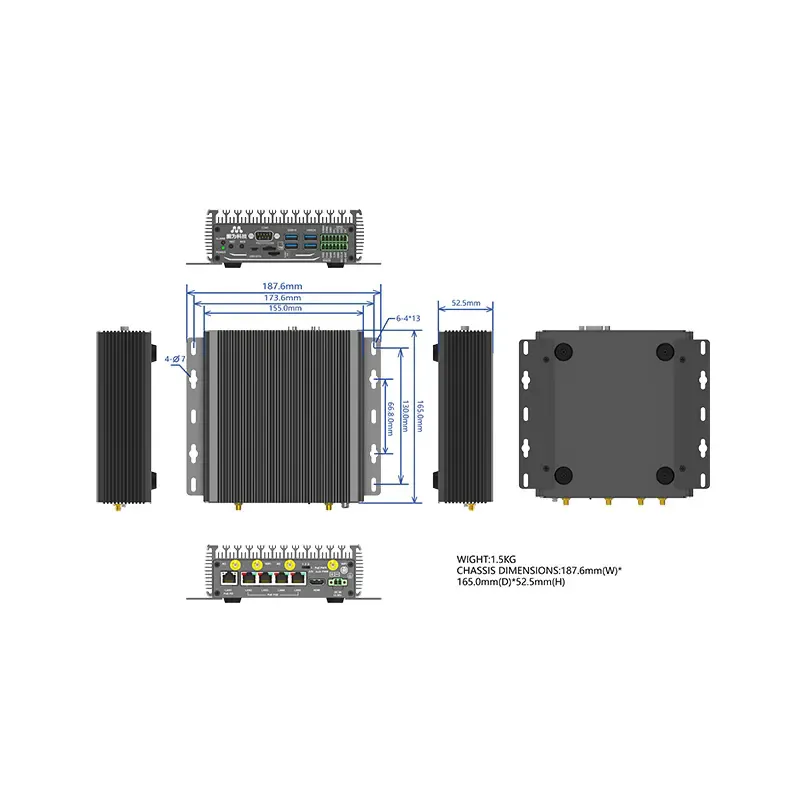

Product View 3
📦
Shipping List
Item Description Qty Status
Power adapter (19V-3.42A)1Standard
Micro USB data cable1Standard
Double-row 6PIN power adapter cord1Standard
2*7P green Phoenix terminal1Standard
Wall mount bracket2Standard
4G/WiFi/5G Antennas2-4Optional
?
FAQ
Are you a factory or a trading company?
We are a factory with over 20 R&D engineers. Our pricing is highly competitive and after-sales service is fully guaranteed.
Do you provide OEM/ODM services?
Yes, full OEM and ODM customization services are available to meet your specific hardware and branding requirements.
What payment methods do you accept?
We accept various payment methods including T/T, PayPal, L/C, and other standard international trade options.
What is the typical lead time?
Standard edge computing development kits ship in 1 day; edge computing boxes take 3 days; custom services generally require 30 days.
What is the warranty period?
We offer a 2-year warranty. Our professional technical team is dedicated to handling any after-sales or technical issues.
Which operating systems are supported?
The device comes pre-installed with Ubuntu 20.04, providing a stable and robust environment for AI and deep learning applications.
