Nvidia Jetson Orin Nano Edge Computing 34tops Ai Computing Power

Customization: Available
Usage: Computer, Laptop
Type: Wired

Product Description

Product Overview

Based on NVIDIA Jetson Orin Nano core board, FC2108PG has 34TOPS AI computing power, rich interfaces to support sensors commonly used in self-driving vehicles, and can be used in robots, low-speed unmanned driving, smart factories, intelligent transportation and other scenes. It is an ideal carrier for deploying AI computing power at the edge for deep learning.

📶Support 4G/5G
🌐Multiplex Network Port
🛡️IP65 Protection
🔌Rich Interface
Nvidia Jetson Orin Nano Edge Computing
Basic Specifications
Model NO.FC2108PG-4GB
CertificationCE, ISO
ConditionNew
Specification295mm x 207.1mm x 76.5mm
Production CapacityIn Stock
Technical Parameters
System Configuration
AI PlatformJetson Orin Nano
AI Computing PowerSuper mode: 34TOPS
GPU512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
CPU6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
Video Coding1080p30 supported by 1-2 CPU cores
Video Decoding1×4K60 (H.265), 2×4K30 (H.265), 5×1080p60 (H.265), 11×1080p30 (H.265)
Memory4GB 64-bit LPDDR5 34 GB/s
Storage ExpansionSupports external NVMe
Hardware Interface

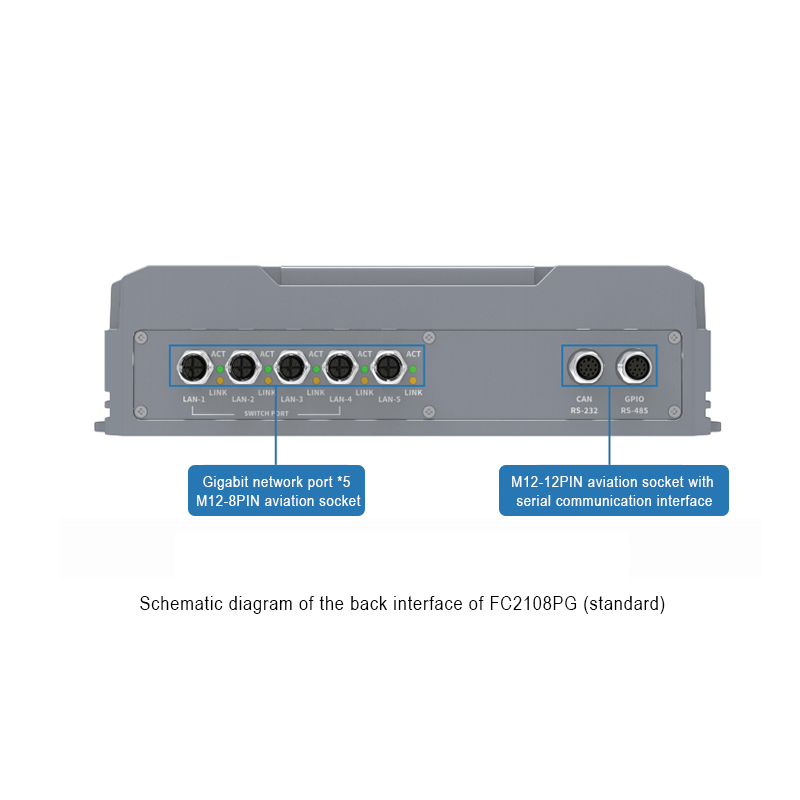

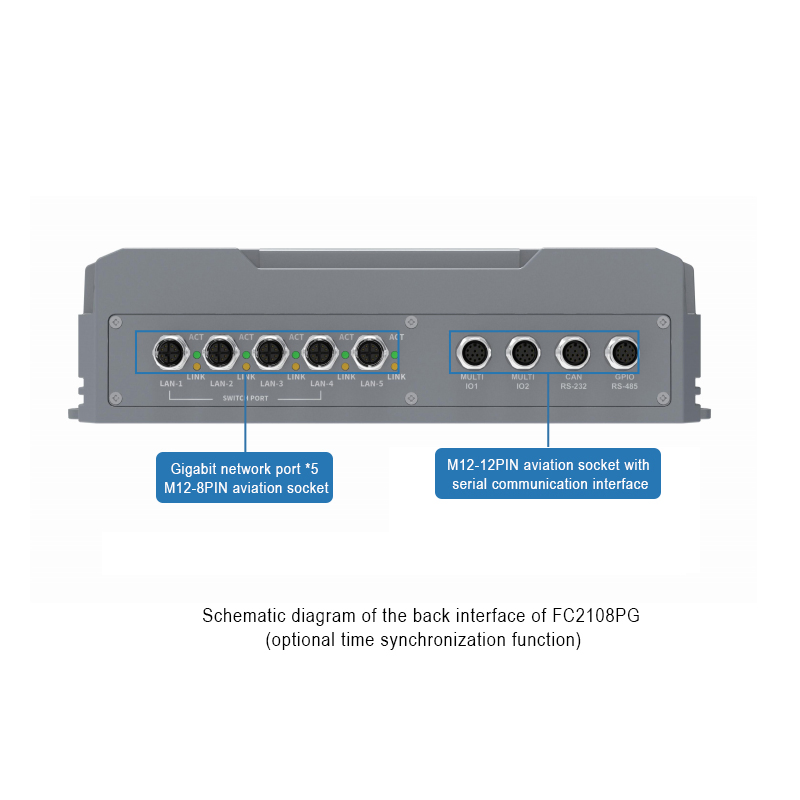

Wired Network1 × M12 gigabit network port and 4 × M12 gigabit network port (shared IP) supporting POE
Wireless (WIFI)2.4GHz/5GHz dual-band WiFi (optional)
Wireless (5G/4G)4G Full Netcom / 5G Full Netcom (optional)
GNSSSupport multi-mode (BD, GPS), meter/centimeter /RTK/ inertial navigation (optional)

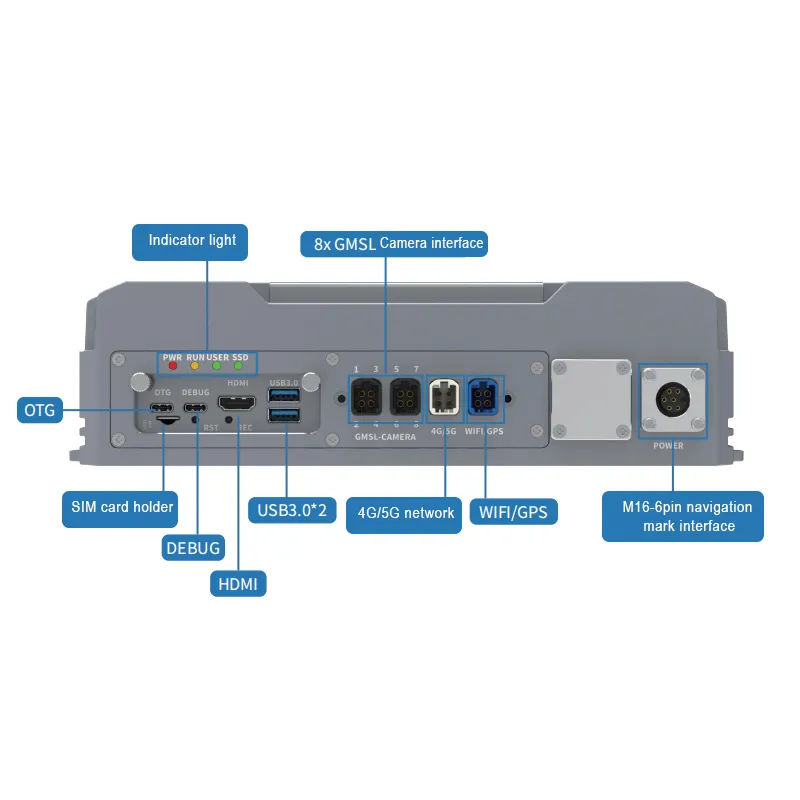

Display/Audio1×HDMI
USB2×USB3.0 Type-A, 1×Type-C OTG, 1×Type-C Debug
Serial Port1×RS232, 1×RS485
CAN1×CAN-FD, 1×SPI-CAN-FD
Multi-functional2*GPI+2*GPO (3.3V@1mA), 2*GPI+2*GPO (12V@1mA) with isolation
Camera Interface8×GMSL2
Physical & Environment
Power Input9-36V, supporting ACC; M16-6PIN navigation mark interface

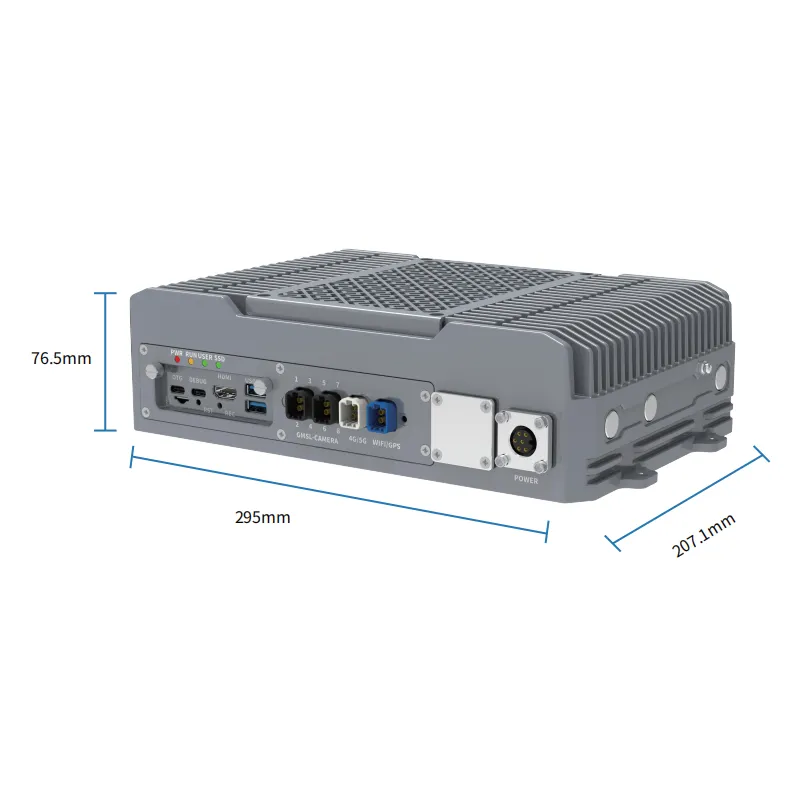

Dimensions295mm × 207.1mm × 76.5mm
Operating Temp-20ºC to 60ºC (standard) / -40ºC to 70ºC (optional)
Operating Humidity5% to 95%, no condensation
Heat DissipationFan cooling
Detailed Photos
Shipping List
Item DescriptionQtyStatus
Power adapter (19V-3.42A)1Standard
TYPE-C data cable1Standard
M12 orthographic network cable2Standard
M16 6PIN external power cord (1m)1Standard
GPIO/RS485 & CAN/RS232 Cables1+1Standard
GMSL camera four-in-one line2Standard
Fakra_WiFi/GPS/4G/5G Antennas1Optional
Frequently Asked Questions
Q1 Are you a factory or a trading company?
We are a factory with over 20 R&D engineers. Our prices are competitive, and after-sales service is fully guaranteed.
Q2 What is the AI computing power of the FC2108PG?
The FC2108PG is based on the NVIDIA Jetson Orin Nano and provides up to 34TOPS of AI computing power in Super Mode.
Q3 Do you provide OEM/ODM services?
Yes, full OEM and ODM services are available for both hardware and system customization.
Q4 What are the supported payment methods?
We accept various payment methods including T/T, PayPal, and L/C.
Q5 What is the typical lead time for orders?
1 day for development kits, 3 days for standard edge computing boxes, and approximately 30 days for customization services.
Q6 What kind of warranty do you offer?
We provide a 2-year warranty and have a professional technical team to handle all after-sales issues.
