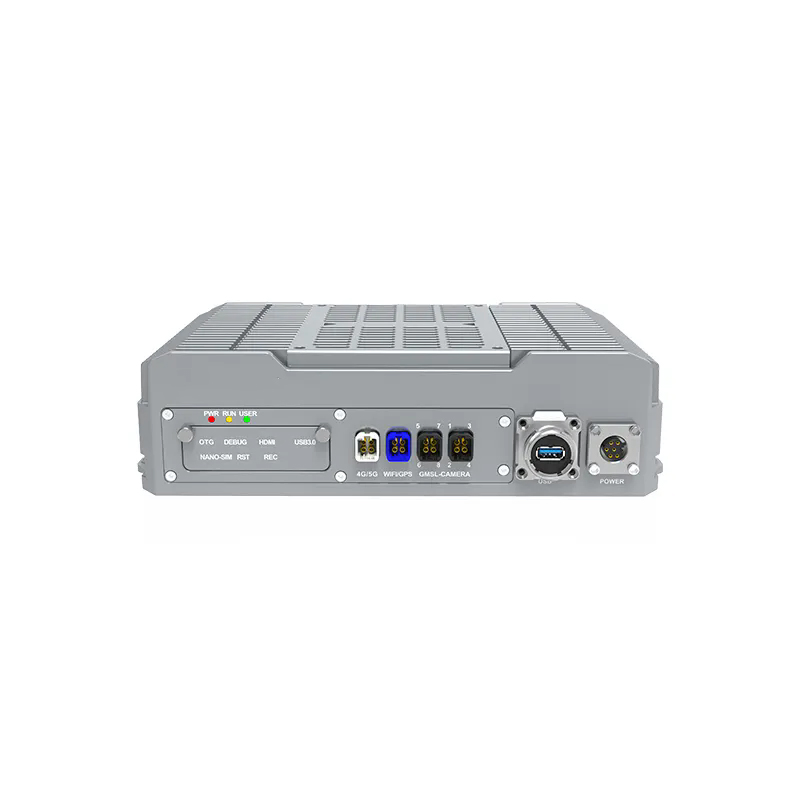

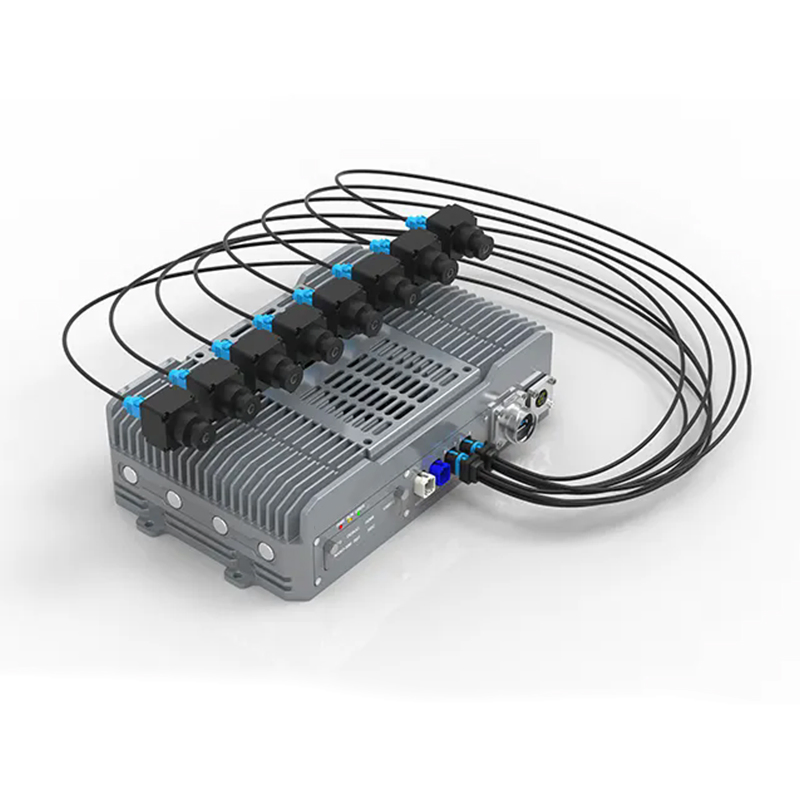

Al Edge Computing Device Developed Nvidia Jetson Agx Orin
Al Edge Computing Device Developed Nvidia Jetson Agx Orin
Al Edge Computing Device Developed Nvidia Jetson Agx Orin
Al Edge Computing Device Developed Nvidia Jetson Agx Orin
1 / 4
Al Edge Computing Device Developed Nvidia Jetson Agx Orin
Al Edge Computing Device Developed Nvidia Jetson Agx Orin
Al Edge Computing Device Developed Nvidia Jetson Agx Orin
Al Edge Computing Device Developed Nvidia Jetson Agx Orin

Al Edge Computing Device Developed Nvidia Jetson Agx Orin

Customization: Available
Usage: Computer, Laptop
Type: Wired
Send Inquiry

Product Description

Overview
Model NO.
FC9130
Certification
CE, ISO
Condition
New
Specification
131mm x 100mm x 52mm
Trademark
Neutral Packing
Production Capacity
In Stock
FC9130 is an AI edge computing device developed based on the NVIDIA Jetson AGX Orin embedded GPU model. With 200/275TOPS computing power, rich interfaces, and support for sensors commonly used in autonomous vehicles, it can meet the high computing power requirements of industrial vision and autonomous driving.
AI Edge Computing Device
Product Parameters
Technical Specifications
System Configuration
Core System AI Platform Jetson AGX Orin
AI Computing Power 200 TOPS / 275 TOPS
GPU 1792-core NVIDIA Ampere architecture / 2048-core NVIDIA Ampere architecture with Tensor Cores
CPU 8-core Arm Cortex-A78AE / 12-core Arm Cortex-A78AE v8.2 64-bit
Video Encoding Up to 2x4K60 (H.265) / 16x1080p30 (H.265)
Video Decoding Up to 1x8K30 (H.265) / 22x1080p30 (H.265)
Memory & Storage 32GB/64GB 256-bit LPDDR5; 64GB eMMC 5.1
Hardware Interface
Network Wired 1xM12 Gigabit Ethernet (PTP support), 4xM12 Gigabit Ethernet (Optional POE)
Wireless WiFi / 4G / 5G Dual-band WiFi, 4G/5G Full Netcom (Optional)
GNSS BD, GPS (Meter-level/RTK/Inertial navigation optional)
SIM 1x SIM Card Slot
I/O Ports USB 2x USB3.0 Type-A, 1x Type-C OTG, 1x Type-C Debug
Serial / CAN 1x RS485/RS232, 2x RS232, 2x CAN, 2x SPI-CAN
Physical & Environmental
Dimensions Size 275mm × 177.3mm × 76.5mm
Power Input 10V-36V, Supports ACC, M16-6PIN Aviation interface
Operating Environment Temp: -20ºC to 60ºC (Std) / -40ºC to 70ºC (Opt); Humidity: 5%~95%
Detailed Photos
Detailed View 1

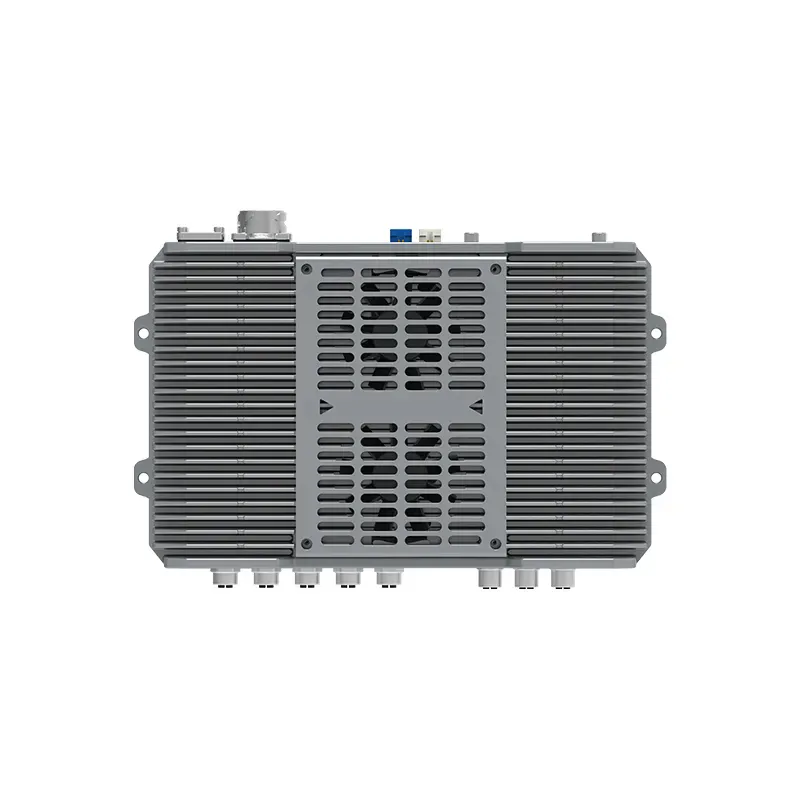

Detailed View 2
Detailed View 3
Frequently Asked Questions
Are you a manufacturer or a trading company?
We operate as a factory with over 20 R&D engineers, ensuring competitive pricing and guaranteed after-sales service.
Is OEM/ODM customization available for this device?
Yes, we provide full OEM and ODM services to meet specific project requirements and branding needs.
What payment methods are supported?
We accept various payment methods including T/T, PayPal, and L/C for your convenience.
What is the standard lead time for orders?
Lead time is 1 day for edge computing development kits, 3 days for standard edge computing boxes, and approximately 30 days for customized solutions.
What kind of warranty is provided with the FC9130?
We offer a 2-year warranty and have a professional technical team dedicated to handling all after-sales and support issues.
Does the device support harsh industrial environments?
Yes, the device is designed for industrial use with an optional working temperature range of -40ºC to 70ºC and fan-based heat dissipation.
