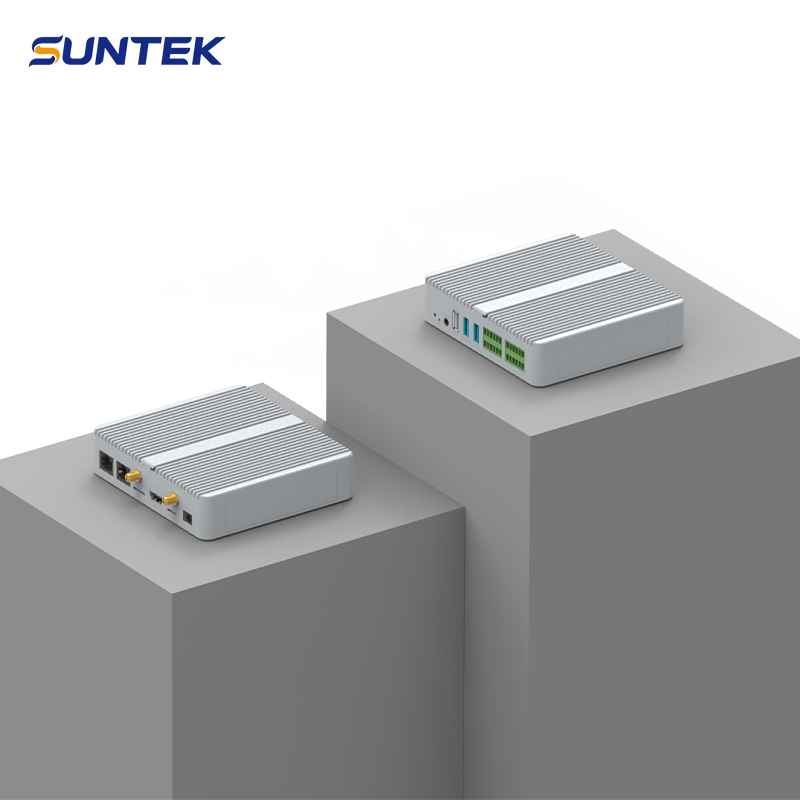

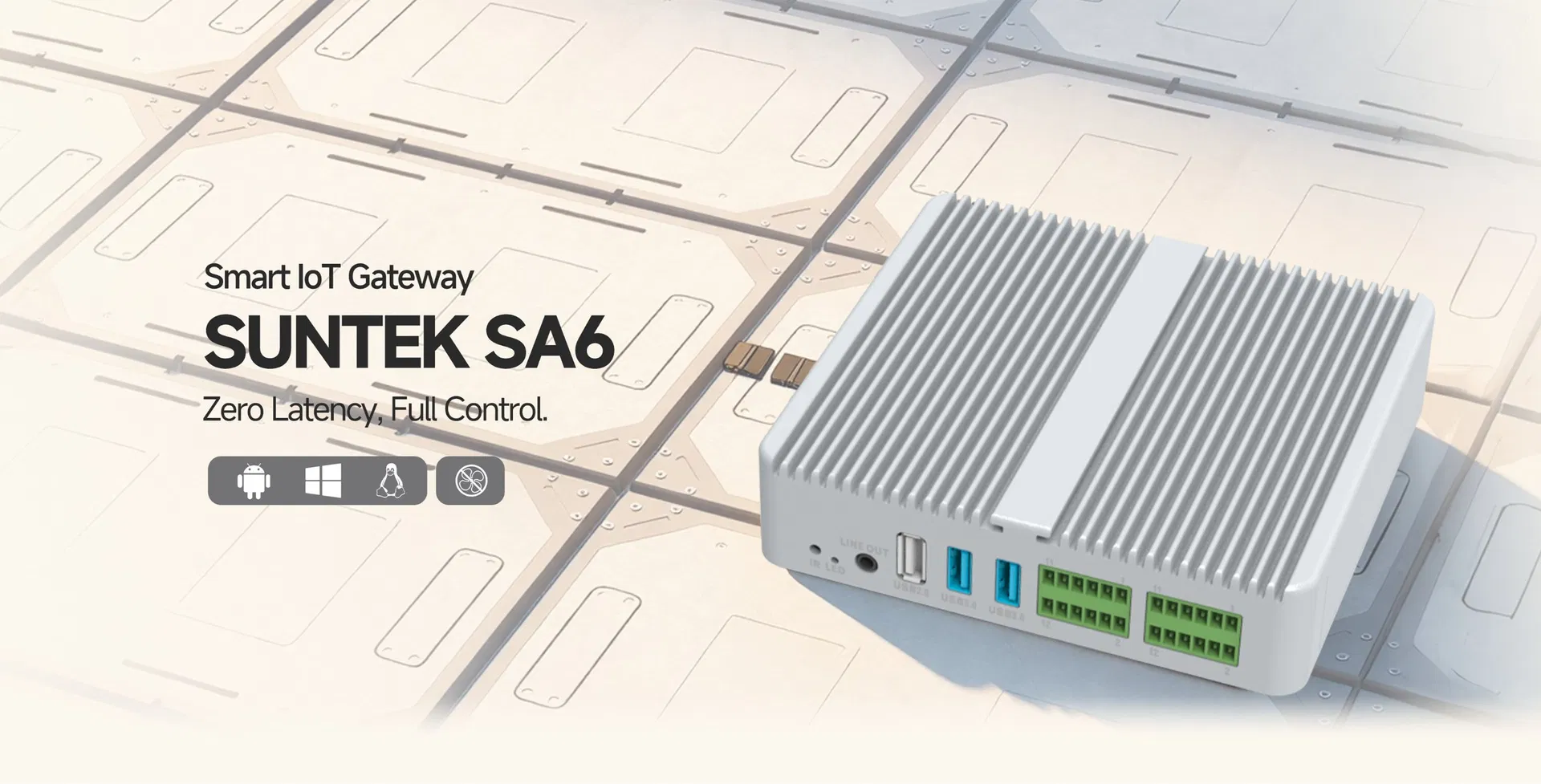

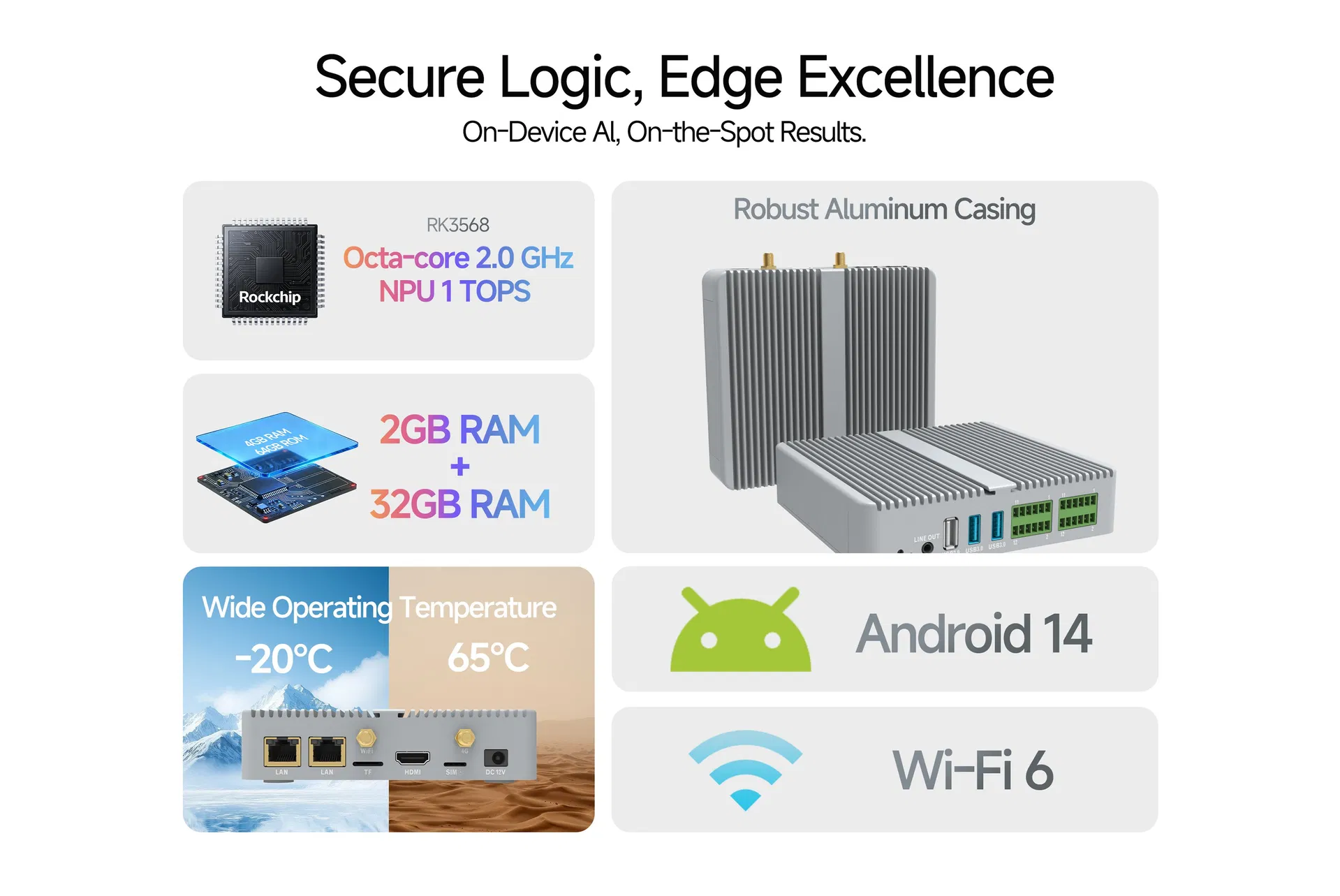

Smart IoT Gateway: Powered by Rockchip RK3568, the SA6 features an octa-core CPU (4x Cortex-A55) with 1 TOPS NPU. It supports Android 14, 4K video processing, and versatile interfaces like HDMI, RS232/RS485, and dual-band Wi-Fi. It is designed for real-time processing and enhanced privacy by handling data at the "Edge".
| SA6 Edge AI Box Parameters | |
|---|---|
| Operating System | Android 14.0 |
| Processor | RK3568, Octa-Core 2.0 GHz |
| GPU | Quad-core Mali-G52 2EE; Supports OpenGL ES 1.1/2.0/3.2 |
| NPU | 1 TOPS Computing Power |
| Memory | 2GB RAM + 32GB ROM (Supports USB expansion) |
| Multimedia | 4K@60fps H.265 Decoding; 1080P@60fps Encoding; HDR Support |
| Communication | Dual-band Wi-Fi (2.4G/5G), Gigabit Ethernet, Bluetooth 4.2, 4G LTE Opt. |

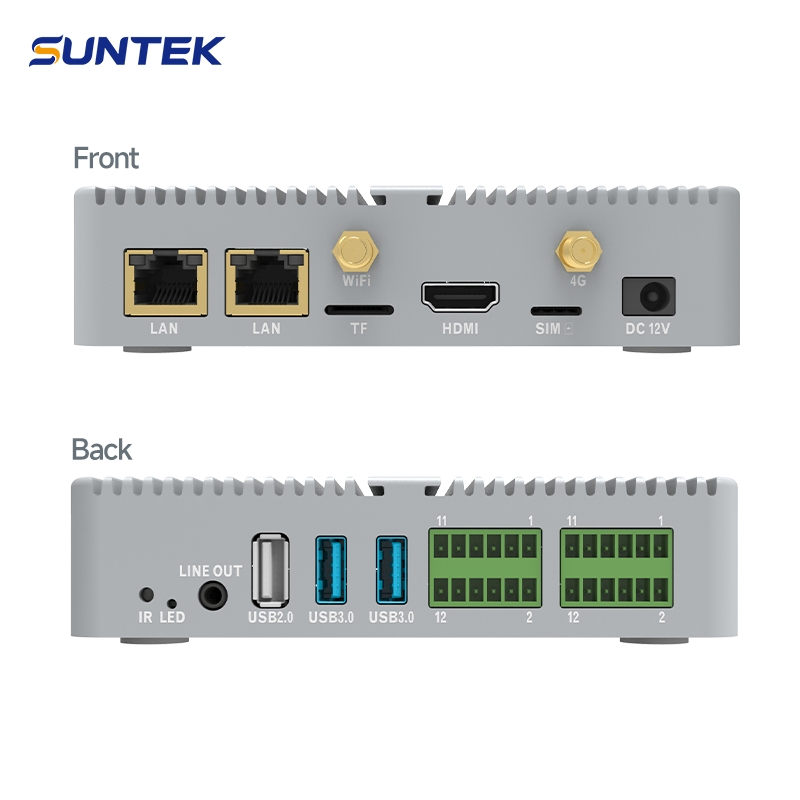

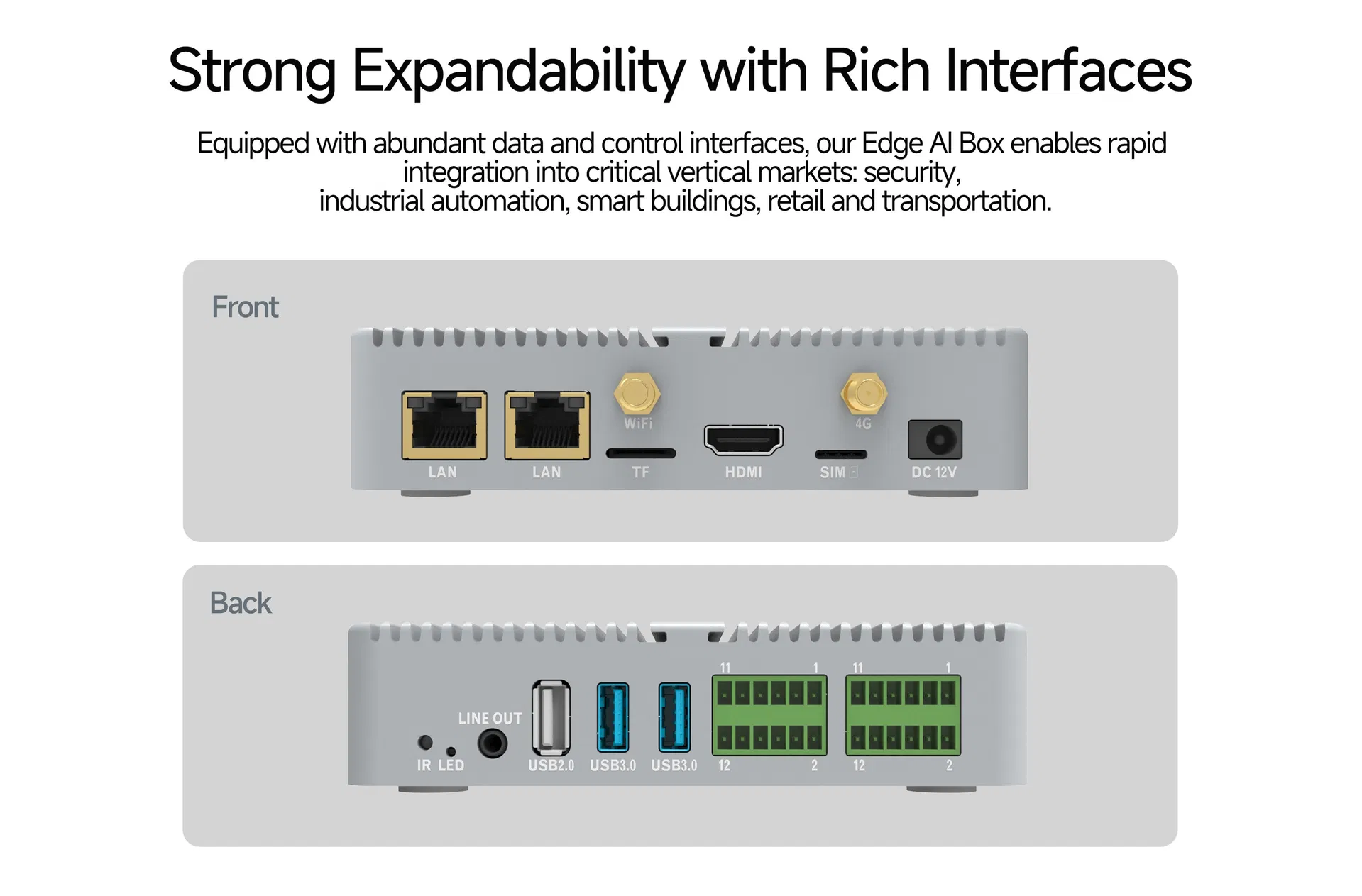

| Peripheral Ports | 2x USB 3.0, 1x USB 2.0, M.2 (Key M), 2x RS485, 2x RS232, 2x CAN, 6x GPIO |

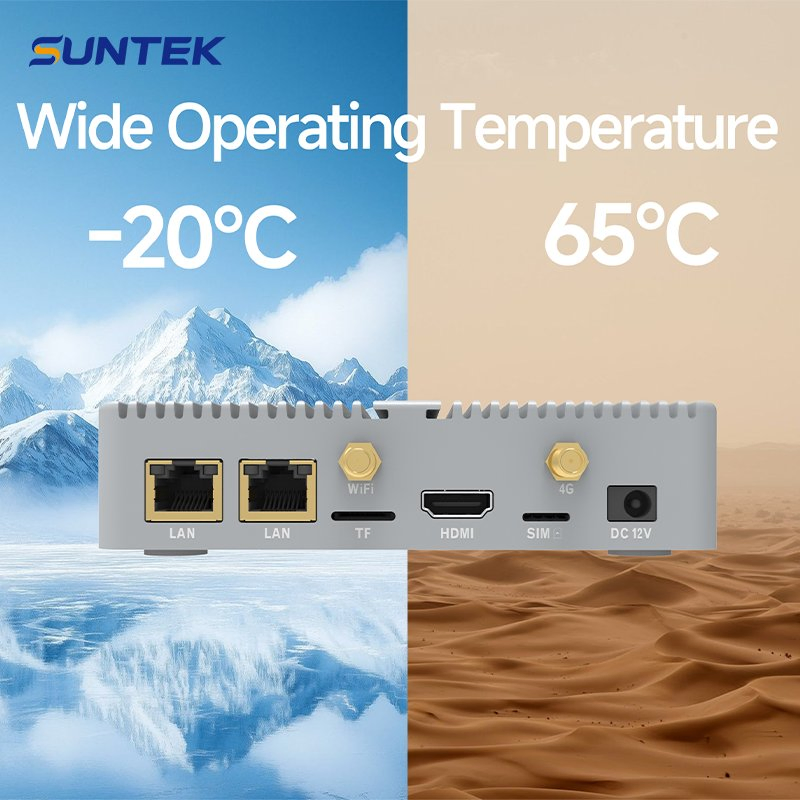

| Environment | Operating: 0°C to 40°C; Storage: 0°C to 70°C |
Mock-up (EVT) delivery after ID confirmation.
Completion of EVT + DVT + PVT testing phases.
Transition from initial design to full mass production.
Certified to ISO 9001, ISO 14001, ISO 45001, and ISO 27001 standards.

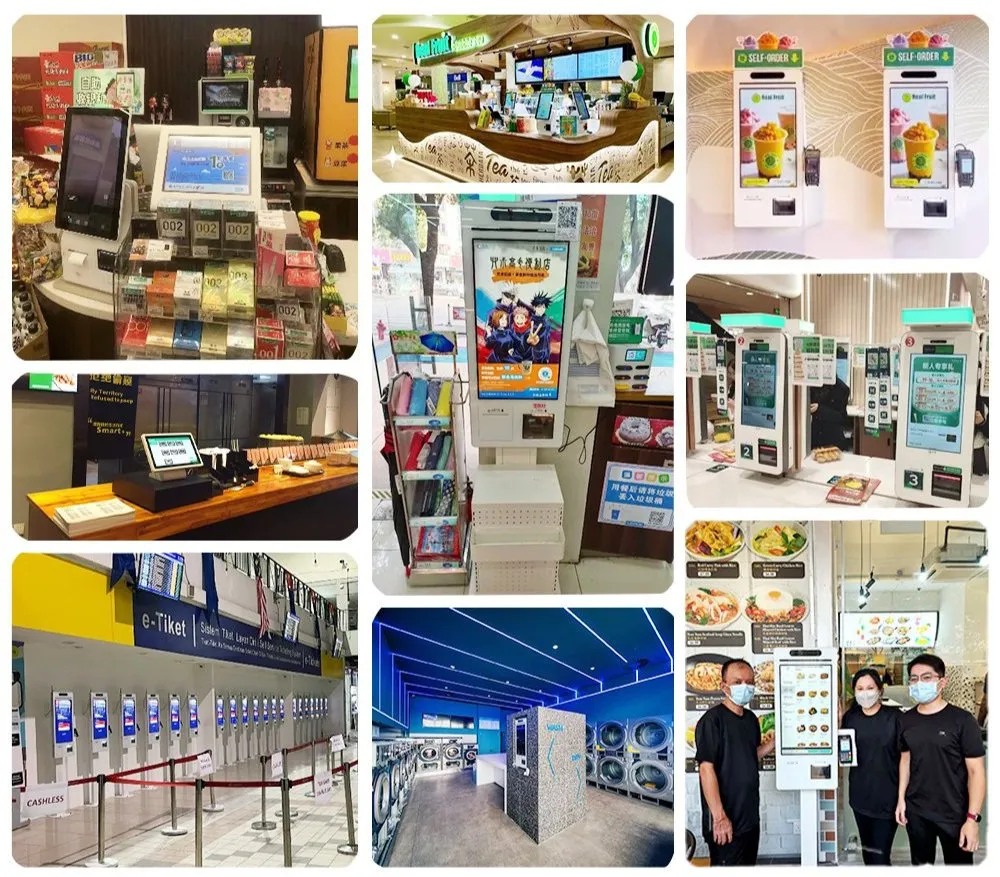

This device is ideal for Smart Retail, Industrial IoT (IIoT), Predictive Maintenance, Smart City Traffic Management, and Autonomous Robots. It handles data locally to ensure high security and low latency.
The terminal comes with the Android 14.0 operating system installed. As hardware specialists, we do not provide specific application software, allowing you to install solutions tailored to your region and industry.
By processing video feeds and sensitive data at the "Edge" (locally), information never has to leave your facility, which eliminates the risks associated with internet transmission and reduces cloud storage costs.
Yes, comprehensive OEM/ODM customization services are available. We can tailor the hardware specifications and port configurations to meet the specific requirements of your industrial or commercial project.
The SA6 supports dual-band Wi-Fi (2.4G/5G), Gigabit Ethernet (10/100/1000M), Bluetooth 4.2, and has an optional slot for 4G LTE network connectivity.

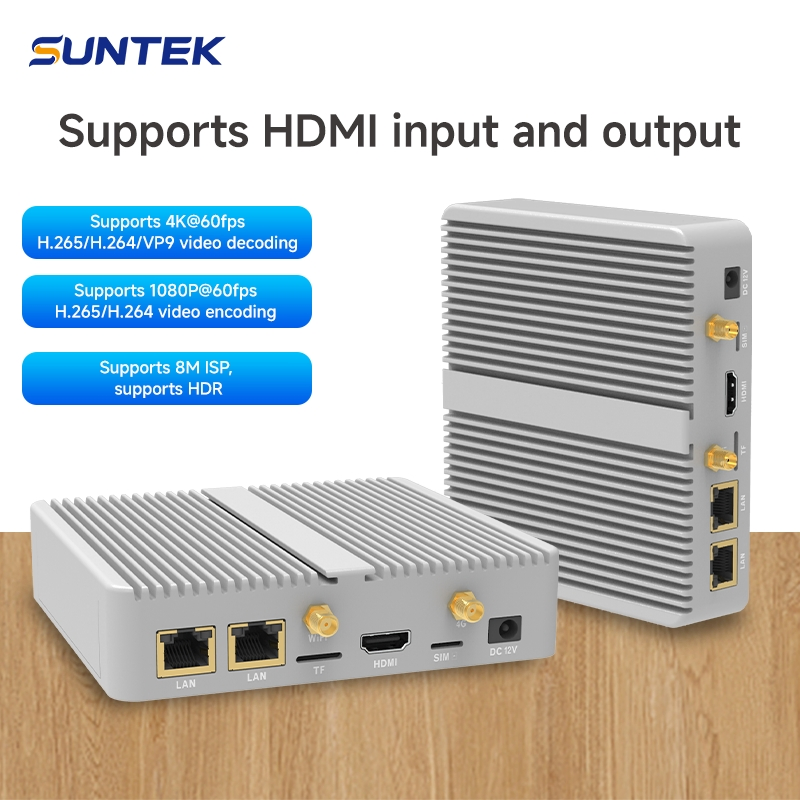

It supports 4K@60fps H.265/H.264/VP9 video decoding and 1080P@60fps video encoding, making it perfect for high-definition NVR and multimedia tasks.
