Data Center Self-Cooling Intelligent Server Rack

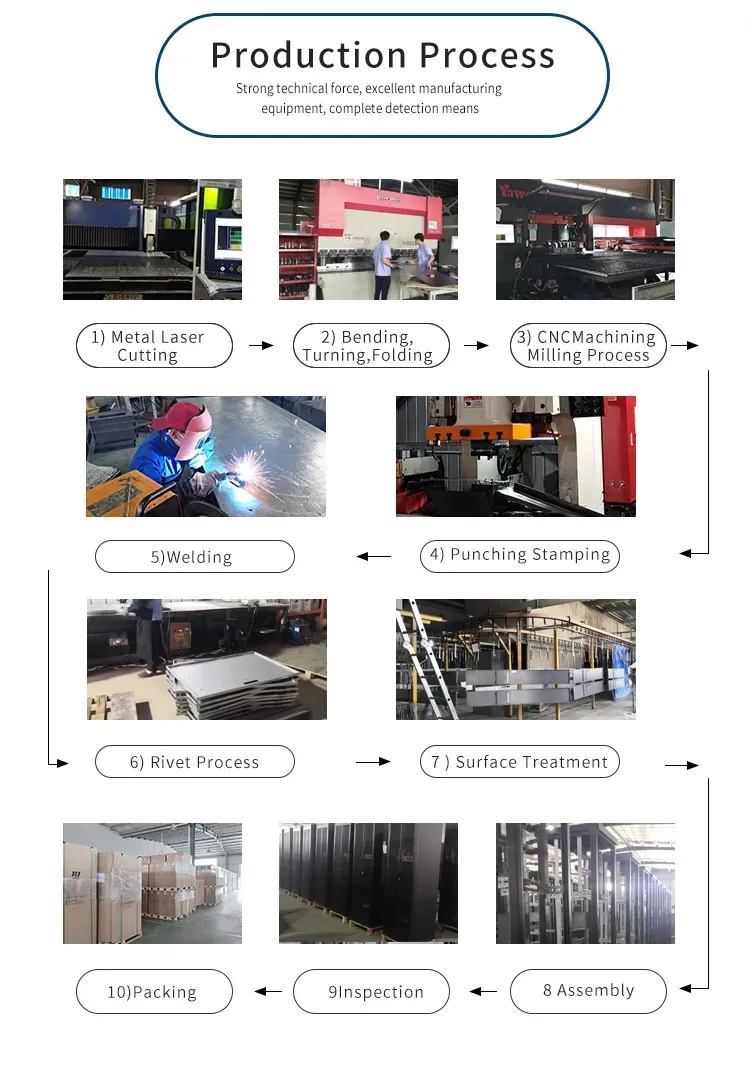

The Racks are manufactured out of steel sheet punched, formed, welded, and powder-coated with highest quality standards under stringent ISO 9001 Manufacturing & Quality management systems to ensure a high-quality product.

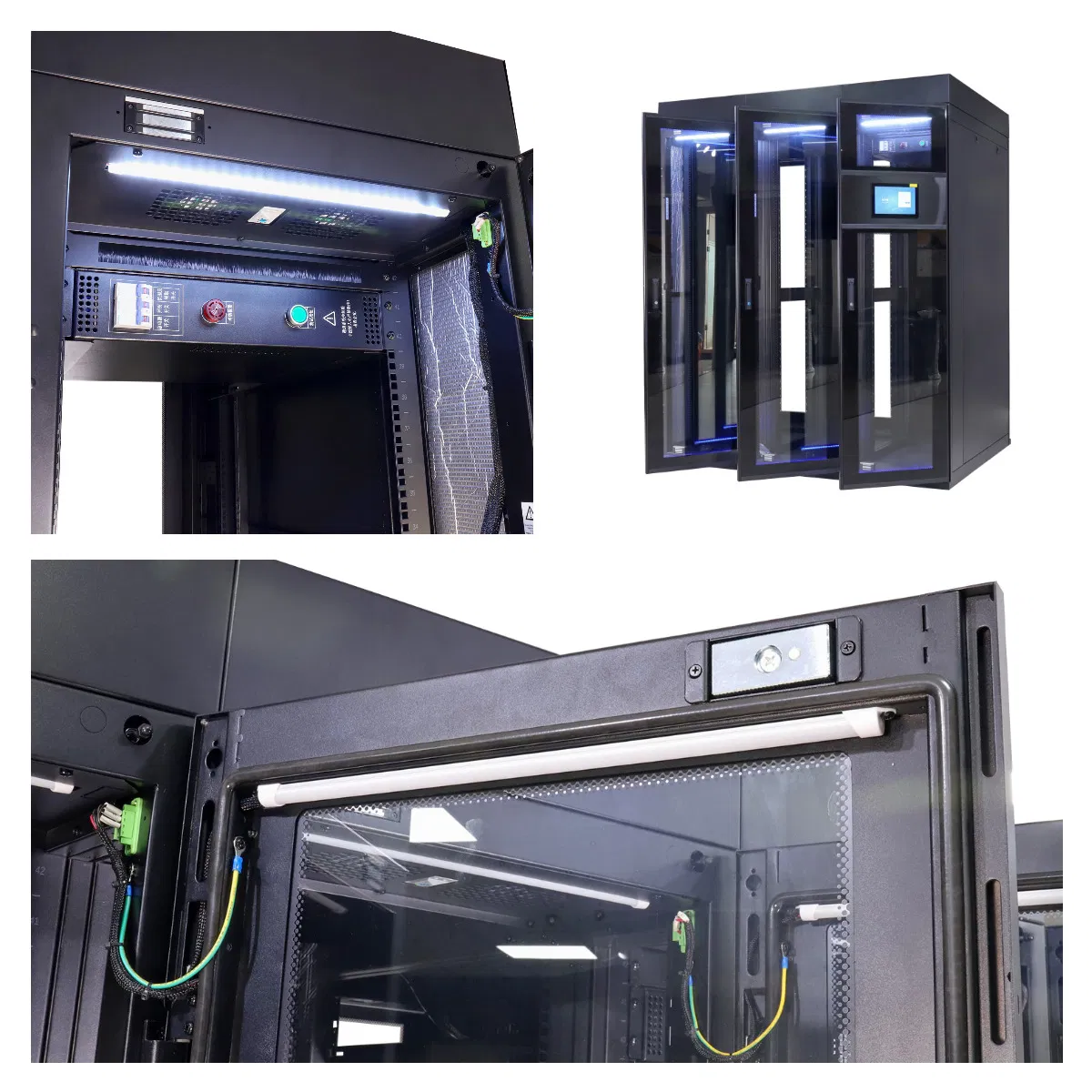

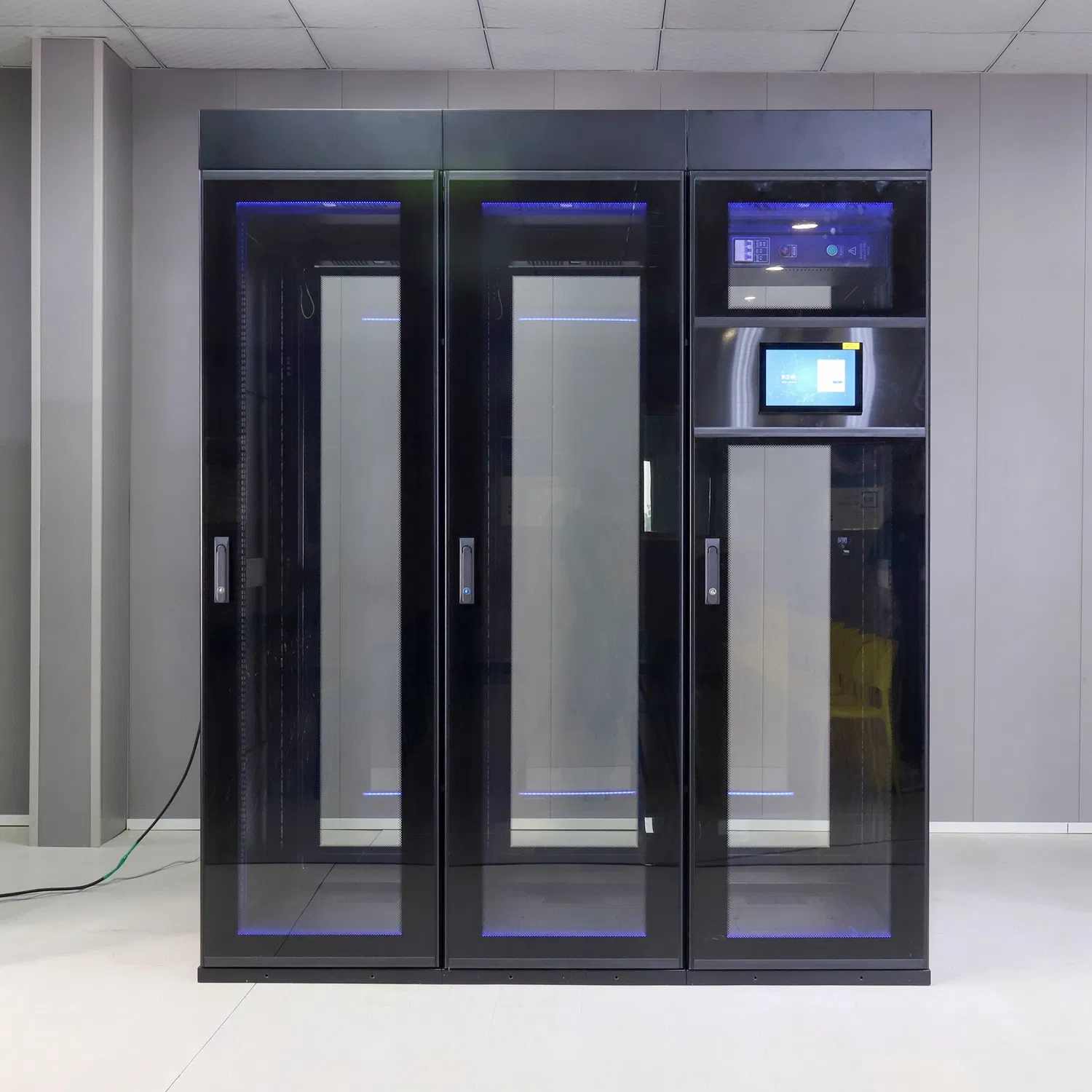

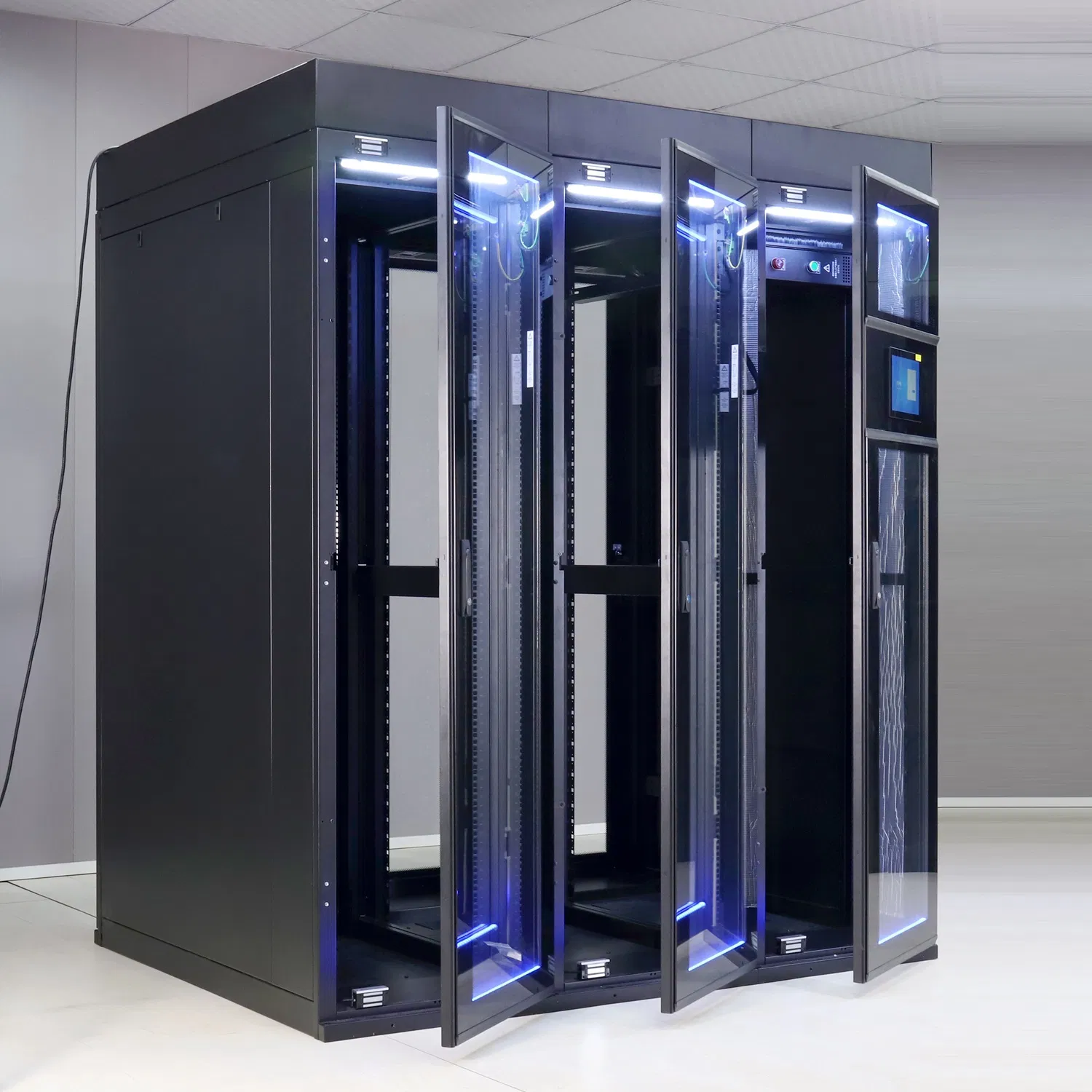

Standard configuration features a welded ultra-rigid frame with 4 pillars of 16 Gauge steel sheet, reinforced at the top and bottom. The design includes front glass doors with secure locks, back metal doors, and plain dual side panels.

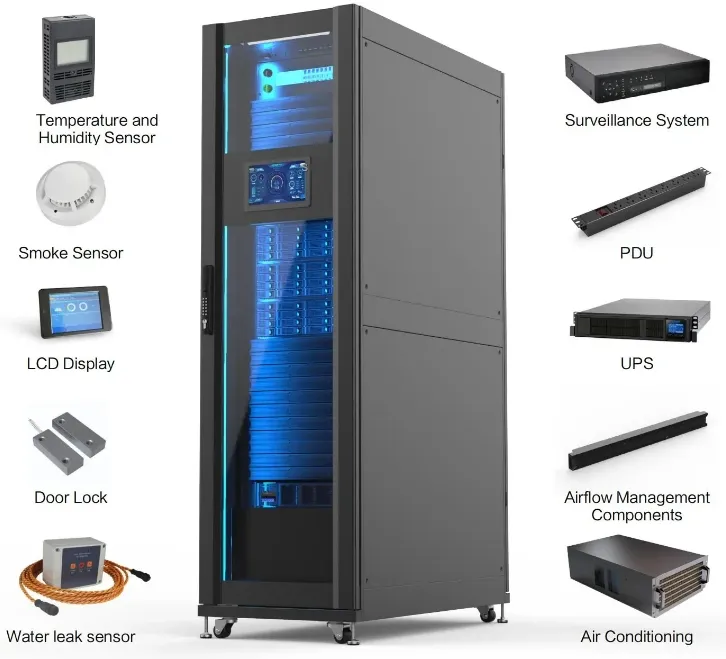

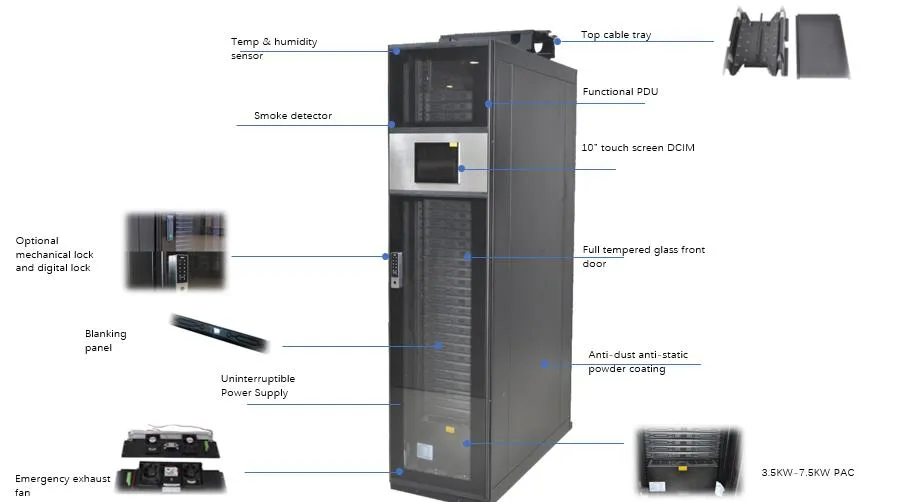

This solution achieves a true micro-modular machine room. It eliminates the need for a dedicated server room and can be placed directly in offices, business halls, conference rooms, warehouses, or factories. The integrated system includes air flow management, power distribution, rack UPS, battery packs, refrigeration, emergency ventilation, and a comprehensive monitoring system.
| Specification | 1 Rack | 2 Racks | 3 Racks | 4 Racks | |
|---|---|---|---|---|---|
| Rack System | Configurable Power | 2.4KW | 2.4KW - 4.8KW | 4.8KW - 8KW | 8KW - 12KW |
| System Size | 600*1200*2000mm | 1200*1200*2000mm | 1800*1200*2000mm | 2400*1200*2000mm | |

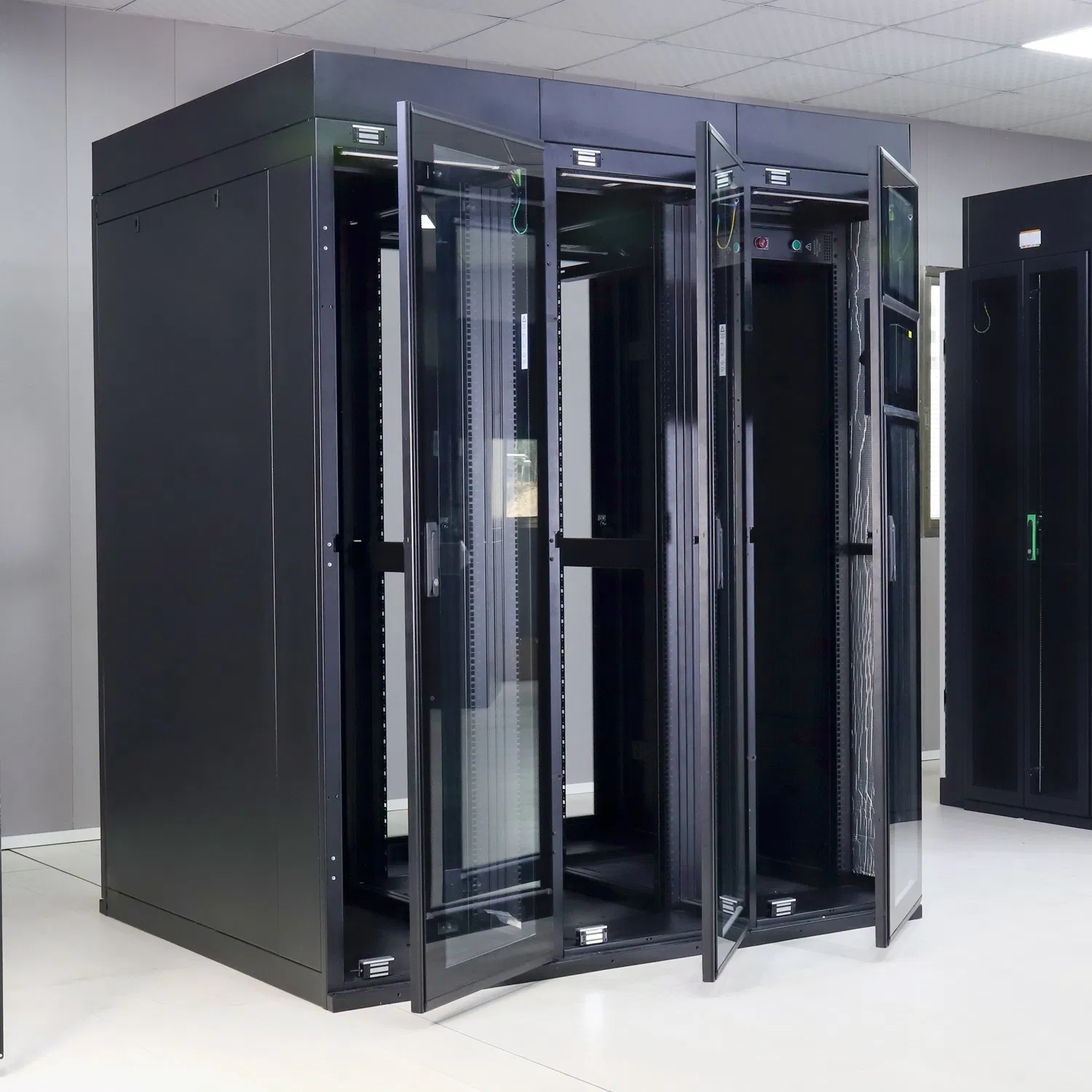

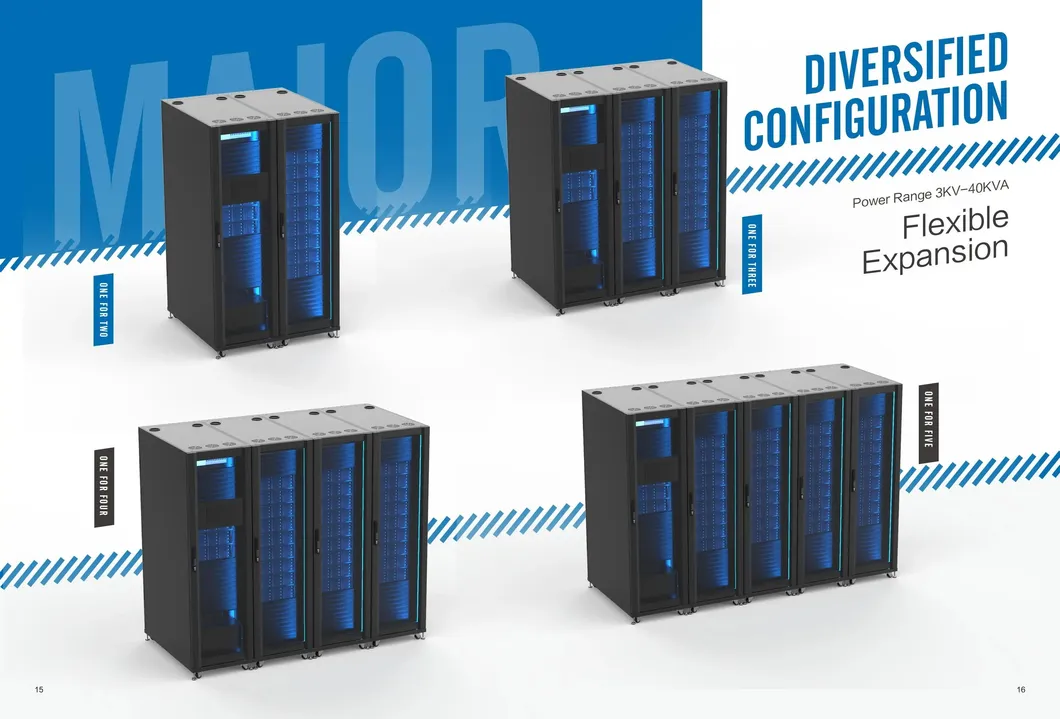

| Expansion Method | All racks can be installed side by side; ends equipped with side panels | ||||
| LED Light | RGB variable atmosphere lights (Red, Green, Blue) on both sides; auto-switching top lighting | ||||
| Cooling & Power | |||||
| Cooling System | Capacity | 3.5KW | 7KW | 12.5KW | |
| UPS System | UPS Capacity | 3KVA / 6KVA | 10KVA | 15KVA | |
| Backup Time | 5-10 minutes for full load (Internal batteries included) | ||||
| Monitoring & Safety | |||||
| Monitoring | Host/Screen | Android 10" Touch Screen, 4*485 ports, Web Remote access available | |||

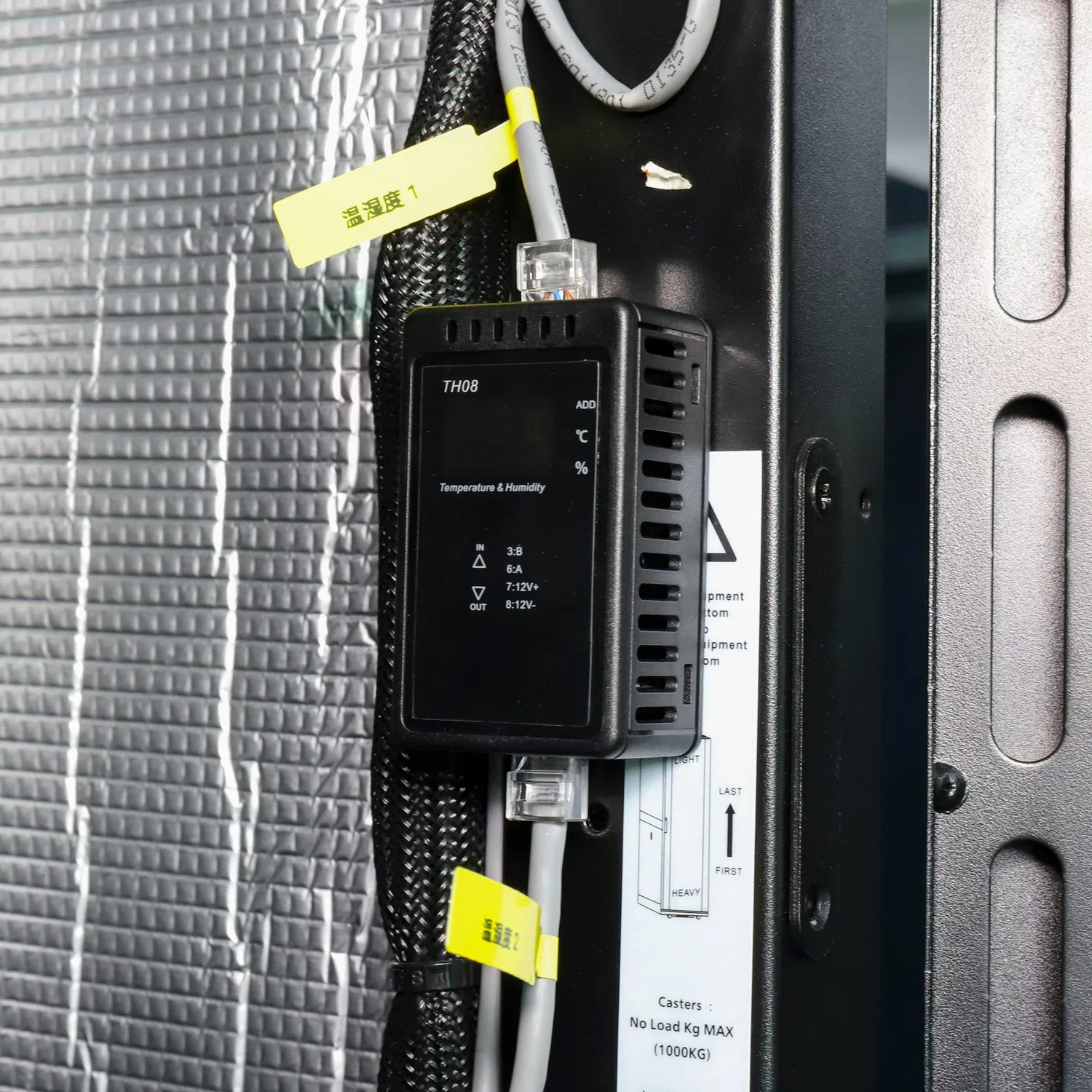

| Sensors | Standard | Smoke Sensors, Temperature & Humidity Sensors, Water Immersion (for AC) | |||

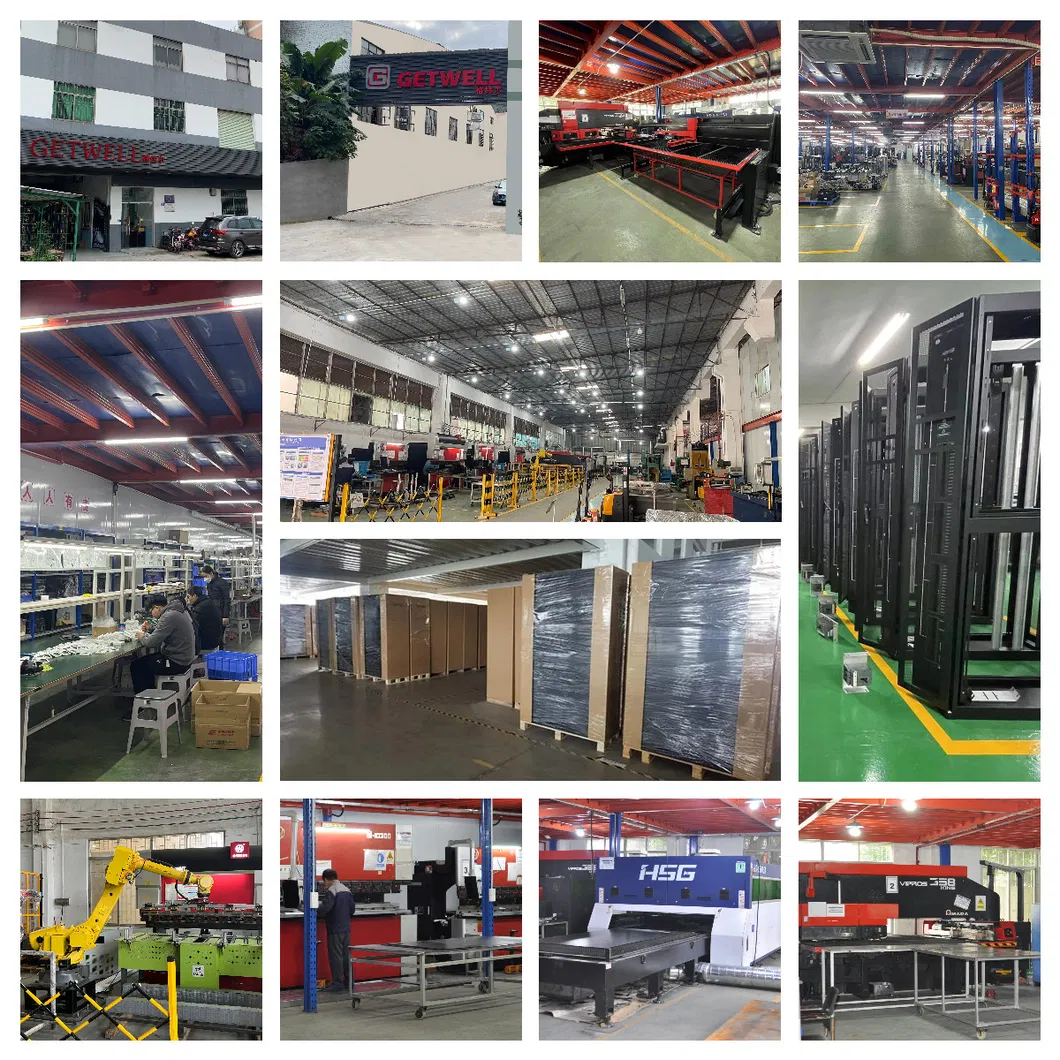

Established in 2008, our team has been delivering high-quality, innovative products and technologies to the IT industry for over 15 years. We focus on data center infrastructure design, construction, manufacturing, operation, and maintenance. We have researched and developed Micro Modular data center products and operate our own manufacturing facility.
Our engineering teams include industrial designers, structure engineers, software engineers, power distribution engineers, and HVAC specialists. We aim for continuous improvement and world-class solutions that prioritize stable performance, high loading capacity, and compact, efficient construction.
