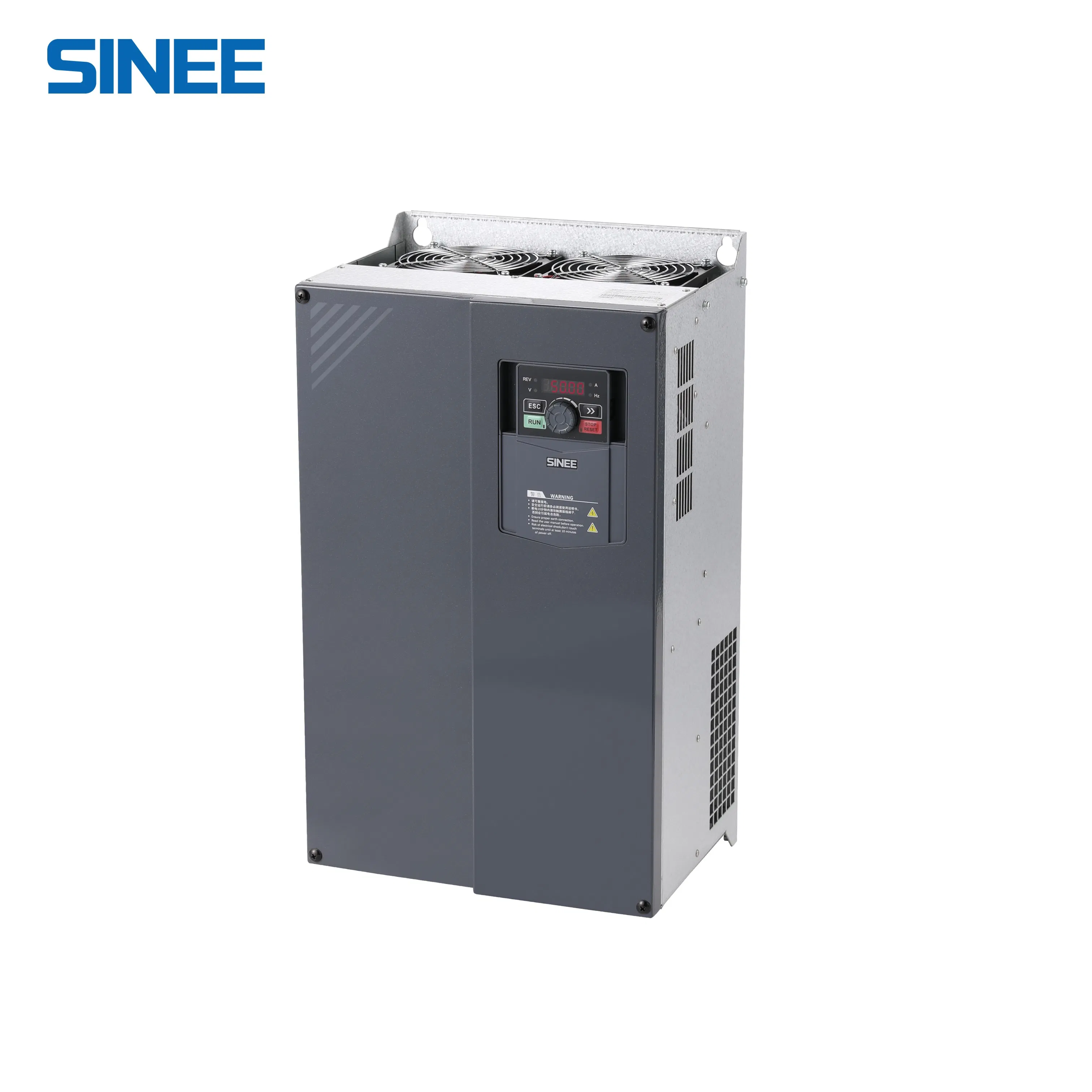

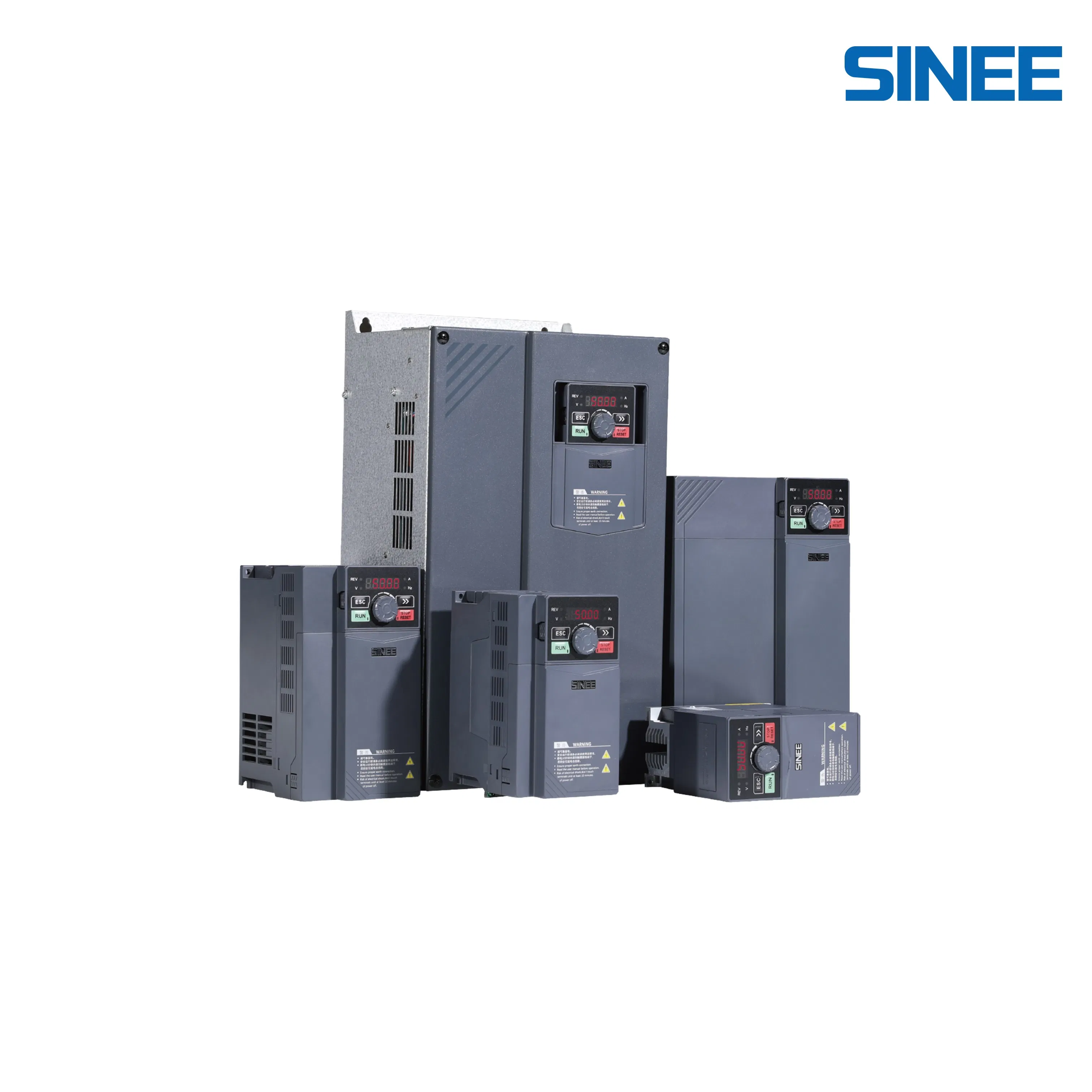

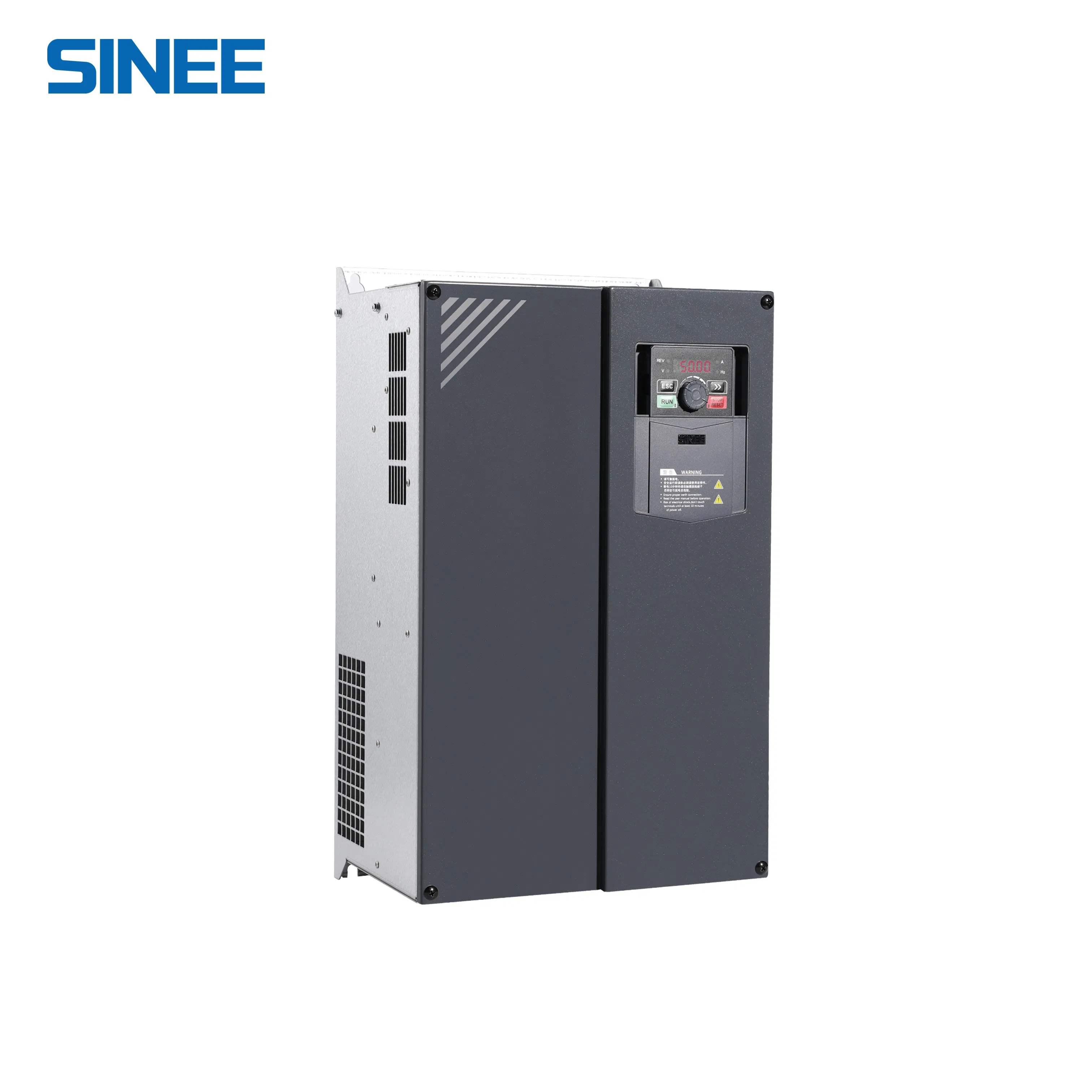

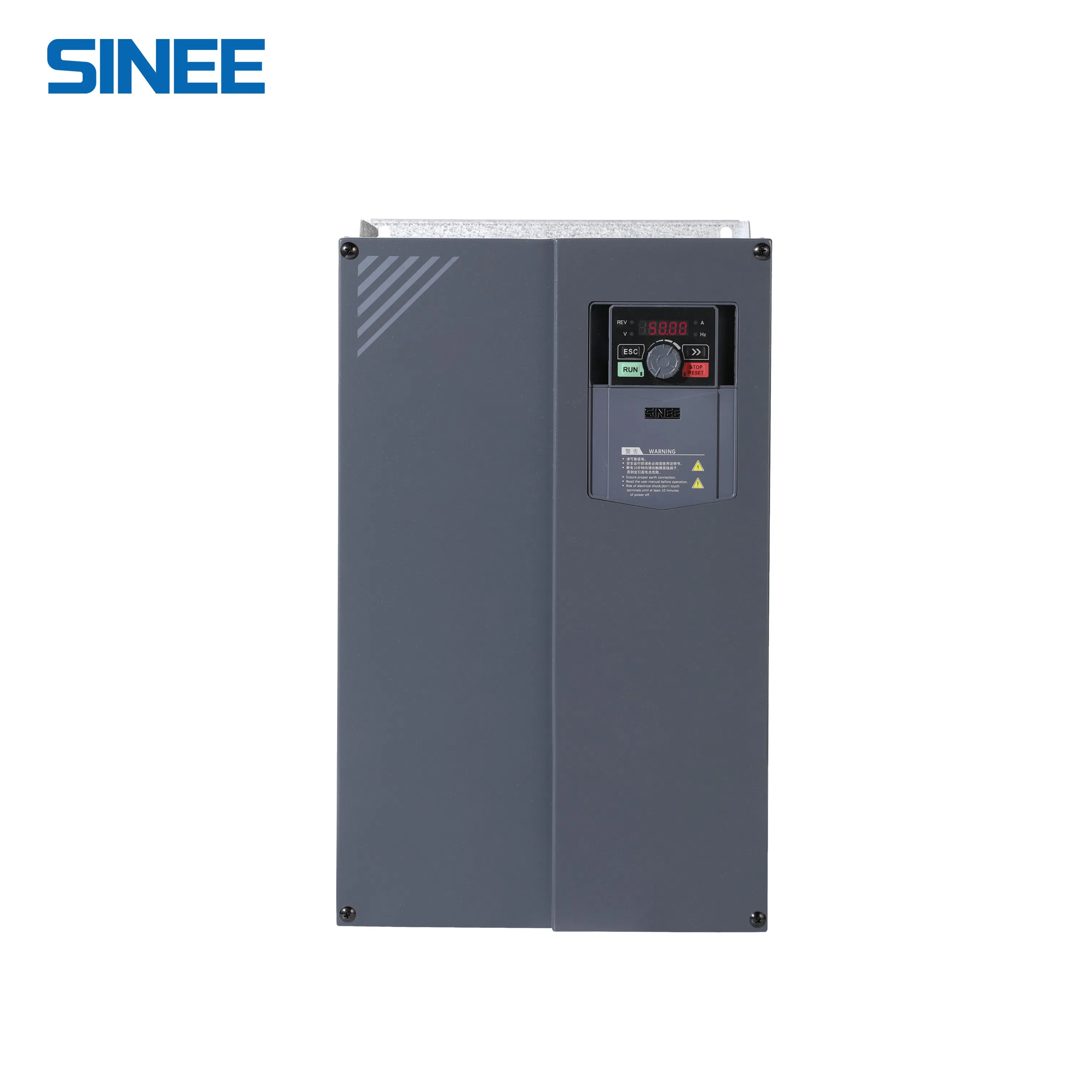

Torque control VFD motor frequency control for Various industrial systems
Voltage Range:
Single-phase/three-phase 220V-240V 0.4kW-2.2kW
Three-phase AC 340V-460V 0.75kW-450kW
The EM730 series inverter is a high-reliability general-purpose inverter. It supports three-phase AC asynchronous motors and permanent magnet synchronous motors. It utilizes advanced drive control technologies, including vector VF (VVF) control and speed sensorless vector control (SVC), supporting both speed and torque output, alongside Wi-Fi access.

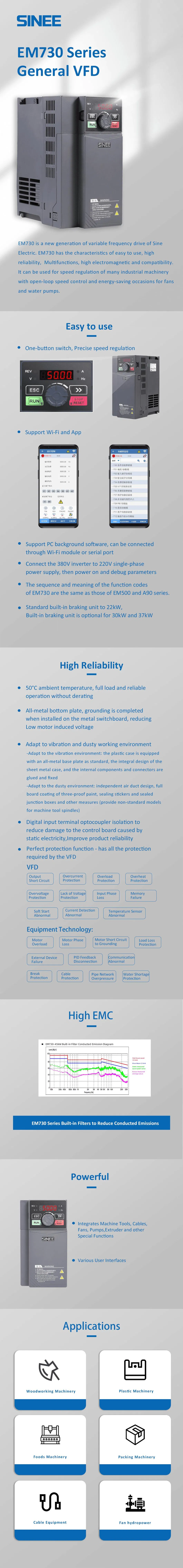

Key Features of EM730 Series:
| Item | Specification | |
|---|---|---|
| Power Supply | Rated Voltage | Three-phase 340V-460V; Single-phase/three-phase 200V-240V; 50-60Hz ± 5% |
| Output | Rated Current | Continuous output of 100% rated current |
| Overload Capacity | 150% for 60s (Heavy-duty); 120% for 60s (Light-duty) | |
| Basic Control | Driving Mode | V/F control (VVF); Speed sensorless vector control (SVC) |
| Frequency Range | 0.00~600.00Hz / 0.0~3000.0HZ | |
| Speed Accuracy | Rated synchronous speed ± 0.2% | |
| Starting Torque | 150%/1Hz (VVF); 150%/0.25Hz (SVC) | |
| Environment | Temperature | -10ºC to +60ºC (derated above 50°C) |
