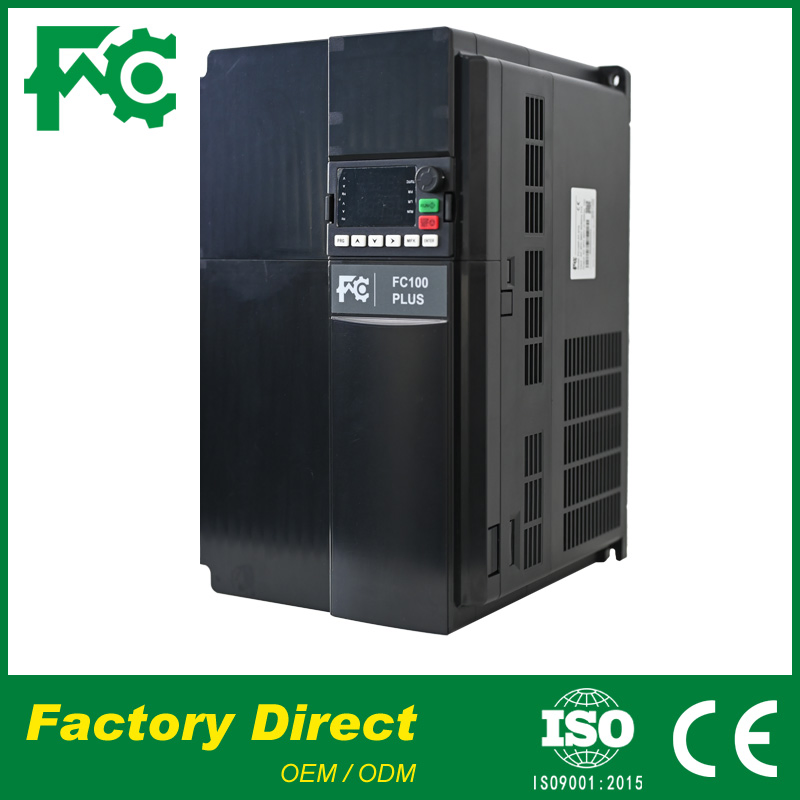

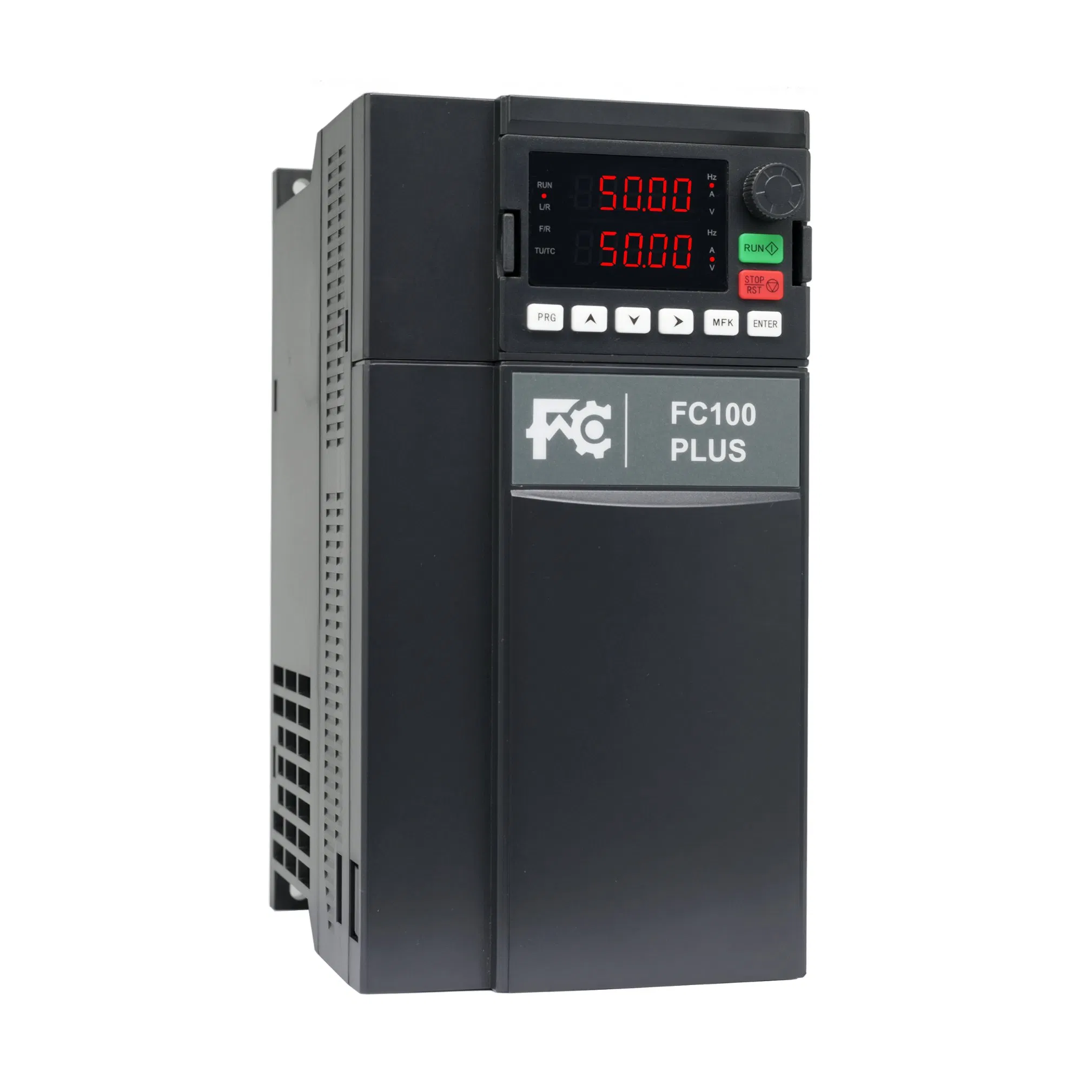

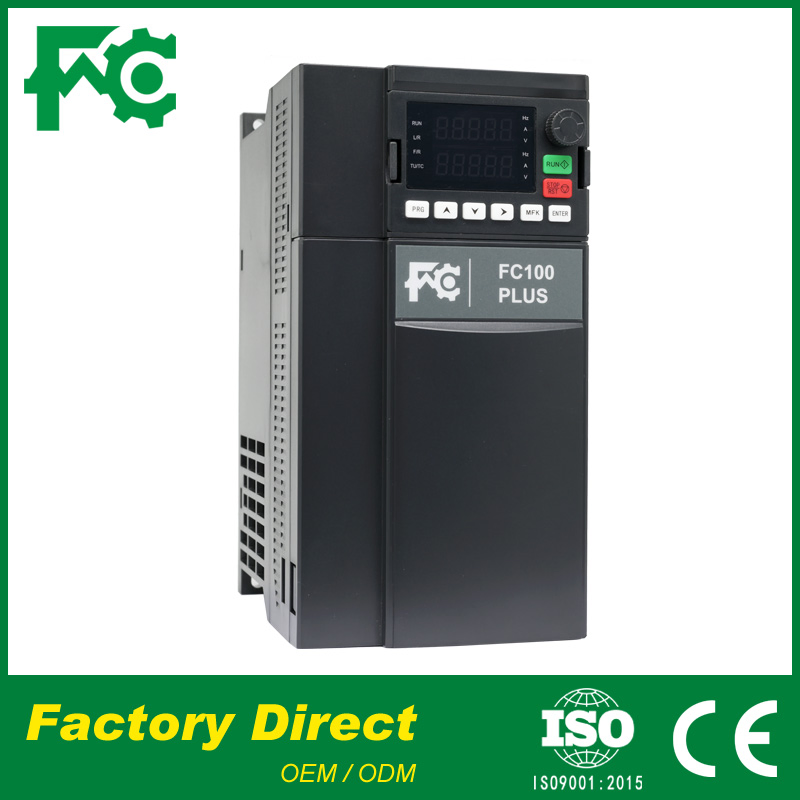

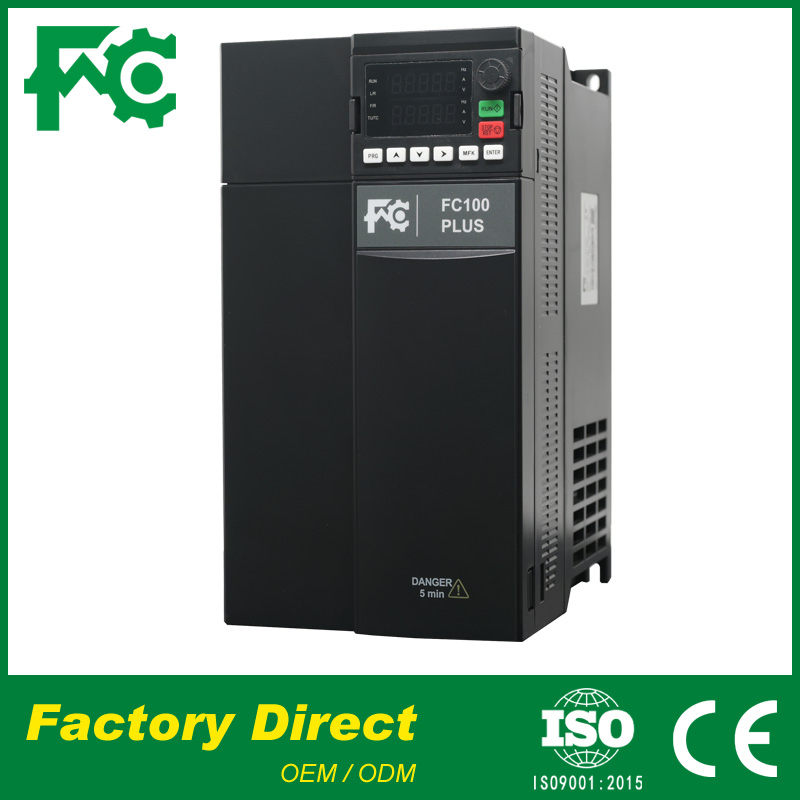

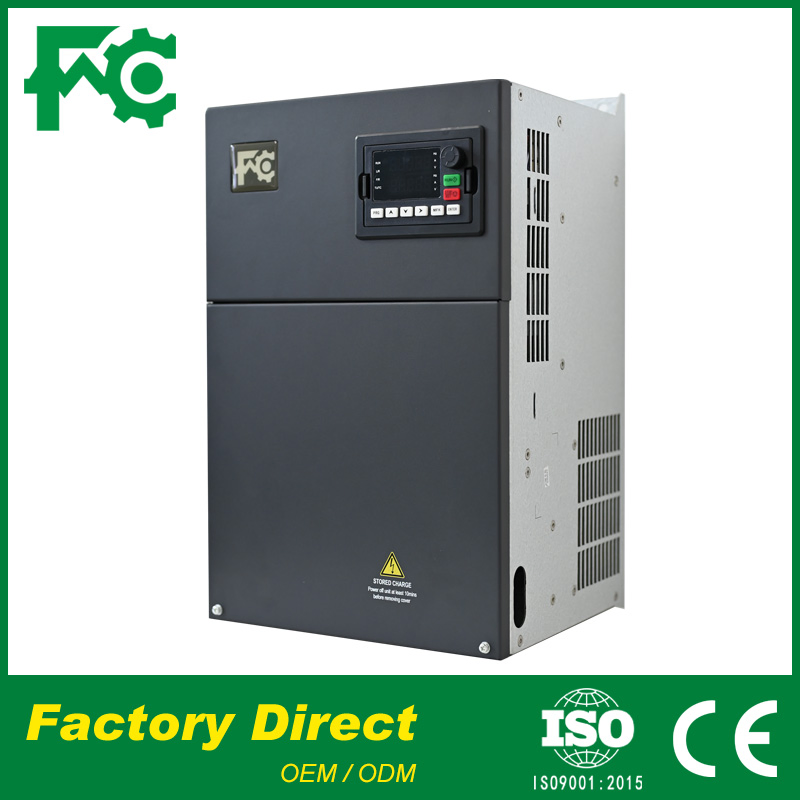

FC100p Series 0.4~185kw AC Motor Speed Controls

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

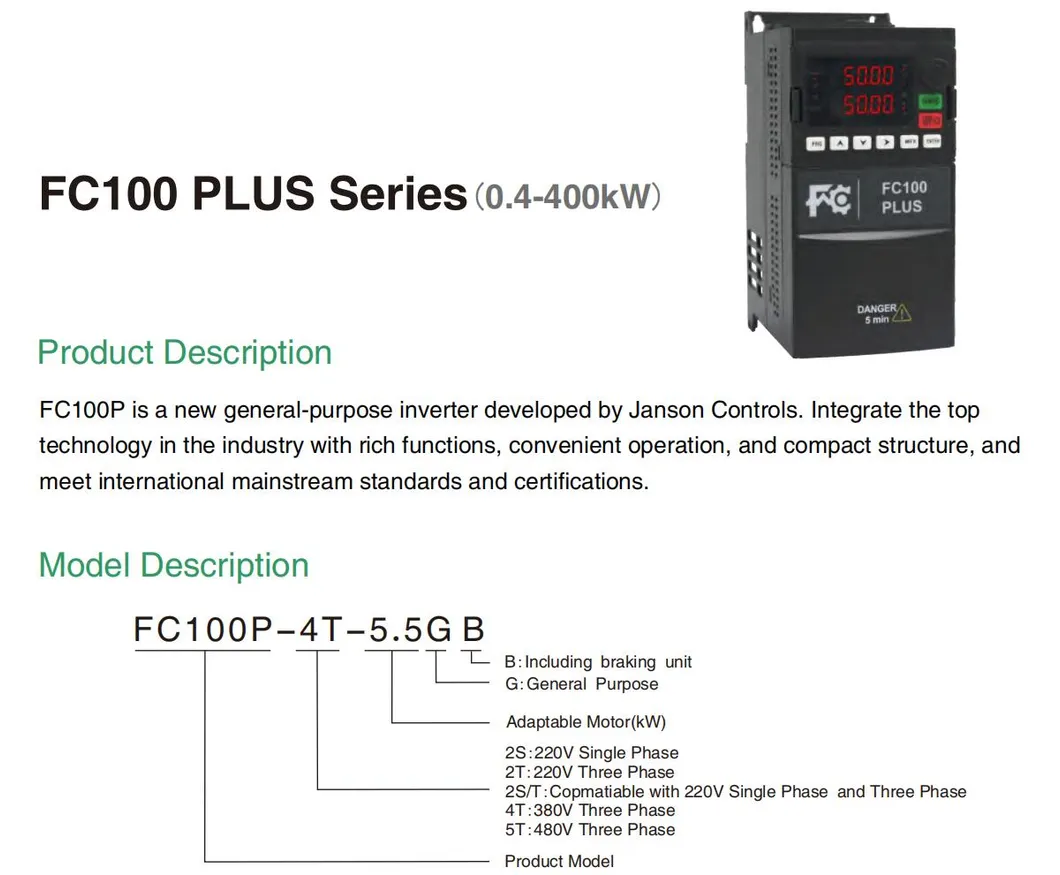

Product Description

Model NO.

FC100P

Principle of Work

Vector Control & V/F Control

Switch Mode

PWM Control

Main Circuit Type

Voltage

Supply Voltage

Low Voltage Variable-Frequency Drive

Control Mode

V/F, SVC, Fvc

Input Voltage

220V/380V/440V/480V

Output Power

0.4~185kw

Output Frequency

0~500Hz

Certificate

ISO9001, CE

Software Feature

European Fire Mode

HS Code

8504409999

Package Size

14.00cm * 9.00cm * 20.00cm

Gross Weight

2.000kg

Electrical Specification
Input Voltage	Single Phase/Three Phase 200~240V, Three Phase 380~440V (±10%, Imbalance <3%)
Input Frequency	50/60Hz ± 5%
Output Voltage	0V ~ Input Voltage
Output Frequency	Vector Control: 0~300Hz; V/F Control: 0~500Hz
Performance Highlights
Overload Capacity	150% rated output current for 1 min, 180% for 2 sec
Control Method	Open-loop vector control (SVC), V/F control
Speed Setting	Digital setting, analog setting/pulse setting, communication setting
Starting Torque	SVC: 150% rated torque / 0.5Hz
Special Features
Protection	Overvoltage Stall, Auto Current Limiting, Phase Loss, Short Circuit Protection

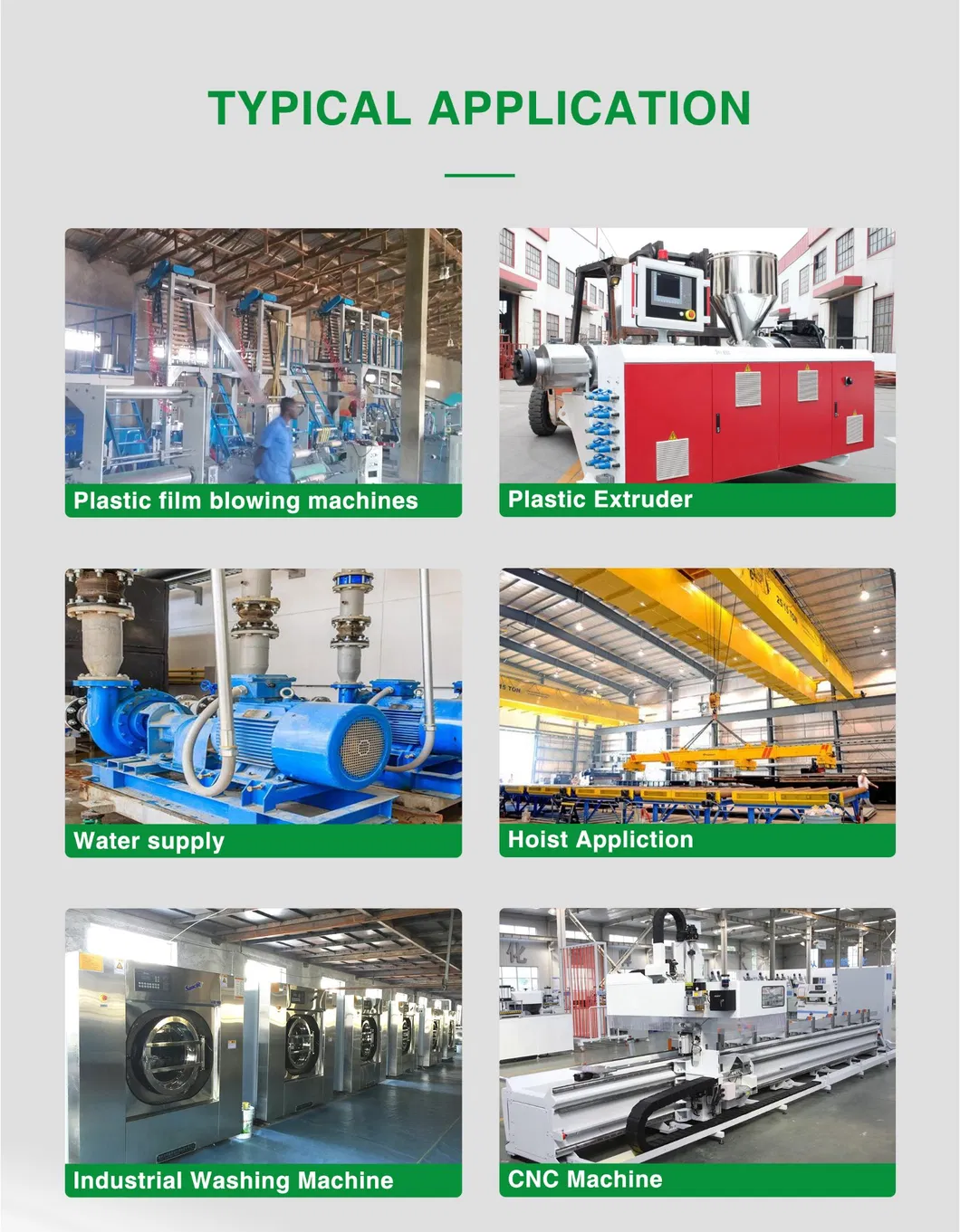

Functions	Built-in PID, Simple PLC, Textile Wobble, Constant Pressure Water Supply, Fire Mode

Item No.	Adaptable Motor (kW)	Input Current (A)	Output Current (A)	Rate Capacity (kVA)	W/H/D (mm)	GW (kg)
FC100P-2S-0.4GB	0.40	6.20	2.10	0.70	89.6 / 197.2 / 139	1.30
FC100P-2S-0.75GB	0.75	8.20	4.00	1.50	89.6 / 197.2 / 139	1.30
FC100P-2S-1.5GB	1.50	14.00	7.00	3.00	89.6 / 197.2 / 139	1.30
FC100P-2S-2.2GB	2.20	23.00	9.60	4.00	89.6 / 197.2 / 139	1.30
FC100P-4T-0.75GB	0.75	3.40	2.10	1.50	89.6 / 197.2 / 139	1.50
FC100P-4T-2.2GB	2.20	5.80	5.10	4.00	89.6 / 197.2 / 139	1.50
FC100P-4T-5.5GB	5.50	14.60	13.00	8.90	102 / 202 / 162	3.50
FC100P-4T-11GB	11.00	28.00	25.00	16.00	125 / 242.5 / 169.5	5.00
