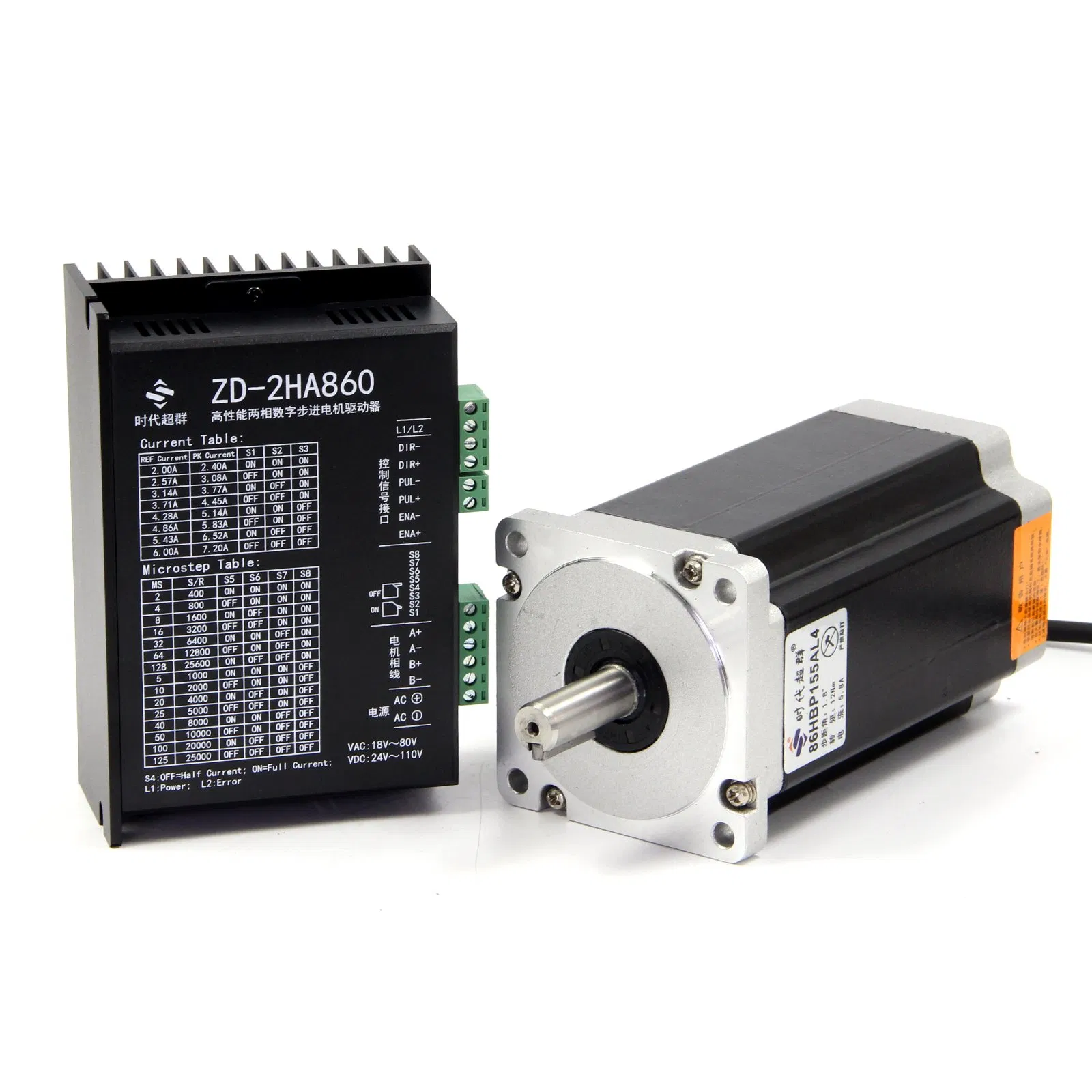

NEMA 34 Hybrid Stepper Motor and Driver Set 12nm 5A Digital Control for CNC Machine or Engraving Machine
NEMA 34 Hybrid Stepper Motor and Driver Set 12nm 5A Digital Control for CNC Machine or Engraving Machine
NEMA 34 Hybrid Stepper Motor and Driver Set 12nm 5A Digital Control for CNC Machine or Engraving Machine
NEMA 34 Hybrid Stepper Motor and Driver Set 12nm 5A Digital Control for CNC Machine or Engraving Machine
NEMA 34 Hybrid Stepper Motor and Driver Set 12nm 5A Digital Control for CNC Machine or Engraving Machine
1 / 5
NEMA 34 Hybrid Stepper Motor and Driver Set 12nm 5A Digital Control for CNC Machine or Engraving Machine
NEMA 34 Hybrid Stepper Motor and Driver Set 12nm 5A Digital Control for CNC Machine or Engraving Machine
NEMA 34 Hybrid Stepper Motor and Driver Set 12nm 5A Digital Control for CNC Machine or Engraving Machine
NEMA 34 Hybrid Stepper Motor and Driver Set 12nm 5A Digital Control for CNC Machine or Engraving Machine
NEMA 34 Hybrid Stepper Motor and Driver Set 12nm 5A Digital Control for CNC Machine or Engraving Machine

NEMA 34 Hybrid Stepper Motor and Driver Set 12nm 5A Digital Control for CNC Machine or Engraving Machine

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

⚙️ Basic Specifications
Model NO.
86HBP155AL4S-TK0+DM860H
Signal
Pulse Signal
Function
Automatic Control
Driver Model
DM860H
Motor Type
Hybrid Stepping
Max Micro-Step
128
Suitable Motor
NEMA 34 Series
Input Voltage
18V-80VDC / 24V-110VDC
Max Output Current
7.2A
Weight
6kg
📦 Packaging & Delivery
Package Size
25.00cm * 25.00cm * 20.00cm
Gross Weight
5.000kg
Transport Package
Polyfoam, Cardboard Carton
📝 Product Description

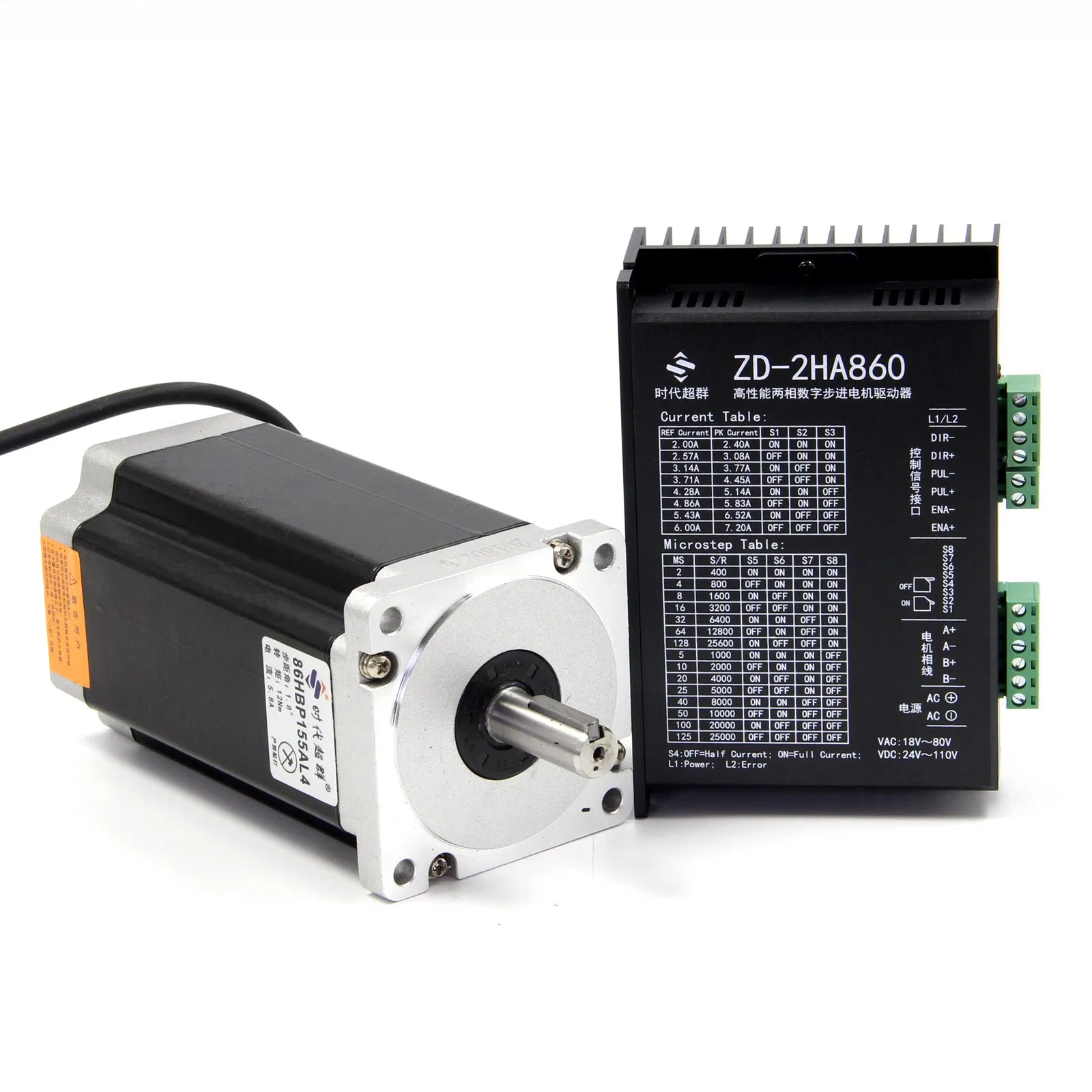

NEMA 34 Hybrid Stepping Motor and Driver Set

High-performance 12nm 5A Digital Control set specifically designed for CNC machines and engraving equipment. This professional-grade kit ensures precision and stability for demanding industrial applications.

NEMA 34 Hybrid Stepper Motor Set

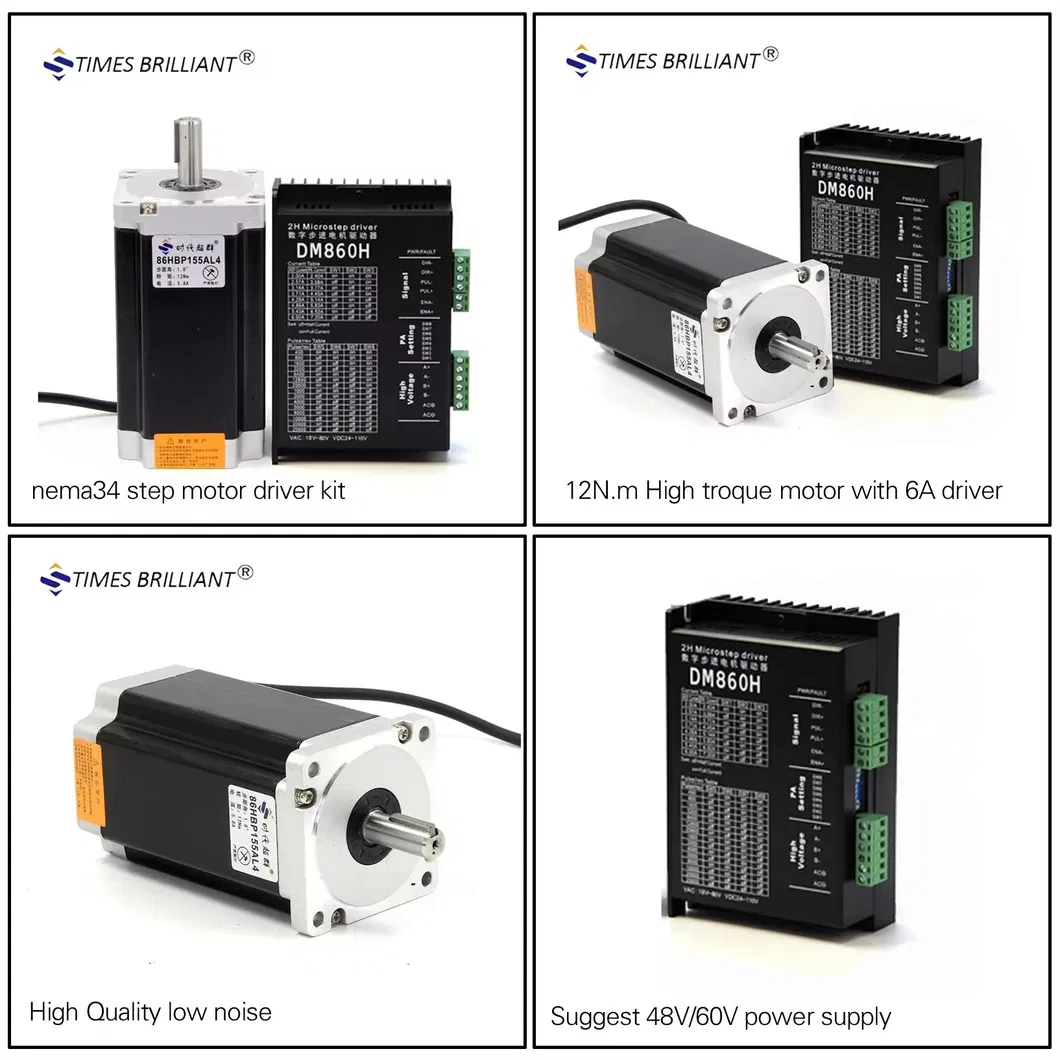

Motor Detail 1

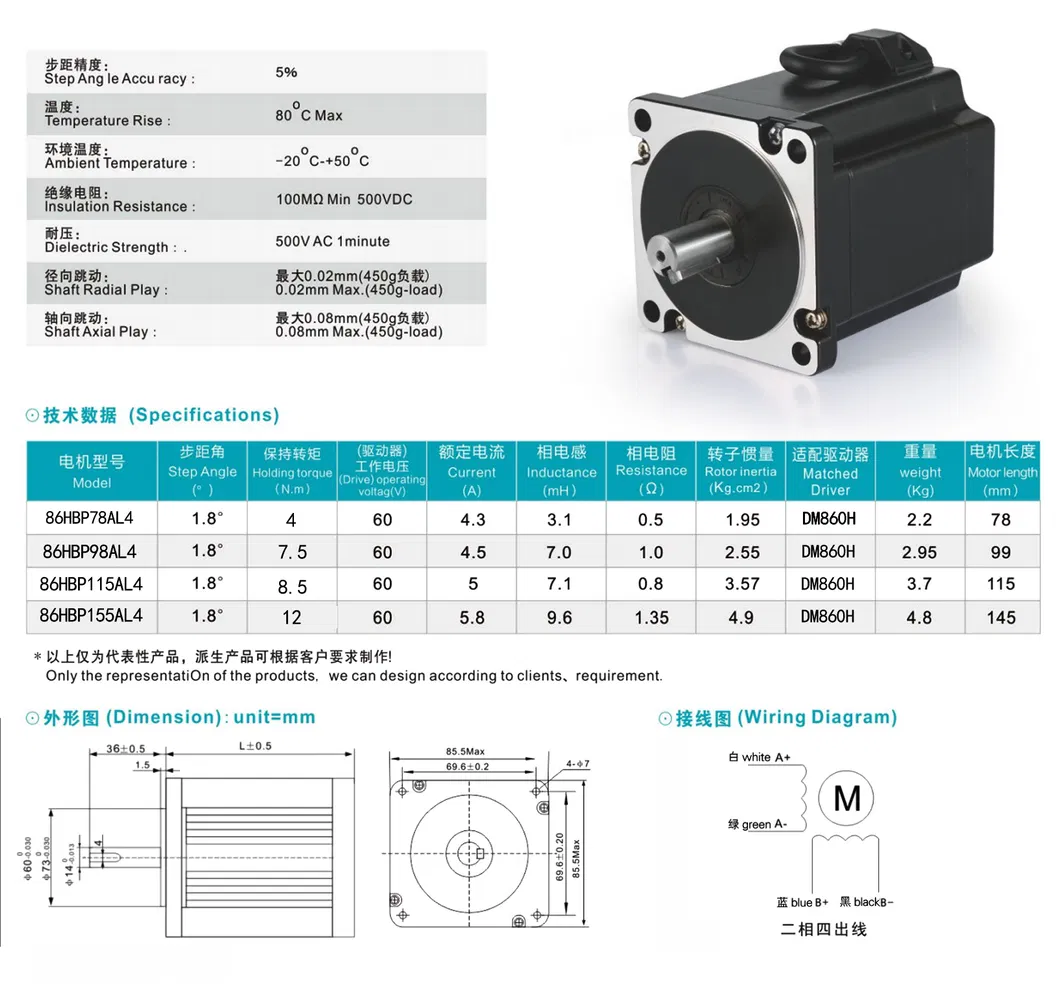

Motor Detail 2

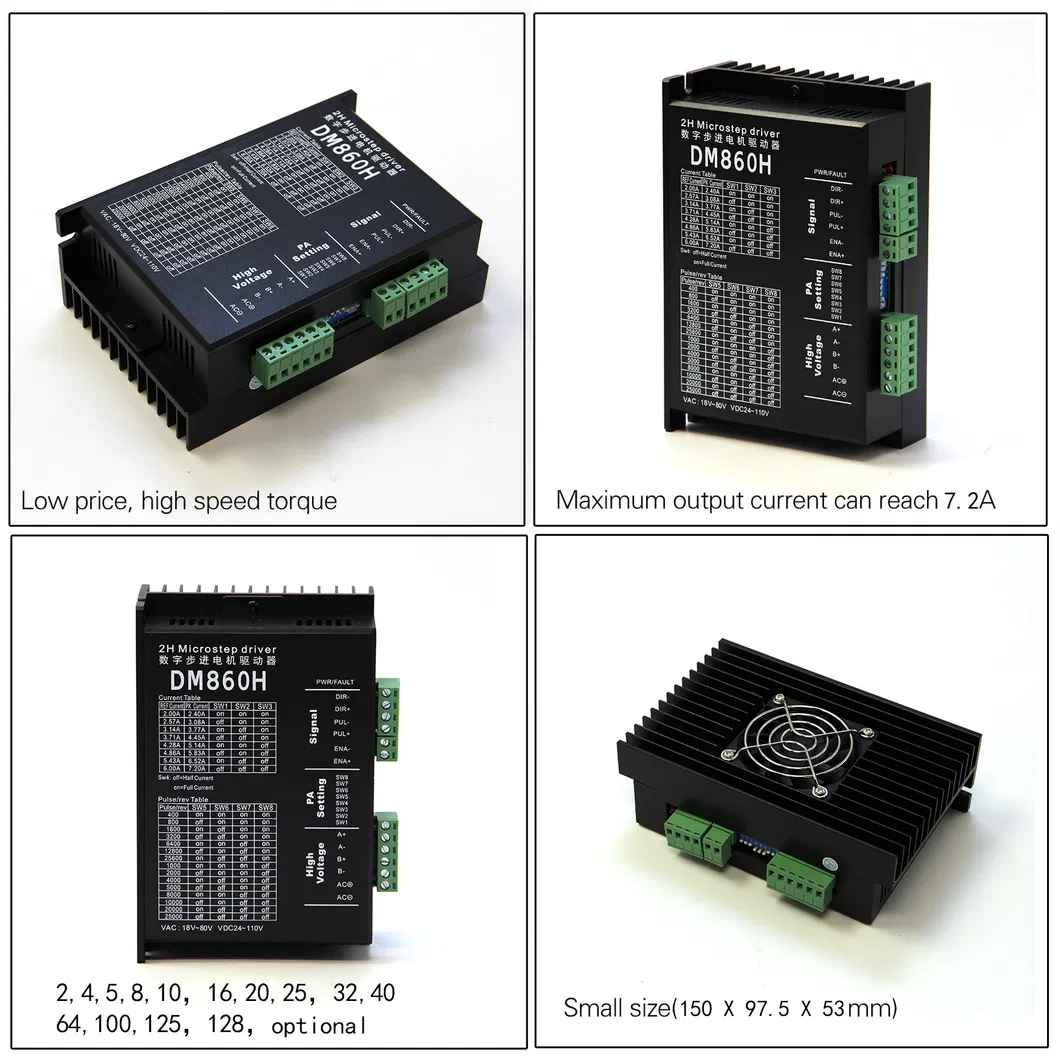

Motor Detail 3

🚀 Driver Characteristics

  • Interface adopts ultra-high-speed optical coupling for isolation
  • Strong ability to resist high frequency interference
  • Switch randomly among 16 different subdivisions
  • Automatic semi-flow locking system
  • 8 adjustable current levels
  • Support for offline, enable, and lock functions
  • Built-in overvoltage, undervoltage, and overcurrent protection
📊 Technical Specifications & Dimensions

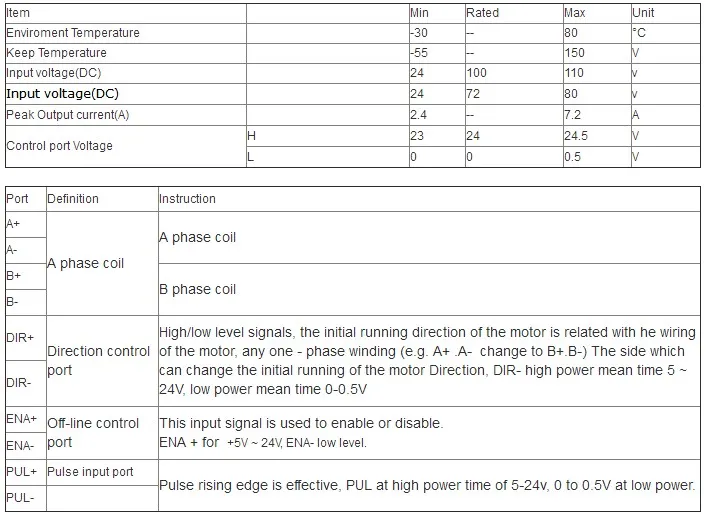

Technical Specs Operating Conditions

Size Information:

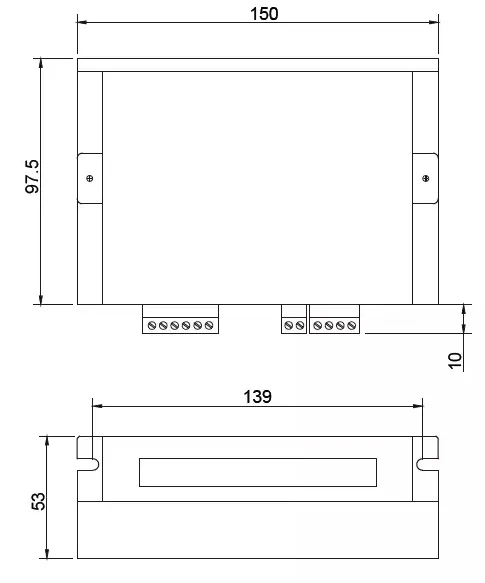

Product Size Diagram

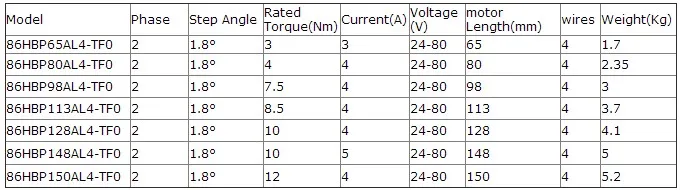

Adapted Motor Data:

Adapted Motor Data
Connection Diagram
Related Products
🛠️ Professional Service
Service Flow Quality Assurance Certifications
Frequently Asked Questions
What is included in the NEMA 34 motor set?
The set includes a high-torque NEMA 34 Hybrid Stepping Motor and a compatible DM860H Digital Stepper Driver, designed for seamless integration.
What type of input signal does the DM860H driver support?
The driver primarily supports pulse signals and features ultra-high-speed optical coupling isolation to handle high-frequency interference.
What are the power requirements for this system?
The driver is compatible with a wide input voltage range of 18V-80VDC or 24V-110VDC, making it adaptable to various power supplies.
Can I adjust the micro-step settings?
Yes, the driver allows you to switch between 16 different subdivisions, with a maximum micro-step of 128 for precise movement control.
What safety features are built into the driver?
The DM860H includes comprehensive protection against overvoltage, undervoltage, and overcurrent to ensure long-term reliability of your CNC equipment.
Is this set suitable for heavy-duty CNC machines?
Absolutely. With a 12nm torque and 7.2A max output current, this NEMA 34 set is ideal for CNC engraving machines and other automatic control systems.
