Eeptron PLC
1 / 5
| DC Power Supply Specification: 12 point DC input(analog), 8 point transistor output | |
| Operation temperature: -20C to 70C |
System Resources: Timers: 127 Counters: 127 Function blocks: 127 RTC time intervals: 127 Storage capacity: 64K Insulation Intensity: IEC1131 Dimensions: 90*126*58 (mm) |
| Storage/Transportation: -40C to 70C | |
| Protection: IP20 | |
| Interference Regulation: EN55011(B Class) | |
| RTC accuracy: MAX ±5S/day | |
| Certificate: CE | |

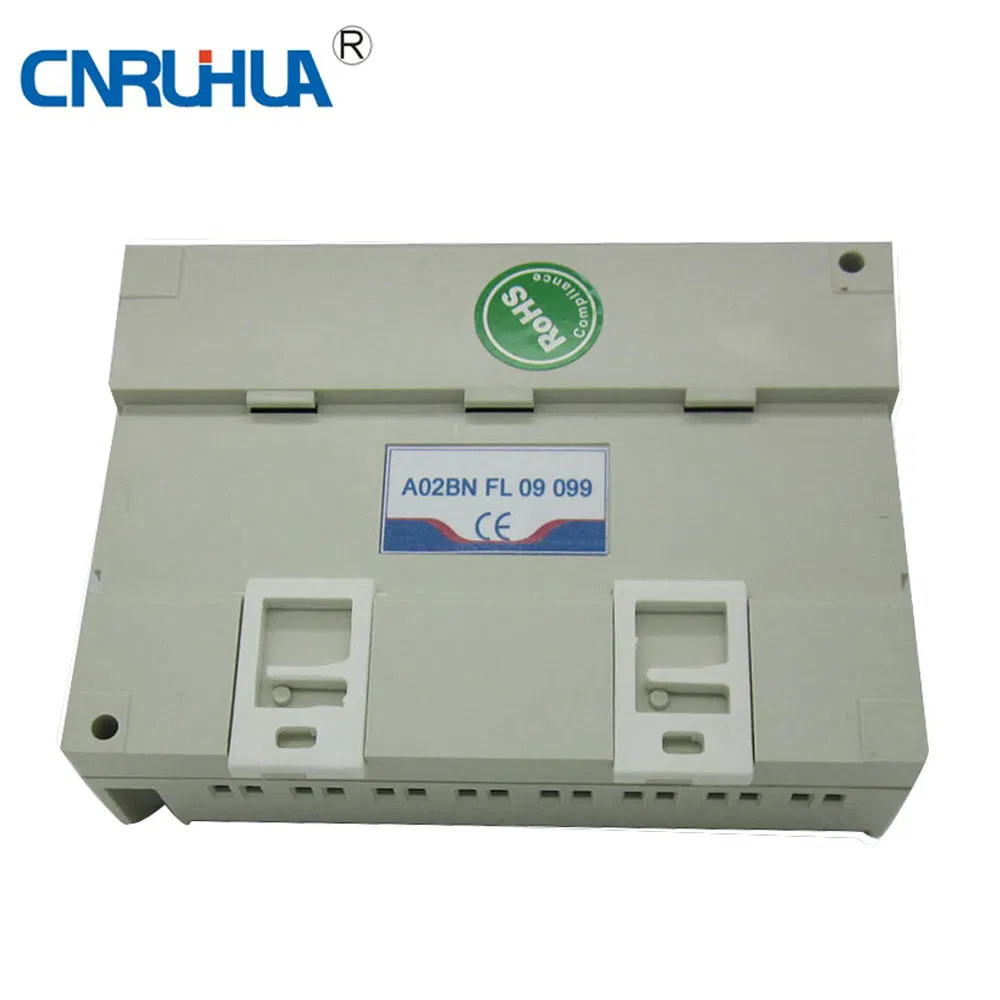

| Installation: Standard DIN rail or screw | |
| Power Supply Details | |
| Rated voltage: DC12/24V | Main voltage operation range: DC10-28V |
| DC24V consumption: Typical 80mA | Output full-load: Typical 2W |
| Digital Input/Output | |
| Input Signal 0: DC 0-5V (<0.4mA) | Input Signal 1: DC 10-24V (<1mA) |
| Output type: Transistor (equivalent PNP) | Output voltage: ≤DC80V / Current: MAX 2A |
| Analogue input Signal: DC0-10V | Input current: <0.3mA |

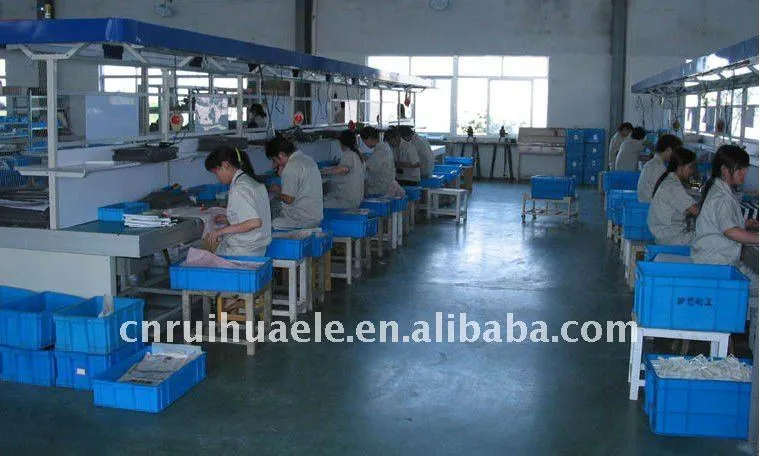

We are a professional manufacturer of low voltage electrical products. Our commitment lies in the design, production, and sale of a series of ozone generators, air pumps, PLC, rotary encoders, HMI, sensors, and other electrical components.
OEM Services: We provide full OEM support for your brand, including logo printing and custom product designs according to your specifications for size, quality, and processing methods. With a strong R&D team, we can manufacture products based on provided samples.
