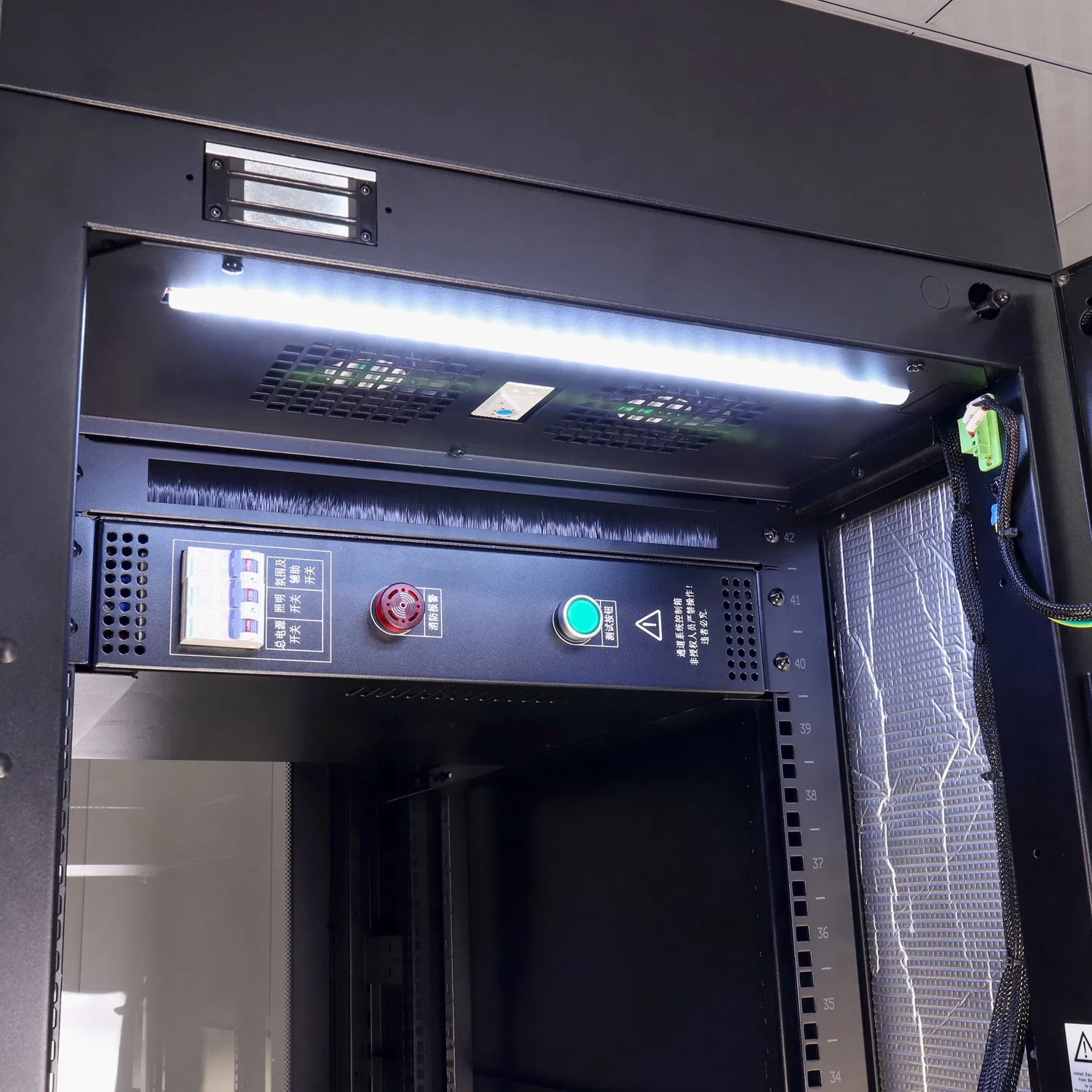

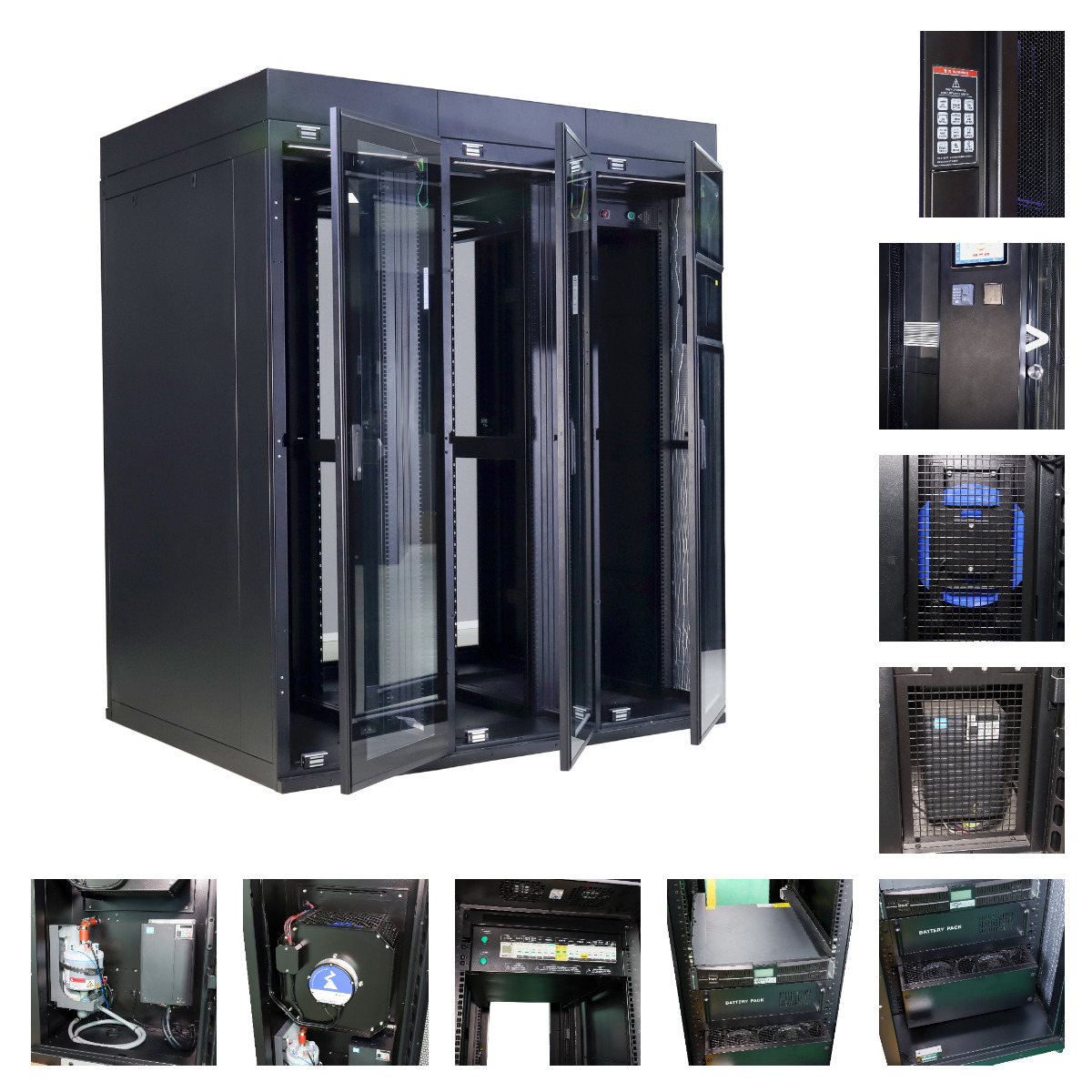

Standard 19" 42U Integrated Power Cooling Smart Cabinet
ISR Series: A Self Cooled, Self Powered & Self Contained Rack

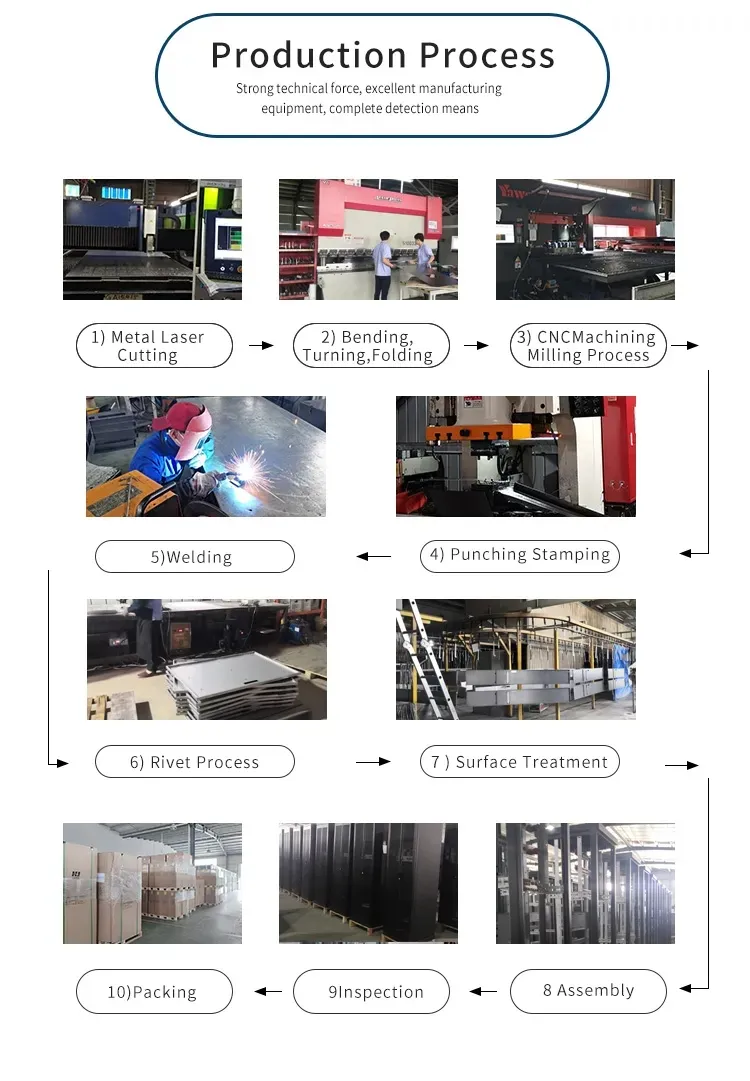

These racks are manufactured out of steel sheet punched, formed, welded, and powder-coated to the highest quality standards under a stringent ISO 9001 Manufacturing & Quality management system.
The configuration features a welded ultra-rigid frame with 4 Pillars of 16 Gauge steel sheet, reinforced for maximum stability. It achieves a true micro-modular machine room environment, eliminating the need for a dedicated server room. It can be deployed directly in offices, business halls, warehouses, or production workshops.

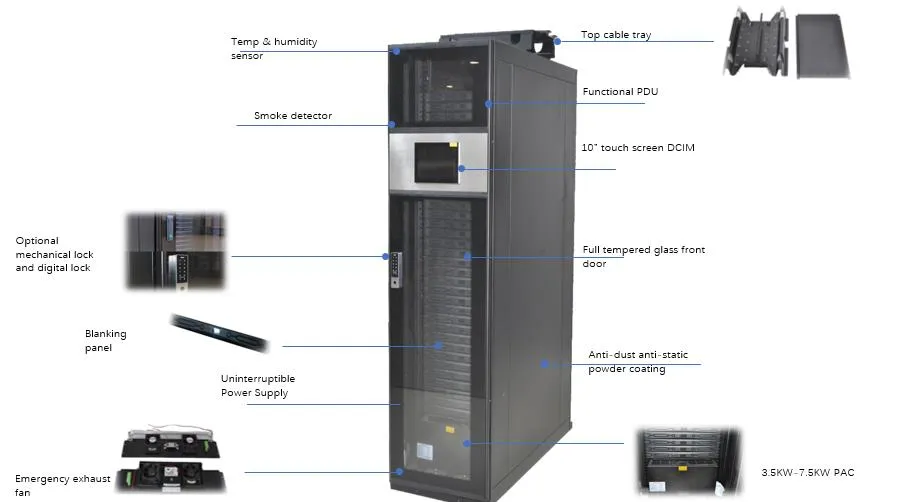

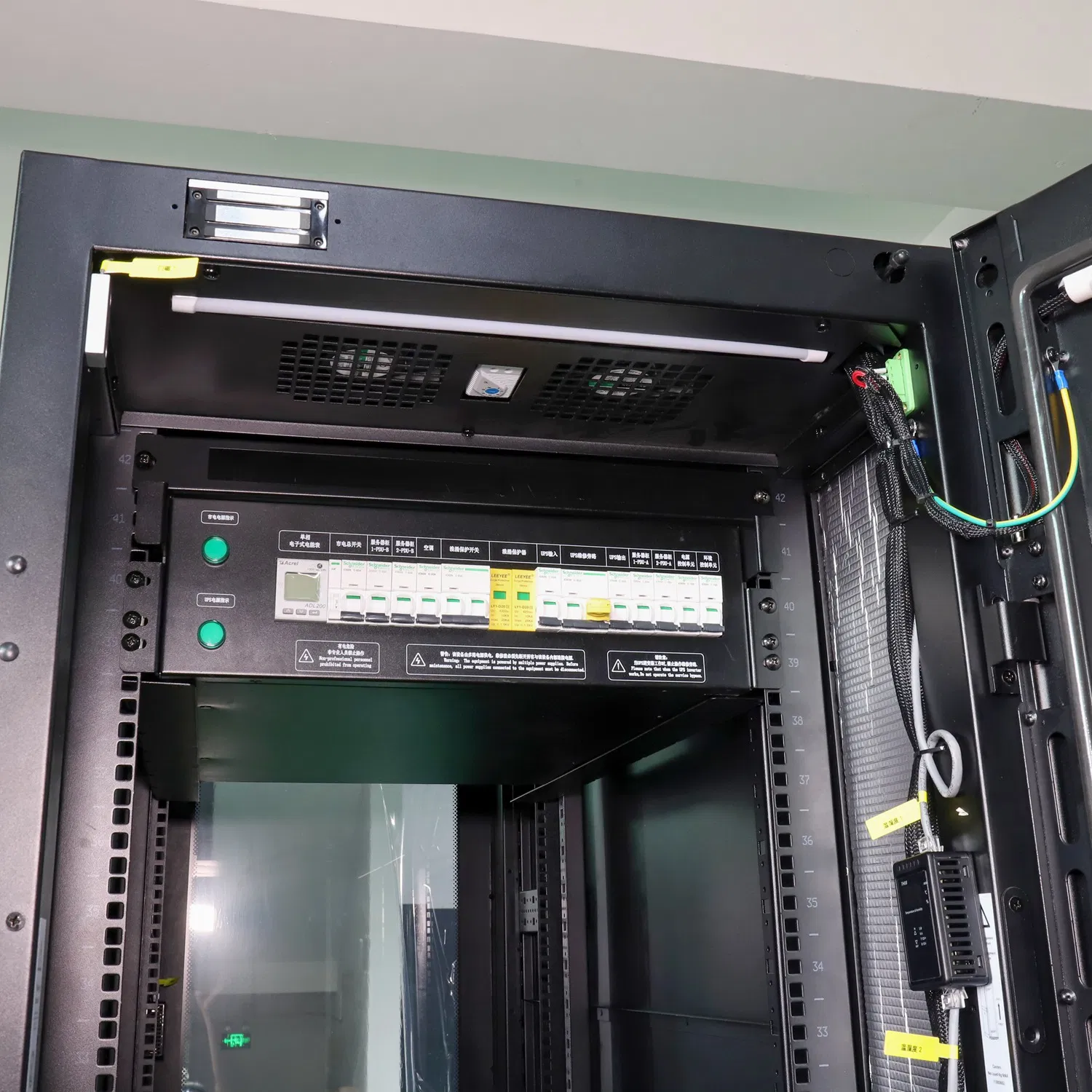

The solution includes integrated cabinet airflow management, power distribution systems, rack UPS with battery packs, refrigeration, emergency ventilation, and a comprehensive monitoring management system.
| Category | Item | Specification |
|---|---|---|
| System Features | Power System | 220/230/240VAC, 1Ph+N+PE, 50/60Hz |
| Total Dimensions | 600mm×2000mm×1100mm (W×H×D) | |
| Available Space | ≥28U | |
| Protection Level | IP20 | |
| UPS System | Capacity | 6kVA |
| Efficiency | Up to 96% | |
| Battery Type | Lithium or Lead-acid battery | |
| Backup Time | 0.5h~4h (Optional) | |
| Cooling System | Cooling Capacity | 3.5-7.5kW |
| Cooling Mode | Direct expansion air-cooled | |
| Installation | Rack-mounted | |
| Monitoring | Local Display | 10-inch tablet screen, facial recognition |
| Standard Sensors | Smoke, T&H, Intelligent lock, SMS/Email alarm |

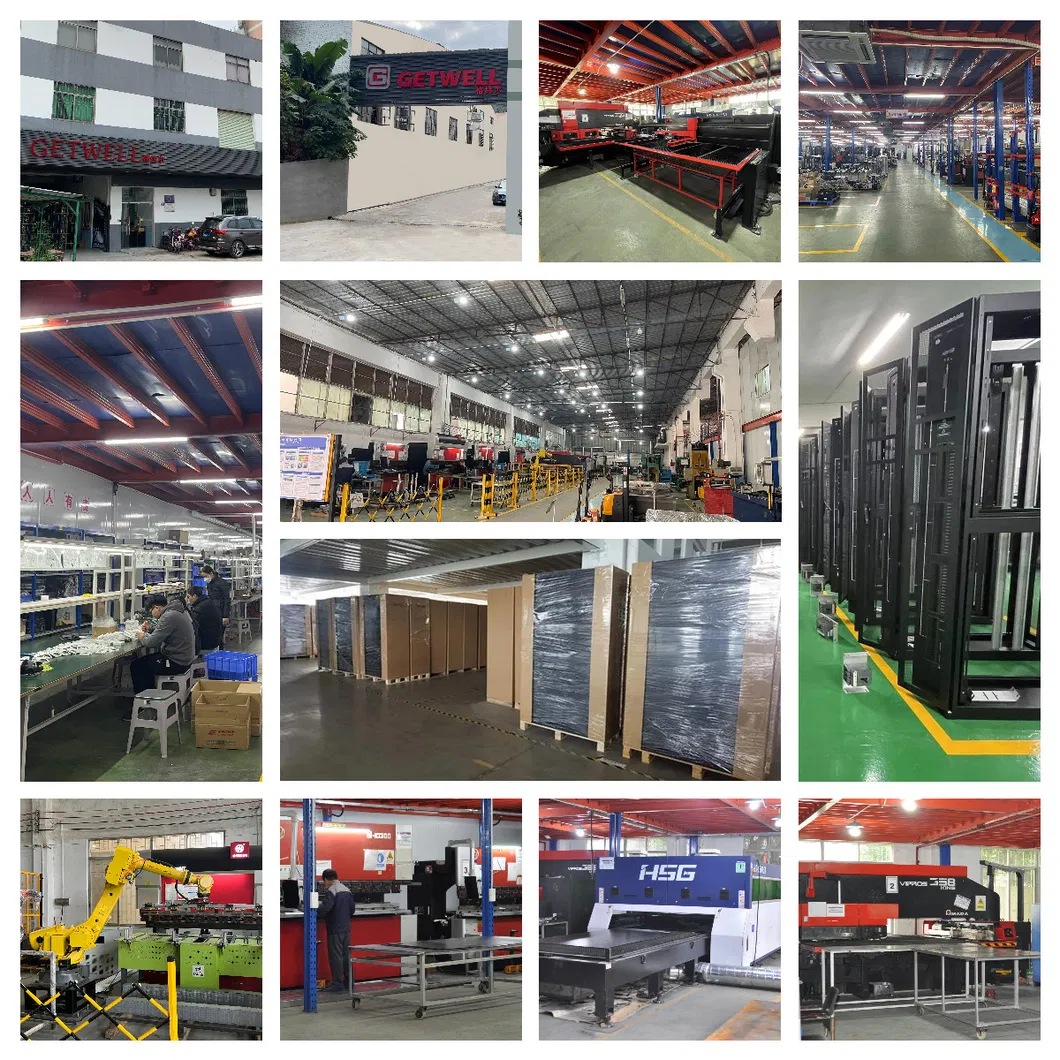

Established in 2008, our team has been delivering high-quality, innovative products and technologies to the IT industry for over 15 years. We focus on data center infrastructure design, construction, manufacturing, and maintenance. Our engineering teams include industrial designers, structural engineers, software engineers, and HVAC specialists.
We are dedicated to continuous product improvement and expanding functionality. By leveraging global IT experience, we ensure our solutions meet world-class standards, offering stable performance, high loading capacity, and cost-effective transport through compact assembling constructions.
