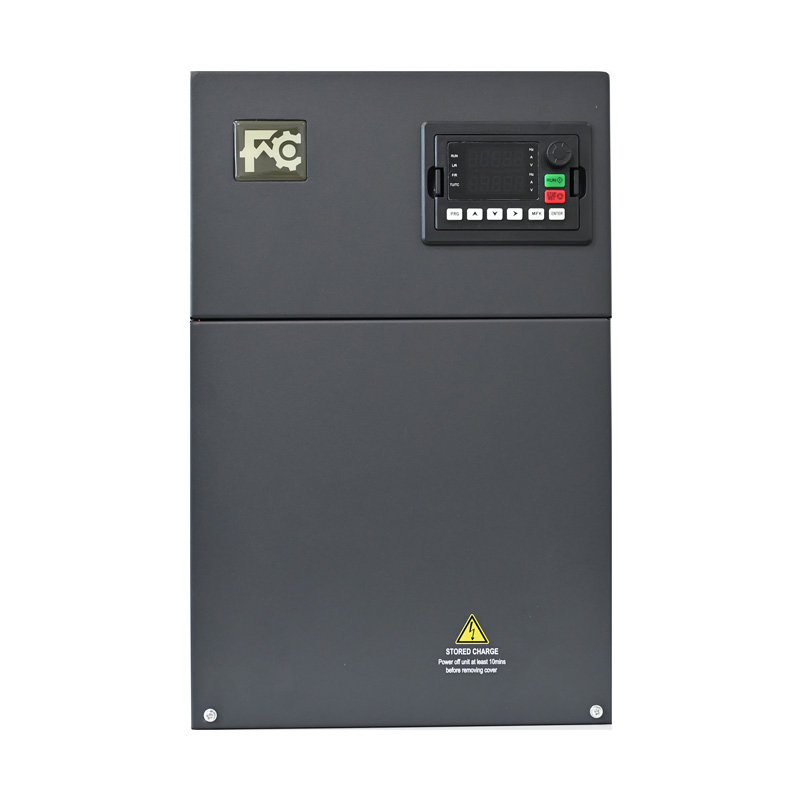

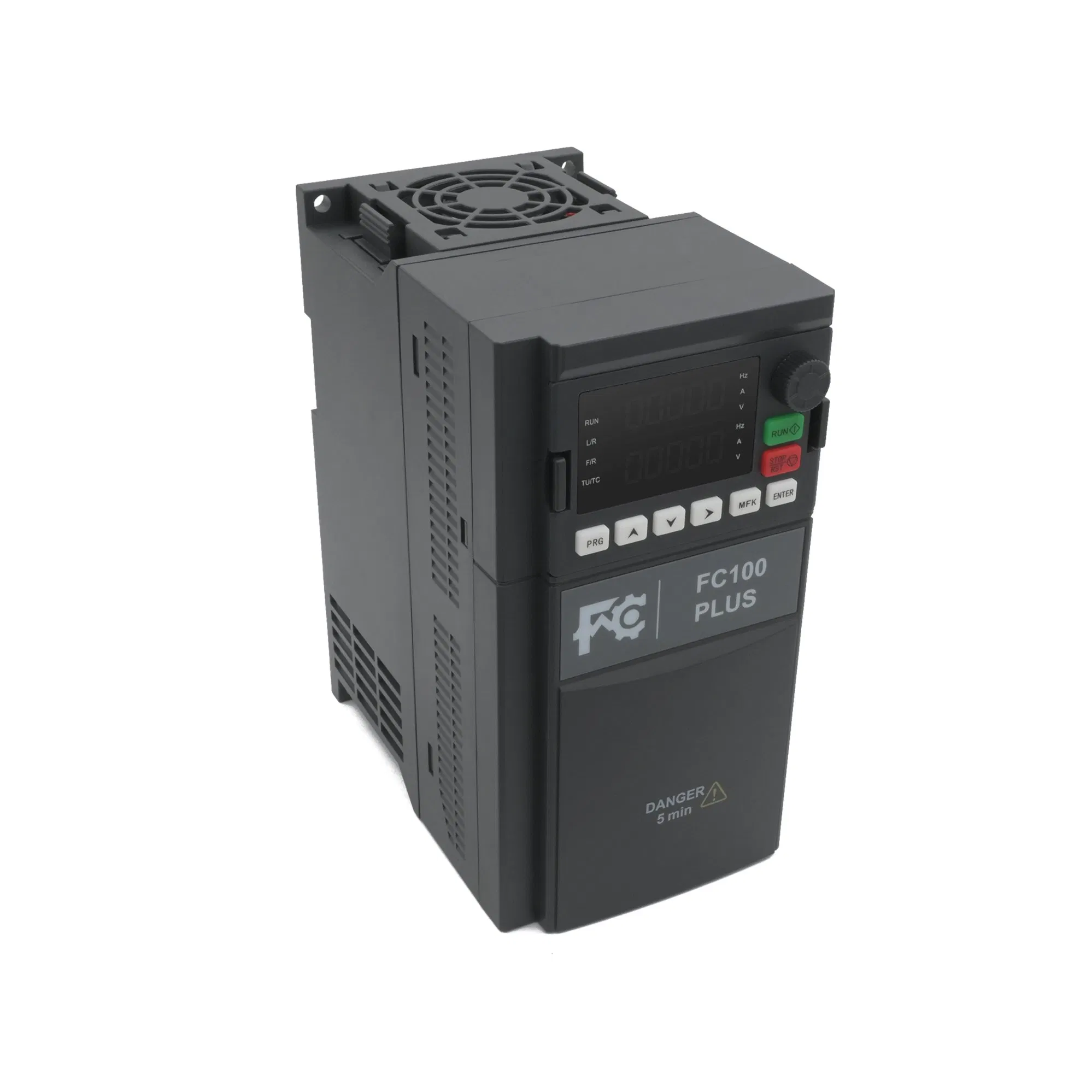

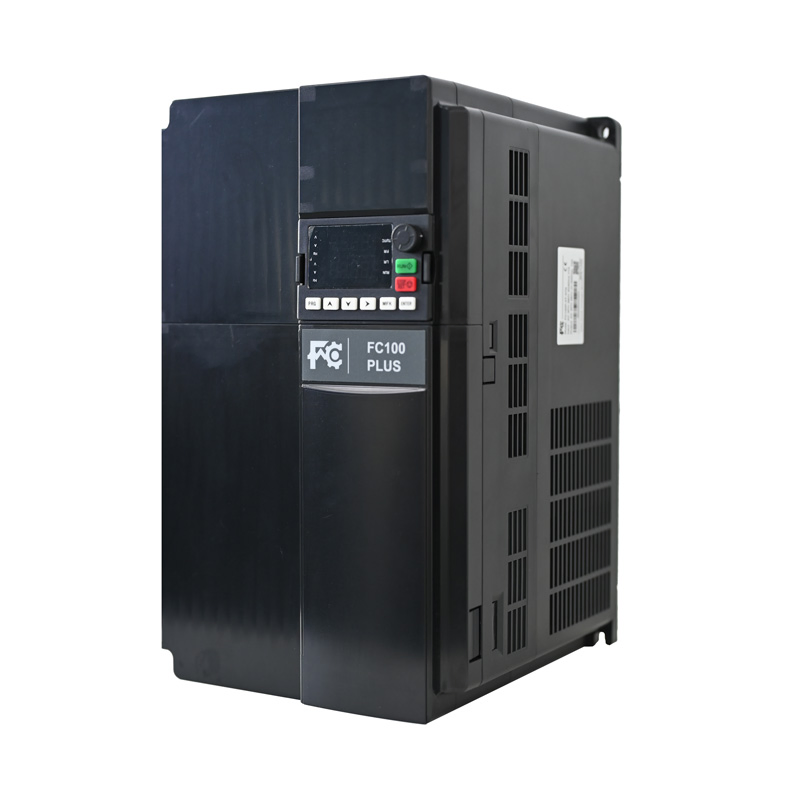

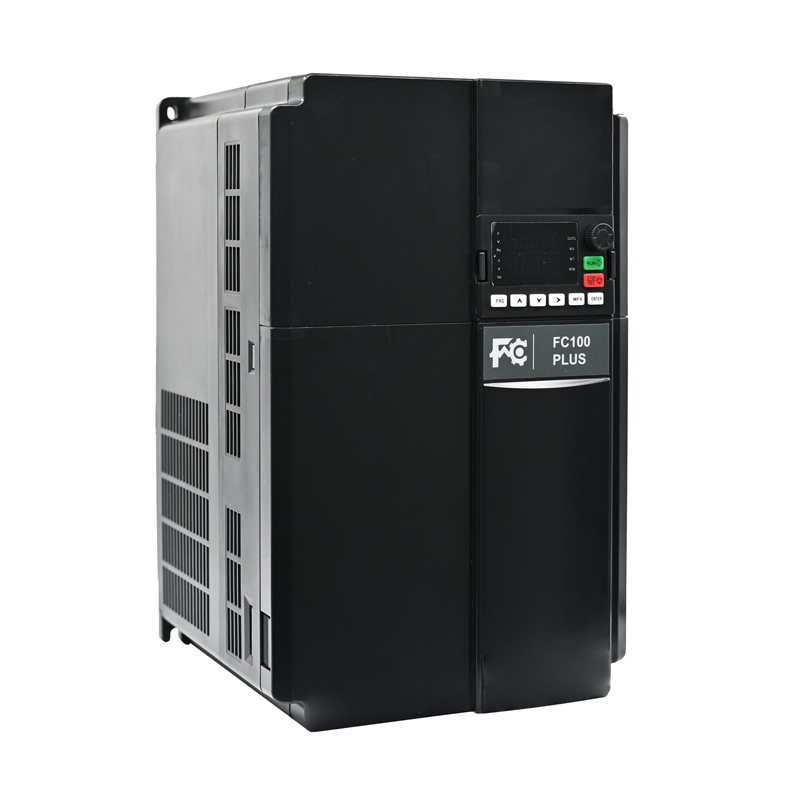

1/3 Phase Frequency Converter 50Hz/60Hz Vector Control for 0.4~220kw Motor

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

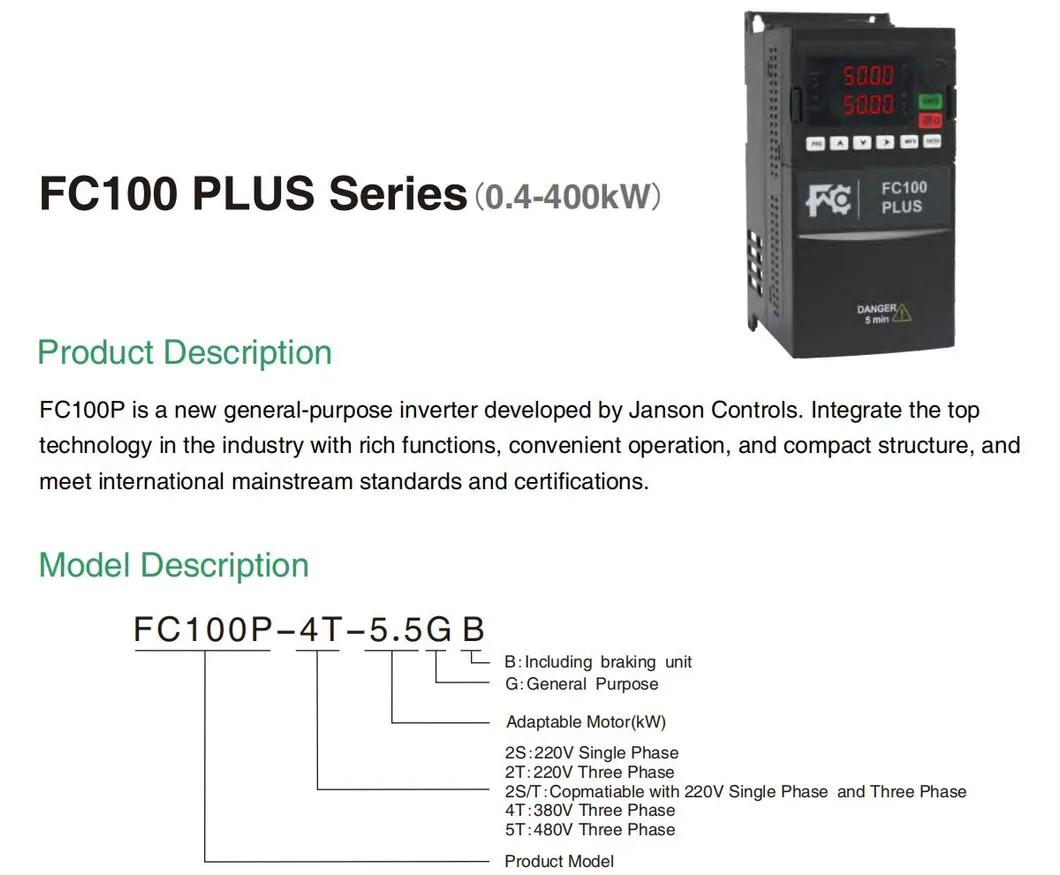

Model NO.FC100P

Principle of WorkVector Control & V/F Control

Switch ModePWM Control

Main Circuit TypeVoltage

Voltage SupplyLow Voltage VFD

Control ModeV/F, SVC, FVC

Input Voltage220V/380V/440V/480V

Output Power0.4~400kw

Output Frequency0~500Hz

Protection DegreeIP20

Electrical Specification
Input Voltage	Single/Three Phase 200~240V, Three Phase 380~440V (±10%)
Input Frequency	50/60Hz ± 5%
Output Frequency	Vector: 0~300Hz / V/F: 0~500Hz
Performance Features
Overload Capacity	150% rated current for 1 min, 180% for 2 sec
Control Method	Open-loop vector control (SVC), V/F control
Starting Torque	SVC: 150% rated torque / 0.5Hz
Protective Functions
Overvoltage Stall	Bus voltage automatic control to prevent fault
Current Limiting	Automatic output current limit to prevent over-current
Short Circuit	Output phase-to-phase and ground short circuit protection

Item No.	Motor (kW)	Input (A)	Output (A)	Dimensions (WHD mm)
FC100P-2S-0.4GB	0.40	6.20	2.10	89.6 * 197.2 * 139
FC100P-2S-0.75GB	0.75	8.20	4.00	89.6 * 197.2 * 139
FC100P-4T-1.5GB	1.50	5.00	3.80	89.6 * 197.2 * 139
FC100P-4T-2.2GB	2.20	5.80	5.10	89.6 * 197.2 * 139
FC100P-4T-5.5GB	5.50	14.60	13.00	102 * 202 * 162
FC100P-4T-11GB	11.00	28.00	25.00	125 * 242.5 * 169.5
FC100P-4T-30G	30.00	62.00	60.00	225 * 360 * 231.7
