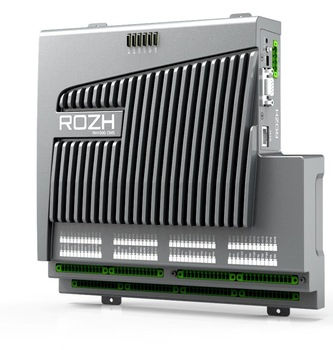

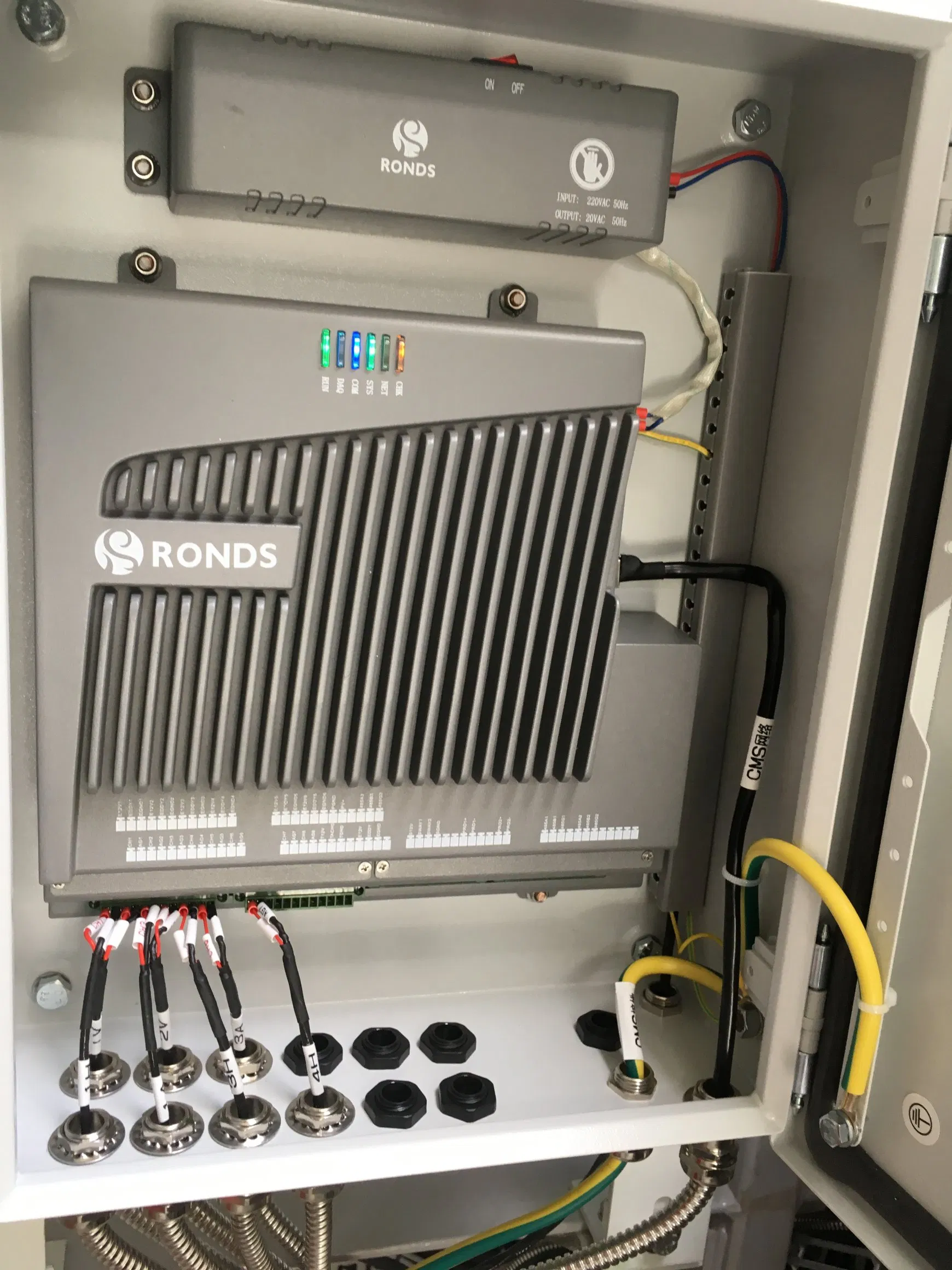

The RH1000 online monitoring station is a sophisticated system designed for synchronous data acquisition across all channels. It features 16 optional vibration and temperature channels, 2 process information channels, and 1 speed channel.

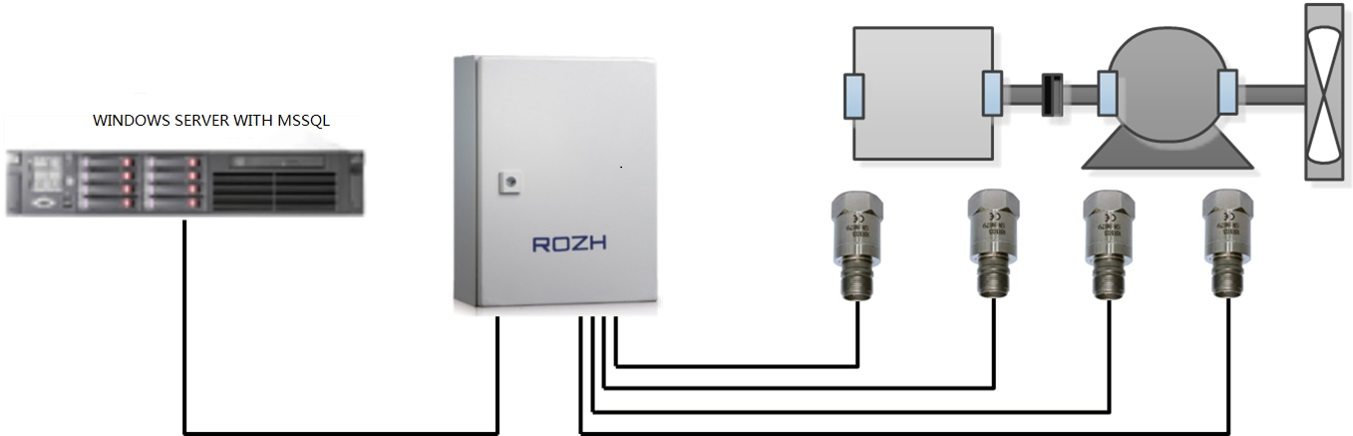

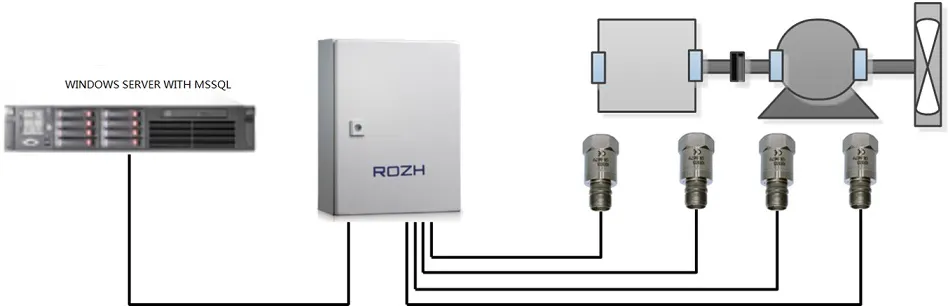

System Working Diagram
| Parameter | Specifications | Additional Notes |
| Max. Channels | 16 vibration/temp, 1 speed, 2 processing | Full Synchronous |
| Vibration & Temperature Acquisition | ||
| Sensor Type | IEPE acceleration sensor | Dual acceleration acquisition |
| A/D Converter | 24 bits delta-sigma ADC | High precision |
| Sampling Frequency | 256Hz to 102.4kHz | Multi-range selectable |
| Dynamic Range | 100dB | - |
| Temp Range | -40ºC ~ 120ºC | Precision ±2ºC |
| Speed Channel | ||
| Speed Range | 0 ~ 20000 RPM (Proximity) | 0 ~ 10000 RPM (Encoder) |
| Physical & Environmental | ||
| Dimensions | 400mm × 300mm × 110mm | Weight < 5kg |
| IP Grade | IP65 | Dust and water resistant |
| Environment | -40~70ºC Working | 70kPa ~ 110kPa pressure |
| Power & Communication | ||
| Voltage | 220VAC (Outdoor) / 12-24VDC (Indoor) | Consumption < 8W |
| Communication | TCP/IP, 10/100baseT, RS485 | Optical fiber optional |

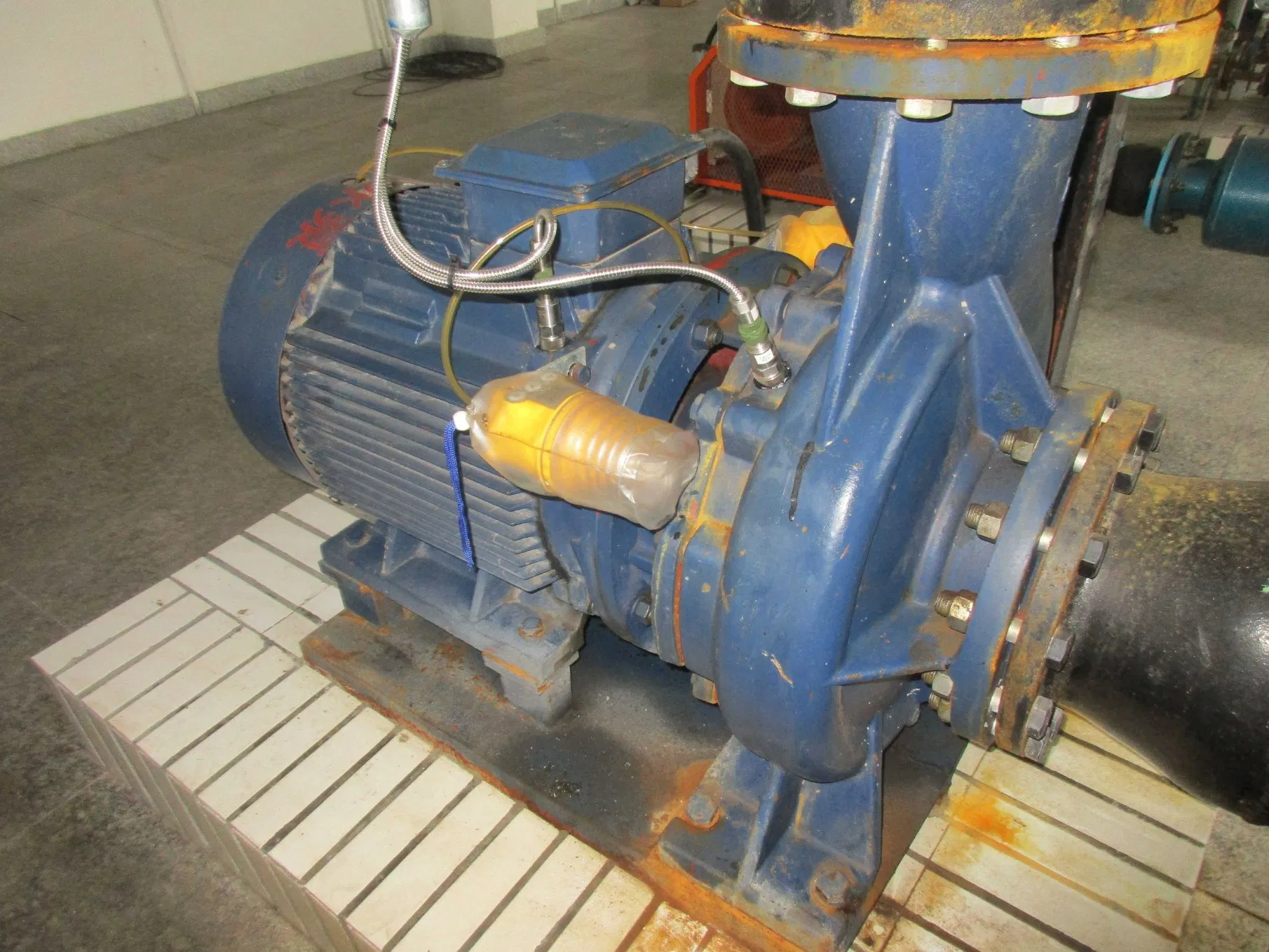

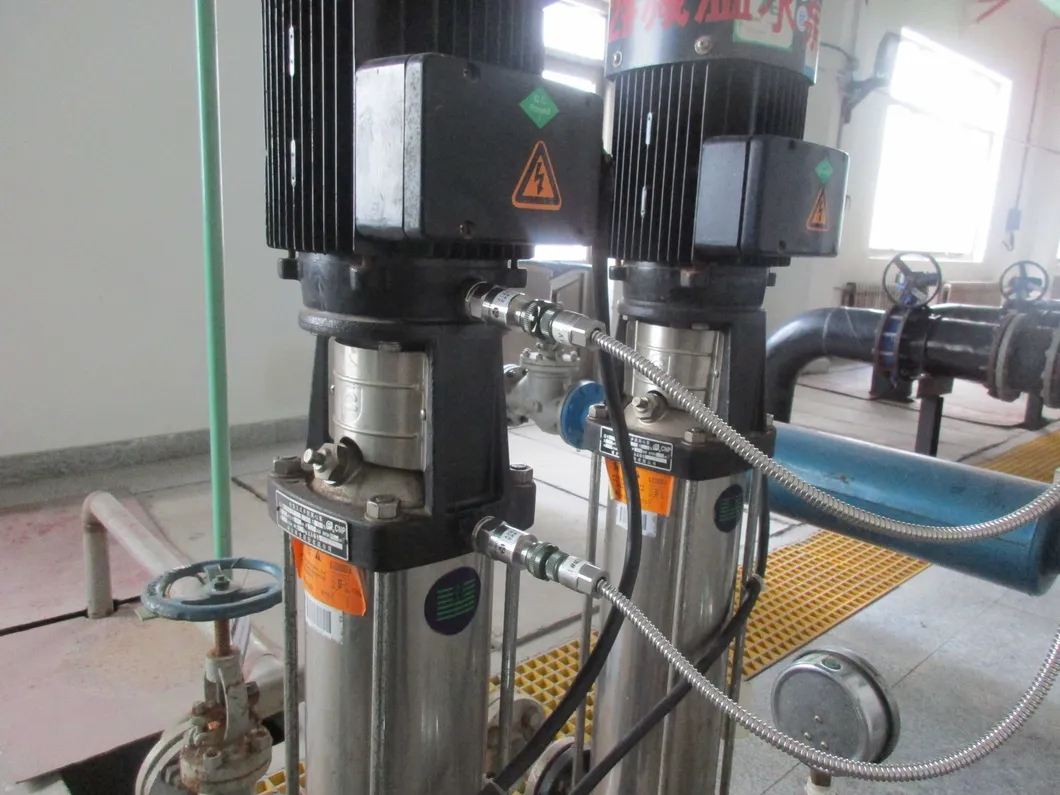

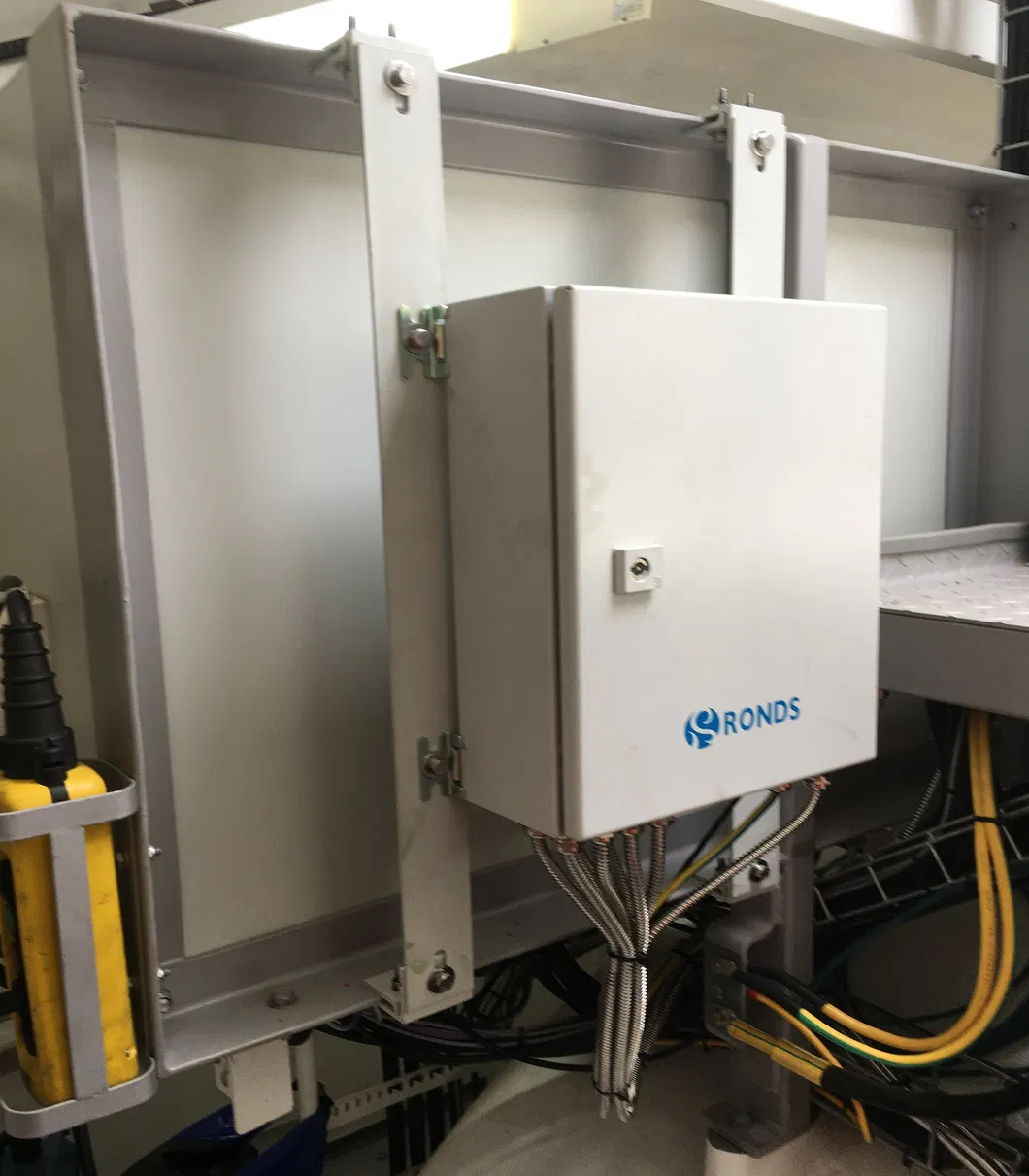

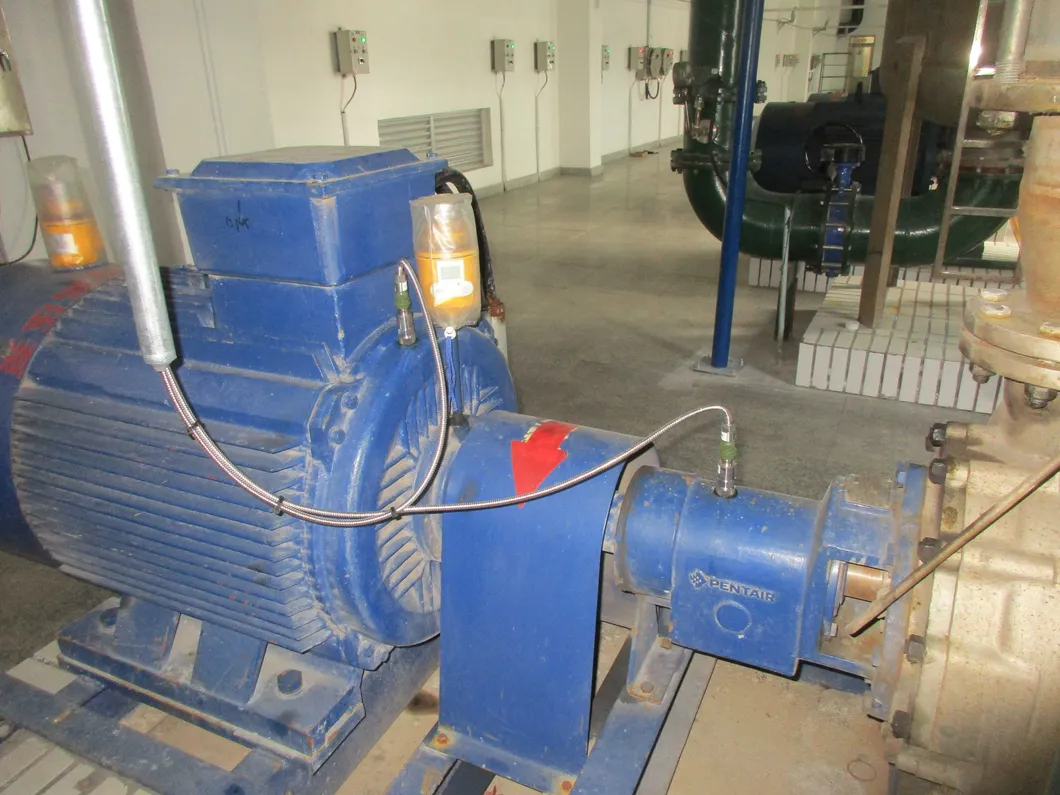

Industrial Plants & Wind Turbines
Professional Vibration Analysts
- Experts with over 20 years of diagnosis experience
- CAT III & CAT II certified analysts
Intelligent Algorithm Team
- 11 algorithm specialists led by doctoral tutors
- 13 members dedicated to Big Data analysis

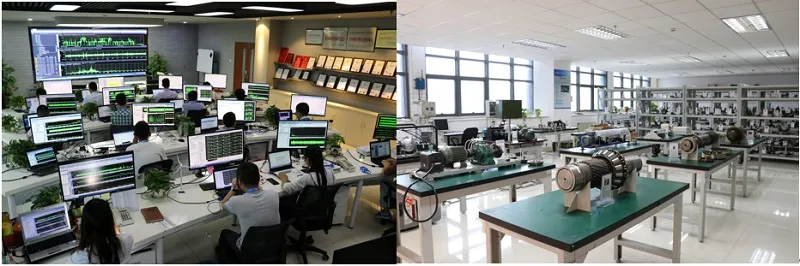

Remote Diagnostic Center and Lab
