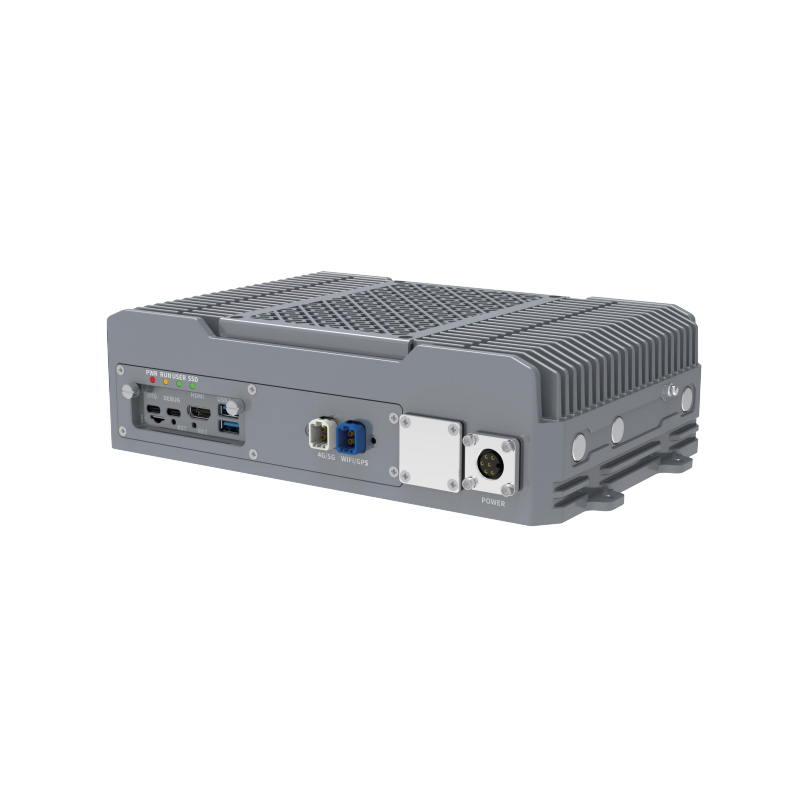

Nvidia Jetson Orin Nx Edge Computer Supports 4G/5g Functions

Customization: Available
Usage: Computer, Laptop
Type: Wired

Product Description

i

Overview

Model NO.
FC8108P-8GB
Certification
CE, ISO
Condition
New
Specification

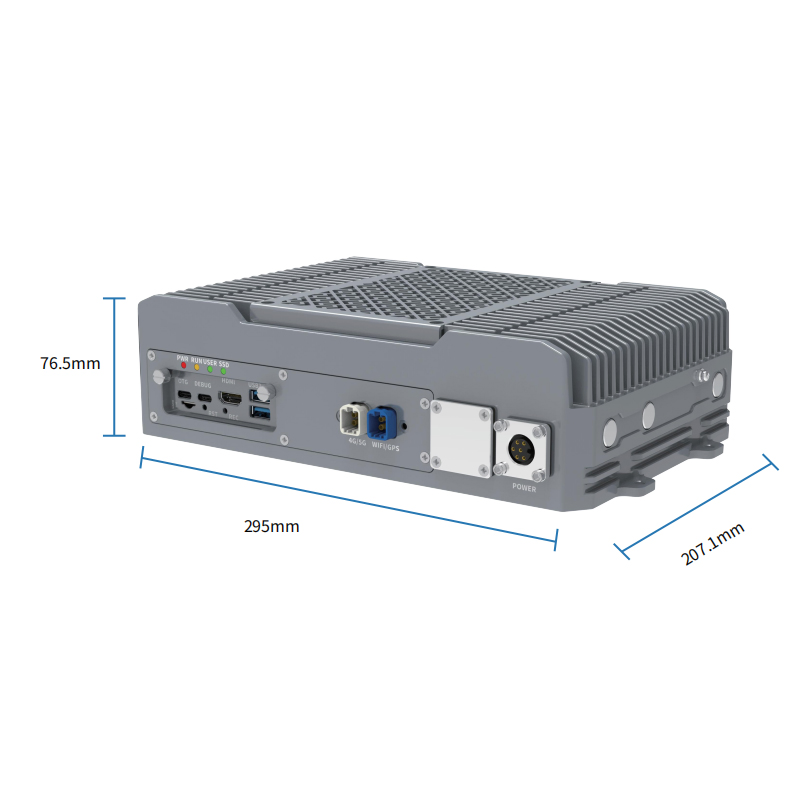

95mm x 207.1mm x 76.5mm
Trademark
Neutral Packing
Production Capacity
In Stock

Product Description

FC8108 is developed and designed by NVIDIA Jetson Orin NX core board, with 117TOPS AI computing power. The product is pre-installed with Ubuntu 20.04 operating system, supports 4G/5G functions, has rich interface types and IP65 protection level, and has strong adaptability to harsh industrial environment. It can be widely used in robots, low-speed unmanned driving, smart factories, intelligent transportation and other scenes. It is an ideal carrier for deploying AI computing power at the edge for deep learning.
Nvidia Jetson Orin Nx Edge Computer
Support 4G/5G
Multiplex Network Port
IP65 Protection

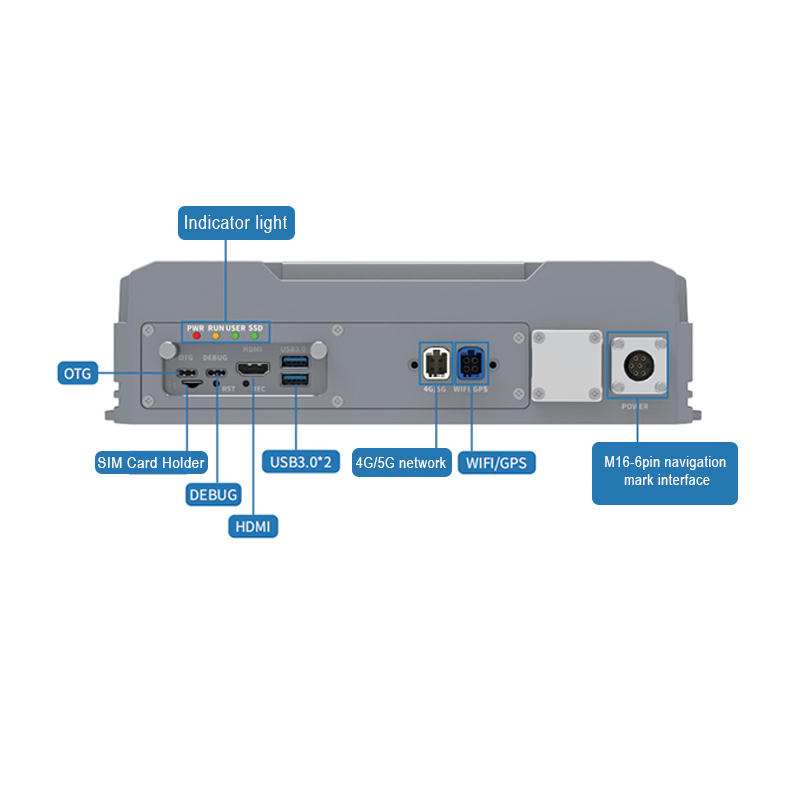

Rich Interfaces

Technical Parameters

System Specification Details
Computing System AI Platform Jetson Orin NX
AI Computing Power Super mode: 117TOPS
GPU 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
CPU 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
Video Coding 1×4K60 (H.265), 3×4K30 (H.265), 6×1080p60 (H.265)
Memory 8GB 128-bit LPDDR5 102.4GB/s
Storage Supports external NVMe expansion
Hardware Interfaces Specifications

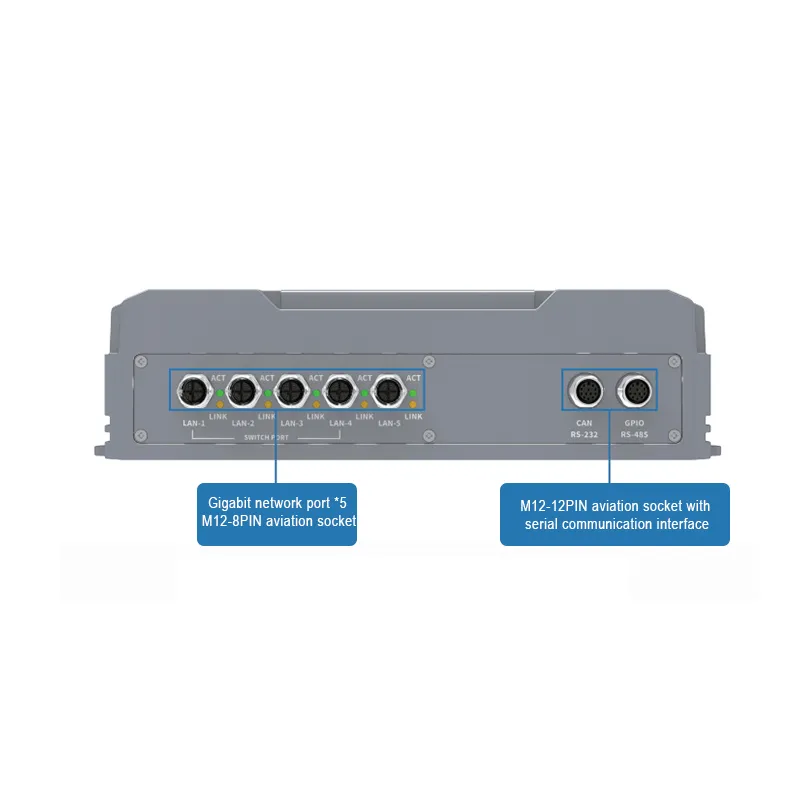

Network Wired 1 × M12 gigabit port & 4 × M12 gigabit ports (shared IP) supporting POE
Wireless WiFi 2.4GHz/5GHz dual-band WiFi (optional)
5G/4G/GNSS 4G/5G Full Netcom, Multi-mode GNSS (GPS/BD/RTK)
I/O Ports USB/Serial 2×USB3.0 Type-A, Type-C OTG, 1×RS232, 1×RS485
CAN/GPIO 1×CAN-FD, 1×SPI-CAN-FD, isolated GPI/GPO
Power Input 9-36V, supporting ACC; M16-6PIN interface
Physical Environment -20ºC to 50ºC (Standard) / -40ºC to 60ºC (Optional); IP65 Level
🖼

Detailed Photos

Detailed View 1
📦

Shipping List

Item Description Qty Status
Power adapter (19V-3.42A)1Standard
TYPE-C data cable1Standard
M12 orthographic network cable2Standard
M16 6PIN external power cord1Standard
GPIO/RS485 & CAN/RS232 Connectors1Standard
Fakra_WiFi/GPS/4G/5G Antennas1Optional
?

FAQ

Are you a factory or trading company?

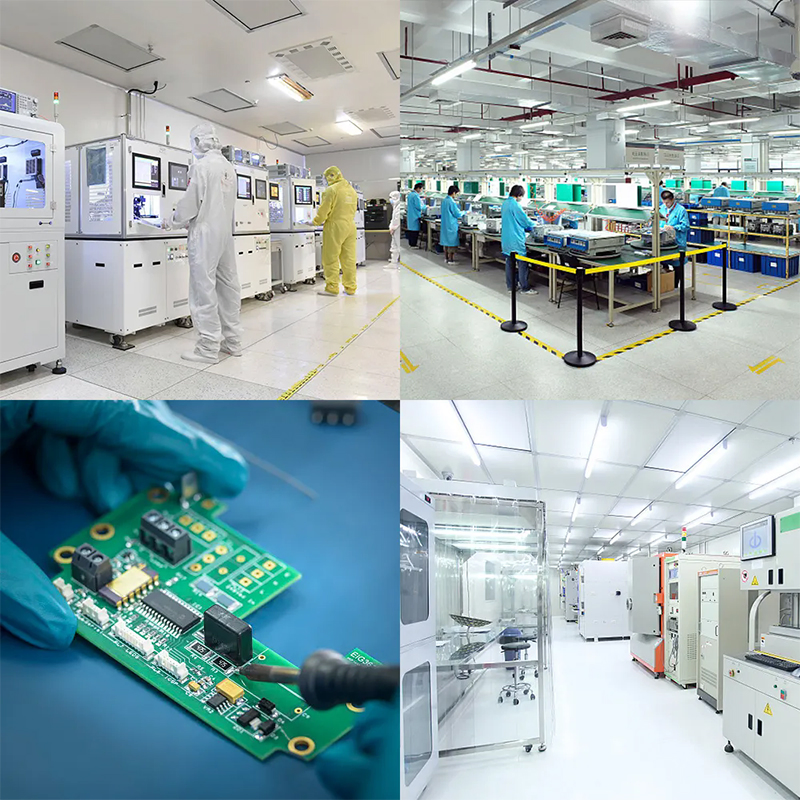

We are a factory with over 20 R&D engineers. Our pricing is highly competitive, and professional after-sales service is fully guaranteed.
Do you provide OEM/ODM services?
Yes, full OEM and ODM customization services are available to meet your specific project requirements.
What payment methods do you accept?
We accept various payment methods including T/T, Paypal, and L/C for your convenience.
What is the standard lead time?
Lead time is typically 1 day for development kits, 3 days for edge computing boxes, and approximately 30 days for full customization services.
What is the warranty period?
We provide a 2-year warranty. Our professional technical team is dedicated to handling any after-sales or technical issues.
Is technical support available for deployment?
Yes, our engineering team provides technical support for system deployment and hardware integration to ensure smooth operation in your industrial environment.
