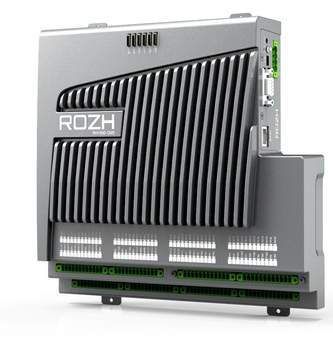

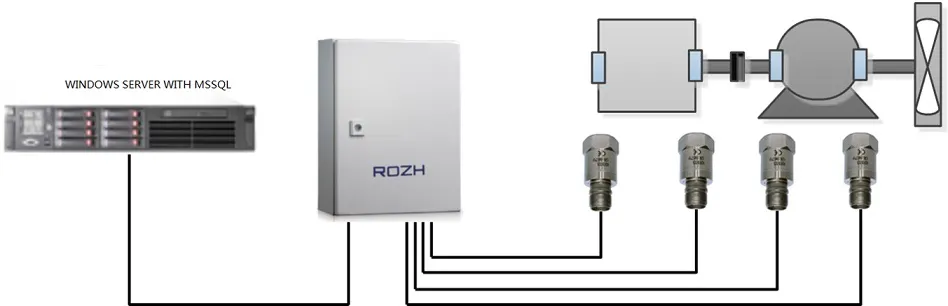

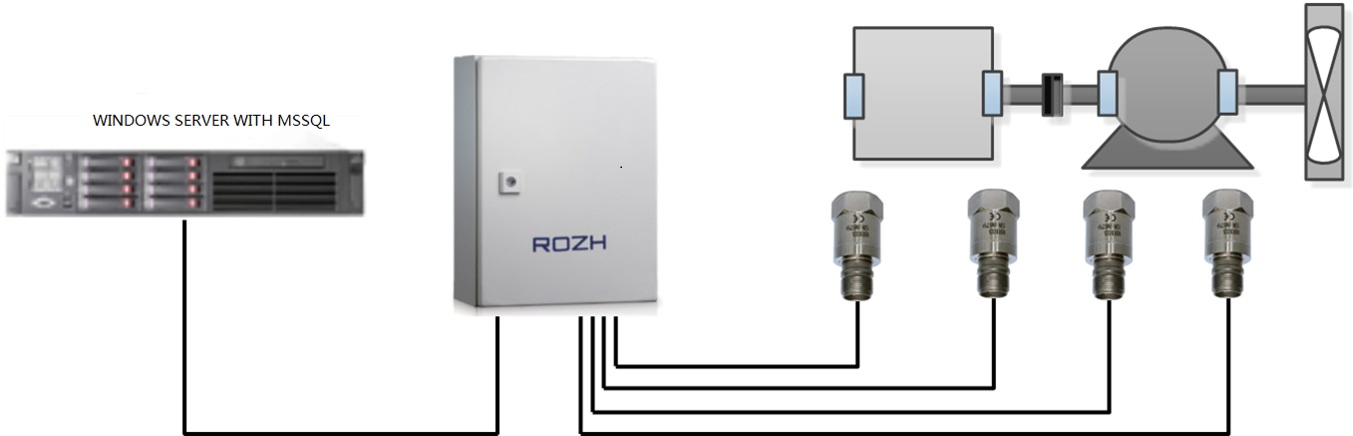

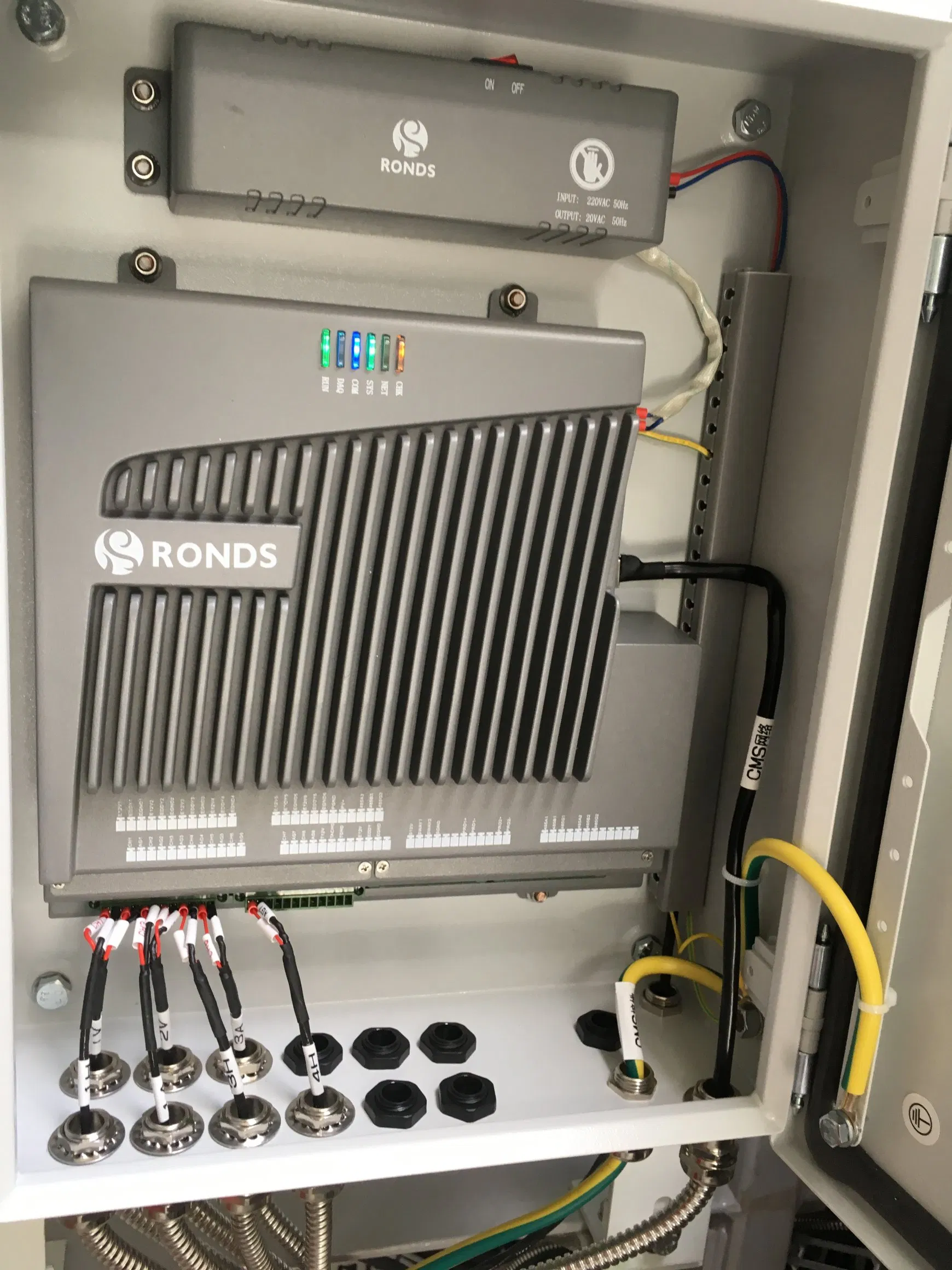

RH1000 online monitoring station consists of 16 vibration and temperature optional channels, 2 process information channels, and 1 speed channel. Taking advantage of patented technology, it can realize synchronous data acquisition with all channels simultaneously, providing comprehensive machinery health insights.
| Category | Specification | Details |
| Max. Channels | 16 channels vibration/temperature, 1 channel speed, 2 channels processing | |
| Vibration (Temperature Measurement Optional) | ||
| Sensor Integrated | IEPE acceleration sensor | High/low frequency & dual acceleration acquisition |
| A/D Converter | 24 bits delta-sigma ADC | Dynamic range: 100dB |
| Frequency Response | 0.2dB (10Hz ~ 5kHz) | 0.6dB (2Hz ~ 20kHz) |
| Temperature Range | -40ºC ~ 120ºC | Precision: ±2ºC |
| Speed Channel | ||
| Trigger Level | 5V, 12V, 24V | TTL/PLC isolation supported |
| Speed Range | Up to 20,000 RPM | Precision: ±0.5% |
| Basic Parameters & Environment | ||
| CPU & Storage | 400MHz / 64M RAM | Flash: Standard 1G Bytes |
| IP Grade | IP65 | Dimensions: 400mm × 300mm × 110mm |
| Working Temp | -40 ~ 70ºC | Humidity: ≤95%RH |

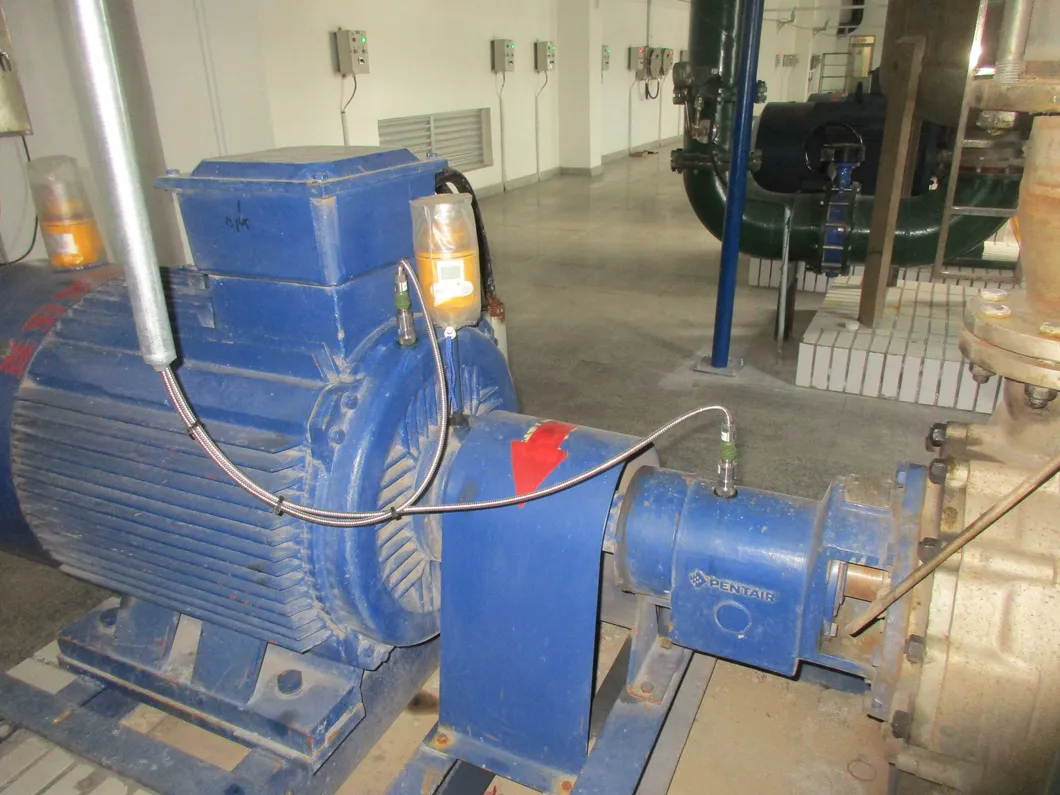

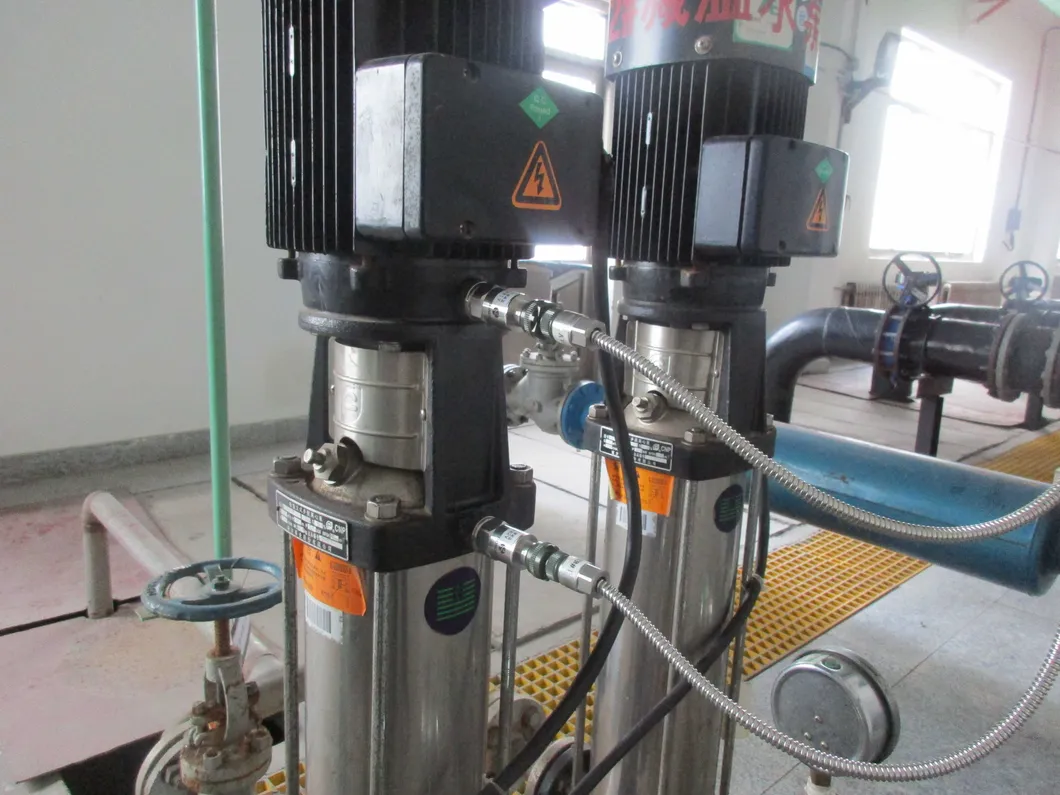

Industrial Plants & Wind Turbines

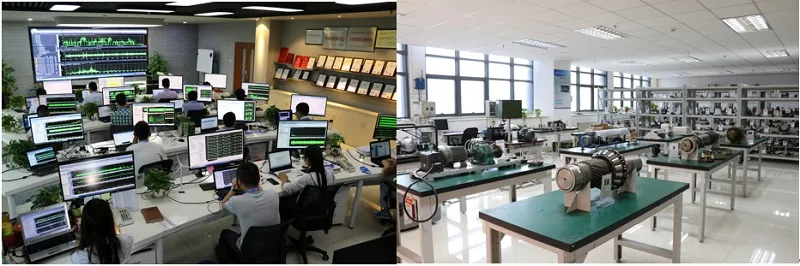

30 Professional Vibration Analysts
Intelligent Algorithm & Big Data Team
