Machine Condition Mornitoring System Rh2000 for Predictive Maintenance
Machine Condition Mornitoring System Rh2000 for Predictive Maintenance
Machine Condition Mornitoring System Rh2000 for Predictive Maintenance
Machine Condition Mornitoring System Rh2000 for Predictive Maintenance
Machine Condition Mornitoring System Rh2000 for Predictive Maintenance
1 / 5
Machine Condition Mornitoring System Rh2000 for Predictive Maintenance
Machine Condition Mornitoring System Rh2000 for Predictive Maintenance
Machine Condition Mornitoring System Rh2000 for Predictive Maintenance
Machine Condition Mornitoring System Rh2000 for Predictive Maintenance
Machine Condition Mornitoring System Rh2000 for Predictive Maintenance

Machine Condition Mornitoring System Rh2000 for Predictive Maintenance

Max. Channels: 24vib/Temp, 2speed, 7processing
Sensor Integrated: Iepe Acceleration Sensor
Certificated: CE, Ex, Gl, Atex
Send Inquiry

Product Description

Basic Information
Model NO.RH2000
Dimension400*320*130mm
Input Impedance750KΩ
Weight<12kg (Box)
Temperature Range-40℃ ~ +120℃
IP GradeIP66
NetworkEthernet/WiFi/4G/5G
TrademarkRONDS
Product Description

The RH2000 is a high-performance machine condition monitoring system designed for predictive maintenance. It supports intelligent operation and maintenance platform solutions to ensure industrial equipment reliability.

Technical Specification
Items Specification Details
Max. Channels8, 16, or 24 channels (optional)
Sensor IntegratedIEPE acceleration sensor, High/low frequency synchronous acquisition
A/D Converter24 bits delta-sigma ADC
Sampling Frequency51.2Hz to 51.2KHz
Dynamic Range114dB
Signal Input Range0 ~ 24V
Speed Measurement12RPM ~ 30000RPM
CPU Frequency1.5GHz dual core
Data StorageEMMC: 8GB | Memory: 512MB
CertificationCE, ATEX (optional)
Product Showcase

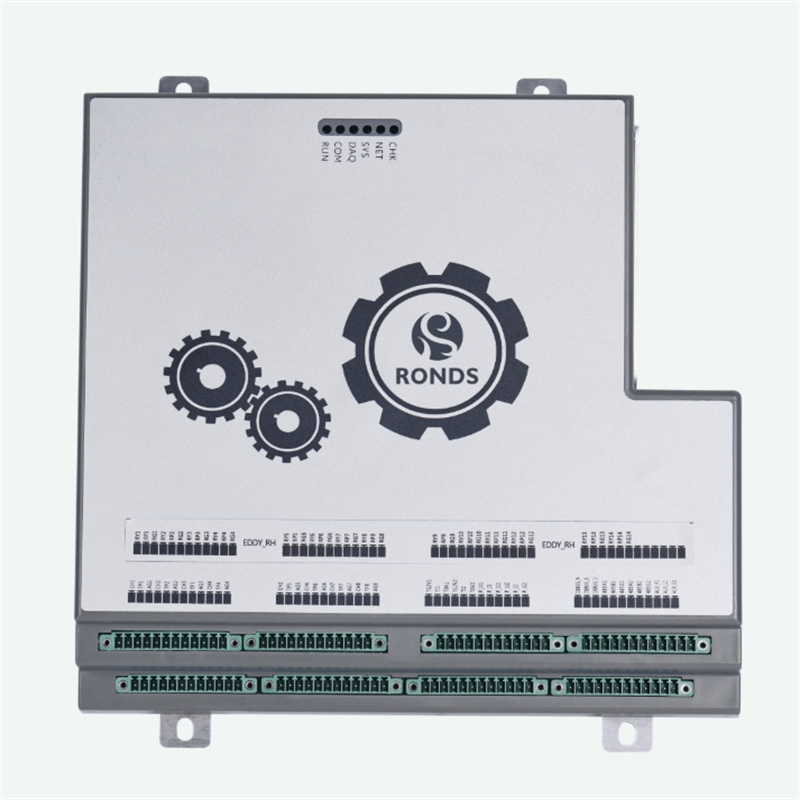

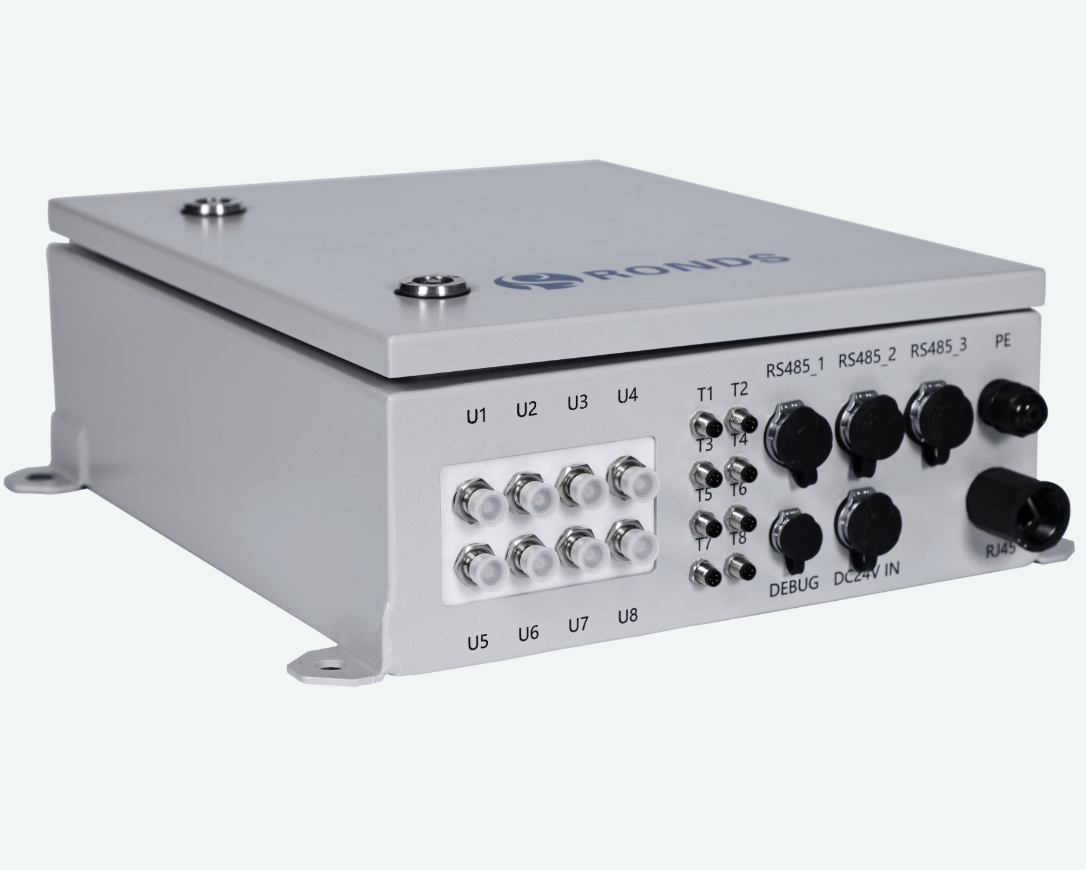

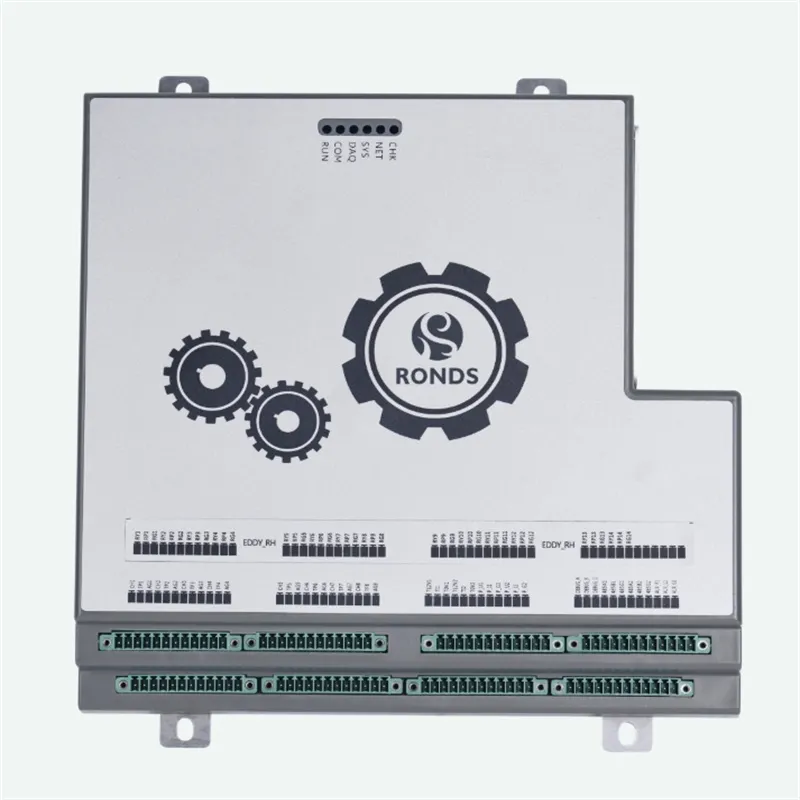

Machine Condition Monitoring System RH2000

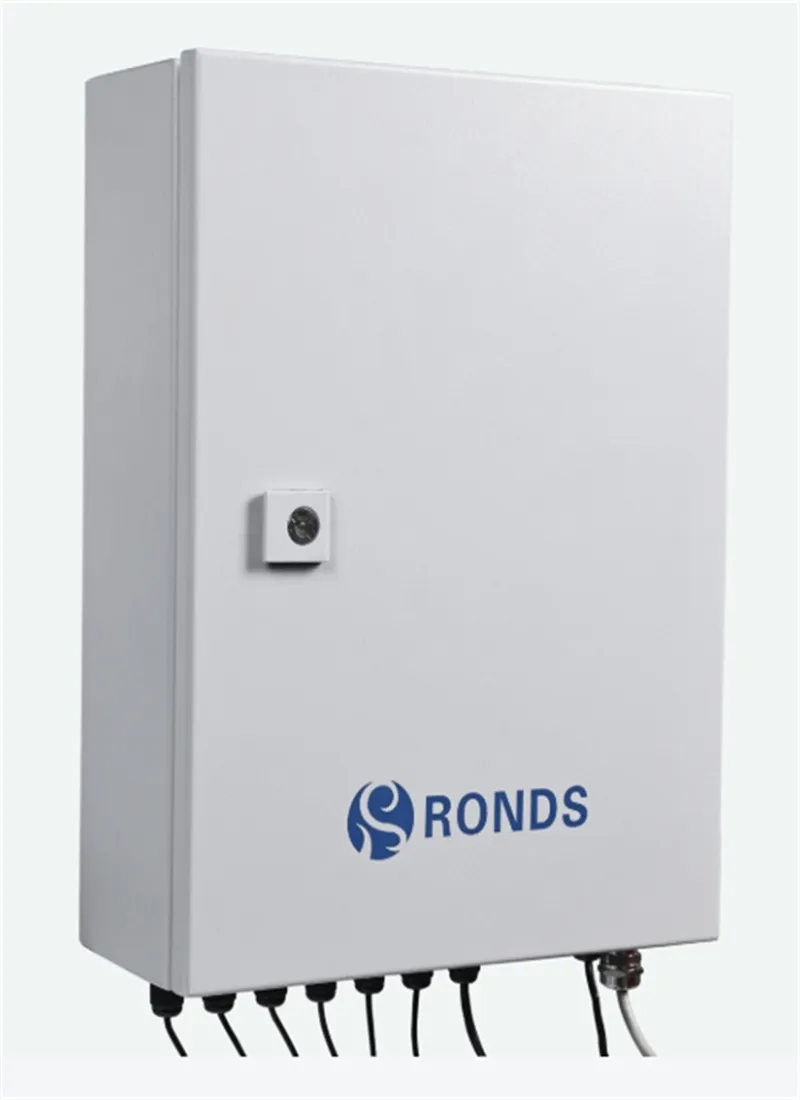

Predictive Maintenance RH2000 Detail
Packaging & Warranty
Packaging
🛡️ One Year Warranty: Full commitment to quality and performance support.
📦 Package: Corrugated Carton with protective Styrofoam inserts for safe transit.
R&D and Production
Factory Overview
R&D Team

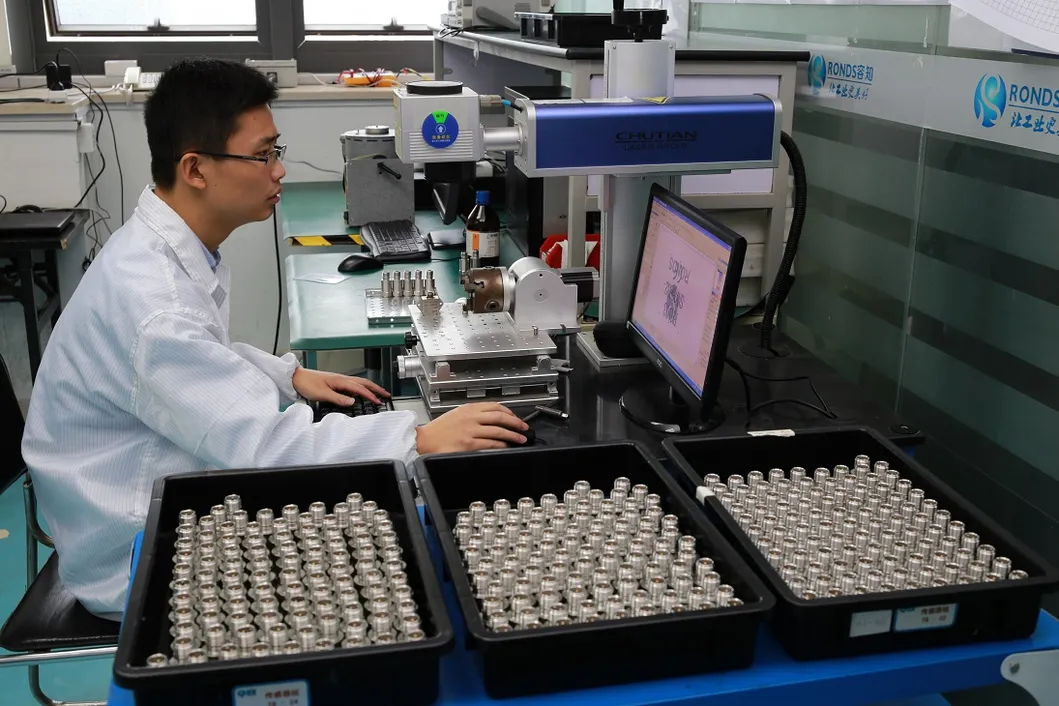

Production Line
✔️Software R&D: CMMI Level 3 certified team.
✔️Hardware Experts: Over 10 years of practical experience in industrial sensing.
✔️Global Reach: Products exported to more than 35 countries.
Application Industries

The RH2000 system and related services are widely applied across multiple sectors to prevent unplanned downtime:

Industrial Applications
Power Industry Petrochemical Steel & Cement Mining & Coal Water Treatment
Frequently Asked Questions
How many channels does the RH2000 support?
The system is flexible and offers options for 8, 16, or 24 channels depending on your monitoring requirements.
What type of sensors can be used with this collector?
It is primarily designed for IEPE acceleration sensors and supports synchronous dual-acceleration acquisition for high and low frequencies.
Is the RH2000 suitable for outdoor industrial environments?
Yes, the box version features an IP66 rating and operates effectively in temperatures ranging from -40℃ to +120℃.
What communication protocols are available for data transmission?
The RH2000 supports various communication methods including Ethernet, Optical Fiber, WiFi, 4G, and 5G.
What is the sampling precision of the system?
The system utilizes a 24-bit delta-sigma ADC with a dynamic range of 114dB, ensuring high-precision data collection.
What kind of after-sales support is provided?
We provide remote training on system installation and usage, along with professional suggestions for data analysis.
