Jetson Orin Nx Super 8g 157tops Ai Edge Computer

Customization: Available
Usage: Computer, Laptop
Type: Wired

Product Description

1

Product Overview

Based on NVIDIA Jetson Orin NX core board, FC8108PG has 117TOPS AI computing power, rich interfaces to support sensors commonly used in self-driving vehicles, and can be used in robots, low-speed unmanned driving, smart factories, intelligent transportation and other scenes. It is an ideal carrier for deploying AI computing power at the edge for deep learning.

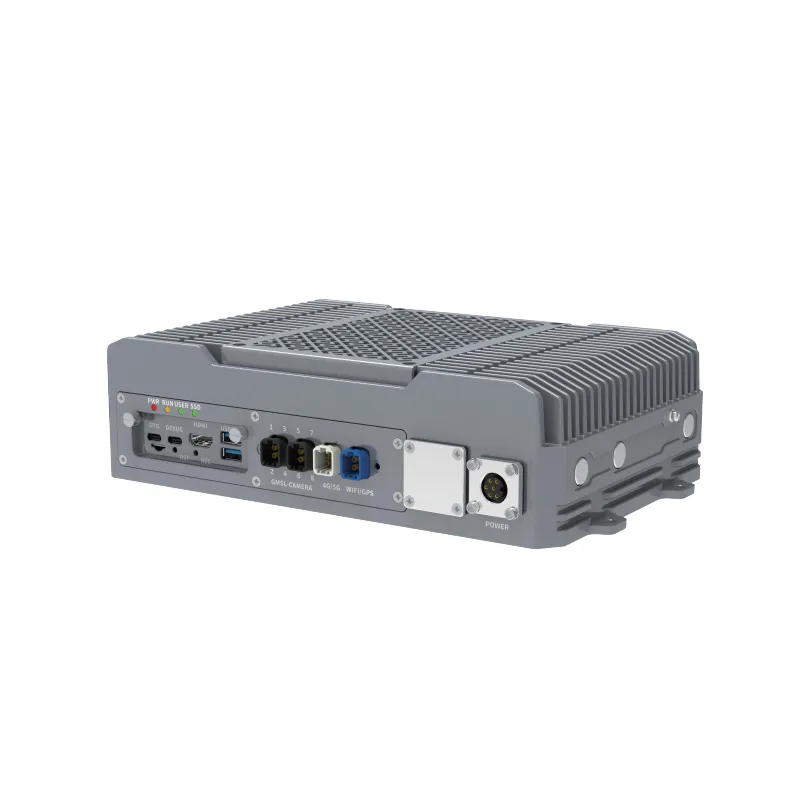

AI Edge Computer
Support 4G/5G Multiplex network port IP65 Protection Rich interface
2

Basic Specifications

Model NO. FC8108PG-8GB Certification CE, ISO

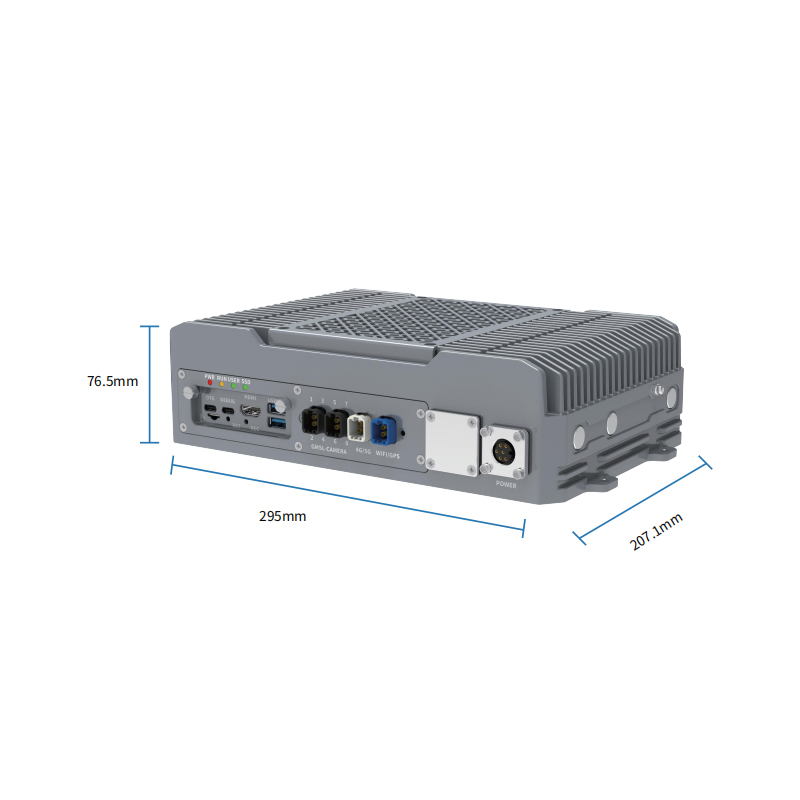

Condition New Dimensions 295mm X 207.1mm X 76.5mm
Trademark Neutral Packing Origin China
3

Technical Parameters

System Hardware
AI Platform Jetson Orin NX
AI Computing Power Super mode: 117TOPS
GPU 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
CPU 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
Memory 8GB 128-bit LPDDR5 102.4GB/s
Video Coding 1×4K60 (H.265), 3×4K30 (H.265), 6×1080p60 (H.265), 12×1080p30 (H.265)
Hardware Interface

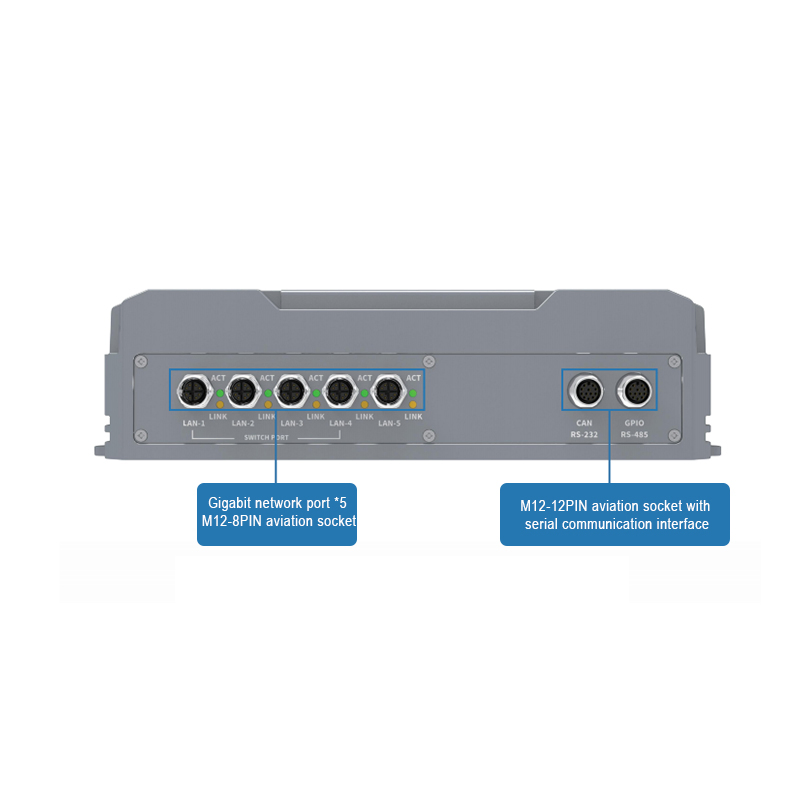

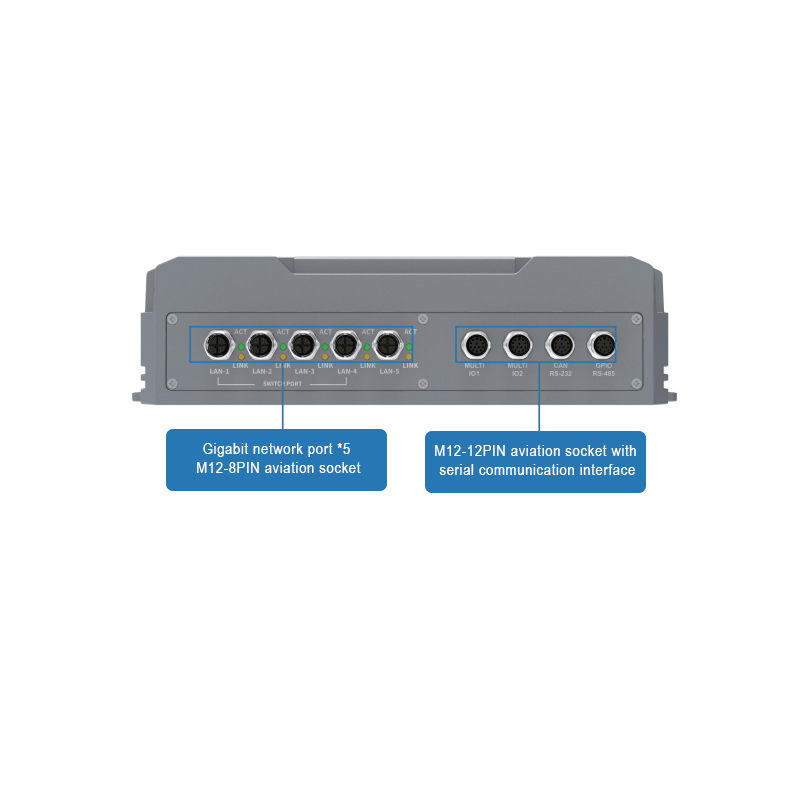

Wired Network 1 × M12 gigabit network port and 4 × M12 gigabit network port supporting POE
Wireless Network WIFI 2.4GHz/5GHz, 5G/4G Full Netcom, GNSS (BD, GPS, RTK optional)
I/O Ports 2×USB3.0 Type-A, 1×Type-C OTG, 1×Type-C Debug, 1×RS232, 1×RS485, 1×CAN-FD, 1×SPI-CAN-FD
Camera Interface 8×GMSL2
Power Input 9-36V, supporting ACC; M16-6PIN interface
4

Product Gallery

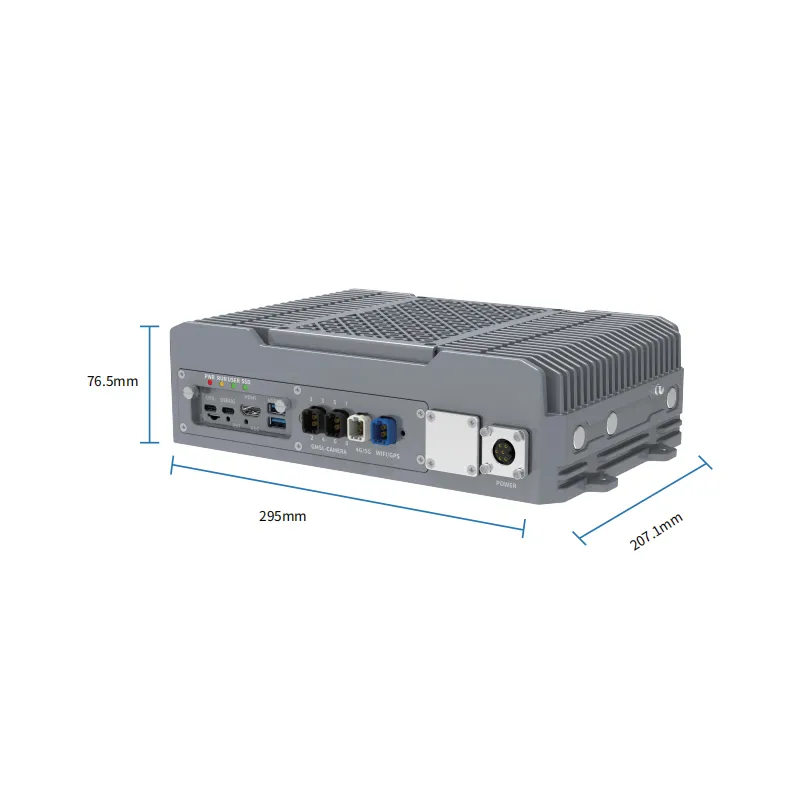

Detailed View 1

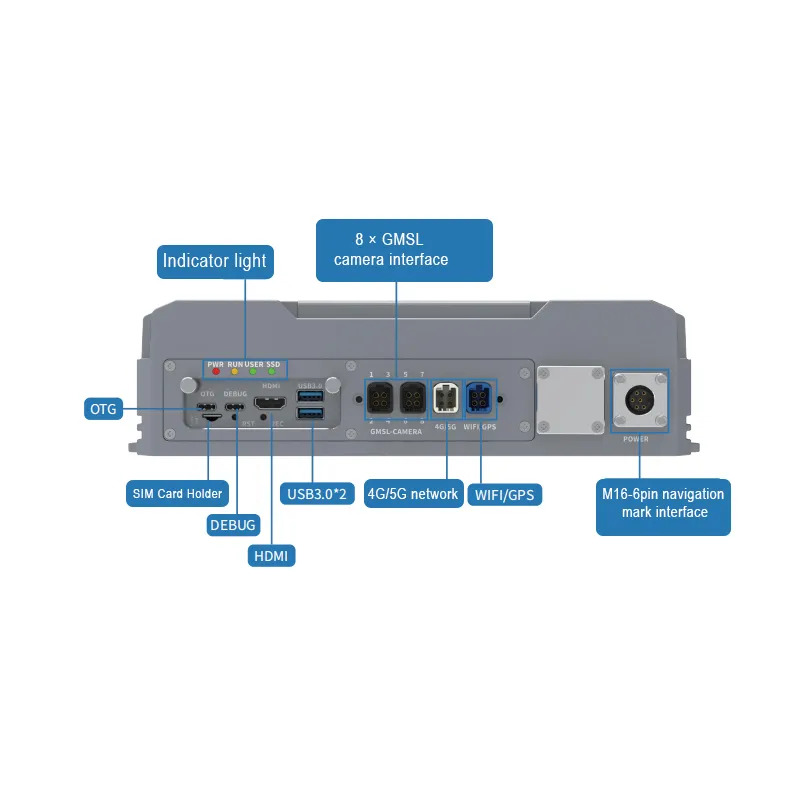

Detailed View 2
Detailed View 3
5

Shipping List

Item Name Quantity Status
Power adapter (19V-3.42A)1Standard
TYPE-C data cable1Standard
M12 orthographic network cable2Standard
M16 6PIN external power adapter cord1Standard
GMSL camera four-in-one line2Standard
Fakra_WiFi/GPS/4G/5G antenna1Optional
6

Frequently Asked Questions

Are you a factory or a trading company?
We are a factory with over 20 R&D engineers. Our pricing is competitive, and our after-sales service is fully guaranteed.
Do you provide OEM/ODM services?
Yes, we offer comprehensive OEM and ODM services to meet specific project requirements.
What payment methods do you accept?
We accept T/T, Paypal, L/C, and other standard payment methods.
What is the typical lead time for orders?
Lead time is 1 day for edge computing development kits, 3 days for standard edge computing boxes, and approximately 30 days for customization services.
What is the AI computing performance of this model?
The FC8108PG is powered by the NVIDIA Jetson Orin NX, providing up to 117 TOPS of AI computing power in super mode.
What is the warranty period for the products?
We provide a 2-year warranty. We have a professional technical team dedicated to handling all after-sales and technical issues.
