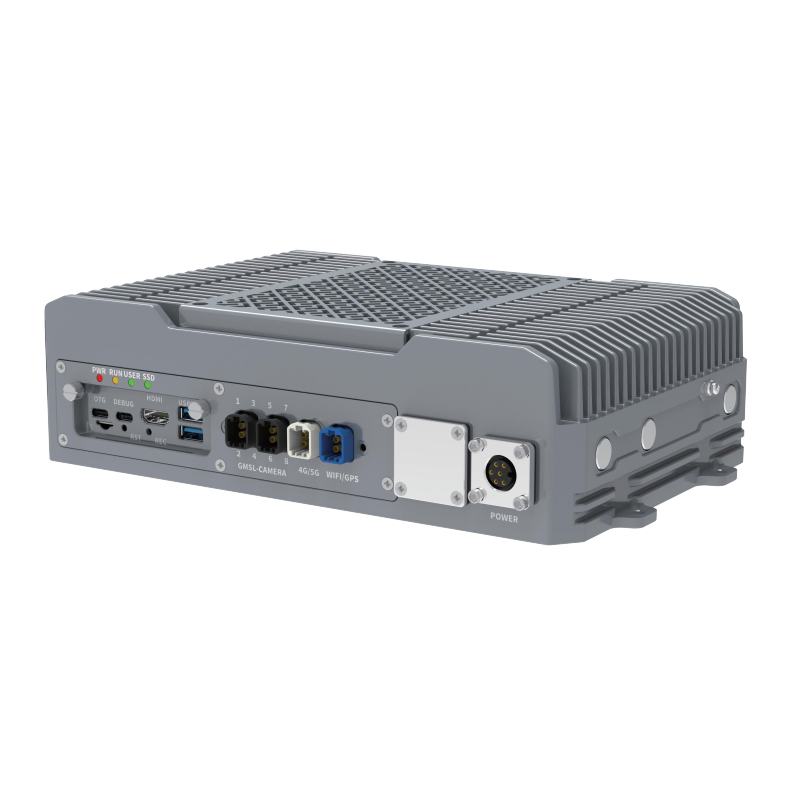

Based on NVIDIA Jetson Orin Nano core board, FC2108PG has 67TOPS AI computing power, rich interfaces to support sensors commonly used in self-driving vehicles, and can be used in robots, low-speed unmanned driving, smart factories, intelligent transportation and other scenes. It is an ideal carrier for deploying AI computing power at the edge for deep learning.
| Model NO. | FC2108PG-8GB |
| Certification | CE, ISO |
| Condition | New |

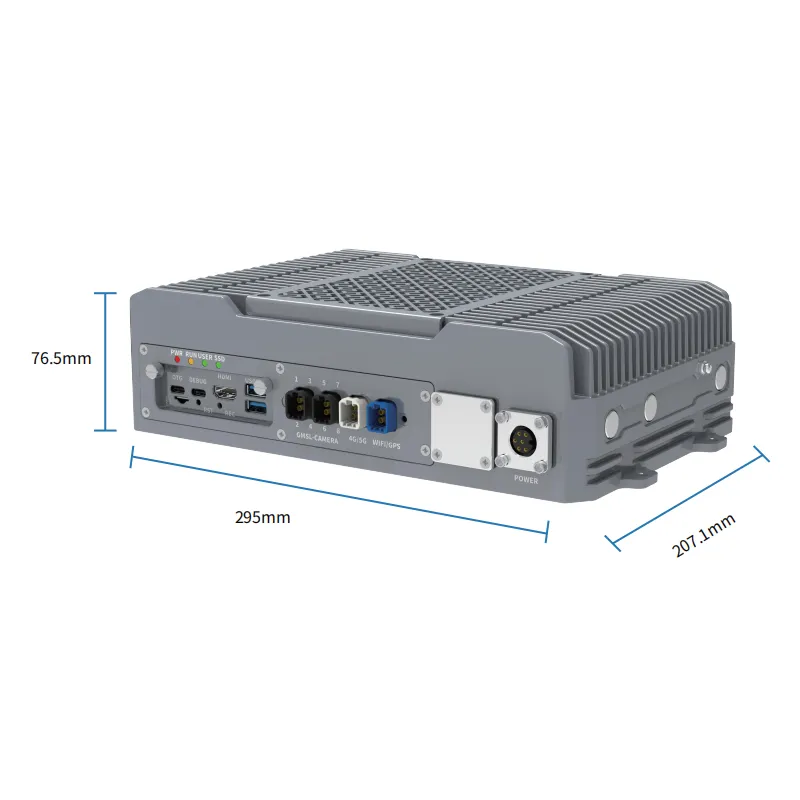

| Specification | 295mm x 207.1mm x 76.5mm |
| Trademark | Neutral Packing |
| System Architecture | |
| AI Platform | Jetson Orin Nano |
| AI Computing Power | Super mode: 67TOPS |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
| Memory | 8GB 128-bit LPDDR5 68 GB/s |
| Video Decoding | 1×4K60 (H.265), 2×4K30 (H.265), 5×1080p60 (H.265) |

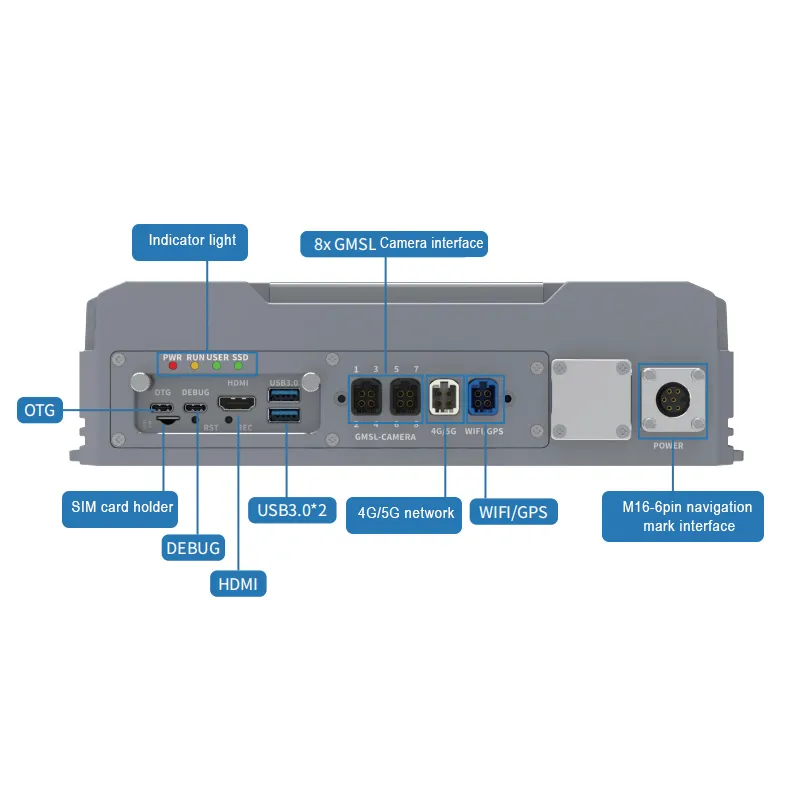

| Hardware Interface | |

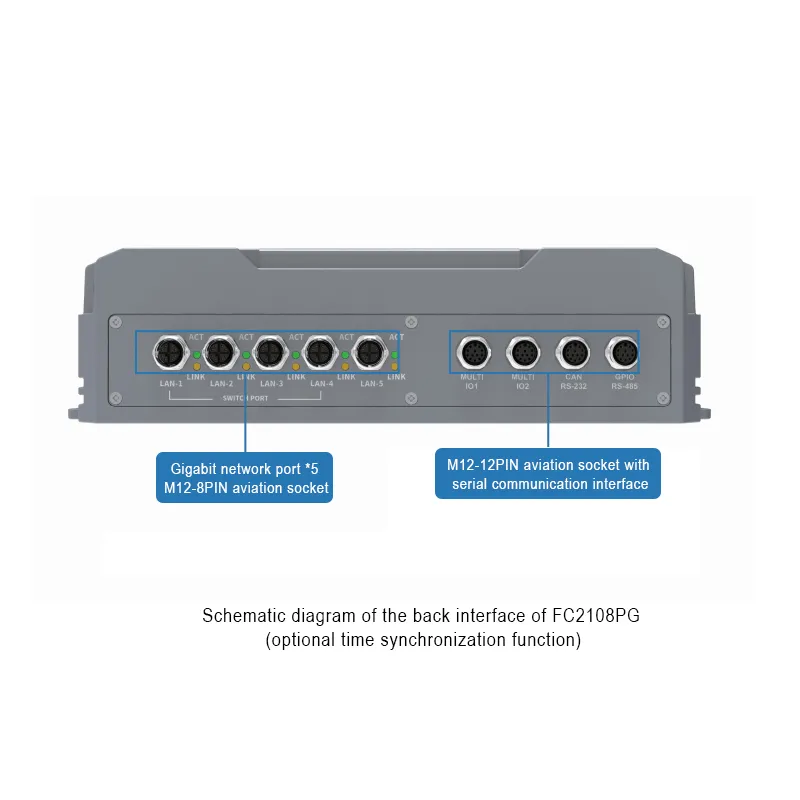

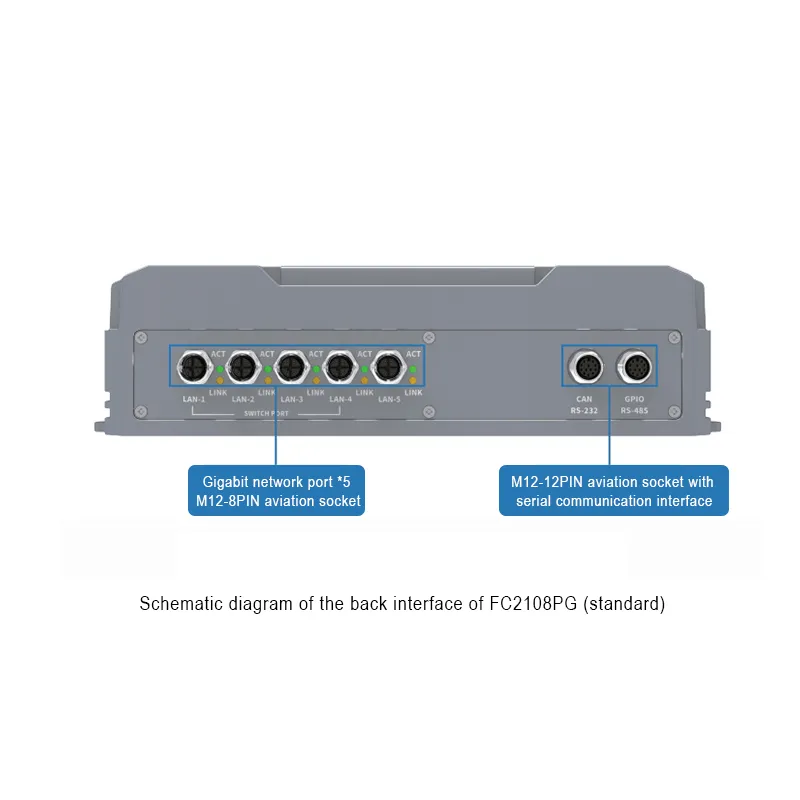

| Wired Network | 1 × M12 gigabit network port and 4 × M12 gigabit network port supporting POE |
| Wireless | 2.4GHz/5GHz dual-band WiFi, 4G/5G Full Netcom (optional) |
| GNSS | Support multi-mode (BD, GPS), RTK/inertial navigation (optional) |
| I/O Ports | 2×USB3.0 Type-A, 1×Type-C OTG, 1×RS232, 1×RS485, 1×CAN-FD |
| Camera Interface | 8×GMSL2 |
| Power Input | 9-36V, supporting ACC (M16-6PIN) |
| Environment | |
| Operating Temp | -20ºC to 60ºC (standard) / -40ºC to 70ºC (optional) |
| Dissipation | Fan cooling |
| Item Description | Quantity | Status |
| Power adapter (19V-3.42A) | 1 | Standard |
| TYPE-C data cable | 1 | Standard |
| M12 orthographic network cable | 2 | Standard |
| M16 6PIN external power cord | 1 | Standard |
| GPIO/RS485 & CAN/RS232 Cables | 1+1 | Standard |
| GMSL camera four-in-one line | 2 | Standard |
| Fakra WiFi/GPS/4G/5G Antenna | 1 | Optional |
