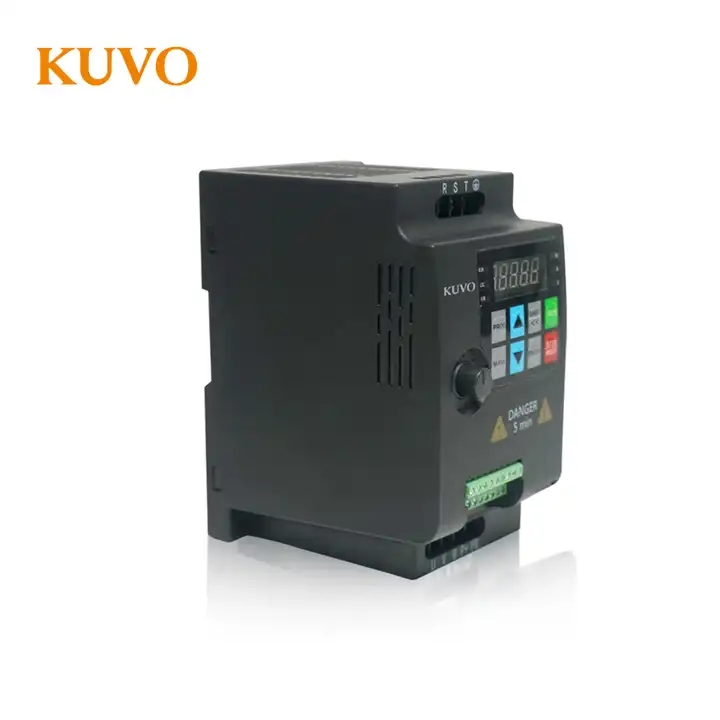

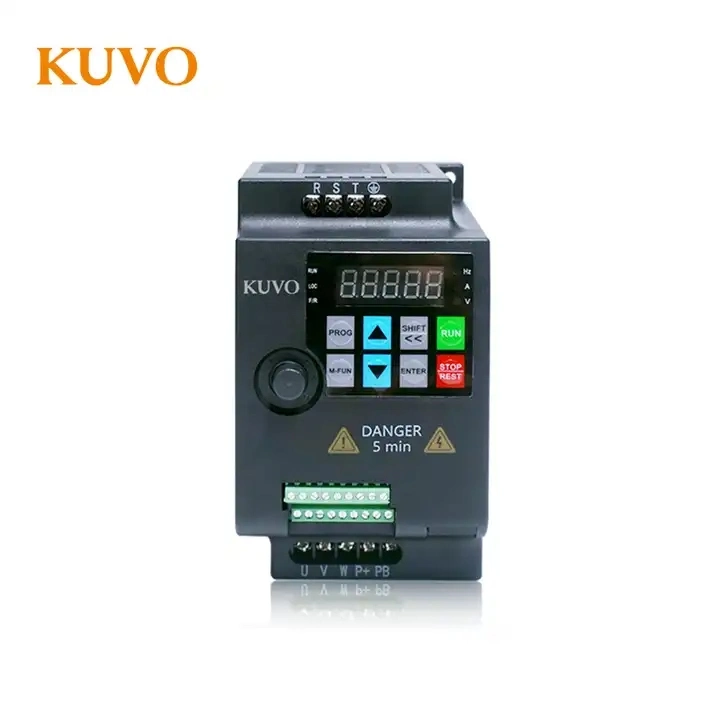

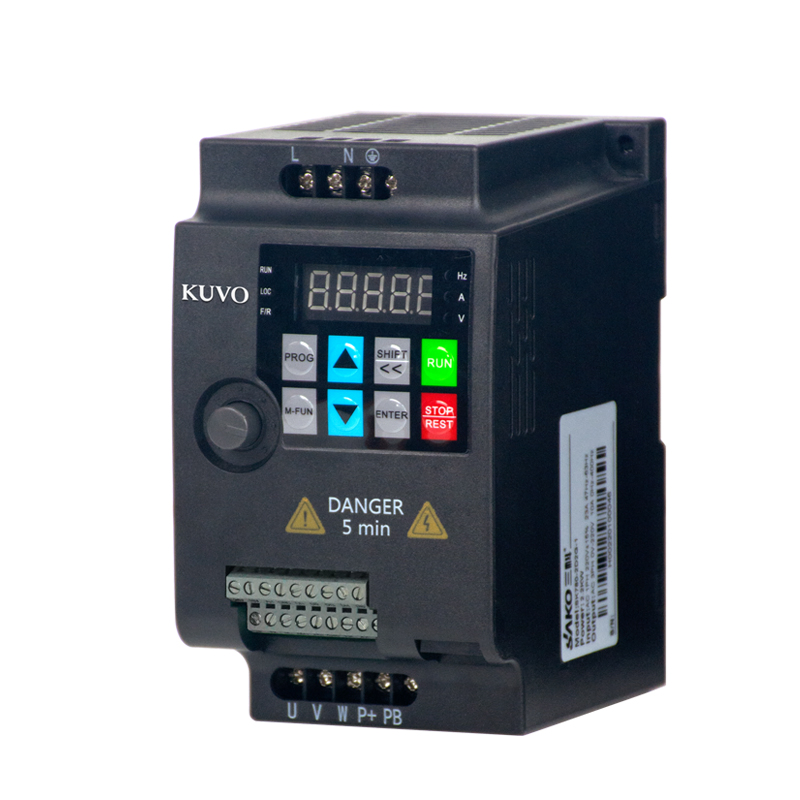

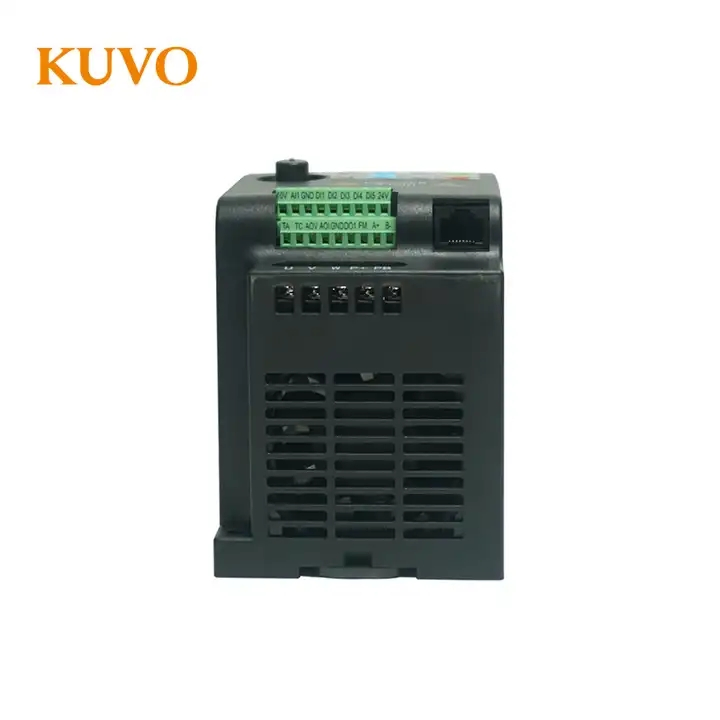

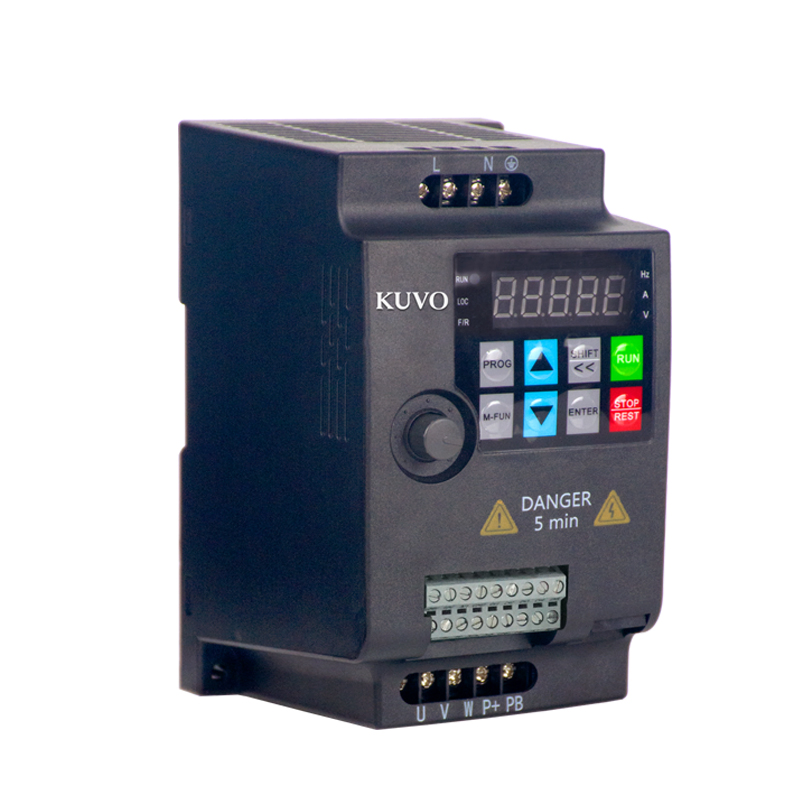

220VAC 2.2kw 3HP VFD Variable Frequency Drive Inverter Motor Speed Control
220VAC 2.2kw 3HP VFD Variable Frequency Drive Inverter Motor Speed Control
220VAC 2.2kw 3HP VFD Variable Frequency Drive Inverter Motor Speed Control
220VAC 2.2kw 3HP VFD Variable Frequency Drive Inverter Motor Speed Control
220VAC 2.2kw 3HP VFD Variable Frequency Drive Inverter Motor Speed Control
1 / 5
220VAC 2.2kw 3HP VFD Variable Frequency Drive Inverter Motor Speed Control
220VAC 2.2kw 3HP VFD Variable Frequency Drive Inverter Motor Speed Control
220VAC 2.2kw 3HP VFD Variable Frequency Drive Inverter Motor Speed Control
220VAC 2.2kw 3HP VFD Variable Frequency Drive Inverter Motor Speed Control
220VAC 2.2kw 3HP VFD Variable Frequency Drive Inverter Motor Speed Control

220VAC 2.2kw 3HP VFD Variable Frequency Drive Inverter Motor Speed Control

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Technical Specifications

Model NO.
JHI780-2D2G-1
Principle of Work
V/F Control Transducer
Switch Mode
High Carrier Frequency PWM Control
Main Circuit Type
Voltage
Power Supply Voltage
Low Voltage VFD
Rated Power
2.2kw
Output Current
10A
Output Frequency
0Hz~1000Hz
Output Voltage
0-230V AC 3 Phase
Input Voltage
230V AC 1 Phase
Product Size
142*85*120mm
Production Capacity
10000PCS/Year
Origin
China
Transport Package
Wooden Box

Key Technical Features

⚡ Power & Frequency Rated Power Range: 0.75KW~2.2KW; Output Frequency Range: 0~400Hz.
🛡️ Overload Capability G type: 60s with 150% rated current, 5s with 180%; Instantaneous protection at 220%.
⚙️ Control Functions PID control, Multi-stage Speed Function (set via PLC or connection port).
🔄 Frequency Setup Supports digital, PID, and analog setup methods for multiple frequency needs.
🚀 Performance Speed Trace Function for smooth motor restarts; Automatic Voltage Regulation (AVR).
⚠️ Fault Protection Protection from over current, over voltage, under voltage, over temperature, phase failure, and over load.
LIGHT LOAD INVERTER - Focus on frequency converter for 17 years

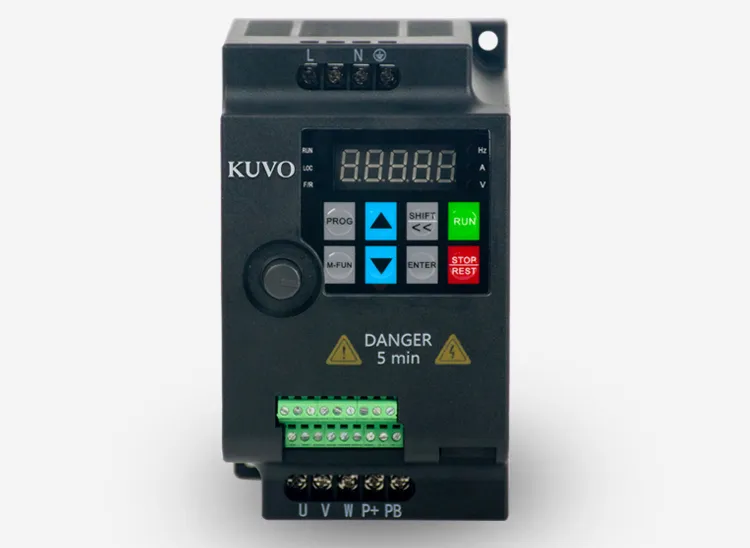

VFD Variable Frequency Drive

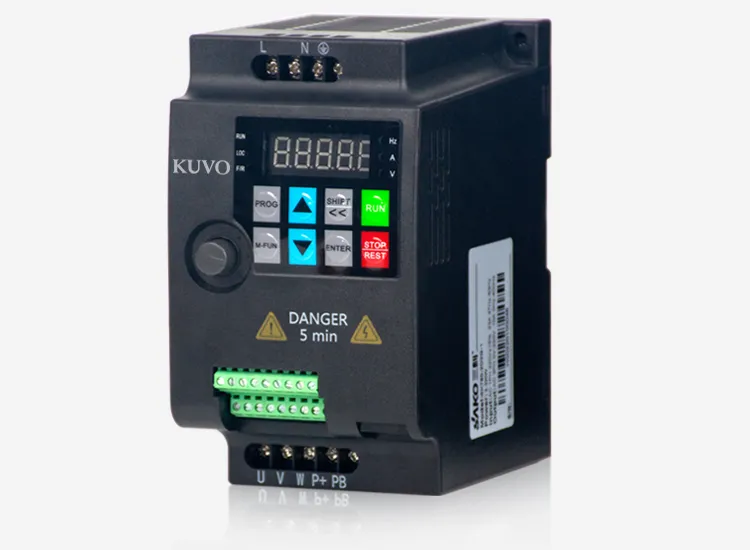

Frequency Converter
Main Functionalities

1. Prevent motor starting current from doubling up

2. Precise speed regulation of the motor

3. Controls positive and negative rotation

4. Comprehensive safety protections

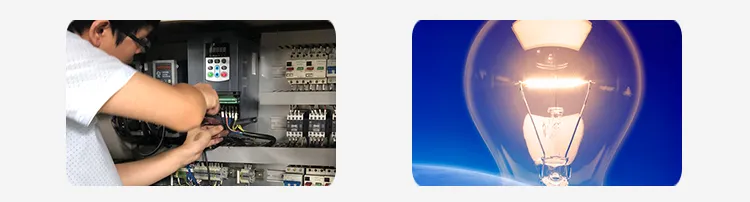

Feature 1 Feature 2 Feature 3

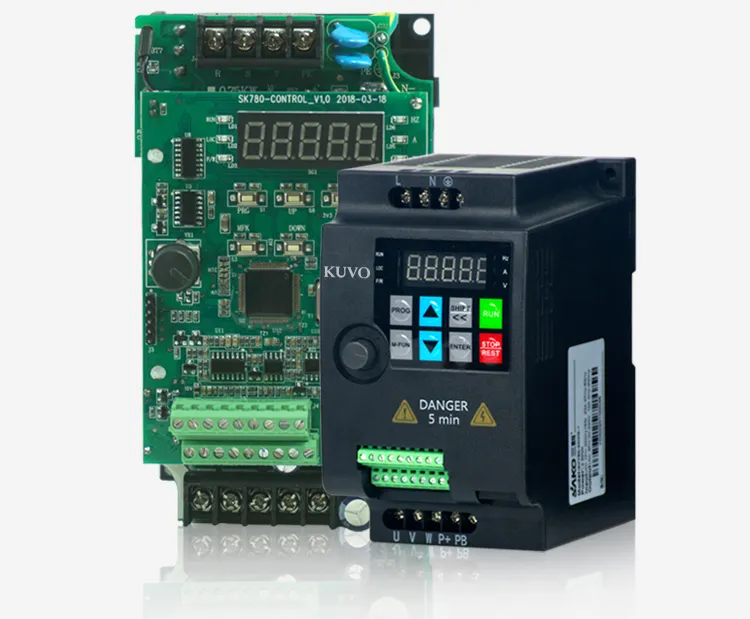

Control 1 Control 2 Control 3
TYPE SELECTION & COMPACT DESIGN
Type selection

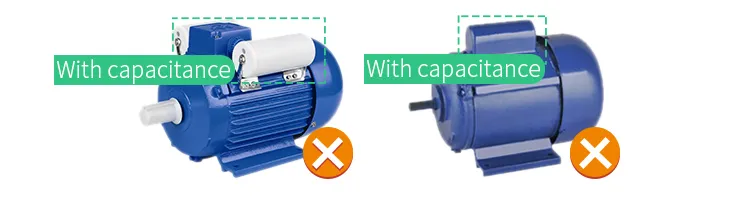

Capacitance

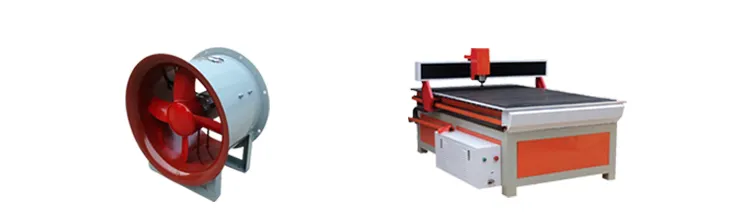

Mini frequency converter

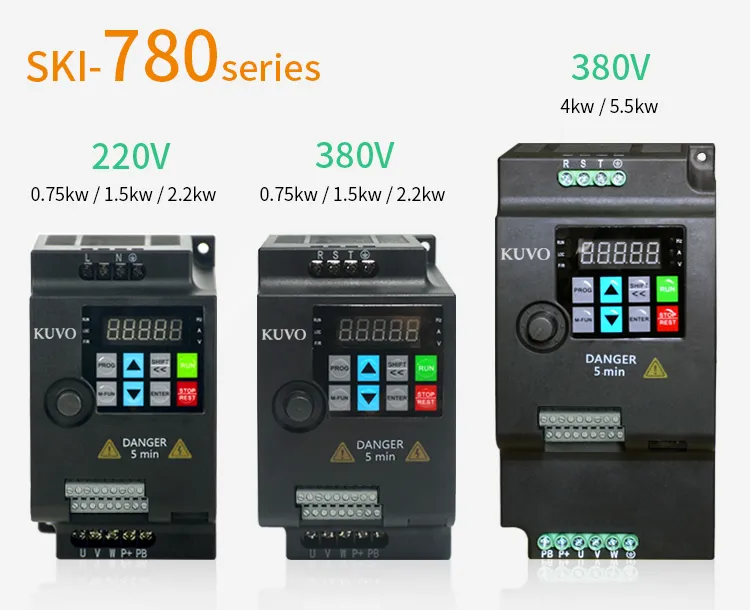

Compact size

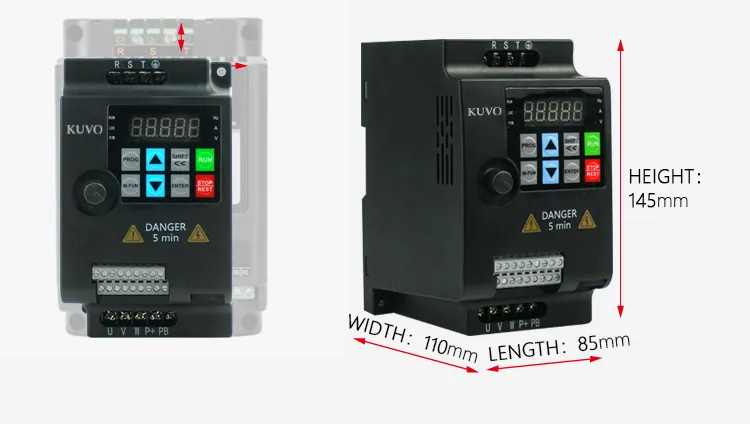

Installation space saving
PRODUCT DETAILS & COMPONENTS

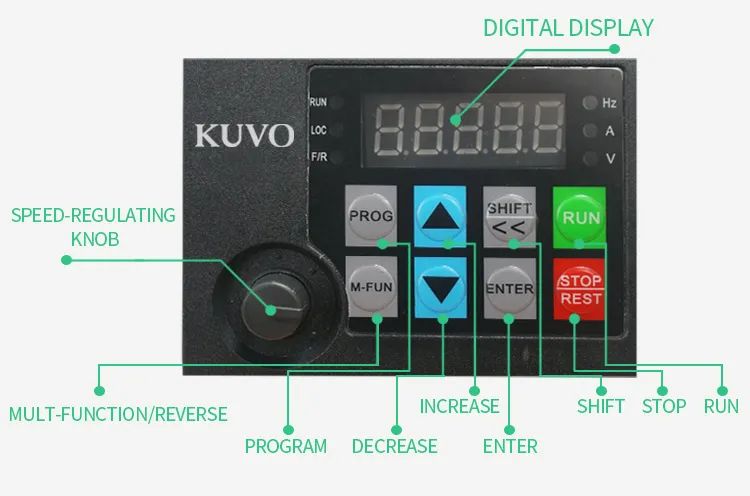

Key panel

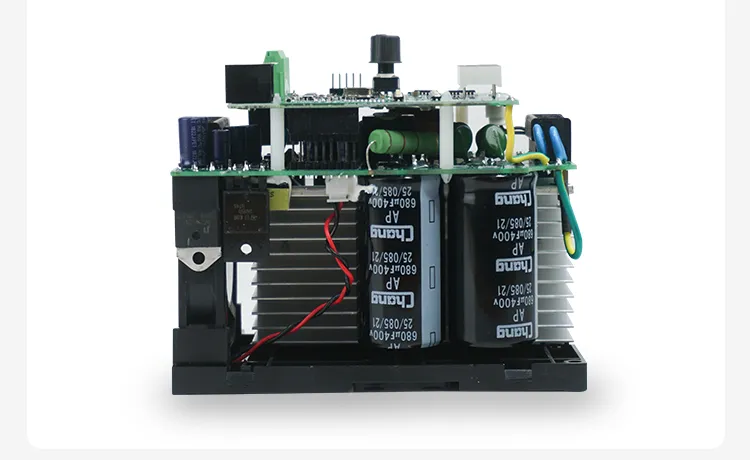

Internal organs

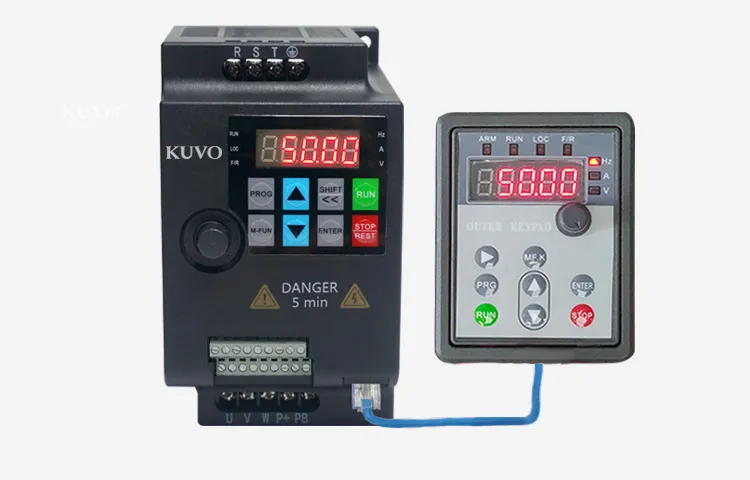

Remote control

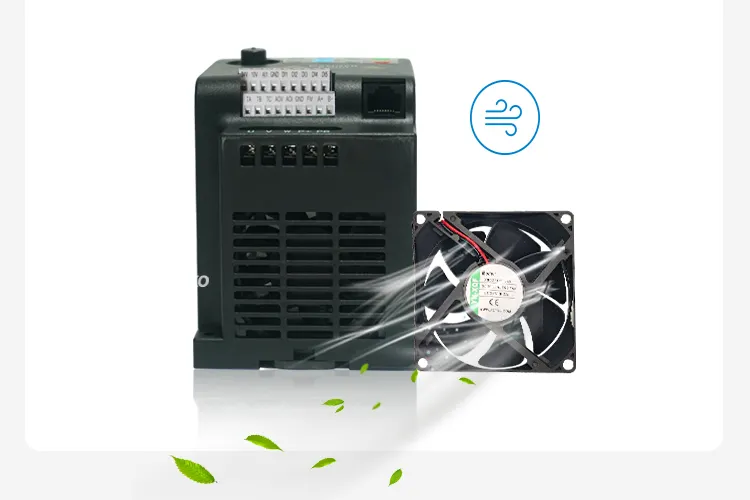

Cooling fan
WIRING & PACKAGING

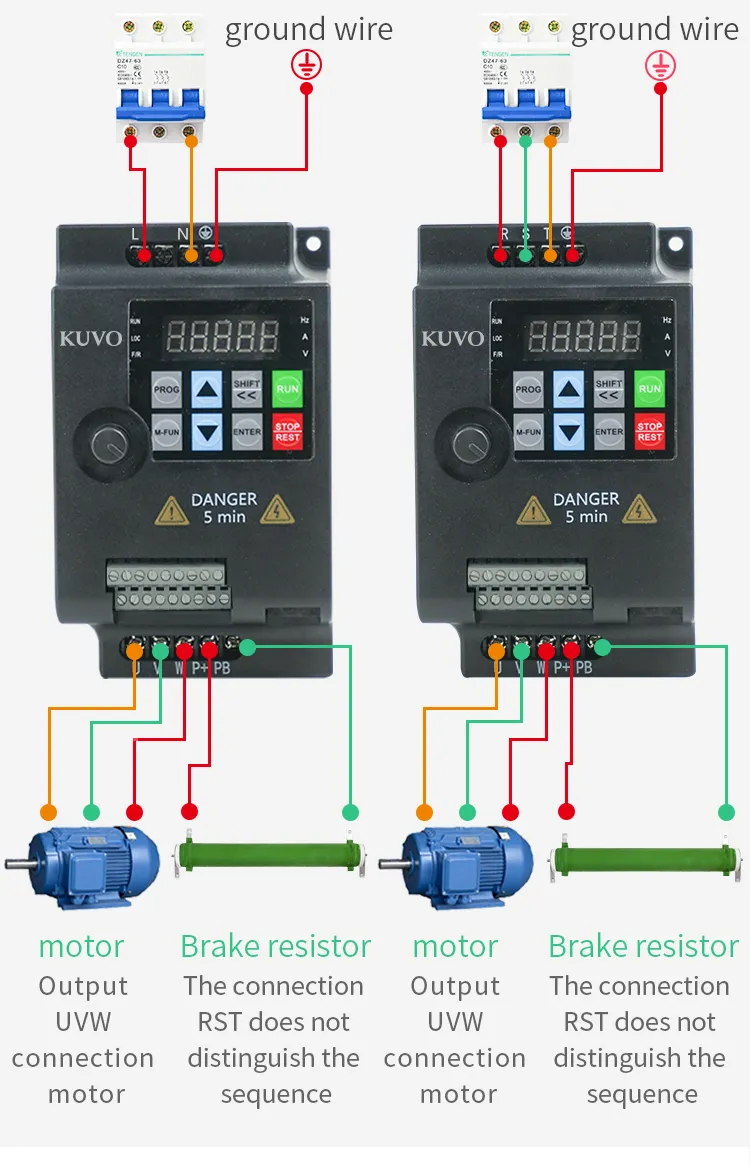

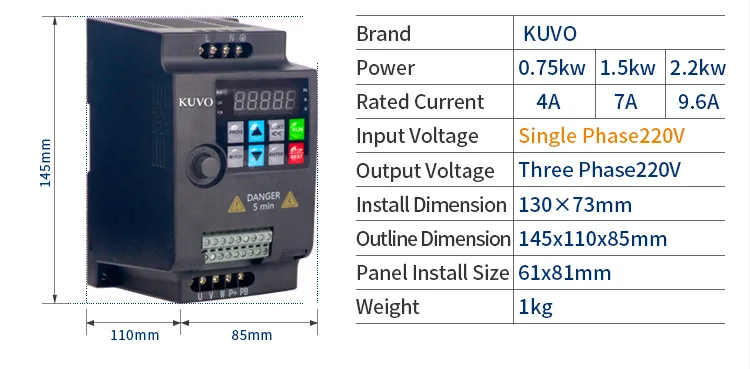

Wiring diagram 1 Wiring diagram 2

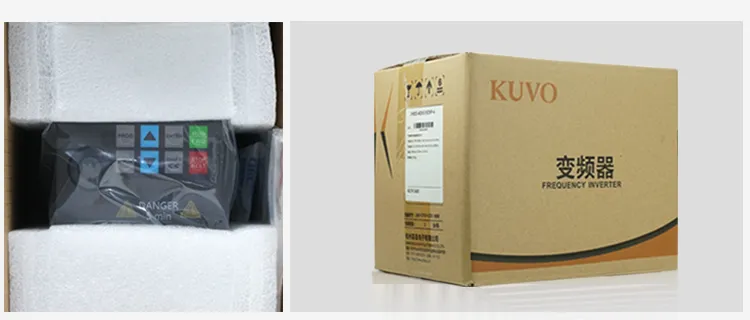

Product packaging
Packaging box

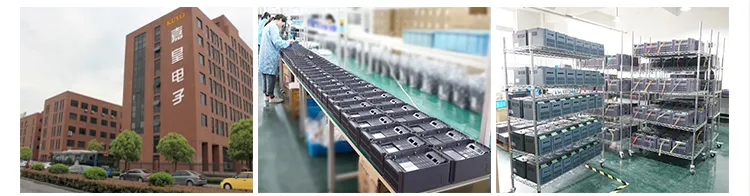

Certificate 1 Certificate 2 Certificate 3
Qualification

Frequently Asked Questions

What is the output frequency range of this VFD?
The output frequency range is from 0Hz to 1000Hz, suitable for high-speed motor control requirements.
Does this inverter support remote control?
Yes, the device is designed to realize remote control operations through its connection ports.
What protection features are included?
It includes multiple protection mechanisms such as over current, over voltage, under voltage, over temperature, phase failure, and over load protection.
How does the mini size benefit my installation?
Compared to similar products, the mini size is more compact, which significantly saves installation space in your control cabinets.
What is the input voltage for the JHI780-2D2G-1 model?
The input voltage for this model is 230V AC Single Phase, and it provides 0-230V AC 3 Phase output.
Can it maintain stable output during voltage fluctuations?
Yes, it features an Automatic Voltage Regulation (AVR) function that keeps the output voltage stable even when the input voltage fluctuates.
