Basic Specifications
Cooling Water
Industrial Water
Fans Species
Double-speed fan
Application Fields
Industrial
Product Name
Floorstanding Compact Air Dry Refrigeration Cooler
Power Supply
400V-3pH-50Hz
Inlet/Outlet Connection
DN125
Inlet Air Temperature
35 Degree C
Inlet/Outlet Water Temperature
60/40 Degree C
Production Capacity
300 Units/Month
Packaging & Delivery
Package Size
1000.00cm * 1000.00cm * 1000.00cm
Package Gross Weight
100.000kg
Transport Package
Wrap Film/Pallet
Product Features

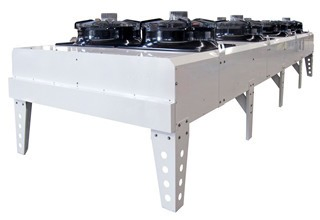

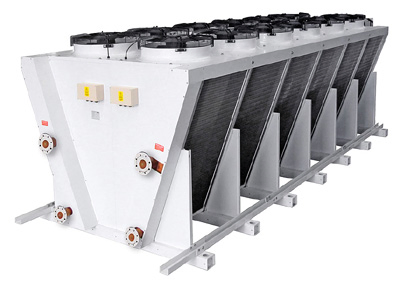

Floorstanding compact Air Dry Refrigeration Cooler and immersion cooling container solution
◈
Air Discharge: Flexible options for vertical or horizontal discharge directions.
◈
Performance Range: Cooling capacity from 5 to 649 kw; Air volume from 2828 to 263503 m3/h.
◈
High Efficiency Heat Exchanger: Advanced tube coupling design for low pressure drop (max 100KPa); Thermodynamic software tested for optimal heat transfer.
◈
Reliable Fan System: Low energy consumption fans with IP 54 protection and Class F insulation.
◈
Rigorous Testing: All units are supplied clean and pressure tested at 30 bars.
Technical Data (SHSL-D1 Series)
| Type |
SHSL-D1-005 |
SHSL-D1-006 |
SHSL-D1-007 |
SHSL-D1-009 |
SHSL-D1-011 |
SHSL-D1-013 |
SHSL-D1-014 |
SHSL-D1-017 |
SHSL-D1-020 |
| Capacity |
Water |
Inlet 45ºC, Outlet 40ºC |
KW |
4.89 |
5.90 |
6.83 |
9.39 |
10.99 |
13.33 |
14.32 |
17.01 |
19.80 |
| 20% Glycol |
Inlet 45ºC, Outlet 40ºC |
KW |
4.72 |
5.69 |
6.69 |
8.90 |
10.61 |
13.05 |
13.91 |
16.11 |
19.29 |
| Medium |
Water flow |
M3/h |
0.85 |
1.03 |
1.20 |
1.63 |
1.91 |
2.30 |
2.50 |
3.00 |
3.50 |
| Air flow |
- |
M3/h |
2828 |
2712 |
2492 |
6199 |
5827 |
5225 |
8469 |
8168 |
7601 |
| Fan Motor |
Power (W) |
140 |
140 |
140 |
540 |
540 |
540 |
830 |
830 |
830 |
| Product Weight |
Empty (kg) |
38 |
42 |
48 |
55 |
60 |
67 |
75 |
82 |
91 |

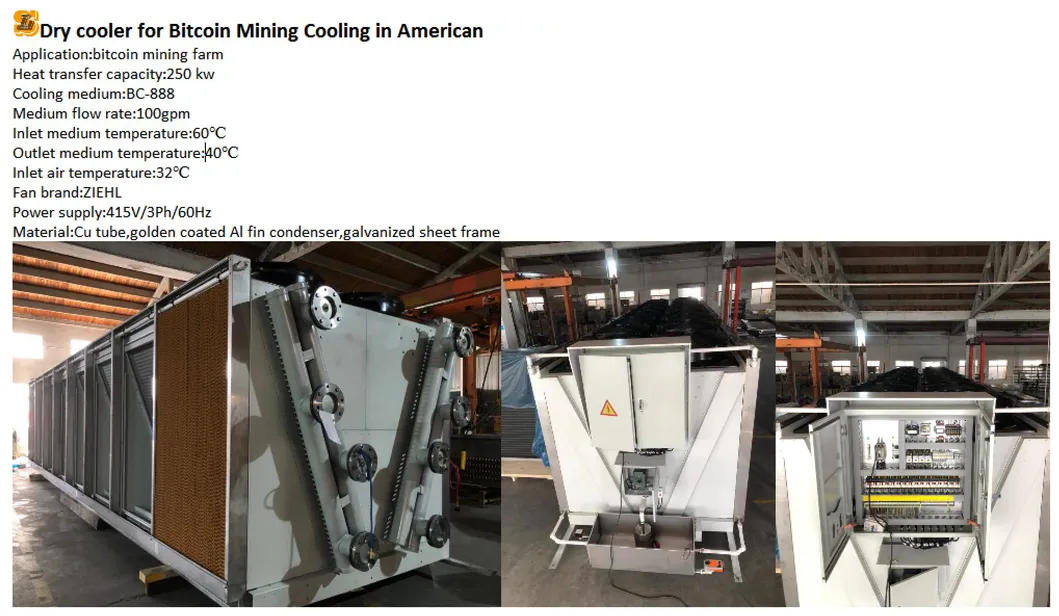

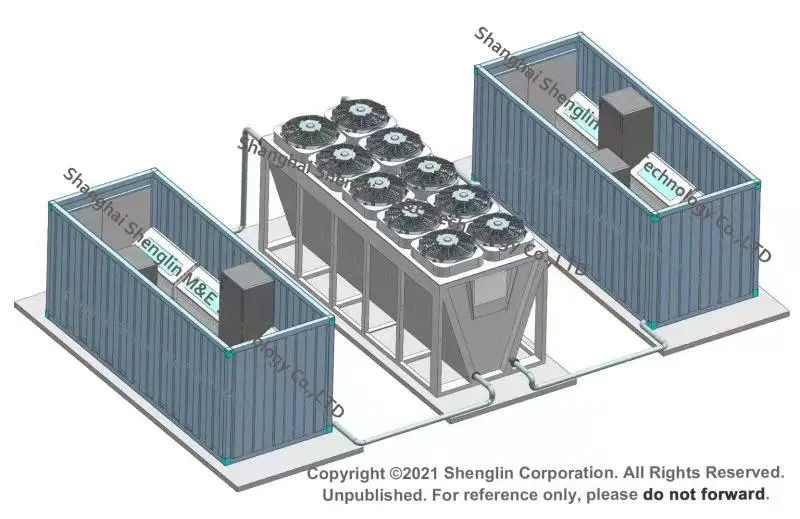

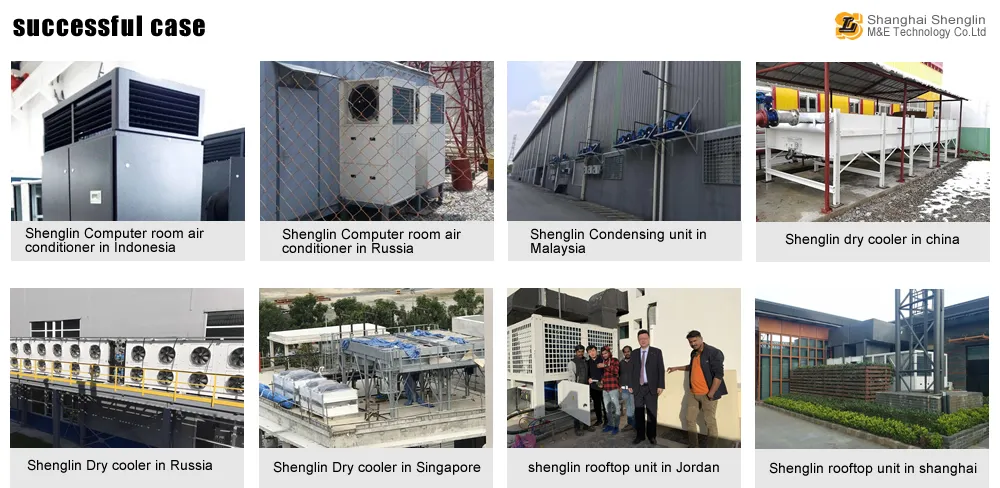

Immersion Cooling Solution & Case Studies
Frequently Asked Questions
What fluids are compatible with this cooler?
The coil design supports multiple refrigerants including water, oil, and glycol mixtures.
What is the cooling capacity range?
Our standard performance ranges from 5 kw up to 649 kw, customizable based on specific industrial demands.
Can the unit be used for immersion mining?
Yes, this floorstanding compact dry cooler is an ideal solution for immersion cooling container setups.
Are different casing materials available?
Yes, we offer options for stainless steel or aluminum casings, as well as coated aluminum or copper fins.
What are the electrical specifications for the fan motors?
The standard voltage is 400V/3N/50Hz with a protection class of IP 54 and insulation class F.
How is the heat exchanger pressure tested?
All heat exchangers undergo rigorous testing and are supplied clean after being tested at a pressure of 30 bars.
