Wireless Remote Machine Condition Monitoring System for Mining Industry

1 / 5

Wireless Remote Machine Condition Monitoring System for Mining Industry

Transport Package:	Carton
Trademark:	RONDS
Origin:	China

Send Inquiry

Product Description

Basic Specifications

Model NO. RH560

HS Code 9031809090

Production Capacity 100,000

Key Features

✓

Measure both vibration and temperature data

✓

Battery lifetime: 3 years

✓

CE / EX certification available

✓

One key upgrade for firmware

✓

Easy installation: no wiring

✓

Online training and technical support

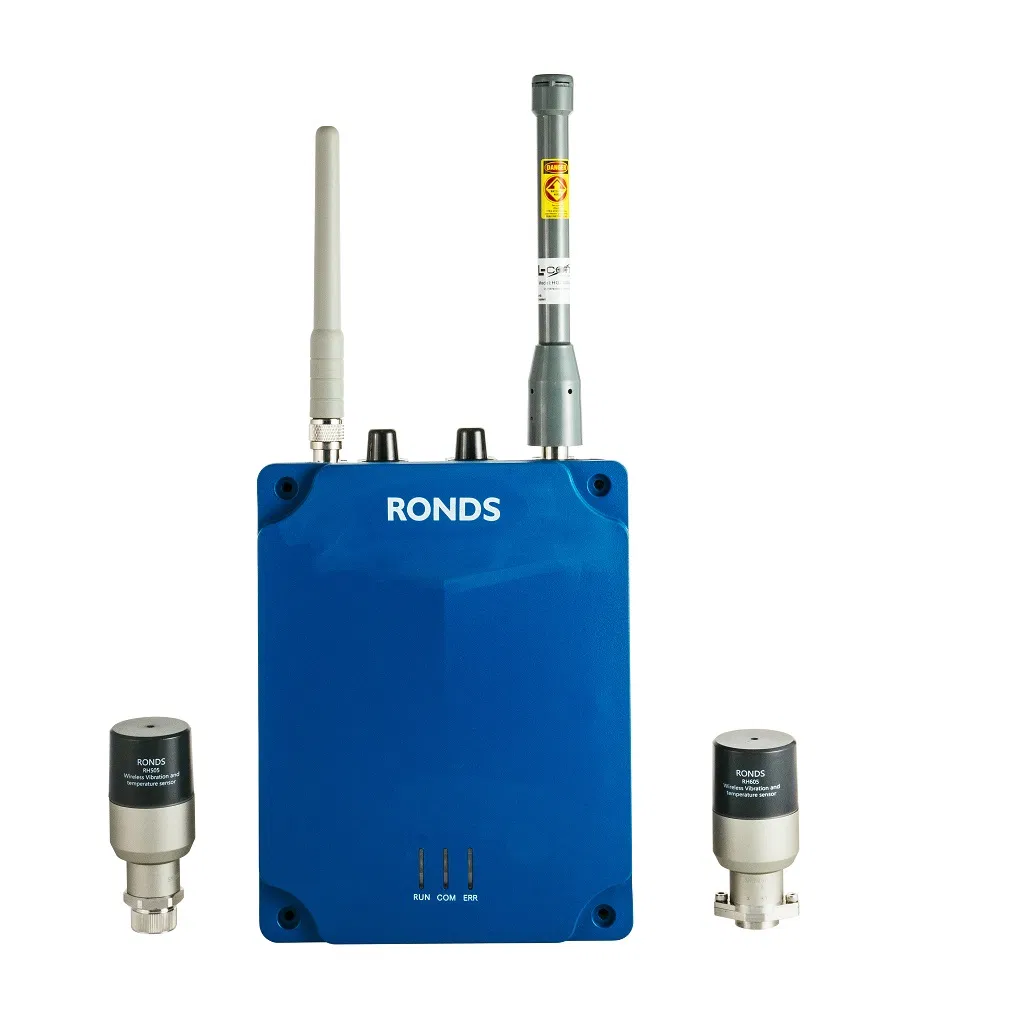

RH560 Wireless Data Collector

Input and Output Parameters
Communication protocol	2.4GHz IEEE 802.15.4
Number of RH505 connecting	30~60 units according to real condition
Analysis Frequency (Hz)	500/1K/2K/5K/10K/15K/20K
Number of Sample	1K~128K (1K=1024)
Electrical and Structure Parameter
Power Supply	220V AC
Dimension (L * W * H)	203 mm × 82 mm × 260 mm
Weight	3 kg
IP grade	IP66

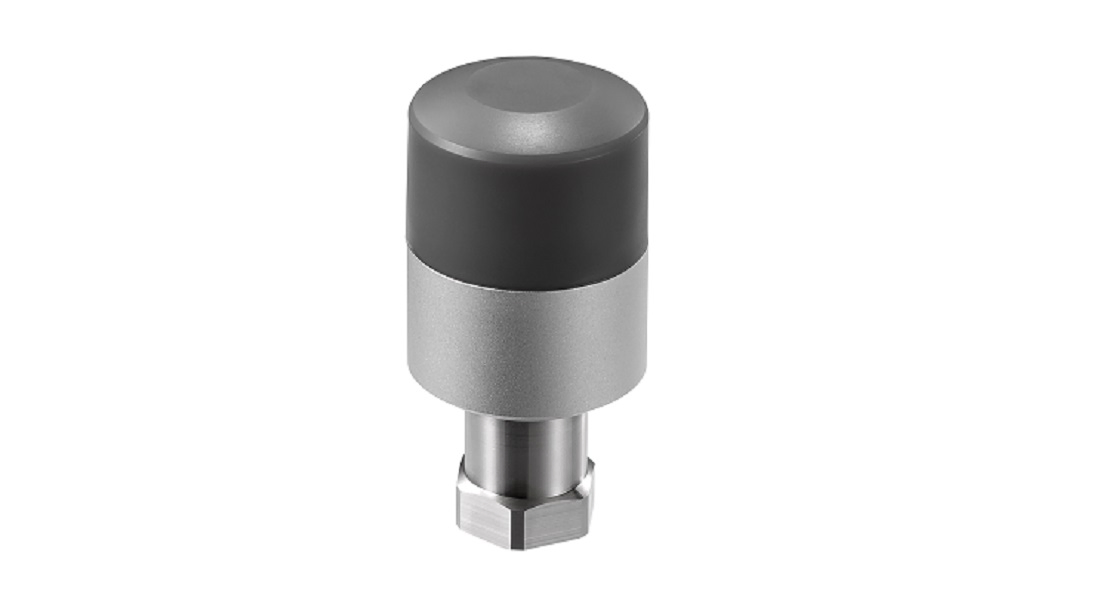

RH505 Wireless Vibration and Temperature Integrated Sensor

Vibration & Temperature Measurement
Vibration Range	±50 g
Frequency Response	2Hz~15kHz (±3dB)
Sampling rate	Max. 51.2KHz
Measurement types	Overall value, FFT, time signal, Envelop FFT
Temperature Range / Accuracy	-40~125 °C / ±1 °C
Electrical and Structure Parameter
Power Supply	Lithium-thionyl chloride battery, 3.6V (3 years life)
Dimension	46 mm × 94 mm (Diameter * Height)
IP grade	IP67

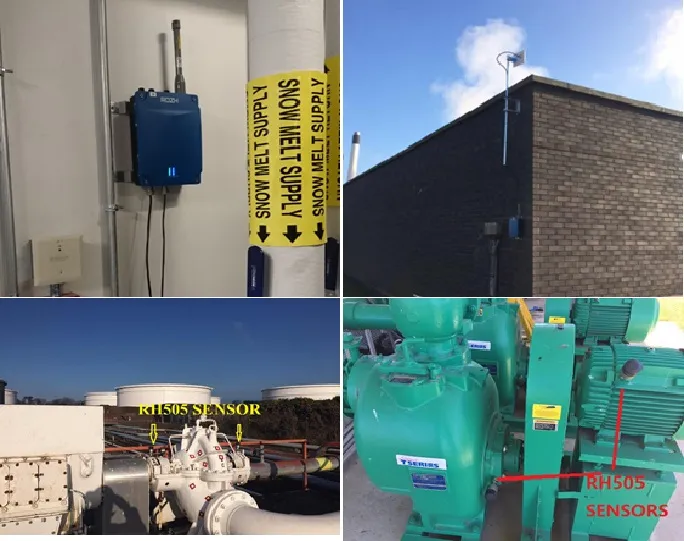

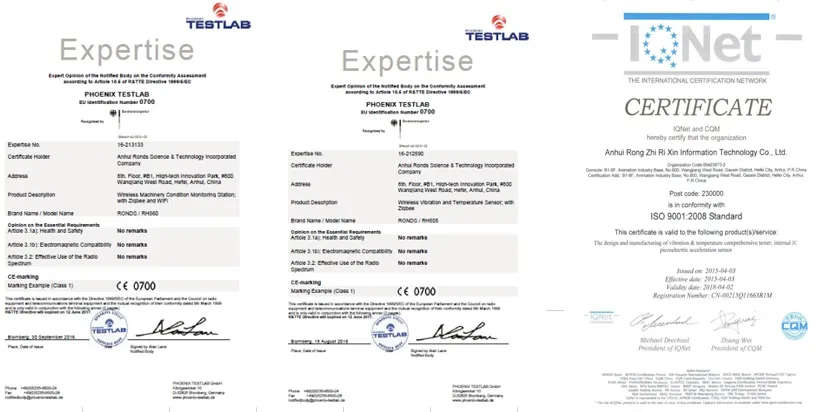

Certificates & Applications

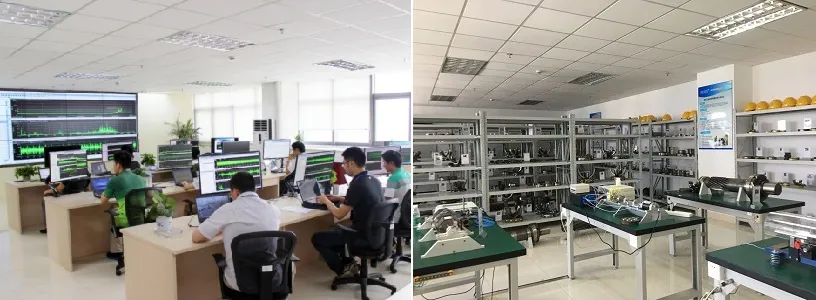

Diagnosis Center & Global Presence

Professional Analyst & Algorithm Team

Expert Analysts: 30 professional vibration analysts, including CAT III and CAT II experts with over 20 years of experience.

Intelligent Algorithm: 11 members led by a famous doctoral tutor, supported by a 13-member big data team.

Frequently Asked Questions

Q1: How long does the battery of the wireless sensor last? A: The RH505 wireless vibration and temperature integrated sensor is powered by a lithium-thionyl chloride battery with a lifetime of 3 years.

Q2: What is the maximum communication distance for the wireless sensors? A: One RH560 wireless data collector can connect 30 to 60 units of RH505 sensors depending on the real site conditions.

Q3: Is the system suitable for outdoor or harsh environments? A: Yes, the data collector is IP66 rated and the sensors are IP67 rated, both designed to work in temperatures ranging from -40°C to 70°C.

Q4: Does the installation require complex wiring? A: No, the system is designed for easy installation with no wiring required, utilizing a 2.4GHz wireless communication protocol.

Q5: What parameters can be measured by this system? A: The system simultaneously measures vibration data (FFT, time signal, Envelop FFT) and temperature data for comprehensive machine condition monitoring.

Q6: Are there any certifications for hazardous areas? A: Yes, the equipment is available with CE and EX certifications, ensuring safety and compliance in industrial environments.
