China Bearing Condition Monitoring System for Mining Industry

Transport Package:	Carton
Trademark:	RONDS
Origin:	China

Basic Info.

Model NO. RH560

HS Code 9031809090

Production Capacity 100000

Product Description

Main Features

✓

Dual Monitoring: Measure both vibration and temperature data simultaneously.

✓

Long Battery Life: 2 years lifetime (based on standard vibration and waveform sampling intervals).

✓

Certified Safety: CE and EX certifications available for industrial standards.

✓

Easy Maintenance: One-key firmware upgrade and wireless installation (no wiring needed).

✓

Professional Support: Online training and continuous technical support.

Main Technical Parameters

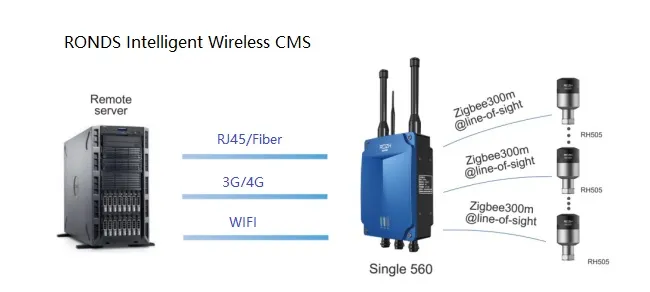

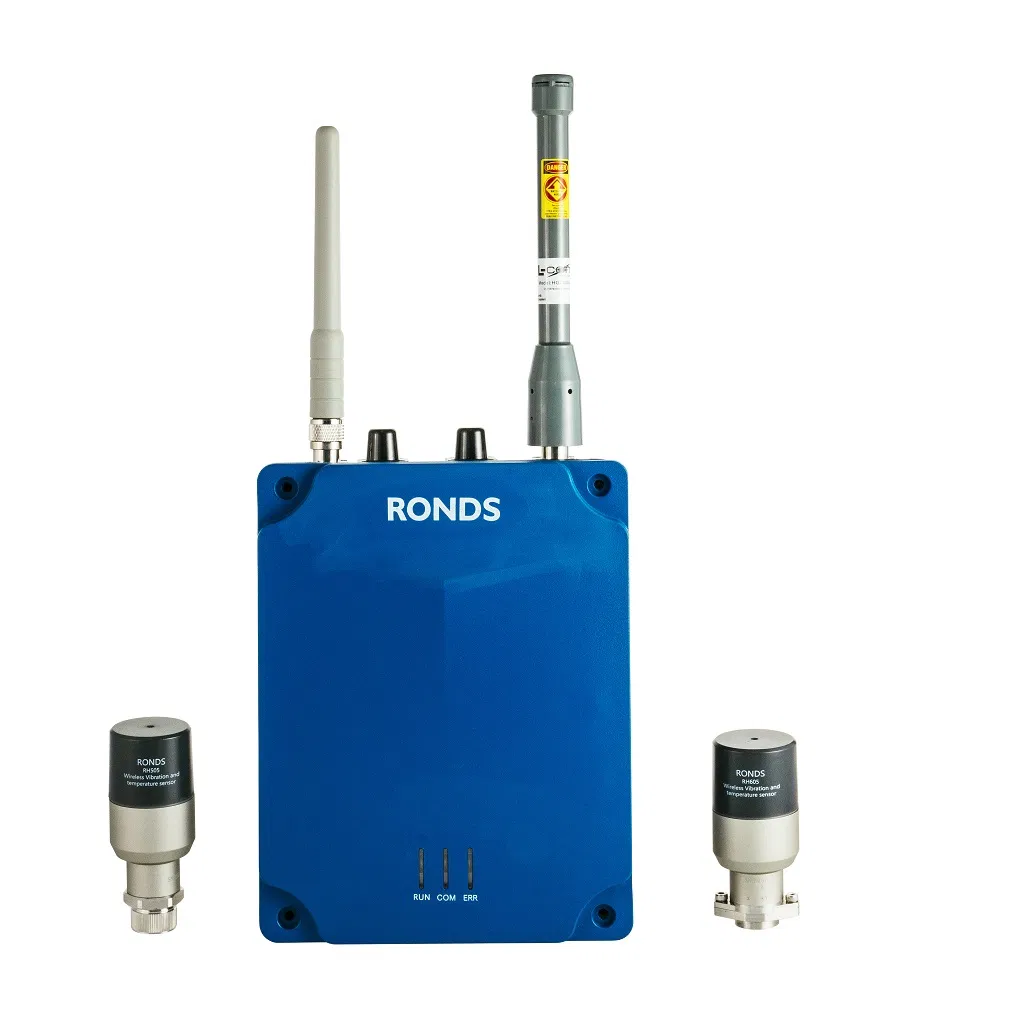

RH560 Wireless Data Collector

Input and Output
Communication Protocol	2.4GHz IEEE 802.15.4
Number of RH505 Connecting	30~60 units (according to real condition)
Analysis Frequency (Hz)	500 / 1K / 2K / 5K / 10K / 15K / 20K
Number of Samples	1K~128K (1K=1024)
Electrical and Structure Parameters
Power Supply	220V AC
Dimension (L * W * H)	203 mm × 82 mm × 260 mm
Weight / Mounting	3 kg / Hanging or fixation through holder
Environmental Parameters
Working Temperature / IP Grade	-40~70 °C / IP66

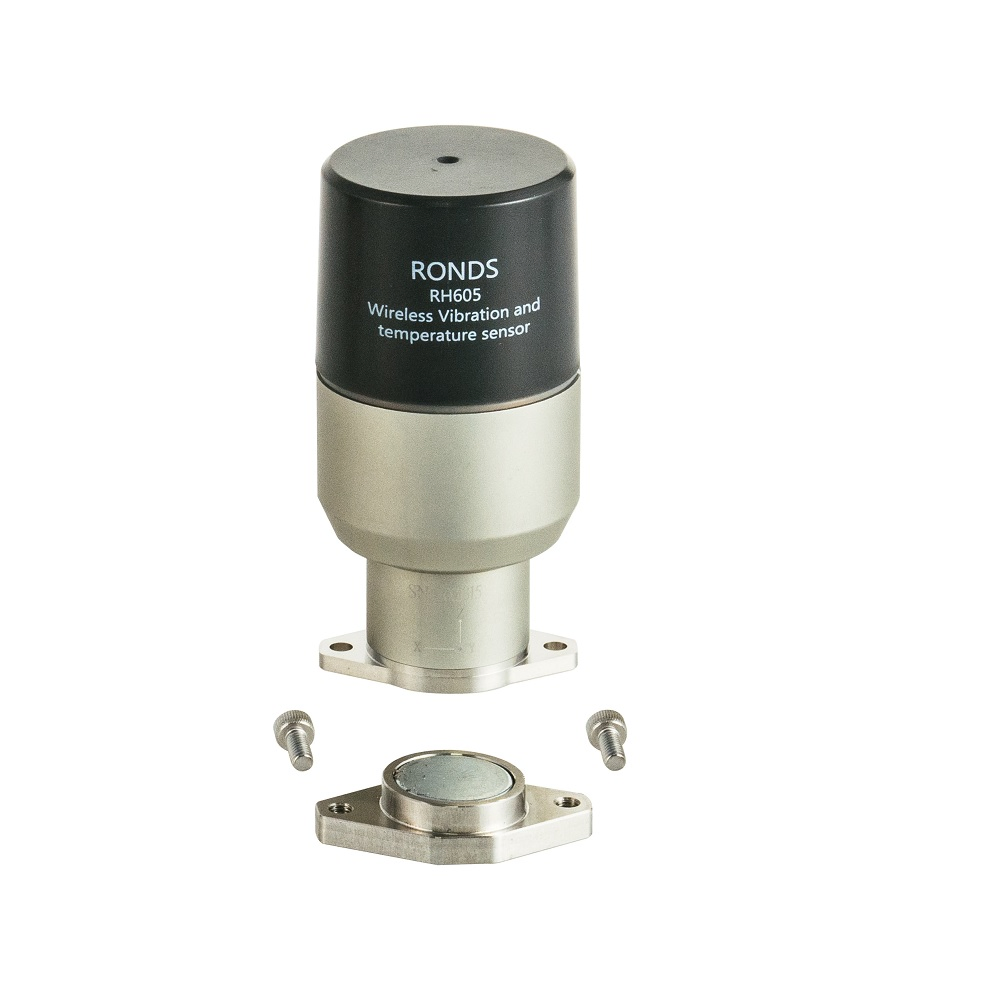

RH505 Wireless Vibration & Temperature Integrated Sensor

Vibration Measurement Parameter
Vibration Range / Linearity	±50 g / 1%
Frequency Response	2Hz~15kHz (±3dB)
Sampling Rate	Max. 51.2KHz
Measurement Types	Overall value, FFT, Time signal, Envelop FFT
Temperature Measurement Parameter
Range / Accuracy	-40~125 °C / ±1 °C
Electrical and Structure Parameter
Power Supply	Lithium-thionyl chloride battery, 3.6V, 3.3Ah
Dimension / Weight	46 mm × 94 mm (Dia * H) / 188 g
Working Temp / IP Grade	-40~70 °C / IP67

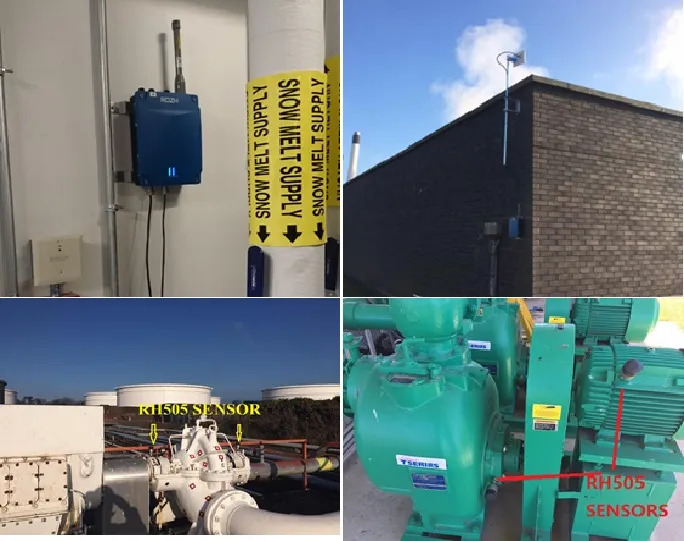

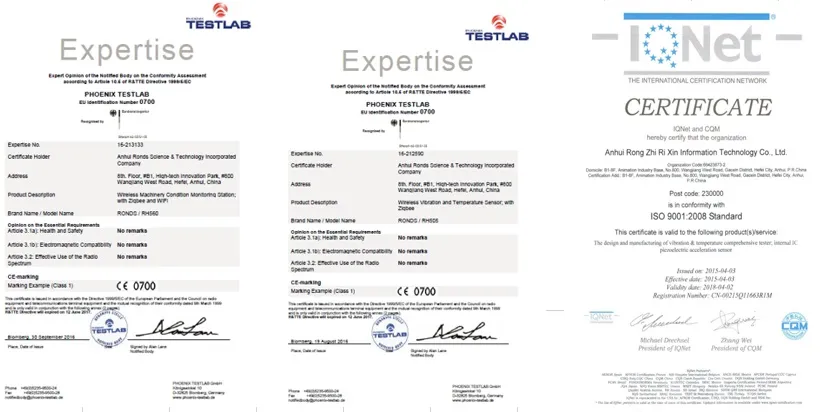

Certificates & Applications

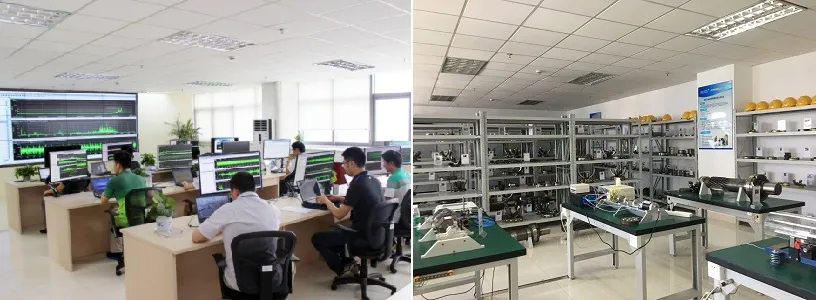

Remote Diagnosis Center & Laboratory

Exhibitions and Global Customers

Technical Team Capabilities

Professional Vibration Analysts

30 professional vibration analysts
Diagnosis experts with 20+ years' experience
Certified CAT III and CAT II vibration analysts

Intelligent Algorithm & Big Data

Algorithm team with 11 members led by a doctoral tutor
Big data team with 13 specialized members

Frequently Asked Questions

What data does the RH505 sensor collect?

The RH505 integrated sensor simultaneously measures both vibration and temperature data for comprehensive equipment condition monitoring.

How long does the battery last in the wireless sensor?

The battery lifetime is approximately 2 years, assuming a standard measurement interval of vibration values once every five minutes and time waveforms once every 2 hours.

How many sensors can one wireless data collector support?

A single RH560 wireless data collector can connect to between 30 and 60 units of RH505 sensors, depending on the actual field conditions.

Is this system suitable for hazardous environments?

Yes, the system is designed for industrial use and carries CE and EX certifications to ensure safety and compliance in regulated environments.

What is the wireless communication range and protocol?

The system utilizes the 2.4GHz IEEE 802.15.4 communication protocol, which is designed for reliable, low-power industrial wireless networking.

How difficult is the installation process?

Installation is very simple as the sensors are wireless (no wiring required). We also provide online training and professional technical support to ensure successful deployment.
