The portable radio positioning detector integrates drone radio detection, direction-finding, and protocol decoding and positioning functions. By utilizing omnidirectional radio frequency scanning for feature recognition and decoding, it detects unauthorized drones and issues an alert upon target identification.
It supports handheld directional antenna operation, using amplitude comparison for direction-finding, and can also decode DJI drone beacon signals. The extracted data includes the drone model, serial number (SN), latitude, longitude, orientation, pilot location, and home point. The system features long detection range, high identification accuracy, and real-time flight path indication.

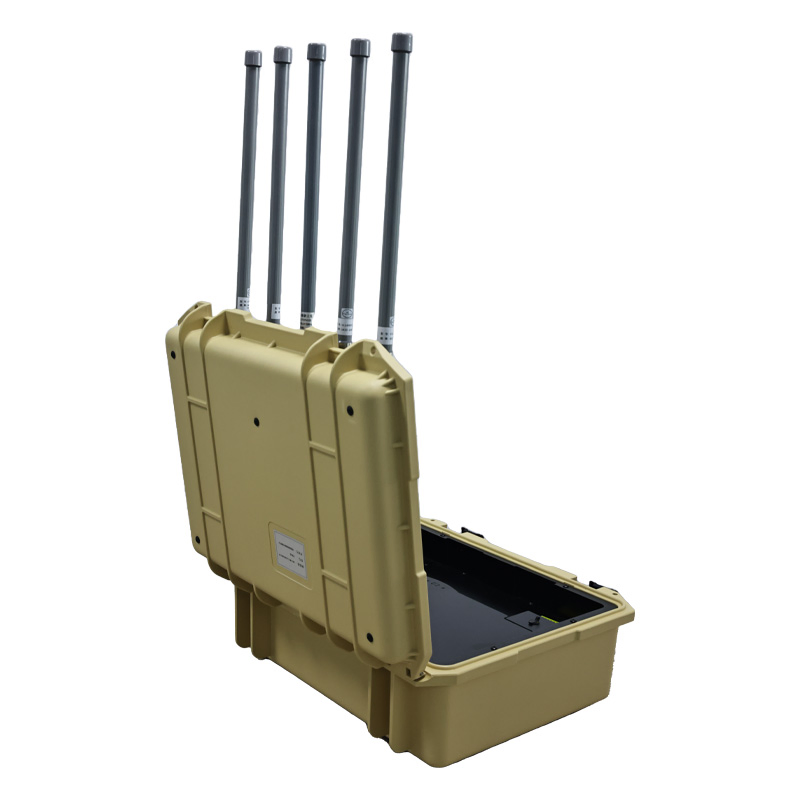

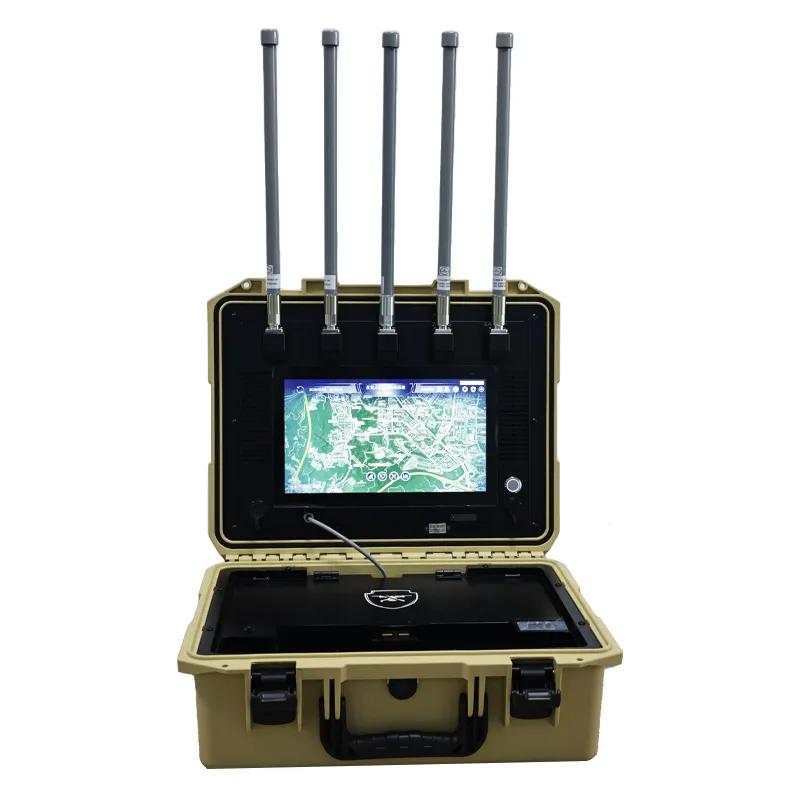

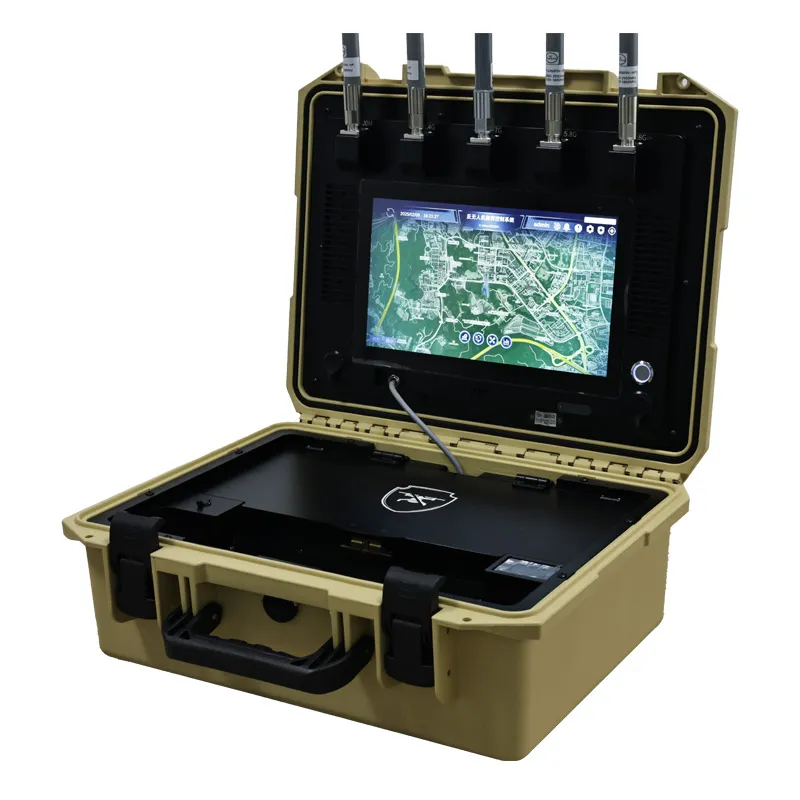

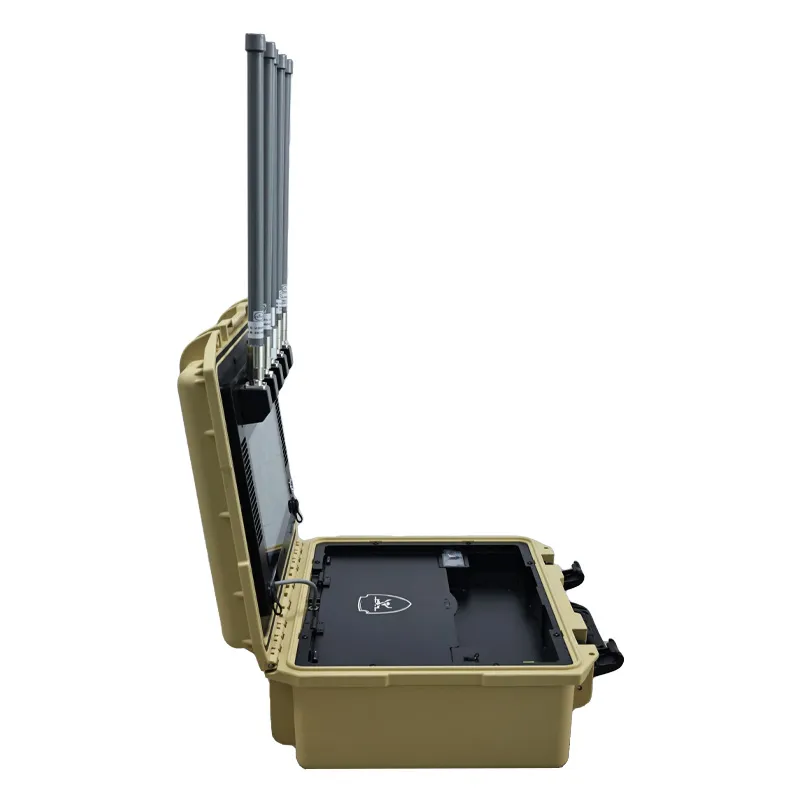

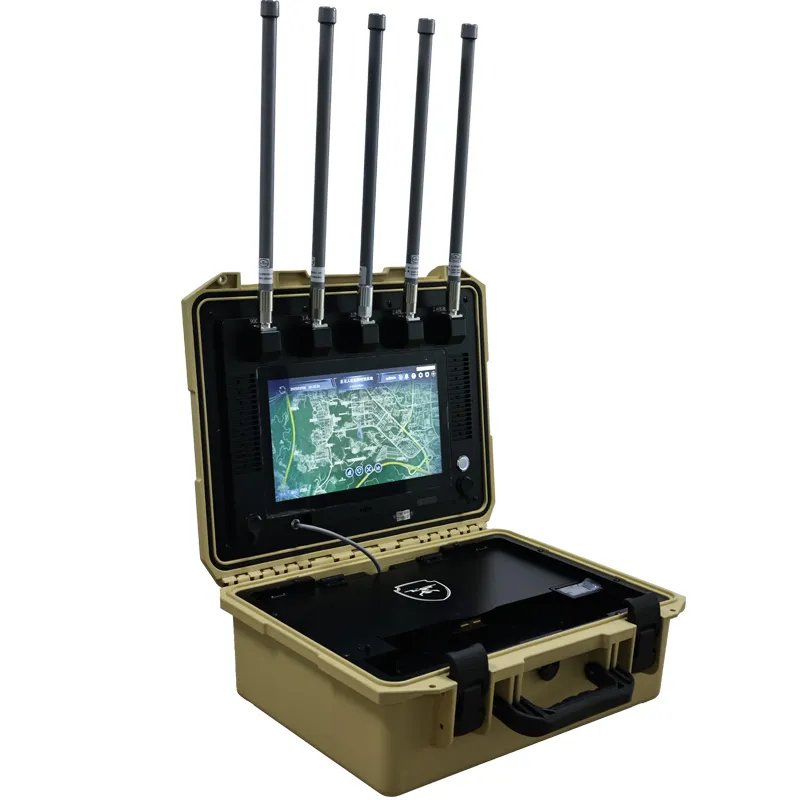

The entire system adopts a modular design with a portable suitcase structure, making it highly mobile. It features a user-friendly software interface for easy operation and supports 24/7 uninterrupted monitoring and recording. The device is capable of simultaneously locating multiple DJI drones and their controllers within a certain range.
Pilot PositioningLocates and displays the pilot's position in real time.
Drone PositioningDetecting and tracking the drone's flight location and SN.
Network ExpansionSupports backend management and multi-device collaboration.
Rapid DeploymentDeploys in seconds, ready to use upon startup.
| Parameter |
Specification |

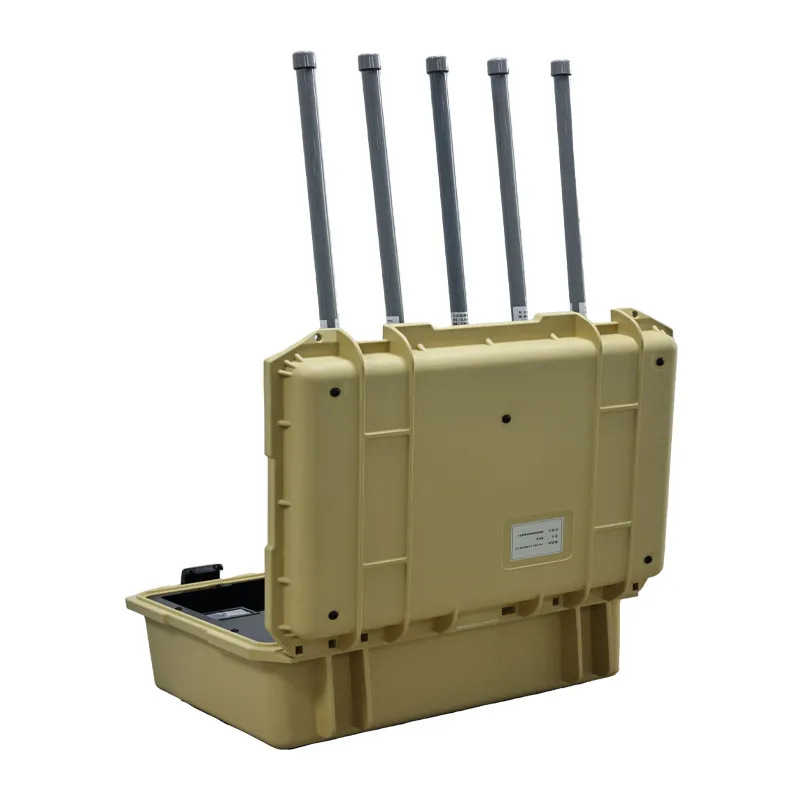

| Device Name | Portable Drone Spectrum Detector |
| Detection Range | 2 - 8 KM |
| Frequency Band | 45MHz ~ 6000MHz |
| Identification Capability | Over 100 drone models (DJI O3, O4, RID support) |
| Supported Models | DJI Phantom 4PV2, Mavic 2/3, FPV, 2S, M300, etc. |

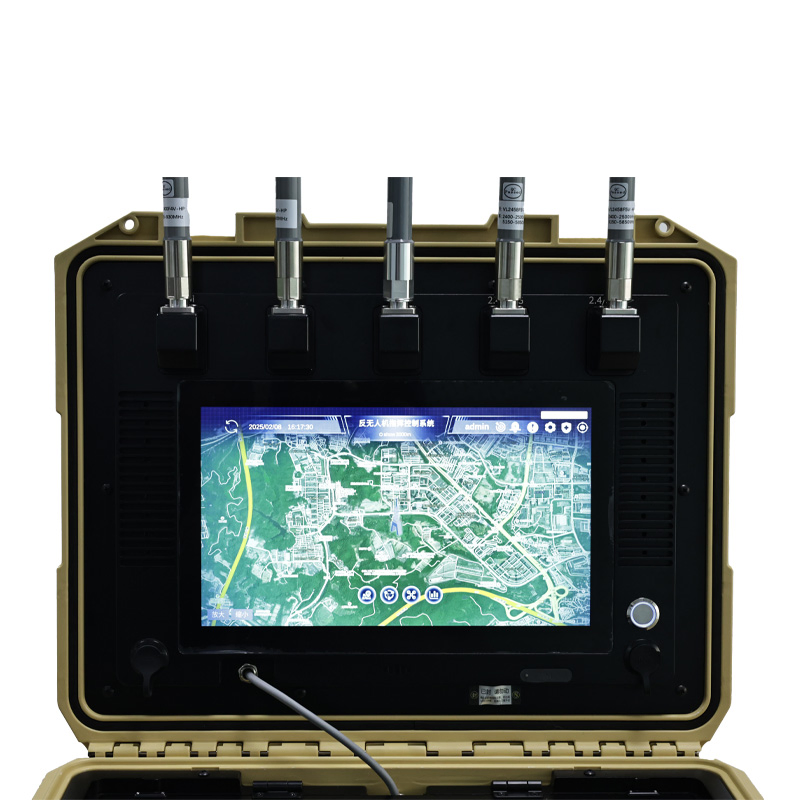

| Screen Size | 12.6 inches |
| Power Consumption | 40W |
| Total Weight | 16 KG |
| Battery Capacity | 720Wh |
| Operating Time | 18 hours (Ideal conditions) |
Frequently Asked Questions
What is the maximum detection range of this device?
The system provides a robust detection range of 2 to 8 kilometers depending on environmental conditions and signal interference.
Which drone models can be positioned by the system?
The device supports positioning for a wide range of DJI models including Phantom 4PV2, Mavic 2, Mavic 3, DJI FPV, DJI 2S, and M300. It can identify over 100 different drone types.
How long does the battery last on a single charge?
Under ideal conditions, the high-capacity 720Wh battery allows for up to 18 hours of continuous operation.
Is the system suitable for outdoor use in harsh weather?
Yes, the device is rated IP65, meaning it is protected against dust ingress and low-pressure water jets from any direction, making it suitable for various outdoor applications.
Can it track the location of the drone pilot?
Yes, by decoding the radio beacon signals (specifically for supported DJI models), the system can extract and display the real-time geographic location of the remote controller/pilot.
Does the device support remote monitoring via 4G?
Absolutely. It features built-in support for 4G mobile communication and RJ45 network connections for backend management integration.
