Wireless Online Continuous Condition Monitoring System for Rotary Machines Predictive Maintenance

Specification:	188g
Trademark:	Ronds
Origin:	China

Send Inquiry

Product Description

Model NO.

RH560

HS Code

9031809090

Production Capacity

2000/Month

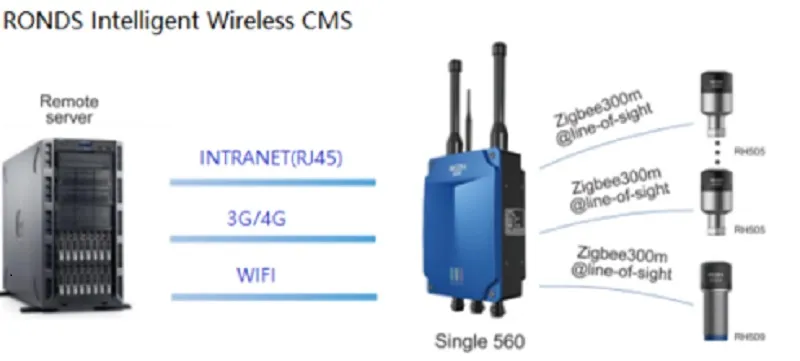

Working Diagram

System Features

All channels synchronous collection

One sensor collects both vibration and temperature

Alarm SMS/EMAIL for both vibration and temperature data

Intelligent alarm: minimal sampling value (RMS) interval 5min

Wireless work mode, no wiring required, low installation cost

Multiple communication options & Easy installation

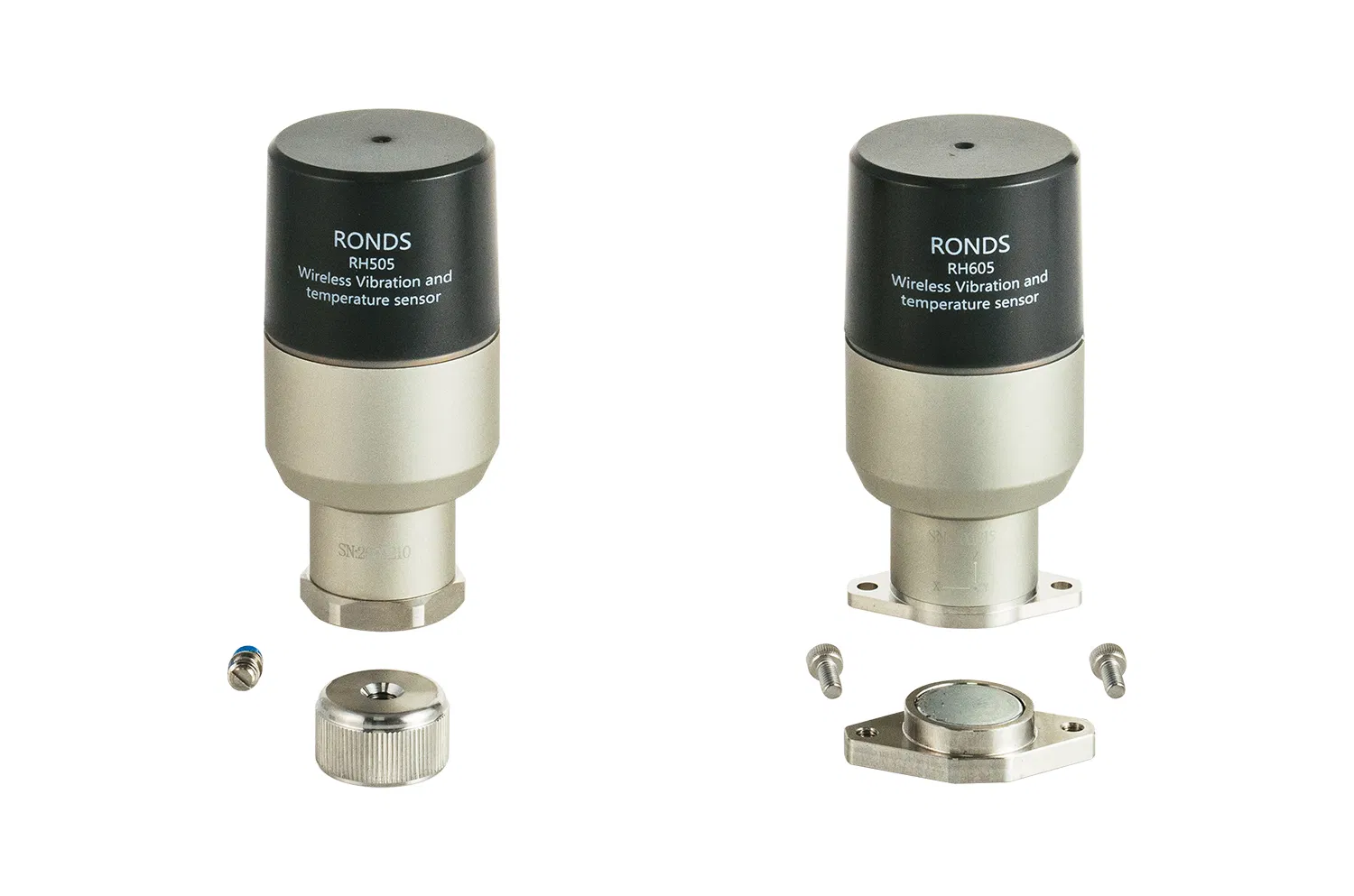

2 years battery life with secure magnet base or M6 bolt mounting

Explosion-proof degree compliance for on-site safety

Technical Parameters

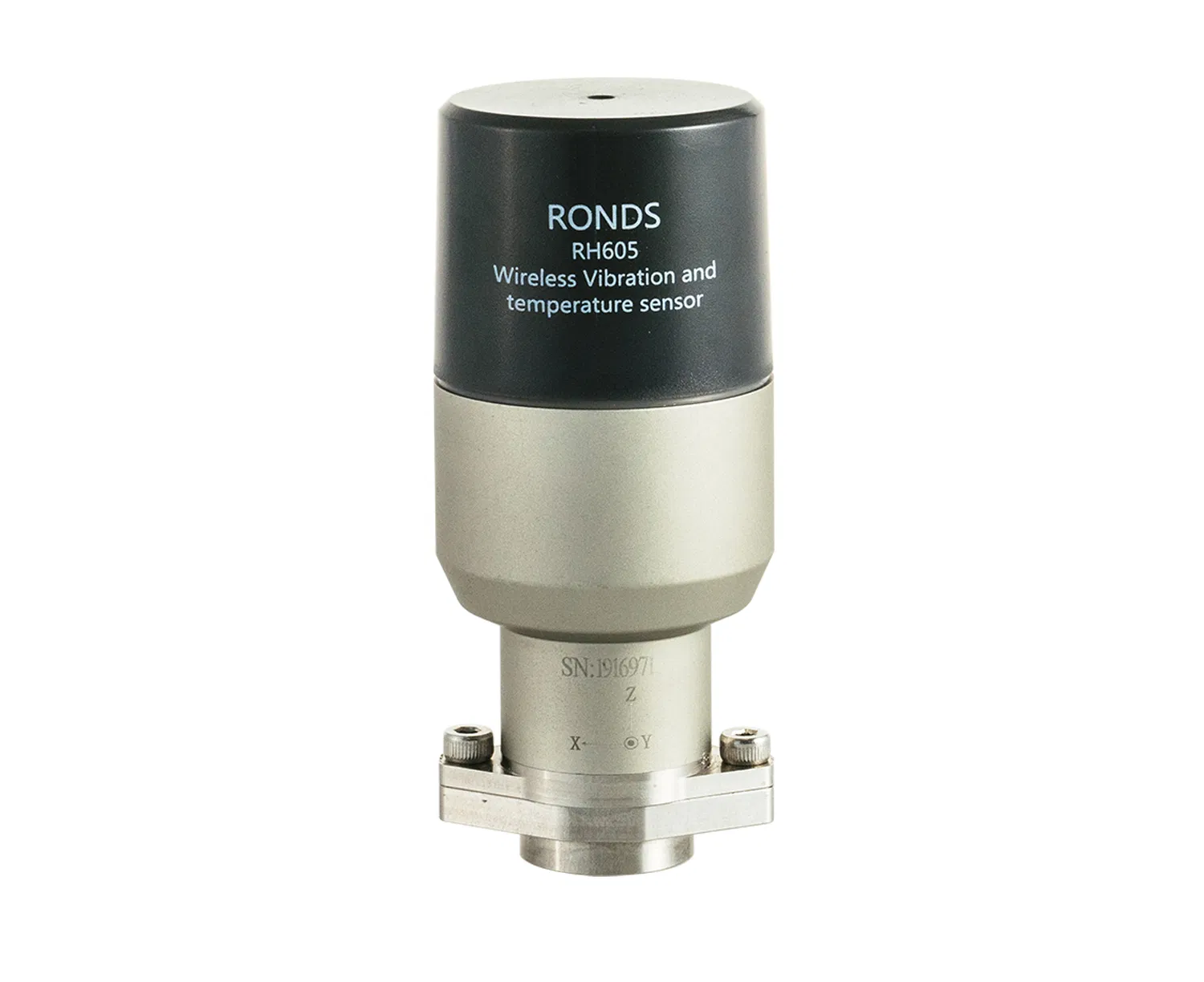

Wireless Vibration and Temperature Sensor

RH505 Integrated Sensor Specification
Vibration Measurement
Vibration Range	±50 g
Linearity	1%
Frequency Range (±3dB)	2~20kHz
Sampling rate	1280Hz~51.2kHz
Analysis frequency	500Hz to 20kHz
Waveform Length	1K to 128K
Temperature Measurement
Temperature Range	-40 ~ 125 ºC
Temperature Accuracy	±1 ºC
Electrical & Structure
Power Supply	Lithium battery, 3.6V, 3.3Ah
Dimension	46 mm × 94 mm
IP Grade	IP67

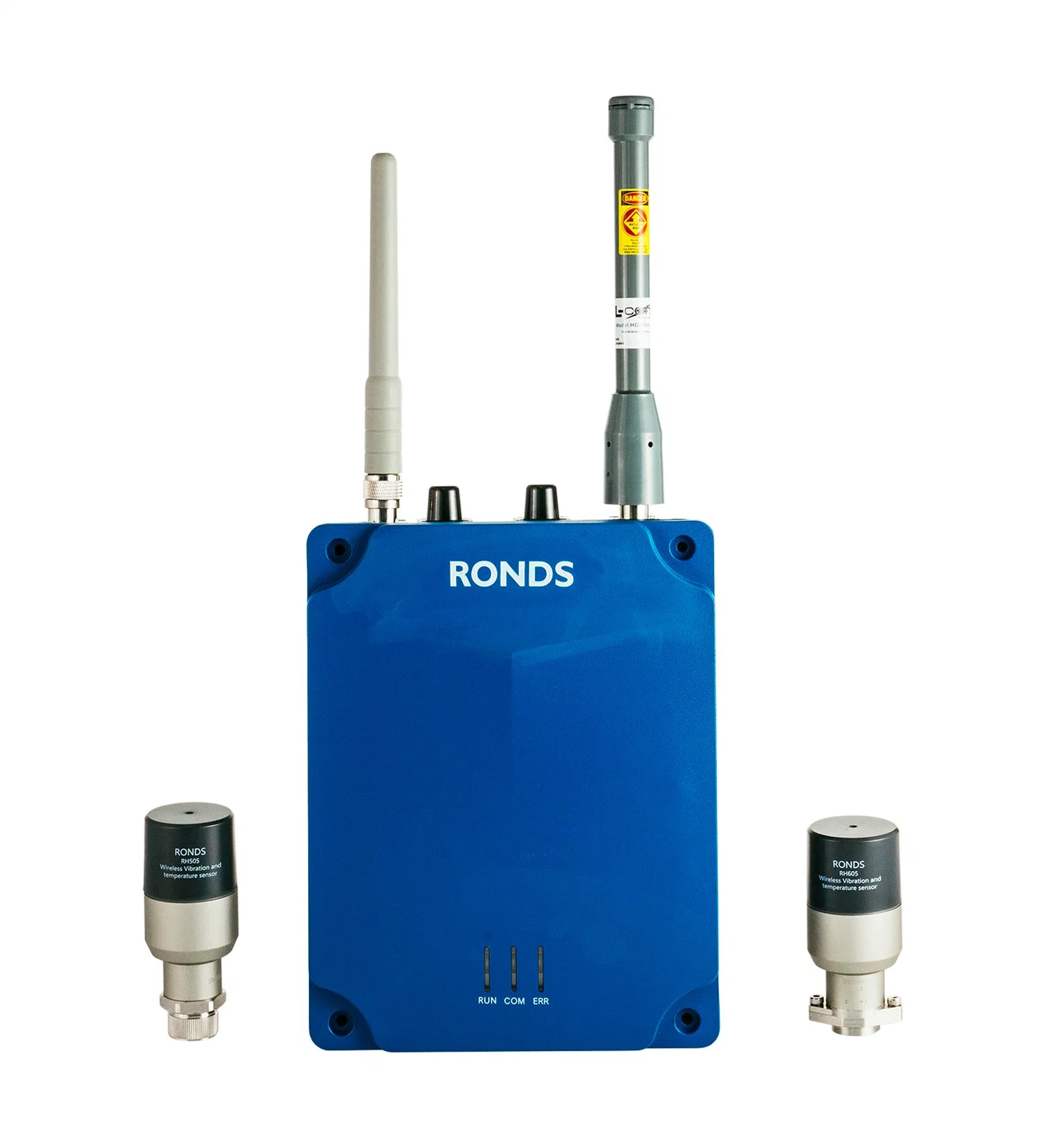

Wireless Data Collector

RH560 Data Collector Specification
Input and Output
Communication	2.4GHz IEEE 802.15.4
Indicator LED	3 pieces (working, communication, abnormal)
Sensor Capacity	30~60 units per collector
Electrical & Structure
Power Supply	220V AC
Dimension	203 mm × 82 mm × 260 mm
Weight	3 kg
IP Grade	IP66

Software & Site Installation

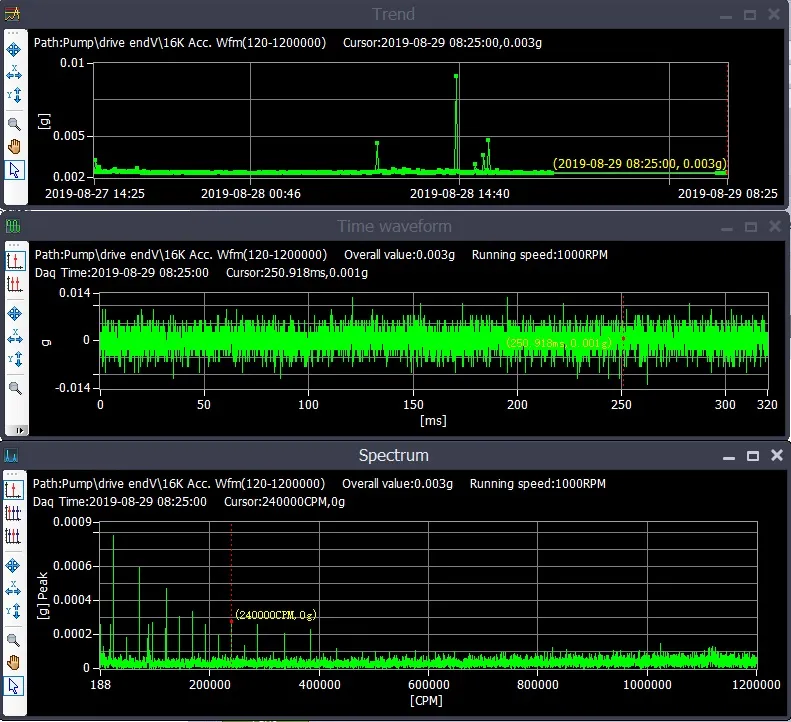

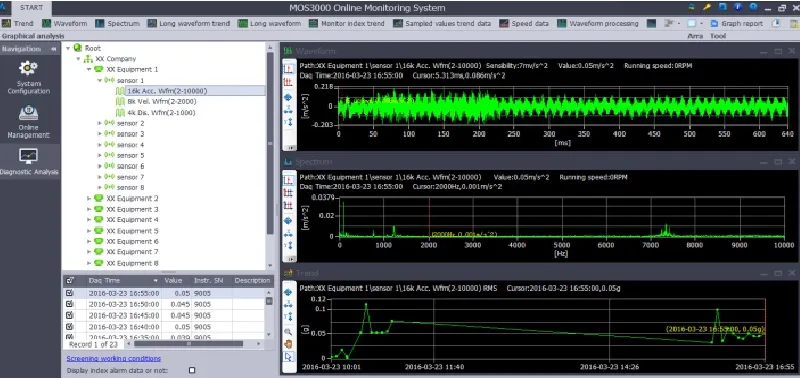

MOS3000 Analysis Software

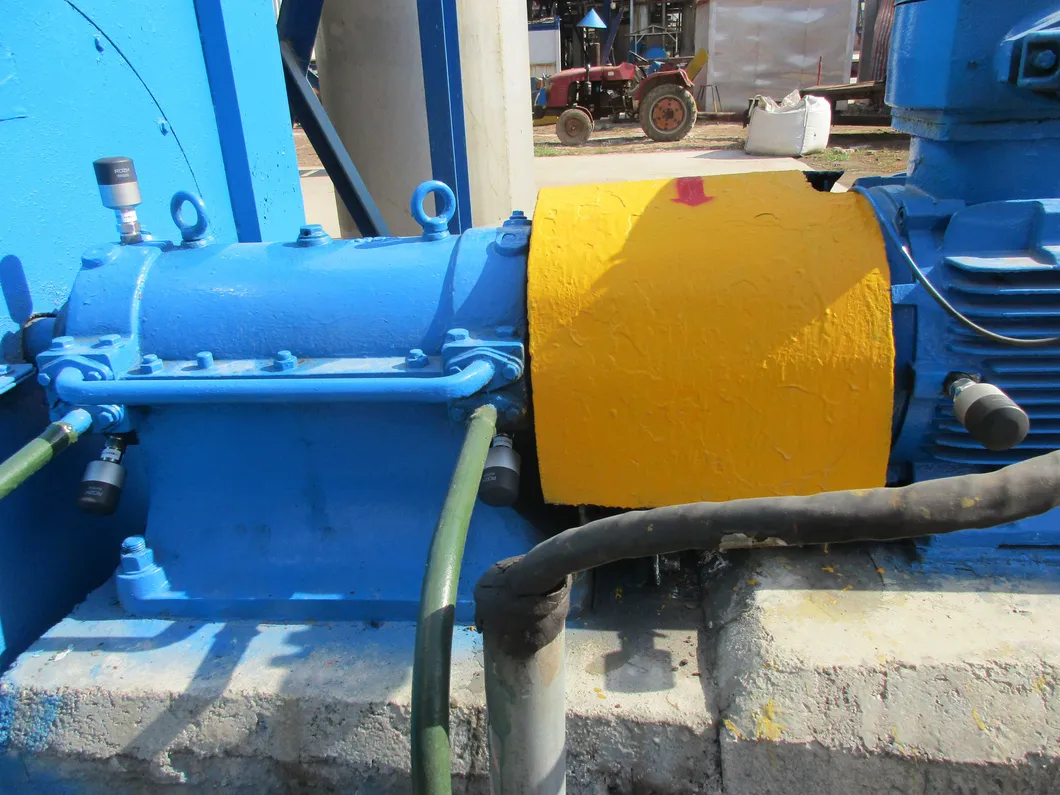

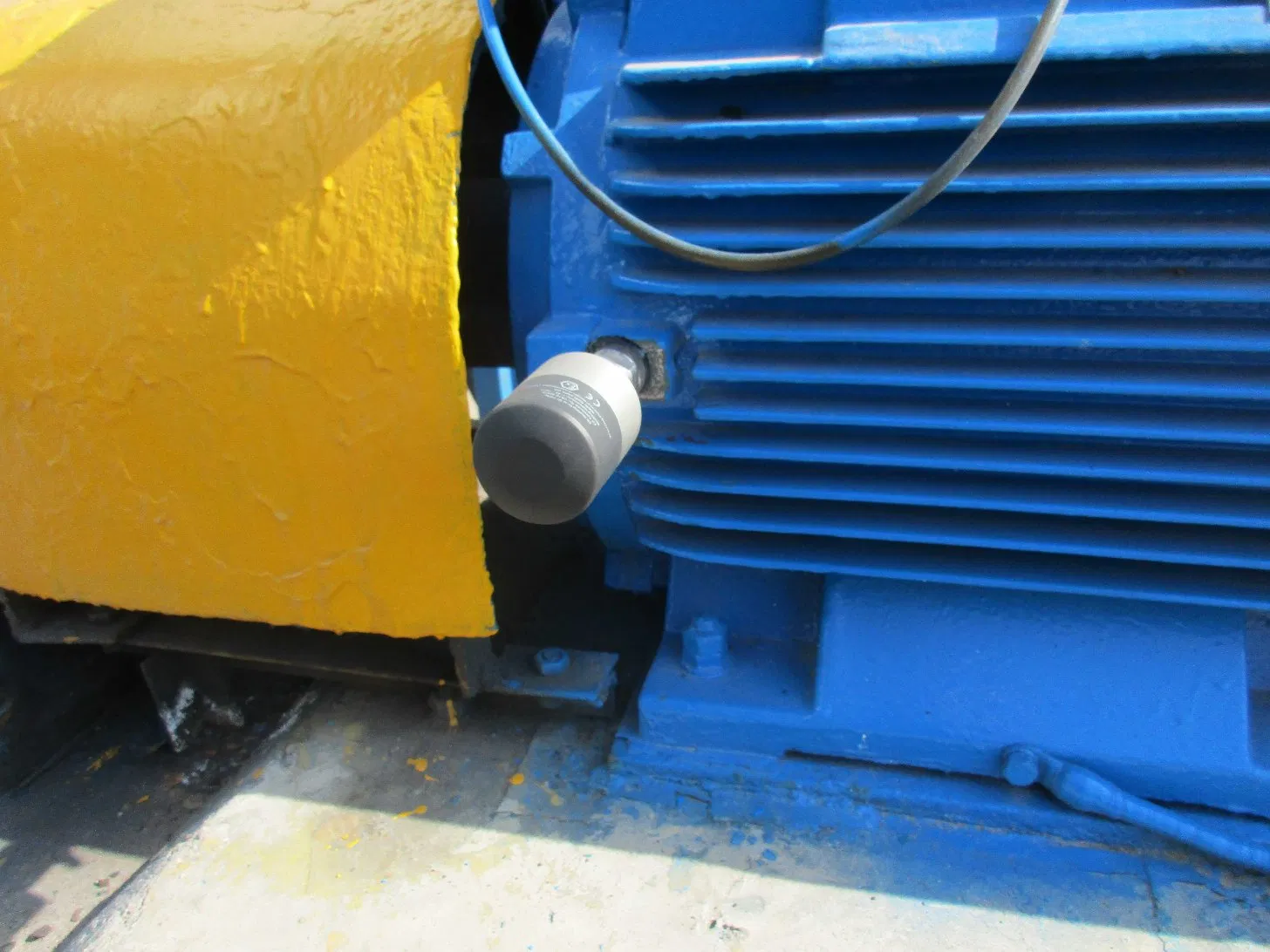

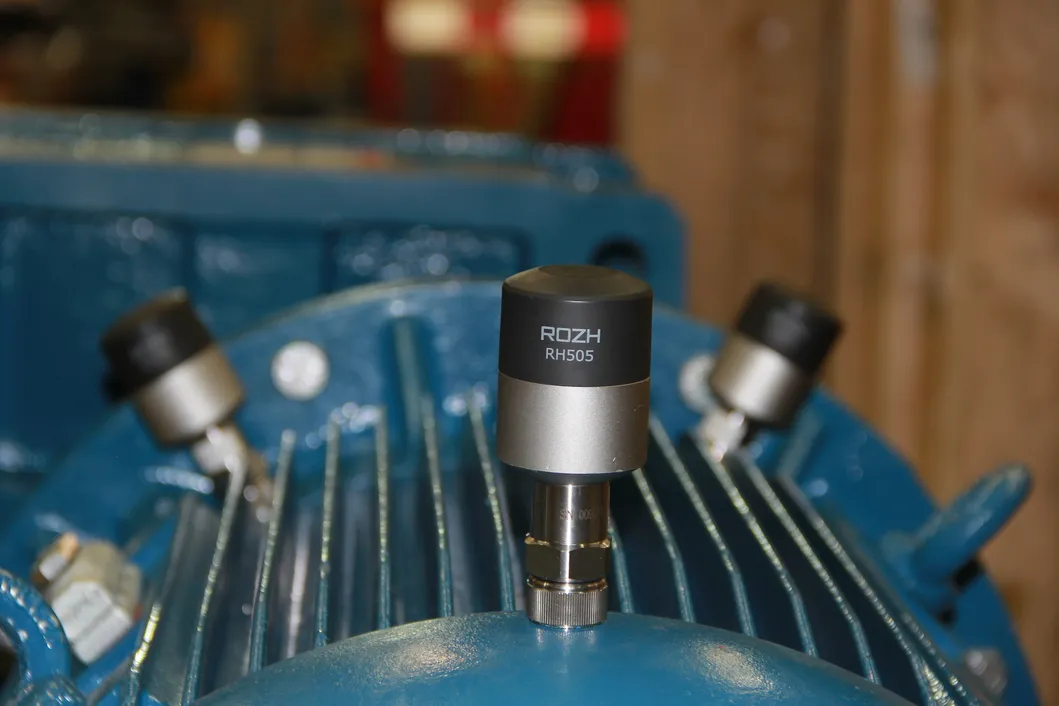

Site Installation Cases

Professional Expertise & Algorithms

Diagnosis Team: 30 professional vibration analysts, including CAT III and CAT II experts with over 20 years of experience.

Intelligent Algorithm: Led by a famous doctoral tutor with a specialized big data team of 13 members and an 11-member algorithm team.

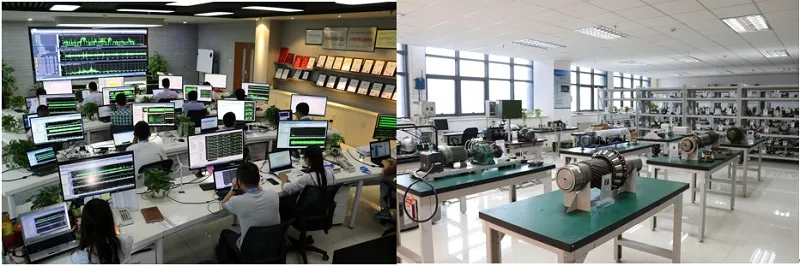

Remote Diagnostic Center & Lab

Frequently Asked Questions (FAQ)

How long does the battery of the wireless sensor last?

The wireless integrated sensor is powered by a high-performance lithium-thionyl chloride battery, providing a service life of approximately 2 years under standard operating conditions.

What parameters does the RH505 sensor measure simultaneously?

The RH505 is a four-in-one sensor that provides synchronous collection of acceleration, velocity, displacement, and temperature.

How many sensors can one RH560 collector manage?

Depending on the specific site conditions and application requirements, one RH560 wireless data collector can connect and manage between 30 to 60 units of RH505 sensors.

Is the system suitable for hazardous environments?

Yes, the hardware is designed to satisfy on-site explosion-proof requirements and features high IP grades (IP67 for sensors, IP66 for collectors) for harsh industrial environments.

How is the equipment installed on existing machines?

Installation is quick and non-intrusive using either a strong magnet base or an M6 bolt. Since it is a wireless system, no signal cabling is required, significantly reducing labor costs.

How are alarms communicated to the maintenance team?

The system features an intelligent alarm mechanism that sends real-time notifications via SMS or Email whenever vibration or temperature data exceeds predefined thresholds.
