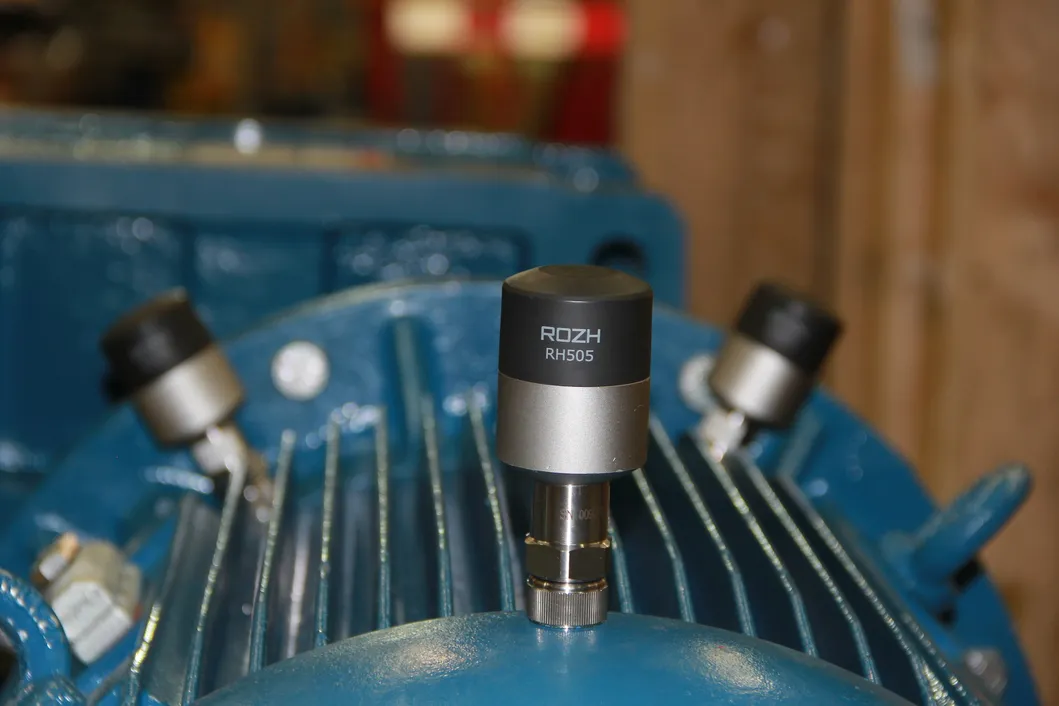

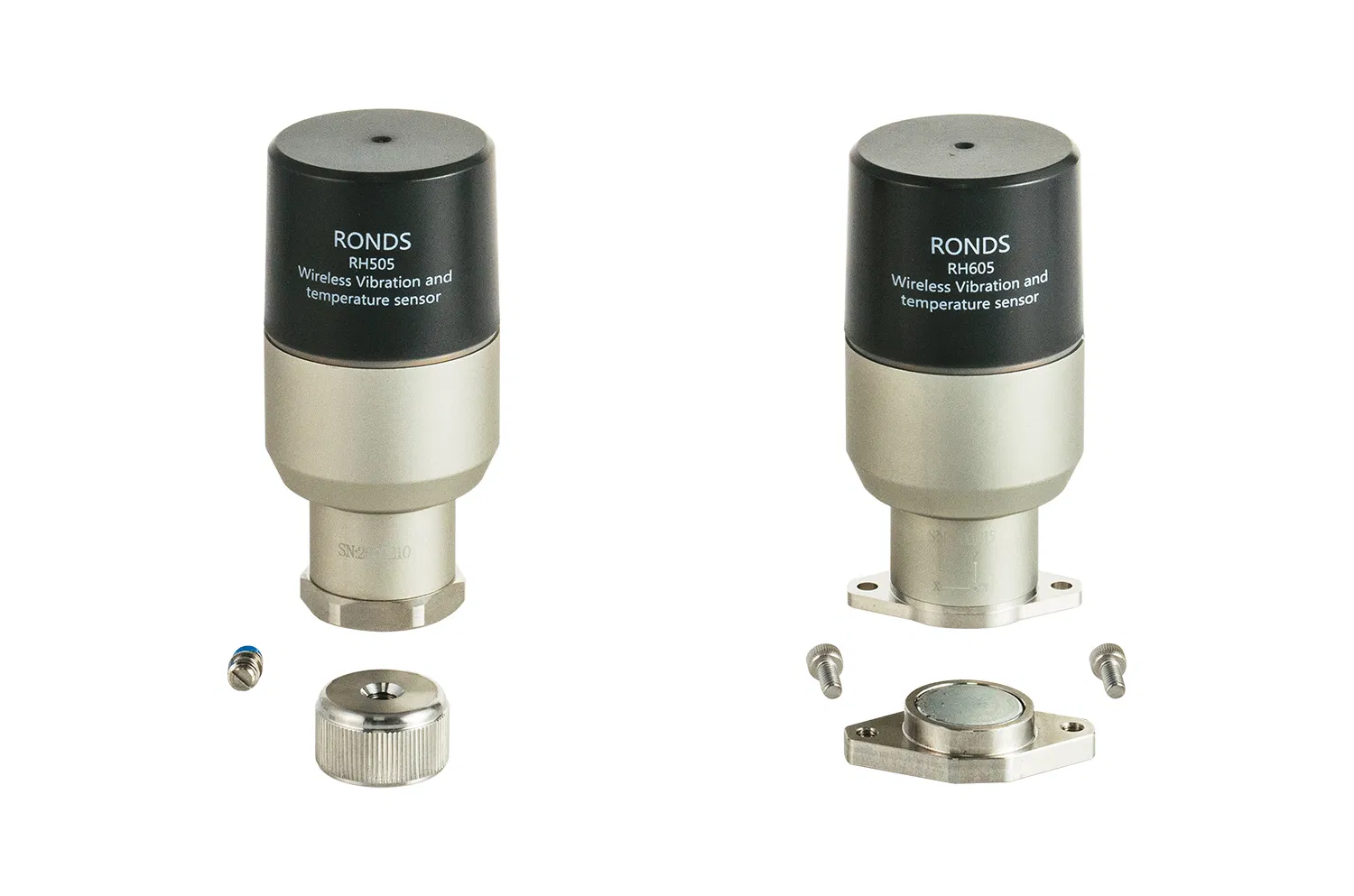

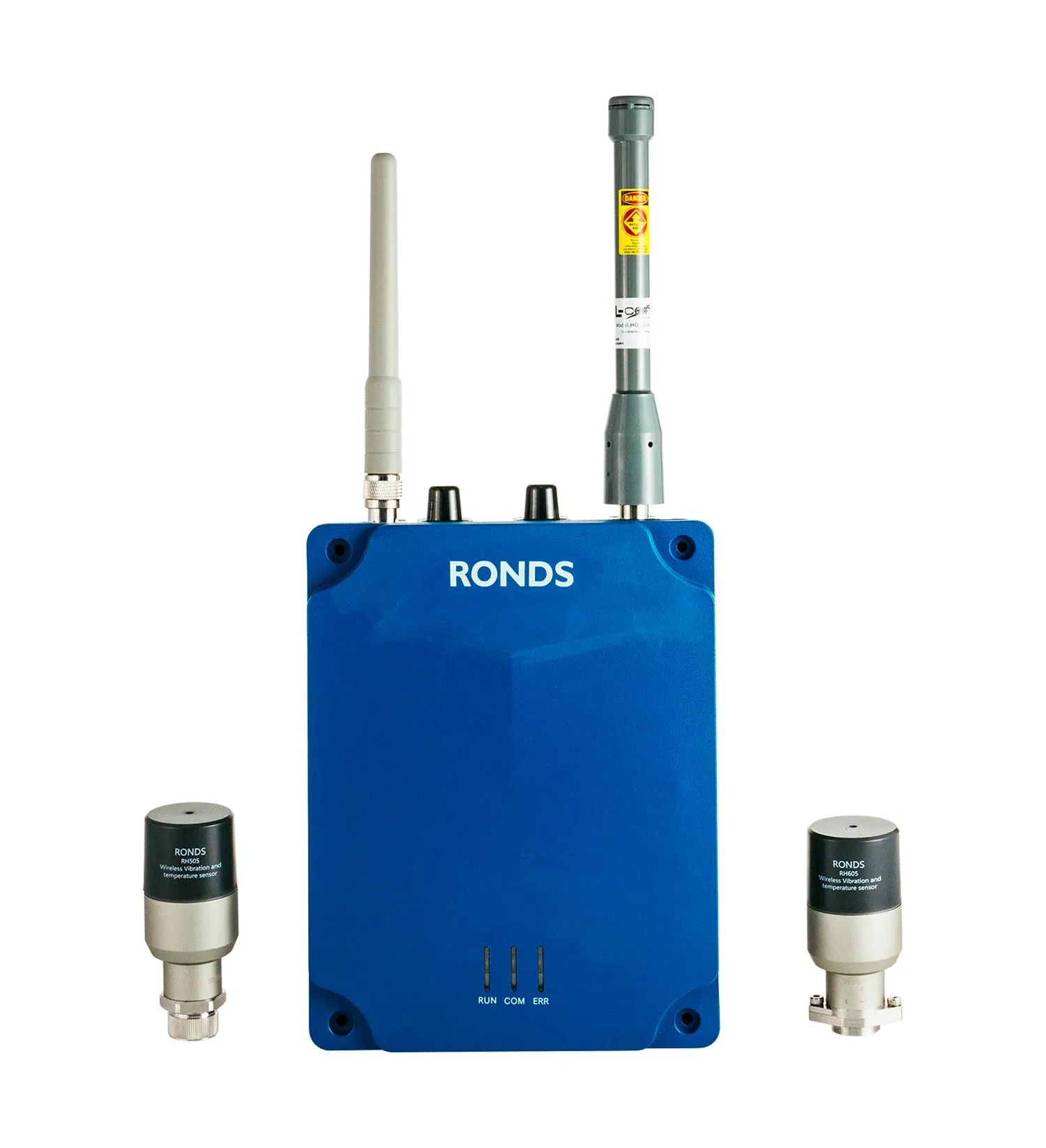

| RH505 Wireless Vibration and Temperature Integrated Sensor | |
|---|---|
| Vibration Measurement Parameter | |
| Vibration Range | ±50 g |
| Linearity | 1% |
| Frequency Range (±3dB) | 2~20kHz |
| Sampling rate | 1280Hz~51.2kHz |
| Analysis frequency | 500Hz, 1kHz, 2kHz, 5kHz, 10kHz, 20kHz |
| Waveform Length | 1K to 128K |
| Lines | 400 to 51200 |
| Temperature Measurement Parameter | |
| Temperature Range | -40 ~ 125 ºC |
| Temperature Accuracy | ±1 ºC |
| Electrical and Structure Parameter | |
| Power Supply | Lithium battery, 3.6V, 3.3Ah |
| Communication Method | 2.4GHz IEEE 802.15.4 |
| IP grade | IP67 |

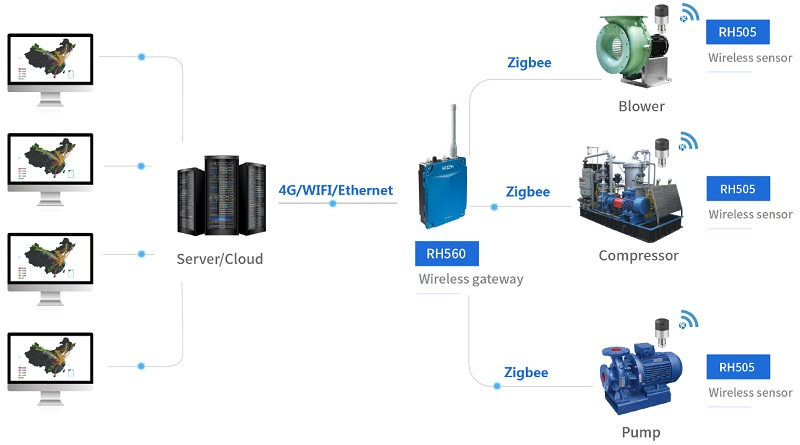

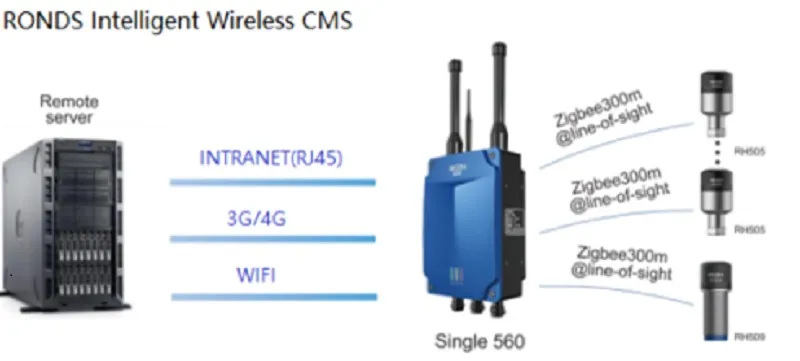

| RH560 Wireless Data Collector | |
|---|---|
| Input and Output | |
| Communication with Sensor | 2.4GHz IEEE 802.15.4 |
| Indicator LED | 3 pieces (working, communication, abnormal) |
| Number of RH505 connecting | 30~60 units |
| Electrical and Structure Parameter | |
| Power Supply | 220V AC |
| Weight | 3 kg |
| IP grade | IP66 |
Expertise: 30 professional vibration analysts, including Diagnosis experts with 20+ years of experience, CAT III and CAT II vibration analysts.
Intelligent Algorithm: Algorithm team with 11 members led by famous doctoral tutor; Big data team with 13 members.
