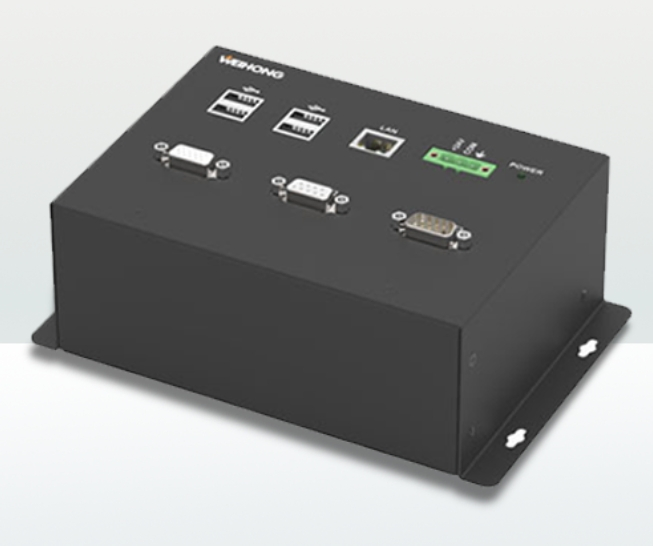

Weihong Nc60c PLC Industrial Computer Numerical Control System
Weihong Nc60c PLC Industrial Computer Numerical Control System
Weihong Nc60c PLC Industrial Computer Numerical Control System
Weihong Nc60c PLC Industrial Computer Numerical Control System
Weihong Nc60c PLC Industrial Computer Numerical Control System
1 / 5
Weihong Nc60c PLC Industrial Computer Numerical Control System
Weihong Nc60c PLC Industrial Computer Numerical Control System
Weihong Nc60c PLC Industrial Computer Numerical Control System
Weihong Nc60c PLC Industrial Computer Numerical Control System
Weihong Nc60c PLC Industrial Computer Numerical Control System

Weihong Nc60c PLC Industrial Computer Numerical Control System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.
Weihong NC60C CNC control system
Size
Middle
Type
Controller
Material
Plastic
Certification
ISO 9001, GS, CE
Installed Machine
CNC Engraving/Cutting Router
Support Language
Chinese/English
USB Port
4PCS 2.0USB Port
Network Port
1PCS Giga LAN
Application
Woodworking/3C/Metal Cutting
Signal
Continuous (0-10V)
Origin
China

Product Description

The Weihong NC60 series industrial control computer CNC system features a brand-new UI design for enhanced user-friendly interaction. Its modular functional architecture achieves significant size reduction while integrating powerful performance, effortless operation, flexible application, and reliable security. This system is extensively used in the woodworking panel furniture industry, 3C processing sector, and metal cutting industry.
Strong Compatibility Supports multiple file formats output by popular CAD/CAM software including G-code, PLT (HPGL), and ENG. Compatible with UG, Mastercam, CASMATE, ArtCAM, AutoCAD, and CorelDraw.
High-Precision Machining Adopts adaptive forward-looking and HST high-speed trapezoidal algorithms, increasing small line segment processing capacity by over 2 times and efficiency by 9% - 20%.
Safety & Reliability Features breakpoint memory, Z-axis automatic tool alignment, and processing restricted area settings to prevent collisions and overcutting.
Advanced Visualization Includes 3D dynamic trajectory display with multi-view observation and fast program simulation to check for errors and predict processing time.
Technical Specifications
USB Interface4*USB 2.0
Network Port1*Giga LAN
VGA SupportMaximum 1920*1280
Bus TypePHOENIX Bus (Interacting With Ronda)
Analog Voltage0-10V Control
Tool MagazineVertical, Disc, and Servo tool magazines supported
Tool SettingAutomatic and Manual (Fixed, Floating, Initial)
CompensationWorkpiece, Lead screw error, Backlash, Over-travel
File Formats*.G, *.NC, *.UG, *.DEMO, *.ISO, *.ENG, *.CUT, *.DXF, *.PLT, *.TXT
Coordinate SystemG54-G59 with origin saving
Machining TechMulti-tasking, Array, Rotational mirroring, Layered, Cyclic
AlgorithmsTrapezoidal, S-curve, LEP, Acceleration trapezoidal

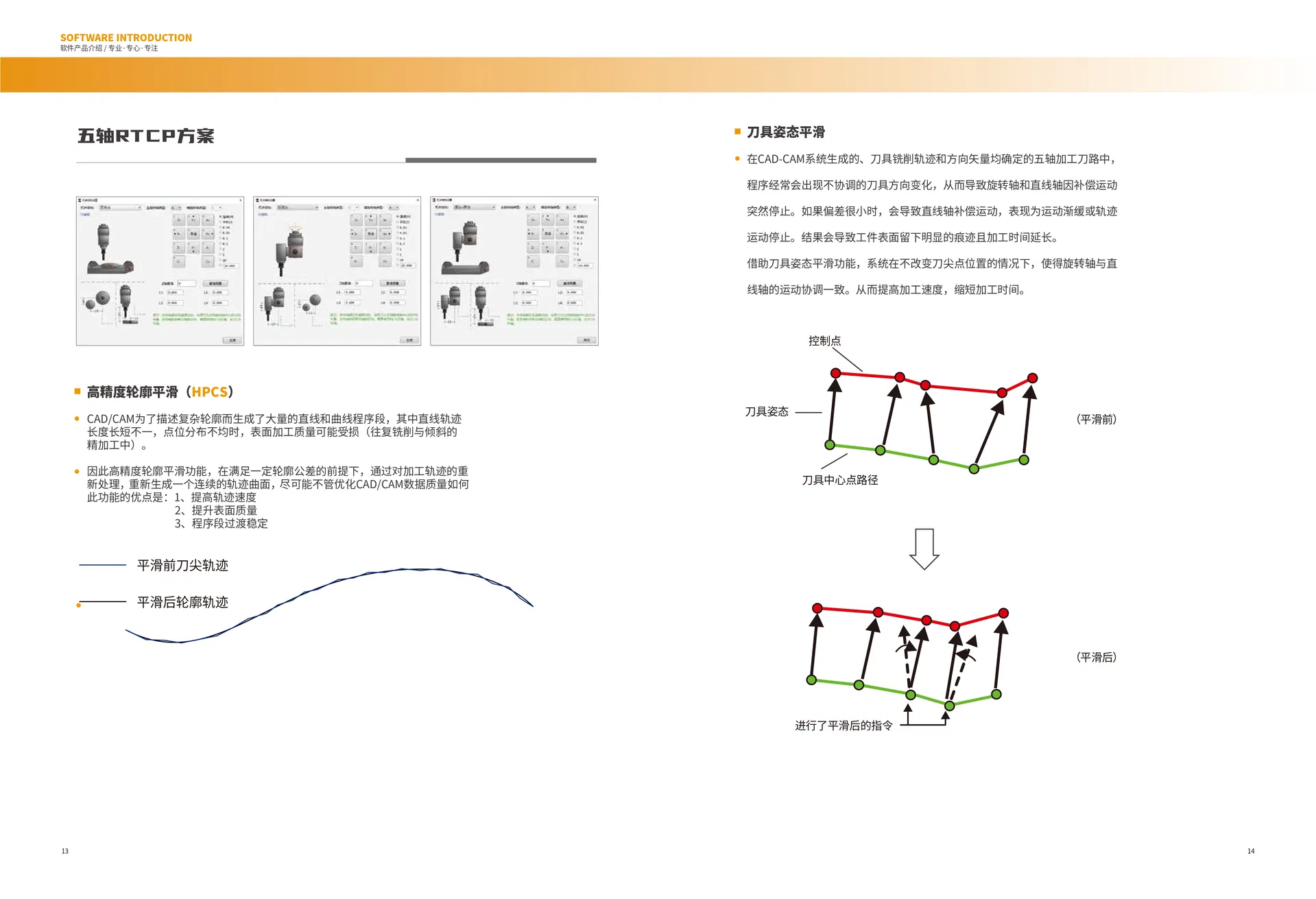

Weihong Nc60c PLC Control System View 1

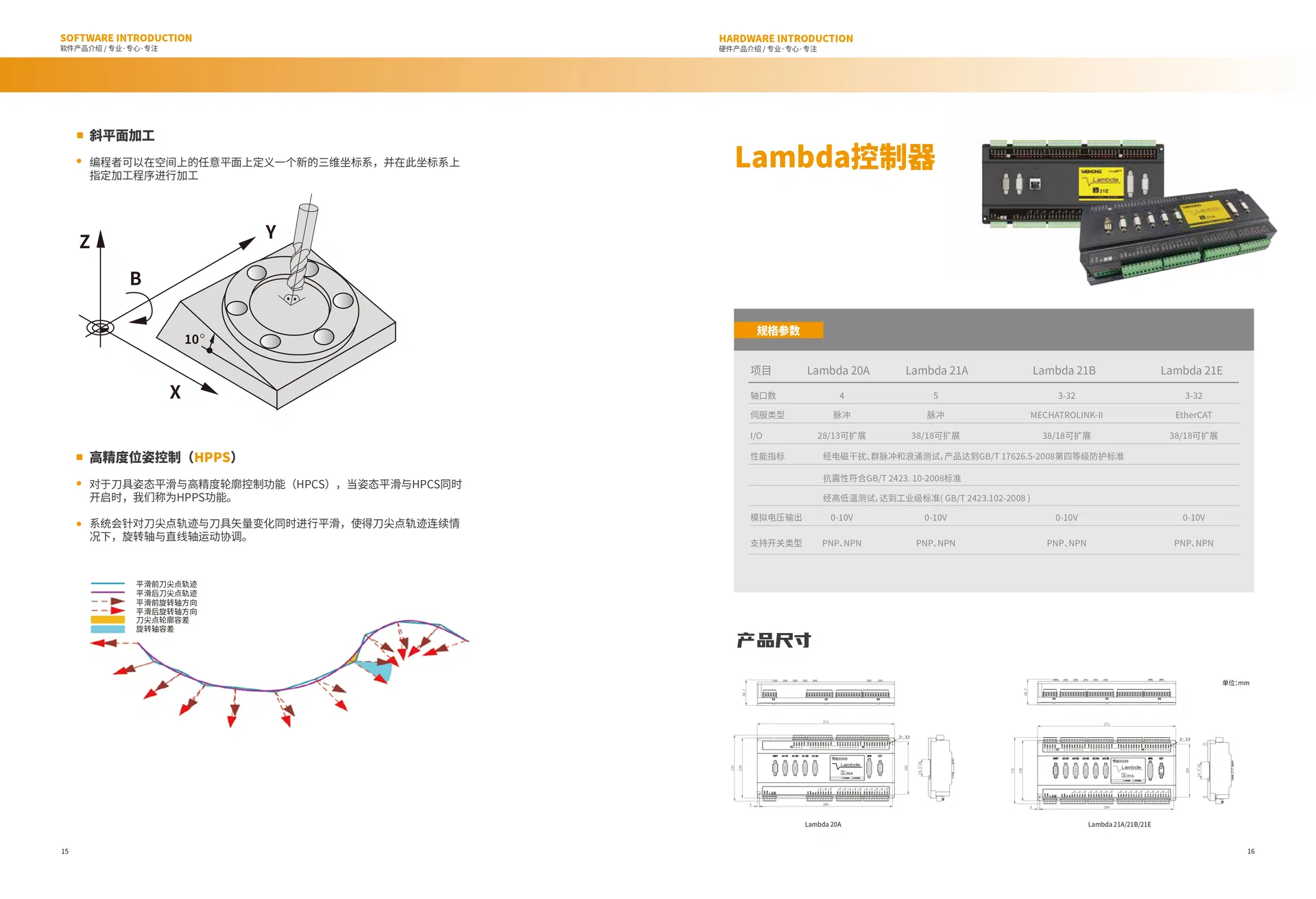

Weihong Nc60c PLC Control System View 2
Weihong Nc60c PLC Control System View 3

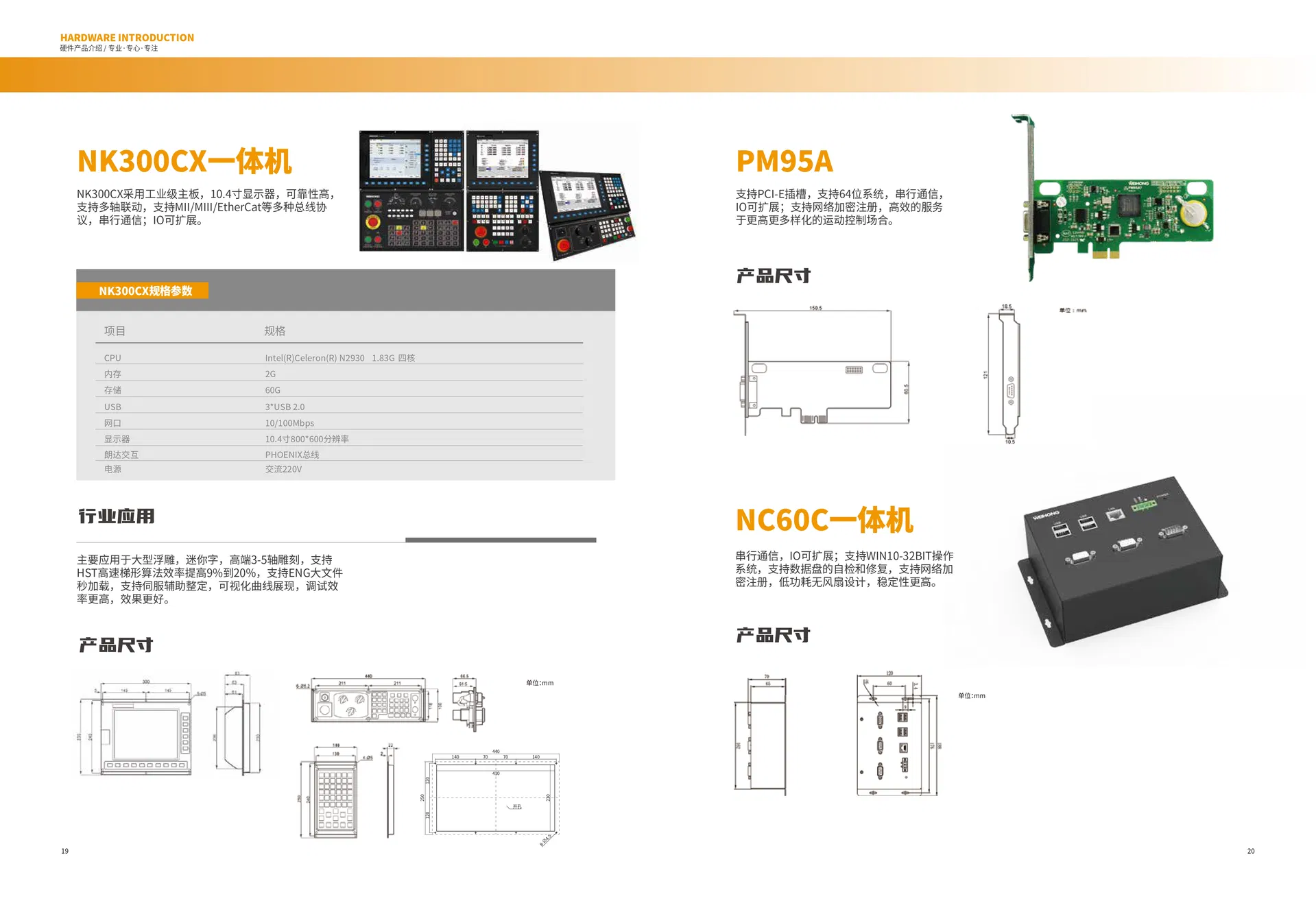

Weihong Nc60c PLC Control System View 4

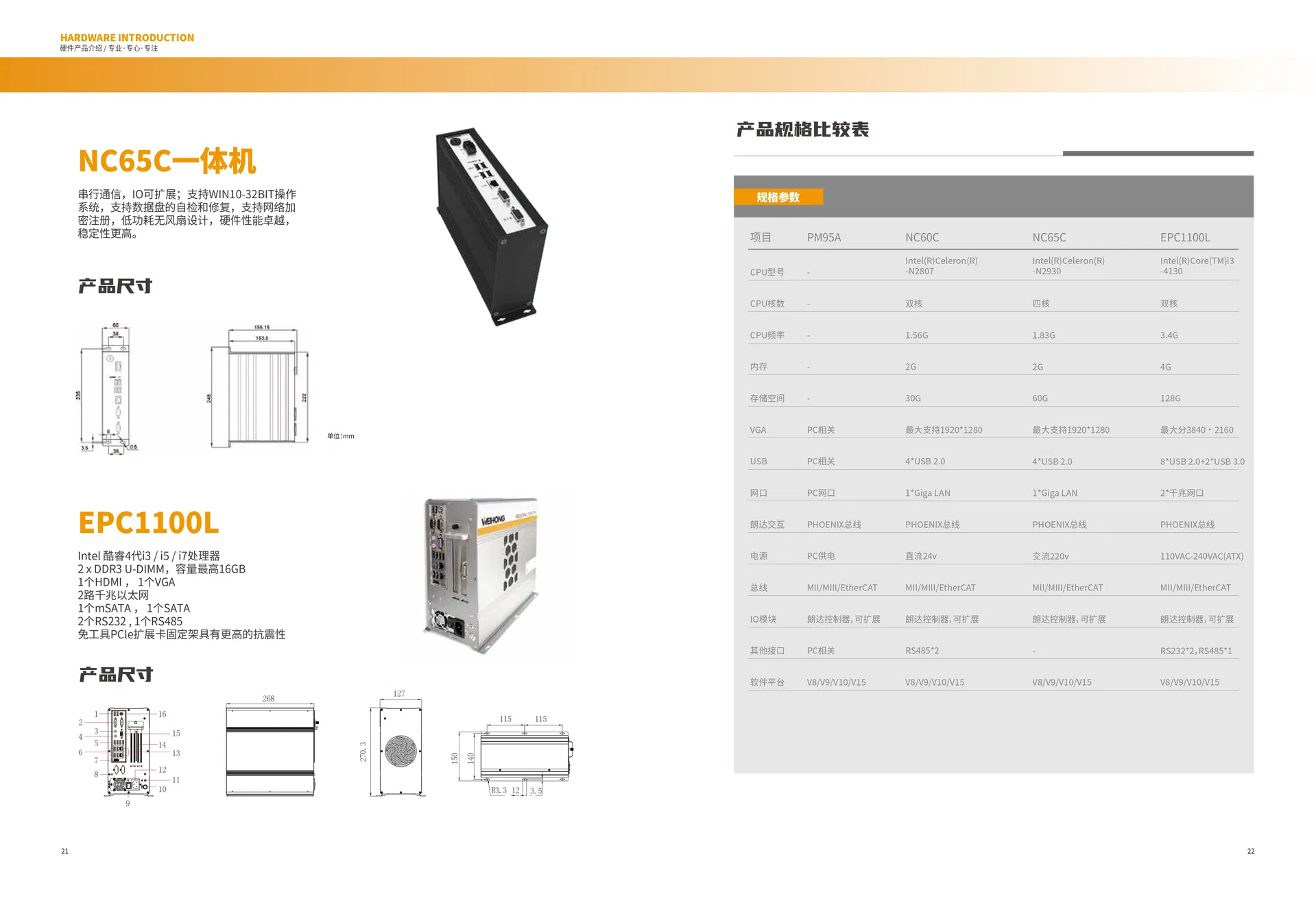

Weihong Nc60c PLC Control System View 5

Frequently Asked Questions

What industries are compatible with the Weihong NC60 system?
The system is designed for the woodworking panel furniture industry, 3C processing sector, and metal cutting industries.
Which file formats does the NCStudio software support?
It supports a wide range of formats including G-code, NC, UG, DXF, PLT, ENG, and ISO, ensuring compatibility with most CAD/CAM software.
Does the system support automatic tool setting?
Yes, it supports both automatic and manual tool setting modes, including fixed and floating tool settings.
How does the system handle power interruptions?
The Weihong NC60 features breakpoint memory and program skip execution, allowing it to resume processing exactly where it left off after a power outage.
Can I simulate the machining process before actual cutting?
Yes, the system provides 3D dynamic trajectory display and fast program simulation to predict processing time and check for potential errors.
What languages are supported by the user interface?
The Weihong NC60 system supports both Chinese and English languages for global accessibility.
