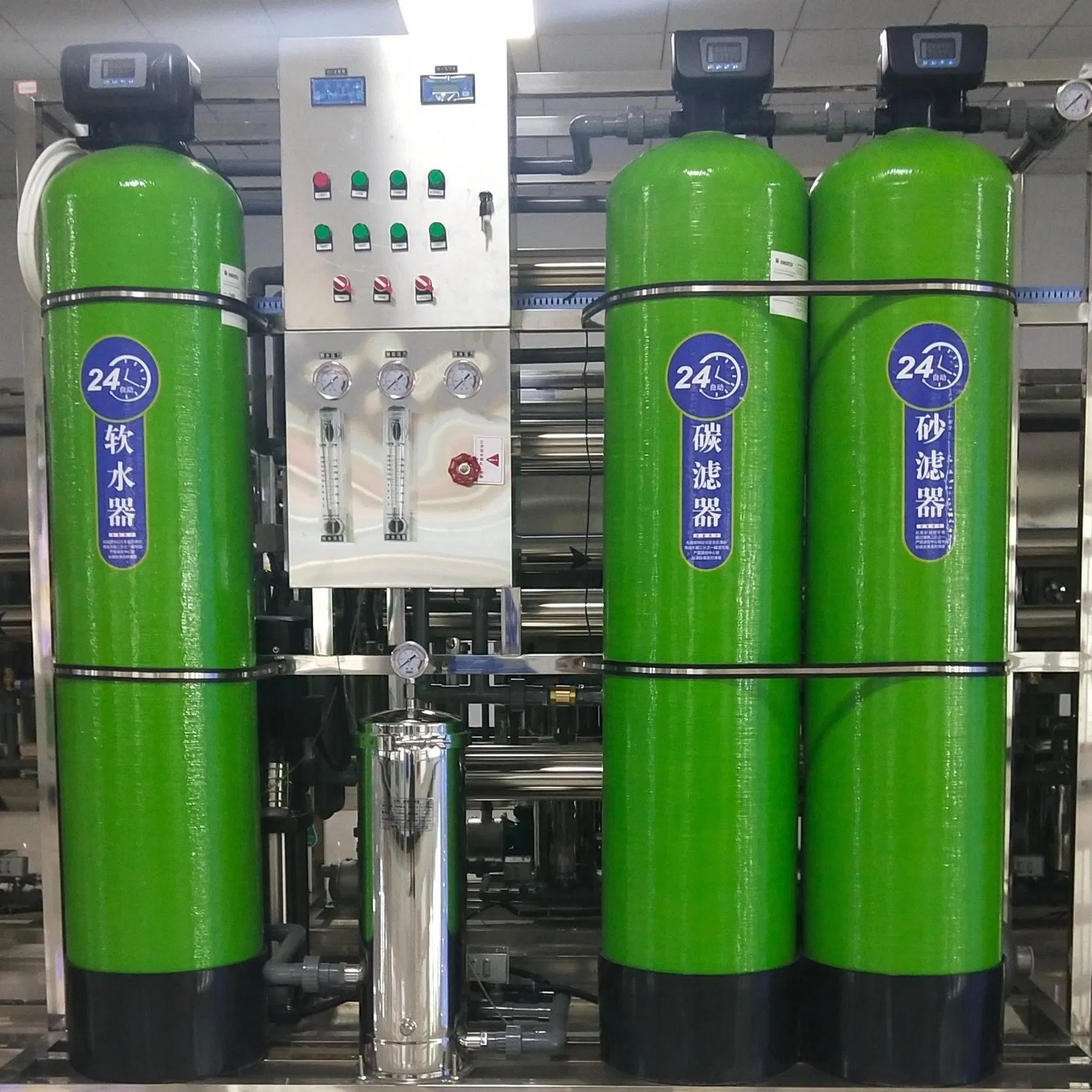

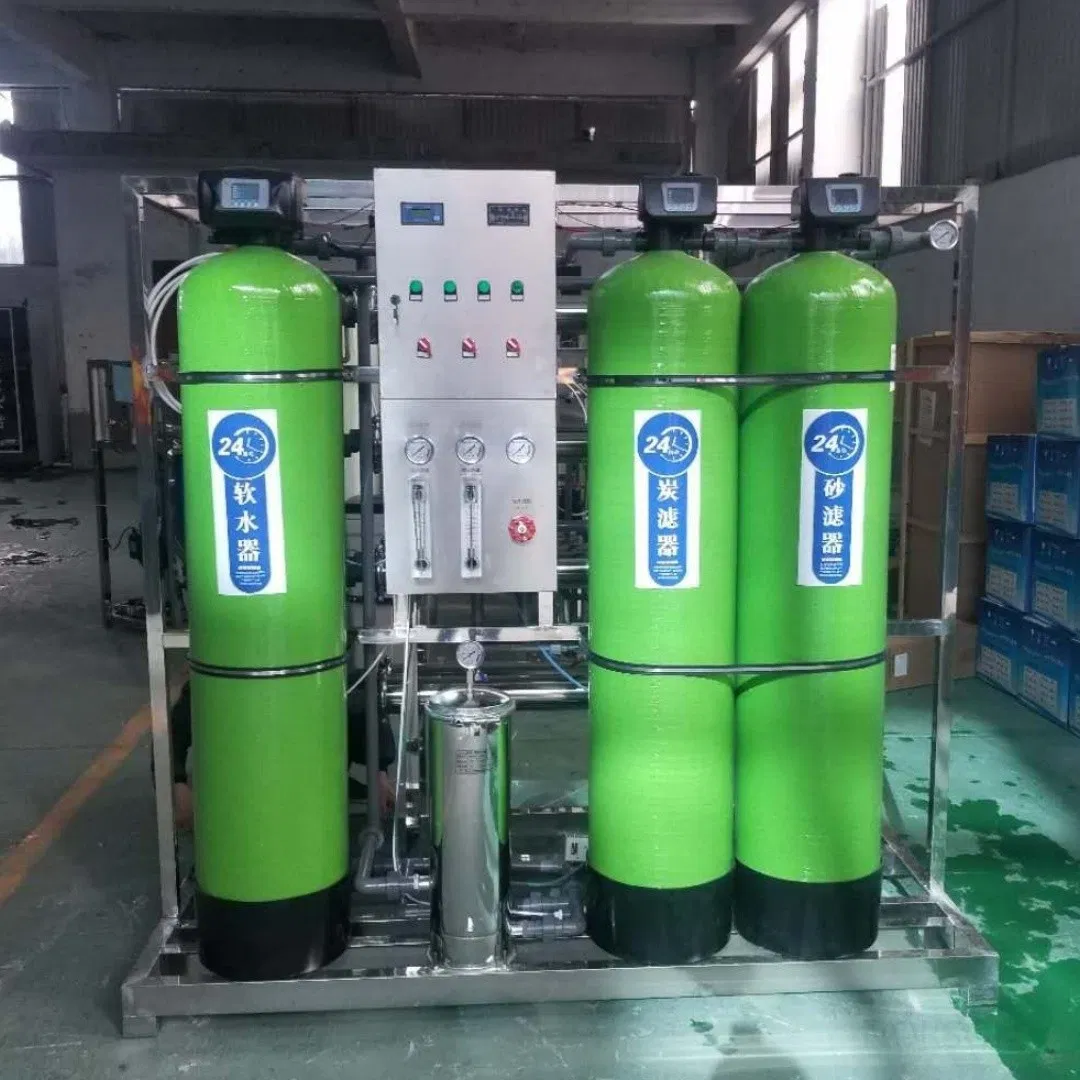

PLC Control Reverse Osmosis Water Purification System for Industrial Water Treatment

Basic Information

Model NO.

NS-RO-573

Application

Industry

Capacity

Design According to Requirements

Function

Water Purification

Material

Stainless Steel, Fiberglass

Raw Water

Sea, Borehole, Tap, Industry Water etc.

Temperature

5~ 35ºC

Warranty

12 Months

Desalination Rate

≥ 98% (up to 99.5%)

HS Code

8421219990

Reverse Osmosis (RO) System Overview

Reverse osmosis (RO) water treatment equipment is a pressure-driven purification system designed to remove dissolved salts, inorganic ions, organic compounds, and microorganisms from raw water. By utilizing semi-permeable membranes with extremely fine pore structures, the system allows water molecules to pass through while blocking contaminants.

Key Specifications

Core Process: Raw water pretreatment followed by high-pressure membrane separation.
Key Materials: RO membrane, stainless steel (304/316L) or food-grade PVC.
Sources: Tap water, groundwater, surface water, brackish water.
Treatment Capacity: 0.5-3 m³/h for commercial; up to 1000 m³/h for industrial.

Technical Parameters

Function	Drinking water, Bottle water, Industrial water, Sea water
System Type	RO, Ultrafiltration, EDI ultrapure, Seawater desalination
Capacity	250LPH to 5TPH and above
Voltage	380V, 220V/50HZ (Customized)
Power	2-10 kw
Raw Water TDS	≤ 40000PPM
Water Quality	Conductivity < 10μs/cm; TOC ≤ 0.5mg/L
Desalination Rate	96-99%
Recovery Rate	50-70%
Control Mode	Automatic or Manual

Water Treatment Process

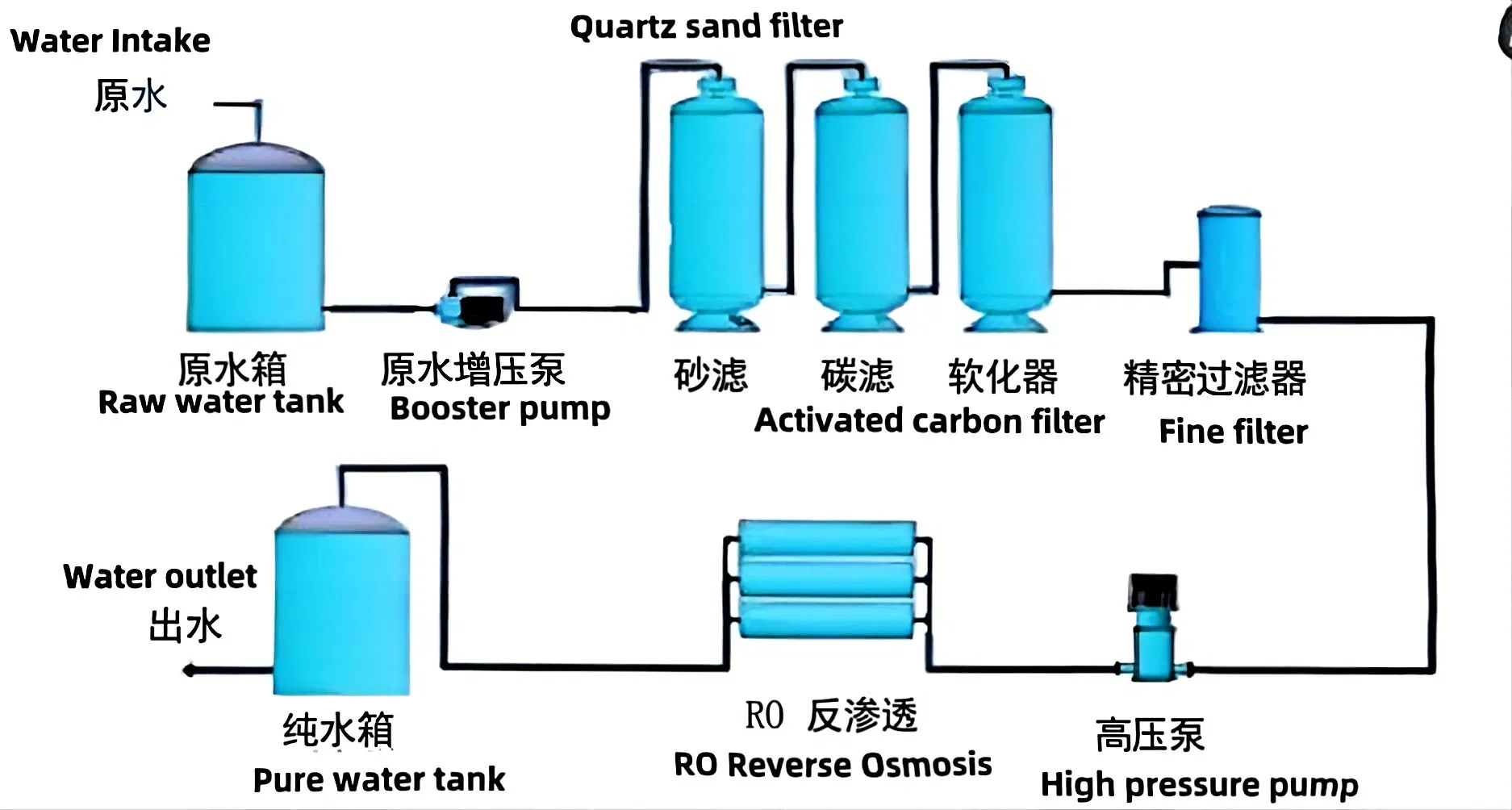

Three-Tank Single-Stage RO

The single-stage configuration performs one membrane separation process, achieving a desalination rate of 95–99%. It includes a raw water storage tank, pre-treatment assembly, and purified water tank, making it cost-effective and easy to maintain.

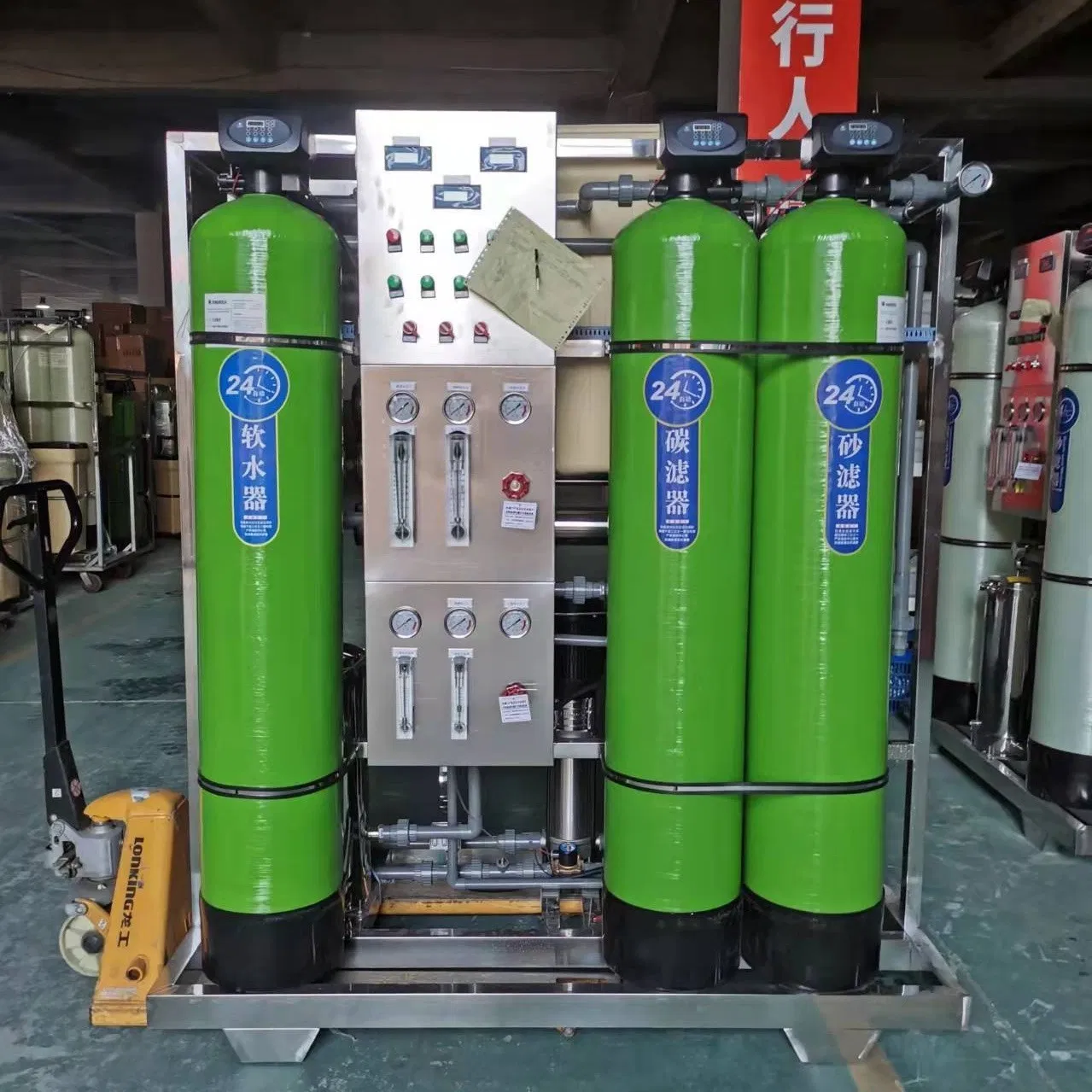

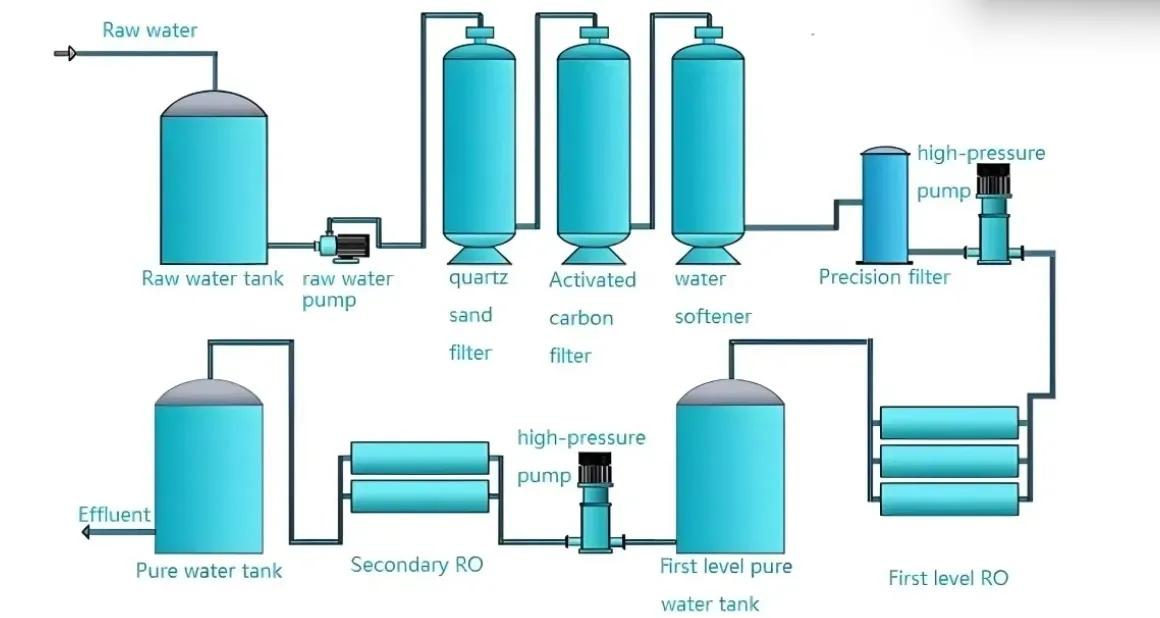

Three-Tank Double-Stage RO

Designed for higher purity, the permeate from the first stage is pressurized again and directed into second-stage membranes. This significantly lowers residual conductivity, ideal for pharmaceutical and electronics manufacturing.

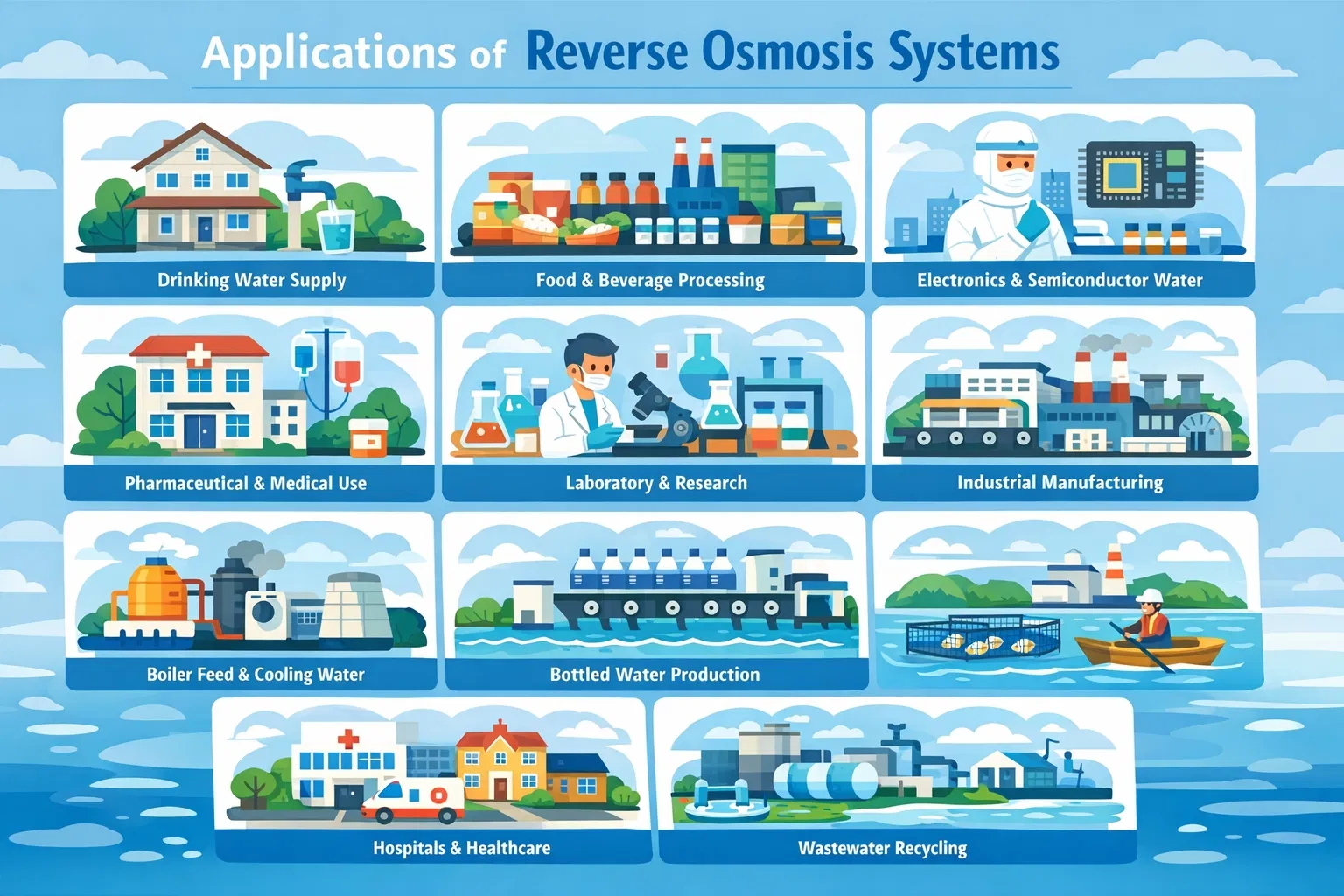

Wide Range of Applications

Industrial Manufacturing

Boiler feed, cooling systems, and chemical process water to prevent scaling and corrosion.

Food & Beverage

Consistent flavor profile and contamination risk reduction for breweries and dairy plants.

Medical & Pharma

Low microbial content and controlled conductivity for sterilization and formulations.

Drinking Water

Removal of heavy metals and pathogens for centralized or bottled water supply.

Production Excellence

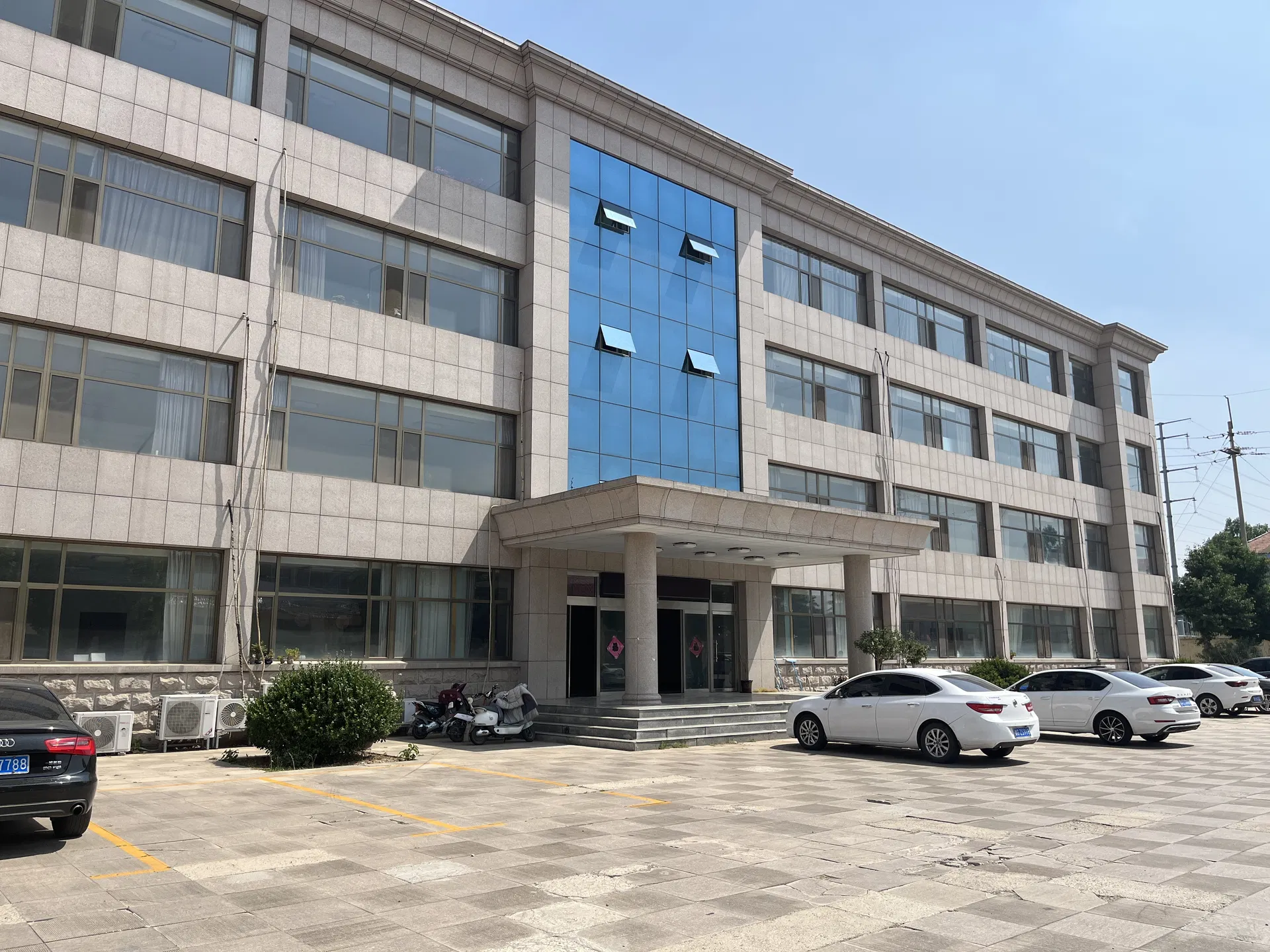

Operating within a 10,000-square-meter production workshop and a 25,000-square-meter facility, we utilize advanced processing machinery and an experienced technical team. We specialize in integrated wastewater treatment, reverse osmosis systems, and incineration equipment for international markets.

Frequently Asked Questions

Q1: What project details are needed for a proposal?

Please provide raw water source (tap, river, borehole, etc.), water analysis or TDS value, required output volume, and intended use.

Q2: What production capacities are available?

Standard configurations range from a few hundred liters per hour up to large industrial plants exceeding tens of tons per hour.

Q3: Is the system suitable for seawater?

Yes. We design specific configurations for brackish and seawater using corrosion-resistant materials and high-rejection membranes.

Q4: Can electrical specifications be adapted for my country?

Yes, system voltage and frequency (e.g., 220V/380V, 50/60Hz) can be adjusted to meet your regional industrial standards.

Q5: Which materials require periodic replacement?

Routine consumables include pre-filter elements, chemical dosing agents, and RO membranes after their service life expires.

Q6: How is the equipment packed for international shipping?

Smaller units are enclosed in protective wooden cases; larger skid-mounted units are securely wrapped and reinforced for containerized transit.

Product Detail

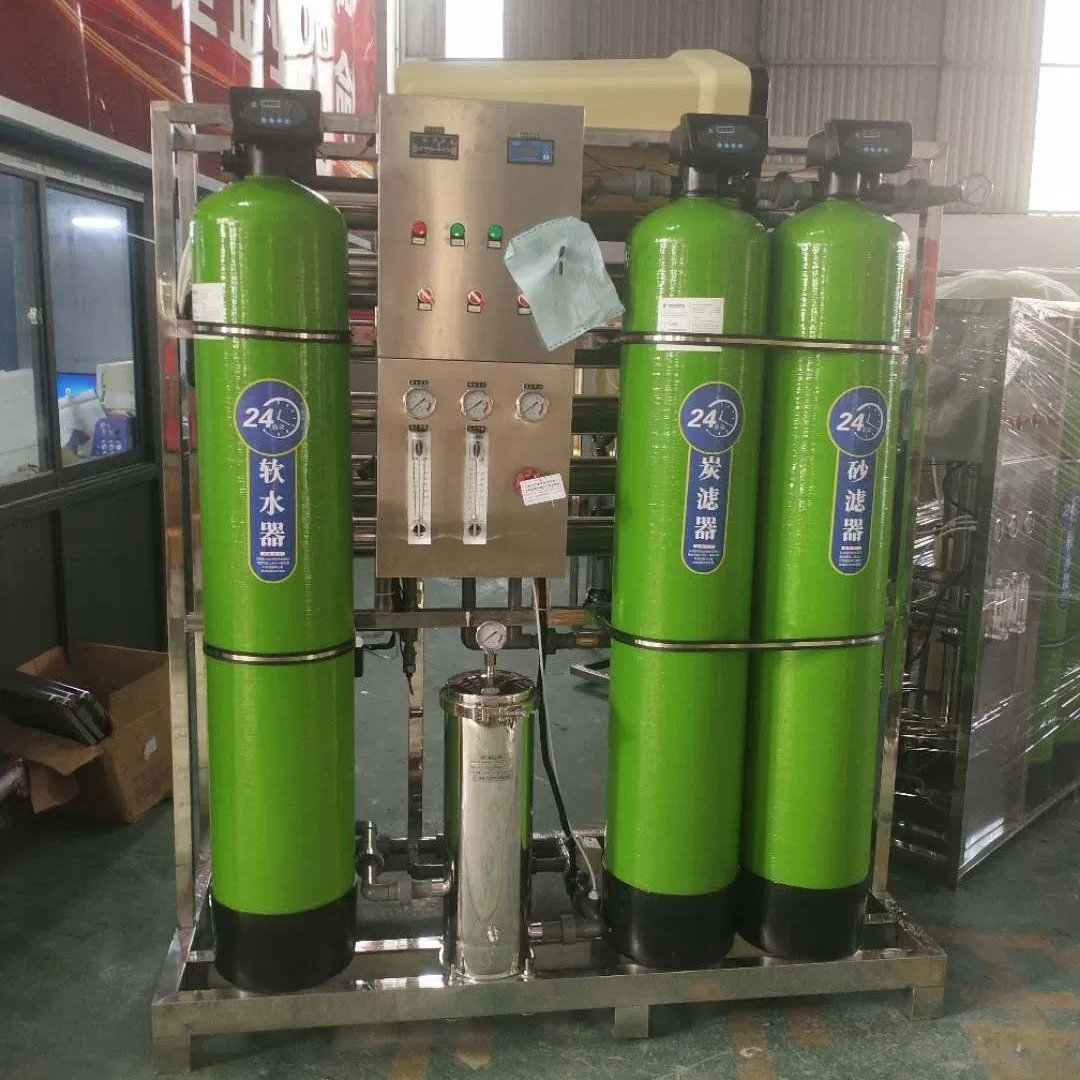

PLC Control Reverse Osmosis Water Purification System for Industrial Water Treatment
