Basic Specifications
Model NO.RH570
Sensor CommunicationZigbee: 2.4GHz IEEE 802.15.4
IP GradeIP66
Shell MaterialCast Aluminum
WeightAbout 2.5kg
Ambient Temp.-40℃ ~ 70℃
Supported Sensors60 PCS Max
Dimensions260mm × 203mm × 87mm

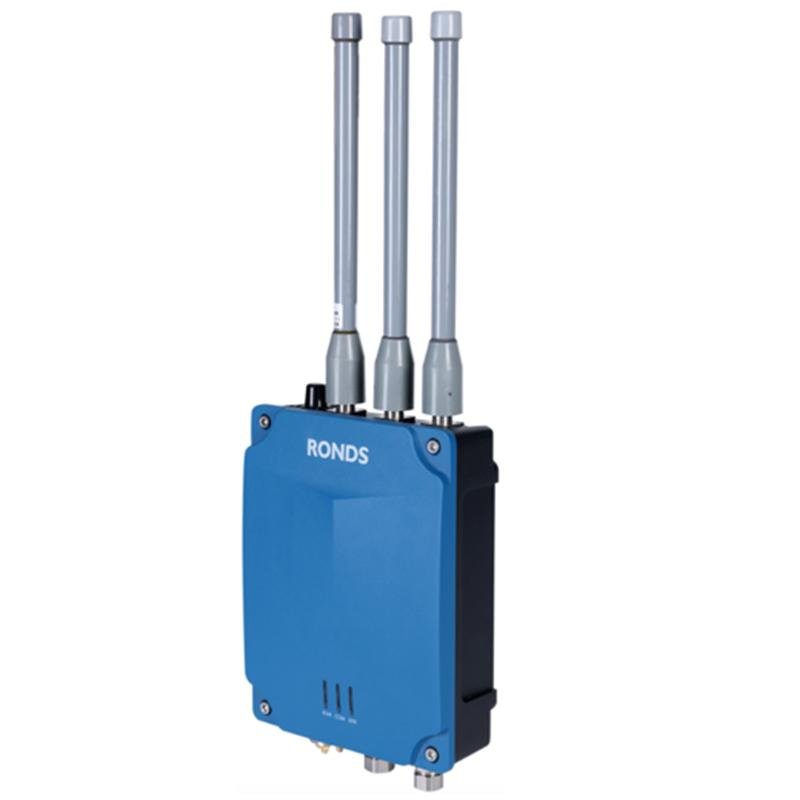

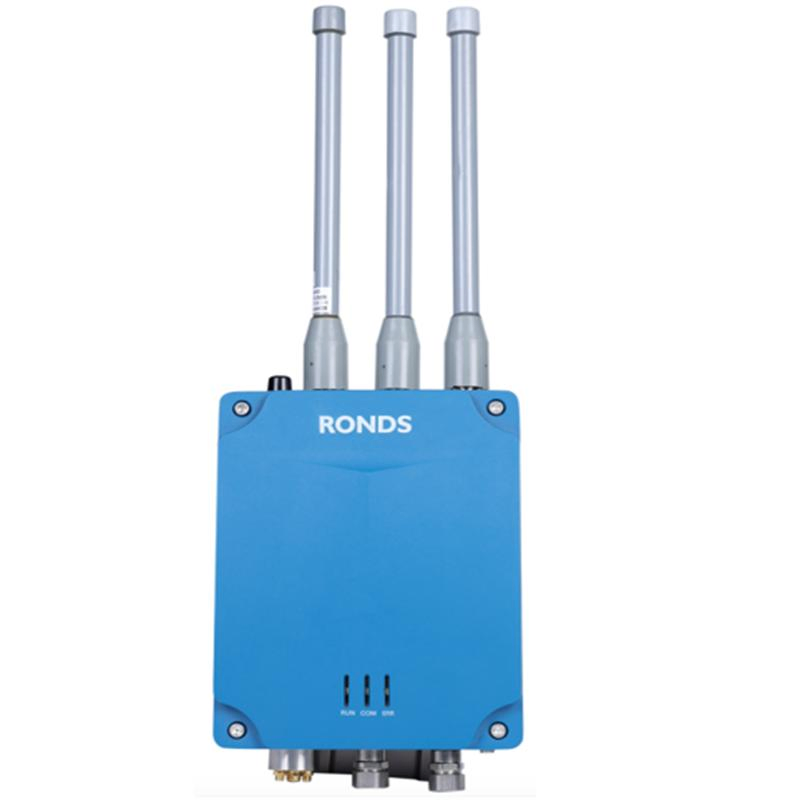

Product Overview

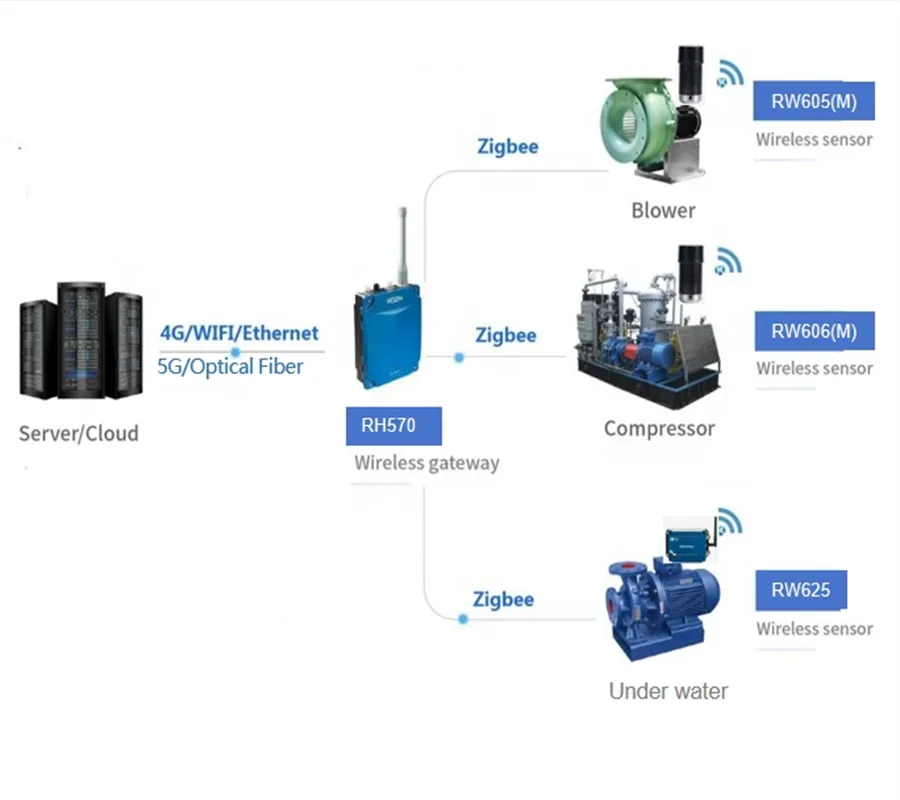

Wireless monitoring station RH570 is a new generation wireless product designed with strong data transmission capabilities. By configuring different modules, it is suitable for various application scenarios and supports both wireless and wired data transmission. The RH570 can work with various wireless sensors, offering flexible adaptation for equipment status monitoring in industries such as petrochemical, steel, cement, and mining.
Technical Index
| Parameter |
Specification |
Remark |
| Input & Output |
- |
- |
| Communication with Sensor |
Zigbee: 2.4GHz IEEE 802.15.4 |
- |
| Max Supported Sensors |
60pcs |
Compatible: RW606(M), RW506(M), RH505, RH605, RW625 |
| Distance with Sensors |
300m (line of sight) |
- |

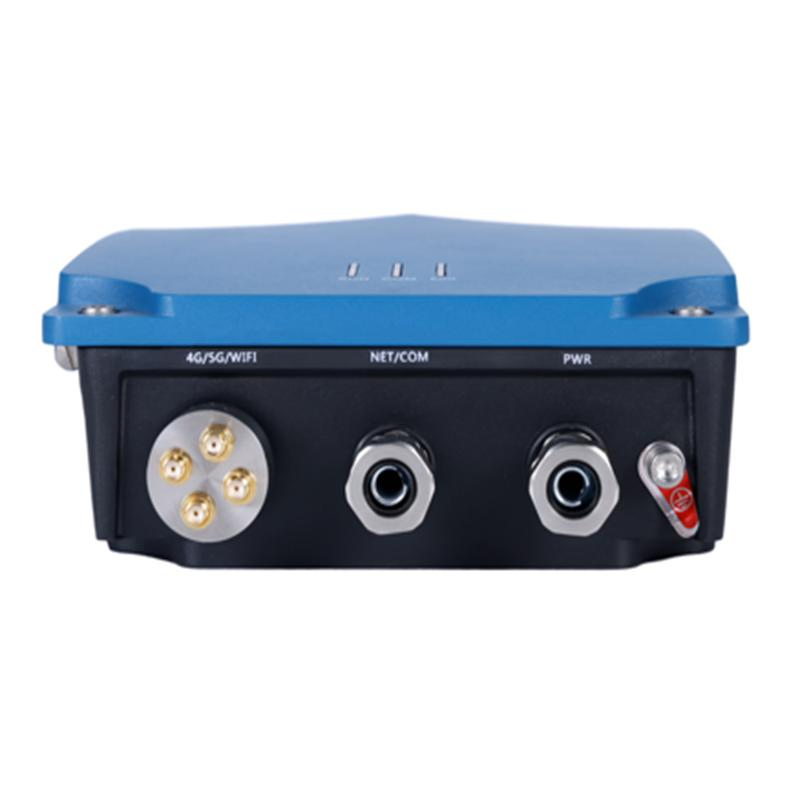

| Communication Method |
Ethernet, Optical fiber, WiFi, 4G, 5G |
Optional |
| Electrical & Structure |
- |
- |
| Power Supply |
100VAC ~ 240VAC |
- |
| Storage Environment |
-50~85ºC, ≤95%RH |
Non-condensable |
Packaging & Warranty
Standard Package: Corrugated Carton with Styrofoam Insert.
Warranty: One year warranty guaranteed.
Manufacturing & R&D
As a high-tech enterprise in the field of industrial Internet, our strength lies in intelligent operation and maintenance platform solutions and equipment predictive maintenance products. Our technical team consists of over 200 employees, with an R&D expense ratio exceeding 18%.
Industries Served
Our products and services are mainly applied in:
- Power & Petrochemical Industry
- Steel & Cement Industry
- Coal & Mining Industry
- Paper Making & Water Treatment
- Municipal Transportation
Frequently Asked Questions
Q1: What is the maximum communication distance of the RH570?
A: The RH570 supports a communication distance of up to 300 meters with sensors in a clear line of sight.
Q2: How many sensors can one wireless monitoring station support?
A: A single RH570 station can support a maximum of 60 wireless sensors simultaneously.
Q3: Is the device suitable for extreme outdoor temperatures?
A: Yes, the RH570 is designed with an IP66 protection grade and can operate in temperatures ranging from -40℃ to 70℃.
Q4: What communication methods are available for data upload?
A: The station supports multiple communication methods including Ethernet, Optical fiber, WiFi, 4G, and 5G.
Q5: What materials is the RH570 shell made of?
A: The shell is constructed from high-quality cast aluminum for durability in industrial environments.
Q6: What sensors are compatible with this station?
A: It is compatible with a wide range of wireless sensors including RW606(M), RW506(M), RH505, RH605, and RW625.
