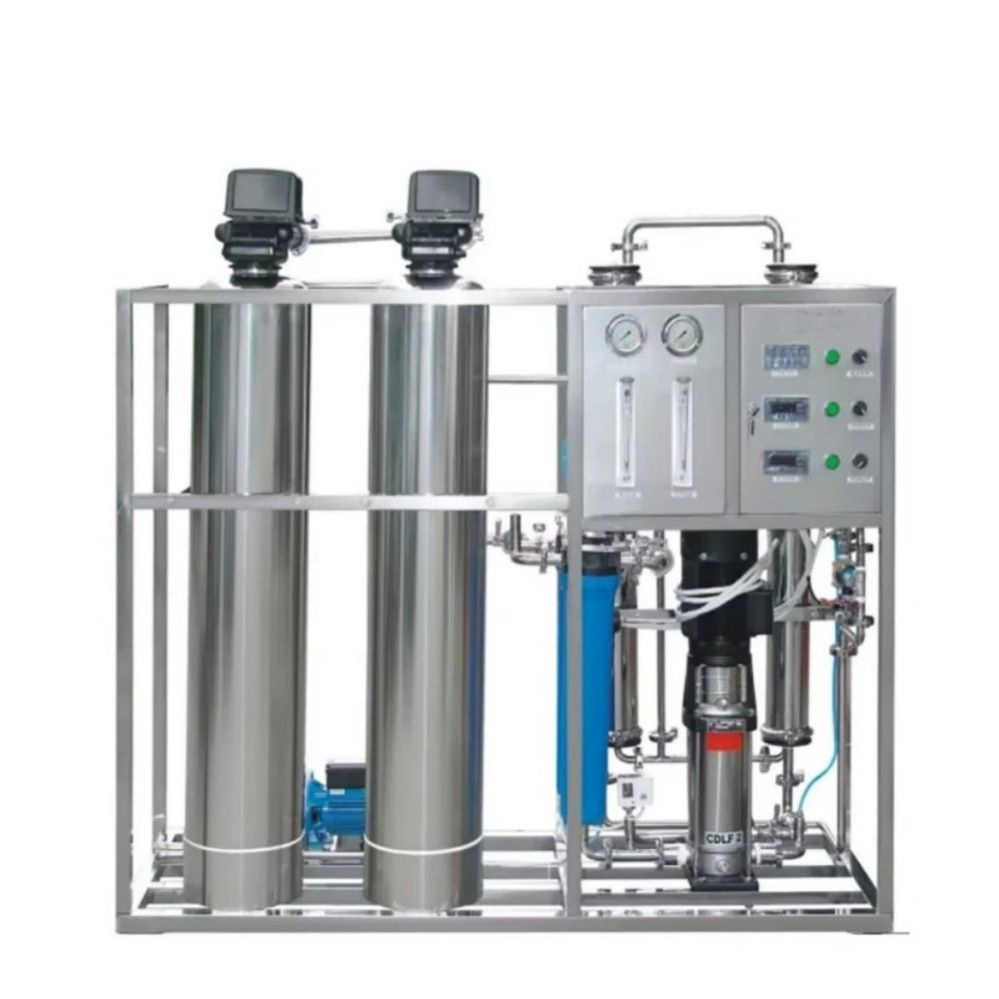

Industrial RO Water Treatment System with PLC Control for Factories

1 / 5

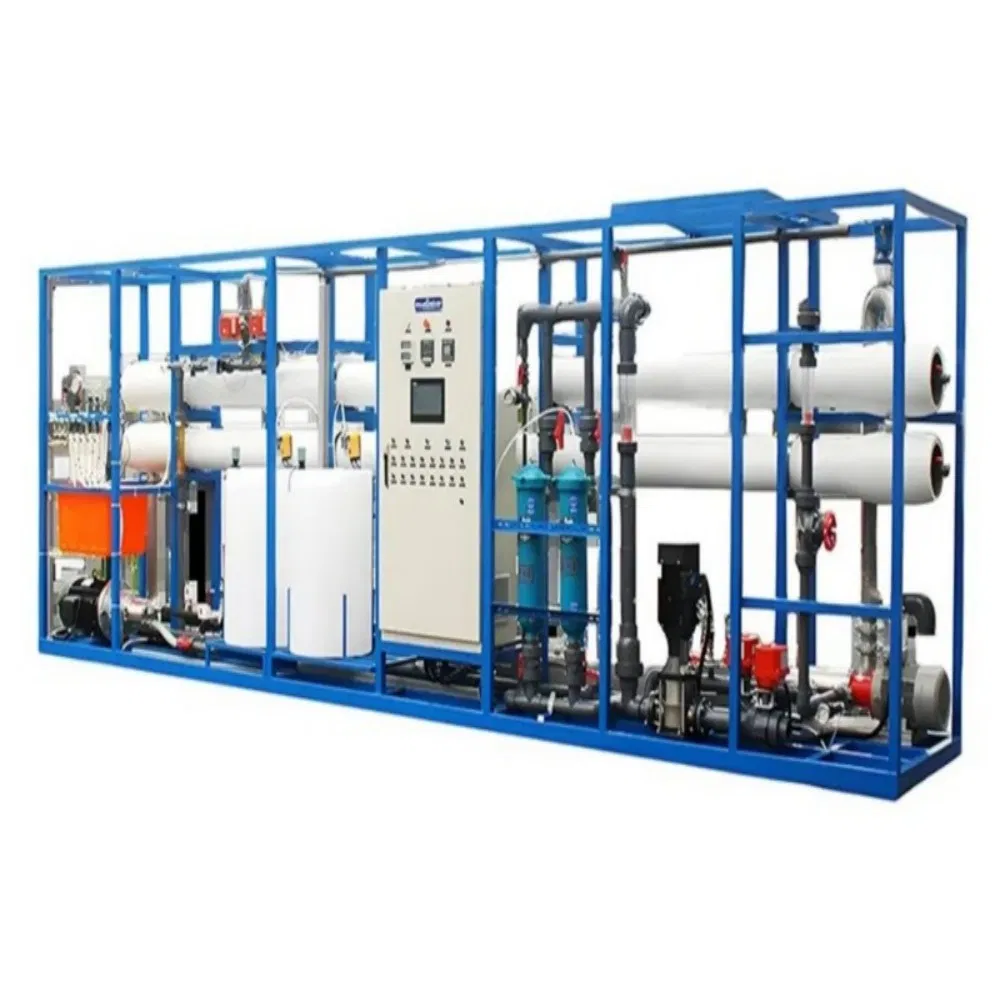

Industrial RO Water Treatment System with PLC Control for Factories

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

HELLA-RO3

Motive Force

Electric power

Style

Vertical

Performance

Efficient Filtration

Certification

CE, RoHS, CB

Salt Rejection Rate

99.0%

Application

All Scenario

Capacity

250-100000L/H

Processing Type

Reverse Osmosis

Voltage

110V/220V/380V

Core Part Warranty

More Than 5 Years

Material

SS / FRP / CS

Product Introduction

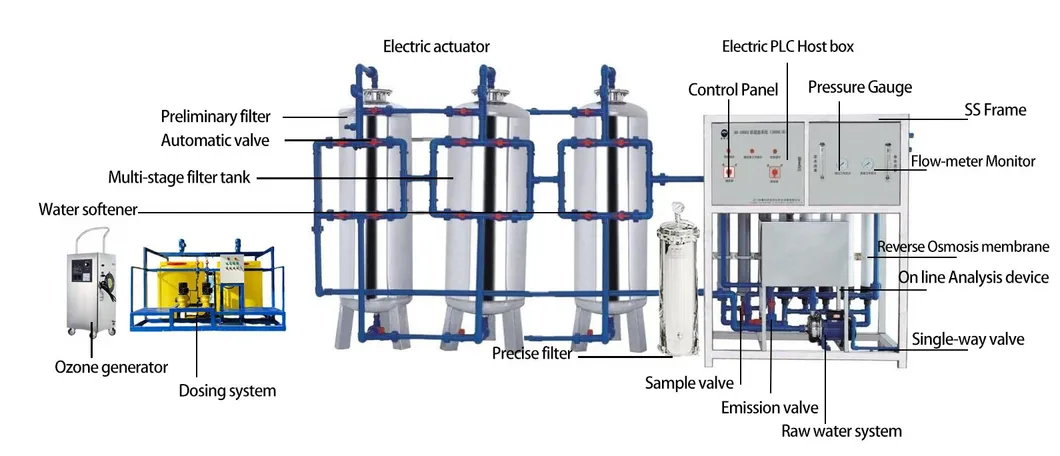

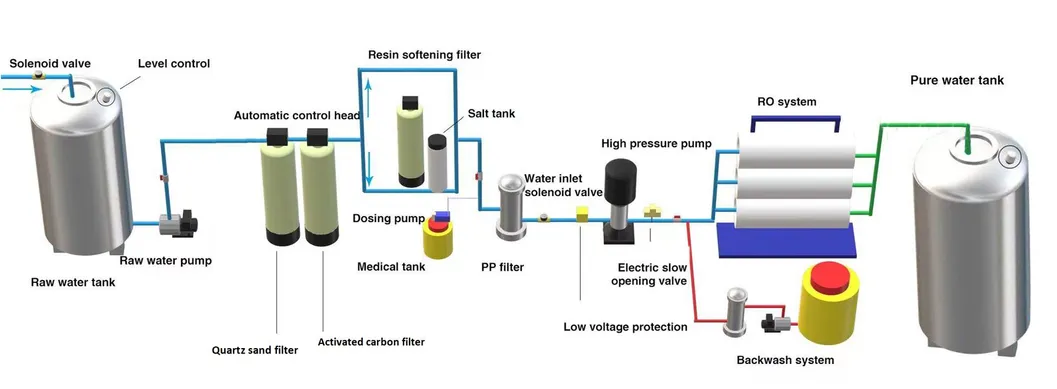

Reverse Osmosis Flow Chart

Raw water system: Level control system to adjust stop and start, single-way valve to prevent re-flux.

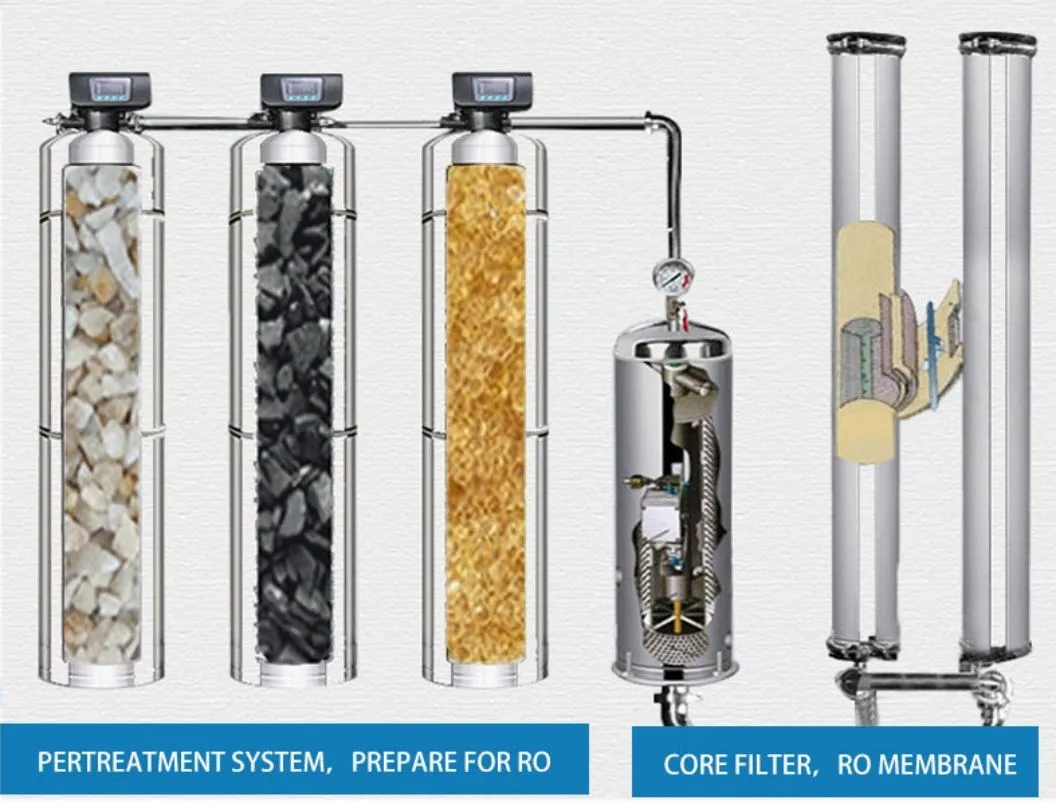

Quartz sand filter: Remove turbidity, suspended matter, organic matter, and colloids.
Activated carbon filter: Remove free chloride, organics, harmful matter, and odor/color.
Resin softening filter: Remove calcium and magnesium ions to reduce water hardness.

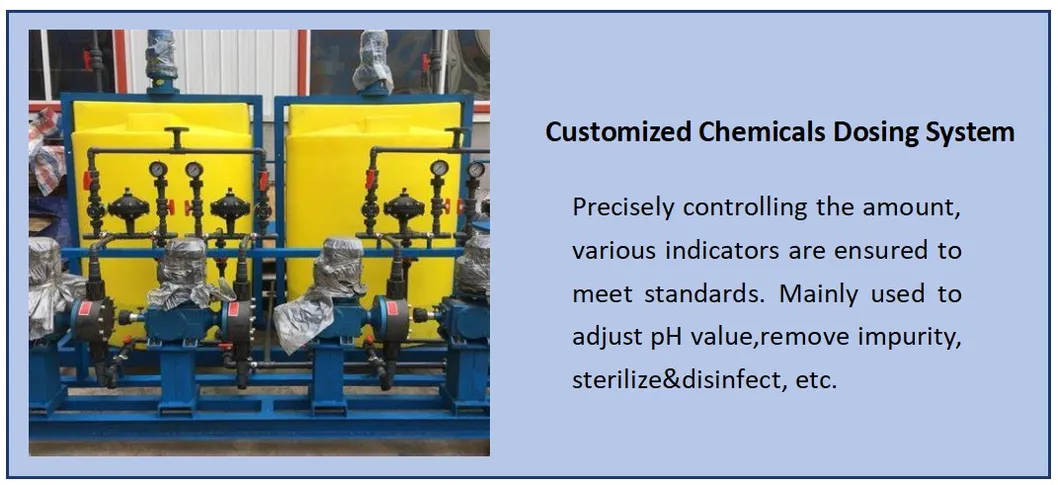

Dosing system: Automatically adjust chemical dosing according to water quality parameters.
PP filter: Prevent deposition of large particles into the RO membrane.
High pressure pump: Provide high pressure to pump water into the RO system.
Reverse osmosis membrane: Capability of removing over 99% of ions, bacteria, viruses, and particles.
Backwash system: Cleaning system to prolong the service life of the RO membrane.
Sterilization system: UV light and Ozone generator to eliminate bacteria and viruses.

Product Parameters

Output Capacity	100L-1000T/H	Multi-stage Filtration	4/5/6/7-stage
Desalination Rate	≥99%	Filtration Accuracy	up to 0.0001μm
Recovery Rate	≥60%	Machine Material	SS, FRP, CS
Pipe Material	PE, PVC, PPR, SS, CS	Host Control System	PLC & terminal controller

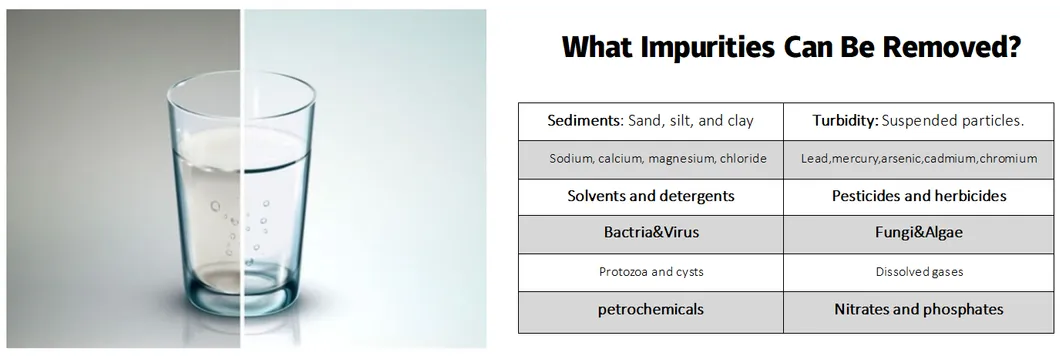

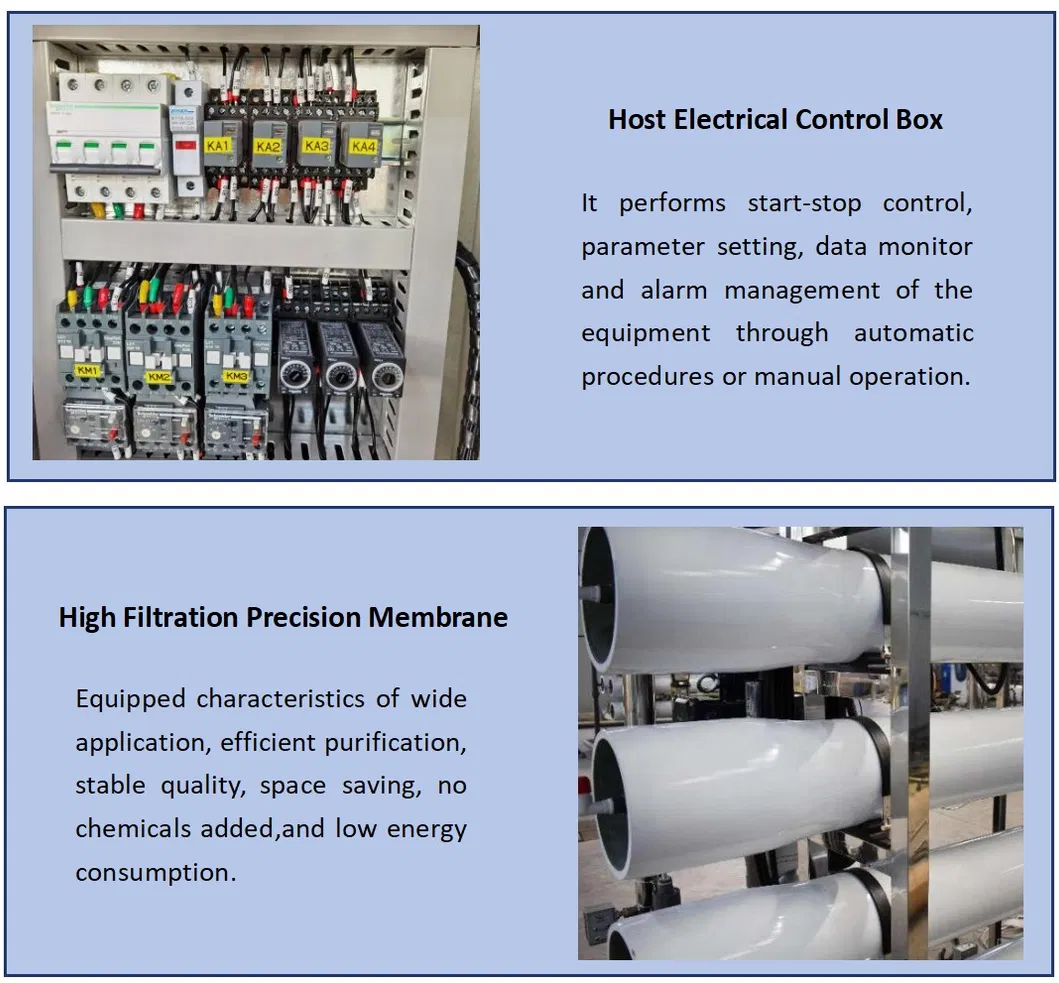

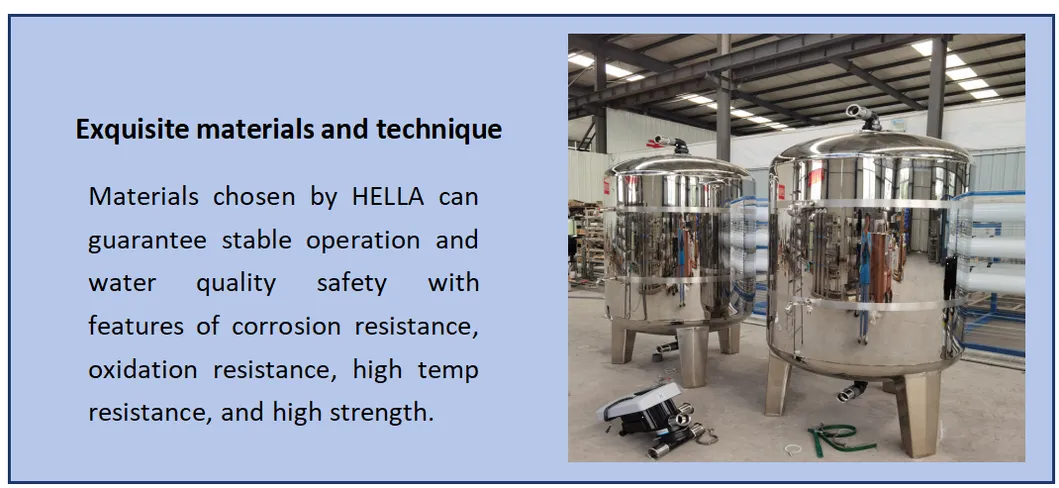

Product Details & Effects

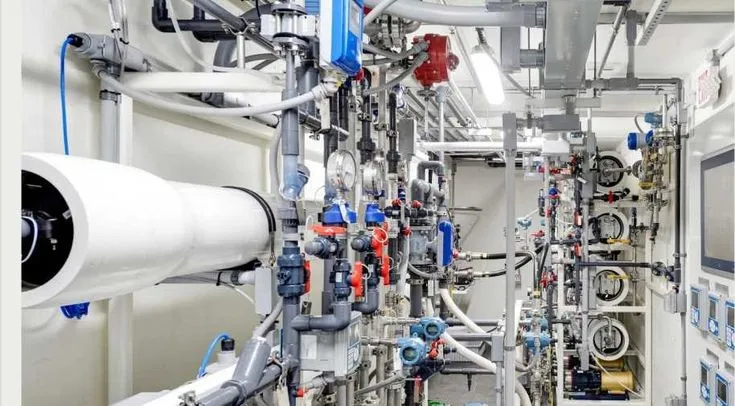

System Key Features

Produce water continuously 24/7.
Easy operation and low maintenance.
Integrated high-quality electric components.
Auto-wash function to prolong filter and membrane lifespan.
On-line monitoring devices for real-time status.
Automatic emergency switch-off for safety.

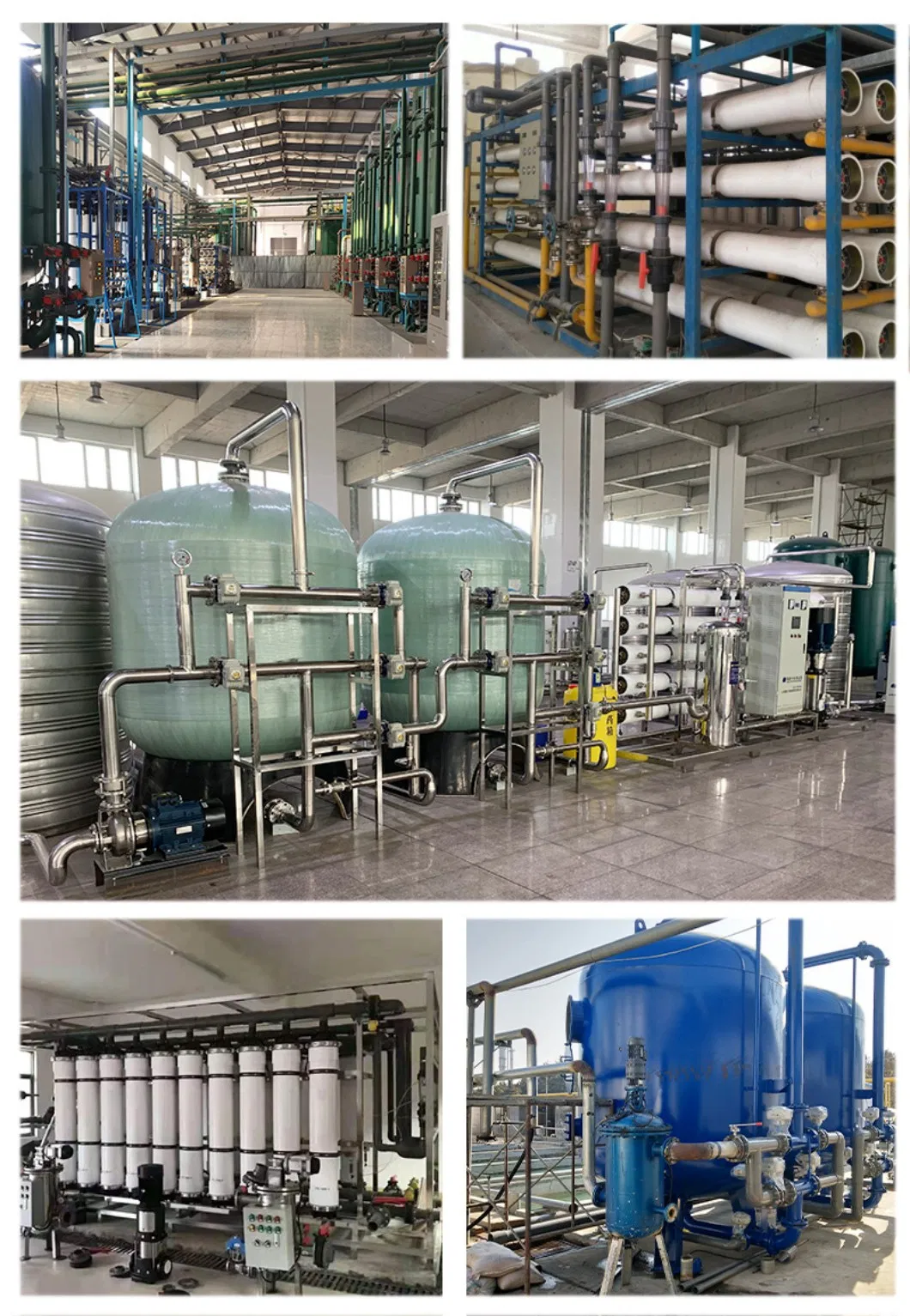

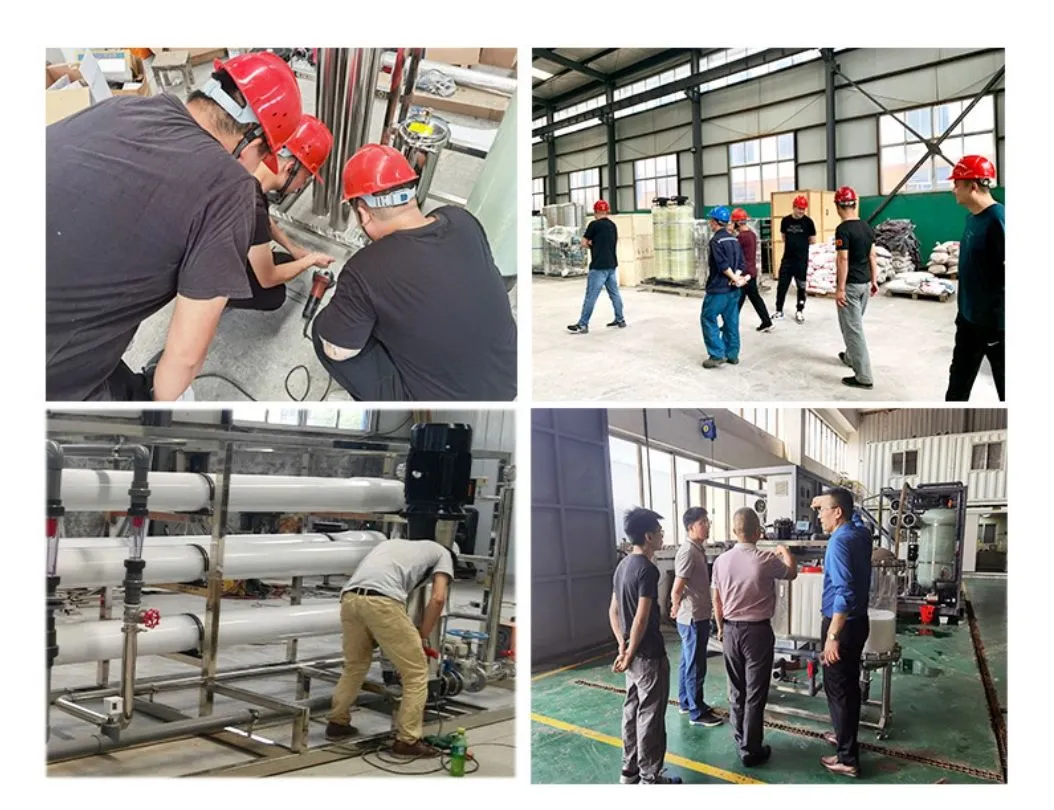

On-site Installation & Delivery

Frequently Asked Questions

What is the experience level behind these water treatment systems?

With over 20 years of manufacturing experience, our team specializes in environmental protection machinery and industrial water purification, serving thousands of global clients.

How is the quality of the equipment guaranteed?

We perform a final inspection before every shipment. Our systems come with a 2-year guarantee for core parts and lifelong after-sales service support.

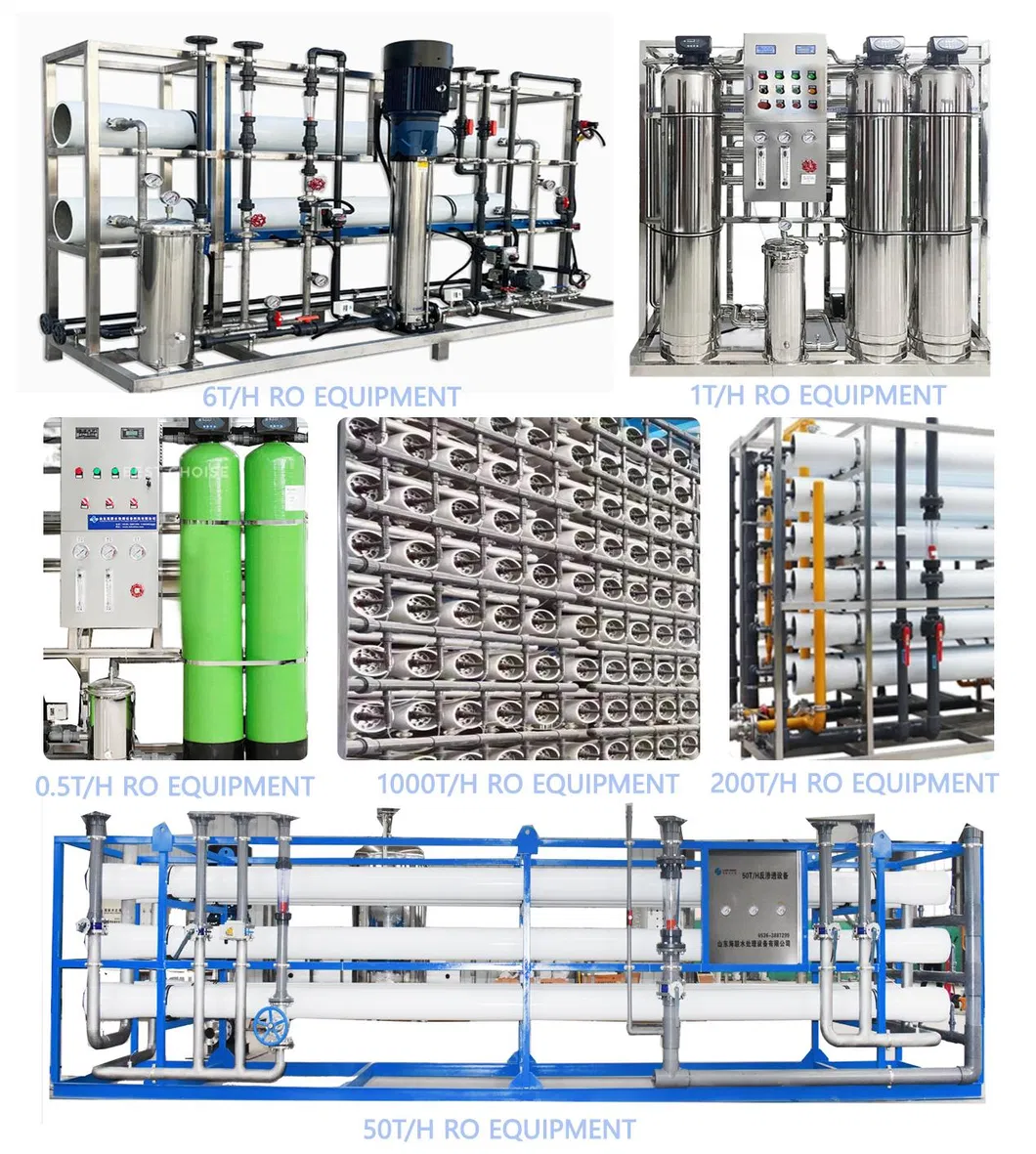

What capacity options are available for the RO systems?

We provide a wide range of capacities from 250L/H to 100,000L/H, customizable to meet specific industrial or residential requirements.

Why should I choose this equipment over others?

Our equipment offers complete certifications, strict quality inspection, professional technical support for installation, and factory-direct pricing for high cost-performance.

What payment and delivery terms are accepted?

We accept various terms including FOB, CFR, CIF, EXW, and DDP. Payments can be made via T/T, L/C, Credit Card, or PayPal in multiple global currencies.

Can the system handle harsh water conditions?

Yes, our systems are designed to treat underground, surface, and tap water effectively, with proven success in demanding markets like the GCC region.
