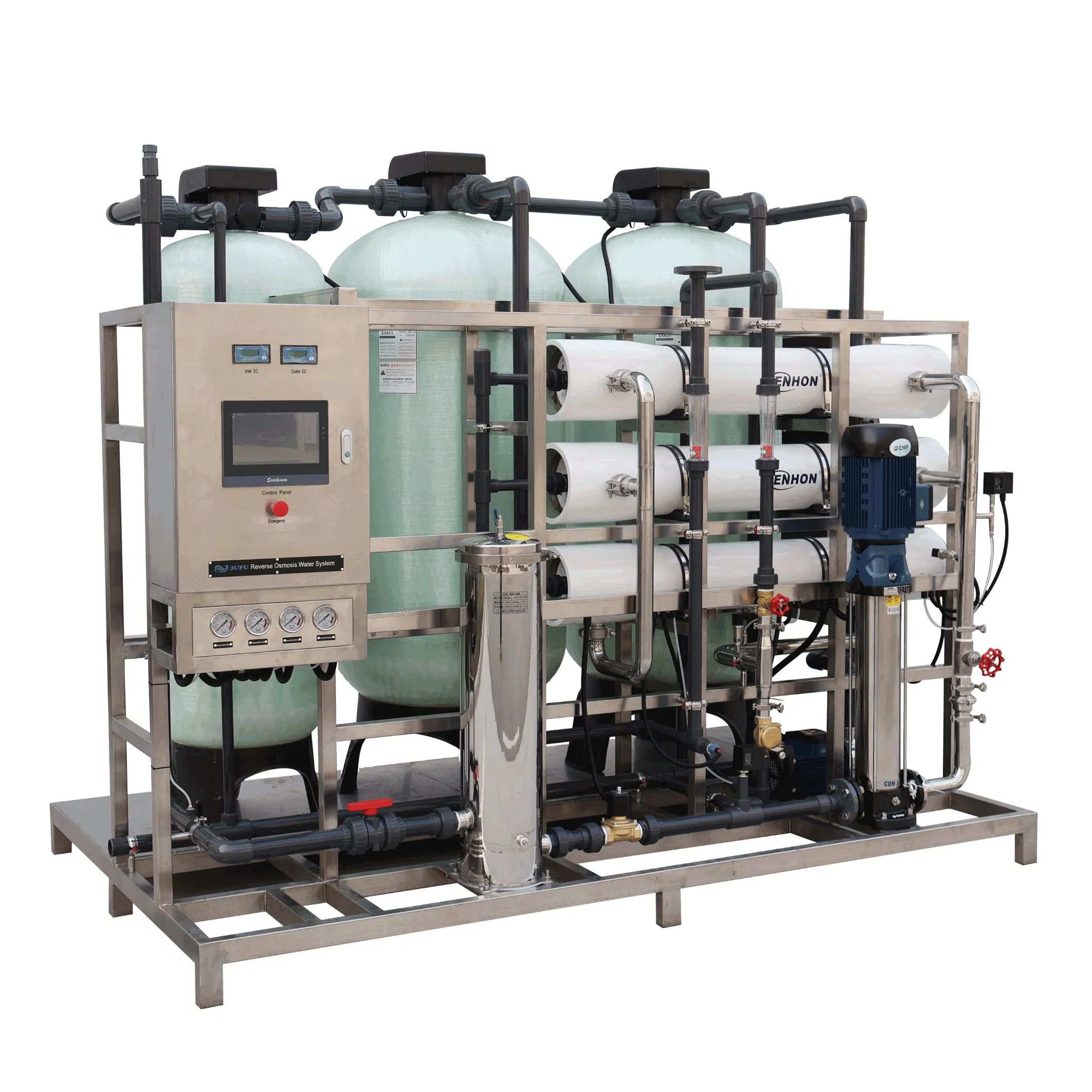

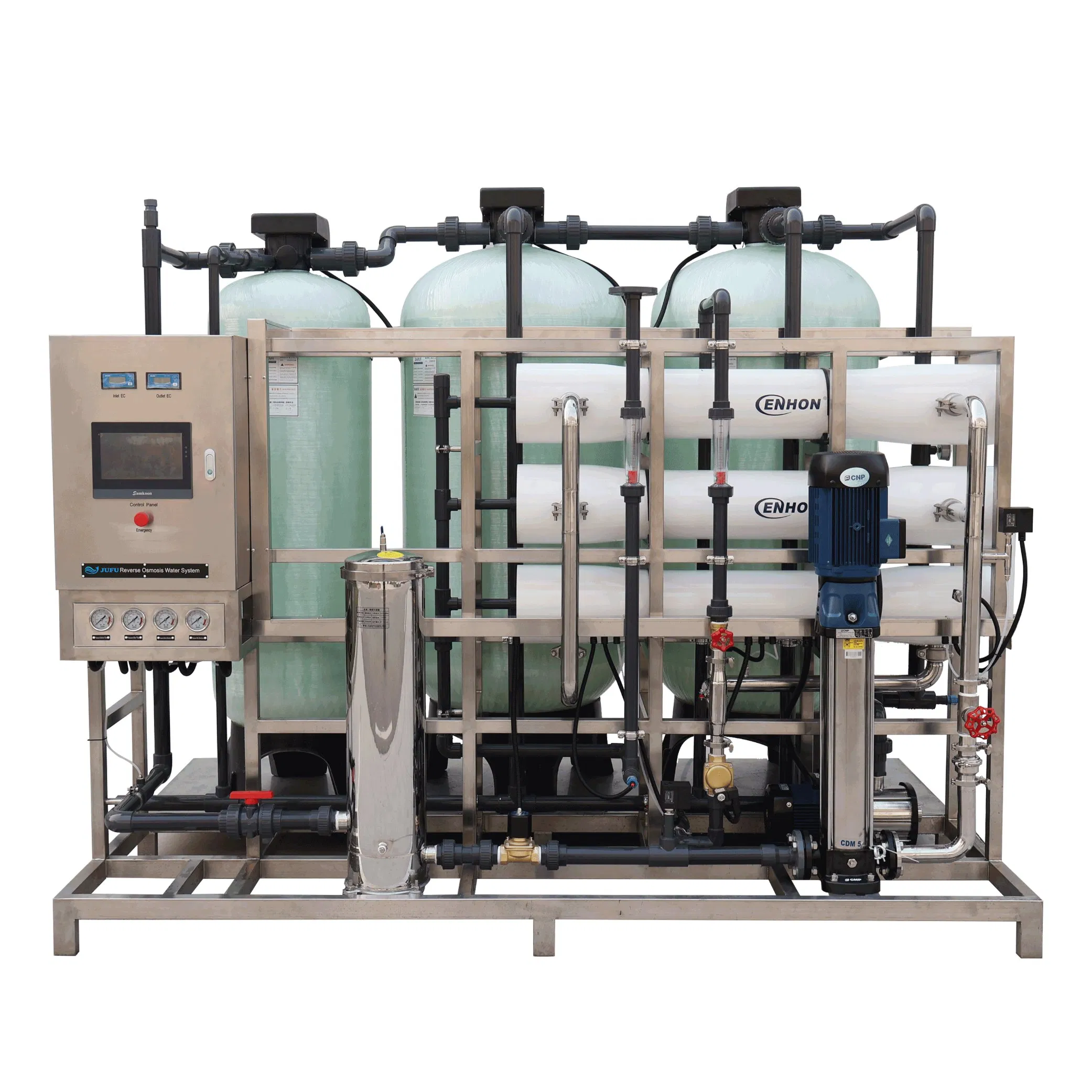

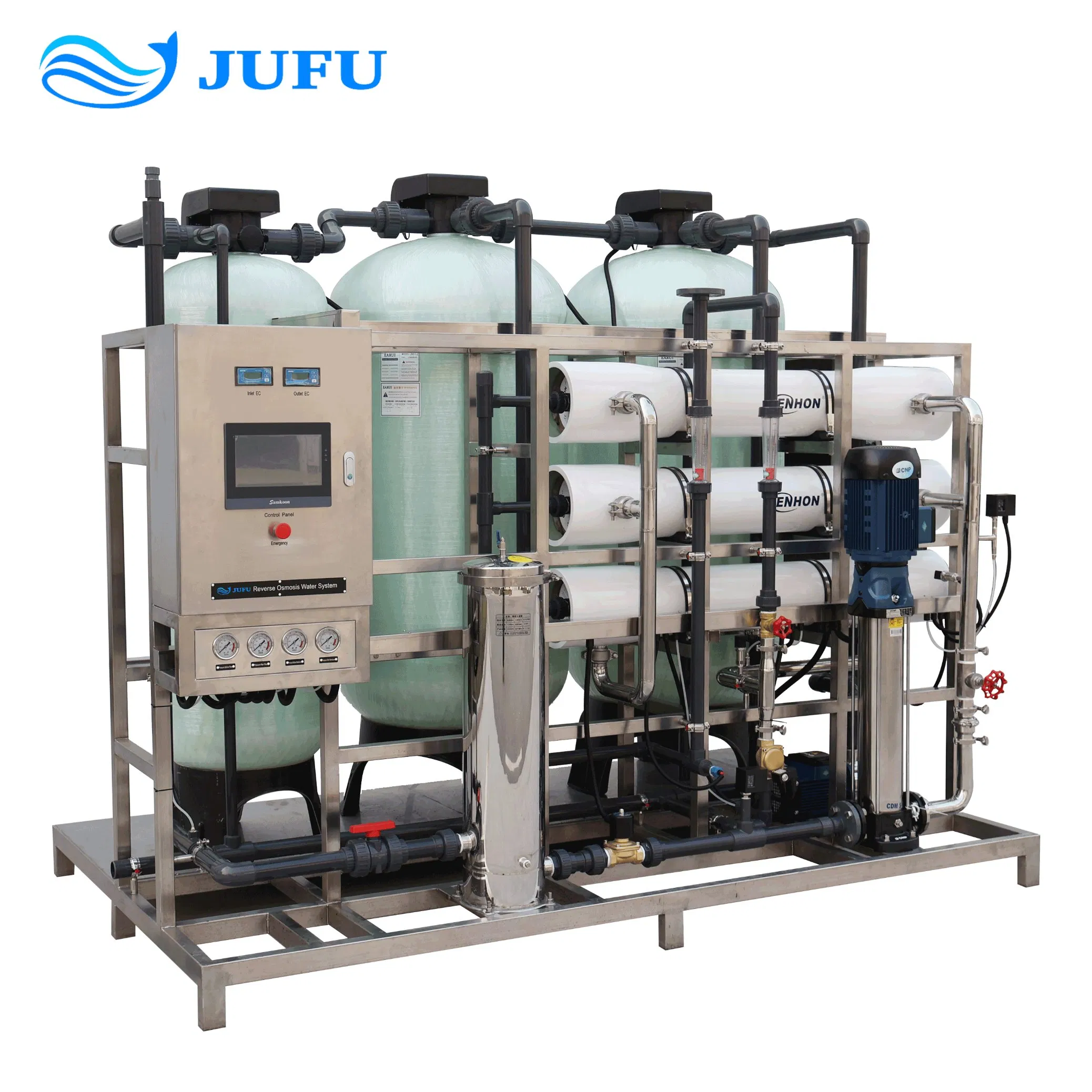

Industrial Reverse Osmosis System RO Water Purifying Machine RO System with PLC Touch Control
Industrial Reverse Osmosis System RO Water Purifying Machine RO System with PLC Touch Control
Industrial Reverse Osmosis System RO Water Purifying Machine RO System with PLC Touch Control
Industrial Reverse Osmosis System RO Water Purifying Machine RO System with PLC Touch Control
Industrial Reverse Osmosis System RO Water Purifying Machine RO System with PLC Touch Control
1 / 5
Industrial Reverse Osmosis System RO Water Purifying Machine RO System with PLC Touch Control
Industrial Reverse Osmosis System RO Water Purifying Machine RO System with PLC Touch Control
Industrial Reverse Osmosis System RO Water Purifying Machine RO System with PLC Touch Control
Industrial Reverse Osmosis System RO Water Purifying Machine RO System with PLC Touch Control
Industrial Reverse Osmosis System RO Water Purifying Machine RO System with PLC Touch Control

Industrial Reverse Osmosis System RO Water Purifying Machine RO System with PLC Touch Control

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋

Basic Information

Application
Industry
Capacity
2000L/H
Recovery Rate
50%
RO Membrane
Vontron
Filter Tank
FRP
RO Frame
SUS304
Membrane Housing
SUS304
Feeding Pump
Cnp
Booster Pump
Cnp
Valve Brand
Runxin
Control Type
Automatic Control
Pipe Type
U-PVC
Sand Filter
Yes
Carbon Filter
Yes
Water Softener
Yes
Transport Package
Wooden Case
Specification
Water Producing Capacity: 2000lph
Origin
China
📦

Packaging & Delivery

Package Size
190.00cm * 175.00cm * 240.00cm
Package Gross Weight
300.000kg
🛠️

Product Description

Separator
JFRO-3000LPH Reverse Osmosis System (PLC Control Version)

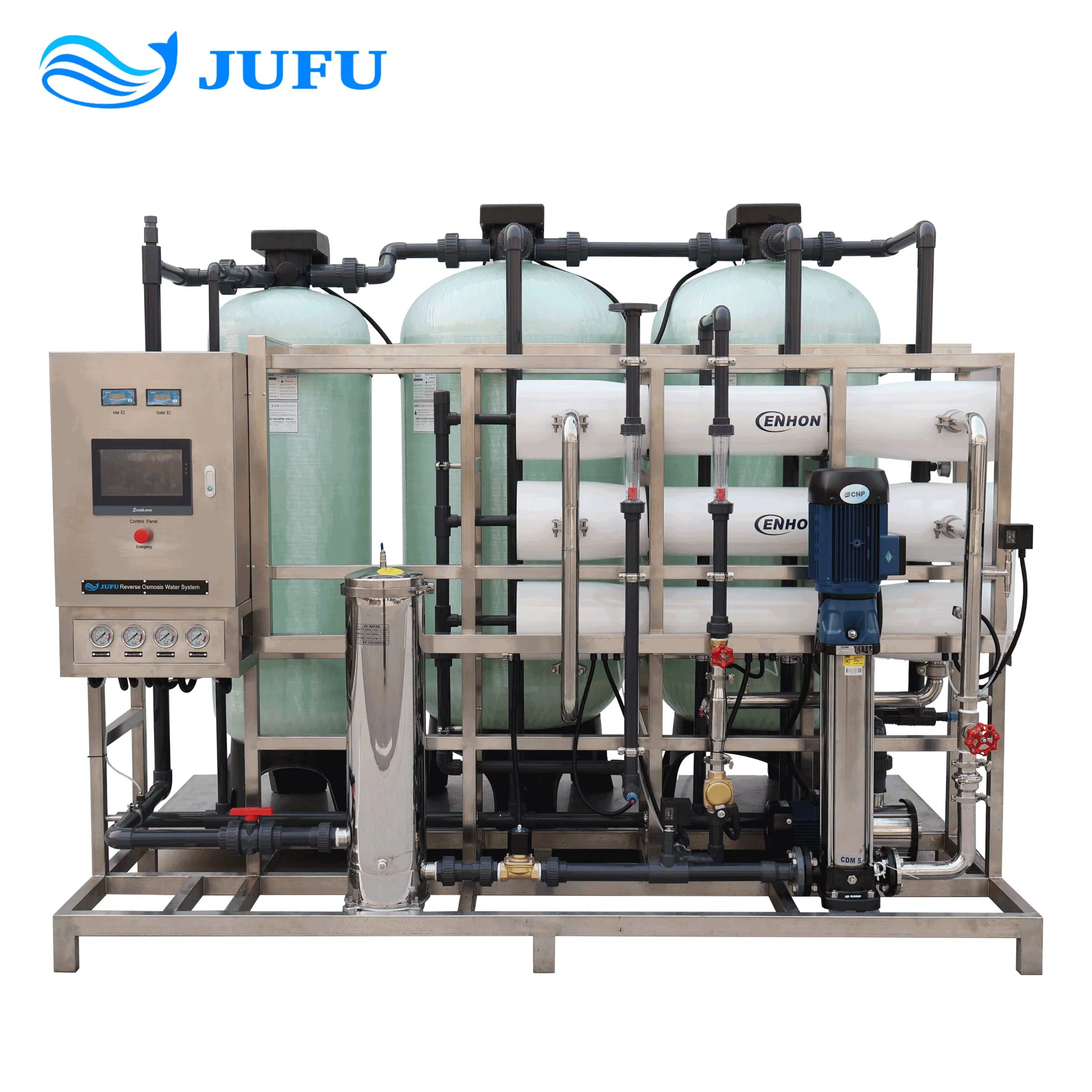

Industrial RO System Front View

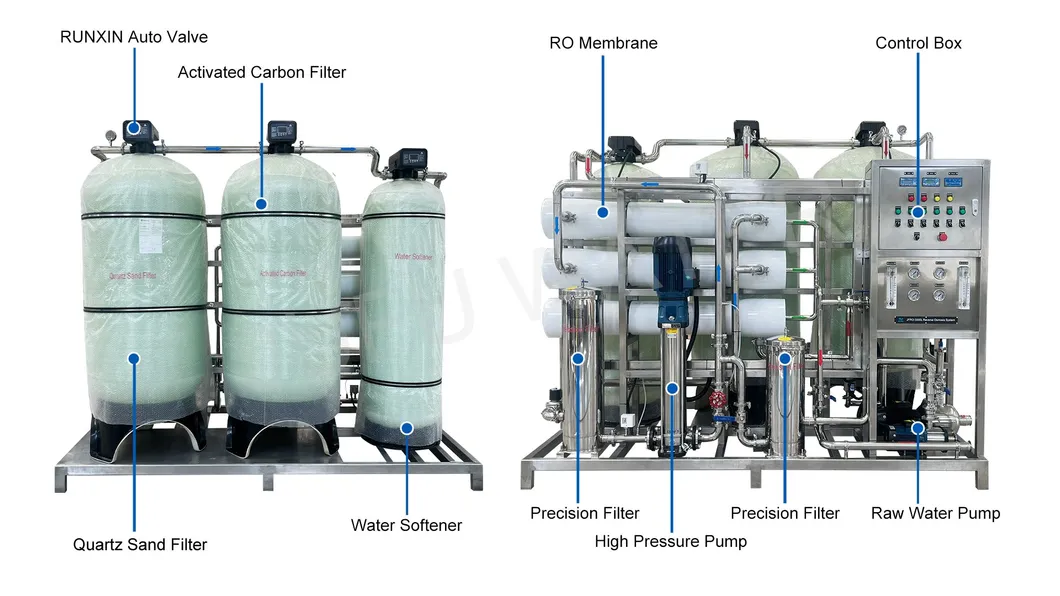

Industrial RO System Details
Separator
Specifications of JFRO-3000LPH Reverse Osmosis System
Model JFRO-3000L
Producing Capacity 3000L/H RO Membrane 8"
Recovery Rate ≥75% Power Supply Single-phase: 110/120/220V 50/60Hz
Operating Pressure 0.5-1.0MPa Tri-phase: 110/220/380/415V 50/60Hz
Desalination Rate 99% Power Consumption 5kW
Filtration Accuracy 0.0001 micron Control Type Manual control / Auto control
Feed Water Quality SDI < 5 | Free Chlorine Concentration < 0.1mg/L | TDS < 2000mg/L
Features Removes impurities such as inorganic ions, bacteria, viruses, organic matter and colloids from raw water.
Separator

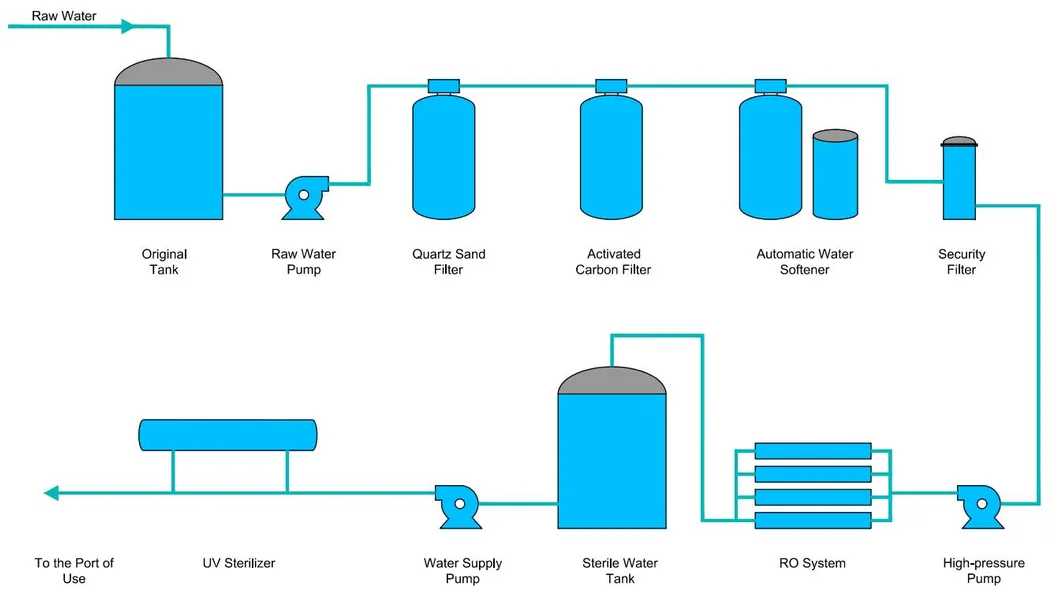

RO System Component

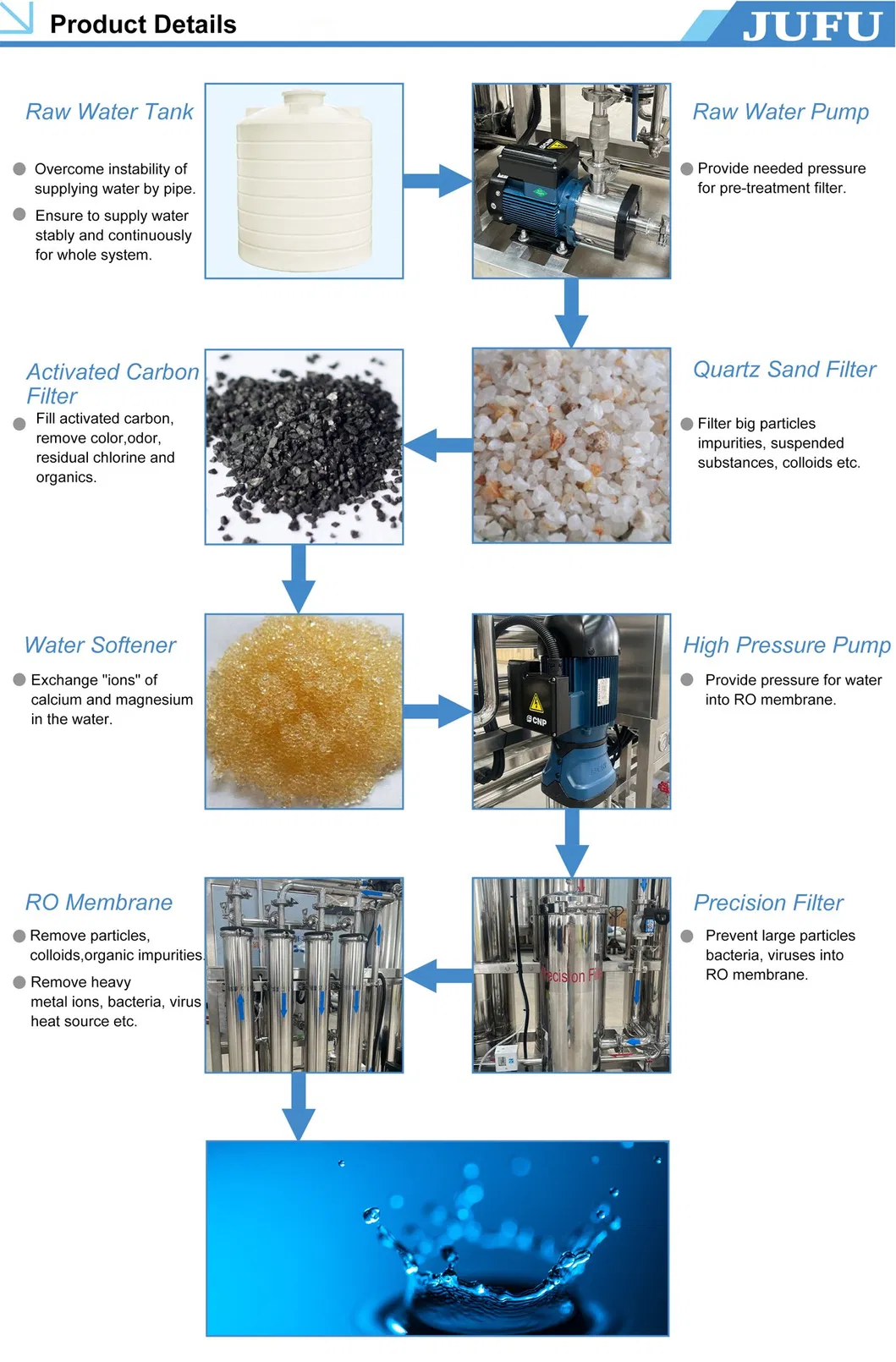

Detailed Technical Drawing
Product Range
Application Header

Food and beverage, drinking water sectors; Chemical & Pharmaceutical industries; Cosmetics; Electronic components manufacturing.

Application Examples

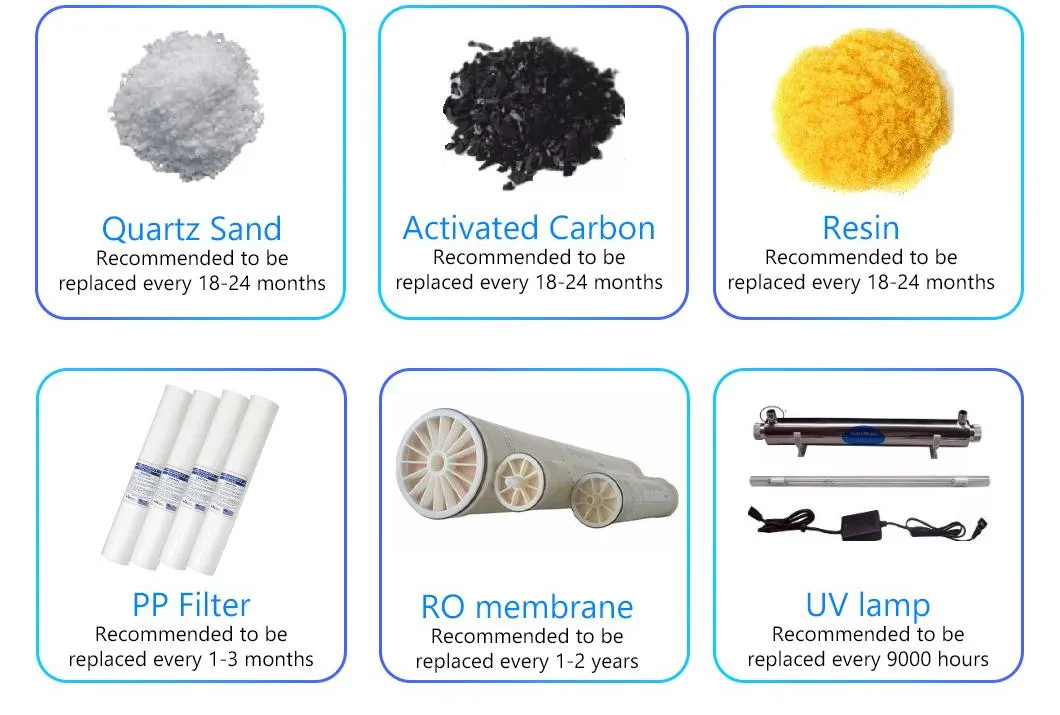

System Assembly
Certification Header

Global Certifications -- ISO9001 & CE

ISO CE Certificates
Manufacturing Process
Factory Testing
Packing Process

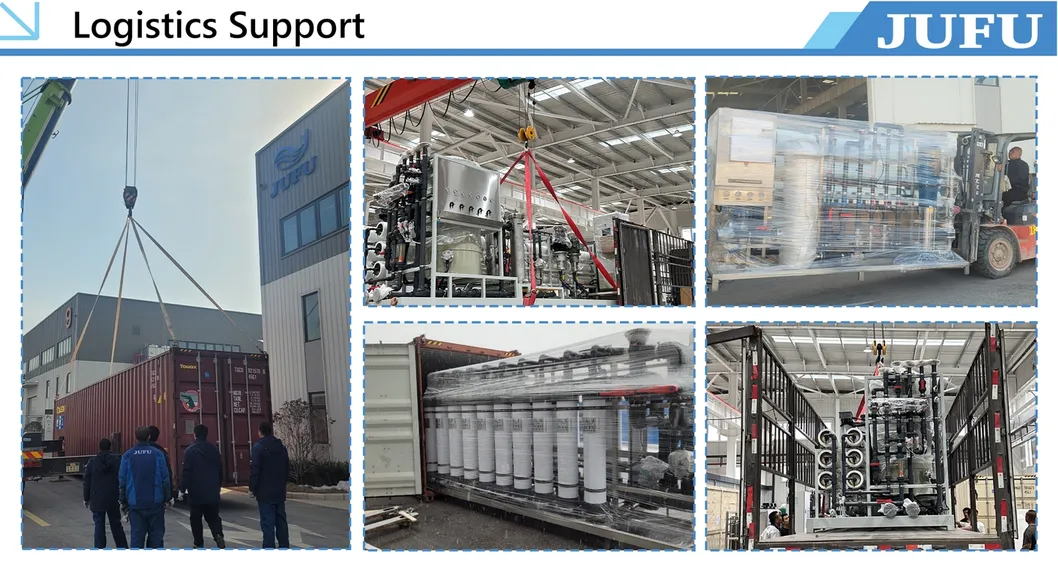

Shipping Logistics
❓

Frequently Asked Questions

What is the production capacity of this RO system?
The JFRO-3000LPH model has a water producing capacity of 3000 liters per hour, while standard industrial configurations can be adjusted to 2000L/H based on specific needs.
What is the desalination efficiency?
The system achieves a high desalination rate of 99% and a filtration accuracy of 0.0001 micron, effectively removing almost all inorganic ions and contaminants.
What materials are used for the system components?
The RO frame and membrane housing are made of high-quality SUS304 stainless steel, while filter tanks utilize Fiber Reinforced Plastic (FRP) for durability and corrosion resistance.
Is the system operation automated?
Yes, the system supports both manual and automatic control types, including a PLC touch control version for seamless industrial operation.
What types of pre-filtration are included?

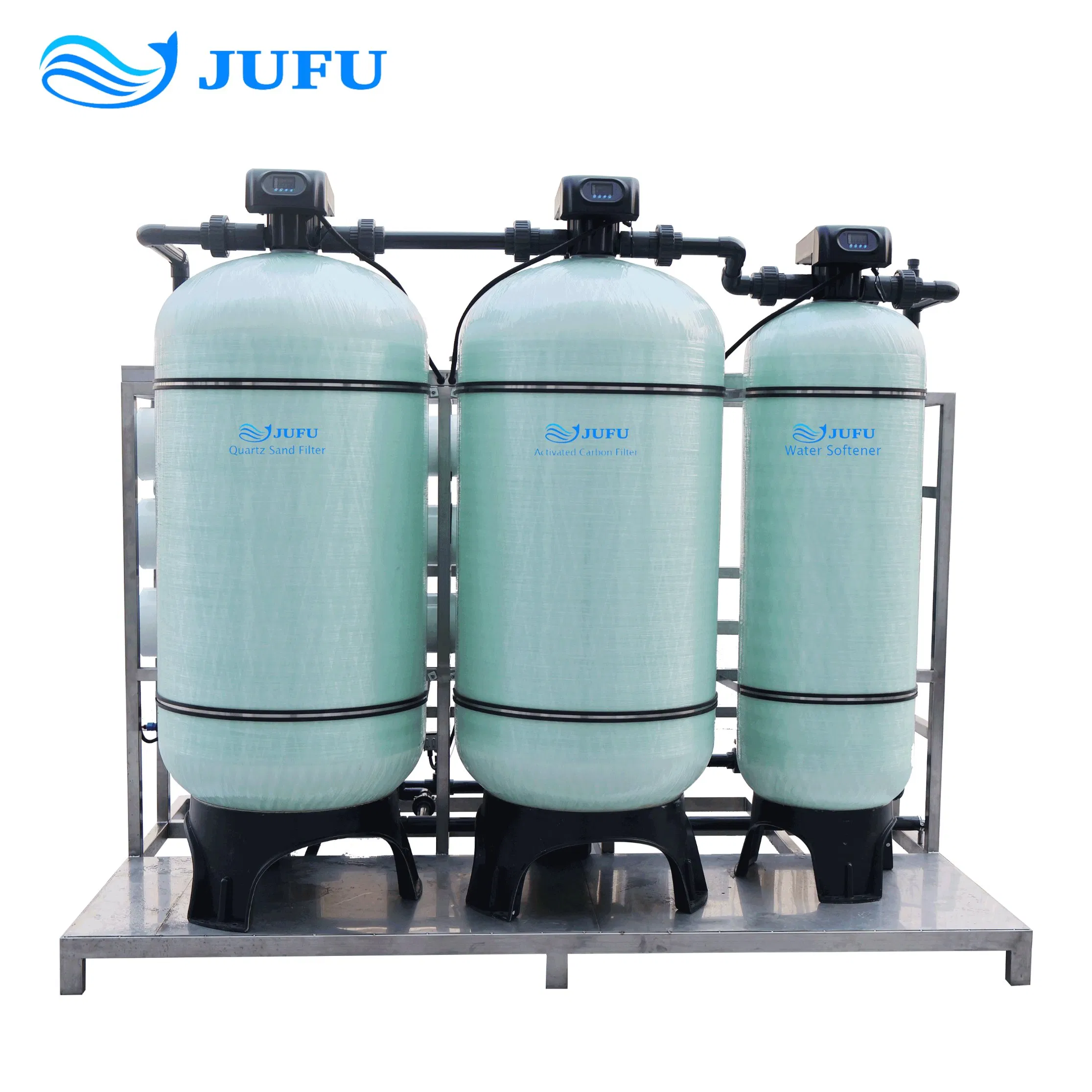

The system is equipped with a comprehensive pre-treatment stage including a sand filter, carbon filter, and water softener to protect the RO membranes.
What are the power requirements for installation?
The system is versatile, supporting single-phase (110V/220V) and tri-phase (220V/380V/415V) power supplies at both 50Hz and 60Hz frequencies.
