Continous Condition Monitoring System for Industrial 4.0

Specification:	5kgs
Trademark:	Ronds
Origin:	China

Model No. RH1000

HS Code 9031809090

Production Capacity 1000 / Month

Product Introduction

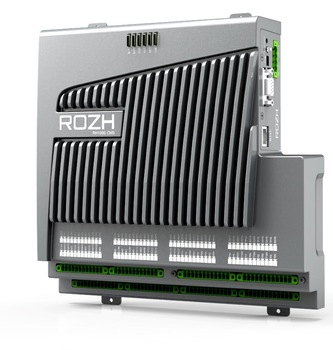

The RH1000 online monitoring station is a sophisticated condition monitoring solution consisting of 16 optional vibration and temperature channels, 2 process information channels, and 1 speed channel. Utilizing patented technology, it achieves synchronous data acquisition across all channels simultaneously.

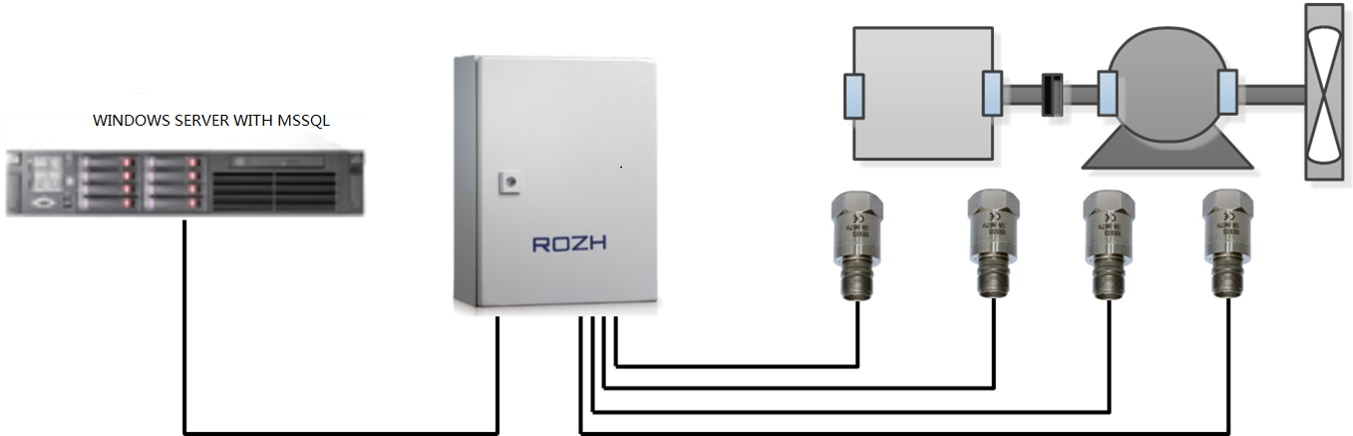

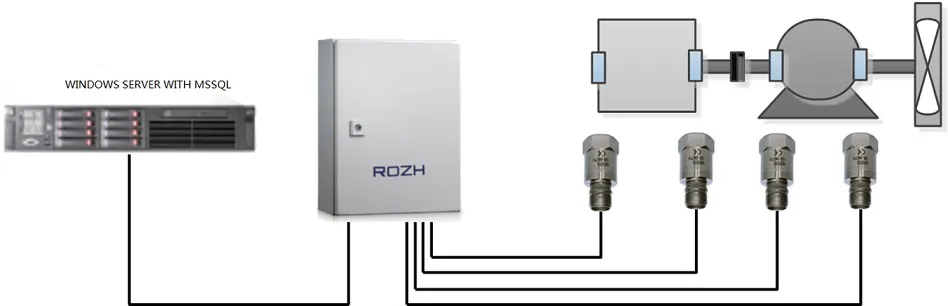

Working Diagram

System Features

✅ Maximal 16 channels synchronous data acquisition

✅ Machine Data Overview & Configuration Tree

✅ DAQ & Characteristic Parameter Group Management

✅ Remote Data Viewing & Intelligent Alarms

✅ Comprehensive Data Analysis Tools

✅ Automatic Calculation of Characteristic Frequency

✅ Professional Report Generation Function

Technical Parameters

Channel Configuration
Max. Channels	16 vibration/temperature, 1 speed, 2 processing
Vibration & Temperature (Optional)
Channel No.	16 channels	-
Sensor Integrated	IEPE acceleration sensor	High/low frequency & dual acceleration synchronous
Input Impedance	200kΩ	-
A/D Converter	24 bits delta-sigma ADC	-
Dynamic Range	100dB	-
Frequency Response	0.2dB (10Hz ~ 5kHz), 0.6dB (2Hz ~ 20kHz)
Temperature Range	-40ºC ~ 120ºC	Precision: ±2ºC
Speed & Sway Channels
Speed Range	0 ~ 20000 RPM (Proximity/PLC); 0 ~ 10000 RPM (Encoder)
Sway Channel	1 channel, two axial	Optional for wind turbine tower
Environmental & Hardware
CPU & Storage	400MHz CPU	64MB RAM, 1GB Flash
Dimension & Weight	400mm×300mm×110mm	<5kg
IP Grade	IP65	-40~70ºC Working Environment
Power Supply	220VAC / 12-24VDC	Consumption: <8W

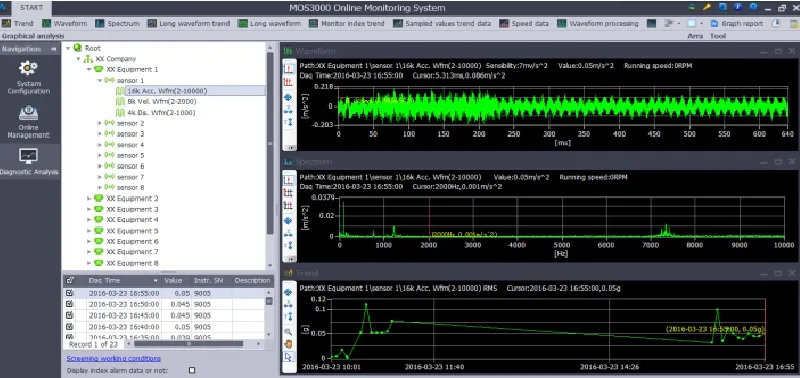

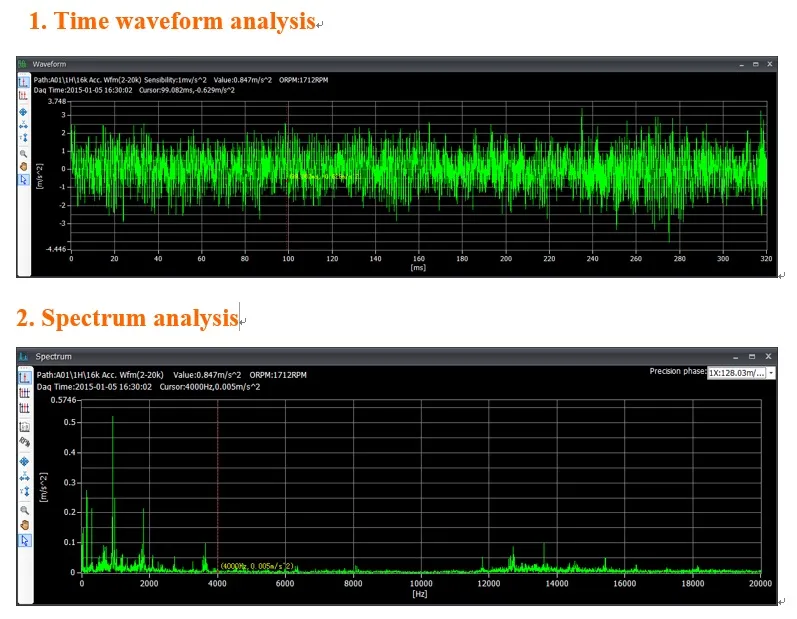

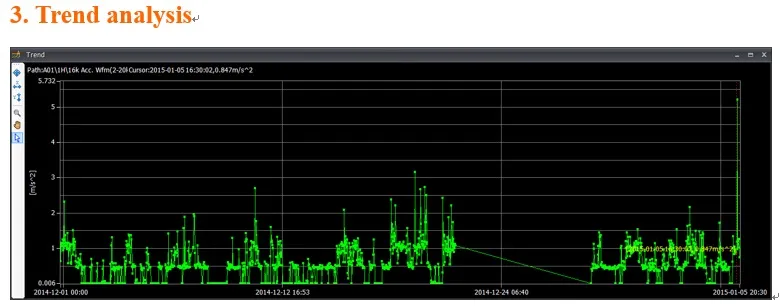

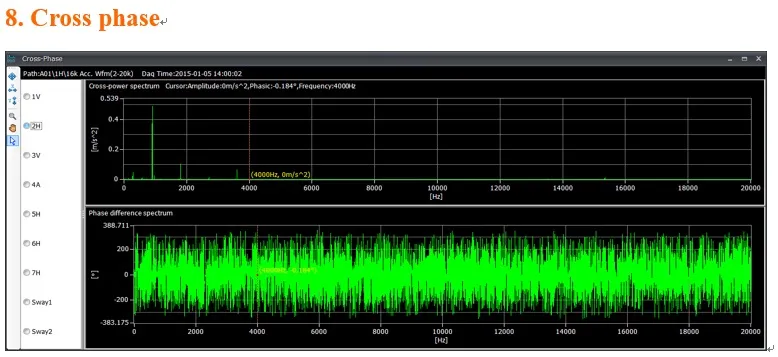

MOS3000 Software Interface

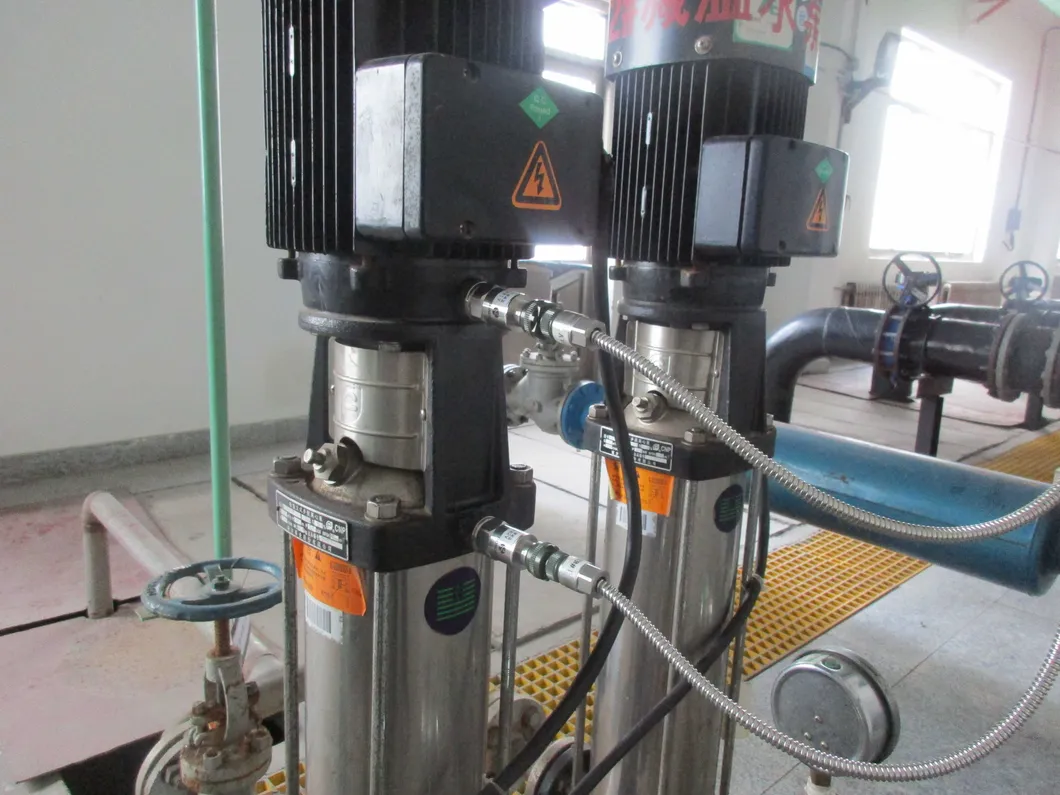

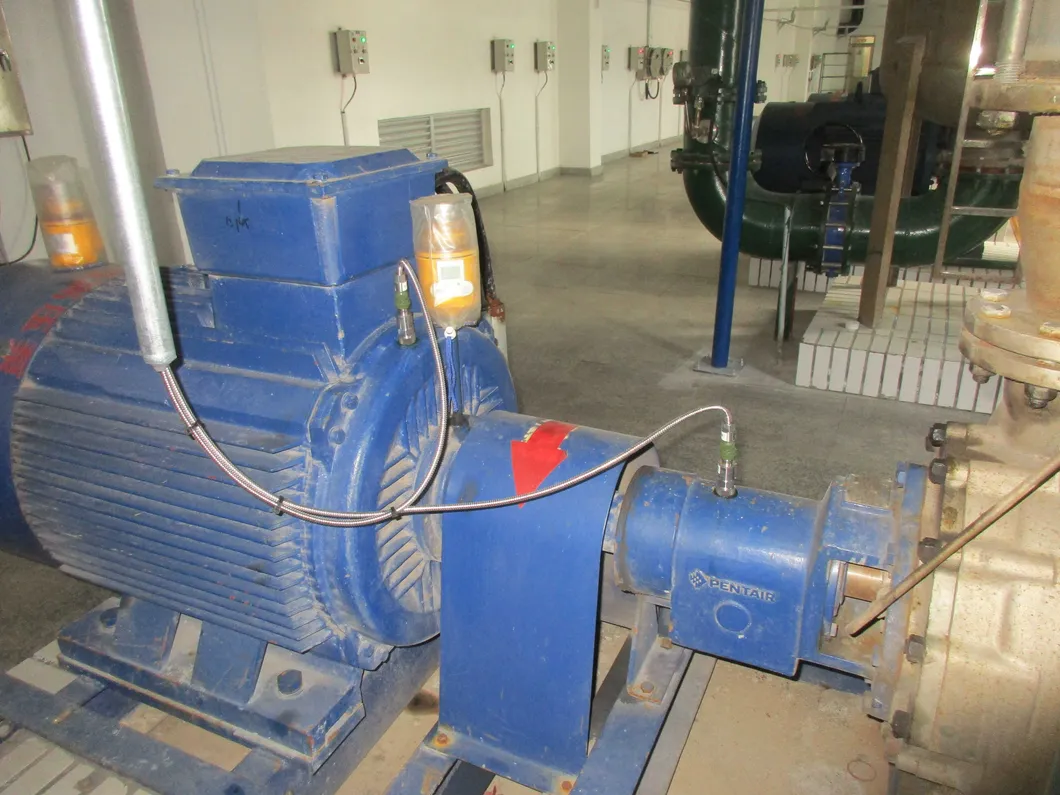

Site Installation

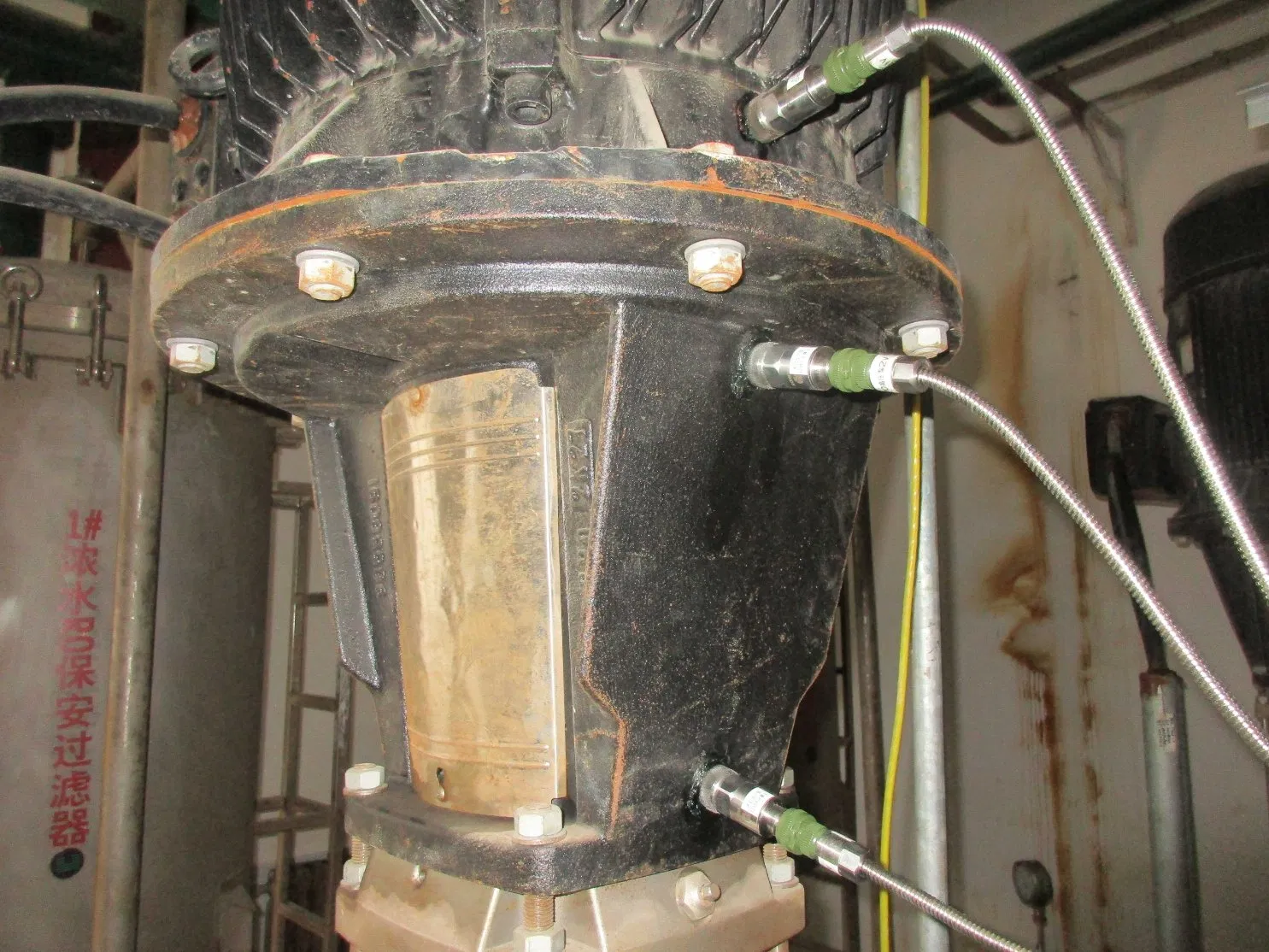

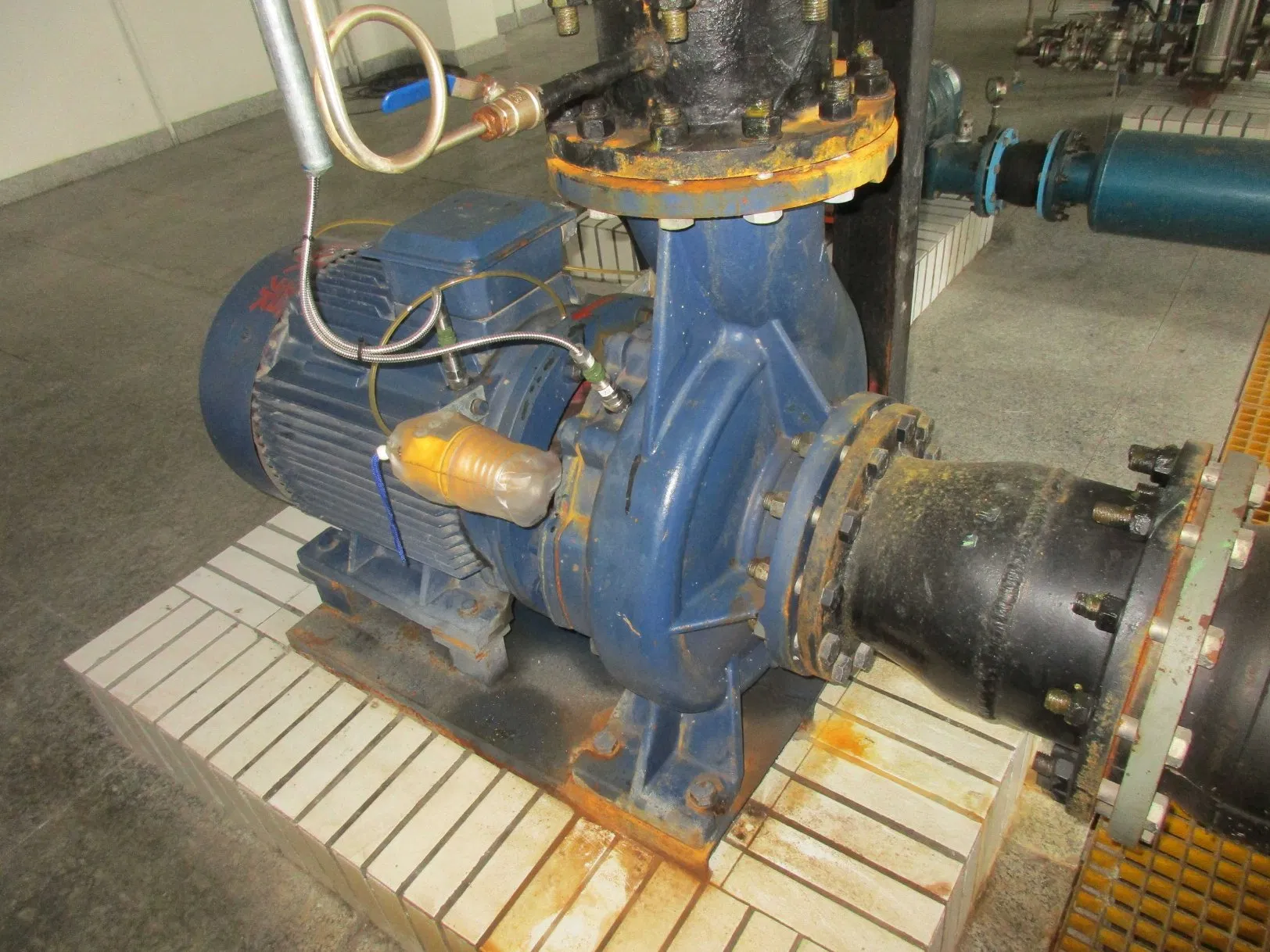

Industrial Plants

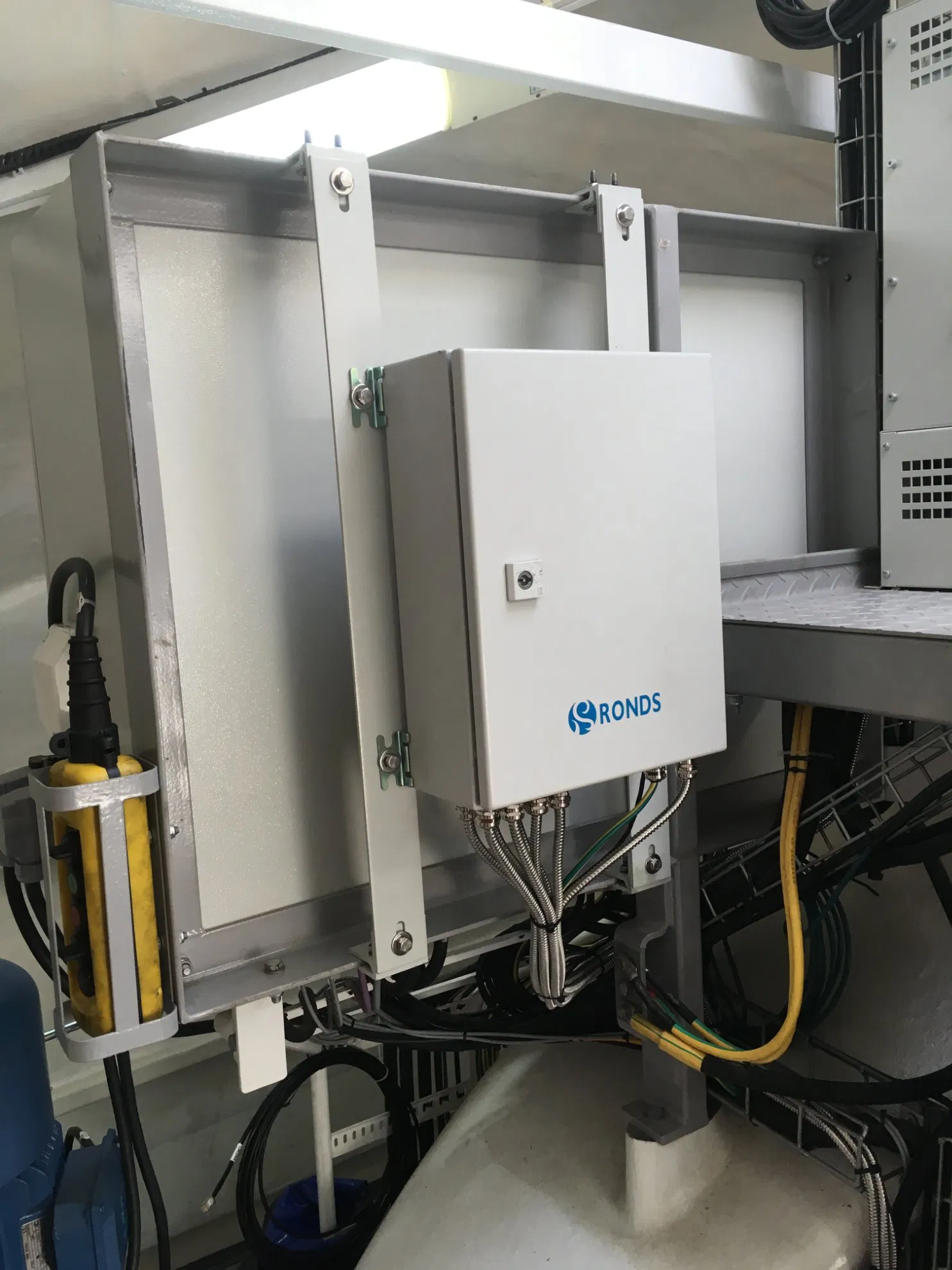

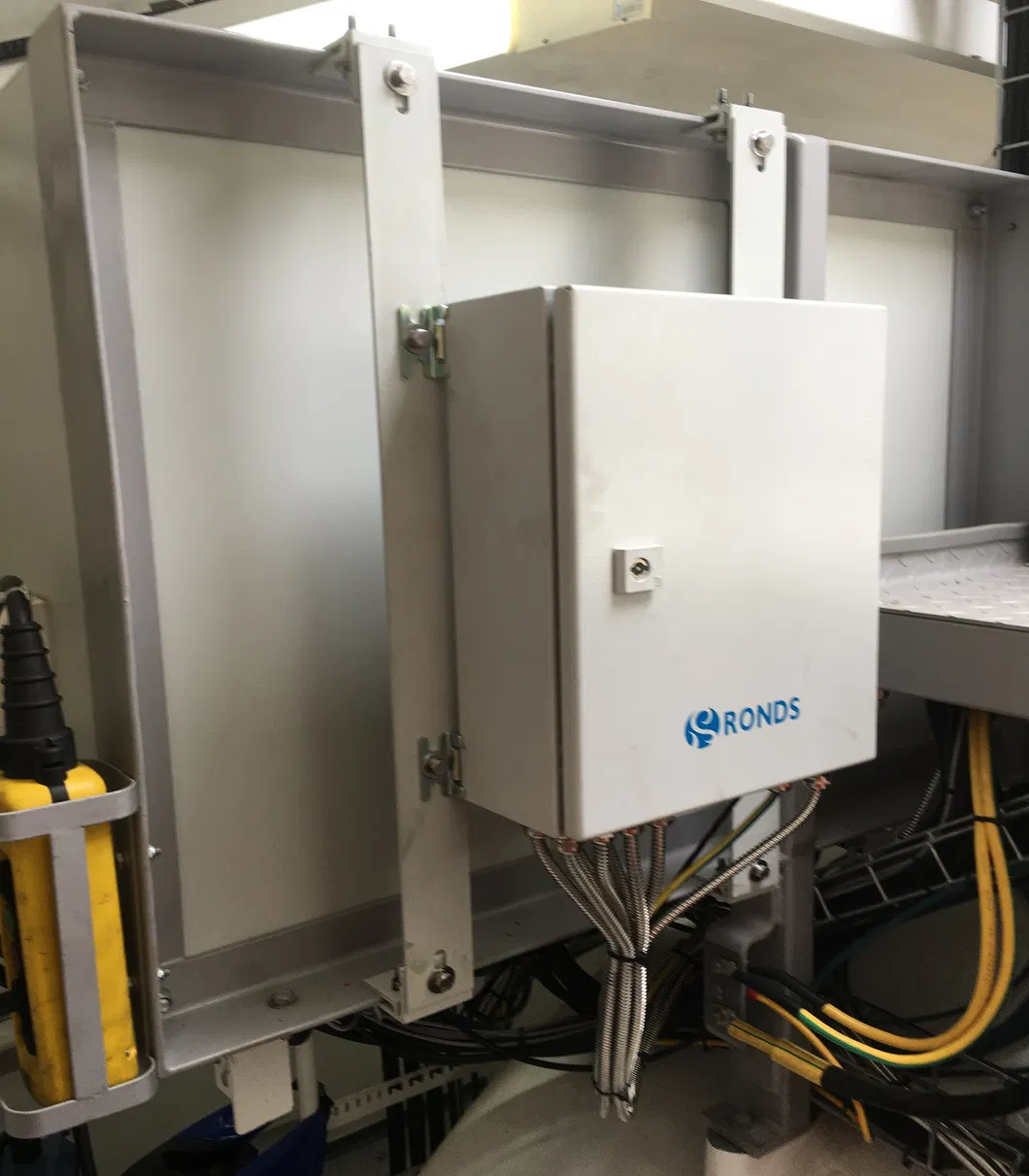

Wind Turbines

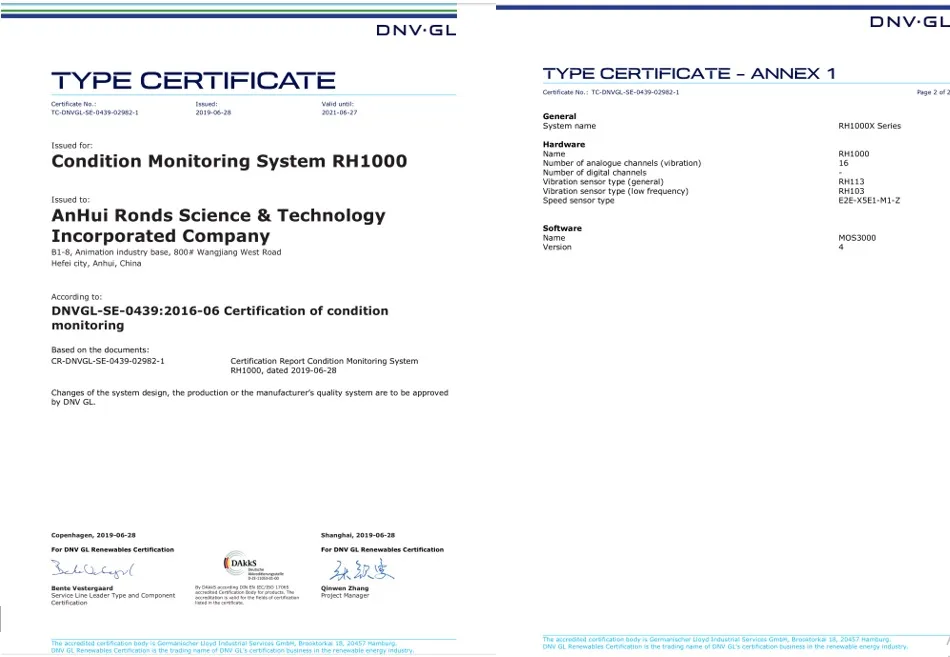

Certification & Expertise

Professional Analysis Team

⭐ 30 Professional Vibration Analysts: Over 20 years of diagnosis expertise.
⭐ Certified Experts: Includes CAT III and CAT II vibration analysts.
⭐ Intelligent Algorithm Team: 11-member algorithm team led by doctoral tutors and a 13-member big data team.

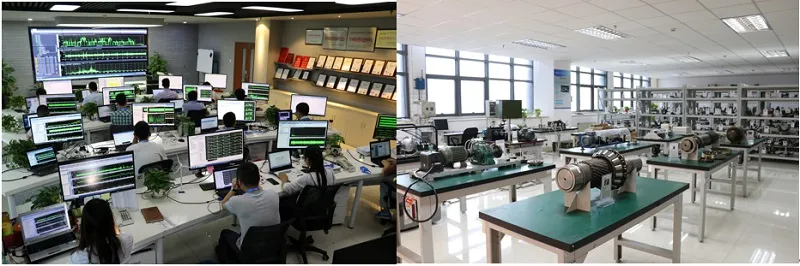

Remote Diagnostic Center and Lab

Frequently Asked Questions

Q1: How many channels does the RH1000 support?

The RH1000 supports up to 16 vibration/temperature channels, 1 speed channel, and 2 processing channels for comprehensive machine monitoring.

Q2: What is the protection rating for the device?

The station is rated IP65, making it suitable for harsh industrial environments and outdoor installations.

Q3: Does it support remote data viewing?

Yes, the system features remote data viewing capabilities and intelligent alarm functions through the MOS3000 software.

Q4: Can it monitor temperature and vibration simultaneously?

Yes, it features integrated temperature measurement support with a range from -40ºC to 120ºC alongside its vibration sensors.

Q5: What certifications does the RH1000 have?

The RH1000 is CE certified and meets various immunity levels for electromagnetic interference (EN61000-4 series).

Q6: Is it suitable for wind turbine monitoring?

Absolutely. It includes an optional sway channel specifically designed for wind turbine tower measurements using the RH123 sensor model.

Product Detail

Continous Condition Monitoring System for Industrial 4.0

Product Description
