60channels CE Certified Condition Monitoring System for Steel Mill
60channels CE Certified Condition Monitoring System for Steel Mill
60channels CE Certified Condition Monitoring System for Steel Mill
60channels CE Certified Condition Monitoring System for Steel Mill
60channels CE Certified Condition Monitoring System for Steel Mill
1 / 5
60channels CE Certified Condition Monitoring System for Steel Mill
60channels CE Certified Condition Monitoring System for Steel Mill
60channels CE Certified Condition Monitoring System for Steel Mill
60channels CE Certified Condition Monitoring System for Steel Mill
60channels CE Certified Condition Monitoring System for Steel Mill

60channels CE Certified Condition Monitoring System for Steel Mill

Transmission Distance: Max 300m
Comunication: Ethernet, Optical Fiber, WiFi, 4G, 5g (Optional)
Industrial Communication Interface: RS485
Send Inquiry

Product Description

i

Basic Specifications

Model NO.RH570
CommunicationZigbee: 2.4GHz IEEE 802.15.4
IP GradeIP66
Shell MaterialCast Aluminum
WeightAbout 2.5kg
Ambient Temp.-40℃~70℃
Sensor SupportUp to 60 PCS
Dimensions260mm × 203mm × 87mm
P

Product Overview

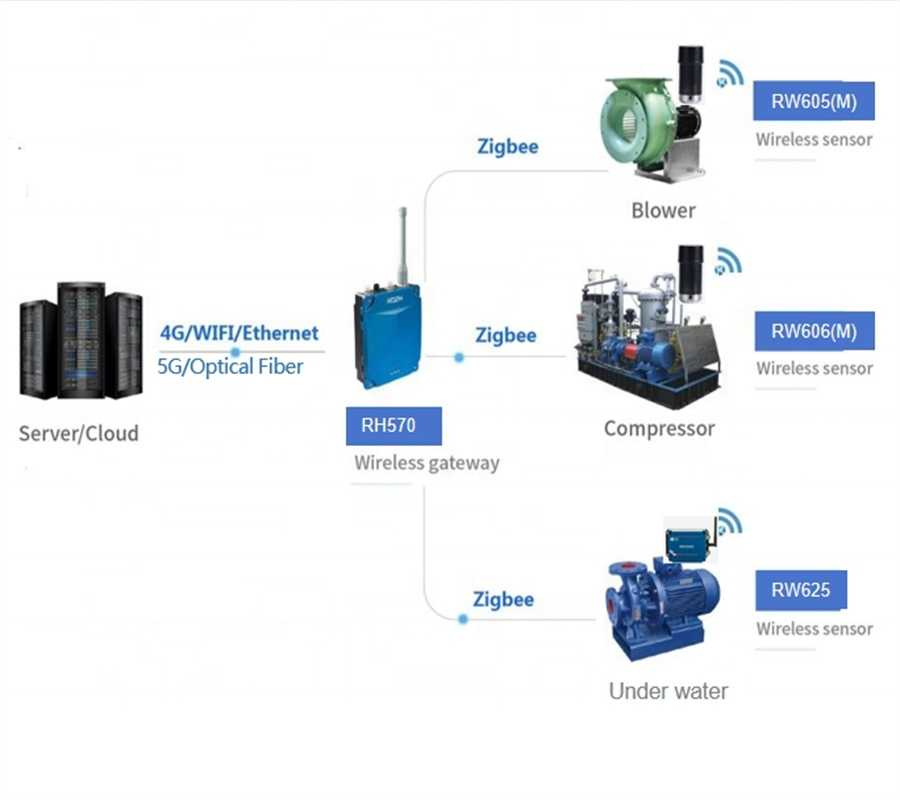

Wireless monitoring station RH570 is a new generation wireless product with strong wireless data transmission functions. By configuring different modules, it is suitable for various application scenarios and supports both wired and wireless data transmission. It can be flexibly adapted for equipment status monitoring in industries such as petrochemical, steel, cement, and mining to achieve accurate and real-time monitoring.

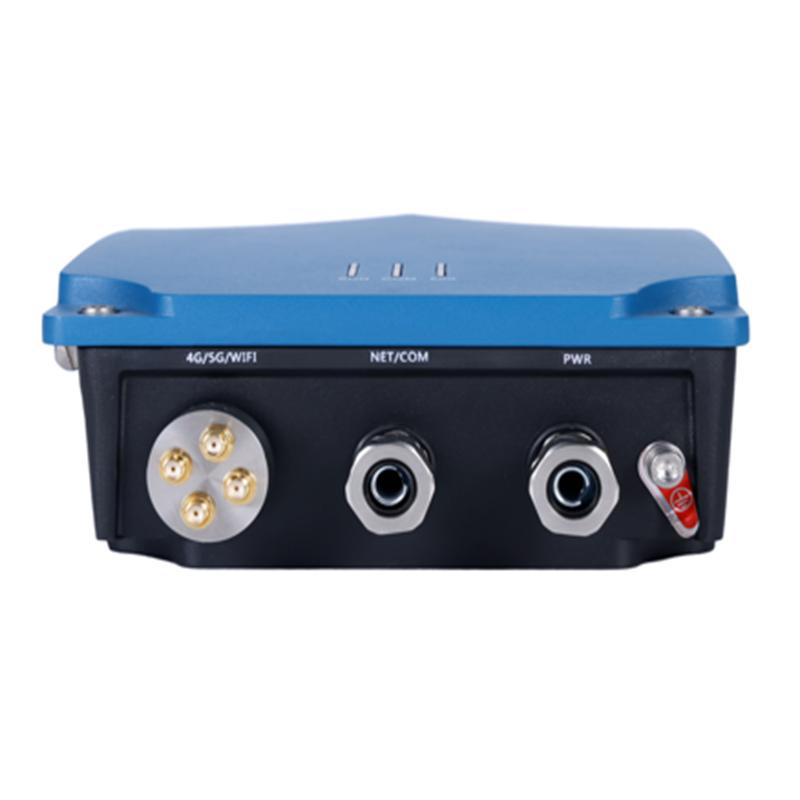

RH570 Wireless Monitoring Station Front View

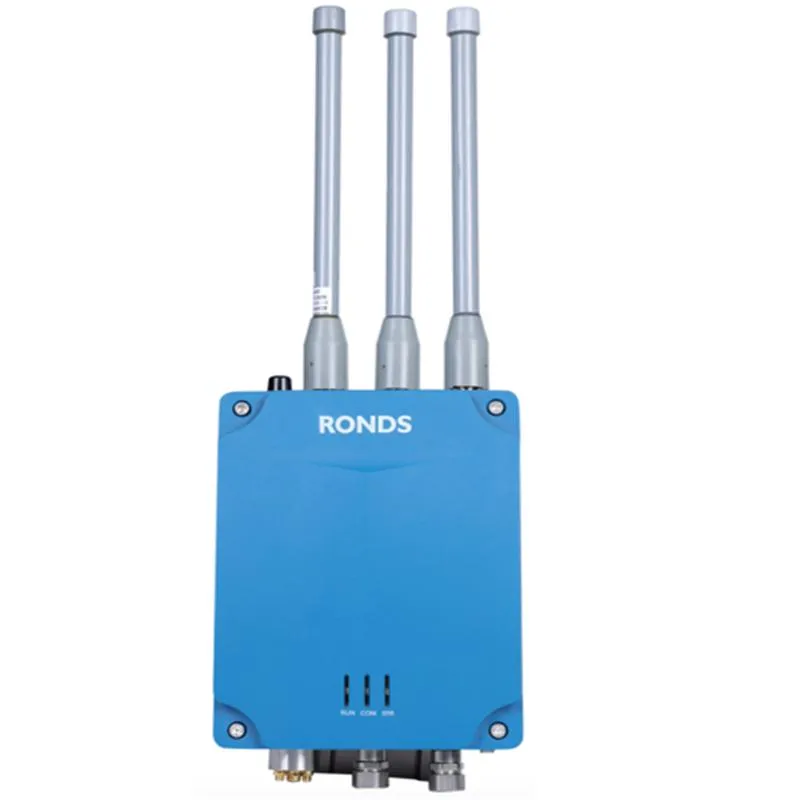

RH570 Wireless Monitoring Station Side View
T

Technical Index

Parameter Specification Remark
Communication with Sensor Zigbee: 2.4GHz IEEE 802.15.4 Standard protocol
Max supported sensors 60pcs Compatible with RW606, RW506, RH505, RH605, RW625
Communication distance 300m Line of sight
Communication method Ethernet, Optical fiber, WiFi, 4G, 5G Optional configurations
Power Supply 100VAC ~ 240VAC Universal input
Protection Grade IP66 Industrial grade waterproof/dustproof
S

Logistics & Service

RH570 Packaging Details

Warranty: One year comprehensive warranty provided for the system.

Pre-Sales Service: Technical plan support, inquiry and professional consulting.

After-Sales Service: Remote training for installation/usage and professional data analysis suggestions.

A

Industry Applications

The wireless monitoring solutions are widely applied in power, petrochemical, steel, cement, and coal industries. Additional applications include mining, paper making, water treatment plants, and municipal transportation.
Industry Application Map
?

Frequently Asked Questions

1. How many sensors can the RH570 wireless station support simultaneously?
The RH570 supports up to 60 wireless sensors, including models like RW606, RW506, RH505, RH605, and RW625.
2. What is the maximum communication distance between the station and sensors?
The station can communicate with sensors up to 300 meters away in a clear line of sight.
3. Is the RH570 suitable for outdoor industrial environments?
Yes, it features an IP66 protection grade and a cast aluminum shell, allowing it to operate in temperatures ranging from -40℃ to 70℃.
4. What data transmission methods are available for the station?
The RH570 offers flexible communication options including Ethernet, Optical fiber, WiFi, 4G, and 5G (Optional).
5. What kind of power supply does the RH570 require?
The device supports a wide range of AC power inputs from 100VAC to 240VAC.
6. What industries typically use the RH570 for monitoring?
It is primarily used for predictive maintenance and status monitoring in the petrochemical, steel, cement, power, and mining industries.
