Briefcase Uav Defense System for Fpv Monitoring and Uninterrupted Drone Detection with Customizable Signaling Equipment

🔍 Basic Information

Function Drone Detection

Protection Class IP65

Detection Range 2 - 8 Km

Battery Capacity 720Wh (18 Hours Operating Time)

Connectivity RJ45 Network & 4G Support

Specification 520*415*224mm / 16 KG

🛡️ Product Description

The portable radio positioning detector integrates drone radio detection, direction-finding, and protocol decoding and positioning functions. By utilizing omnidirectional radio frequency scanning for feature recognition and decoding, it detects unauthorized drones and issues an alert upon target identification.

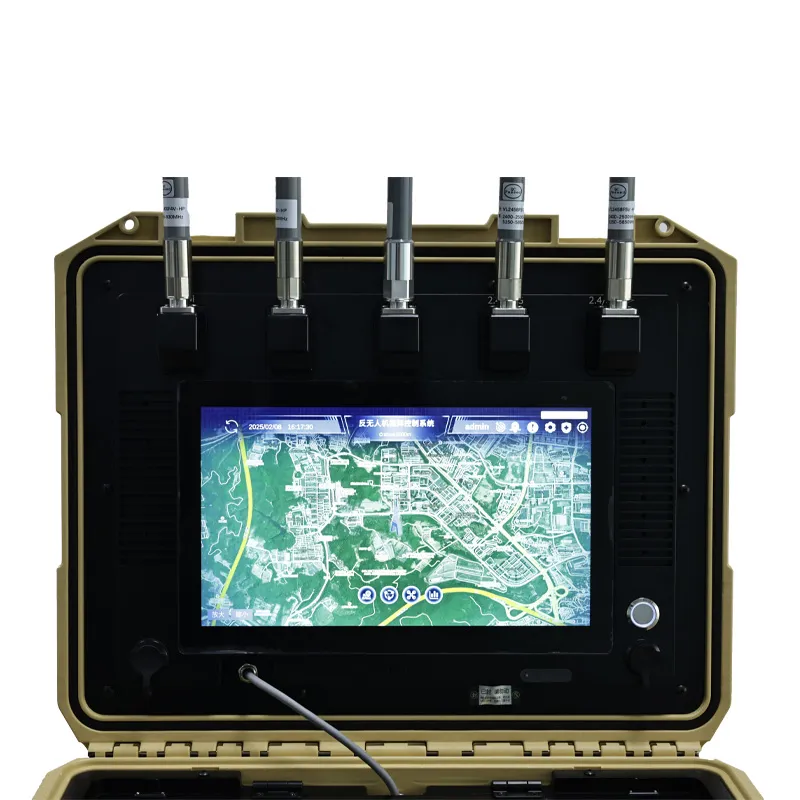

It supports handheld directional antenna operation, using amplitude comparison for direction-finding, and can also decode DJI drone beacon signals, extracting information from the radio messages. The extracted data includes the drone model, serial number (SN), latitude, longitude, orientation, pilot location, and home point. All detection information is intuitively displayed on the 12.6-inch LCD screen.

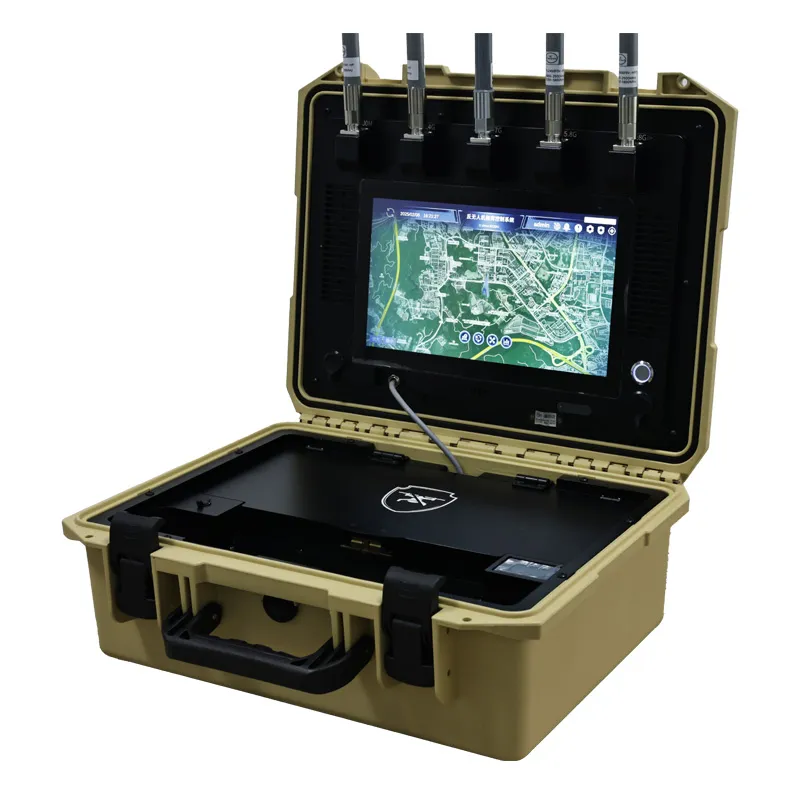

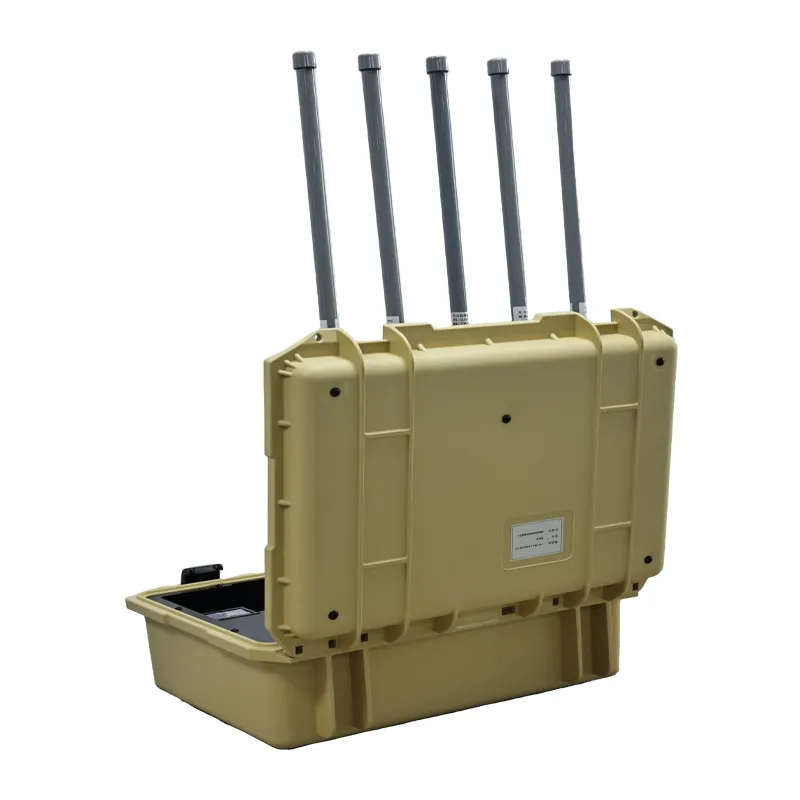

The entire system adopts a modular design with a portable suitcase structure, making it highly mobile. It features a user-friendly software interface for easy operation and supports 24/7 uninterrupted monitoring and recording. The device is capable of simultaneously locating multiple DJI drones and their controllers within a certain range.

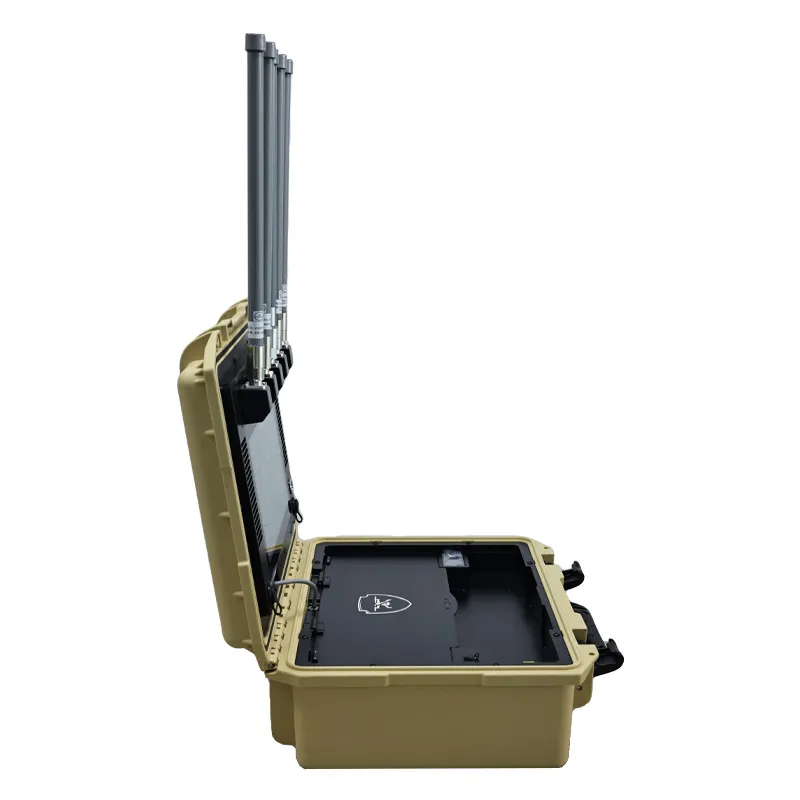

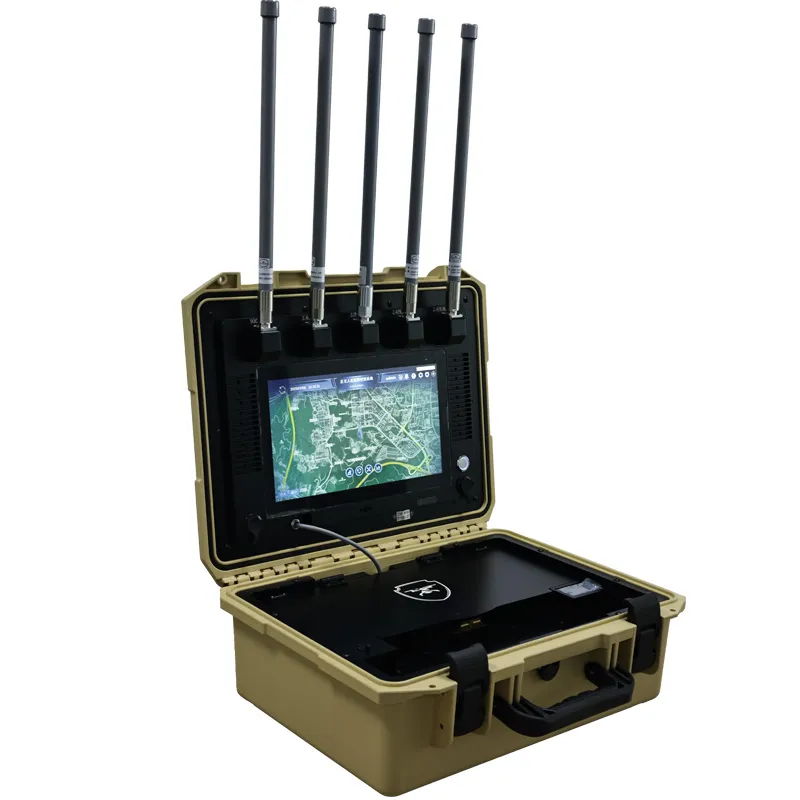

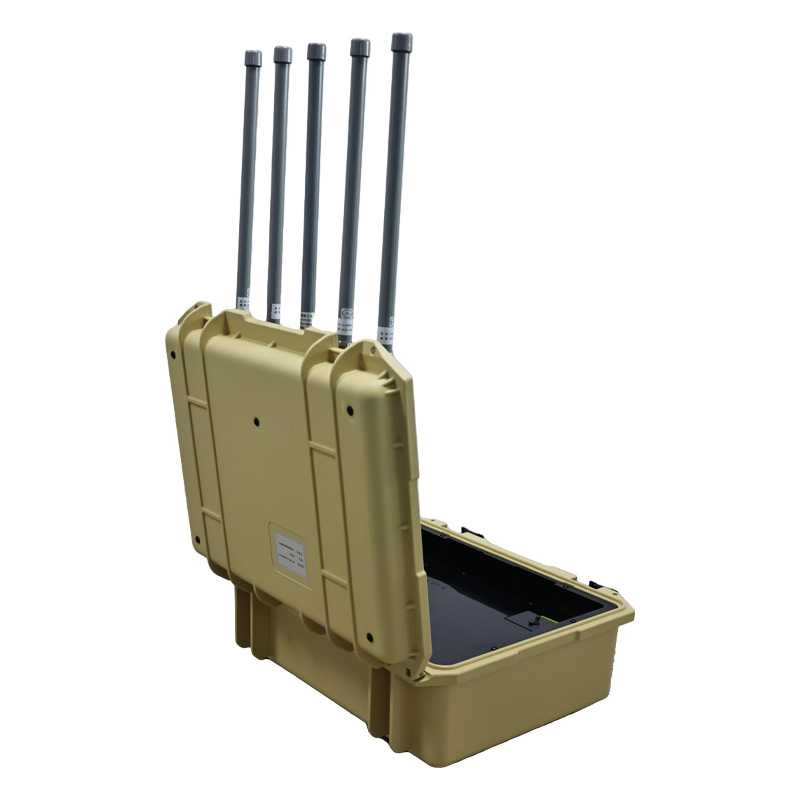

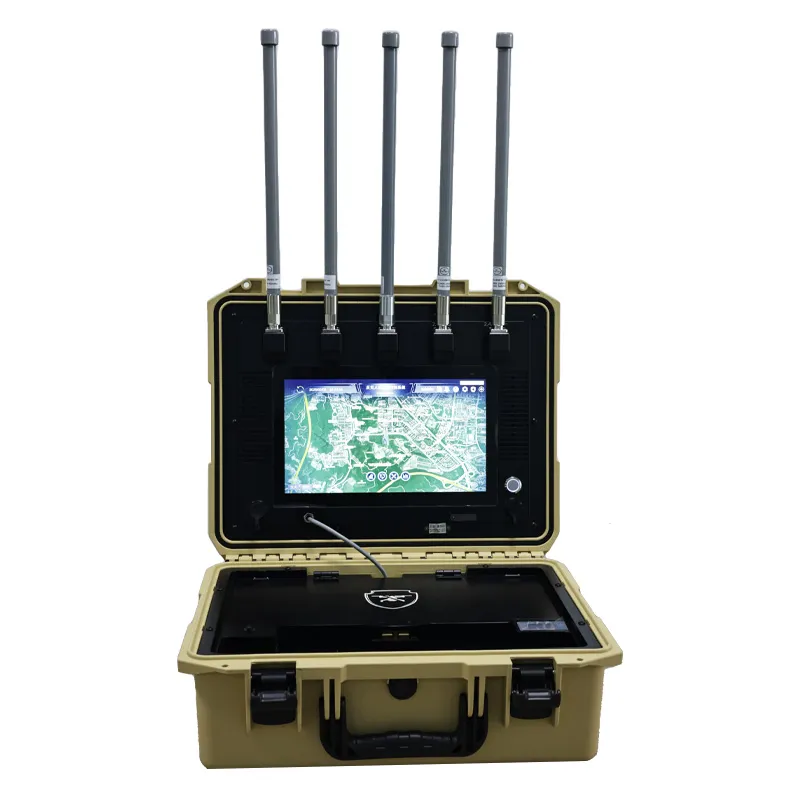

📸 Detailed Photos

✨ Key Features

Pilot Positioning

The device can locate and display the pilot's position in real time.

Drone Tracking

Capable of detecting and tracking the drone's flight location and unique SN.

Network Expansion

Supports integration with backend platforms and multi-device collaboration.

Rapid Deployment

Deploys in seconds and is ready for use immediately upon startup.

📊 Technical Specifications

Parameter	Specification
Device Name	Portable Drone Spectrum Detector
Detection Range	2 - 8 KM
Frequency Band	45MHz ~ 6000MHz
Identification Capability	Supports DJI O3/O4 decryption, RID data, 100+ models
Supported Models	DJI Phantom 4PV2, Mavic 2/3, FPV, 2S, M300, etc.
Screen Size	12.6 inches
Power Consumption	40W
Battery Capacity	720Wh

📦 Packing & Delivery

Quantity (sets)	Lead Time (days)
1 - 500	7 days
501 - 1000	7-14 days
Above 1000	Negotiation

❓ Frequently Asked Questions

1. What is the maximum detection range of this device? The device features a long-range detection capability typically between 2 to 8 kilometers depending on the environmental conditions and drone signal strength.

2. Which drone models can be positioned and tracked? It supports precise positioning for various models including DJI Phantom 4PV2, DJI Mavic 2, DJI Mavic 3, DJI FPV, DJI 2S, and DJI M300, among others.

3. Does the system identify the pilot's location? Yes, by decoding drone beacon signals, the system can extract and display the real-time geographic location of the remote controller (pilot).

4. How long can the device operate on a single charge? With a built-in 720Wh battery, the device can operate for up to 18 hours under ideal conditions, supporting long-term uninterrupted monitoring.

5. Is the device suitable for outdoor use in harsh weather? The system is designed with an IP65 protection rating, ensuring resistance against dust and low-pressure water jets, making it suitable for various outdoor environments.

6. What type of identification data does the detector provide? The system provides the drone model, unique serial number (SN), latitude/longitude coordinates, altitude, orientation, and home point data.
