Basic Specifications
Application
FTTH FTTB FTTX Network
Pon Interface
Support Both Gpon Epon Pon Card
Function
Distribution Fiber System (FTTH)
Production Capacity
5000PCS/Per Week
Packaging & Delivery
Package Size
58.00cm * 45.00cm * 30.00cm
Product Description

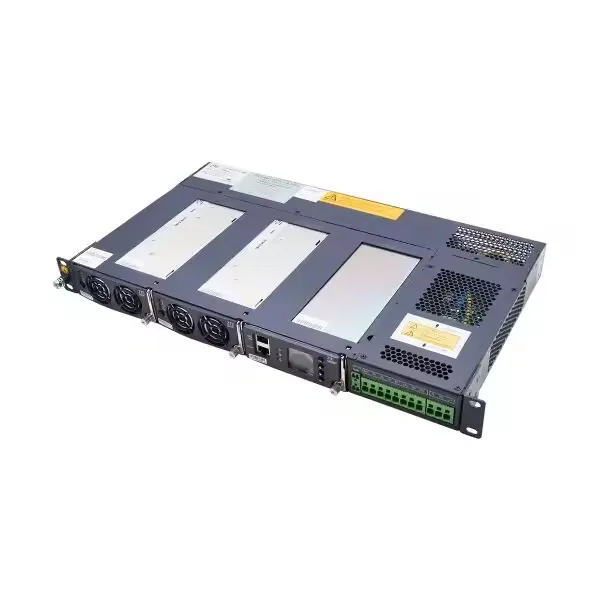

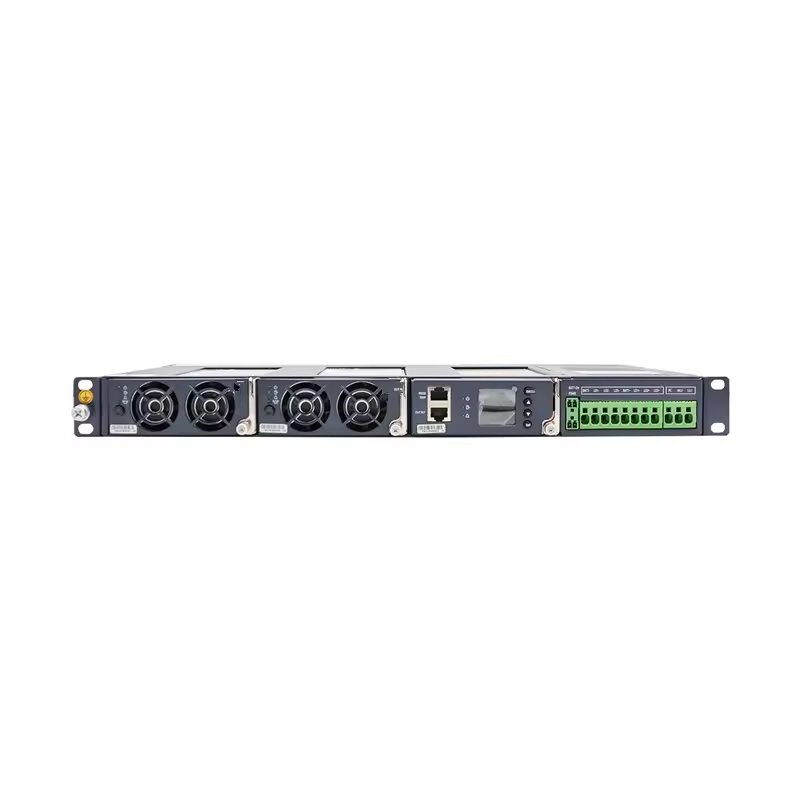

- 1U height, compact design suitable for 19-inch rack installation.
- ZXDU48 B600 configuration: 3 LOAD, 1 BATT.
- Flexible input: Supports 220V single-live wire and 110V dual-live wire voltage input.
- Wide voltage range: Operates reliably from 85V to 295V phase-to-neutral.
- Frequency compatibility: Operates within the AC range of 45Hz to 66Hz.
- Adjustable Output: Rated DC output voltage is -53.5V, adjustable from -42V to -58V.

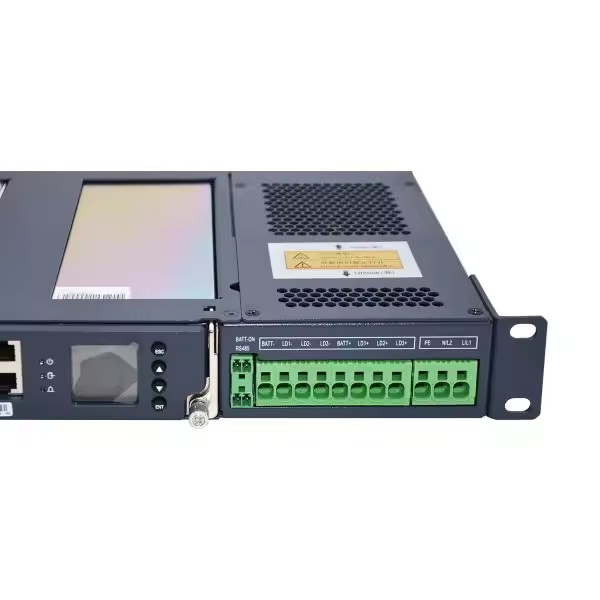

- Smart Monitoring: Provides input/output dry contacts and RS232 communication ports.
- Environmental Compliance: Fully complies with RoHS (2002/95/EC) requirements.
Technical Specifications
| Item |
Description |
| Operating temperature |
-33ºC to +55ºC (Full power); Auto power-off at >75ºC |
| Relative humidity |
5% to 95% (non-condensing); Recommended 40% to 60% |
| Altitude |
0m to 2000m (Full power); 2000m to 3000m (Derated 1% per 100m) |
| System capacity |
3200W/66A (Requires two ZXD1500 rectifiers) |
| Peak Efficiency |
95% |
| Input AC Features |
Voltage Range |
85 V to 295 V (Rated 200V to 240V) |
| Frequency Range |
45 Hz to 66 Hz |
| Power Factor (PF) |
≥ 0.996 at rated load |
| Output DC Features |
Rated Voltage |
-53.5 V DC |
| Adjustment Range |
-41 V to -58 V (via CSU) |
| Lightning Protection |
Imax = 3 kA (8/20 μs) |
| Dimensions |

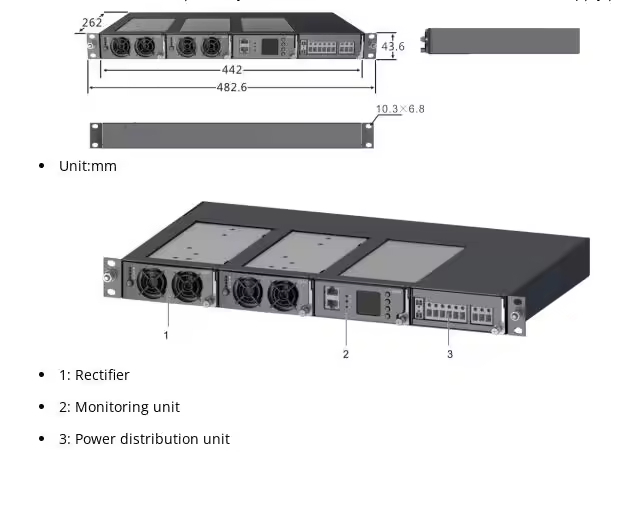

43.6 mm x 482.6 mm x 260 mm (H x W x D) |
| Weight |
Approx. 8 kg (including rectifiers) |

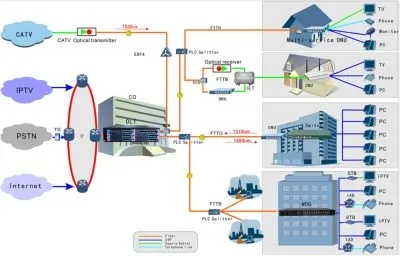

Product Features Overview
Frequently Asked Questions
Q1: What is the main application of the ZXDU48 B600 power system?
A: It is primarily designed for FTTH, FTTB, and FTTX network infrastructures, providing reliable DC power to communication devices.
Q2: Can this power system be installed in standard cabinets?
A: Yes, it features a 1U height and a 19-inch width, making it perfectly compatible with standard 19-inch racks or cabinets.
Q3: Does the system support different AC input voltages?
A: Yes, it is versatile, supporting 220V single-live wire input as well as 110V dual-live wire input.
Q4: What is the maximum power efficiency of this unit?
A: The system achieves a peak efficiency of 95%, ensuring minimal energy loss during power conversion.
Q5: What are the built-in safety protection features?
A: The system includes AC/DC overvoltage and undervoltage protection, battery low voltage disconnect (BLVD), and thermal protection that powers off the unit if temperatures exceed 75°C.
Q6: Is the product environmentally friendly?
A: Yes, the ZXDU48 B600 power system complies with the RoHS requirements of the European Union.
