Transport Package:	Carton
Trademark:	RONDS
Origin:	China

Send Inquiry

Product Description

Basic Specifications

Model NO. RH560

HS Code 9031809090

Production Capacity 100,000

Main Features

1

Measure both vibration and temperature data

2

Long battery lifetime: 3 years

3

CE / EX certification available

4

One key upgrade for firmware

5

Easy installation: no wiring required

6

Online training and technical support

Technical Parameters

RH560 Wireless Data Collector
Input and Output
Communication protocol	2.4GHz IEEE 802.15.4
Connecting Units	Up to 40 units (RH505)
Analysis Frequency(Hz)	500/1K/2K/5K/10K/15K/20K
Number of Samples	1K~128K (1K=1024)
Electrical and Structure
Power Supply	220V AC
Dimension (L * W * H)	203 mm × 82 mm × 260 mm
Weight	3 kg
Mounting	Hanging or fixation through holder
Environment
Working Temperature	-40 ~ 70 °C
IP Grade	IP66

RH605 Wireless Vibration & Temperature Sensor
Vibration Measurement
Vibration Range	Piezo: ±50g \| Mems: ±16g
Linearity	1%
Frequency Response	Piezo: 2Hz~20kHz \| Mems: 2-1000Hz
Analysis Frequency(Hz)	Piezo: 500~20K \| Mems: 500, 1K
Measurement Types	Overall value, FFT, time signal, Envelop FFT
Temperature Measurement
Temperature Range	-40 ~ 125 °C
Temperature Accuracy	±1 °C
Electrical and Structure
Power Supply	Lithium battery, 3.6V, 3.3Ah
Dimension	46 mm × 94 mm (Dia * H)
Weight	188 g
IP Grade	IP67

Product Visualization

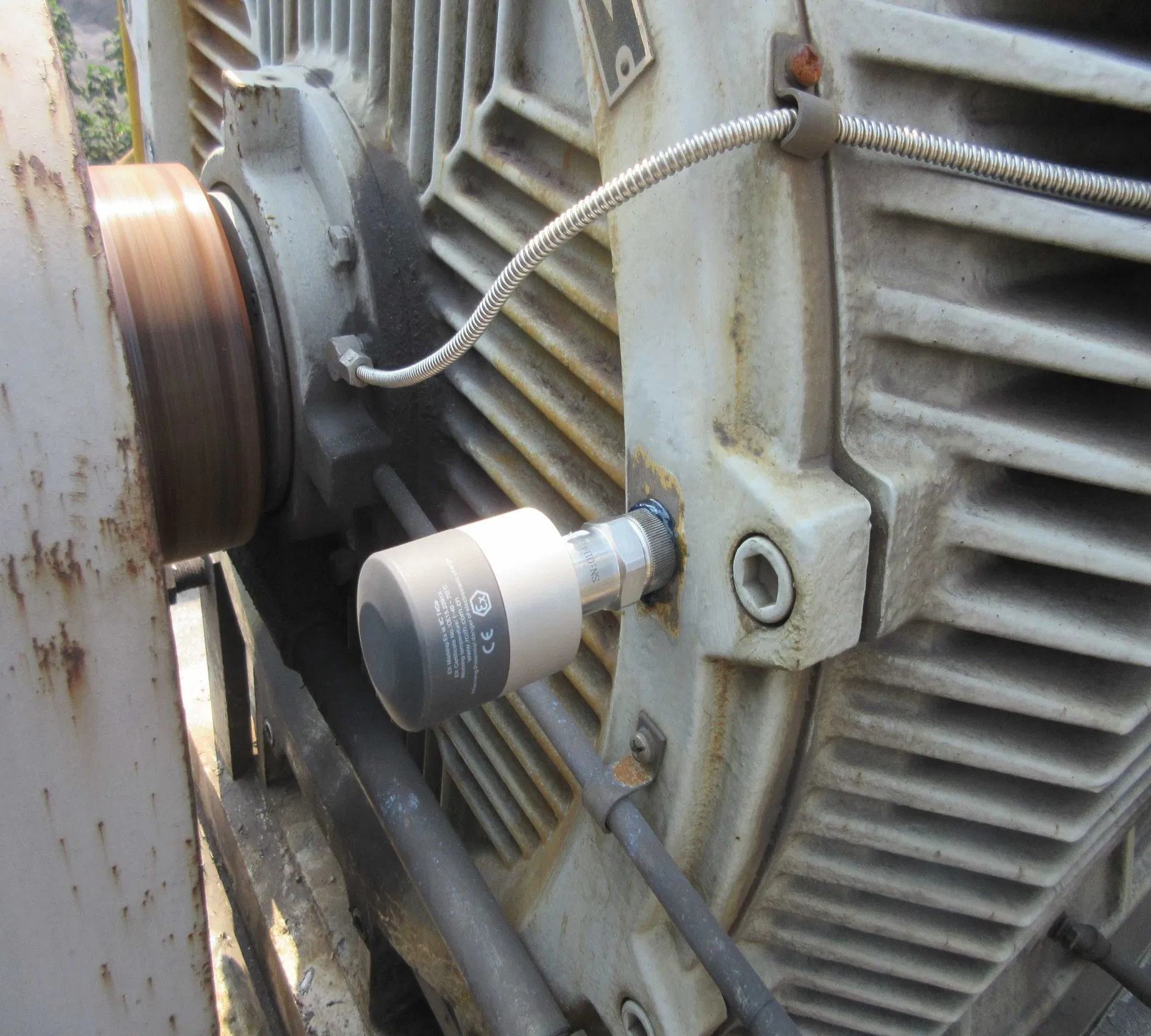

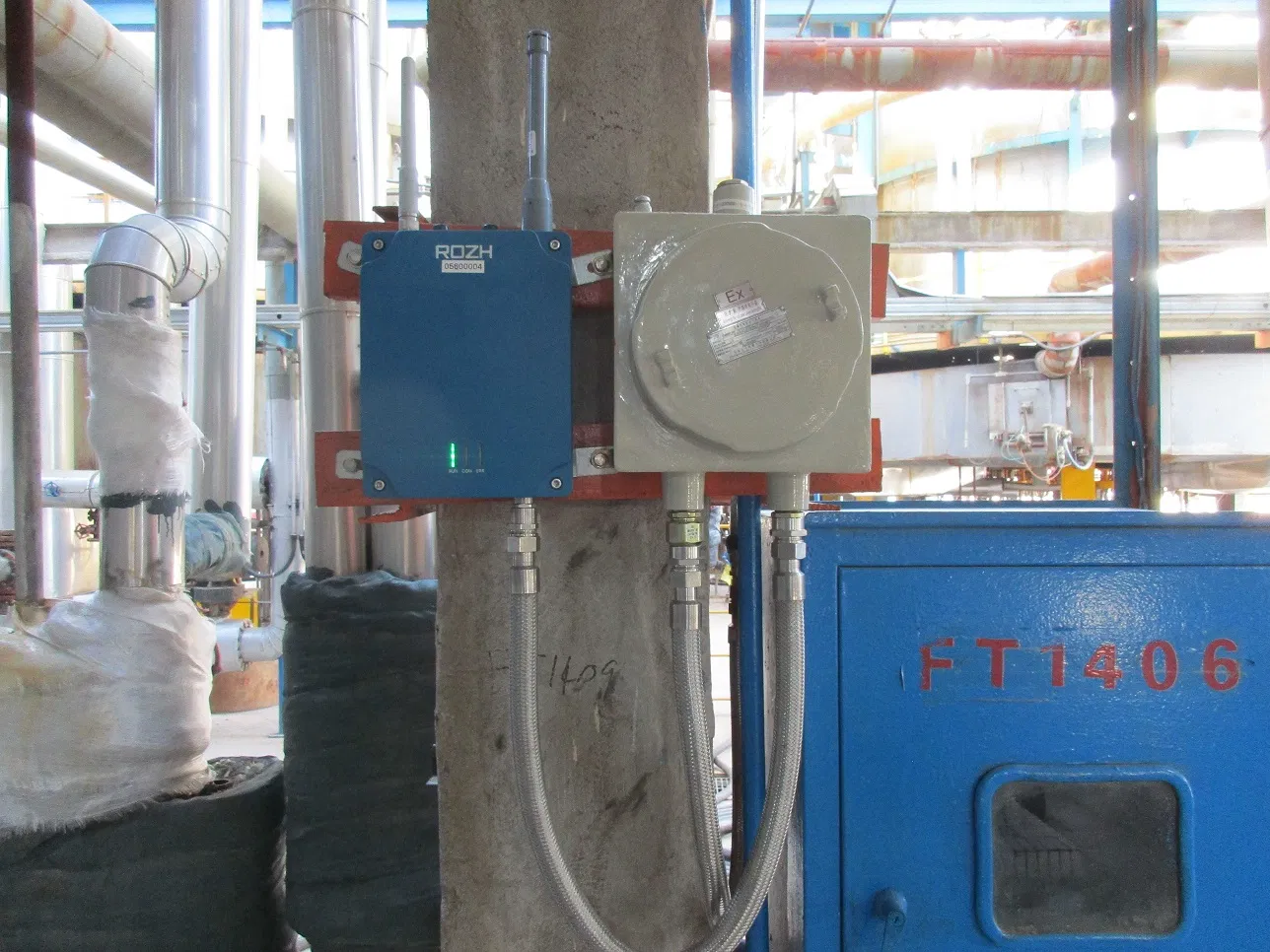

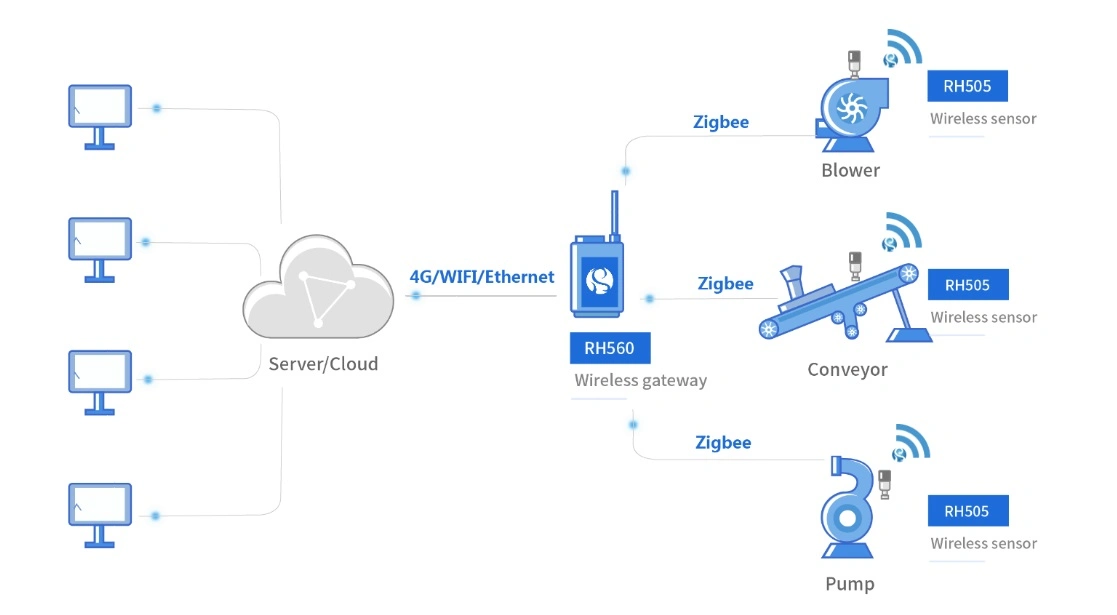

Wireless Monitoring Solution

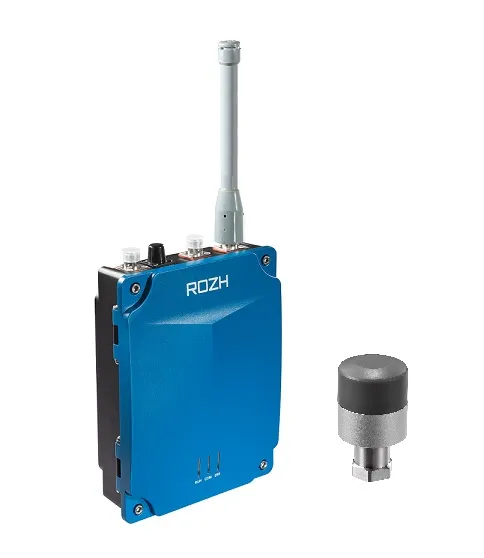

Wireless Vibration Sensor

Certificates

Product Certificates

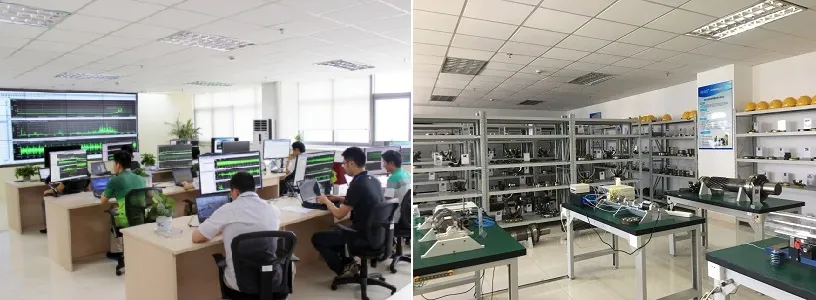

Remote Diagnosis Center and Laboratory

Exhibition and Customer Engagement

Exhibition Photo 1

Exhibition Photo 2

Expert Team

Team Support

30 Professional Vibration Analysts:

Diagnosis experts with 20+ years' experience
CAT III vibration analysts
CAT II vibration analysts

Intelligent Algorithm & Big Data Team:

Algorithm team with 11 members led by doctoral tutors
Big data team with 13 dedicated members

Frequently Asked Questions

Q: What is the battery life of the wireless vibration sensor?

A: The sensor features a long battery lifetime of approximately 3 years.

Q: Can the device monitor both vibration and temperature?

A: Yes, it is an integrated sensor capable of measuring both vibration and temperature data simultaneously.

Q: What is the protection grade for the hardware?

A: The RH560 wireless data collector is rated IP66, while the RH605 sensor is rated IP67 for superior environmental protection.

Q: Is the installation process complicated?

A: Not at all. It offers easy installation with no wiring required, making it suitable for various industrial environments.

Q: What communication protocol is used for data transmission?

A: The system utilizes the 2.4GHz IEEE 802.15.4 communication protocol for stable wireless data collection.

Q: Are certifications available for hazardous environments?

A: Yes, CE and EX certifications are available for the equipment.
