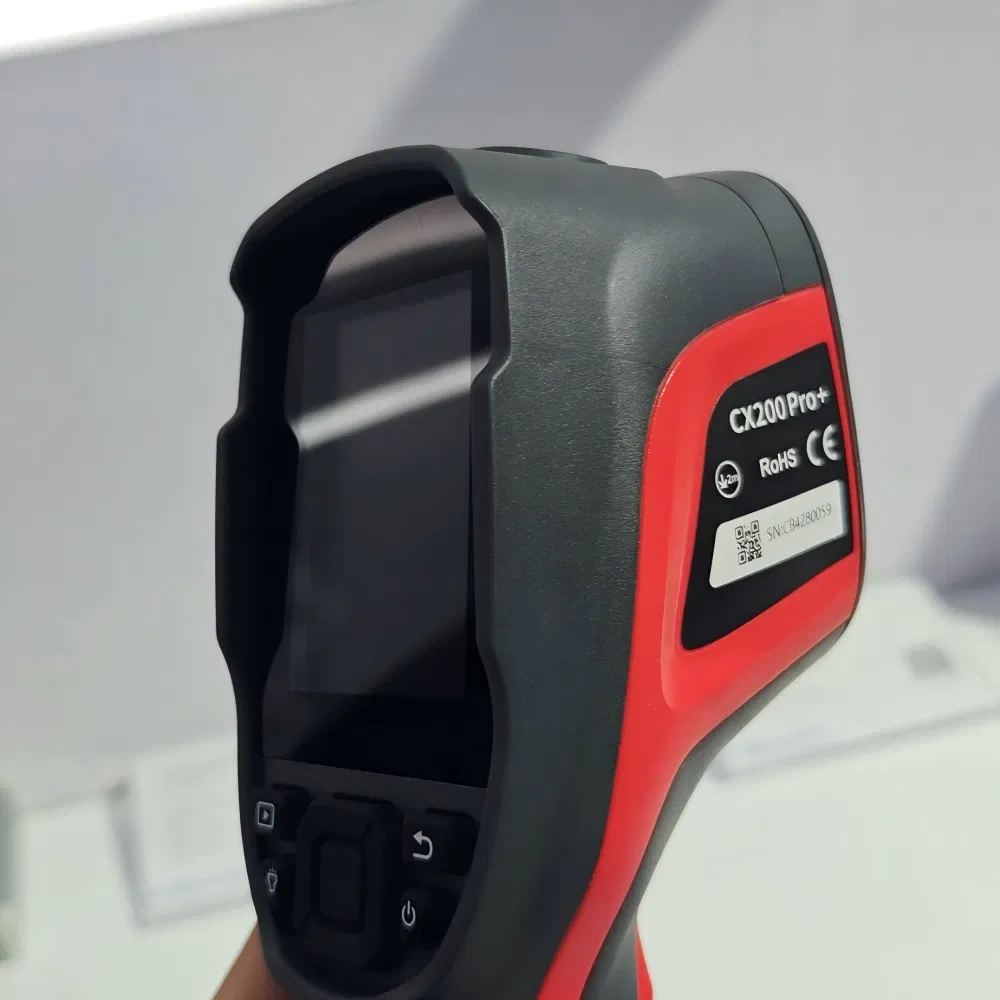

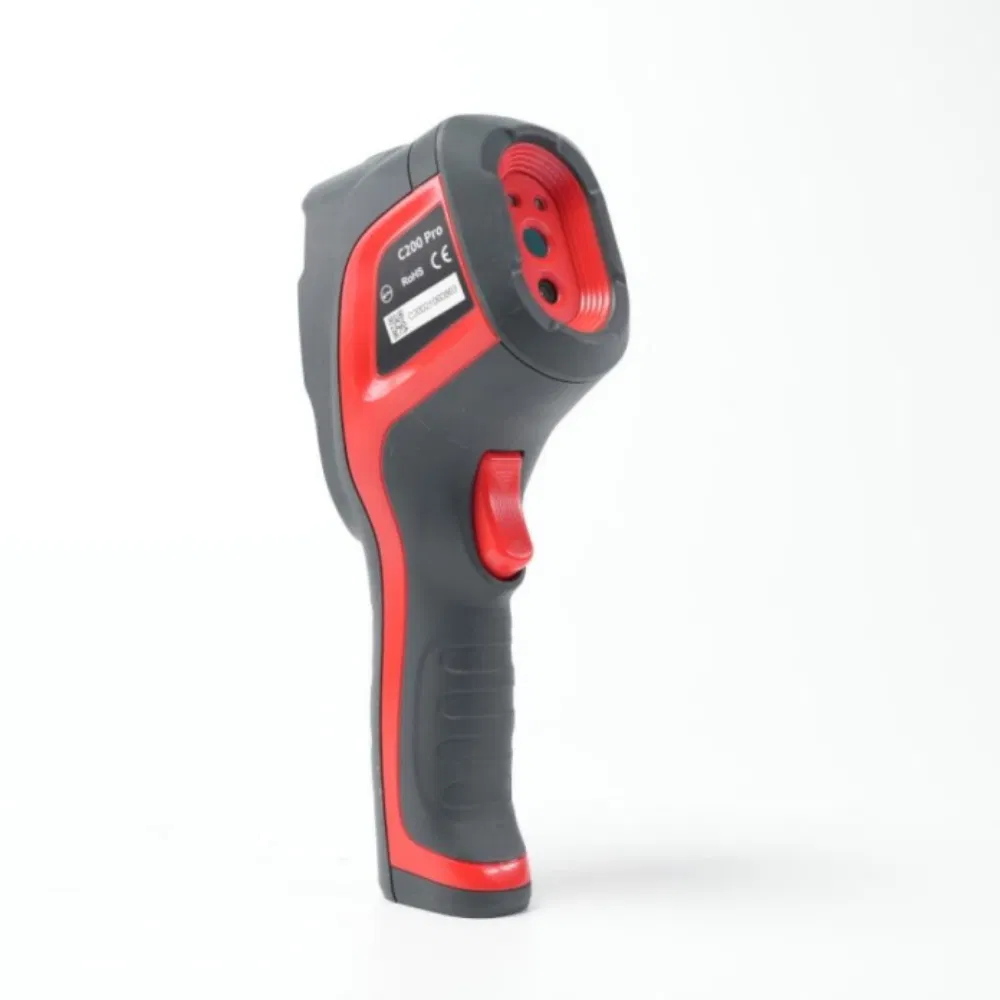

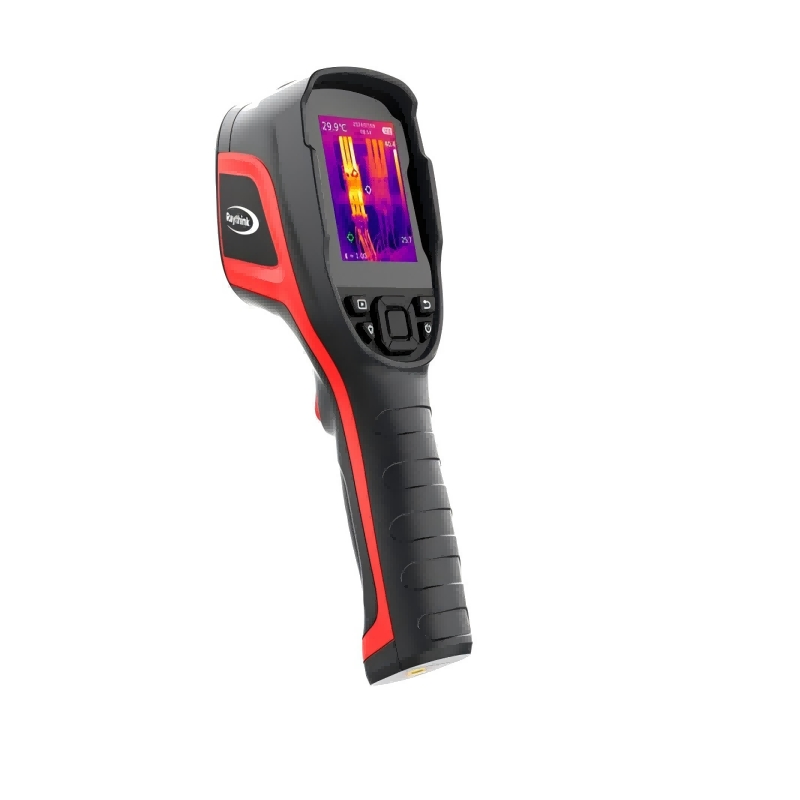

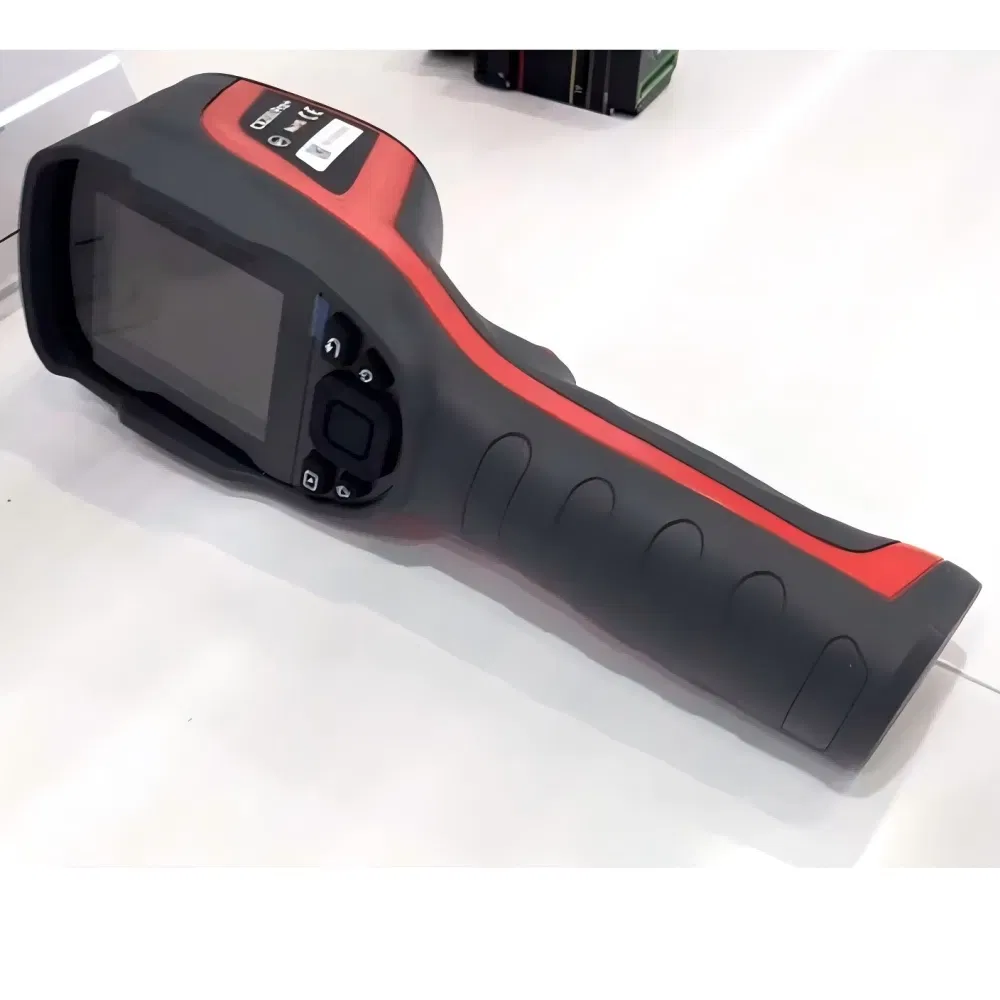

Equipped with a high-sensitivity infrared detector with a resolution of 256×192, based on an intelligent image algorithm, the CX200 Pro+ handheld thermal camera can generate clearer and sharper thermal images.
Equipped with a self-developed 12μm 256×192 uncooled infrared detector. NETD as low as 40mK, capturing smaller temperature differences. With AI real-time super-resolution technology, resolution jumps to 320×240.
Shorter startup duration of 6s and smooth operation response. Support automatic switching of temperature measurement modes and built-in video recording for efficient analysis.
IP54 waterproof and dustproof with 2m drop protection. Built-in 32GB memory card (expandable to 128GB) and an impressive 15-hour battery life.
Support complete secondary analysis software for PC and thermal image transmission & analysis applications for mobile devices (iOS/Android).
| Thermal Imaging & Optical Parameters | |
|---|---|
| Detector Type | 12μm uncooled infrared detector |
| Infrared Resolution | 256×192 |
| AI Real-time Super-resolution | 320×240 |
| Spectral Band | 7.5~14μm |
| NETD | <40mK (25°C, F1.0) |
| Frame Rate | 25Hz |
| Lens Focal Length | 3.2mm |
| FOV / IFOV | 56°×42° / 3.75mrad |
| Focus Mode | Fixed focus |
| Measurement Range | -20°C~+150°C, 100°C~550°C |
| Imaging Display | |
| Display | 2.8 inch, 320×240 |
| Visible Light Camera | 2 megapixels |
| Image Mode | Infrared, visible light, PIP, dual-spectrum fusion |
| Palettes | 7 options |
| System & Storage | |
| Storage Medium | Standard 32GB MicroSD, up to 128G |
| Alarm Type | High/Low temp alarm; Image pop-ups, flash prompts, auto capture |
| Communication | USB Type-C, WiFi |
| Physical Characteristics | |
| Battery Life | About 15 hours |
| Protection Rating | IP54, 2m Drop Protection |
| Dimensions / Weight | 237×75×92mm / About 520g |
