Wireless Condition Monitoring Solution for Submersible Pumps

After-Sales Service:	Repair
Warranty:	1 Year
Protection Level:	IP67

Send Inquiry

Product Description

Basic Specifications

Model NO.

RW625

Transport Package

Carton/Air Freight

Specification

188g

Origin

China

HS Code

9031809090

Production Capacity

2000/Month

Product Description

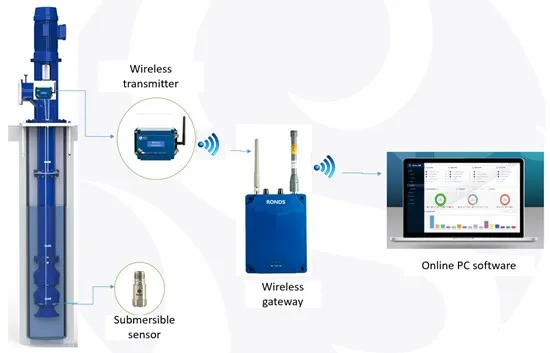

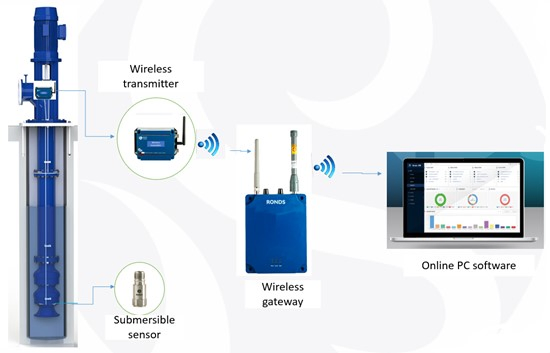

Working Diagram Wireless Condition Monitoring Solution for Submersible Pumps

System Features

Monitor the below ground assembly of vertical pumps to provide a more accurate and complete picture of pump health.
Use a combination of wired accelerometers and wireless transmission to capture data at high frequency intervals and communicate the data to Predictive Maintenance software.

Key Benefits

Understand risk of operation for different operating conditions (seasonal changes, water level changes, process condition changes, etc.).

Significantly improved warning of problem conditions, resulting in lower cost of repair and better maintenance planning.

More valuable data for diagnosis and remediation of problems.

Ability to detect if stationary assembly mode shape is being excited during operation.

Interface with cloud-based storage and software allows remote access to data.

Suggested Applications

Service water Circulating water Condensate Cooling water Dewatering Pipeline Booster

Technical Parameters

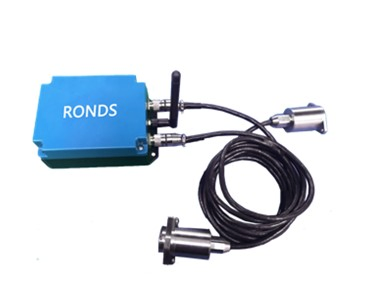

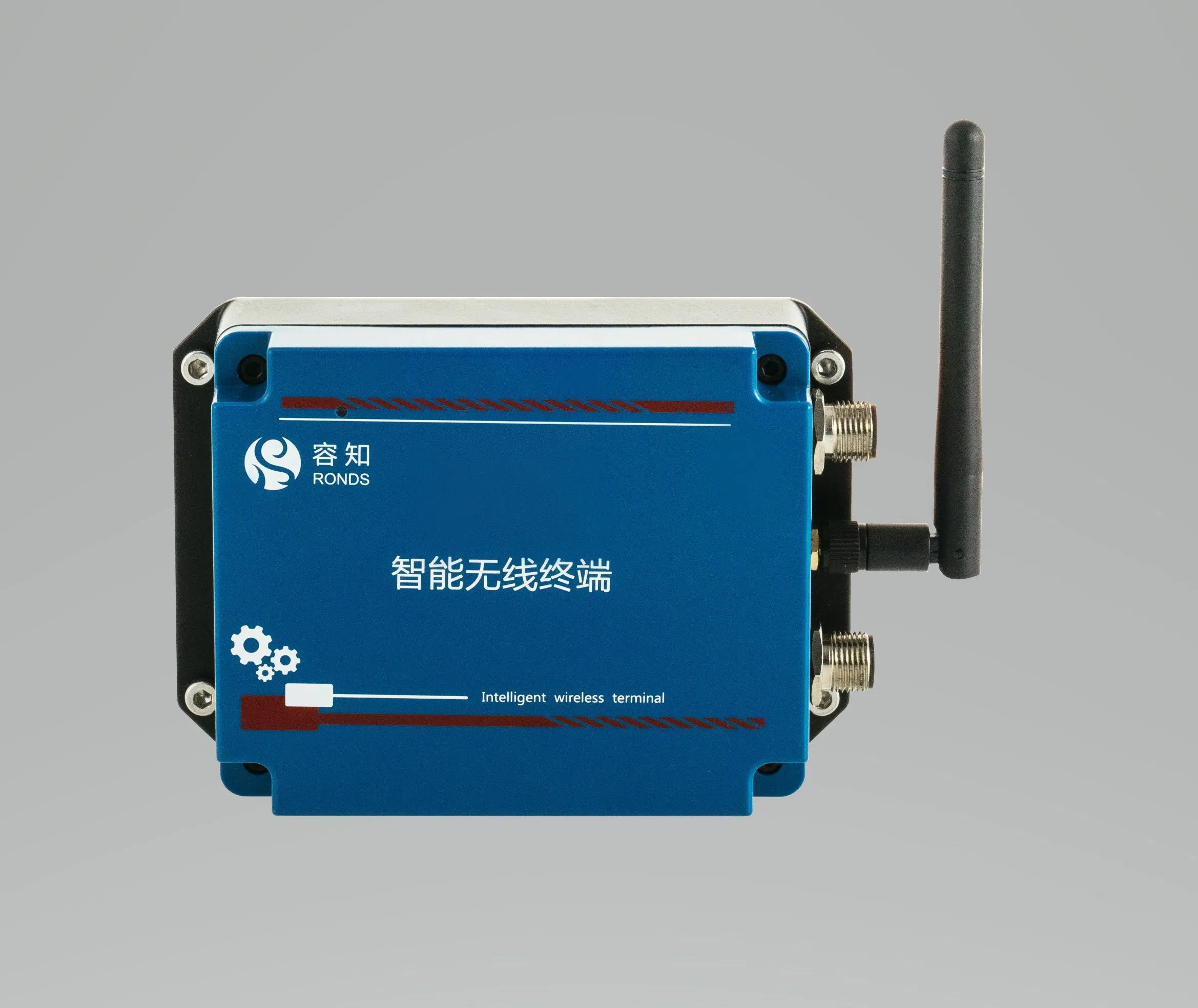

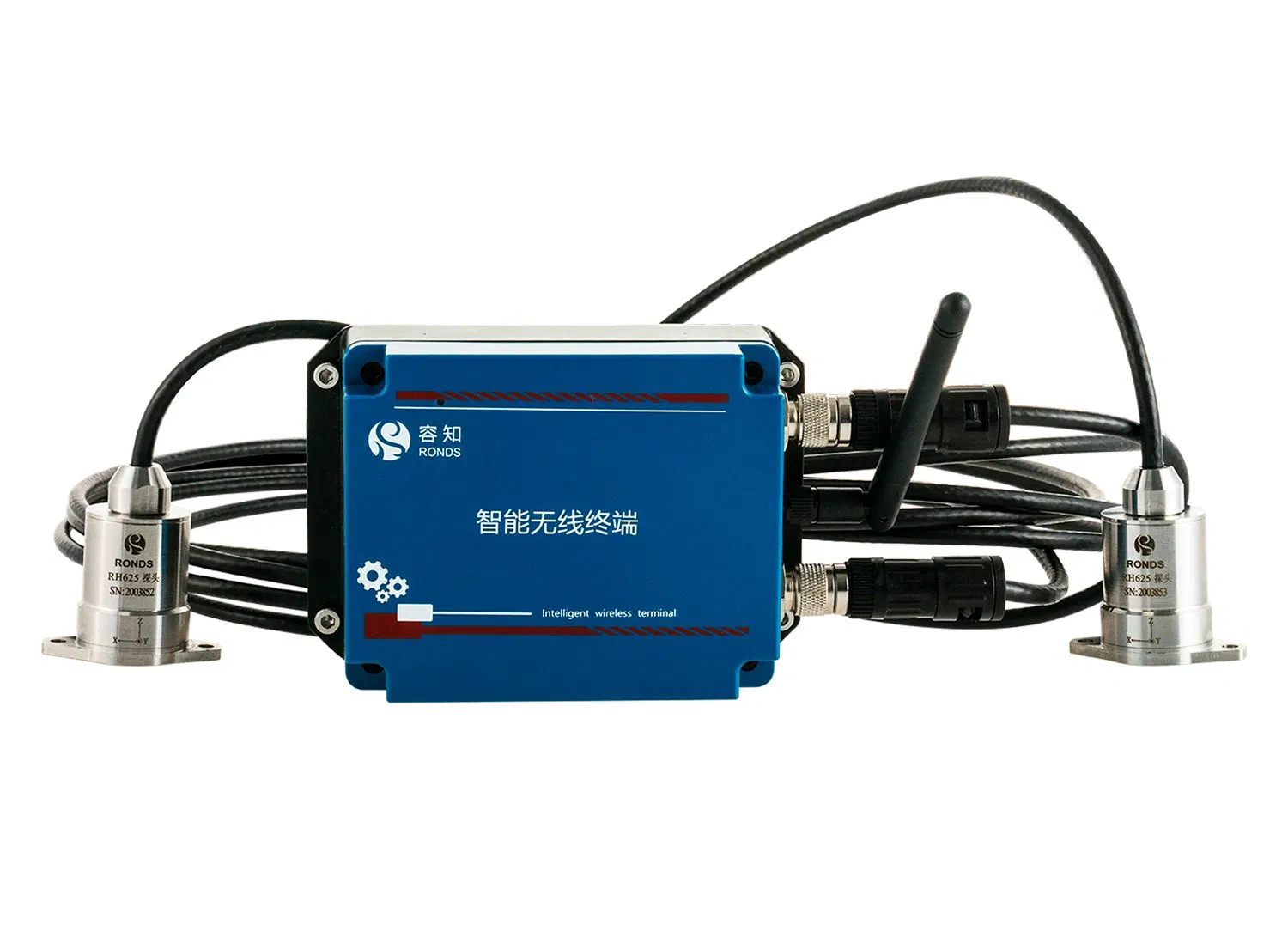

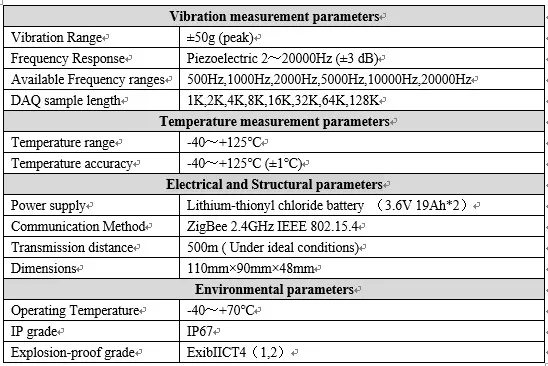

Wireless Transmitter

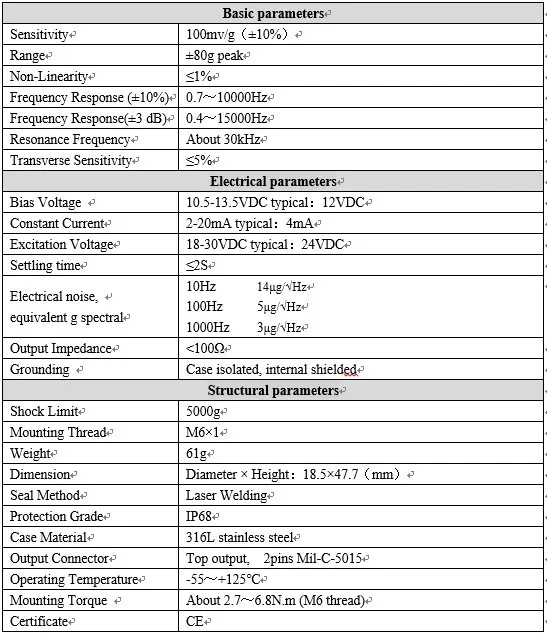

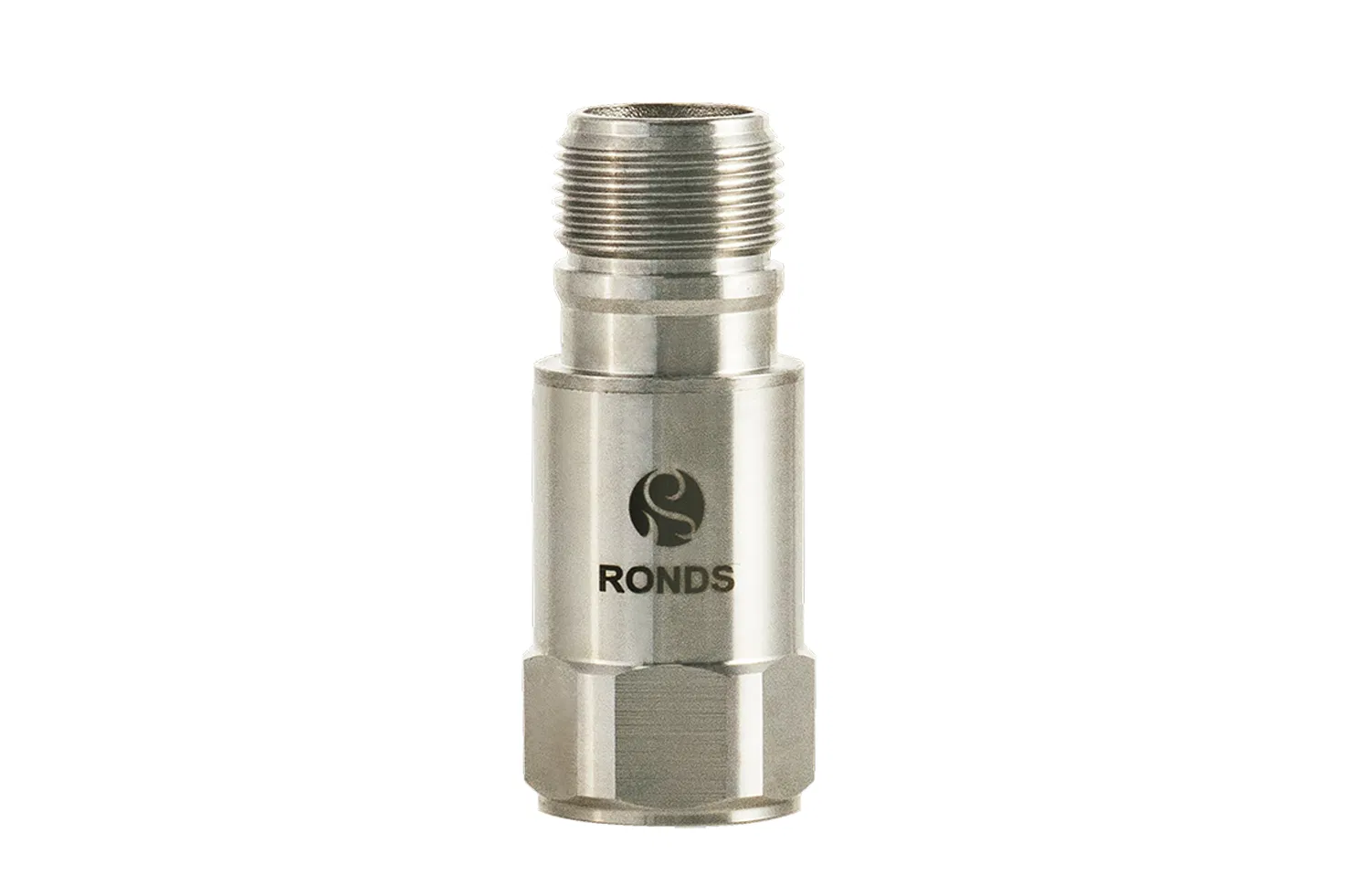

Submersible Sensor

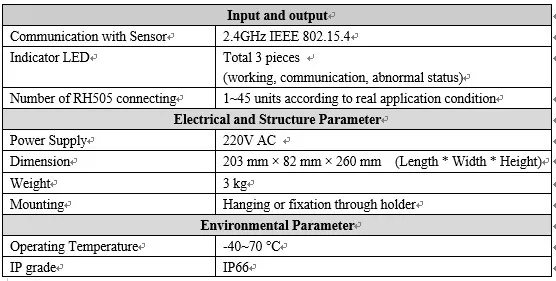

Wireless Gateway

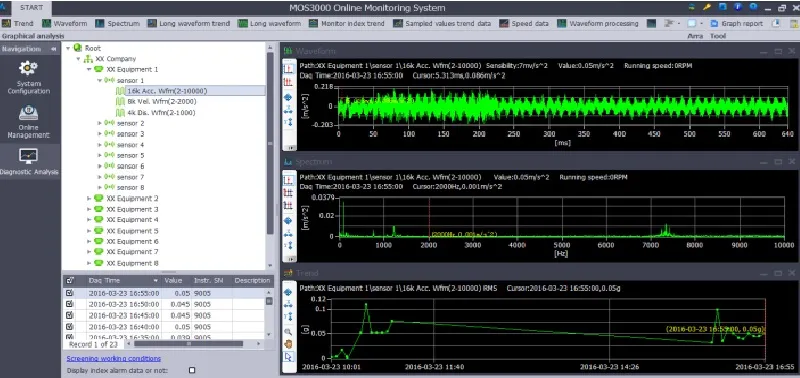

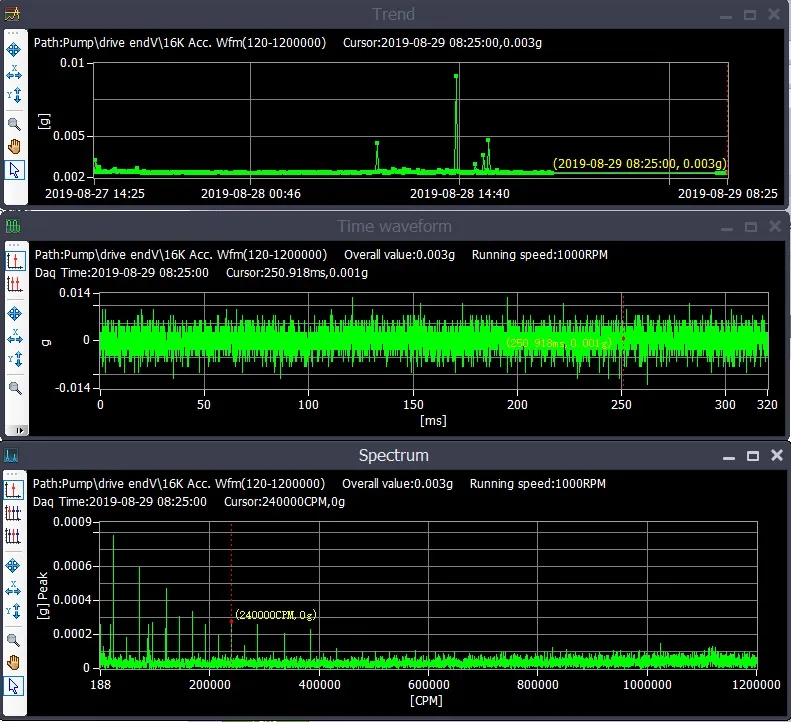

MOS3000 Software

Professional Diagnostic Capabilities

30 Professional Vibration Analysts

• Diagnosis experts with more than 20 years of experience
• CAT III vibration analysts
• CAT II vibration analysts

Intelligent Algorithm & Big Data Team

• Algorithm team with 11 members, led by famous doctoral tutor
• Big data team with 13 members

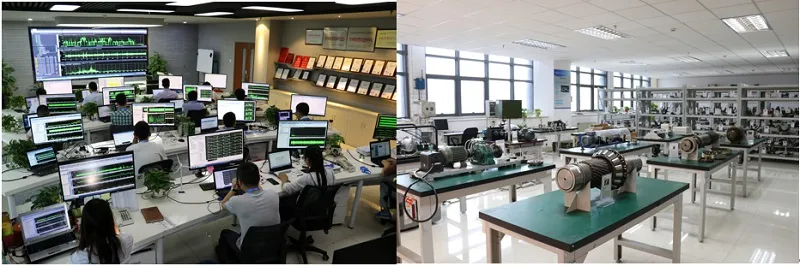

Remote Diagnostic Center and Lab

Frequently Asked Questions

Q1: What is the primary function of the RW625 monitoring system?

The system is designed to monitor the health of vertical pumps by capturing high-frequency data from below-ground assemblies, providing a comprehensive picture of equipment status.

Q2: How does the system handle data transmission in submerged environments?

It utilizes a specialized combination of wired submersible sensors and wireless transmitters to ensure reliable data communication from the pump to the predictive maintenance software.

Q3: Can the MOS3000 software be accessed remotely?

Yes, the system interfaces with cloud-based storage, allowing authorized users to access critical vibration data and diagnostic reports from remote locations.

Q4: What kind of problems can this solution detect?

It can detect operational risks related to seasonal changes, water level fluctuations, and even identify if the stationary assembly mode shape is being excited during operation.

Q5: What industries or applications is this system best suited for?

It is ideal for service water, circulating water, condensate systems, cooling water, dewatering projects, and pipeline boosters.

Q6: What is the production capacity for the RW625 model?

The current production capacity is 2000 units per month, ensuring steady supply for large-scale industrial projects.
