Product Description

Basic Specifications

Model NO.

RVP42-9M

Installation

Ceiling Mounted

Certification

FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM

Application

Home, Industry, Car/Motorcycle, Traffic

Description

Activation & Safety Sensors

Output

2 Relays Output (Max. 48 VAC/DC, 1A)

Power Supply

12-28VAC, 12-36VDC

Frequency

24.125GHz

Detection Height

2m to 9m

Angle Adjustment

0-180 Degree Longitudinal

Detection Speed

5 Cm/S to 25km/S

Working Temp.

-30 to +60°C

Product Description

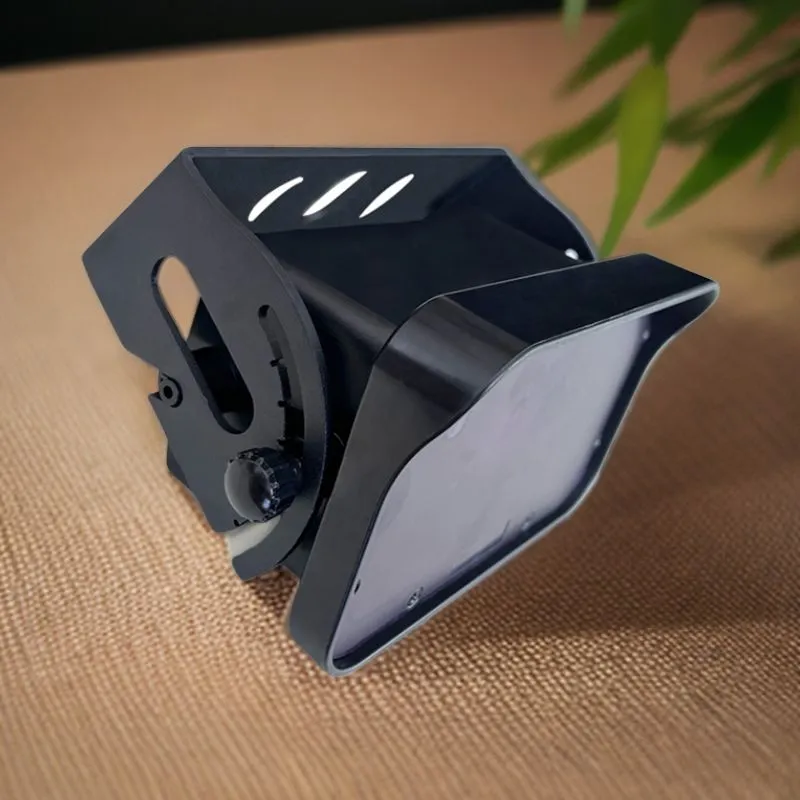

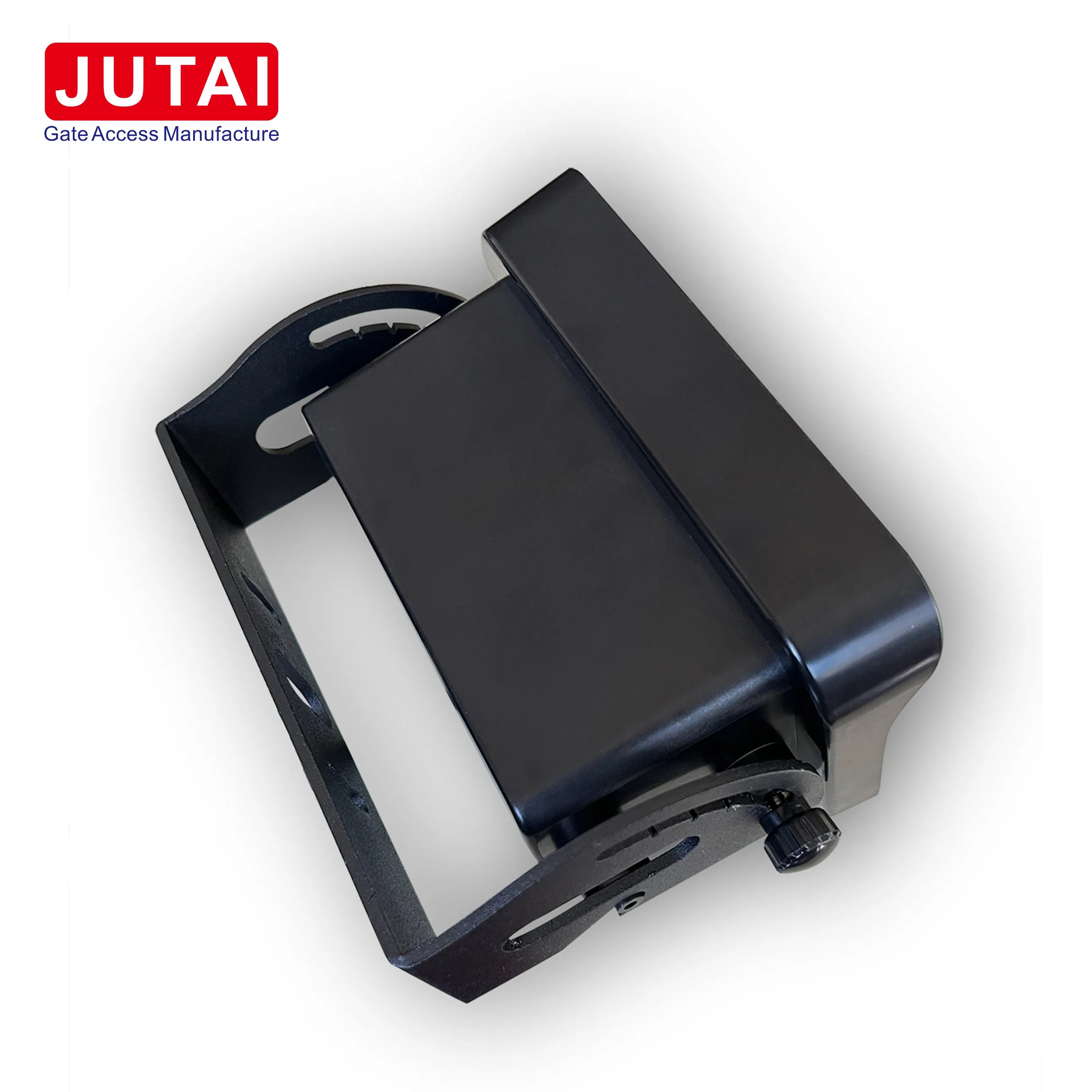

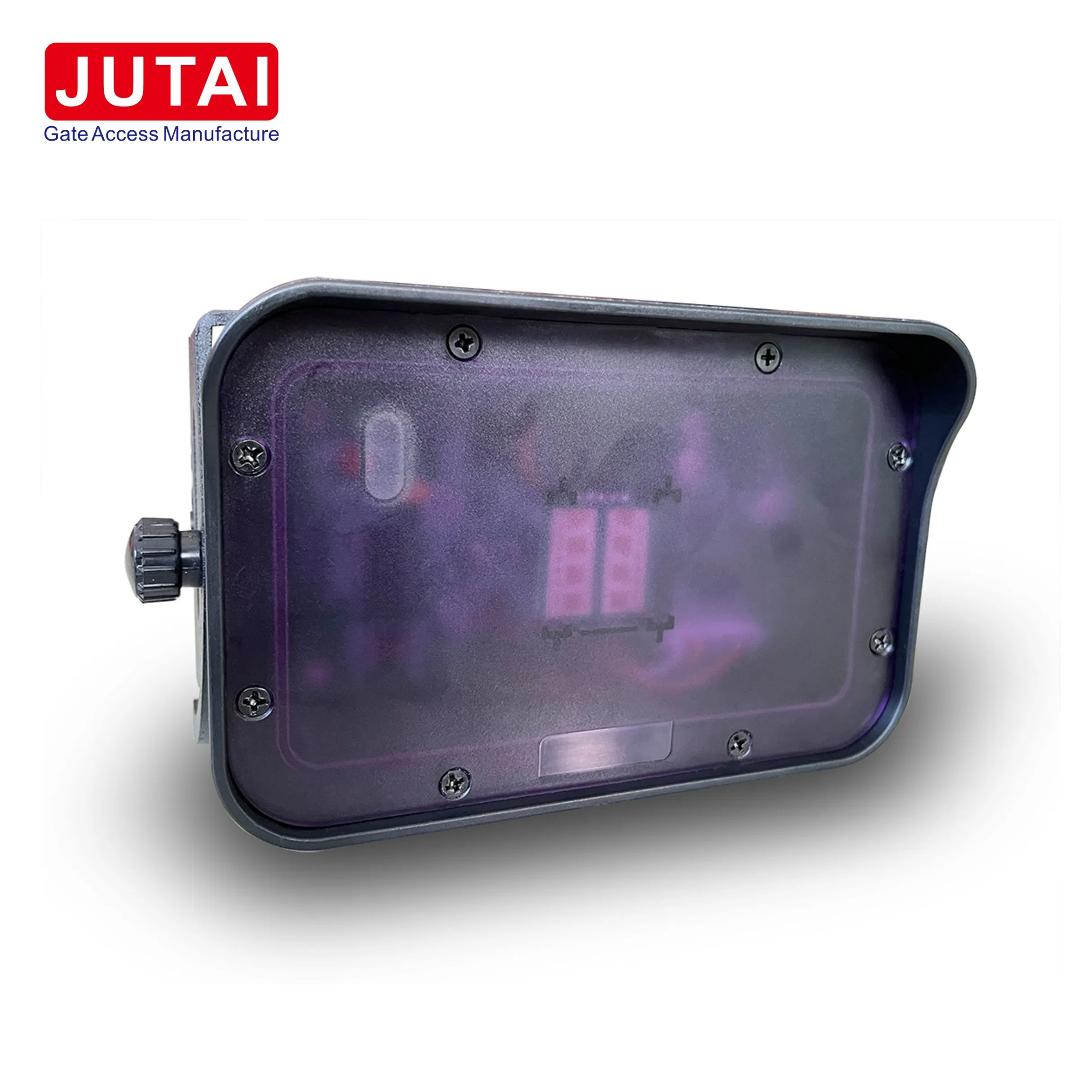

Vehicle Motion Detector / Safety Sensor / Microwave Radar Detector

The RVP42-9M microwave sensor is specifically designed to increase the comfort and safety of opening all types of automatic doors. It provides fast detection particularly for applications with high-speed entries. Utilizing 24G millimeter-wave technology, it distinguishes between pedestrians and vehicles by analyzing movement characteristics and electromagnetic reflection.

Key Features

Detection Area: Offers narrow or wide detection areas suitable for all installations. Includes a sensitivity potentiometer for quick adjustments.
Dual Relays Outputs: Fully customizable hands-free radar equipped with separate relays for vehicle and person detection.

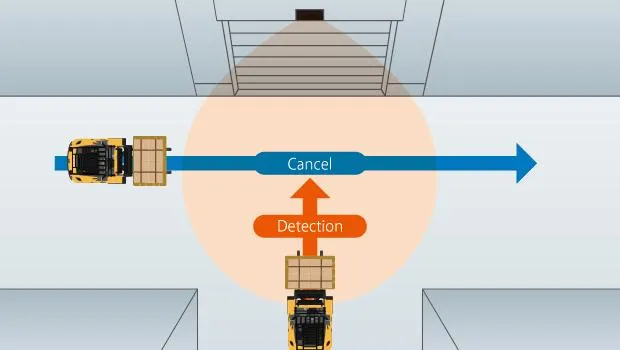

Direction Recognition: Can be set for forward (approaching), backward (away), or bidirectional movement.
Energy Savings: Increases efficiency by limiting activation only to approaching traffic, ensuring doors close promptly.
Effortless Setup: Remote control programming allows for safe adjustments from the ground.

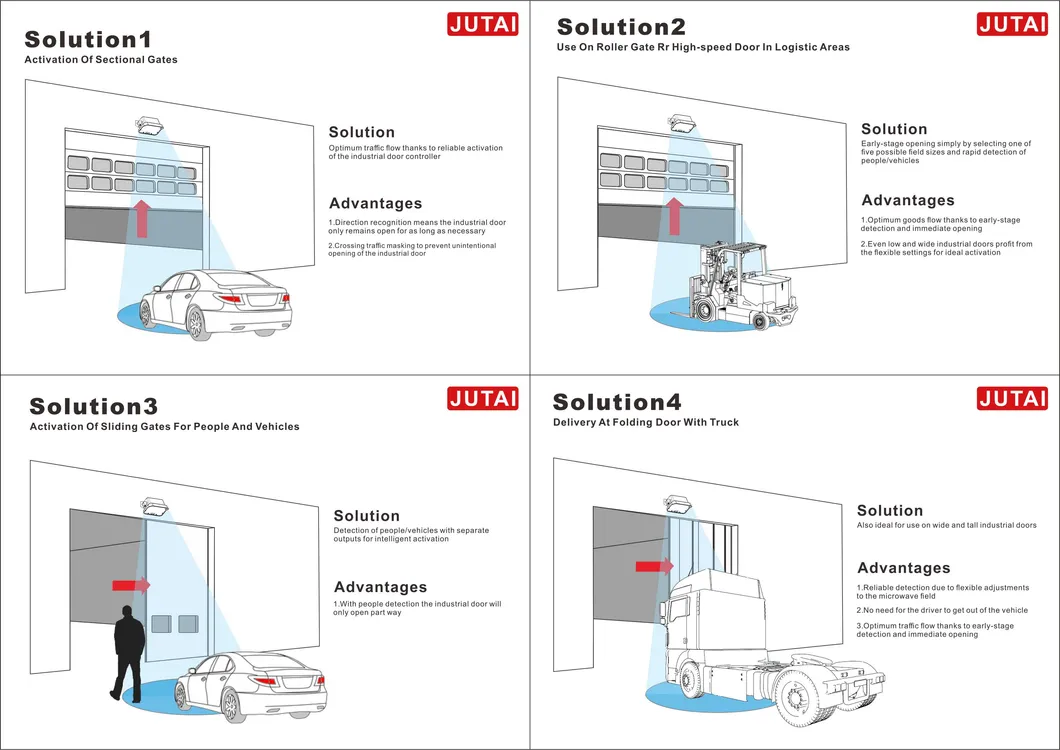

Wide Applications

Industrial Factory Entrances and Exits
Pedestrian and Parallel Traffic Rejection zones
Parking Garage Detection systems
Efficient Barrier Arm Activation

Technical Data

Technology	Doppler radar
Transmission frequency	24.125 GHz
Transmission power	<20dBm
Detection height	2.0m to 9.0m
Angle adjustment	0°-180° longitudinal
Detection speed	5cm/s ~ 25km/s
Operation voltage	12~28 VAC, 12~36 VDC
Protection grade	IP65
Relay output	Max. 48 VAC/DC, 1A
Dimensions	162mm × 110mm × 65mm
Cable length	7 m

Frequently Asked Questions

Q1: What is the maximum mounting height for the RVP42-9M? A: The sensor is highly versatile and can be mounted at heights ranging from 2 meters up to 9 meters.

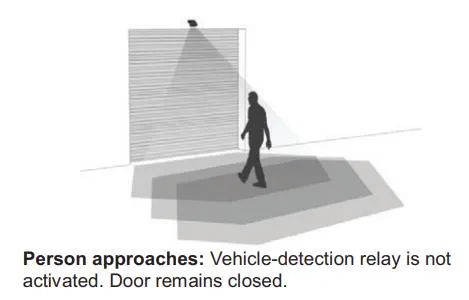

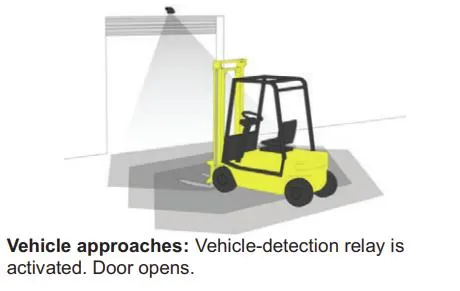

Q2: Can the radar distinguish between a person and a vehicle? A: Yes, it uses advanced 24G millimeter-wave analysis to differentiate between human and vehicle movement patterns via dual relay outputs.

Q3: Is this sensor suitable for outdoor industrial environments? A: Absolutely. It features an IP65 protection grade and operates in temperatures from -30°C to +60°C.

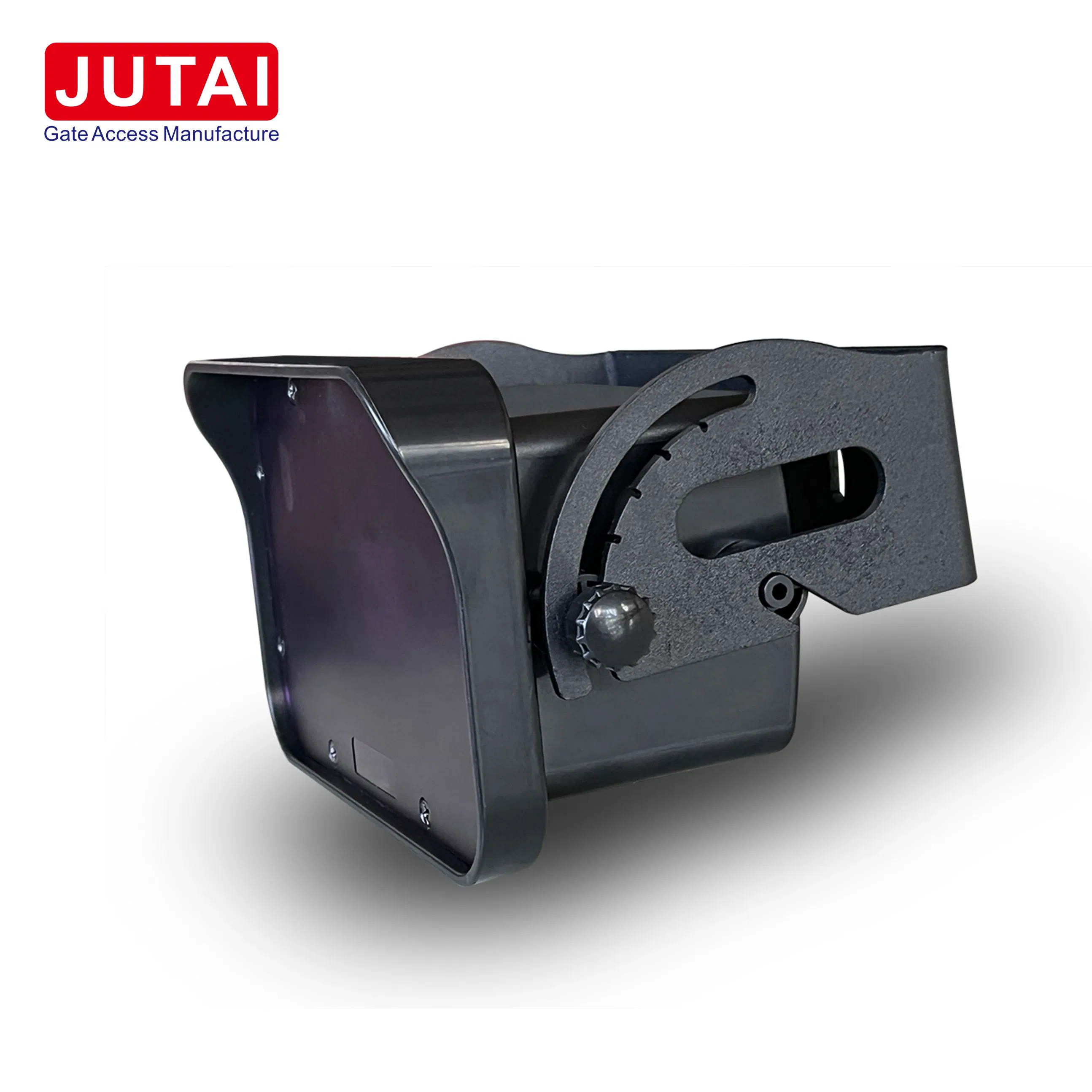

Q4: How do I adjust the detection area? A: You can adjust the detection area by tilting the radar module (0-180°) and using the sensitivity potentiometer or remote control.

Q5: Does the sensor detect departing traffic? A: You can customize the settings to detect approaching, departing, or both directions depending on your project needs.

Q6: What power source is required? A: It supports a wide range of power inputs: 12-28VAC or 12-36VDC.
