Industrial Tof Laser Ranging Photoelectric Sensor PS 01 Series
Industrial Tof Laser Ranging Photoelectric Sensor PS 01 Series
Industrial Tof Laser Ranging Photoelectric Sensor PS 01 Series
Industrial Tof Laser Ranging Photoelectric Sensor PS 01 Series
Industrial Tof Laser Ranging Photoelectric Sensor PS 01 Series
1 / 5
Industrial Tof Laser Ranging Photoelectric Sensor PS 01 Series
Industrial Tof Laser Ranging Photoelectric Sensor PS 01 Series
Industrial Tof Laser Ranging Photoelectric Sensor PS 01 Series
Industrial Tof Laser Ranging Photoelectric Sensor PS 01 Series
Industrial Tof Laser Ranging Photoelectric Sensor PS 01 Series

Industrial Tof Laser Ranging Photoelectric Sensor PS 01 Series

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
SDD-PS01-200-NV
Production Process
Photoelectric Sensor
Material
PVC
Feature
Low Temperature Resistant
IP Rating
IP55
Certification
CE
Customized
Non-Customized
Specification
105*74*33mm
Production Capacity
50000 Pieces

Packaging & Delivery

📦 Package Size
30.00cm * 10.00cm * 5.00cm
⚖️ Gross Weight
0.200kg
🚛 Transport Package
Carton Packaging

Product Description

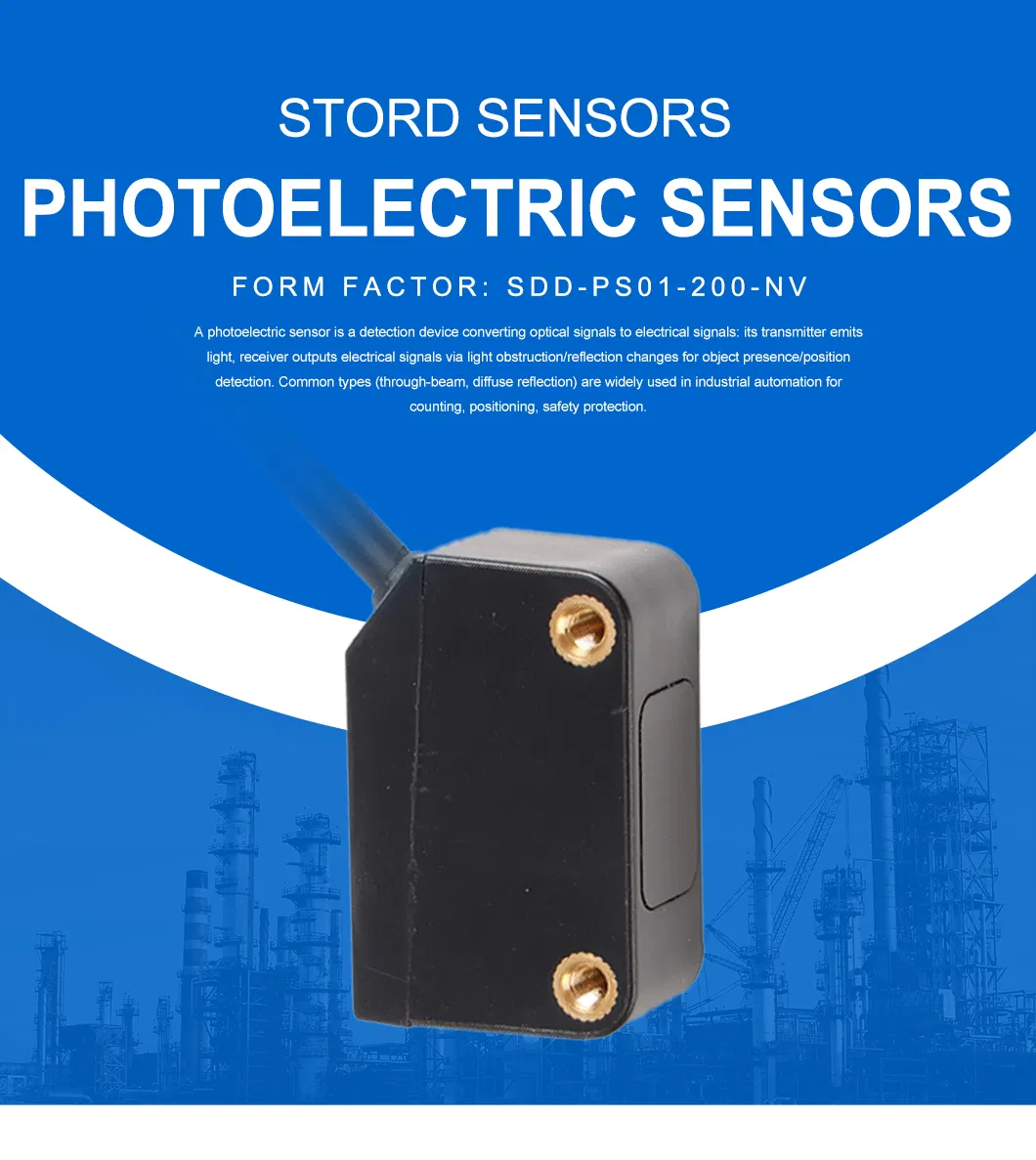

Industrial Tof Laser Ranging Photoelectric Sensor Features
Industrial Tof Laser Ranging Photoelectric Sensor Specs
Industrial Tof Laser Ranging Photoelectric Sensor Application
Parameter Name Technical Value
Detection Distance0.2m - 20m
Output FunctionRS - 485
Working Voltage9 - 35V DC
Repeatability Accuracy±8mm (0.2 - 2m), ±20mm (2 - 6m), ±30mm (6 - 20m)
Temperature CompensationYes
Emissivity CorrectionYes
Light SourceLaser, Infrared
Wavelength905nm Working Laser; 650nm Indicating Laser
Spot DiameterΦ3.5cm@1m, Φ11.5cm@5m, Φ23cm@10m, Φ50cm@20m
Housing MaterialABS Plastic
WeightApprox. 70g
Operating Temperature-20 °C to +50 °C
Protection ClassIP65

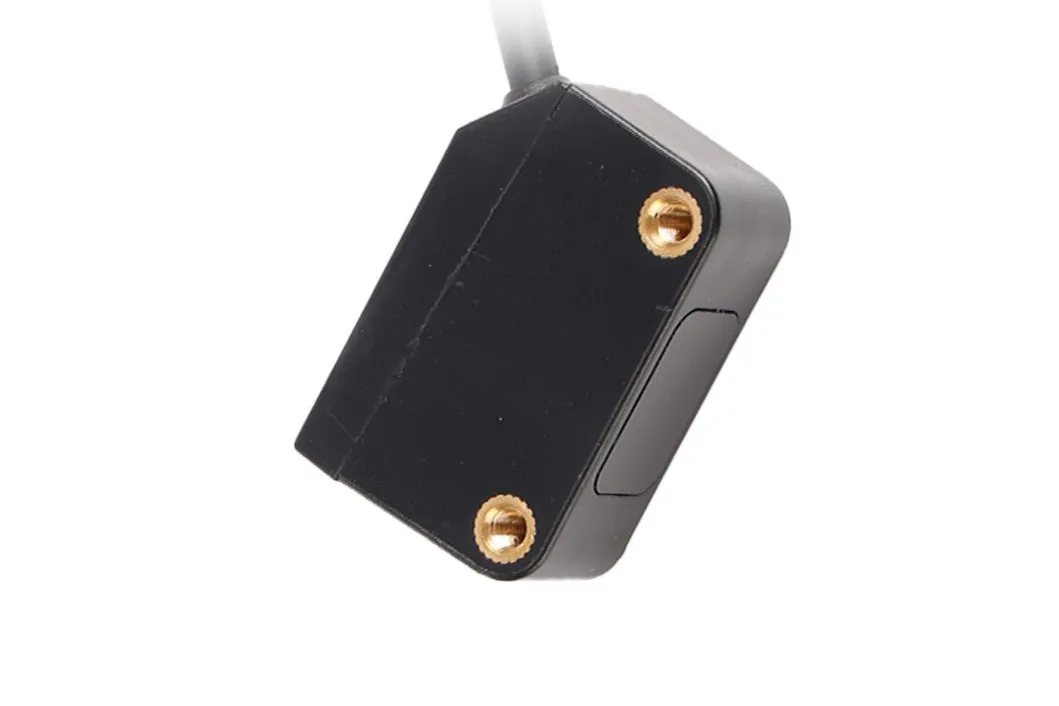

Industrial Tof Laser Ranging Photoelectric Sensor Model

Technical Drawings & Installation

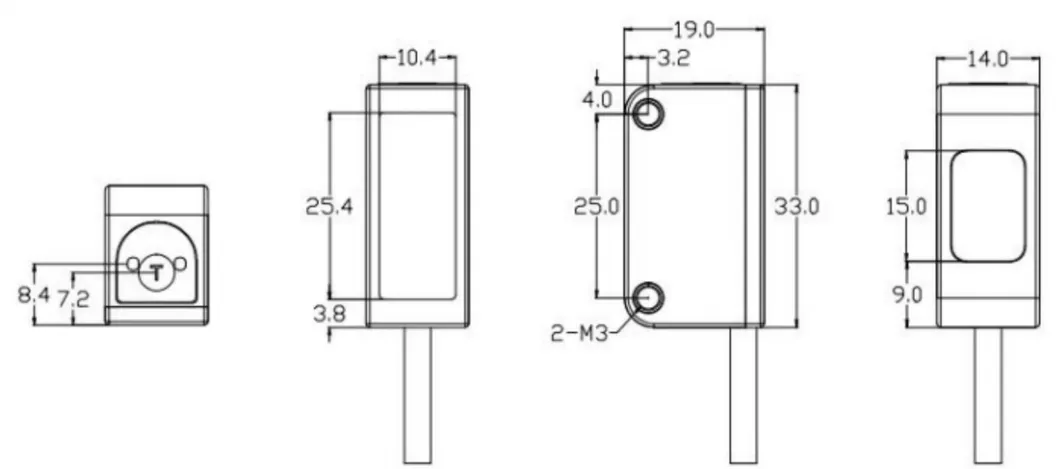

Mounting Dimensions Mounting dimensions

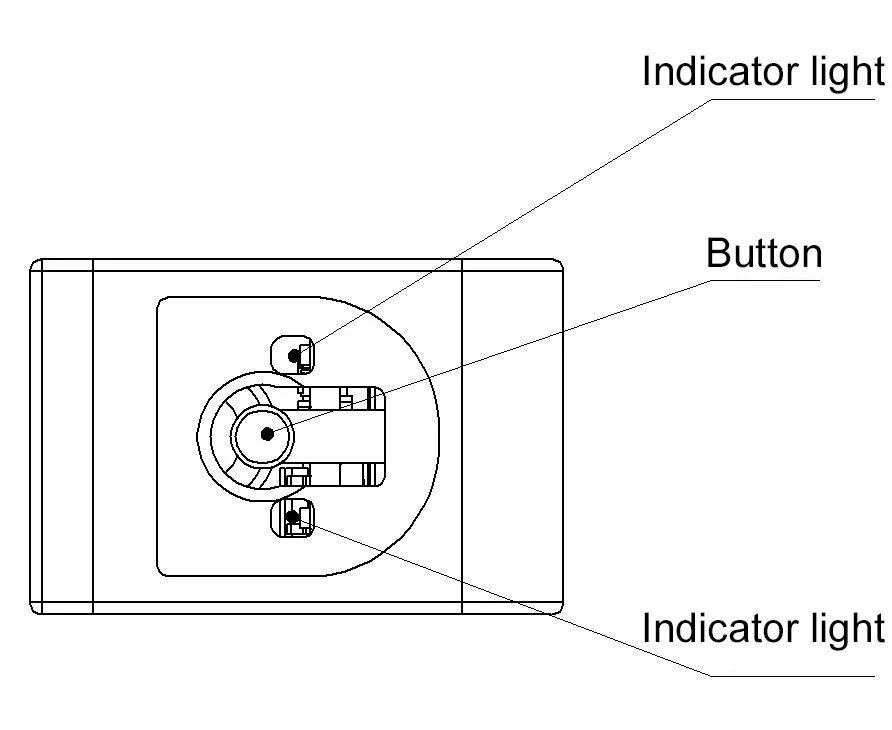

Button & Indicator light Button/Indicator light

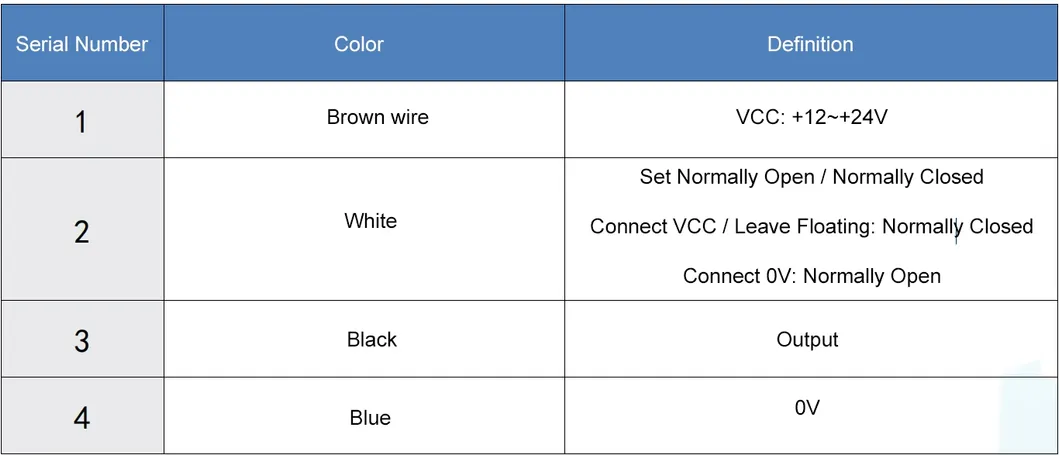

Wiring Instructions Wiring Instructions
Operational Logic Operational Logic
Additional Detail 1
Additional Detail 2
Additional Detail 3

Frequently Asked Questions

Q1: What is the maximum detection range of the SDD-PS01 sensor?
A: The sensor features a wide detection range from 0.2 meters up to 20 meters.
Q2: What type of output communication does this sensor support?
A: It uses the RS-485 communication interface with a default baud rate of 9600.
Q3: Is the sensor suitable for outdoor or harsh environments?
A: Yes, it has an IP65 protection class and can operate in temperatures ranging from -20 °C to +50 °C.
Q4: What is the power requirement for this device?
A: The sensor operates on a working voltage of 9V to 35V DC.
Q5: How accurate is the distance measurement?
A: The repeatability accuracy is ±8mm within 2m, ±20mm up to 6m, and ±30mm up to 20m.
Q6: Does it include temperature compensation features?
A: Yes, the SDD-PS01 series includes built-in temperature compensation for stable performance.
