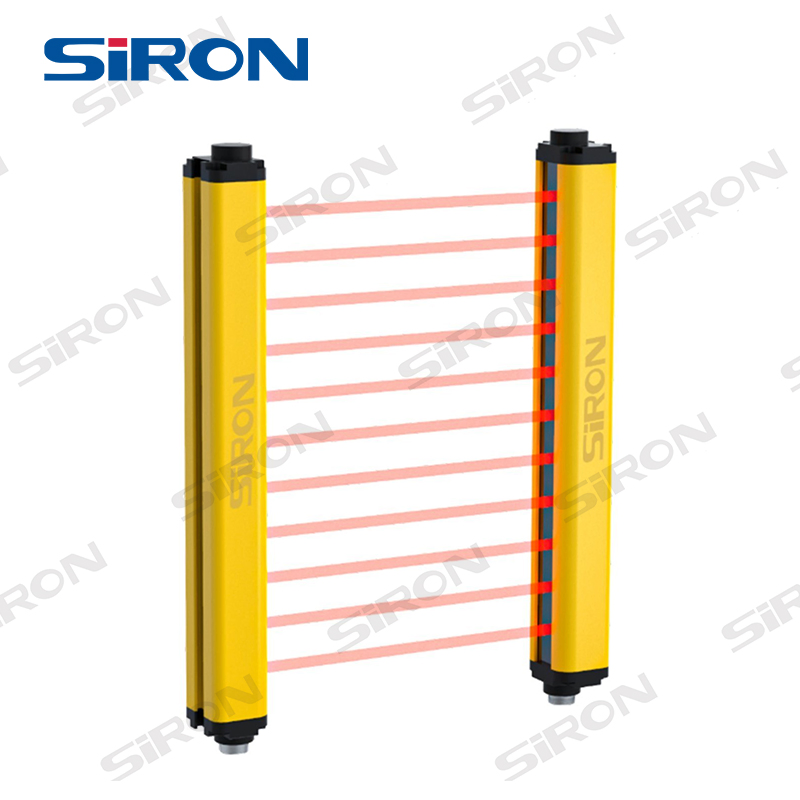

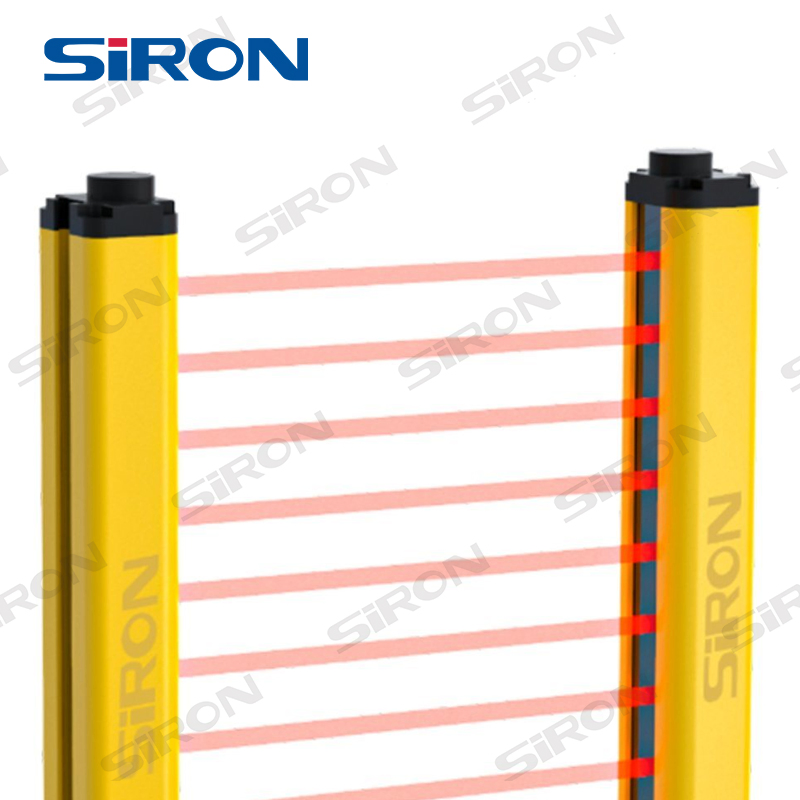

Siron K033 Waterproof Ultra-Thin Industrial Area Barrier Safety Light Barrier Curtain Sensor
Siron K033 Waterproof Ultra-Thin Industrial Area Barrier Safety Light Barrier Curtain Sensor
Siron K033 Waterproof Ultra-Thin Industrial Area Barrier Safety Light Barrier Curtain Sensor
Siron K033 Waterproof Ultra-Thin Industrial Area Barrier Safety Light Barrier Curtain Sensor
Siron K033 Waterproof Ultra-Thin Industrial Area Barrier Safety Light Barrier Curtain Sensor
1 / 5
Siron K033 Waterproof Ultra-Thin Industrial Area Barrier Safety Light Barrier Curtain Sensor
Siron K033 Waterproof Ultra-Thin Industrial Area Barrier Safety Light Barrier Curtain Sensor
Siron K033 Waterproof Ultra-Thin Industrial Area Barrier Safety Light Barrier Curtain Sensor
Siron K033 Waterproof Ultra-Thin Industrial Area Barrier Safety Light Barrier Curtain Sensor
Siron K033 Waterproof Ultra-Thin Industrial Area Barrier Safety Light Barrier Curtain Sensor

Siron K033 Waterproof Ultra-Thin Industrial Area Barrier Safety Light Barrier Curtain Sensor

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information

Model NO.
K033
Protection Distance
0.1~2m
Cross-Sectional Area
35×27mm
Protection Height
60~2000mm
Voltage
DC24V±20%
Output Current
≤200mA
Response Time
<5ms
Insulation Resistance
≥100mΩ
Production Capacity
10000/Month

Packaging & Delivery

Package Size
35.00cm * 25.00cm * 15.00cm
Gross Weight
2.000kg
Package Type
Box Packaging

Key Features

Industrial Safety Light Barrier
◈
Small size, ultra-thin design (only 35 × 27mm)
◈
Stable and reliable industrial performance
◈
Equipped with waterproof functionality
◈
Flexible and simple installation modes
◈
Light spot cycle self-inspection for enhanced safety
◈
Built-in transistor output (NPN/PNP compatible)

Technical Specifications

NameSmall light curtain
Cross-sectional area35×27mm
Number of beams4, 6, 8, 10 axis...
Protection height60~2000mm (conventional)
Protection distance0.1~2m

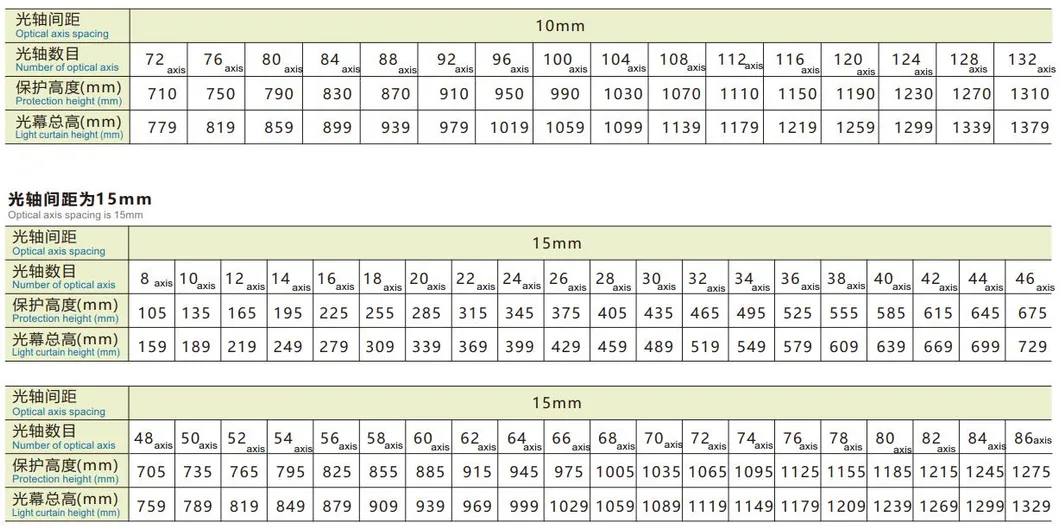

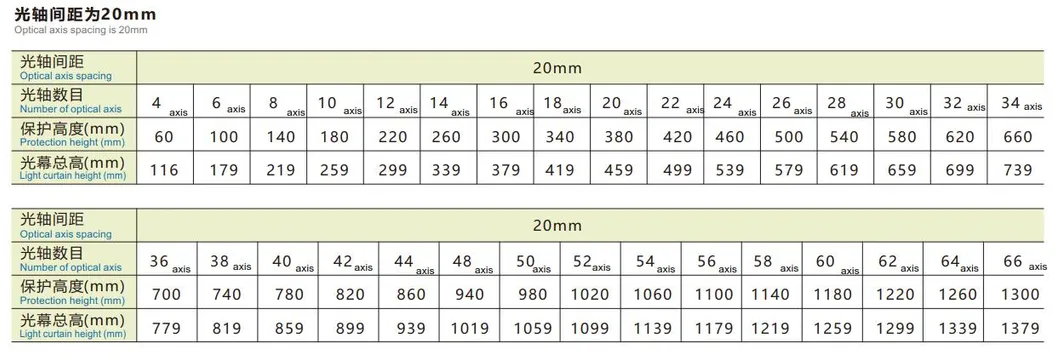

Optical axis spacing5mm/10mm/15mm/20mm/30mm/40mm
VoltageDC24V±20%
Response time<5ms
Working temperature-10 to 55ºC
Enclosure ratingIP65
Output methodNPN / PNP

Product Details

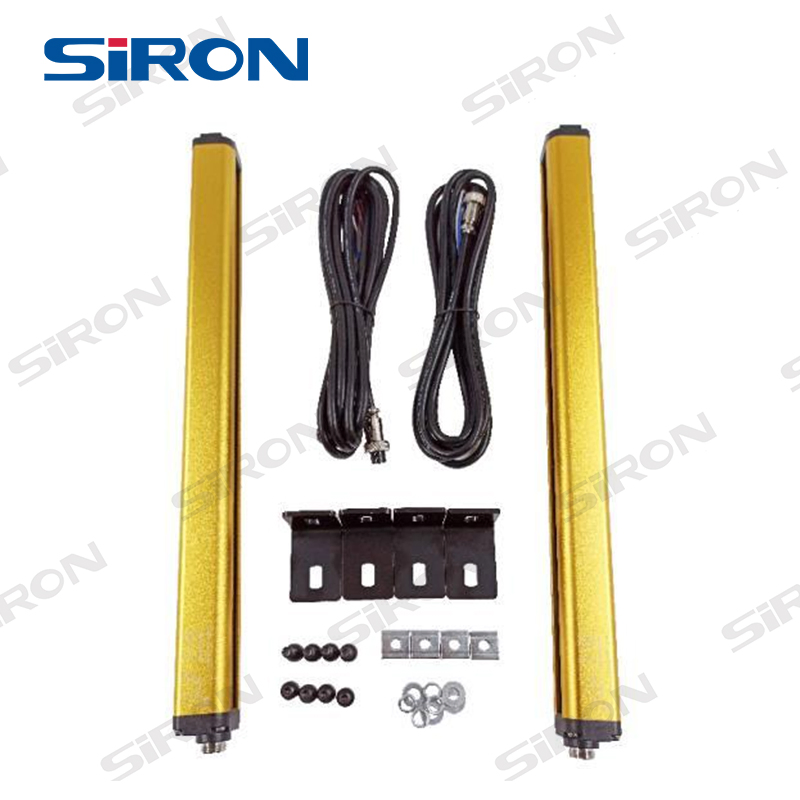

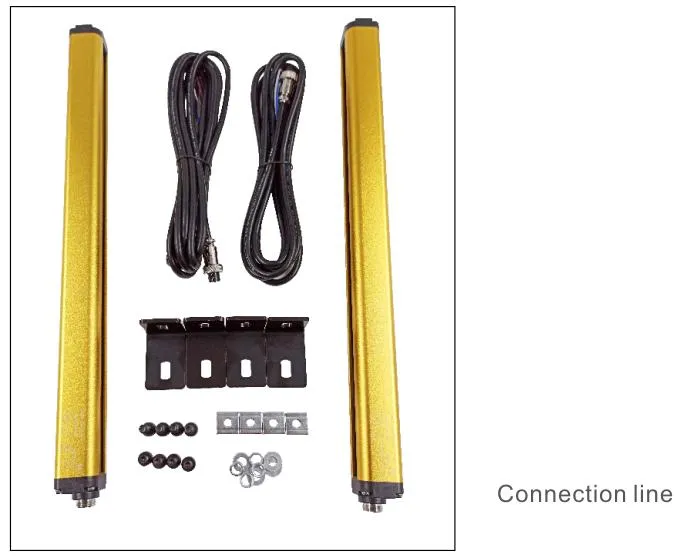

Barrier Sensor Detail 1

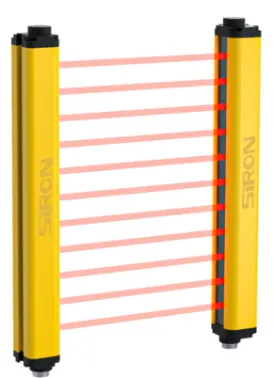

Barrier Sensor Detail 2

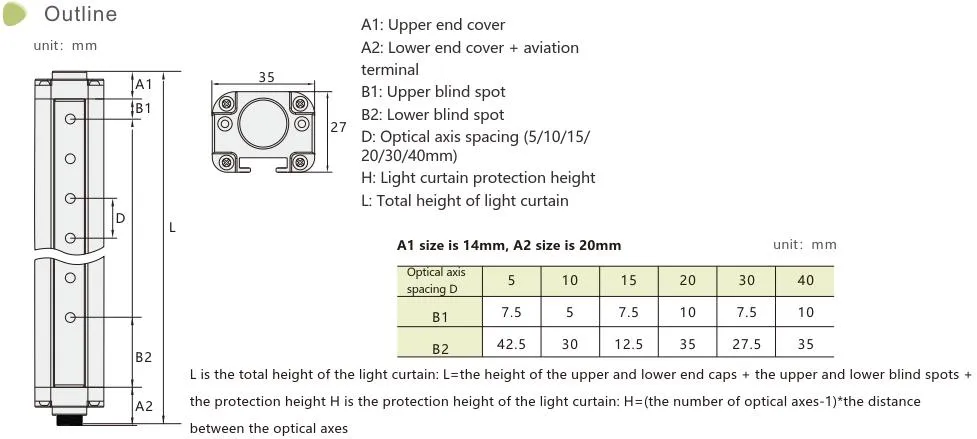

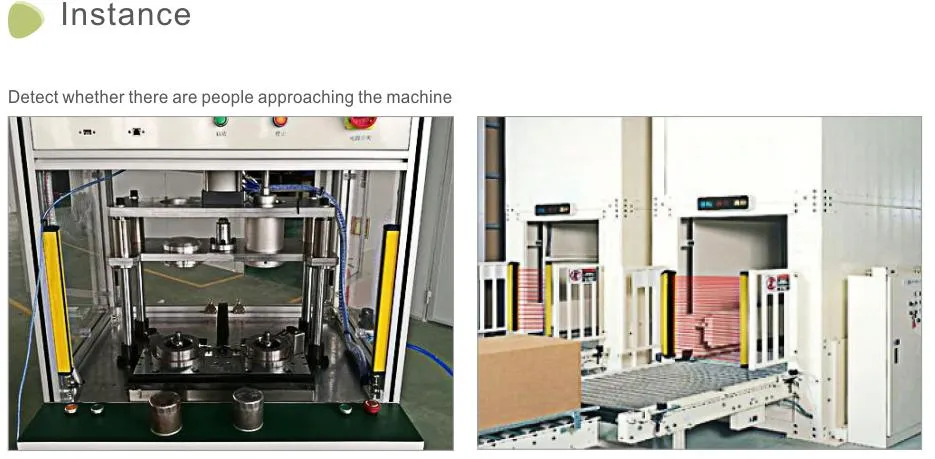

Industrial Application Sensor Dimensions

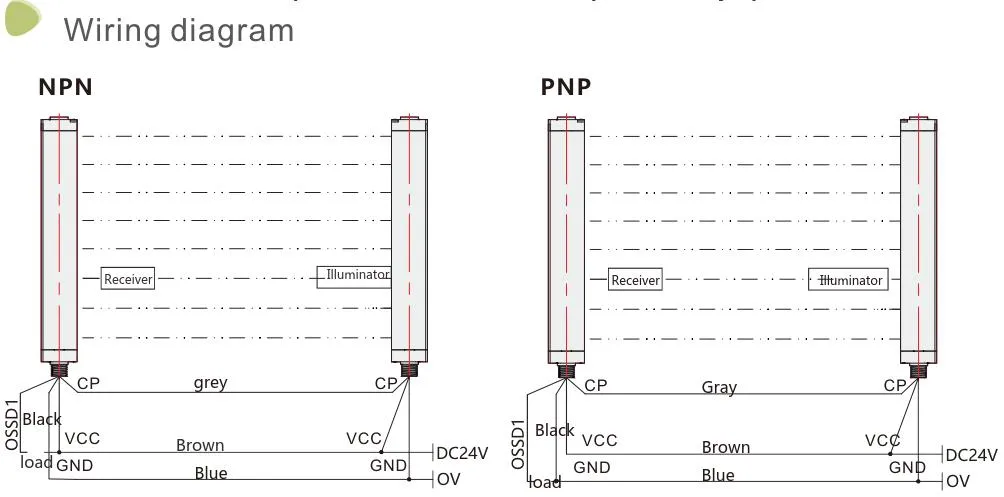

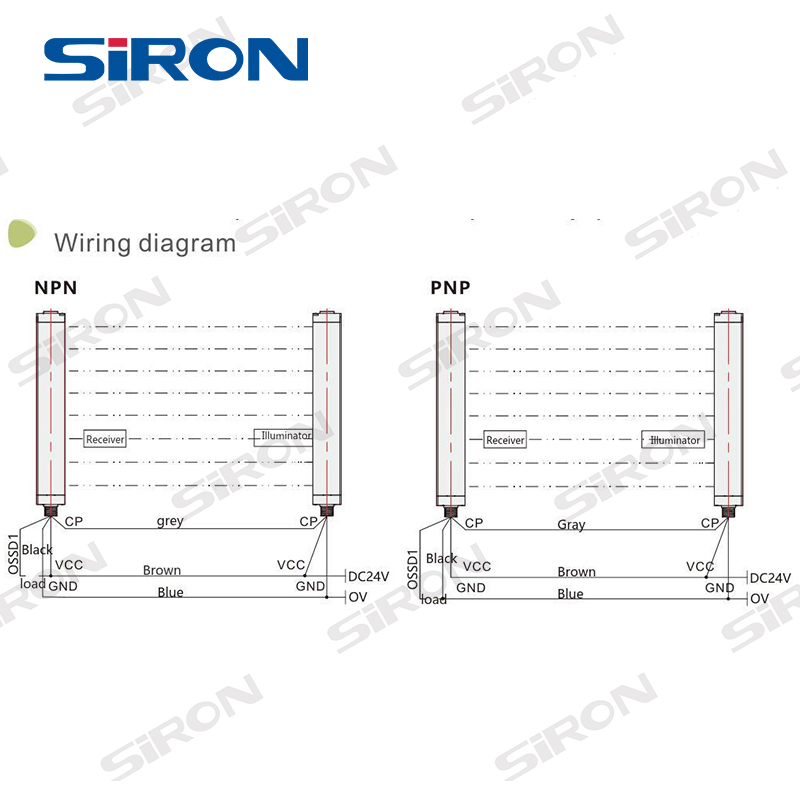

Wiring Diagram
Module Structure

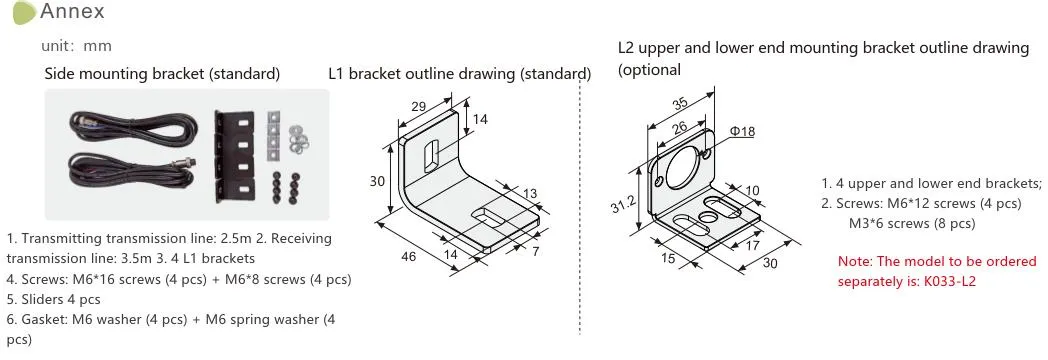

Interface View Safety Standards Installation Guide

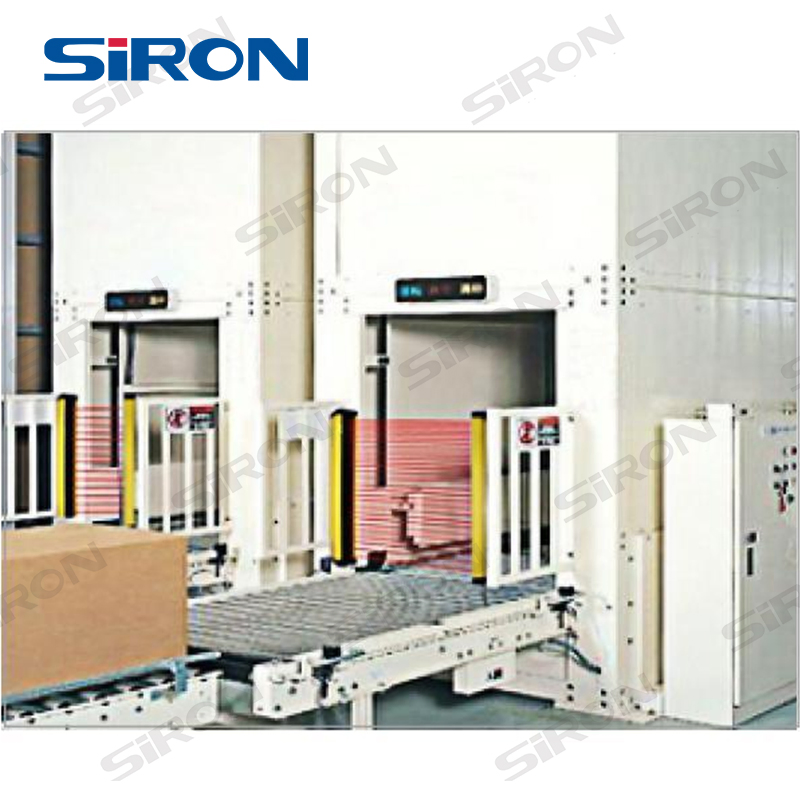

Application Case 1
Application Case 2

Production & Quality

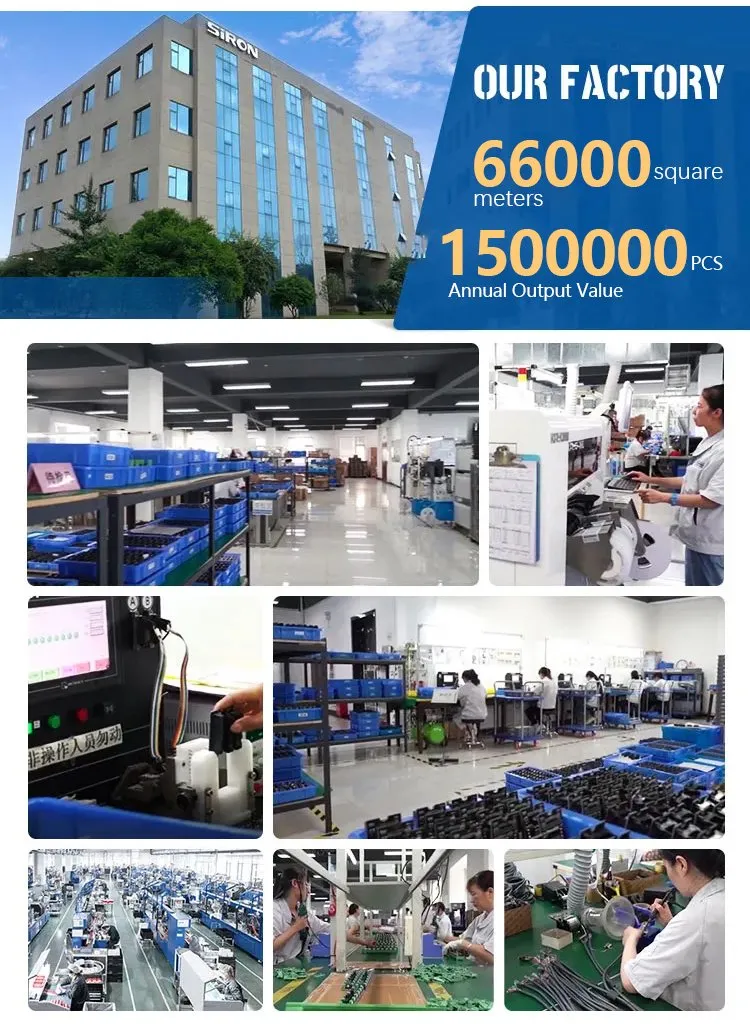

Workshop
Quality Control

Frequently Asked Questions

What type of company are you?
We are a professional manufacturer. We maintain a large stock of standard products and offer full support for customized solutions to meet specific industrial requirements.
What products can I purchase from you?
Our range includes Terminal Block Modules, Relay Modules, Cables, LED Lights, Sensors, Control Power Boxes, Push Buttons, Switches, Human Machine Interfaces, Frequency Converters, Servo Motors, and other industrial automation control products.
How is the quality of your products guaranteed?
We provide a one-year warranty. Our products are certified by CE, CCC, UL, and RoHS. Detailed certification test reports are available upon request.
How do you manage long-term business relationships?
We maintain a network of agents globally and focus on high-quality service and technical support to ensure mutual growth. We welcome discussions regarding local agency opportunities.
What is the typical lead time for orders?
Most standard products are in stock and can be shipped immediately. For customized or bulk orders, lead times are typically coordinated based on production capacity, which is currently 10,000 units per month.
Is technical support available for installation?
Yes, we provide technical documentation and support for all our industrial automation products to ensure simple and flexible installation for your equipment.
