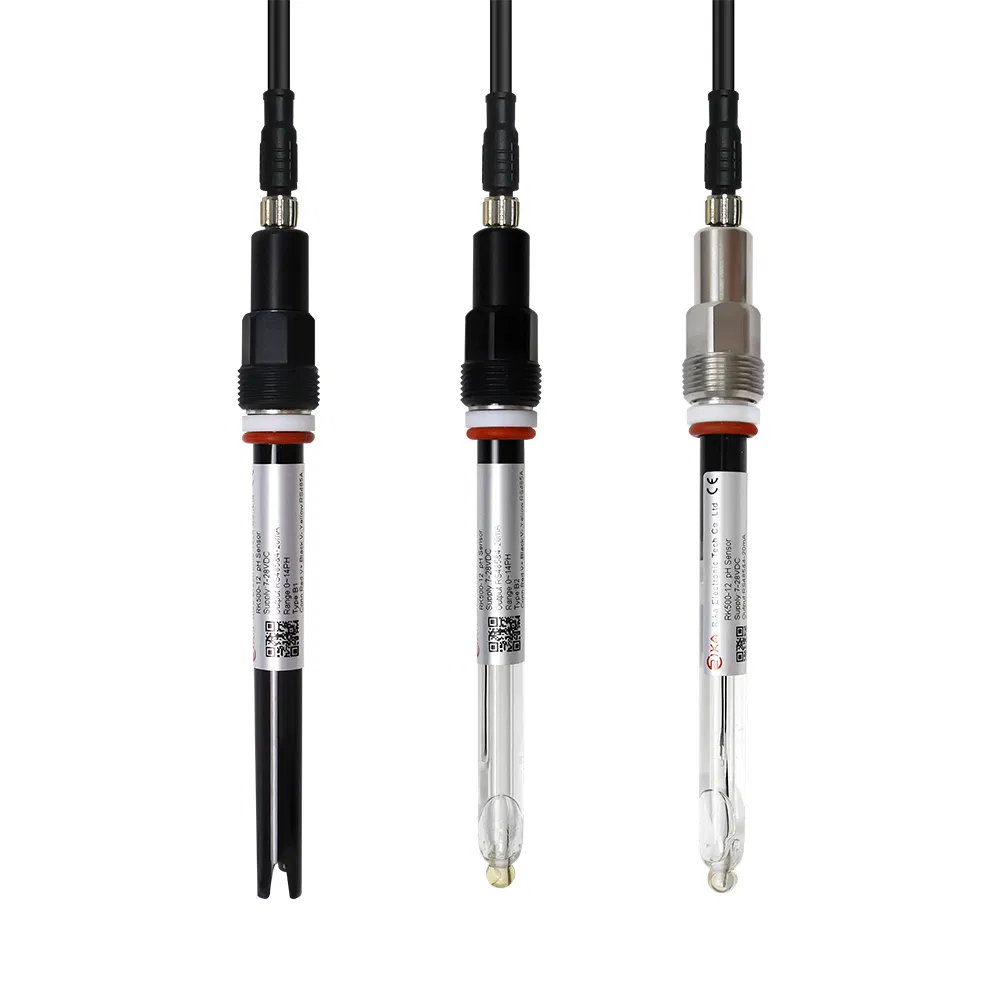

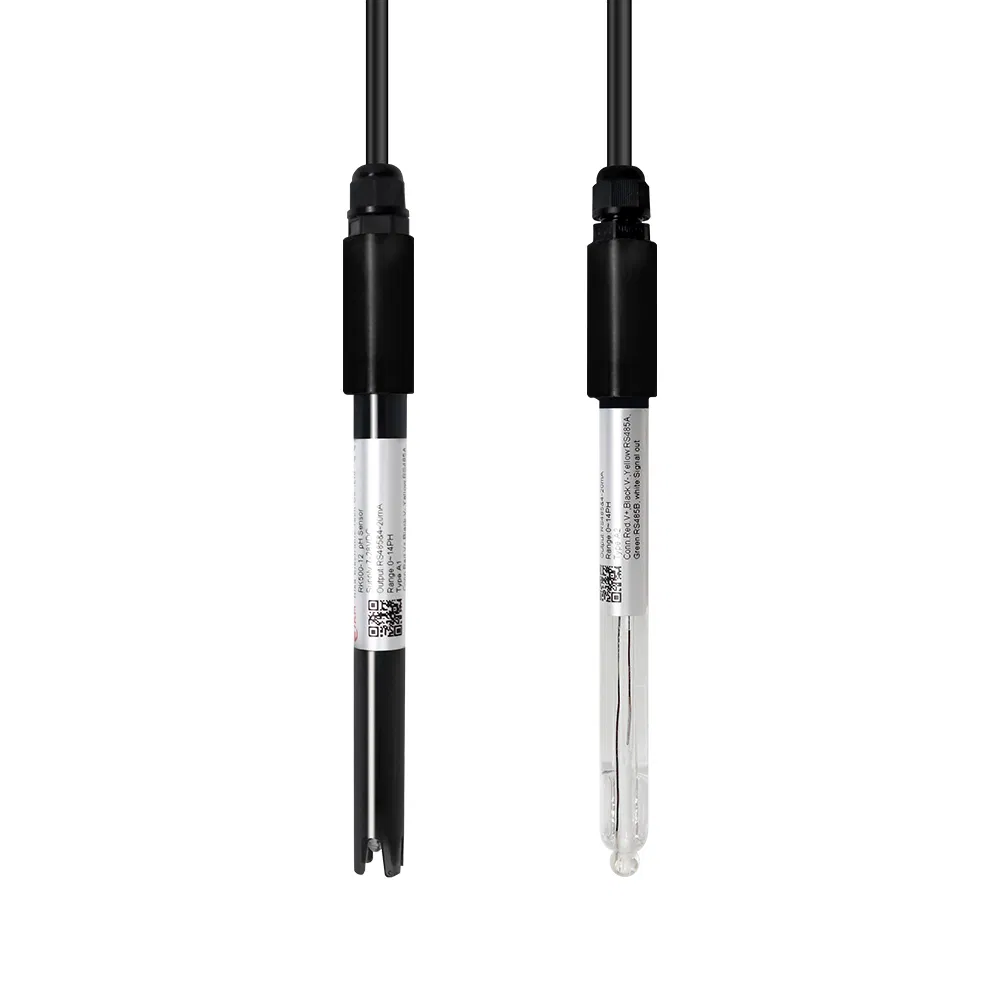

Rk500-12 High-Accuracy (0.01pH) Industrial pH Meter Sensor Probe Transmitter Analyzer for Liquid
Rk500-12 High-Accuracy (0.01pH) Industrial pH Meter Sensor Probe Transmitter Analyzer for Liquid
Rk500-12 High-Accuracy (0.01pH) Industrial pH Meter Sensor Probe Transmitter Analyzer for Liquid
Rk500-12 High-Accuracy (0.01pH) Industrial pH Meter Sensor Probe Transmitter Analyzer for Liquid
Rk500-12 High-Accuracy (0.01pH) Industrial pH Meter Sensor Probe Transmitter Analyzer for Liquid
1 / 5
Rk500-12 High-Accuracy (0.01pH) Industrial pH Meter Sensor Probe Transmitter Analyzer for Liquid
Rk500-12 High-Accuracy (0.01pH) Industrial pH Meter Sensor Probe Transmitter Analyzer for Liquid
Rk500-12 High-Accuracy (0.01pH) Industrial pH Meter Sensor Probe Transmitter Analyzer for Liquid
Rk500-12 High-Accuracy (0.01pH) Industrial pH Meter Sensor Probe Transmitter Analyzer for Liquid
Rk500-12 High-Accuracy (0.01pH) Industrial pH Meter Sensor Probe Transmitter Analyzer for Liquid

Rk500-12 High-Accuracy (0.01pH) Industrial pH Meter Sensor Probe Transmitter Analyzer for Liquid

Customization: Available
After-sales Service: Avaliable
Warranty: 1 Year
Send Inquiry

Product Description

i

Overview & Basic Info

RK500-12 pH Sensor is a high-performance solution designed to measure pH values accurately. It requires no professional calibration instruments and is simple to operate. Suitable for continuous measurement in wastewater, agriculture, sewage treatment, chemical industry, and environmental protection.

Model
RK500-12A/B/C/D
Range
0-14pH
Accuracy
±0.05pH / 0.01pH
Supply
7-30VDC
Output
RS485 & 4-20mA
Protection
IP68
Temperature
0-80℃ (Up to 100℃)
Material
Glass+PC+ABS / 316L / PPS
★

Specifications & Features

Key Features

  • Low impedance sensitive glass film
  • Temperature compensation for stability
  • Internal signal isolation, strong anti-interference
  • Simple operation and high reliability
  • Fast response speed & low drift

Applications

  • Industrial & Sewage treatment
  • Agriculture & Aquaculture
  • Water conservancy & Environmental protection
  • Chemical & Pharmaceutical industries
pH Meter Sensor Probe
T

Technical Parameters

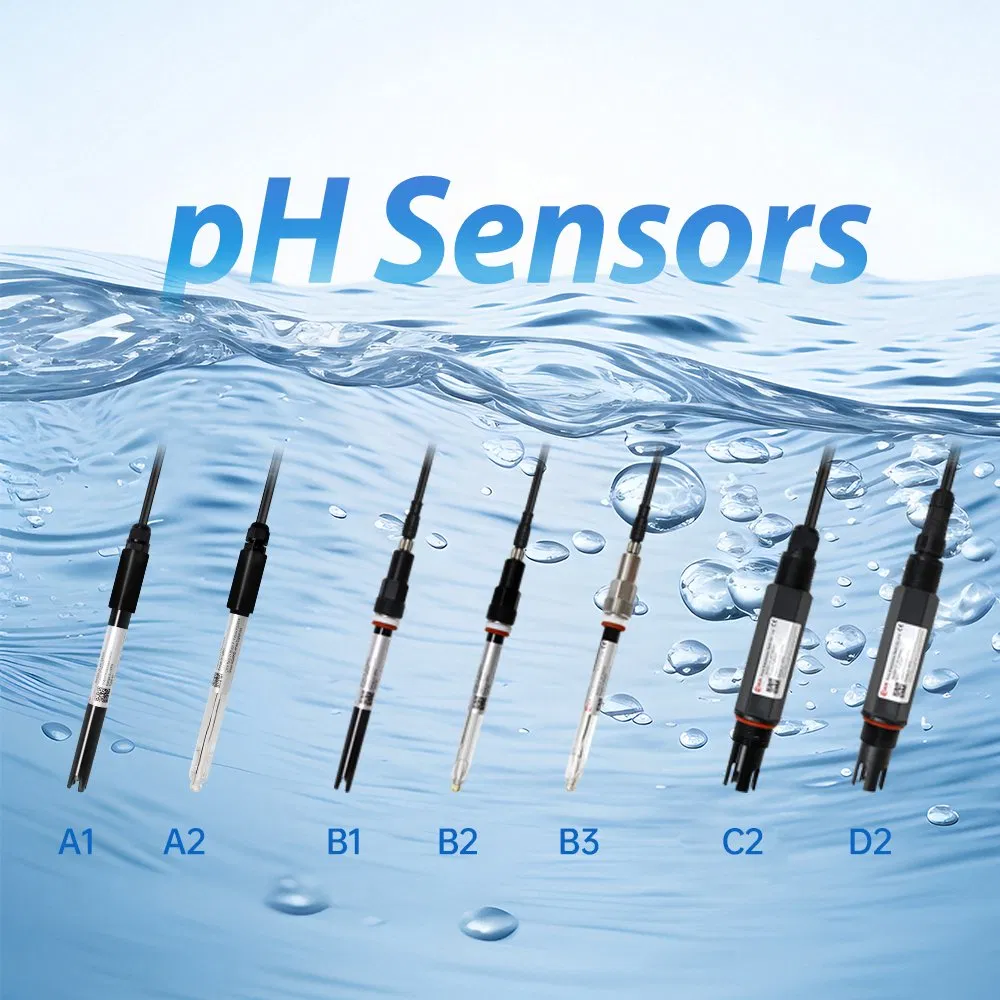

Type A1 A2 B1 B2 B3
MaterialPC+ABSGlass+PC+ABSPC+ABSGlass+ABSGlass+316L
Temp.0-60℃0-80℃0-60℃0-80℃0-100℃
Pressure0.6Mpa0.8Mpa0.6Mpa1Mpa1Mpa
ConnectionDirect cableDirect cableM8 ConnectorM8 ConnectorM8 Connector
P

Product Details

Product Detail 1

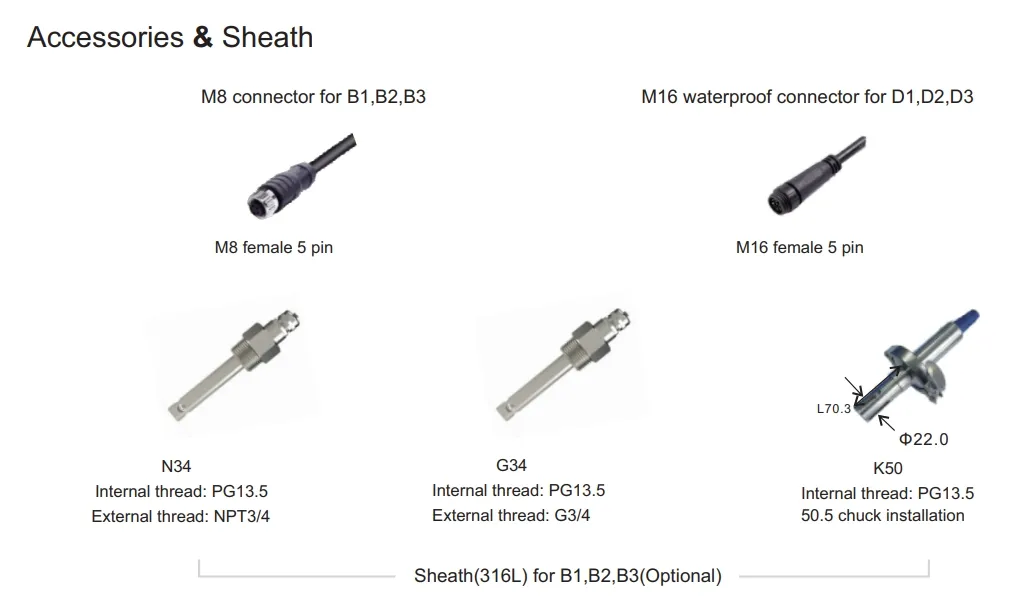

Product Detail 2

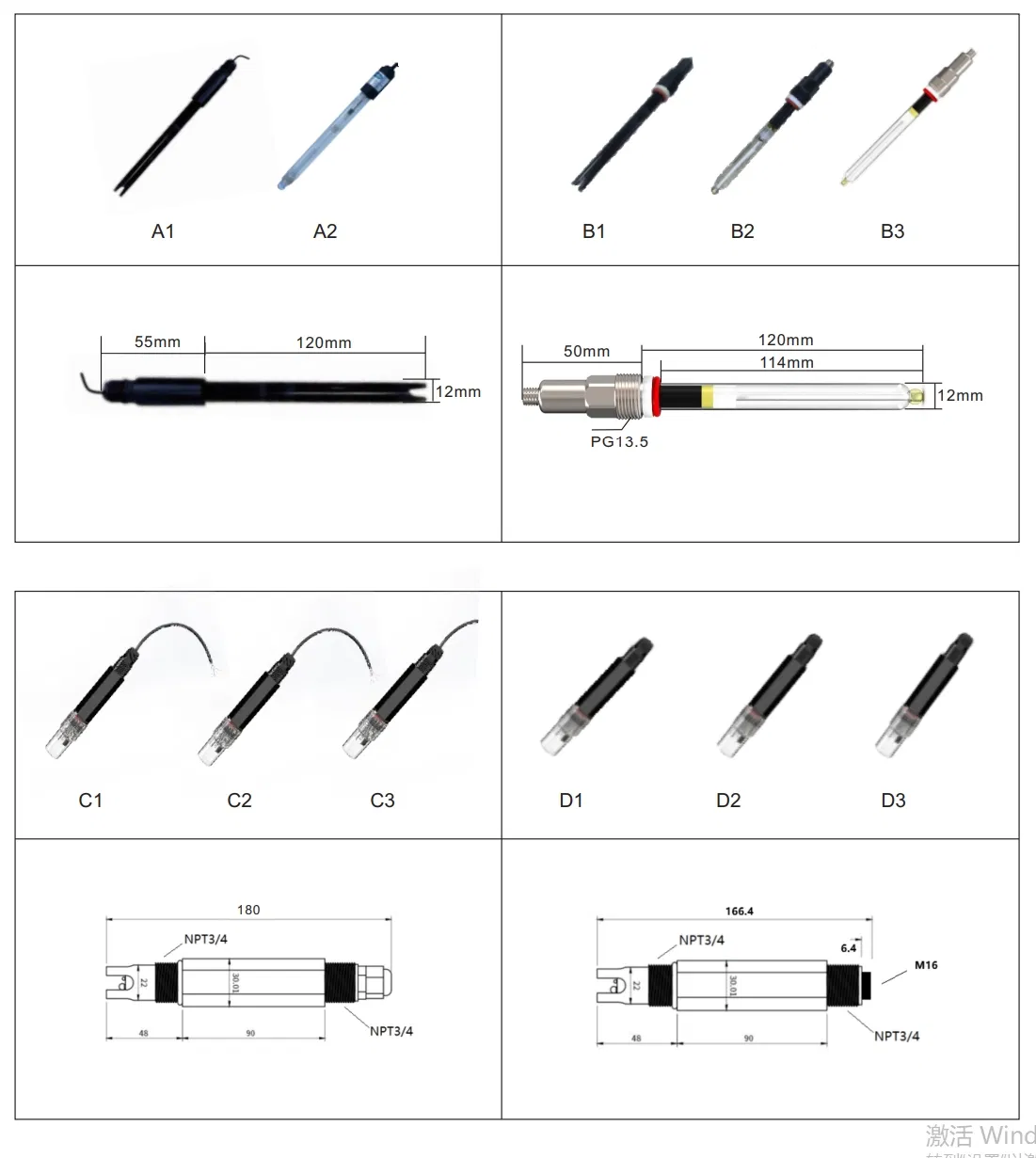

Product Detail 3
C

Production Environment

Specializing in weather and environment monitoring for over a decade, providing integrated R&D, production, and marketing for air and water quality sensors.

Company Banner
Factory 1
Factory 2
Office
Workshop
?

Frequently Asked Questions

Are you the final manufacturer?
Yes, we are a professional sensor manufacturer and exporter in China with over 10 years of experience, certified by SGS.
Do you offer OEM service?
Yes, we offer OEM services and can design custom logo markings with a minimum order of 10 pcs.
What payment methods do you accept?
We accept T/T, PayPal, and Western Union for all our orders.
What is your delivery time?
Delivery is typically 6-8 working days post-payment. Orders over 100 pcs may require an additional 3-5 days.
What does your quality assurance service include?
Our service includes a free exchange within one month and an 18-month quality guarantee for our products.
