Micro Parts Precision Measuring Solution

Customization:	Available
After-sales Service:	Life-Long Maintenance Service
Warranty:	1 Year

i

Basic Specifications

Model:JTDQVS-6050CNC

Type:2.5D Video Measuring System

Operate Method:CNC

CCD:Sony Color Camera

Grating:GSI

Working Range:600*500*200mm

Accuracy:<=(3+L/200)μm

Load Bearing:30kg

P

Product Overview

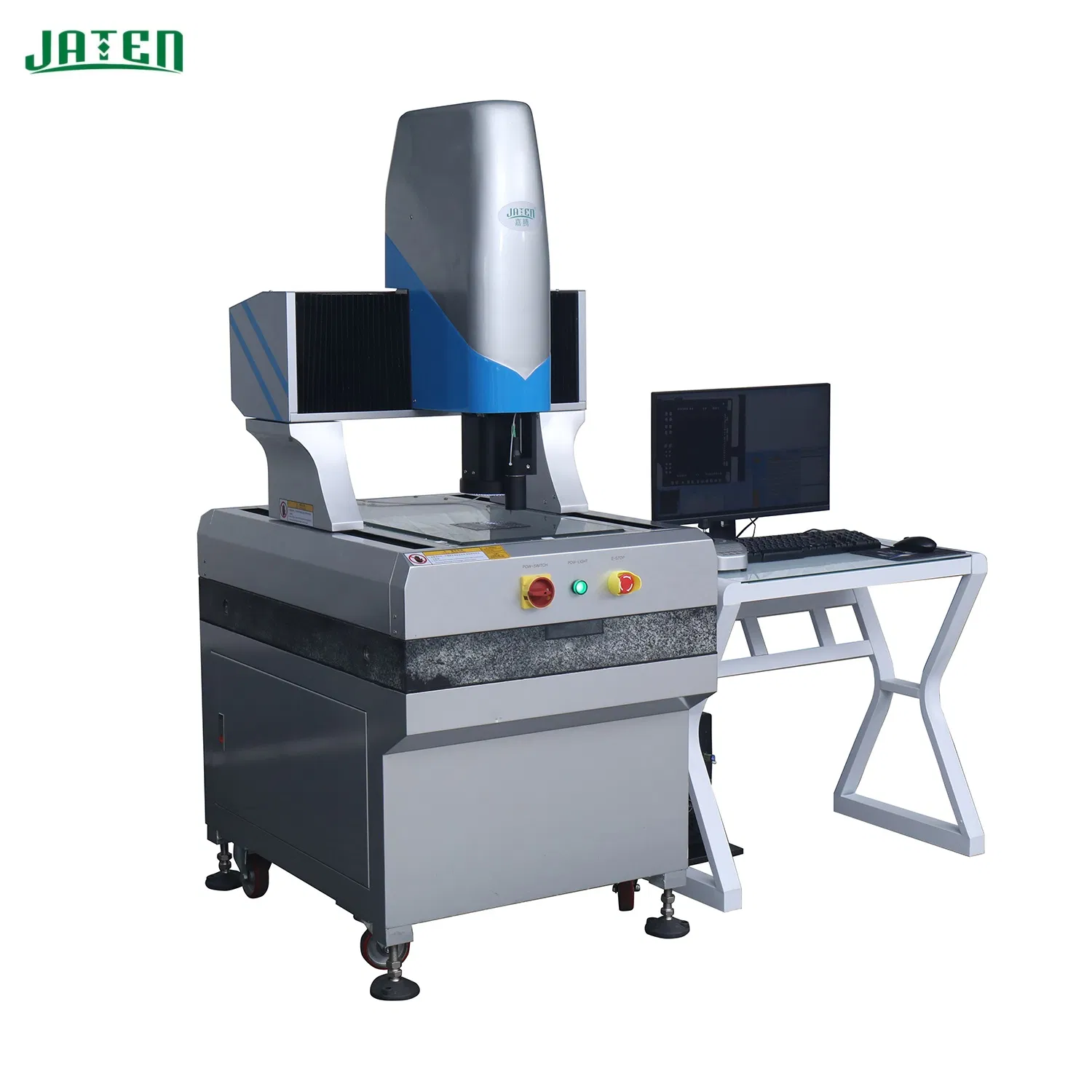

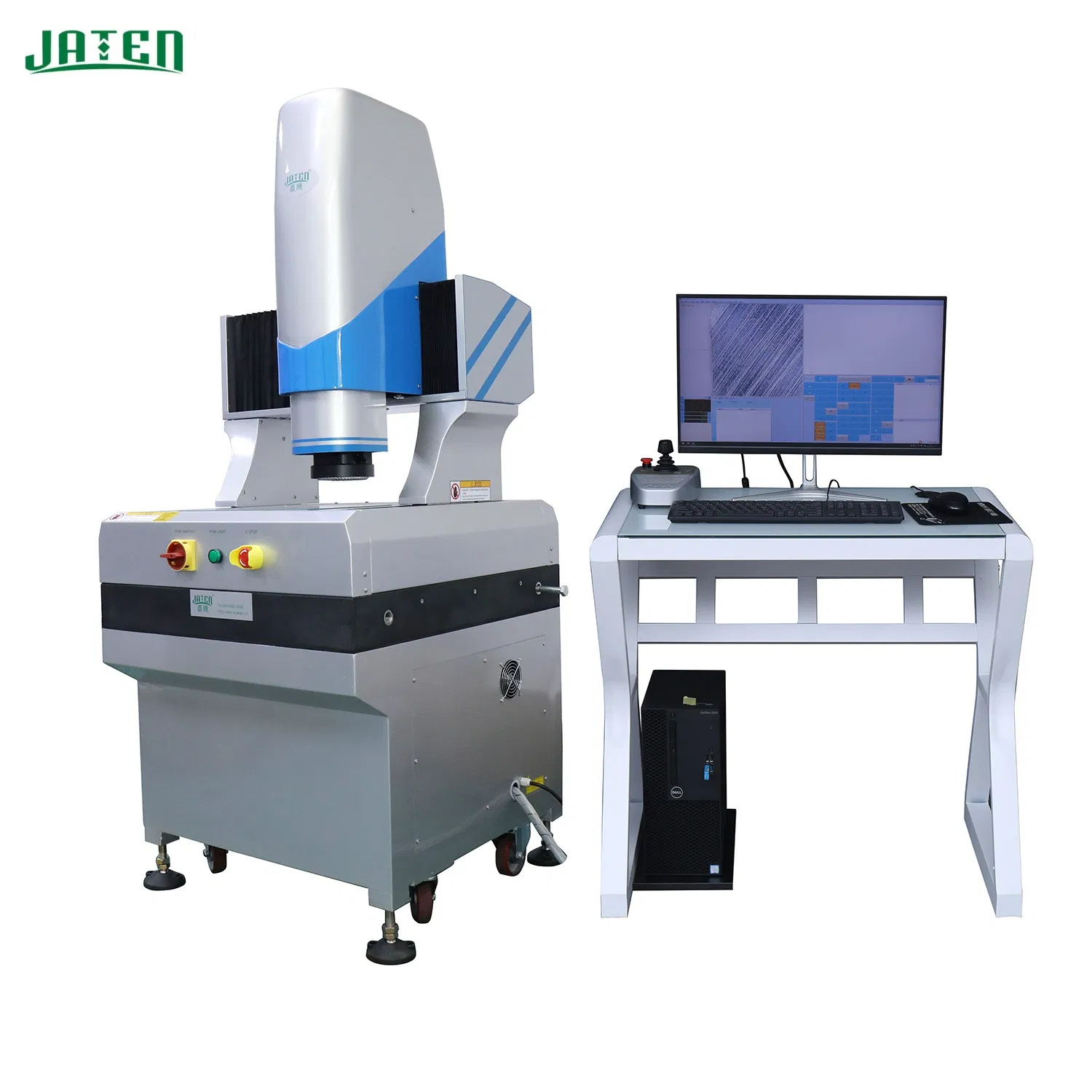

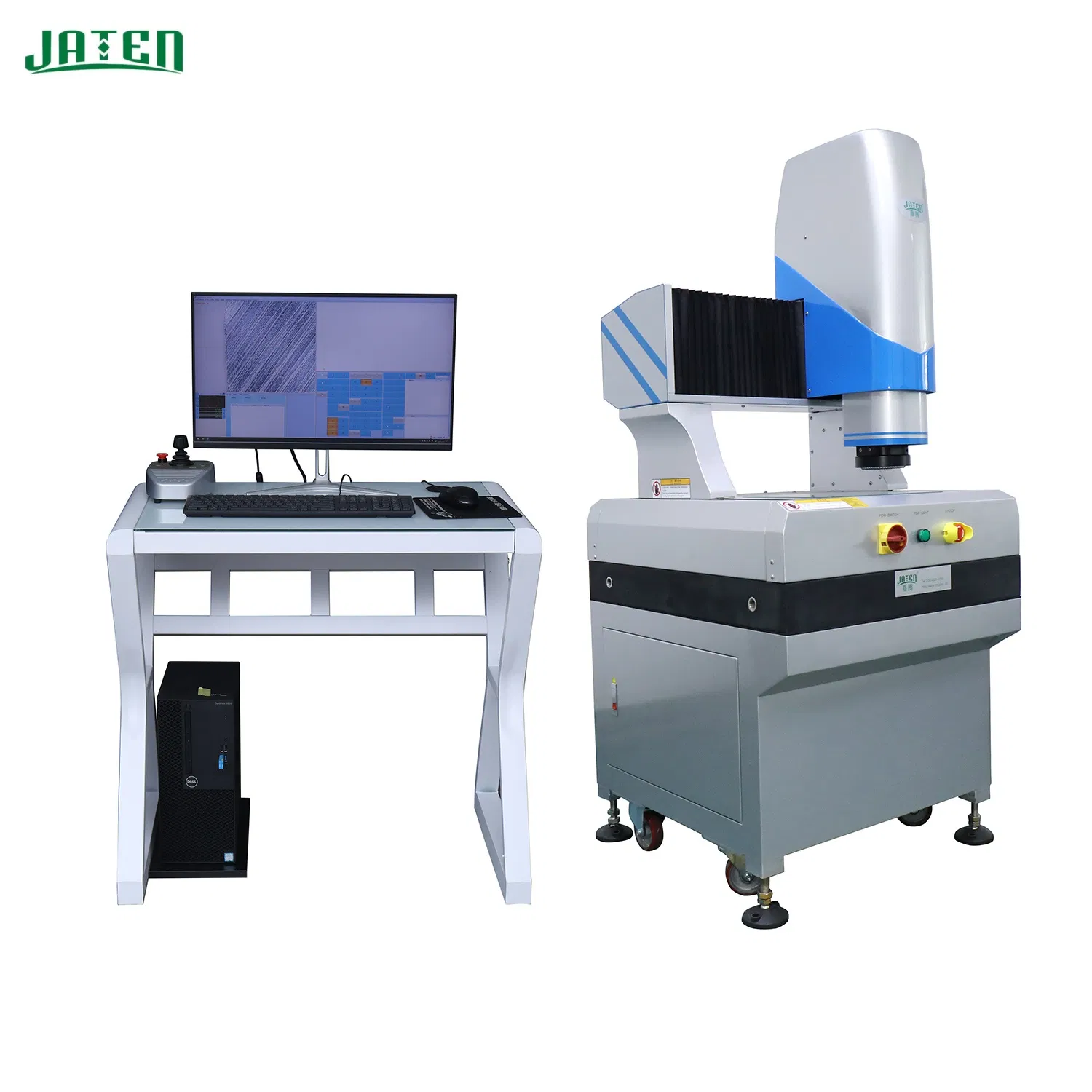

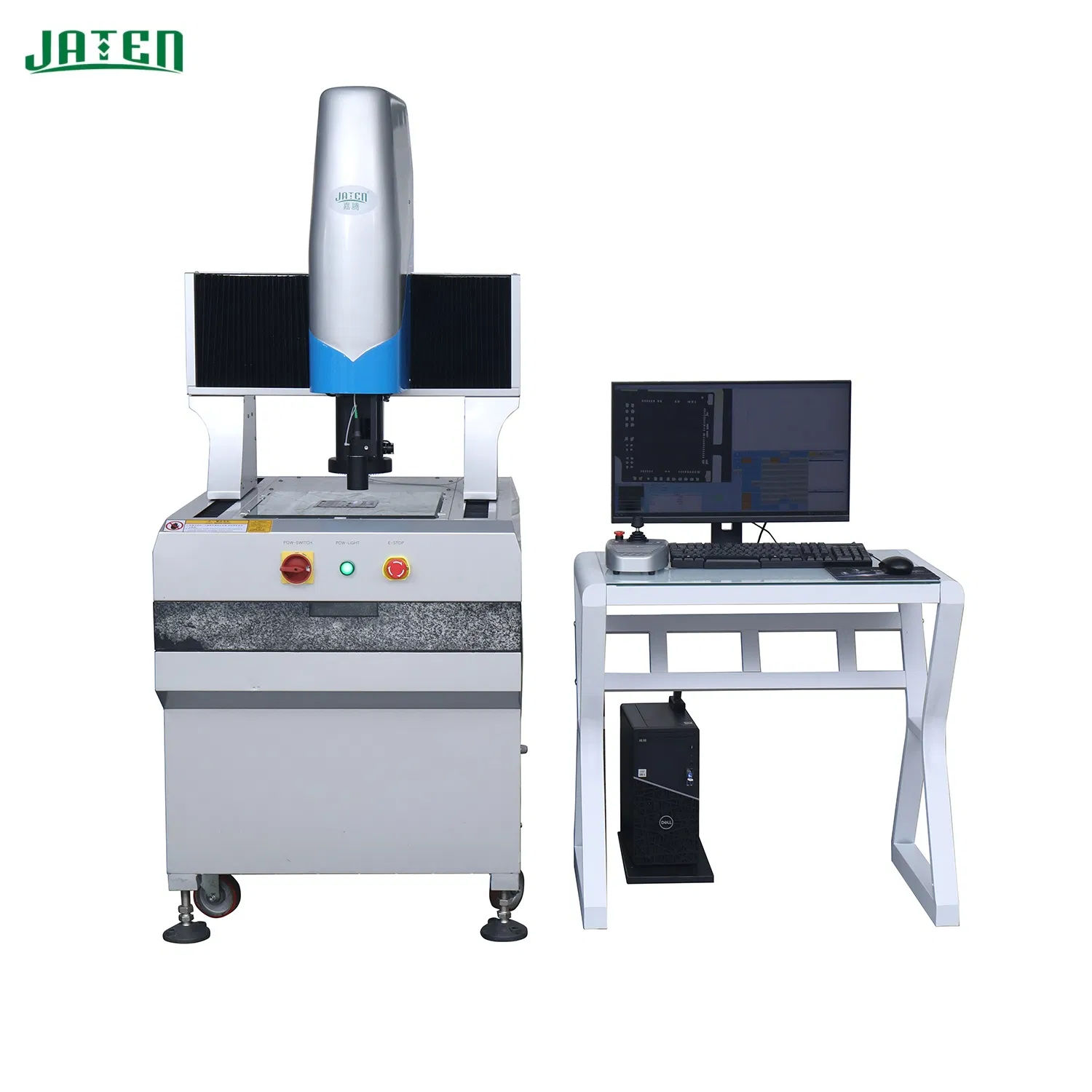

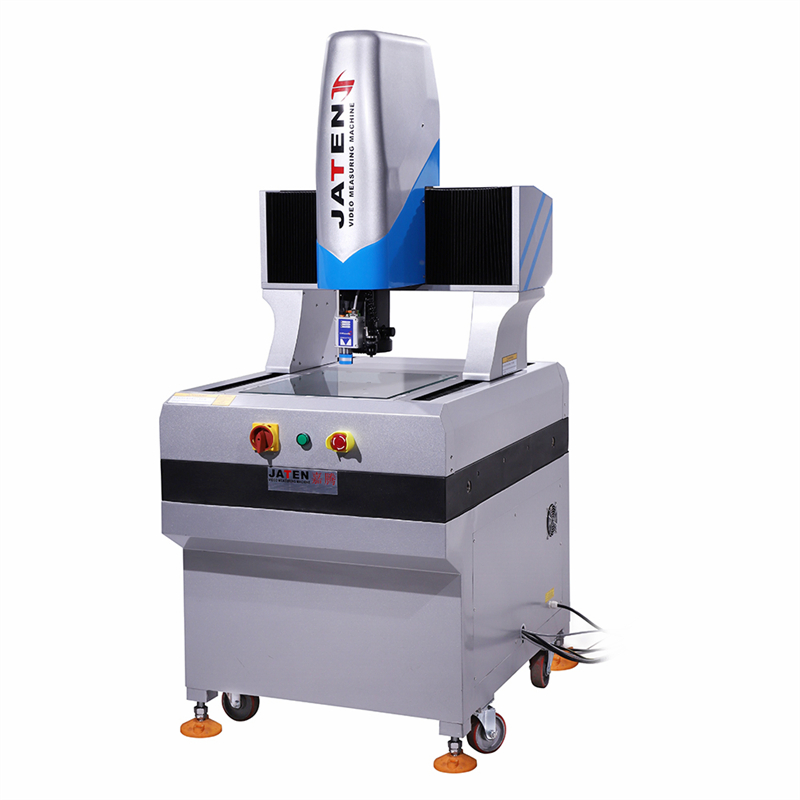

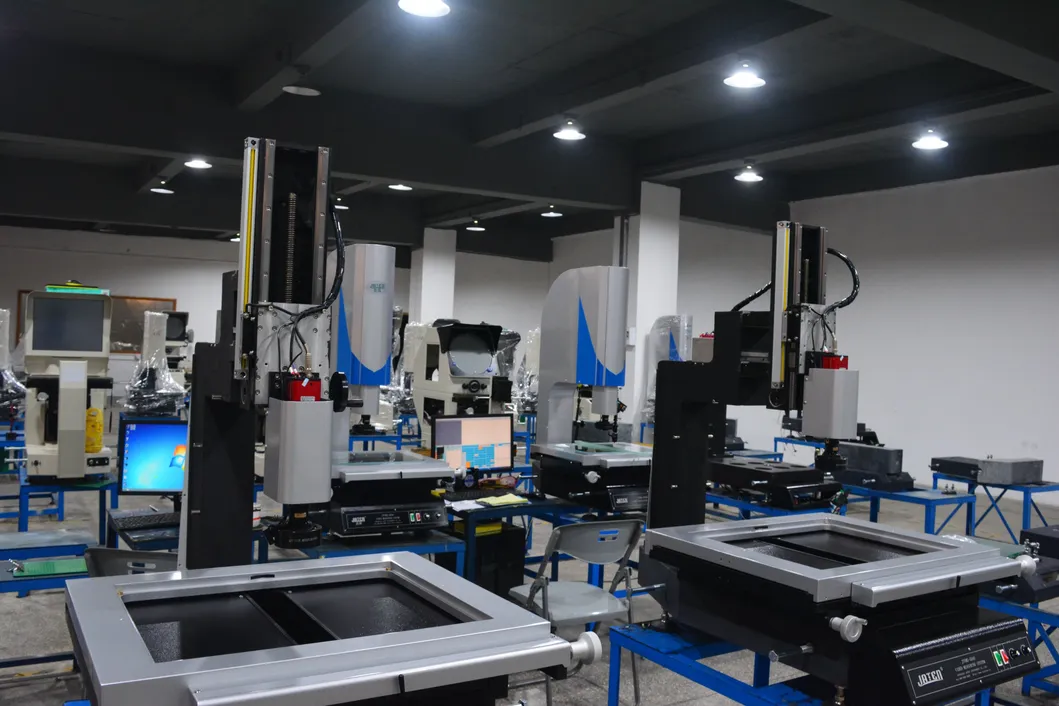

Gantry CNC Video Measuring Machine provides high-precision measuring solutions for micro parts. Featuring a stable gantry architecture and advanced motion control, it is designed for demanding industrial applications.

Key Features & Characteristics

✔High-precision marble base and beams ensure exceptional stability and rigidity.
✔Small gantry mobile architecture allows the table load glass to remain stationary, achieving higher speeds without affecting measurement accuracy.
✔Precision grinding ball screw paired with Japan THK linear guides and Matsushita servo motors for stable, high-speed positioning.

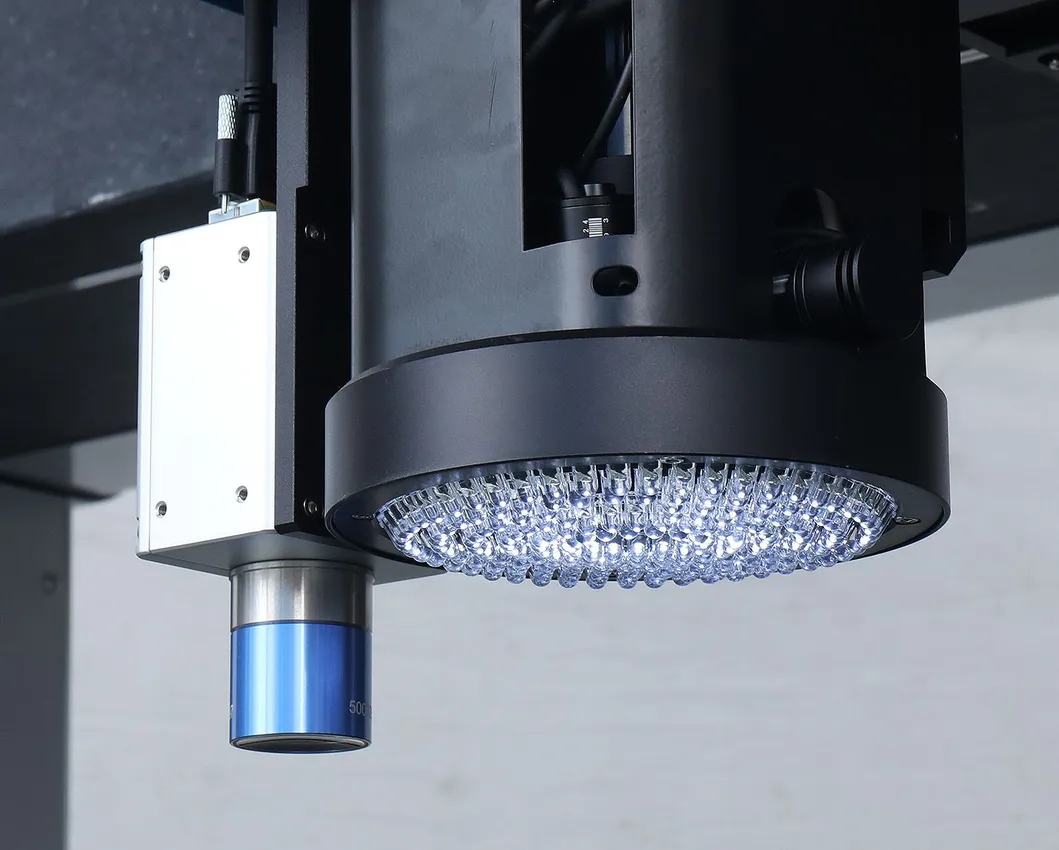

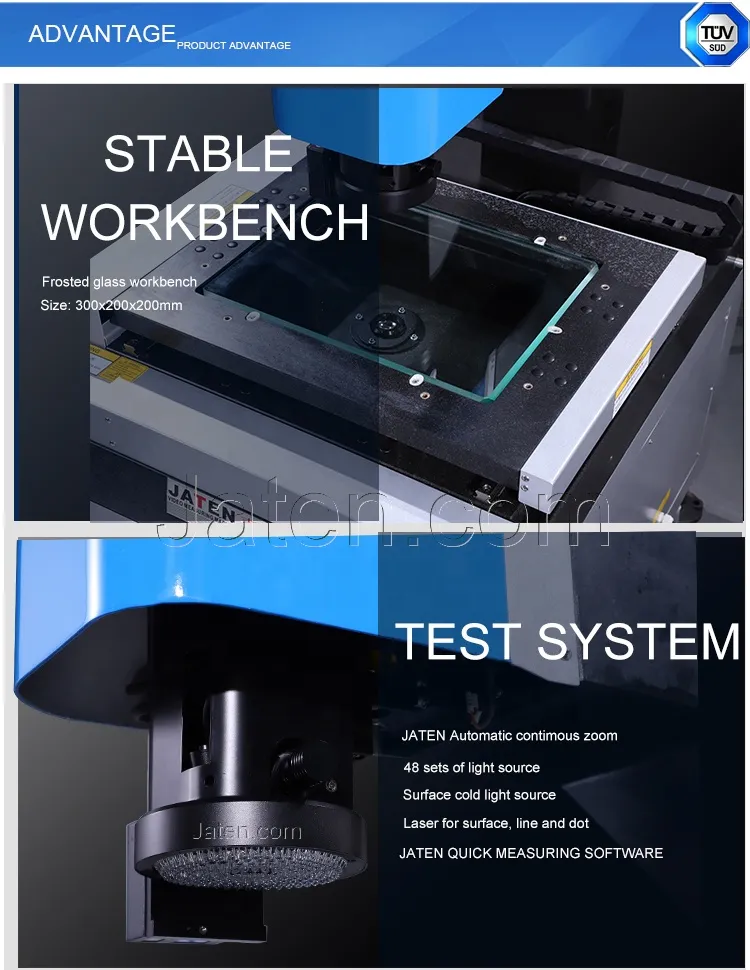

✔SONY high-resolution color camera combined with a self-developed 48-group independent cold light source.
✔Imported American GSI precision optical scale with a resolution of 0.5μm.
✔Embedded module motor control for improved response speed and simplified PC interface via USB.
✔Automatic continuous zoom lens eliminates the need for manual re-calibration after zooming.
✔Image navigation system for rapid workpiece localization.
✔Programmable QuickMeasuring software for efficient automated detection.

T

Technical Parameters

Model	QVS6050CNC
Work Range	600500200mm
Dimensions (LWH)	174013161760mm
Accuracy (X/Y-axis)	≤(3+L/200)μm
Accuracy (Z-axis)	≤(4+L/200)μm
Grating Resolution	High-precision Grating; 0.5μm
Optical System	Automatic zoom lens; Optional laser for thickness/flatness
Lighting	Adjustable LED ring surface light and contour light
Power Supply	220V±10%, 50Hz

A

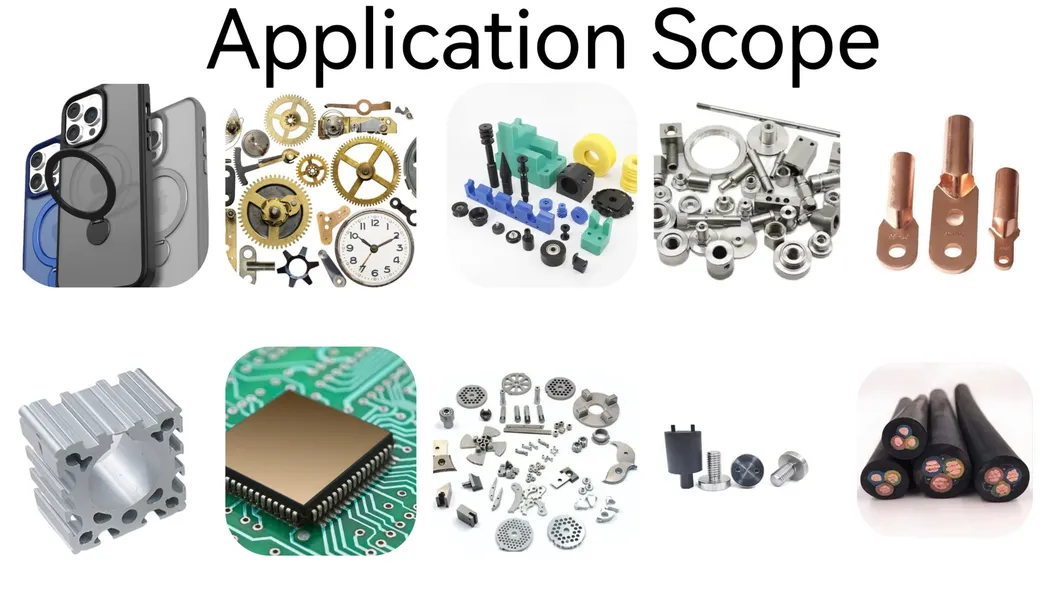

Applications

Perfect vision system for non-contact measurement and inspection of:

●Stamped and Injected Plastic Parts
●Precision Injection Moulds
●Electronic Components
●Silk Screen Printing Industry
●Lead Frame Industry

S

Packaging & Shipping

Packing: Secure Wooden Case.
Warranty: One-year warranty for the main board with life-long maintenance service.
Delivery: Typically processed within 2 working days after payment receipt.

?

Frequently Asked Questions

Q1: Are you a factory or a trading company?

A: We are a professional manufacturer with 20 years of worldwide precision manufacturing experience and a dedicated team of professional engineers.

Q2: How can I obtain more detailed machine information?

A: You can inquire directly for detailed machine specifications, pricing, shipment terms, and other technical data. We will provide a comprehensive response promptly.

Q3: How do you ensure machine quality?

A: We are ISO 9001:2008 and CE approved. We utilize key components from top-tier suppliers in Japan, Germany, and Taiwan. Every machine undergoes a Factory Acceptance Test (FAT) before delivery.

Q4: Do you provide machine testing videos?

A: Yes, during the factory debugging phase (Factory Acceptance Test), we provide FAT videos to our customers to confirm functionality before packing.

Q5: What is your support protocol if a machine malfunctions?

A: Within the guarantee period, we offer replacement parts for non-manmade errors free of charge. Overseas service is also available based on service agreements.
