Product Description

Basic Information

Model NO.

SYR-1

Feature

Environmental, Fireproof, Light Weight

Certification

ISO9001, CE, SGS, ASTM, En Standards.

Customized

Support Non-Standard Sizes

Delivery Time

15-30 days

MOQ

100 Square Meters

Origin

Shandong, China

HS Code

6810999000

Product Description

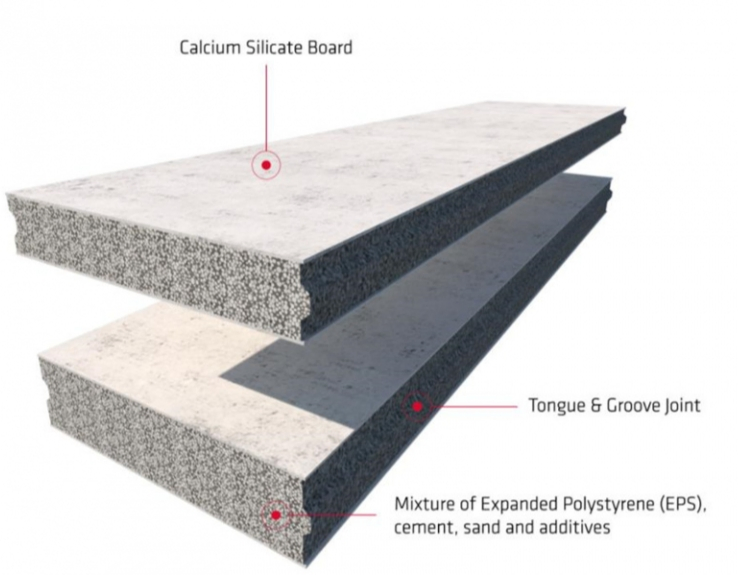

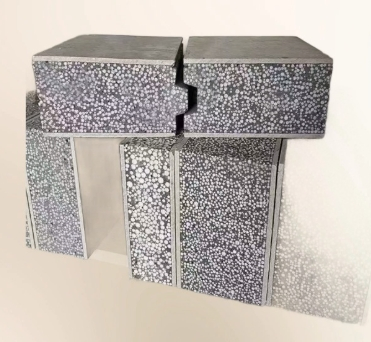

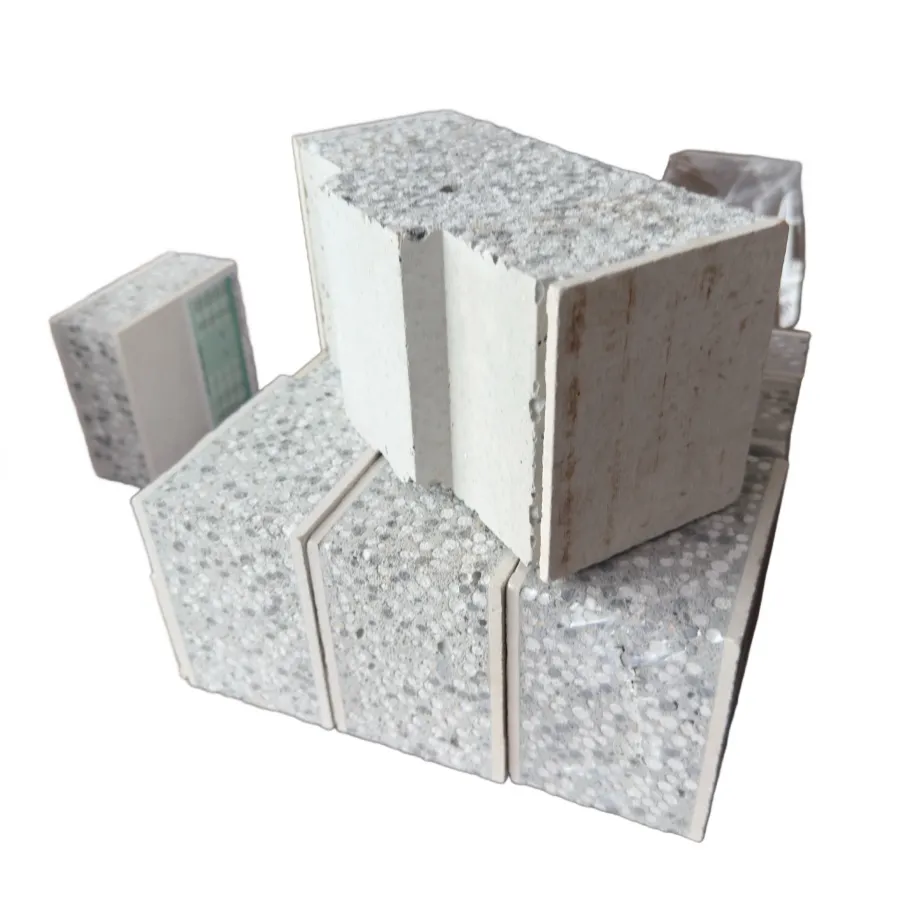

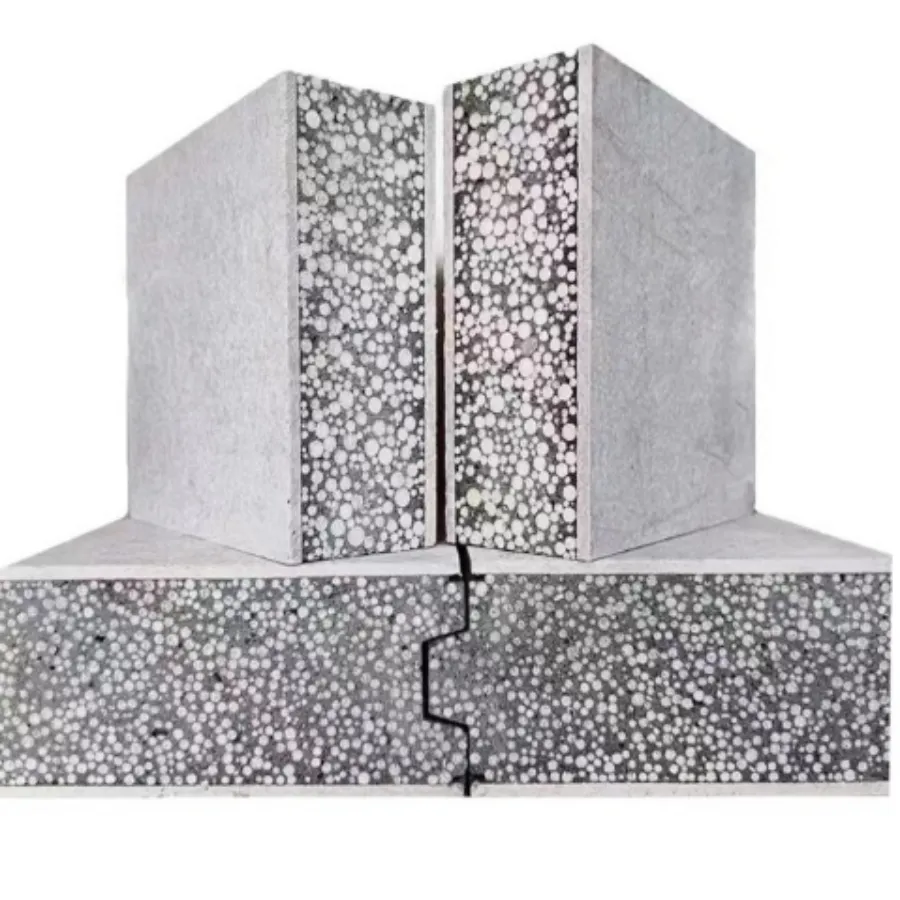

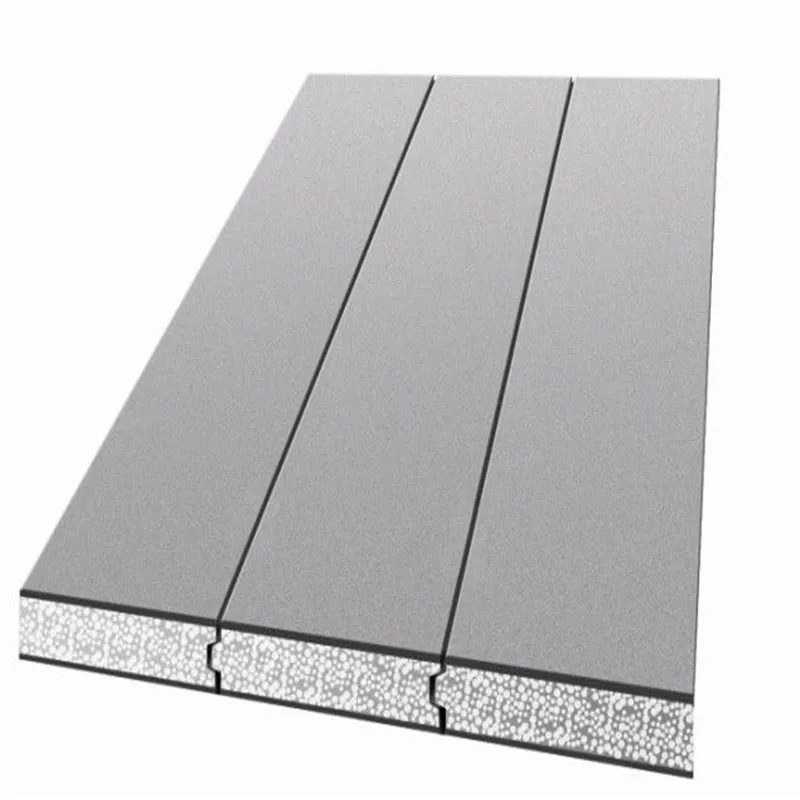

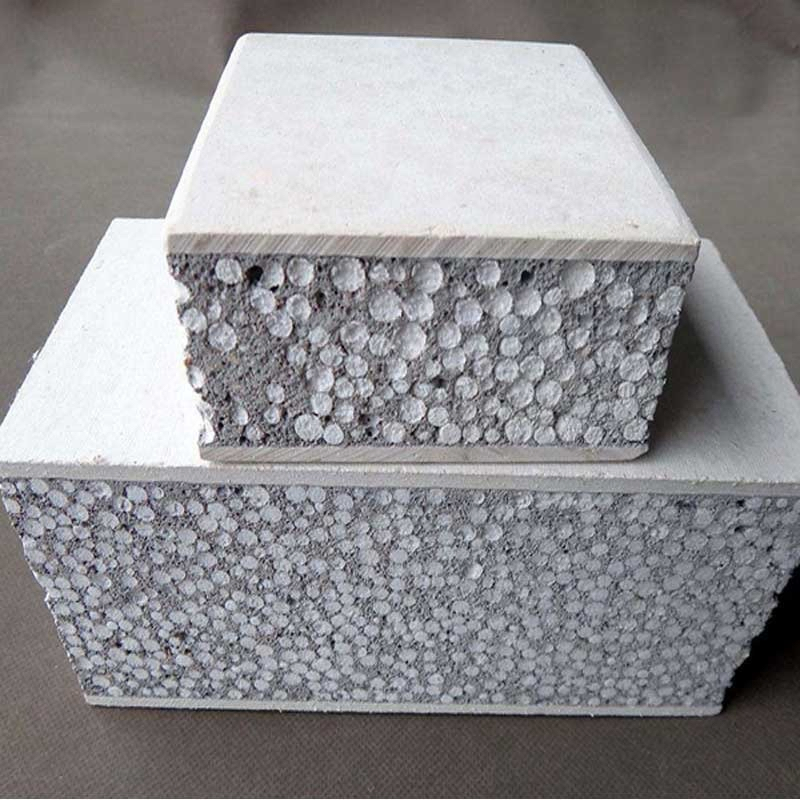

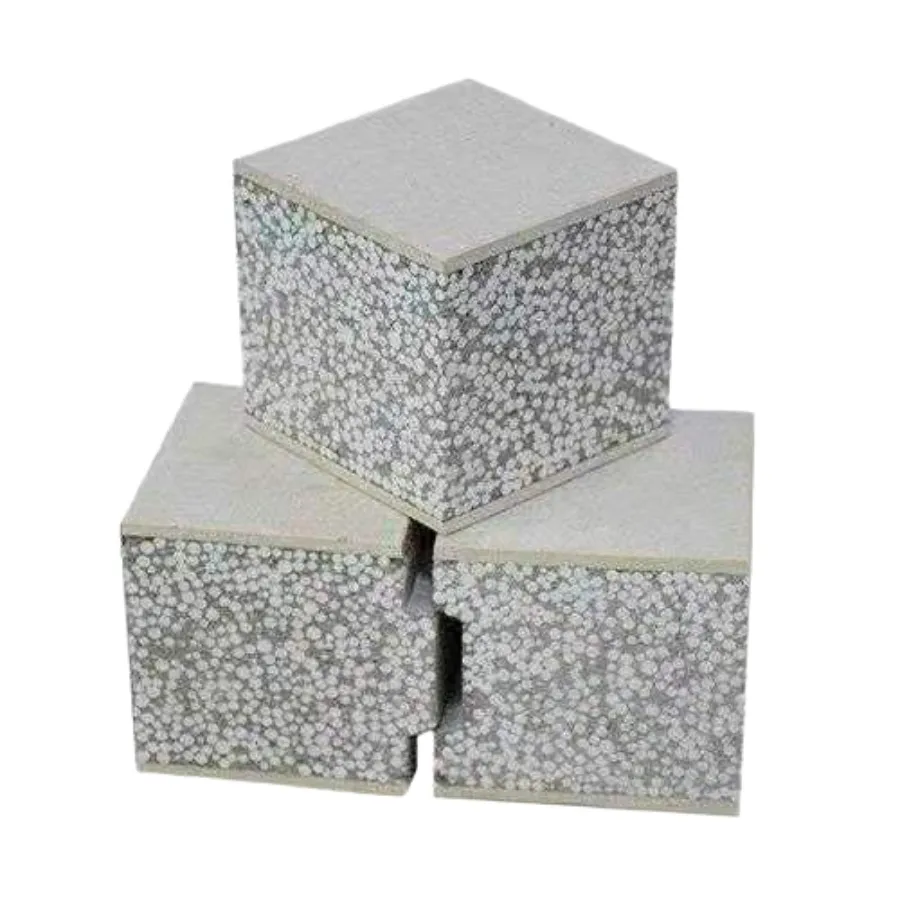

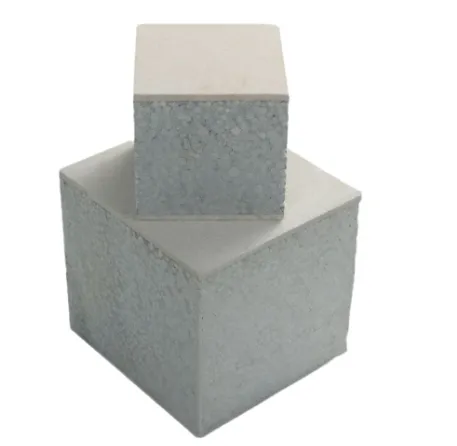

EPS Cement Sandwich Panel (also known as EPS Core Sandwich Panel or Lightweight Insulated Wall Panel) is a high-performance prefabricated building material composed of:

Outer Layers: Fiber-reinforced cement boards (or silicon calcium boards) for structural strength.
Core Material: Expanded Polystyrene (EPS) foam for thermal insulation.
Adhesive Layer: Special polymer-modified cement mortar for bonding.

This panel is widely used in residential, commercial, and industrial construction due to its lightweight, fire resistance, thermal insulation, and rapid installation benefits.

Technical Specifications

Parameter	Value / Description	Testing Standard
Panel Thickness	50mm - 200mm (customizable)	ASTM C1289
Panel Size	1200mm × 2400mm (standard)	ISO 8335
Density (EPS Core)	18-30 kg/m³	ASTM D1622
Thermal Conductivity	0.033-0.038 W/(m·K)	ASTM C518
Fire Rating	Class A (Non-combustible)	EN 13501-1
Sound Insulation	40-45 dB (100mm panel)	ISO 10140
Bending Strength	≥5 MPa	ASTM C393
Weight	15-25 kg/m²	-

Comparison vs. Traditional Materials

Feature	EPS Sandwich Panel	Brick Wall	Concrete Panel
Weight (kg/m²)	15-25	180-220	200-250
Thermal Insulation	Excellent	Poor	Moderate
Installation Time	1-2 days per house	2-4 weeks	3-6 weeks
Cost Efficiency	30% cheaper	High labor cost	High material cost

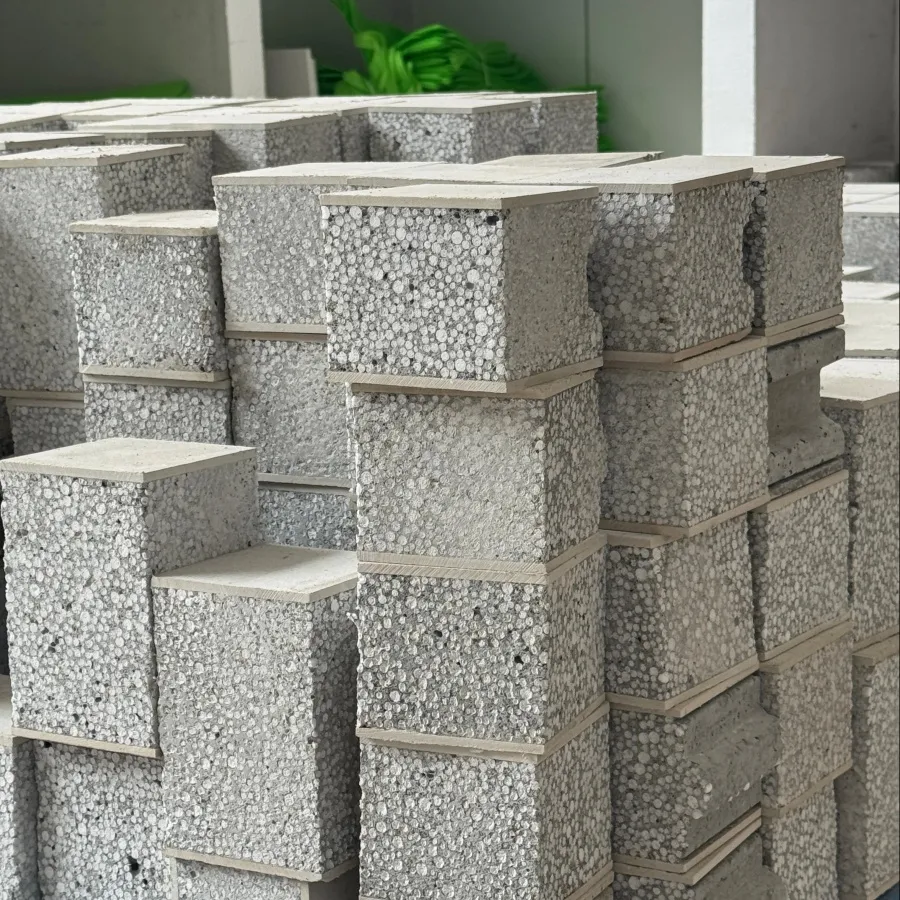

Key Advantages

🏗️
Lightweight & High Strength: Reduces structural load significantly.
🌡️
Thermal Insulation: Superior energy efficiency.
🔥
Fireproof: Class A fire rating for maximum safety.
⚡
Fast Installation: Modular construction saves time and labor.
💧
Moisture Resistant: Protects against mold and water damage.

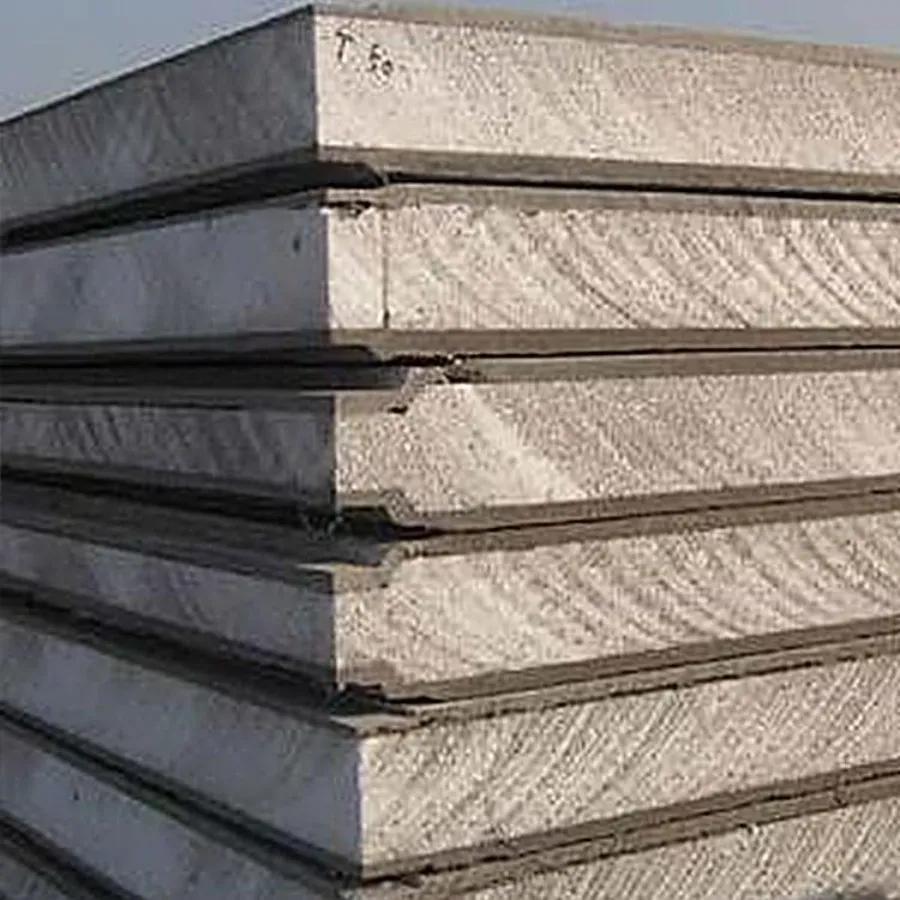

Primary Applications

🏠

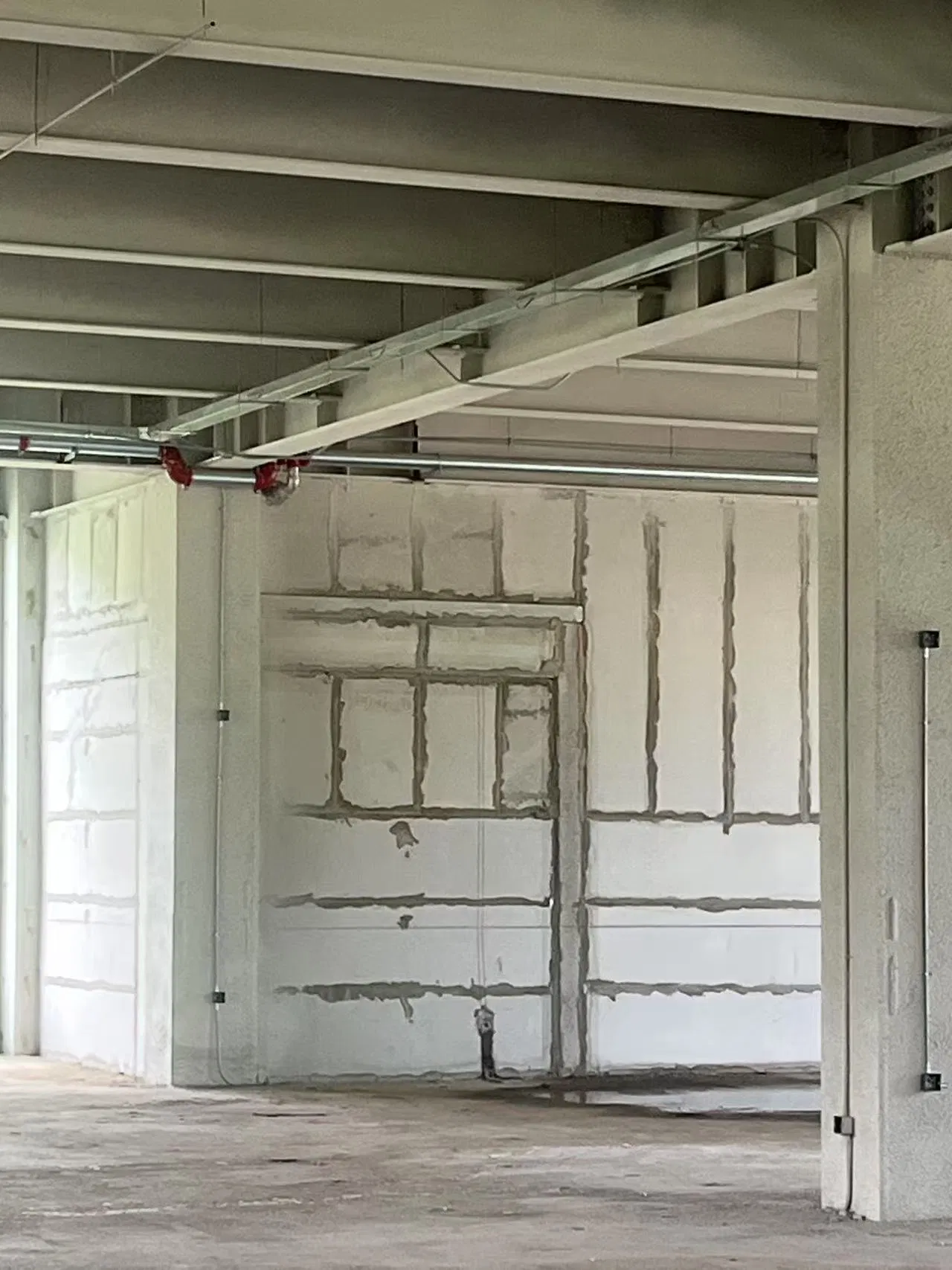

Residential: Exterior walls, partitions, prefab houses, and villas.
🏭

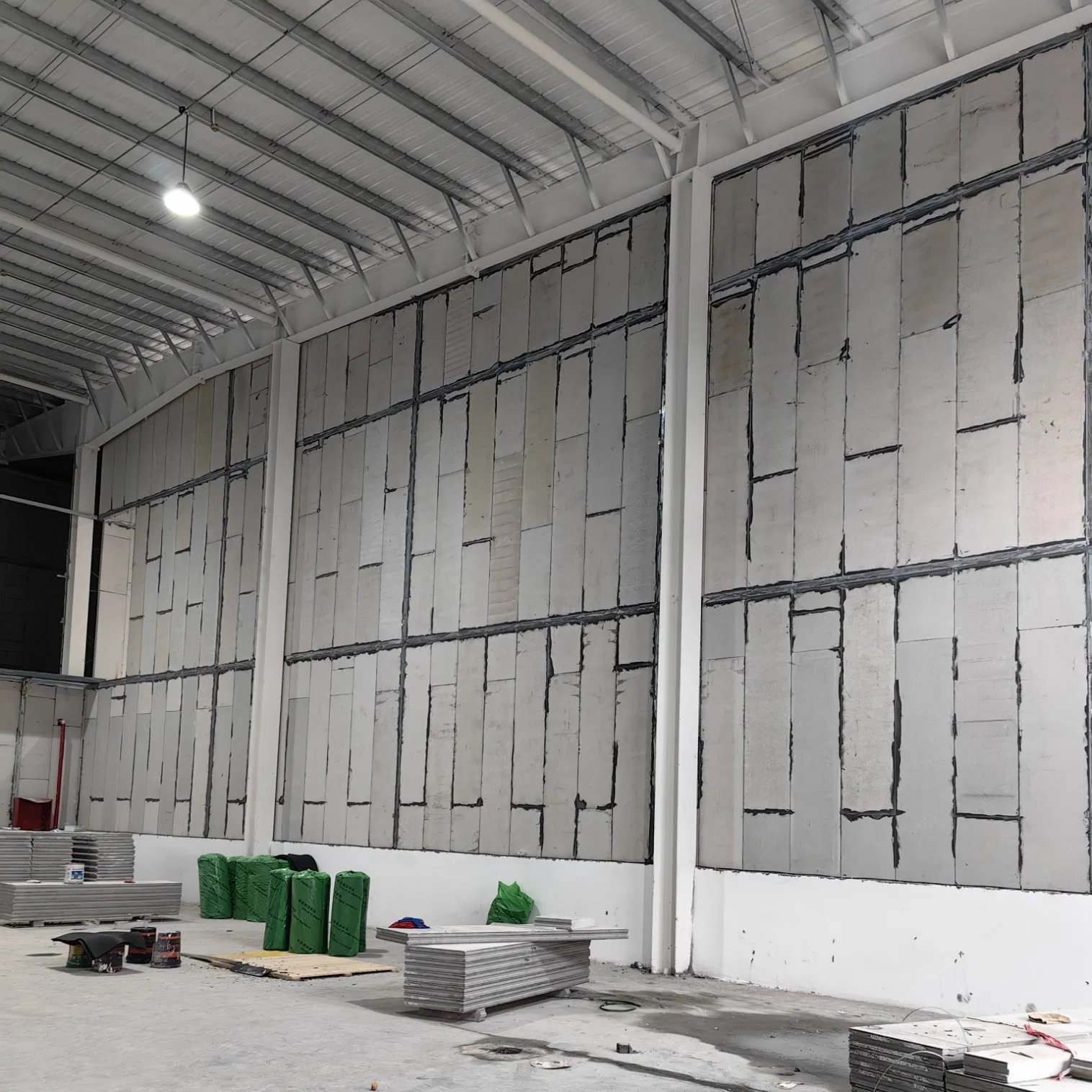

Industrial: Warehouses, cold storage, and factory partitions.
🏥
Specialized: Cleanrooms for hospitals and labs, temporary housing.

Installation Guidelines

1. Foundation Preparation - Level base.
2. Panel Alignment - Laser level precision.
3. Mechanical Fixing - Anchors every 400mm.
4. Joint Treatment - Elastic mortar sealing.

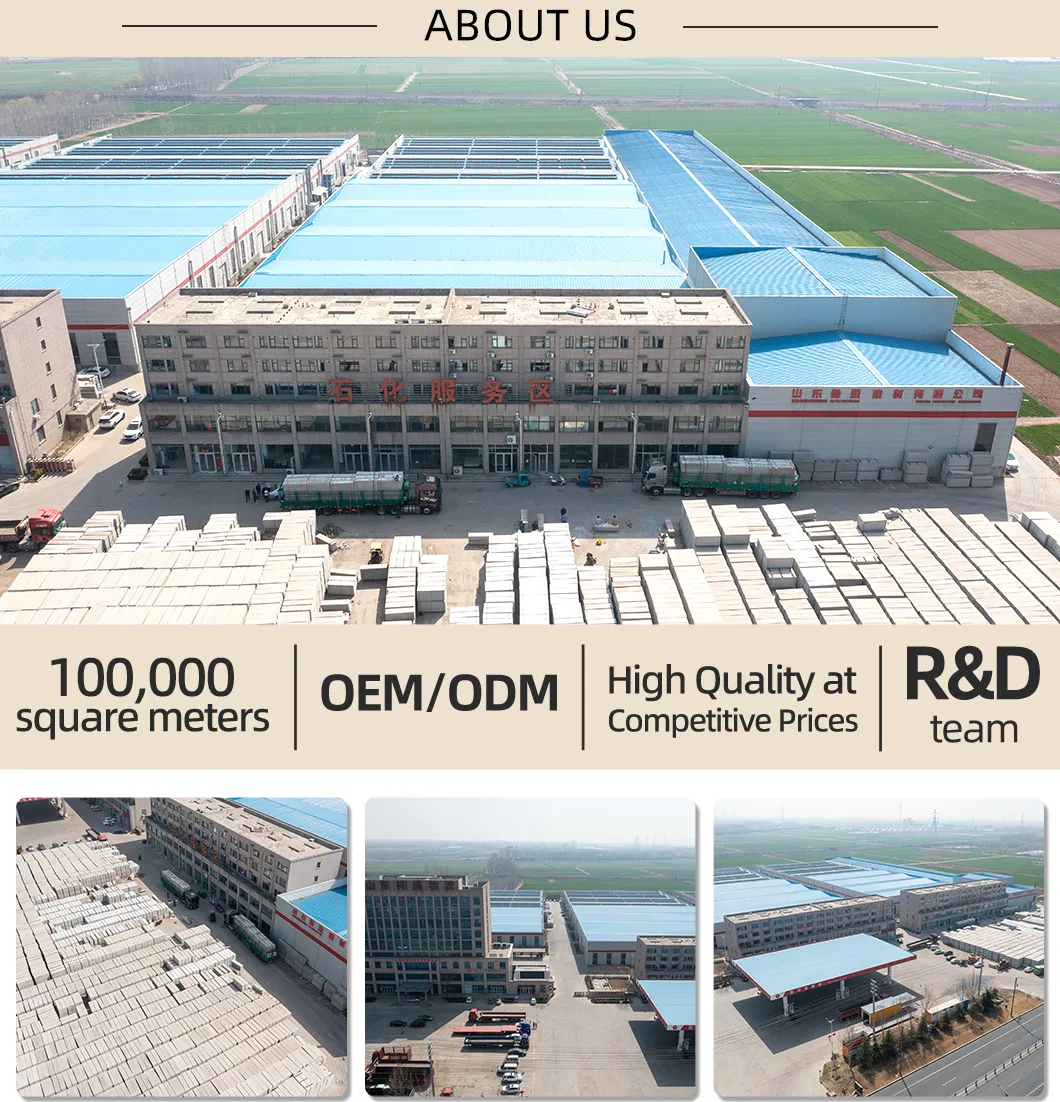

About Us

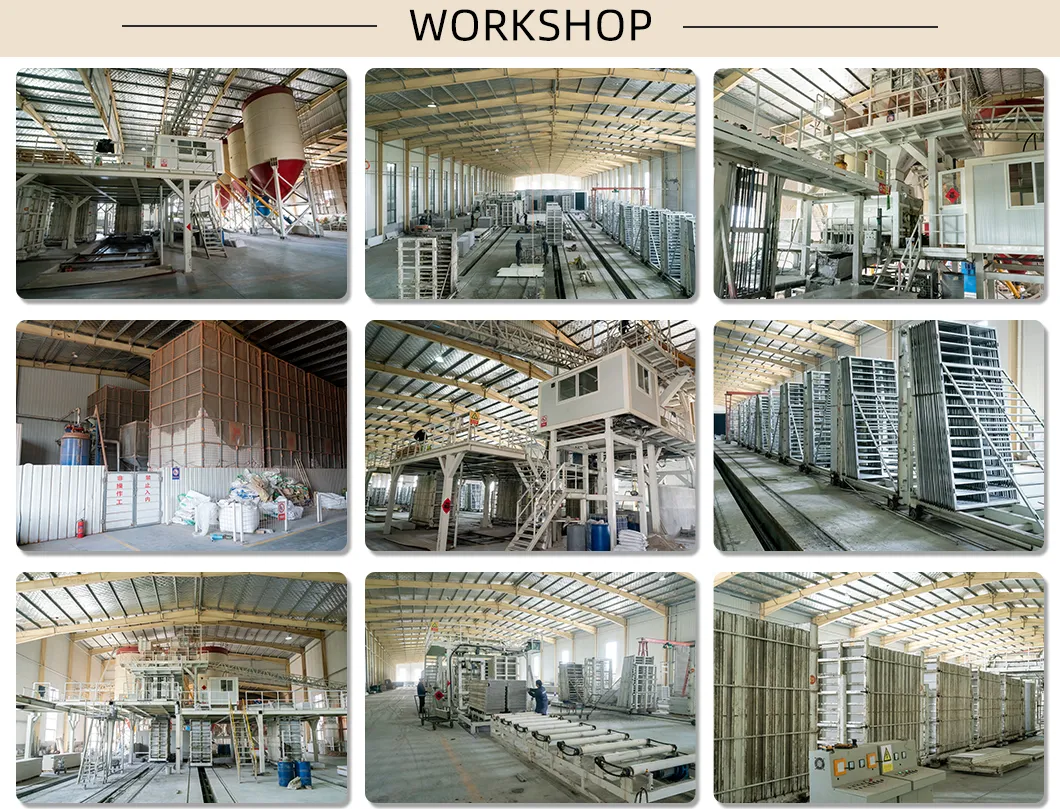

We are a high-tech enterprise specializing in the research, production, sales, and construction services of green, environmentally friendly, and energy-saving wall materials. Our facility covers an area of 20,000 square meters with a modern production line spanning 6,200 square meters. Our annual production capacity exceeds 1 million square meters of lightweight energy-saving composite wall panels.

Exhibitions & Customers

Our Partners

Certified by ISO 9001, CE, SGS, ASTM, and EN standards. Green Building Certifications (LEED, BREEAM).

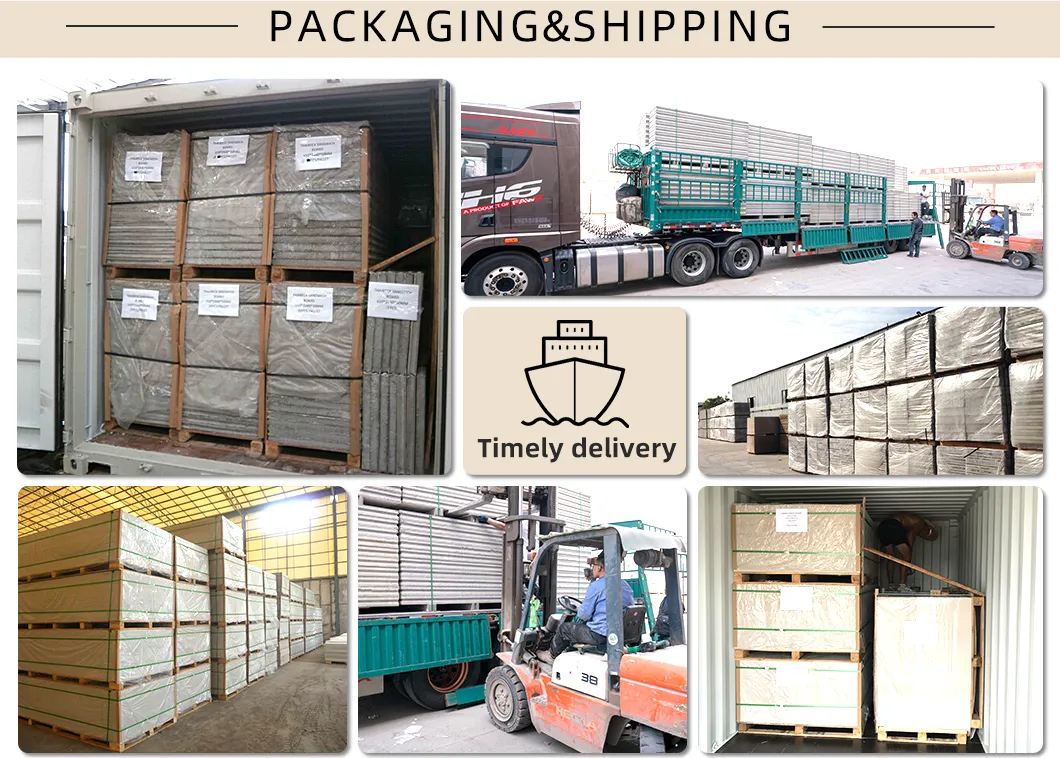

Packaging & Shipping

Frequently Asked Questions

1. What is an EPS cement sandwich panel?

It is a composite building material with two layers of fiber cement or calcium silicate boards sandwiching an expanded polystyrene (EPS) core. It is lightweight, fire-resistant, and provides excellent insulation.

2. What are the main advantages of using these panels?

The panels are 1/10 the weight of traditional bricks, offer Class A fire resistance, provide superior sound (40-45 dB) and thermal insulation, and can be installed much faster than traditional masonry.

3. Is the panel fire-resistant and waterproof?

Yes. The cement facings combined with flame-retardant EPS achieve a Class A fire rating. The closed-cell structure of the EPS core also ensures low water absorption, making it moisture-proof.

4. Can it be used for load-bearing walls?

These panels are primarily designed for non-load-bearing structures such as internal partitions and external curtain walls. For structural applications, they require integrated steel framing support.

5. What is the expected service life?

With proper installation and routine maintenance, EPS cement sandwich panels can last over 50 years under normal environmental conditions.

6. Can the dimensions be customized?

Yes, we support customization for various lengths and thicknesses (typically ranging from 50mm to 200mm) to meet specific project requirements.
