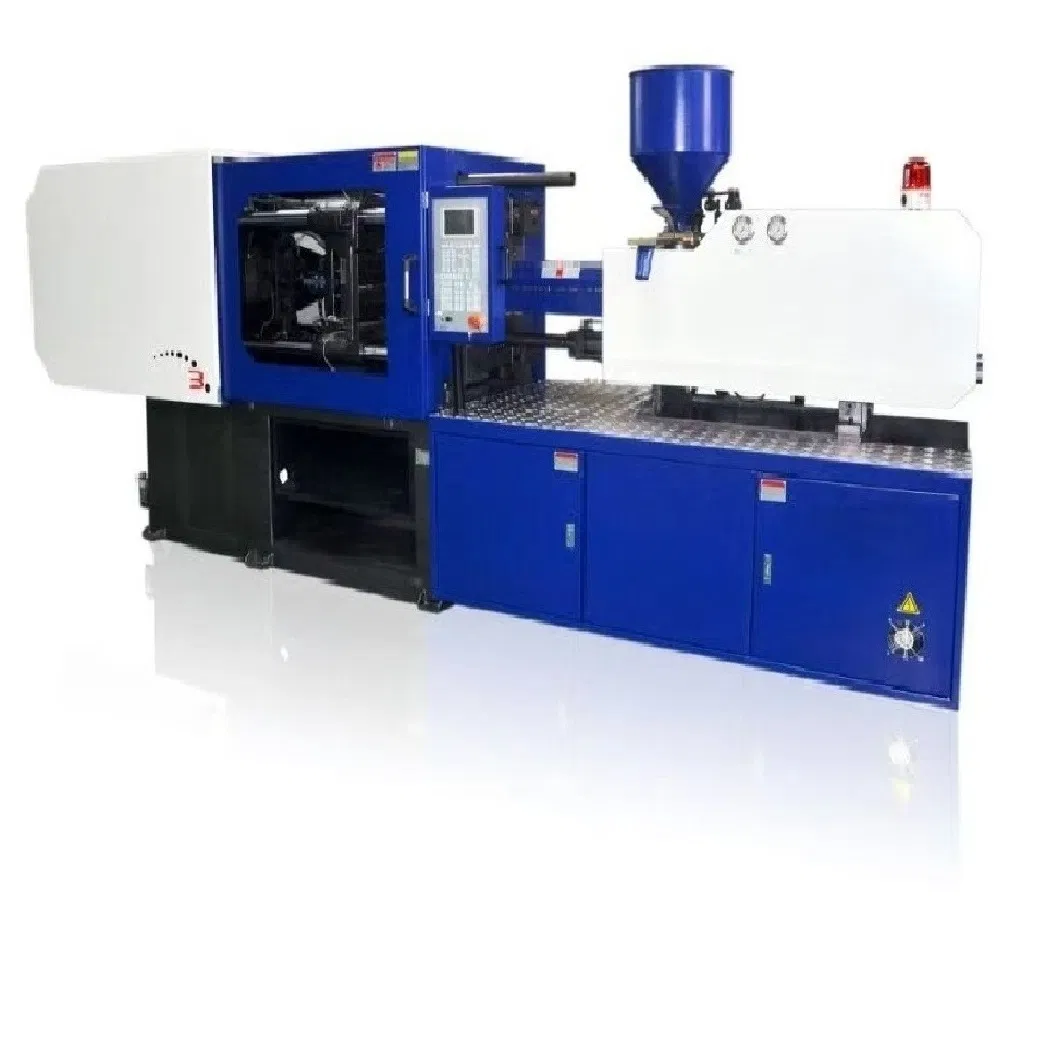

Digital Twin Injection Molding Machine Virtual Commissioning From China

1 / 5

Digital Twin Injection Molding Machine Virtual Commissioning From China

Customization:	Available
After-sales Service:	Engineers Avaiable to Service Machine
Type:	Preform Injection

Send Inquiry

Product Description

Basic Information

Structure Horizontal

Plastic Type Thermoplastic

Plasticizing Way Screw Type

Clamping Way Hydraulic

Automation Automatic

Computerized Computerized

Certification CE, ISO9001:2008, GMP, QS

Transport Package Standard Packing

Packaging & Delivery

Package Size 300.00cm * 100.00cm * 100.00cm

Gross Weight 500.000kg

Technical Specifications

MODEL			CHX-168
Injection Unit	Unit	-	A	B	C	D
	Screw Diameter	mm	40	42	45	48
	Screw L/D Ratio	L/D	23	21	20	18
	Shot Weight(PS)	g	283	310	358	406
	Shot Volume	cm3	254	280	322	365
	Injection Pressure	Mpa	215	190	175	155
	Screw Speed	rpm	0-220
Clamping Unit	Clamping Stroke	KN	1680
	Platen Stroke	mm	410
	Space Between Tie-bars	mm	460*460
	Max. Mould Thickness	mm	480
	Min. Mould Thickness	mm	180
	Ejector Stoke Distance	mm	140
	Ejector Tonnage	KN	40
Other	Oil tank capacity	L	240
General	Motor Power	KW	15
	Heater Power	KW	14.7
	Machine Dimensions	m	5.41.41.9
	Machine Weight	T	4.8

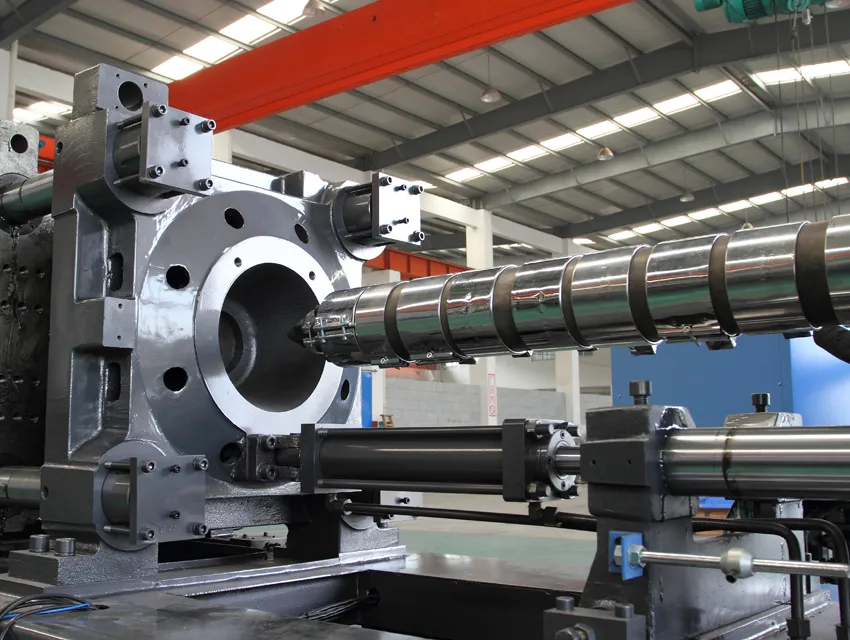

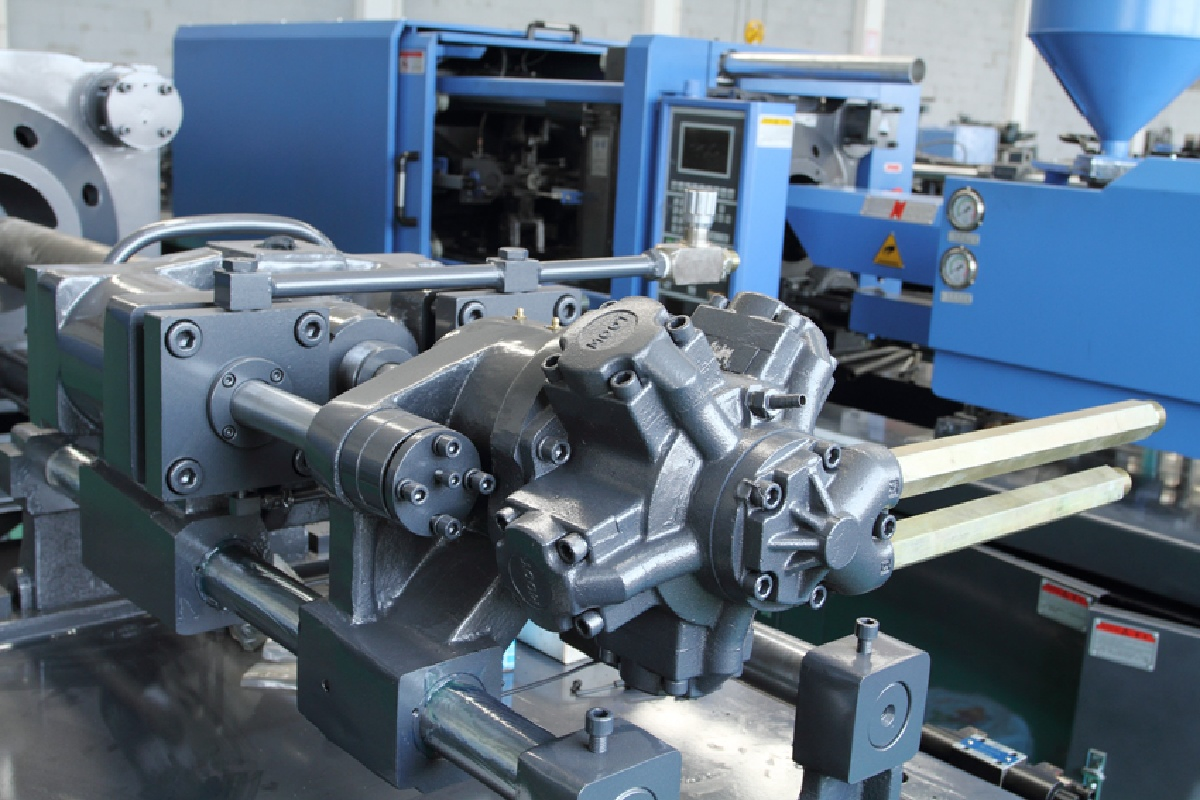

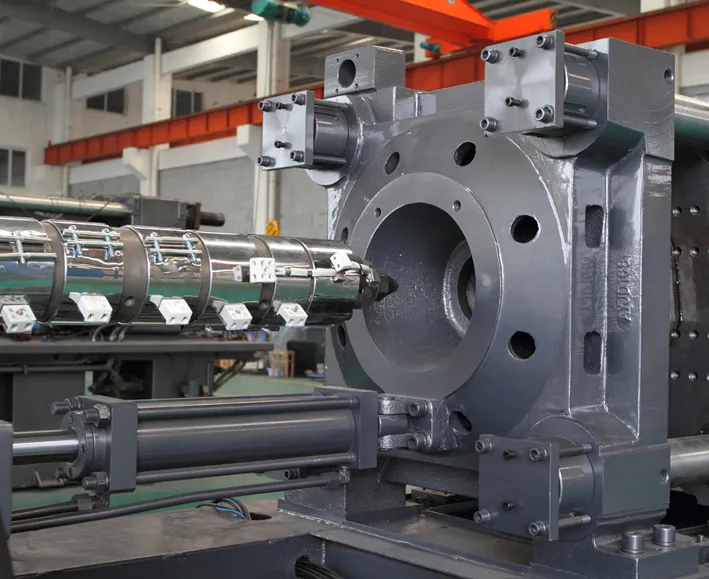

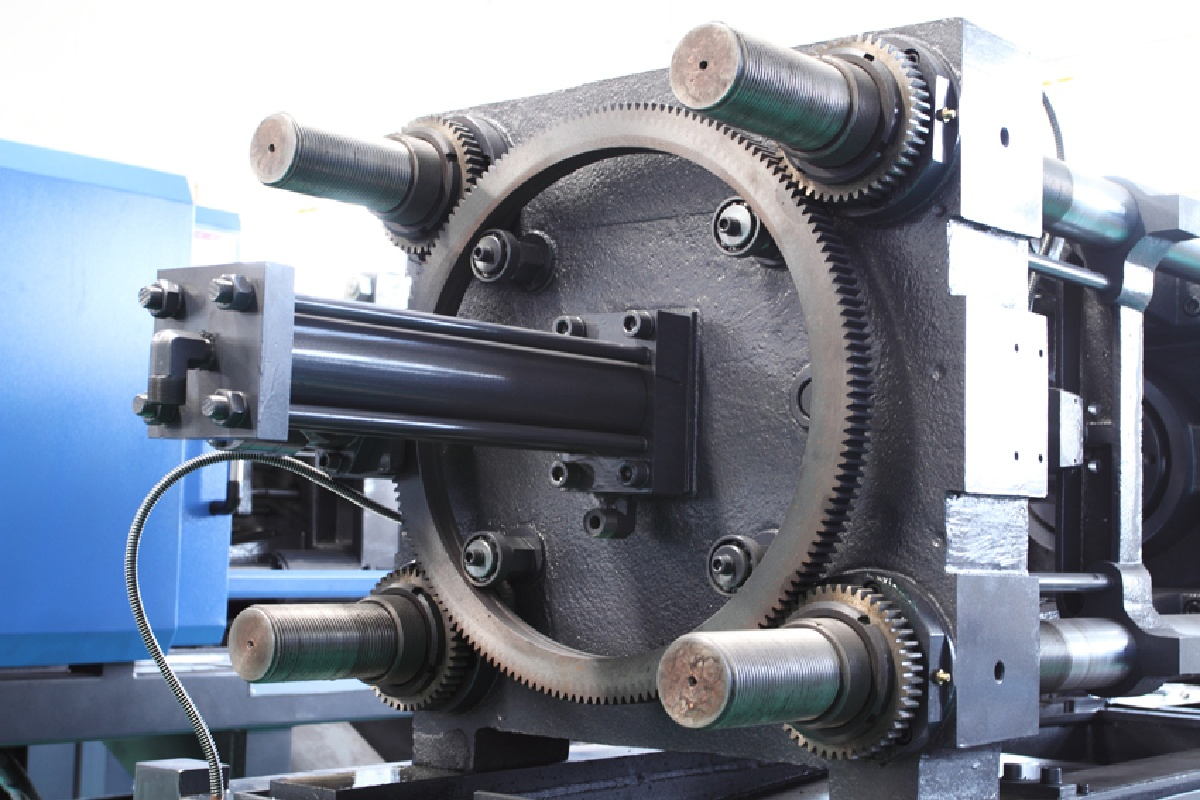

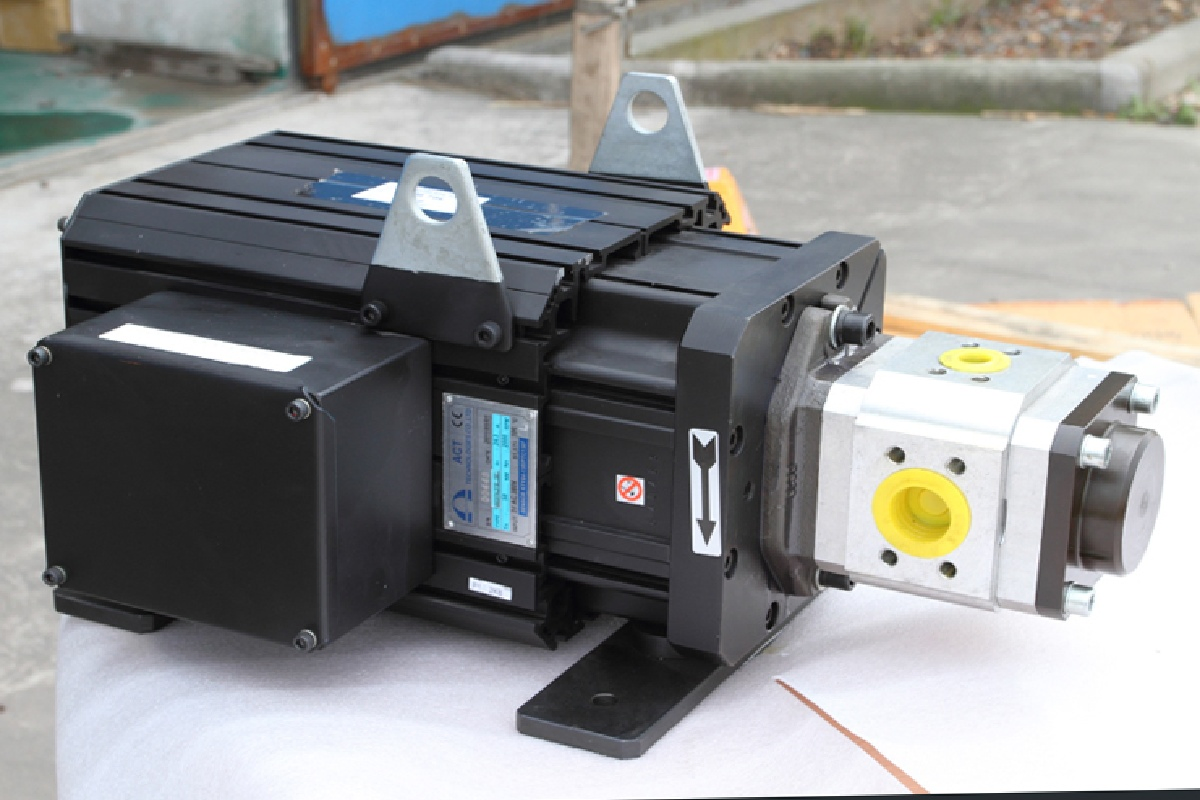

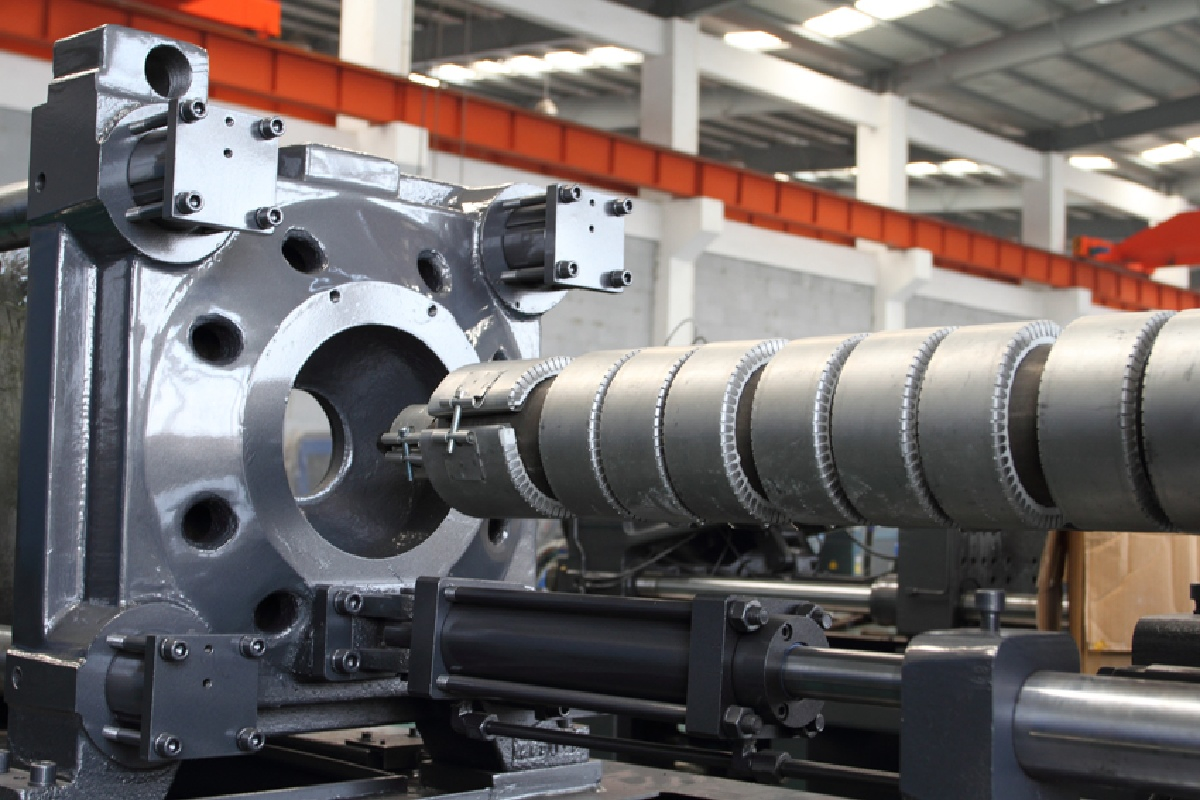

Details Images

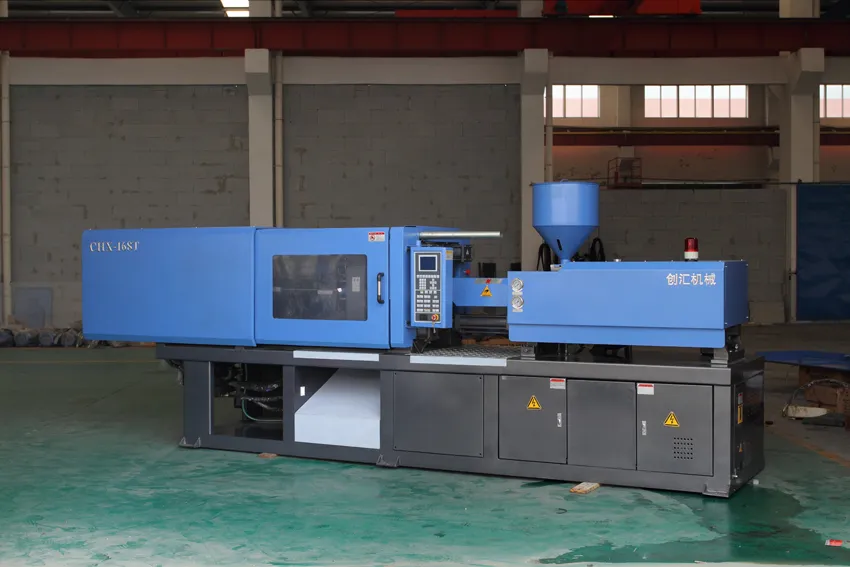

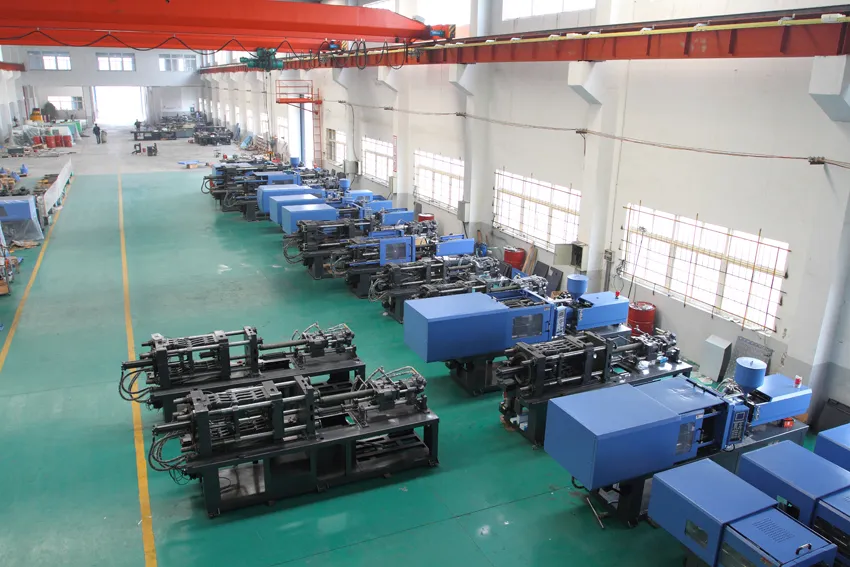

Product Advantage

◈

European Standards: Built and rigorously tested to ensure reliability and durability, meeting international quality demands effortlessly.

◈

High Automation: Streamlined production with advanced systems. Automatic feeding, precise temperature control, and seamless mold operations reduce labor costs and errors.

◈

Quality Components: Premium hydraulic, electrical, and mechanical parts from reliable suppliers extend machine lifespan and boost performance.

Why Choose Us

✔

Rich Experience: Decades in the business with deep expertise in injection molding machines, providing reliable, top-quality products.

✔

Global-fit Designs: Standardized designs that meet varied global needs, fitting both mass and custom production demands.

✔

European Quality, Great Value: Premium quality coupled with competitive pricing for outstanding value.

✔

Full After-sales Support: Quick tech help and ready spare parts ensure smooth operation and minimal downtime.

✔

Custom Service: Professional engineers available to customize machines according to your specific needs.

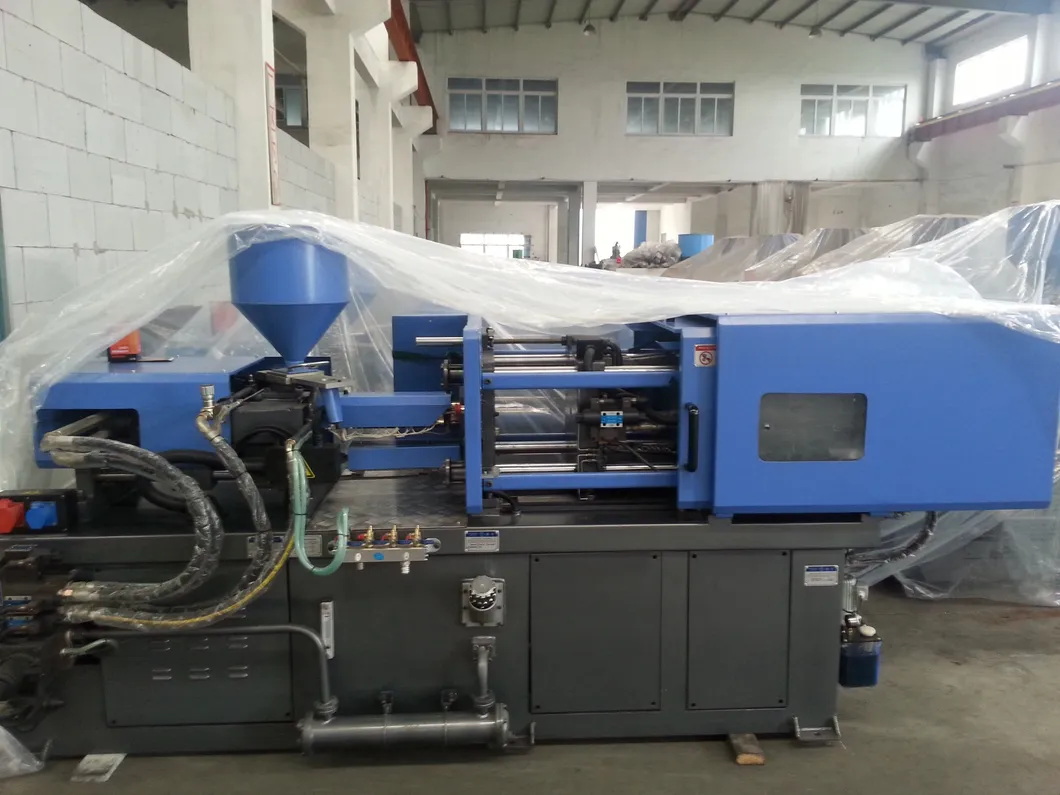

Product Packing

Packing details:

Standard export container packing.
Fixed with wire rope for maximum safety during transport.
Customized specifications available upon request.

Frequently Asked Questions

1. What types of plastic materials are suitable for this machine? This machine is specifically designed for Thermoplastic materials, utilizing a horizontal screw-type plasticizing method for optimal results.

2. Does the machine meet international safety standards? Yes, our machines are fully certified with CE, ISO9001:2008, GMP, and QS certifications, ensuring they meet global quality and safety requirements.

3. How automated is the injection molding process? The machine features a high degree of automation and is fully computerized, including automatic feeding and precise hydraulic control systems.

4. Can I customize the machine for specific mold sizes? Absolutely. We have a team of professional engineers who can customize the machine specifications to fit your specific production needs and mold dimensions.

5. What kind of after-sales support do you provide? We offer comprehensive after-sales care, including rapid technical assistance and a ready supply of spare parts to ensure your operations run smoothly with minimal downtime.

6. How is the machine secured for international shipping? We use standard export container packing and secure the machine using heavy-duty wire ropes to prevent any movement or damage during sea or land transport.
