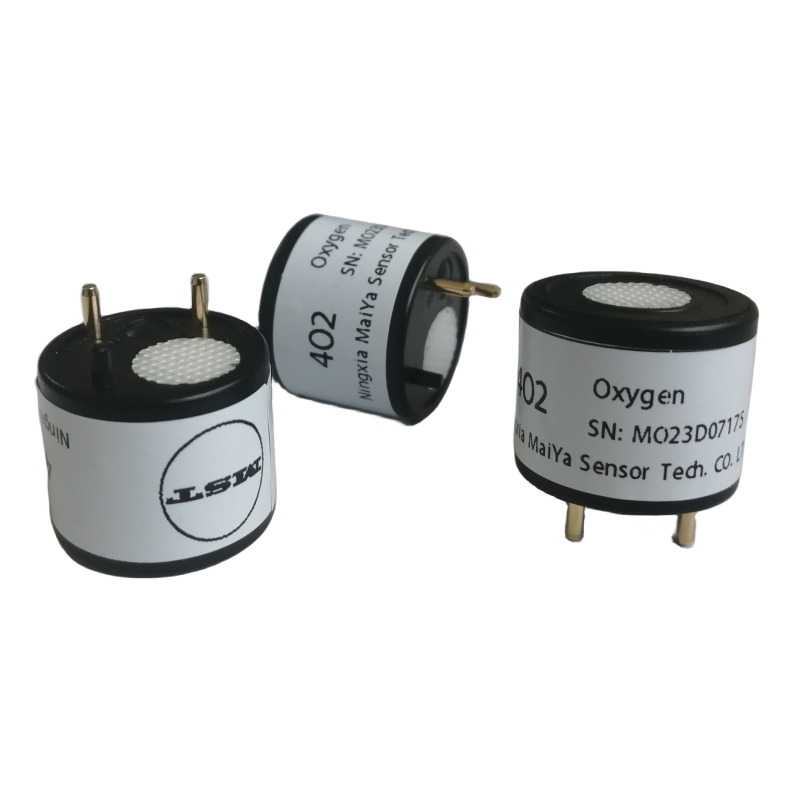

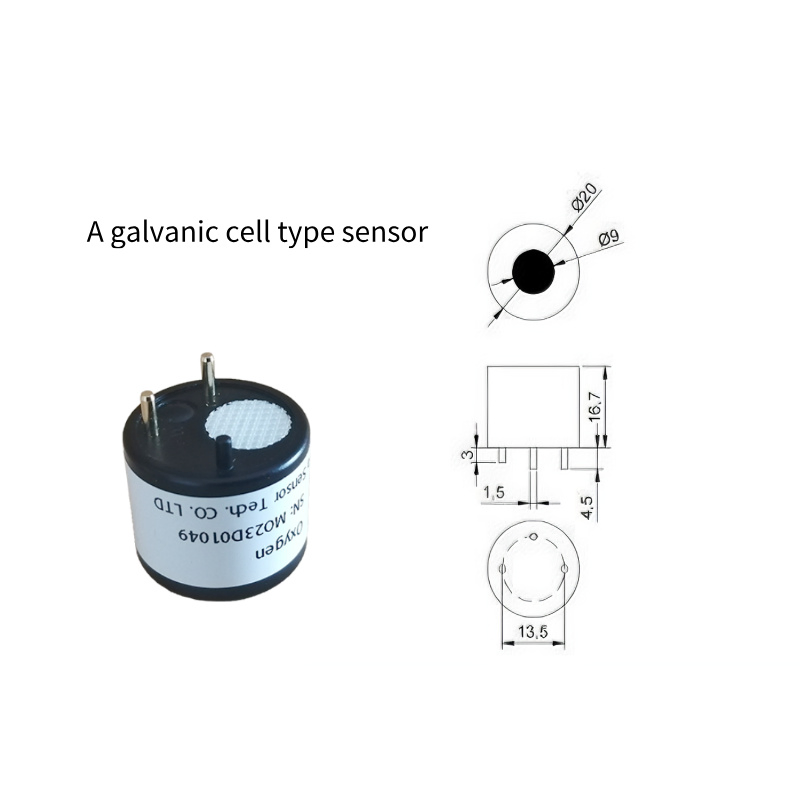

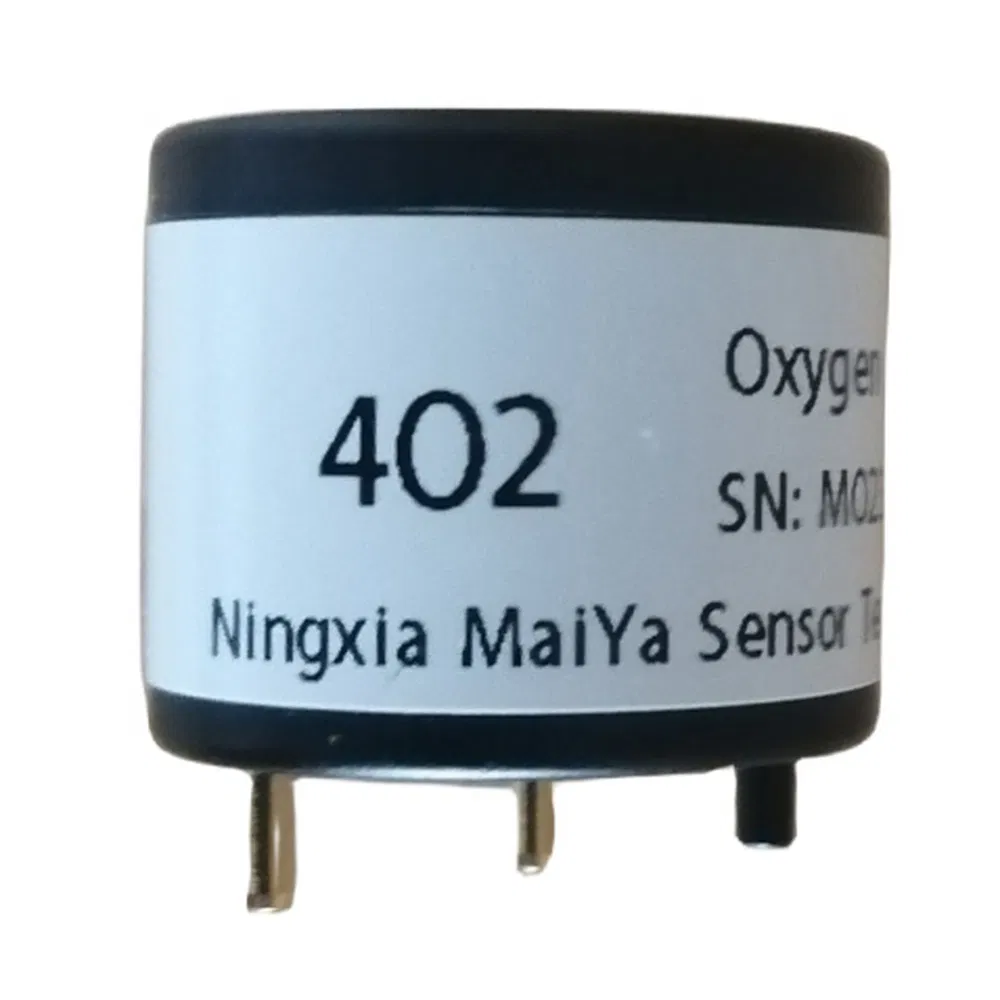

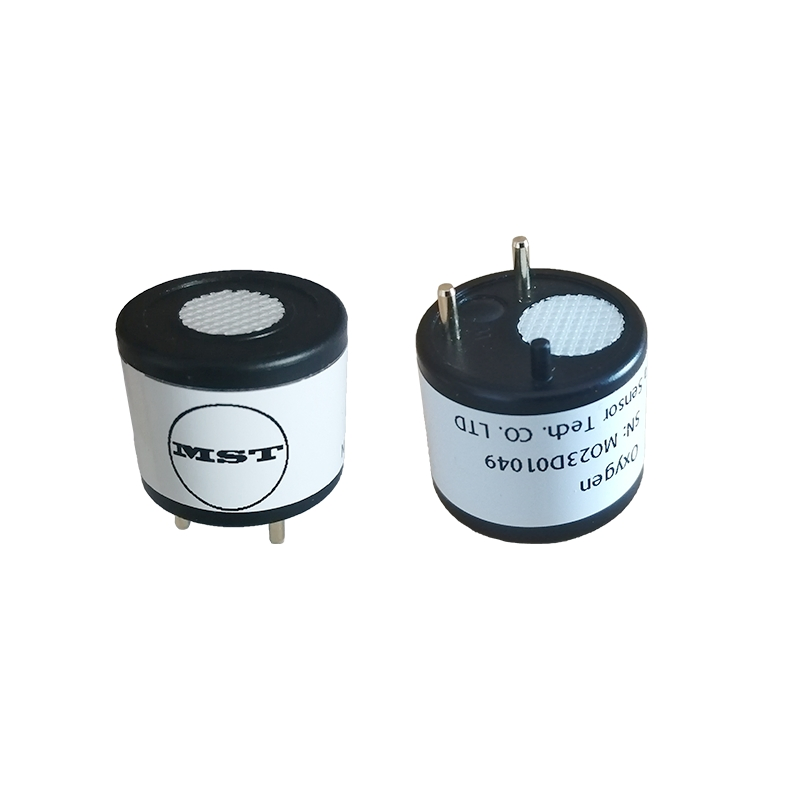

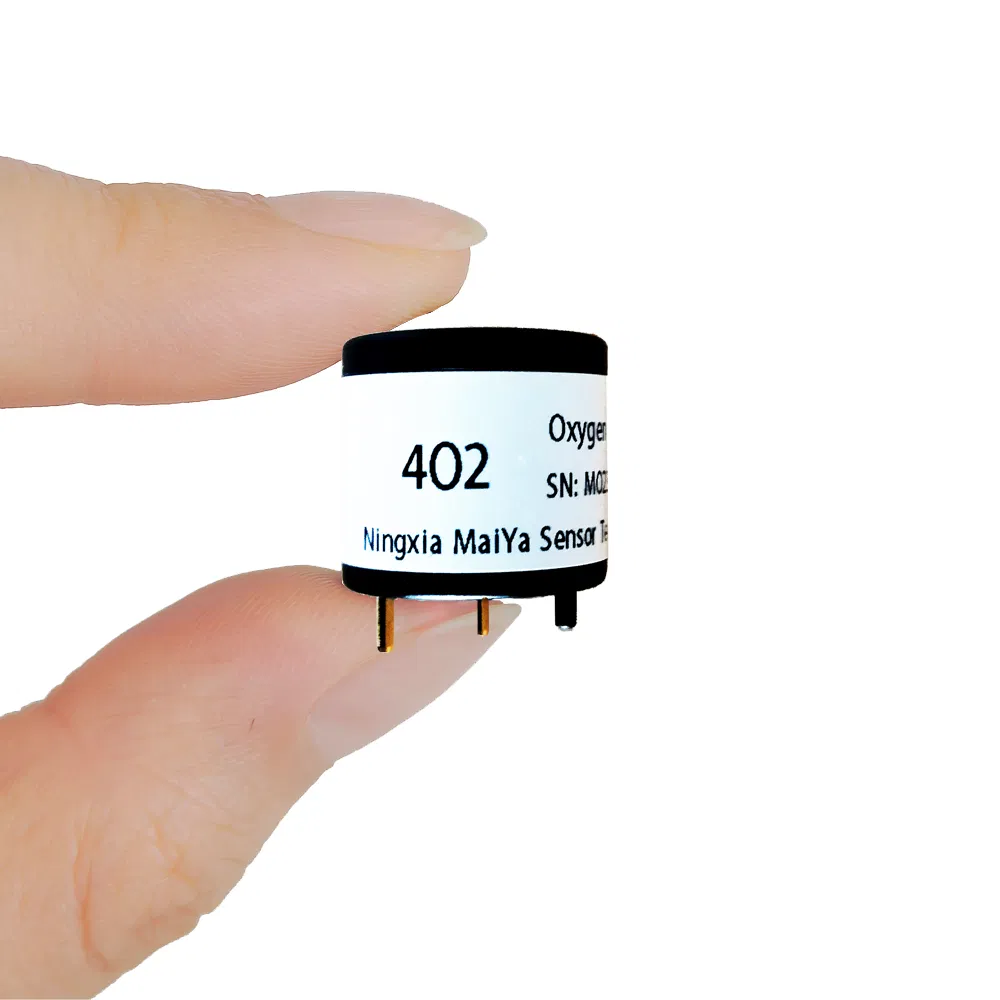

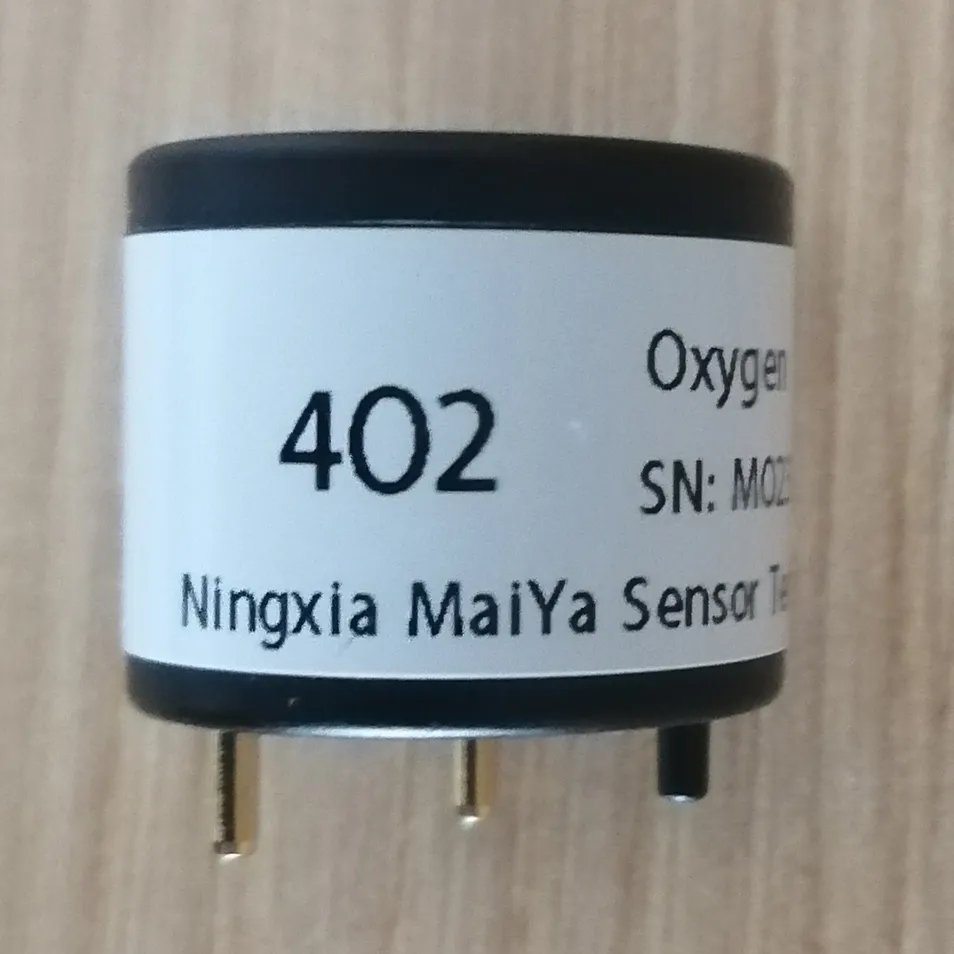

The 4O2 oxygen sensor is a galvanic cell-type sensor. It utilizes the reduction reaction of oxygen at the working electrode and the corresponding reduction reaction of the cathode material to generate an electrical current.
The magnitude of this current is proportional to the oxygen concentration, allowing the oxygen concentration to be determined with high reliability by measuring the current output.
Advanced sensing technology delivers exceptional measurement precision with minimal deviation rates.
Ultra-fast detection capabilities enabling immediate alerts and quick decision-making.
Broad detection range reduces system complexity and simplifies maintenance costs.
| PERFORMANCE CHARACTERISTICS | |
|---|---|
| Measure Gas | Oxygen (O2) |
| Measuring Range | 0-25%VOL |
| Overload | 30%VOL |
| Sensitivity | 3.8-5.7 uA/vol% |
| Zero Drift | <0.2%vol |
| Resolution | 0.1%VOL |
| Response Time (T90) | <10s |
| Linearity | Linear |
| ENVIRONMENTAL & LIFE | |
| Operating Temperature | -40 to +50℃ |
| Relative Humidity | 15%-95%RH (non-condensation) |
| Operating Pressure | 1±0.1 Standard Atmospheric pressure |
| Long-term Output Drift | <5% Every year |
| Expected Operating Life | 24 Months In The Air |
| Warranty Period | 12 Months |
