Customization: Available
Type: Handheld Thermal Camera
Operate Method: Manual
Send Inquiry

Product Description

Basic Specifications
Model
CX200 Pro+
Infrared Resolution
256×192
Super Resolution
320×240 (AI Real-time)
Frame Rate
25Hz
NETD
<40mk (25°c, F1.0)
Battery Life
About 15 Hours
Weight
About 520g
Spectral Band
7.5~14μm
Product Description

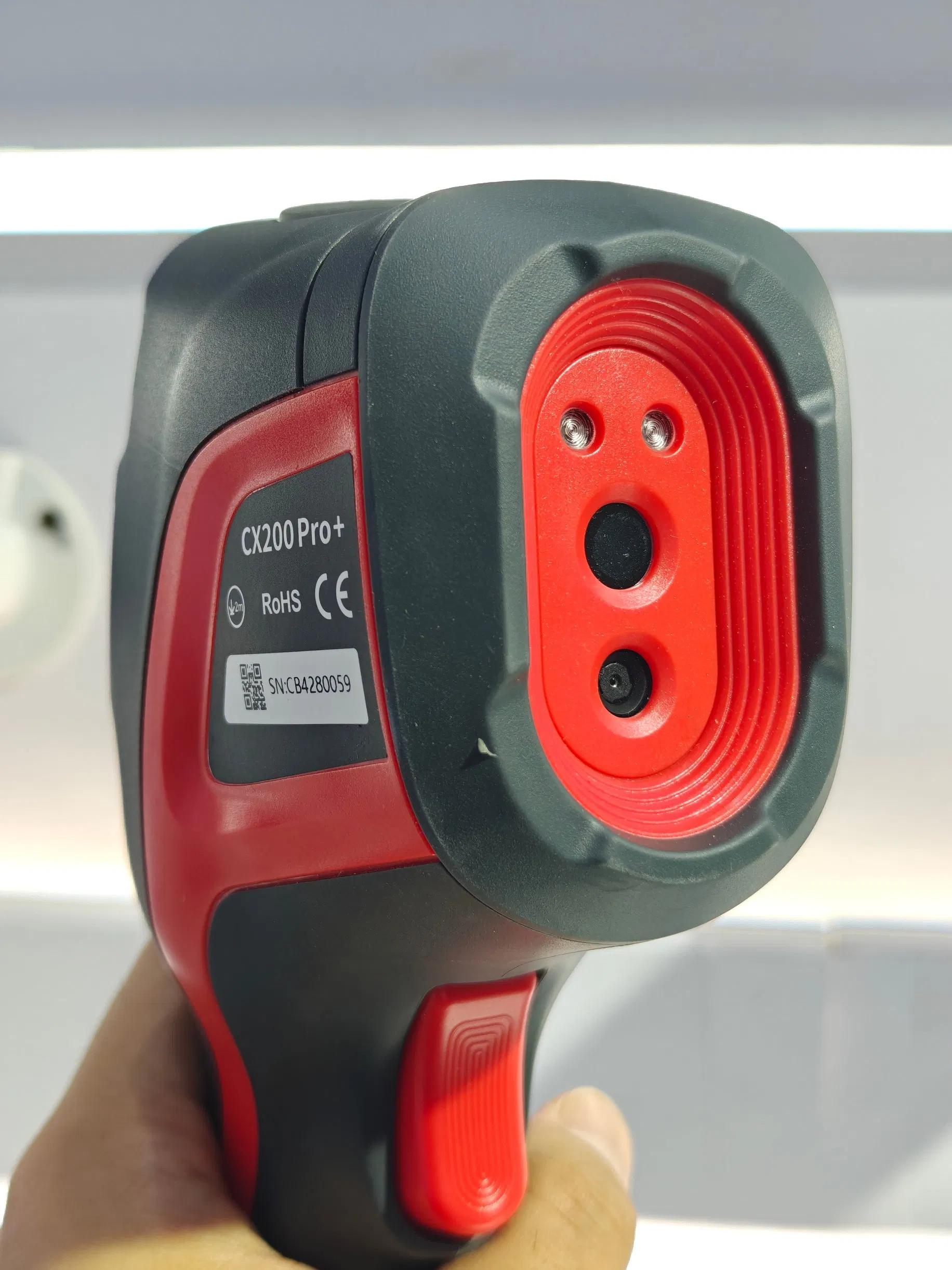

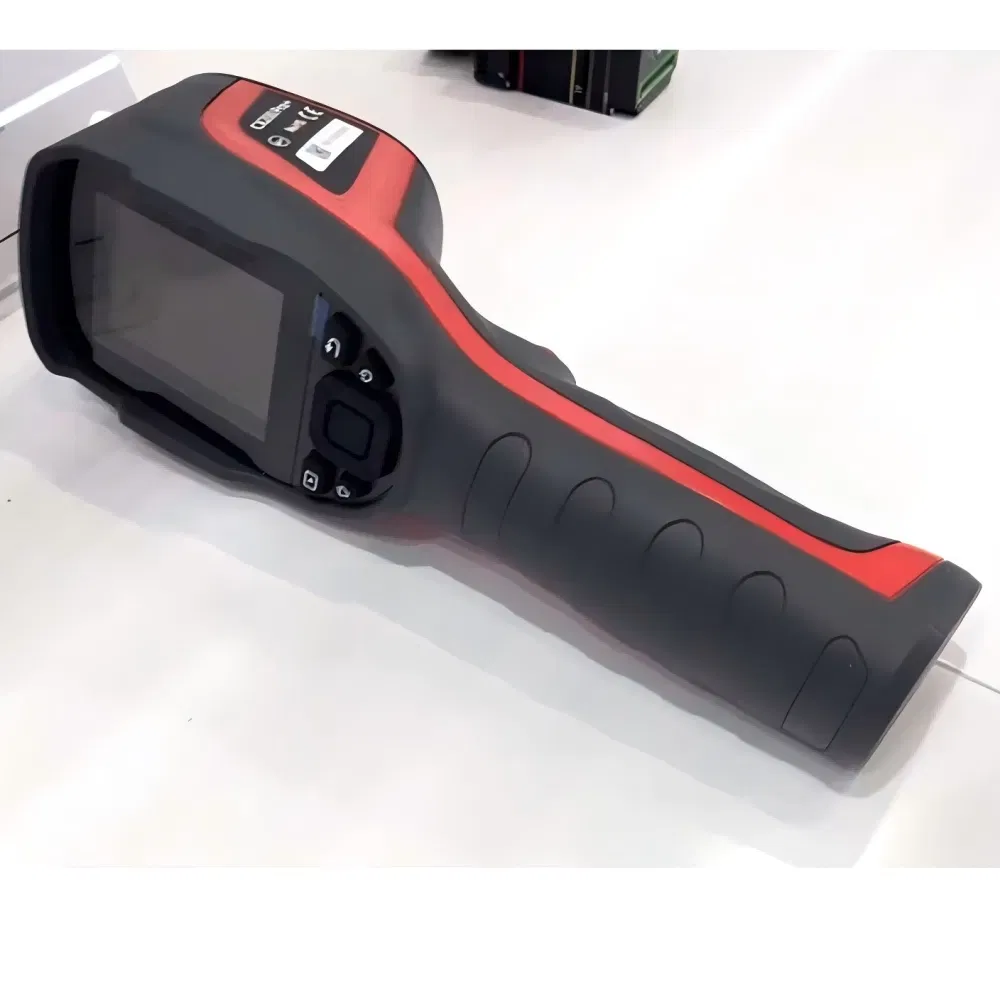

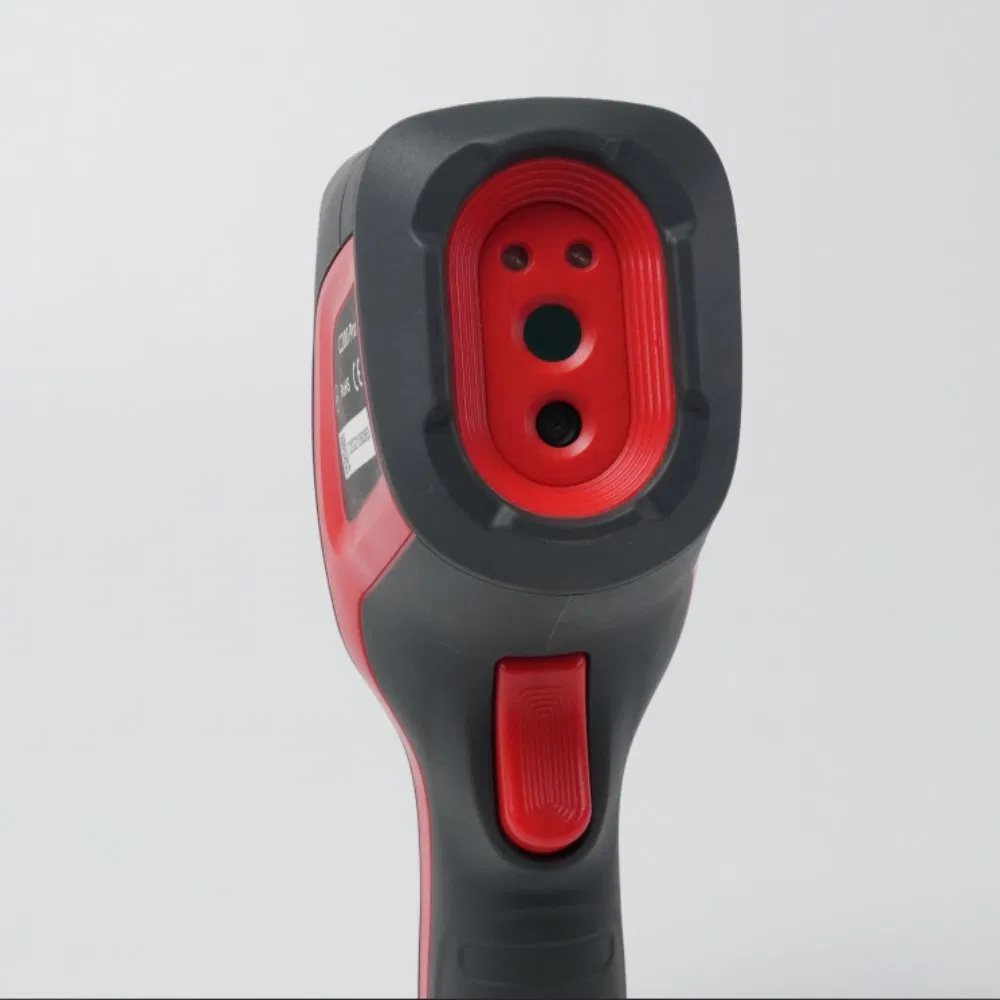

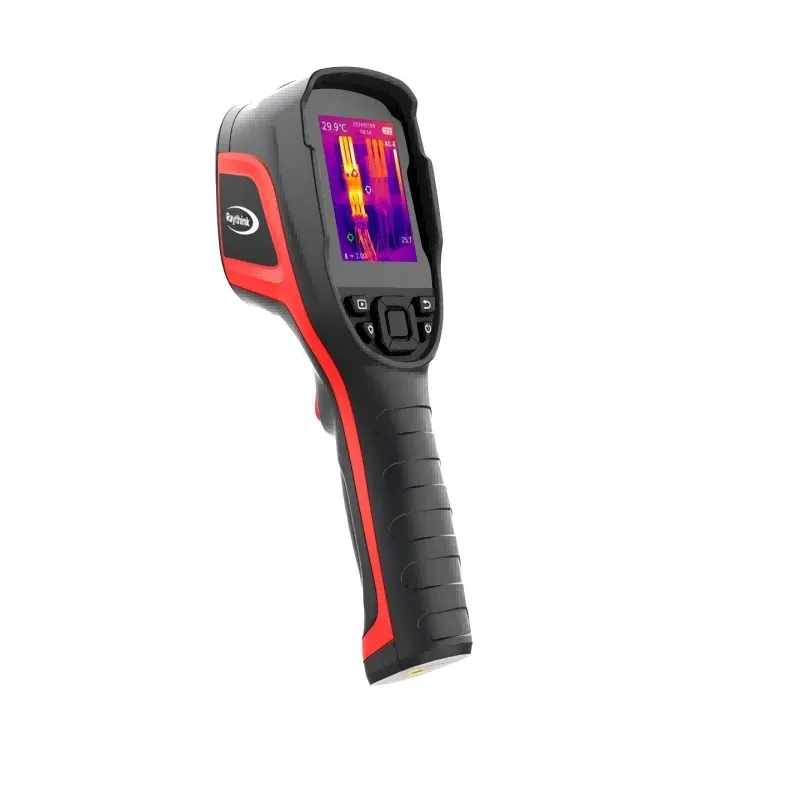

Handheld Thermal Camera
Equipped with a high-sensitivity infrared detector with a resolution of 256×192, based on an intelligent image algorithm, the CX200 Pro+ handheld thermal camera can generate clearer and sharper thermal images. The product has been completely upgraded to give users a better working experience.
Product Highlights
  • ◈
    Image+: Superior Thermal Clarity Equipped with a self-developed 12μm 256×192 uncooled infrared detector. NETD as low as 40mK captures smaller temperature differences. AI real-time super-resolution technology boosts visual detail to 320×240.
  • ◈
    Feature+: Professional Industrial Control 6s startup duration and smooth response. Supports automatic switching of measurement modes and built-in video recording for efficient analysis.
  • ◈
    Performance+: Rugged and Durable IP54 waterproof and dustproof with 2m drop protection. 15-hour battery life and built-in 32GB memory (expandable to 128GB).
  • ◈
    Software+: Full Ecosystem Support Complete secondary analysis software for PC and real-time transmission/analysis apps for mobile devices (iOS/Android).
Technical Specifications
Thermal Imaging
Detector Type12μm uncooled infrared detector
Spectral Band7.5~14μm
FOV / IFOV56°×42° / 3.75mrad
Measurement Range-20°C ~ +550°C
Accuracy±2°C or ±2% of readings
Imaging & Display
Display2.8 inch, 320×240
Visible Light Camera2 Megapixels
Image ModeInfrared, visible light, PIP, dual-spectrum fusion
System & Storage
StorageStandard 32GB MicroSD, up to 128G
AlarmHighest/Lowest temperature alarm; Pop-ups, flash prompts
Protection RatingIP54, 2m Drop Resistance
Wide Applications

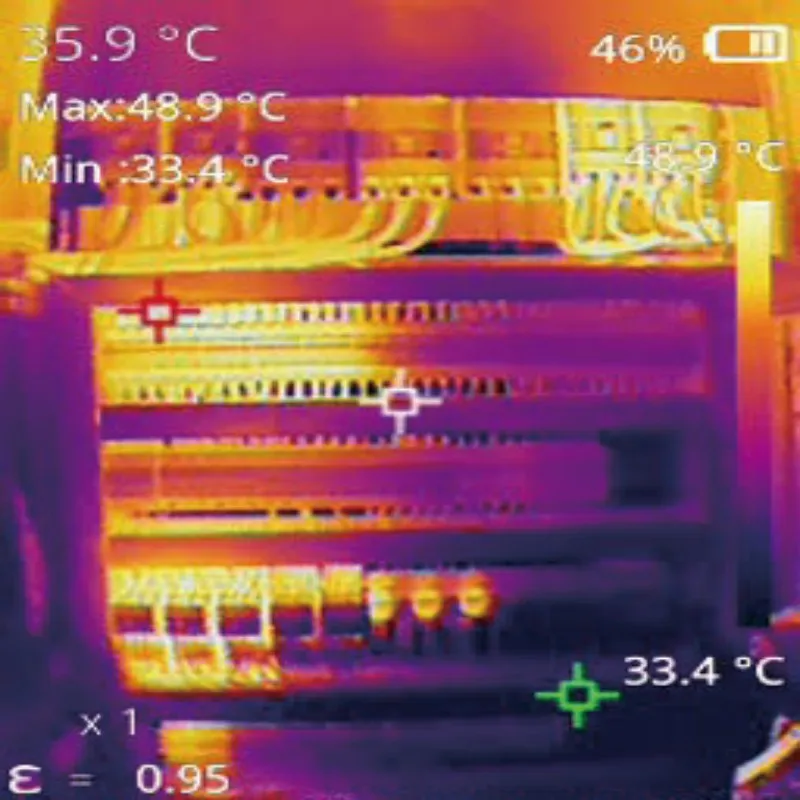

Power Maintenance
Power Maintenance

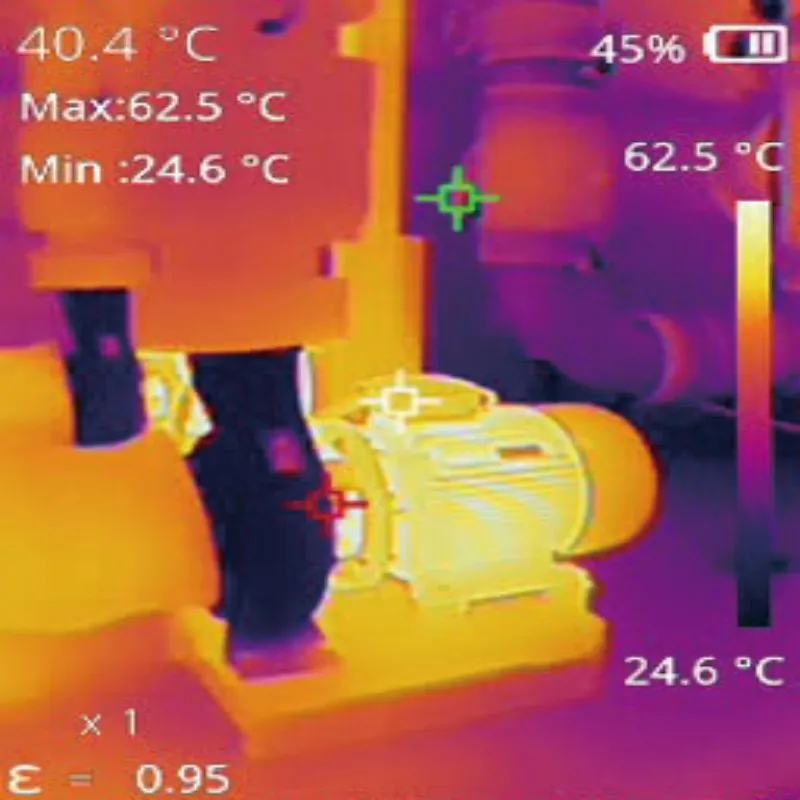

Equipment Inspection
Equipment Inspection

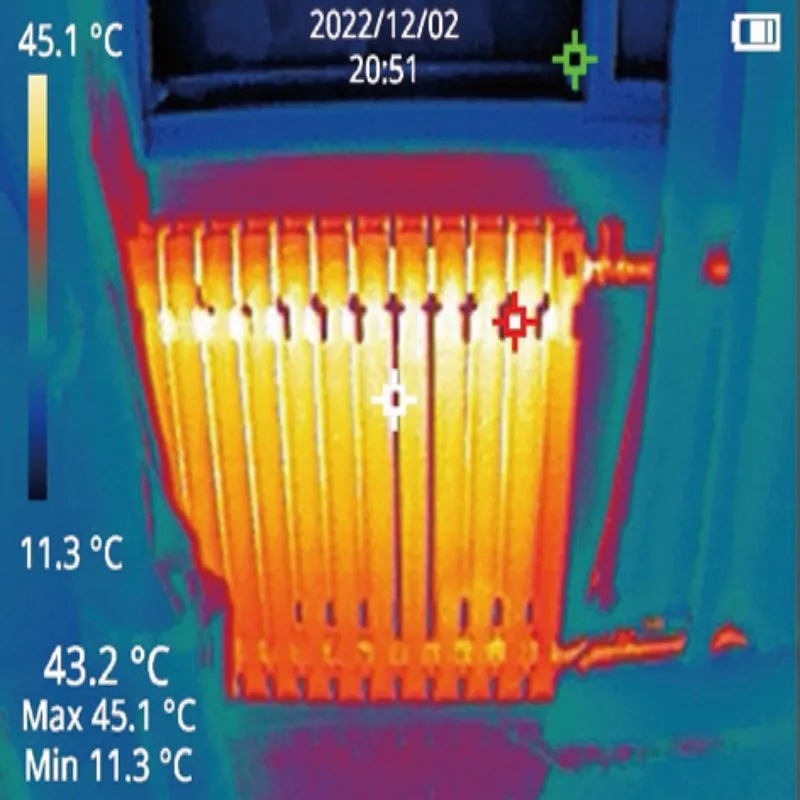

HVAC Leak Detection
HVAC Leak Detection

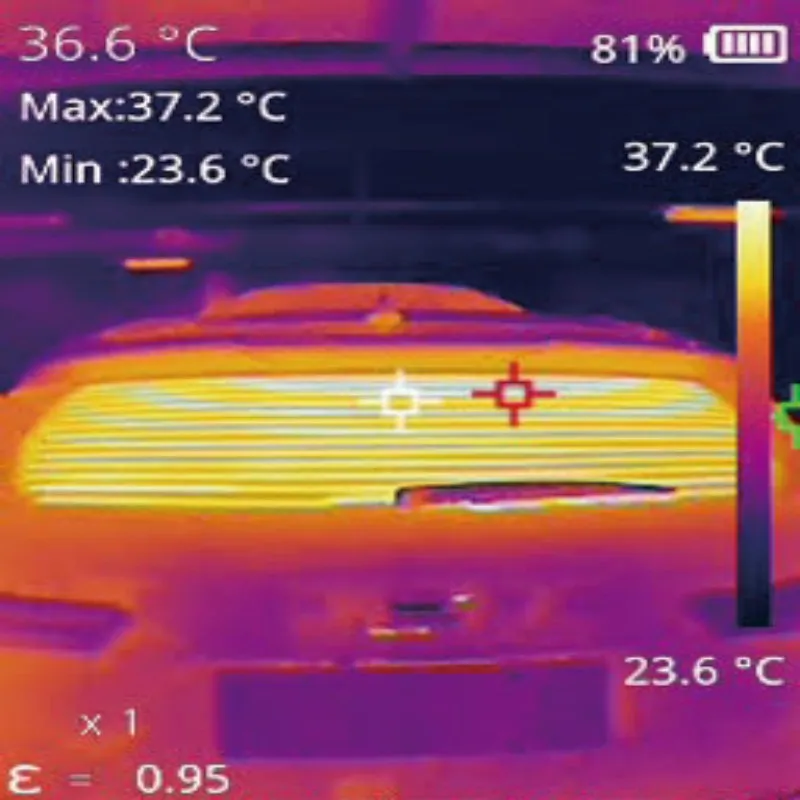

Automotive Maintenance
Automotive Maintenance
Manufacturing Excellence
Frequently Asked Questions
How can we guarantee product quality?

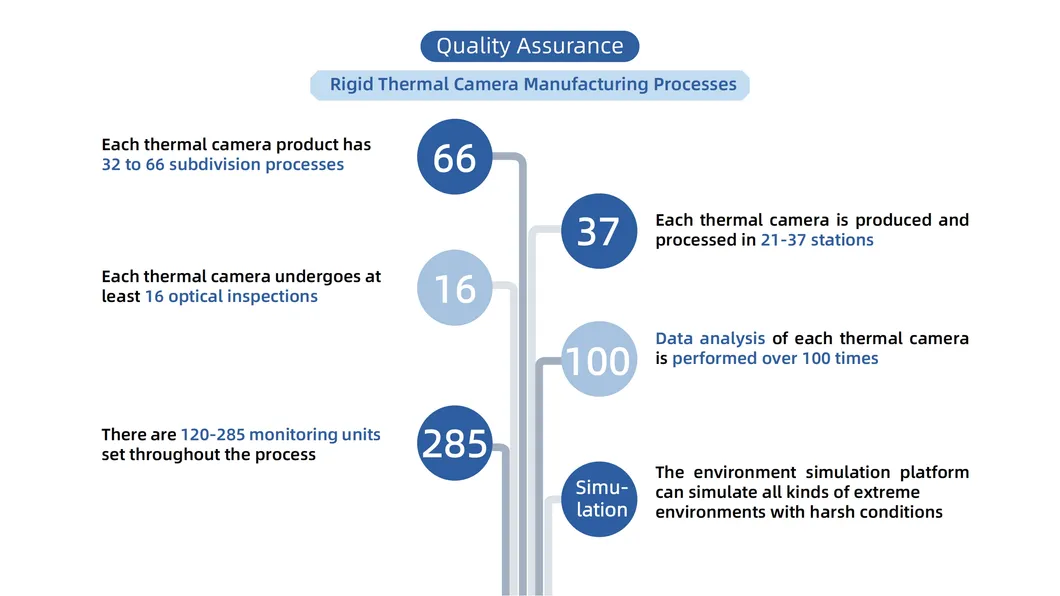

We utilize professional infrared detector chip manufacturing, rigid thermal camera manufacturing processes, a perfect quality management system, and a CNAS certified reliability test platform.
What is the standard delivery time?
For small orders, it usually takes 7 working days. For bulk or OEM orders, please contact our team to confirm specific shipping timelines.
What are your payment terms?
Our accepted payment terms include L/C, T/T, D/P, Western Union, Paypal, and Money Gram.
What is the product warranty policy?
Full thermal camera products come with a 2-year warranty, while our specialized detectors are covered by a 10-year warranty.
Is technical support available after purchase?
Yes, we provide lifetime technical support. Our engineers typically respond to technical inquiries within 24 hours.
What is the Minimum Order Quantity (MOQ)?
The MOQ depends specifically on the product model. Please reach out for details regarding the CX200 Pro+ or other models.
