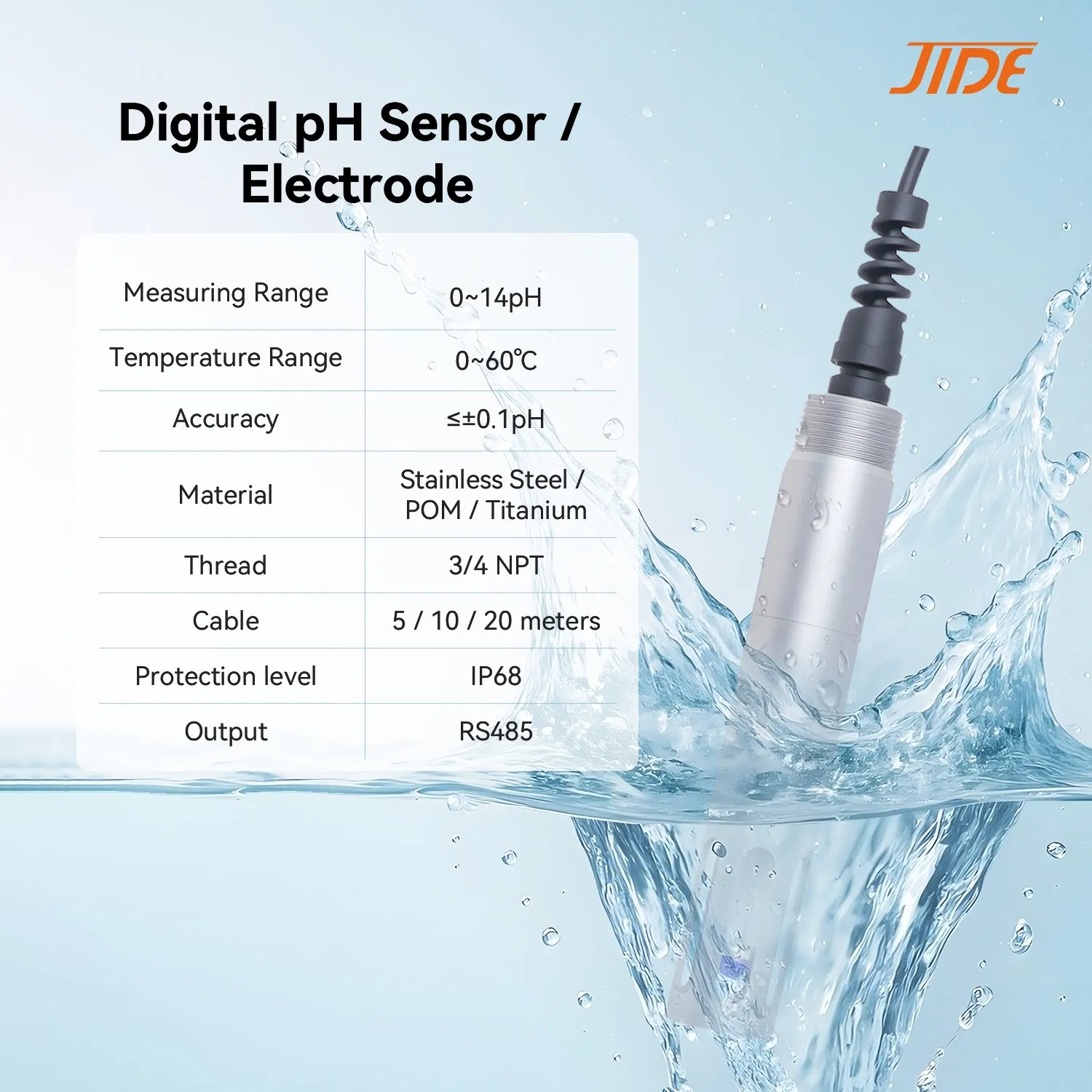

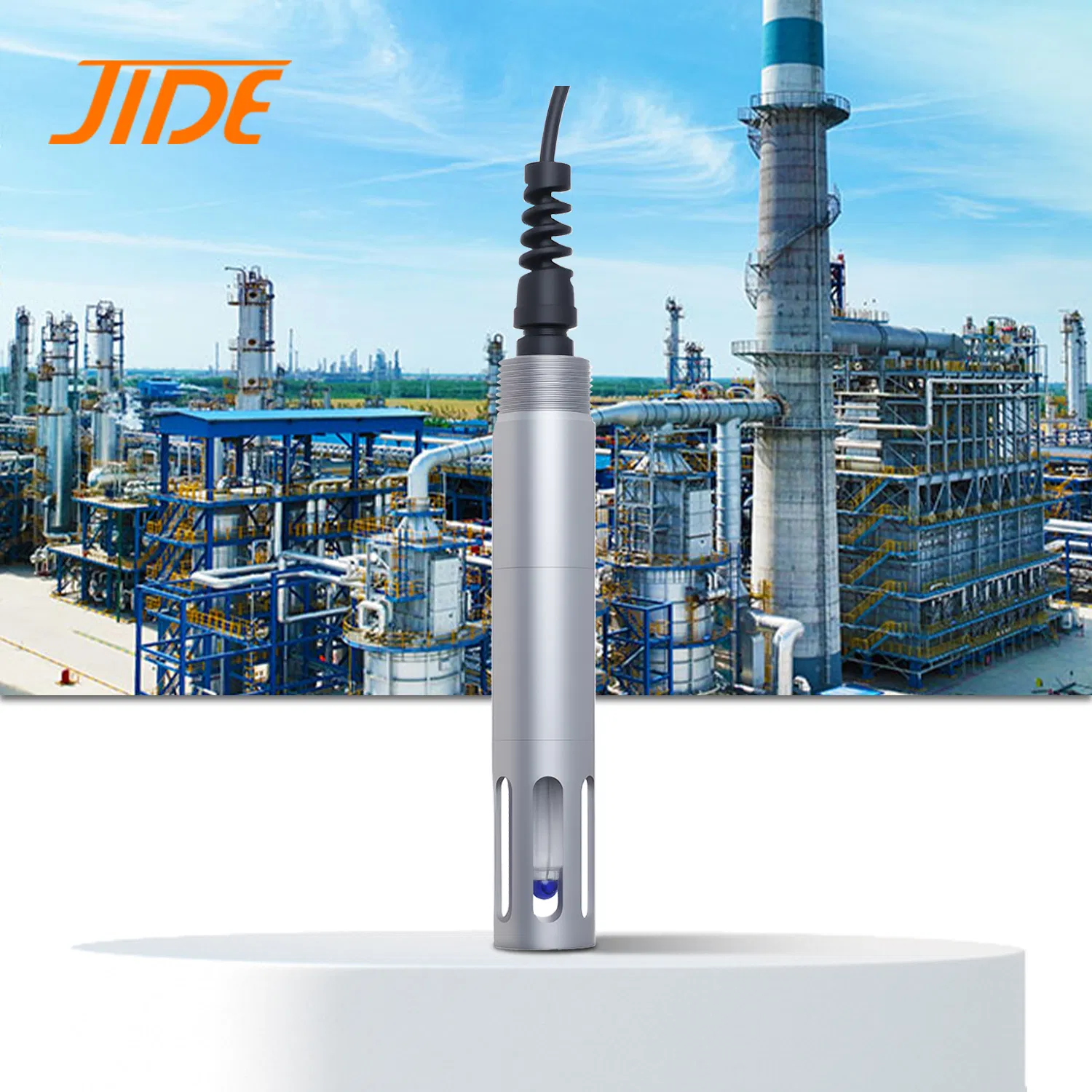

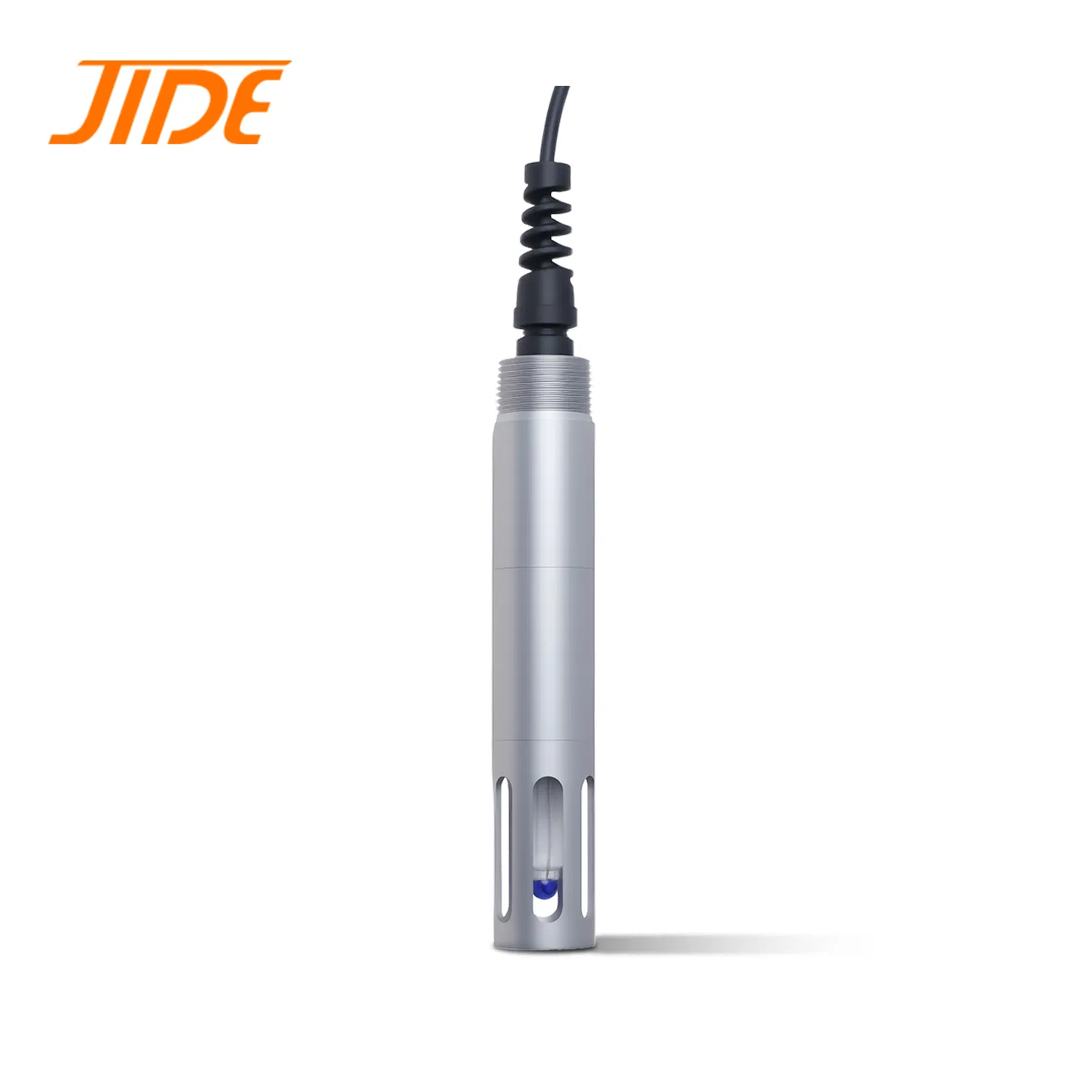

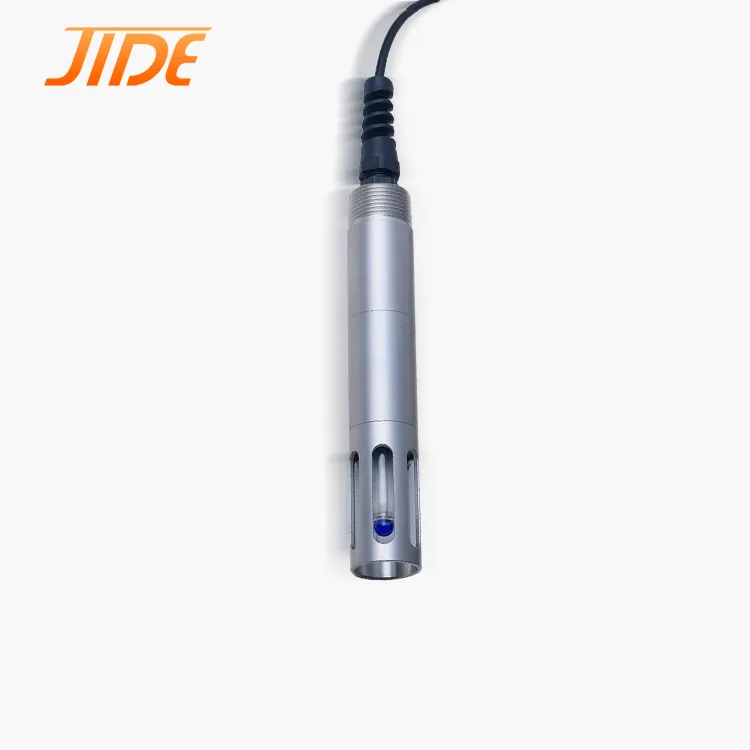

The online pH analyzer is an integrated design, using industrial online electrodes, digital and intelligent sensor design concepts. The instrument realizes functions such as electrode signal detection, temperature detection and automatic compensation, and digital signal conversion. RS485 signal output is convenient for network system integration and is not limited by transmission distance.
| Parameter | Specifications |
|---|---|
| Model | ECA-pH |
| Measurement parameters | pH, temperature |
| Measurement method | Glass electrode method |
| Measuring range | pH: 0-14; Temperature: (0-60)°C |
| Accuracy / Repeatability | ≤±0.1pH |
| Resolution | 0.01pH |
| Response time | ≤10s |
| Protection level | IP68 |
| Communication | RS485 (ModbusRTU) |
| Power supply | (12-24)VDC |
| Material | Titanium alloy, stainless steel, POM |

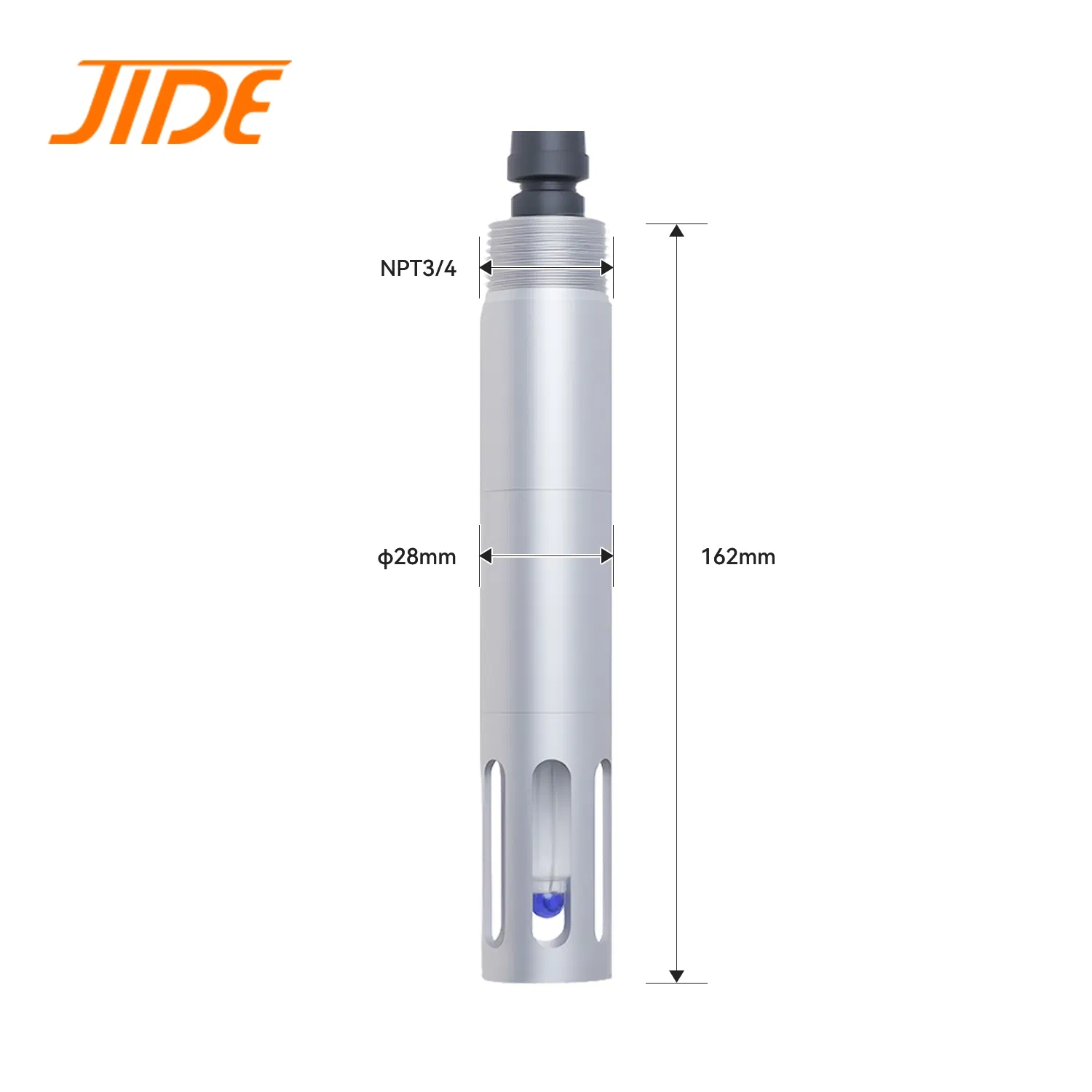

| Size | 162mm × φ28mm |

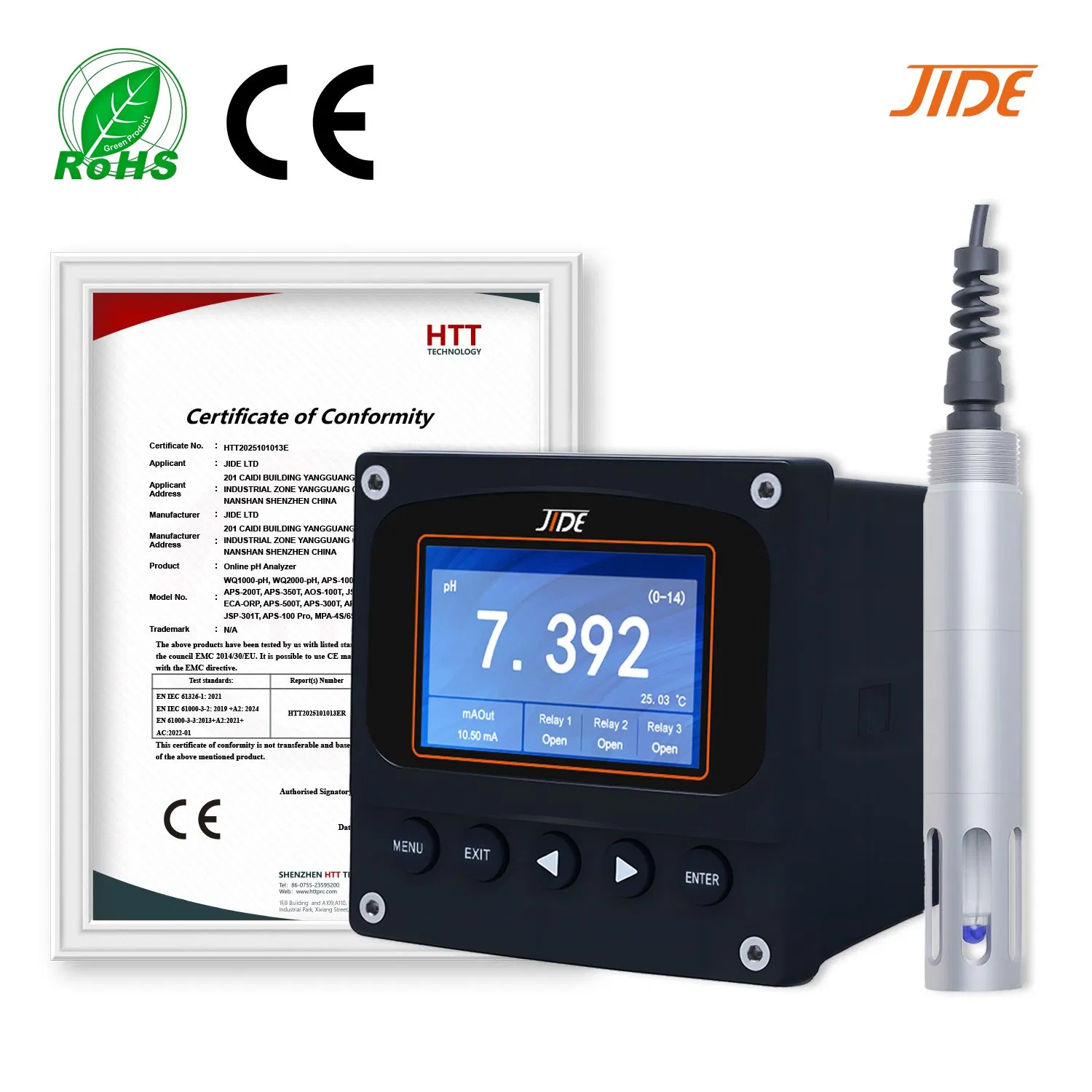

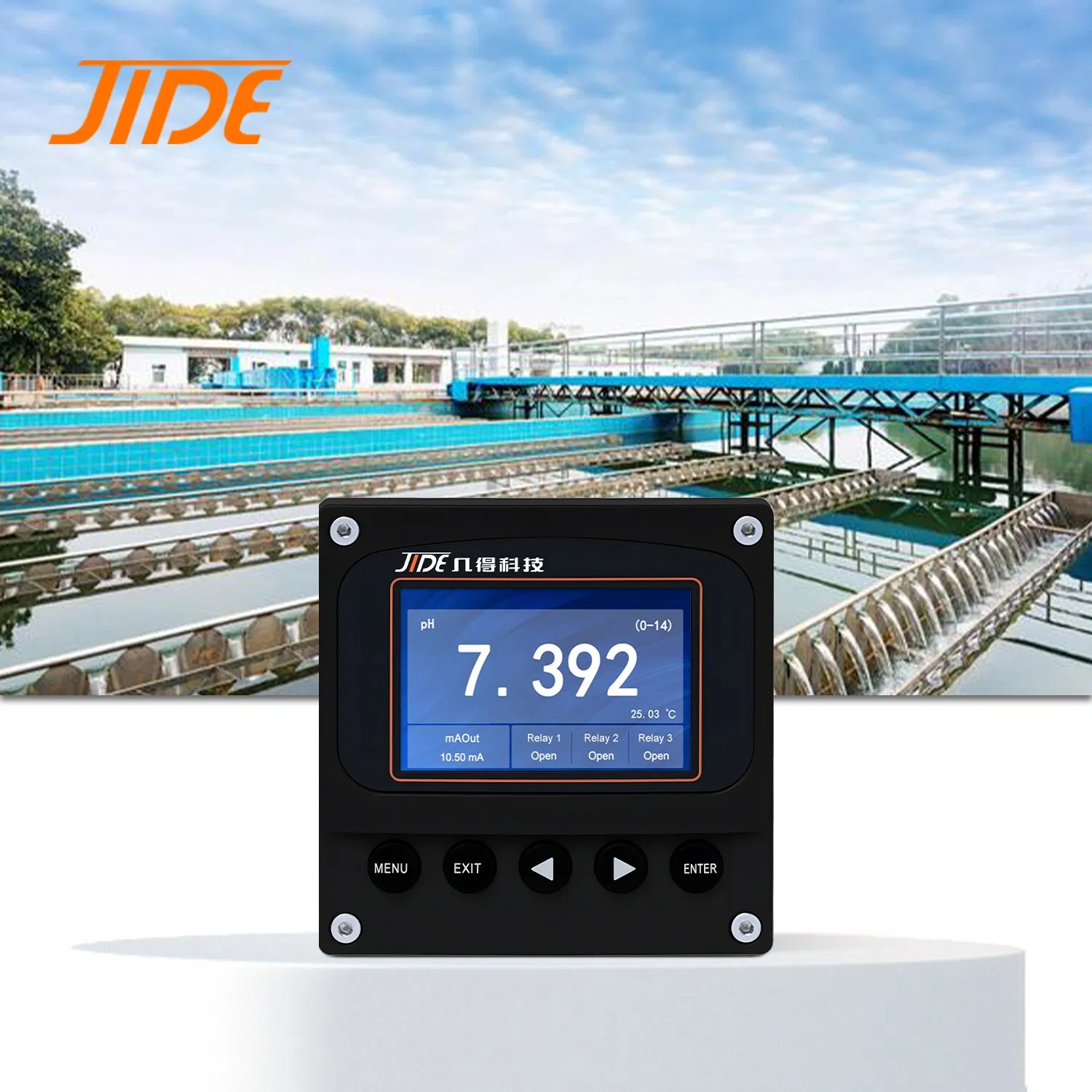

| Model | WQ1000 |
| Display | 3-inch color TFT display (800*480 resolution) |
| Power Supply | (85-265)VAC / 24VDC |
| Operating Temp | -10°C to 60°C |
| Relays | 3 Channel SPDT Relay (250VAC, 30VDC/MAX 5A) |
| Analog Output | 1 channel (4-20) mA |
| Digital Output | 1 Channel RS485 output |
